Powersmart PS8224 User manual
2
3
CONTENTS
Technical data…...………………………………………………………... 3
General safety rules…….……………………………………………….... 4
Electrical information……………………………………………………. 6
Knowing your electric blower vacuum mulcher..………….….………… 7
Assembly instruction…………………………………………….………. 8
Operating instruction…………………………………………………....... 9
Maintenance……………………………………………………..……….. 11
Exploded view…………………………………………………………… 12
Parts list…………………………………………………………………... 13
Warranty…………………………………………………………………. 14
TECHNICAL DATA
Electric 12 Amp Blower Vacuum Mulcher Model # PS8224
Motor: 120V,60Hz, 12Amp
Variable speed: 11500-15500 rpm
Air speed: 60-186 MPH
CFM: 554 CFM Max.
Capacity: 2 Bushels
Package dimensions (L x W x H): 34.3x7.5 x9.9 inches
Weight: 9.92 lb.
Warning! We strongly recommend that this item not be modified and/or used for any application
other than that for which it was designed. If you have any questions relative to its application, do not
use the equipment until you have consulted us and we have advised you.
Contact PowerSmart at (800)791-9458 M-F 9am-5pm EST
Thank you for purchasing PowerSmart products. Please register online at
www. Amerisuninc.com.
The information will allow us to track your warranty and update on your unit.
Important: Our company does not provide email or personal information to any third party for any
reason. For any questions check our website or call customer service at (800)791 9458.
4
GENERAL SAFETY RULES
TO REDUCE RISK OF INJURY:
Before any use, be sure everyone using this tool reads and understands all safety instructions and other
information contained in this manual.
WARNING: Wear appropriate personal hearing protection during use. Under some
conditions and duration of use, noise from this product may contribute to hearing loss. Save
these instructions and review frequently prior to use and in instructing others.
WARNING: When using electric gardening appliances, basic safety precautions should
always be followed to reduce risk of fire, electric shock, and personal injury, including the
following:
•KEEP CHILDREN AWAY-All visitors, children and pets should stay at a safe distance from the
work area.
•DRESS PROPERLY-Don’t wear loose clothing or jewelry. Wear protective hair covering to
contain long hair. They can be caught in moving parts. Use of rubber gloves and substantial footwear
is recommended when working outdoors.
•USE SAFETY GLASSES-Wear safety glasses with side shields or goggles that are marked to
comply with ANSI Z87.1 standard when operating this product. Use face or dust mask if
environment is dusty.
•GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the
circuit(s) or outlet (s) to be used for the blower vac. Receptacles are available having built -in GFCI
protection and may be used.
•USE RIGHT APPLIANCE-Do not use appliance for any job except that for which it is intended.
•EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension
cord be sure it is heavy enough to carry the current your product will draw. An undersized extension
cord will cause a drop in line voltage resulting in loss of power and overheating. The following table
shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use
the next heavier gage. The smaller the gage number, the heavier the cord.
WARNING: Use outdoor extension cords marked SW- A, SOW –A，STW-A,
STOW-A,SJW-A,SJTW-A, or SJTOWA. These cords are rated for outdoor use and reduce
the risk of electric shock.
•It is possible to tie more than one extension cord in a knot to prevent them from
becoming disconnected during use. Make the knot as shown, then connect the plug
end of the extension cord into the receptacle and the other end into the plug on the
blower.
•POLARIZED PLUGS-To reduce the risk of electric shock, this product has a polarized plug.
Polarized connections will fit together only one way. Make sure that the receptacle end of the
extension cord has large and small blade slot widths. If the plug does not fit fully into the extension
cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord
5
does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not
change the plug on the tool or the extension cord in any way.
•DOUBLE INSULATION-Double Insulation is a concept in safety in electric power tools, which
eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are
isolated from the internal metal motor components with protecting insulation. Double insulated tools
do not need to be grounded.
NOTE: The double insulated system is intended to protect the user from shock resulting from a break
in the tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock.
•DISCONNECT BLOWER from the power supplywhen not in use or when servicing or cleaning. Do
not leave unattended.
•AVOID DANGEROUS ENVIRONMENTS-Don’t use Blower in rain, damp or wet locations. Do
not operate Blower in gaseous or explosive atmospheres. Motors in these tools normally spark, and
the sparks might ignite fumes.
•AVOID UNINTENTIONAL STARTING –Don’t carry Blower with finger on switch. Be sure
switch is off when plugging in.
WARNING: Risk of personal injury and/or unit damage, Do Not manually place material
into vacuum tube while operating unit. Keep both hands n handles when power is on.
•DO NOT ATTEMPT to remove material or hold material to be vacuumed when Blower is on. Make
sure Blower switch is off when clearing jammed material from vacuum tube. Do not pick up Blower
by the tube or attempt to carry unit by the blower/vacuum tube.
WARNING: Moving parts coast after turn off.
•DON’T FORCE BLOWER -It will do the job better and with less likelihood of a risk of injury at the
rate for which it was designed.
•STAY ALERT-Watch what you are doing. Use common sense. Do not operate blower when you are
tired or under the influence of drugs, alcohol or medications.
•STORE IDLE BLOWER INDOORS-When not in use, Blower should be stored indoors in a dry and
high or locked-up place, out of reach of children.
•MAINTAIN BLOWER WITH CARE-Keep blower tube clear and clean for best performance and
to reduce the risk of injury. Inspect extension cord periodically and replace if damaged. Keep
handles dry, clean and free from oil and grease.
WARNING: California Proposition 65: This product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
WARNING: Some dust and debris created by the use of this tool could contain chemicals
known to the State of California to cause cancer and birth defects or other reproductive harm.
Some examples of these chemicals are:
6
-chemicals in fertilizers
-compounds in insecticides, herbicides, and pesticides
-arsenic and chromium from chemically treated lumber
•Your risk from exposure to these chemicals varies, depending on how often you do this type of work.
To reduce your exposure, work in a well-ventilated area and with approved safety equipment such as
dust masks that are specially designed to filter out microscopic particles.
ELECTRICAL INFORMATION
Guidelines for using extension cords
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one
heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. The table below shows the correct size to be used
according to cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(When using 120 V only)
Ampere Rating
Total Length of Cord in feet
More Than
Not More Than
25
50
100
150
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Recommended
Make sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and should be
protected with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the
switch is in the OFF position and the electric current is rated the same as the current stamped on the motor
nameplate. Running at a lower voltage will damage the motor.
WARNING: Do not expose to rain or use in damp locations.
7
KNOWING YOUR ELECTRIC BLOWER VACUUM MULCHER
1
Shoulder Strap
2
On/Off Trigger Switch
3
5
7
9
11
13
15
Impeller Access Release
Collection Bag
Operation Manual
Auxiliary Handle
Auxiliary Handle Adjusting Button
Wheel
Rake
4
6
8
10
12
14
16
Collection Bag Holder
Vacuum/Blower Tube
Strap Ring
Speed Controller
Vacuum/Blow Selector
Rake Knob
Impeller Cover
17
Height Adjusting Button
Lever
8
ASSEMBLY INSTRUCTION
WARNING: Always switch off tool and unplug cord from outlet before removing vacuum
bag for emptying.
HEIGHT ADJUSTMENT
Press the height adjusting button (A) and slide the Vacuum/Blower tube (B) to
desired length. (Fig. 1) It can be adjusted up to 10-1/2”.
SHOULDER STRAP INSTALLATION
Attach the strap clip to the top of main body.(Fig. 2) .With machine on
operation's right hand side, place shoulder strap across chest and over
left shoulder.
FITTING THE COLLECITON BAG
WARNING: Before fitting the collection bag ensure that the Vacuum/Blow selector lever
operates smoothly and that it is not obstructed by debris from the previous USE.
To install the collection bag
Insert the buckle (A) of support frame into the slot of the housing.
Frame will click into position when properly fitted. (Fig. 3A)
To remove the collection bag
Press the spring lever (B) to release the bag. (Fig. 3B)
Fig. 2
Fig. 3A
Fig. 3B
Fig. 1
9

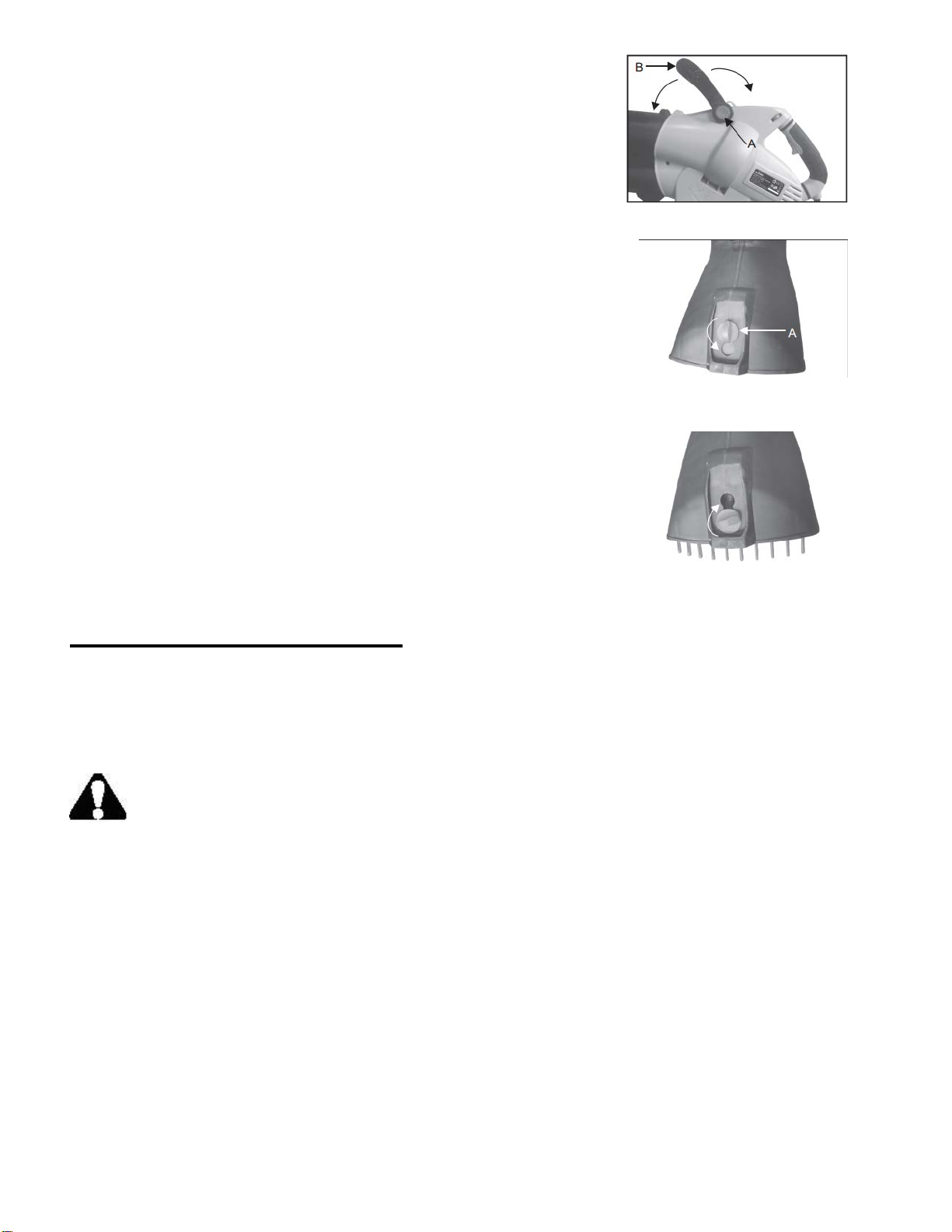

FRONT HANDLE ADJUSTMENT
Press the angle adjusting buttons (A) on the front handle. (Fig. 4)
Adjust the front handle (B) to a comfortable angle.
Release the adjusting buttons and the handle will automatically reset
to lock position.
RAKE ADJUSTMENT
Rotate the rake knob (A) 90°anticlockwise and then the rake will
automatically pup-up. (Fig. 5A)
Lock the knob by rotating 90°clockwise.(Fig. 5B)
OPERATION INSTRUCTION
Starting the Blower/Vacuum/Mulcher
To start the Blower/Vacuum/Mulcher ensure that the Vacuum/Blower tube is fitted correctly and
attach the collection bag. Without the collection bag assembled, you cannot start the
Blower/Vacuum/Mulcher, since serious injury from the fan or flying debris could result.
WARNING: Before selecting either Vacuum or Blower function ensure that the selector
lever operates smoothly and that it is not obstructed by debris from the previous use.
Select either the Vacuum or Blower function using the selector lever on the side of the machine and
press the switch button .If more power is required, slide the speed controller from position 1 to
position max..
Stopping the Blower/Vacuum/Mulcher
To turn of the machine you can simply release the switch button.
Using the Blower/Vacuum/Mulcher
Do not attempt to pick up wet debris, allow fallen leaves etc., to dry out before using the
Blower/Vacuum/Mulcher. The Blower/Vacuum/Mulcher can be used to blow debris from patios,
paths, driveways, lawns, bushes and borders. It will also pick up leaves, paper, small twigs and wood
Fig. 4
Fig. 5A
Fig. 5B
10
chippings. When using the Blower/Vacuum/ Mulcher in Vacuum mode the debris is sucked up the
suction tube before being ejected into the debris collection bag, as the debris passes through the
suction fan it is partially shredded. The shredded organic debris is ideal to use as mulch around
plants.
WARNING: Any hard objects, such as stones, tin cans glass etc, will damage the suction
fan. Do not use the Blower/Vacuum/Mulcher to suck up water or very wet debris. Never
operate the Blower/Vacuum/Mulcher without the debris collection bag fitted.
BLOWER MODE
Inspect the area to be worked before starting. Remove any objects or debris that could be thrown,
jammed or become entangled in the Blower/Vacuum/Mulcher Select the blow function using the
selector lever on the side of the machine and switch on. With the Blower/ Vacuum/Mulcher resting
on its wheels, move the Blower/Vacuum/Mulcher forward directing the nozzle at the debris to be
cleared.
Alternatively hold nozzle just above the ground and swing the machine from side to side. Moving
forward and direct the nozzle at the debris to be cleared. Blow the debris into a convenient heap then
use the vacuum function to collect the debris.
VACUUM MODE
Inspect the area to be worked before starting. Remove any objects or debris that could be thrown,
jammed or become entangled in the Vacuum-Blower. Select the vacuum function using the selector
lever on the side of the machine and switch on. With the Blower/Vacuum/Mulcher resting on its
wheels move the Blower/Vacuum/Mulcher forwards directing the nozzle at the debris to be
collected. Alternatively with the Blower/Vacuum/Mulcher held just above the ground swing the
machine from side to side, moving forwards and directing the nozzle at the debris to be collected. Do
not force the nozzle into the debris as this will block the suction tube and reduce the efficiency of the
machine.
Organic materials such as leaves contain a large amount of water that can cause them to stick to the
inside of the suction tube. To reduce sticking the material should be left for a few days to dry out.
11
MAINTENANCE
Our machines have been designed to operate over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper machine care and regular cleaning.
Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
Check the collection bag frequently for wear or deterioration.
Replace worn or damaged parts.
Use only genuine replacement parts and accessories
Store the appliance only in a dry place.
Cleaning
Keep the ventilation slots of the machine clean to prevent overheating of the machine.
Regularly clean the machine housing with a soft cloth, preferably after each use.
Keep the ventilation slots free from dust and dirt.
If the dirt does not come off use a soft cloth moistened with soapy water.
Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic
parts.
12
EXPLODED VIEW
13
PARTS LIST
Item
Stock#
Description
Qty
Item
Stock#
Description
Qty
1
PS8224-001
supply cord
1
34
PS8224-034
adjusting knob
1
2
PS8224-002
hook
1
35
PS8224-035
under right air duct
1
3
PS8224-003
cord sheath
1
36
PS8224-036
torsional spring
1
4
PS8224-004
cord clamp plate
1
37
PS8224-037
adjusting button
1
5
PS8224-005
screw
2
38
PS8224-038
screw
30
6
PS8224-006
internal wiring 4A
1
39
PS8224-039
dust bag
1
7 PS8224-007 terminal strip 1
40 PS8224-040 knob 1
8 PS8224-008 internal wiring 3A 1
41 PS8224-041 knob bolt 1
9 PS8224-009 switch button 1
42 PS8224-042 rear cover 1
10
PS8224-010
switch
1
43
PS8224-043
locking nut
1
11
PS8224-011
left handle
1
44
PS8224-044
right housing
1
12
PS8224-012
left housing
1
45
PS8224-045
nut
1
13
PS8224-013
governor
1
46
PS8224-046
locking nut
1
14
PS8224-014
internal wiring 5A
1
47
PS8224-047
blade
1
15
PS8224-015
internal wiring 6A
1
48
PS8224-048
fan
1
16
PS8224-016
switch
1
49
PS8224-049
sleeve
1
17 PS8224-017 sleeve 1
50 PS8224-050 motor 1
18 PS8224-018 left spin button 1
51 PS8224-051 switching button 1
19 PS8224-019 spring 1
52 PS8224-052 wind shield 1
20 PS8224-020 right spin button 1
53 PS8224-053 shock pad 2
21
PS8224-021
front handle
1
54
PS8224-054
right handle
1
22
PS8224-022
front handle holder
1
55
PS8224-055
dust bag holder
1
23
PS8224-023
sponge sleeve
1
56
PS8224-056
bolt
1
24
PS8224-024
washer23
1
57
PS8224-057
looking nut
1
25
PS8224-025
screw
2
58
PS8224-058
label
1
26
PS8224-026
upper air duct
1
59
PS8224-059
label
1
27 PS8224-027 strap 1
60 PS8224-060 label 1
28 PS8224-028 under left air duct 1
61 PS8224-061 hook 2
29 PS8224-029 wheel cover 2
62 PS8224-062 terminal 4
30 PS8224-030 screw 2
63 PS8224-063 terminal 2
31
PS8224-031
wheel
2
64
PS8224-064
heat shrink tube
4
32
PS8224-032
spring
2
65
PS8224-065
heat shrink tube
2
33
PS8224-033
rake
1
14
TWO (2) YEARS LIMITED WARRANTY
PowerSmart®is committed to building tools that are dependable for years. Our warranties are consistent with our
commitment and dedication to quality.
TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE.
PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be
free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days
for all Power Smart Products, if the tool is used for professional or commercial use.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Two (2) Years Limited
Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or
replacement of parts, without charge, which are defective in material or workmanship and which have not been
misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Center. To make a
claim under this Limited Warranty, you must return the entire power tool product; transportation prepaid, to Power
Smart Include a legible copyof the originalreceipt, which lists the date of purchase (month and year) and the name
of the company purchased from.
THIS LIMITED WARRANTY DOES NOT APPLY TO ANY ACCESSORY ITEMS INCLUDED WITH THE
TOOL SUCH AS CIRCULAR SAW BLADES OTHER RELATED ITEMS OR TO ANY REPLACEMENT
PARTS LISTED UNDER MAINTENANCE.
ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF
PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE
OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN
CANADA AND FROM COUNTRY TO COUNTRY.
For questions / comments, technical assistance or repair parts –
Please call toll free at: 1-800-791-9458 (M-F 9am – 5pm EST)
Email: support@amerisuninc.com
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
Table of contents
