PowerStream PST-DCN50-II User manual

Operating Manual
Intelligent Digital
Battery Charger
PST-DCN50-II
Microprocessor controlled, high-performance, all-purpose charger/discharger for 3-12 cells
NiCd/NiMH, 1-4 series Li-ion/Li-polymer, 6V and 12V lead-acid (Pb) batteries and
battery-pack. Charge current up to 2.5A.
March 2007
PowerStream.com

Thank you for choosing the Intelligent Digital Battery Charger/Discharger DCN50-II.
You get a rapid charger/discharger that is computerized with a high performance
microprocessor and specialized operating software. It can maintain your battery at its best
condition and also control them safely.
Please read this entire operating manual completely and attentively as it contains a
wide variety of specific programming and safety information.
zSpecial features
-High-power and high-performance circuit
DCN50-II employs the circuit that has maximum output power of 50W .As a result it
can charge or discharge up to 12 cells of NiCd/NiMH, 4 series of Li-ion/poly and 6/12V
Lead-acid batteries with maximum current of 2.5A.
- Optimized operating software
When charging or discharging,DCN50-1 has an ‘AUTO’ function that set the charging
voltage automatically for NiMH/NiCd batteries，it can prevent from over-charging can lead
to an explosion by users fault. Every program in the unit is controlled with mutual links and
communicates for every possible error so it introduces a maximum safety. These can be
set at users option.
- Maximum safety
Delta-peak sensitivity: The automatic charge termination program works on the
principle of the Delta-peak voltage detection. The charge monitors the voltage curve and
assessment of the peak with the charging time increment. This indicates the terminal point
of charging accurately.
Input power monitor: To protect the car battery using as input power from being
damaged the voltage of it always monitored. If it drops below the lower limit the process
will be ended automatically.
Fault condition protection: This device will not start operating when “battery polarity
reverse”, “battery wire opened” and “battery or terminals shorted”.

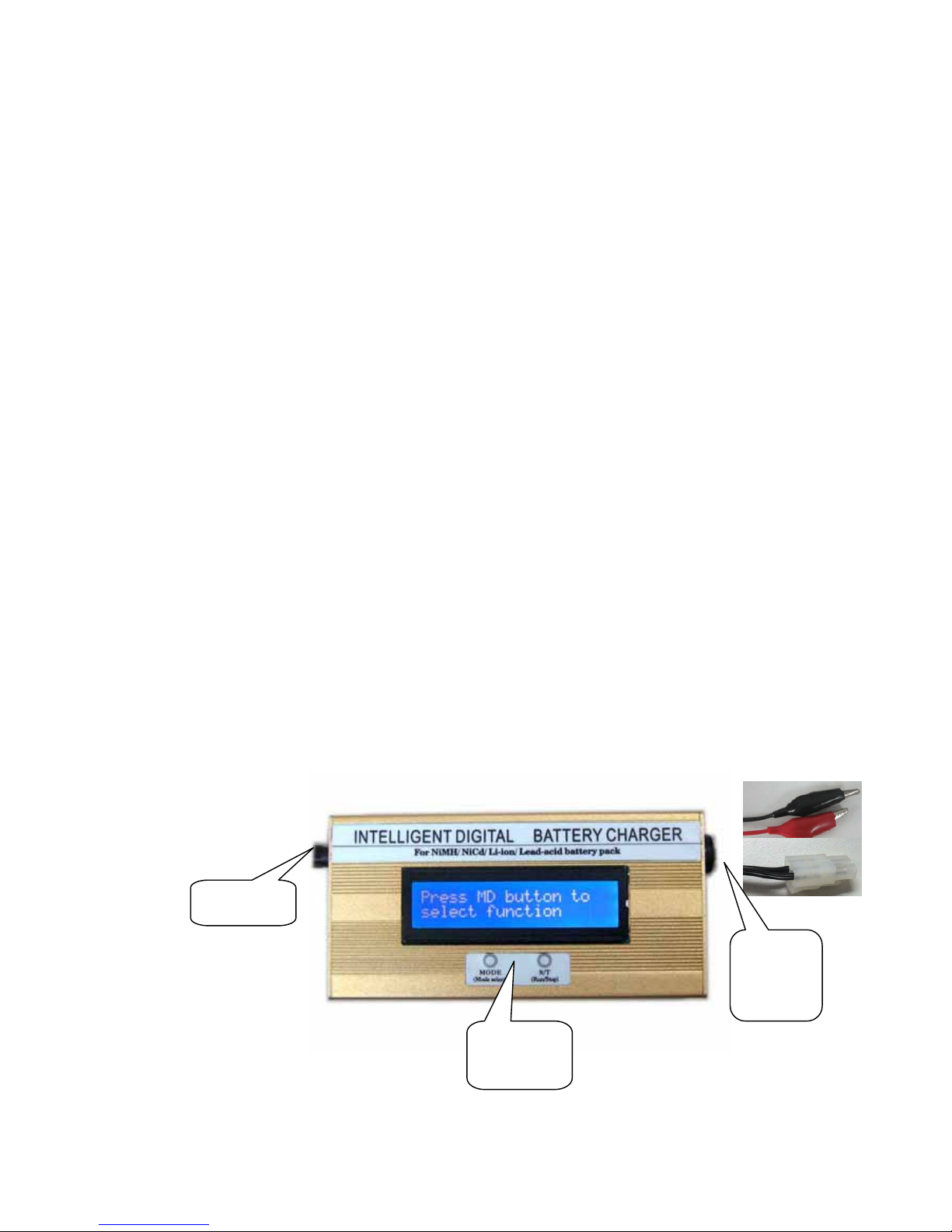

zExterior of the unit
DC I
p
u
t
Operating
Buttons
Connect
Battery
Terminals

●Warnings and safety notes
Be sure to understand the information of the battery to be charged or
discharged accurately. If the program is set up incorrectly the battery can
severely be damaged. Especially Lithium battery can cause a fire or an
explosion by over-charging.
Never leave the charge unsupervised when it is connected to its power supply. If any
malfunction is observed immediately terminate the process and refer to the operation
manual.
Keep away the unit from dust, damp, rain, heat direct sunshine and vibration. DO not
drop it.
The circuit of the unit is designed to be powered by a 12V DC only.
This unit and the battery to charge or discharge should be set up on a head-resistant,
non-inflammable and non-conductive surface. Never place them on a car seat, carpet
or similar. Keep all the inflammable volatile materials well away from operating area.
The outer case slots and fan serve to cool the charger so must not be covered of
enclosed. Provide good ventilation.
To avoid short-circuits between the charge lead, always connect the battery cable to
the unit first and only then to the battery to be charged or discharged. Reverse the
sequence when disconnecting.
-The battery exceeds the limit ofDCN50-II’s specification.
-Battery pack, which consists of different types of cell (including different
manufacturers).
-Battery, which is already fully charged or just slightly discharged.
-Non-rechargeable batteries (Explosion hazard).
-Batteries that require a different charge technique from NiCd, Nimh, Li-Ion,
Li-Poly or Pb.
-Faulty or damaged battery.
-Battery fitted with an integral charge circuit or a protection circuit.
-Batteries installed in a device, or which are electrically linked to other
components.
-Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process.
.

zGeneral notes
How to select charge current level?
This device provide four charge current levels(0.5A, 1.0A, 2.0A, 2.5A) for user
select. The charge current level depend on the capacity of the battery-pack and the
charge time you wanted. The maximum permissible charge current varies
according to the battery type or its performance, and can be found in the information
provided by the battery manufacturer. Generally, we suggest NIMH and NICD
battery-pack use 0.2~0.3C(the nominal capacity of Battery-pack), Li-Ion/Poly
battery-pack use 0.2~0.5C, Lead-Acid(Pb) battery use 0.1~0.2C. It is only allowed
to charge batteries at rates higher than the standard charge current if they are
expressly stated to be quick-charge capable. The charge current level is higher, the
time you expend is shorter.
When you need discharge?
-Some rechargeable batteries are said to have a memory effect. If they are partly
used and recharged before the whole charge is drawn out, they ‘remember’ this
and next time will only use that part of their capacity. This is a ‘memory effect’.
NiCd and NiMH batteries are said to suffer from memory effect. They prefer
complete cycles; so you should discharge the battery-pack empty before charge.
This device provide a fixed 0.5A discharge function for user select.
-The Lithium battery and Pb battery prefers a partial rather than a full discharge.
Frequent full discharges should be avoided if possible.
-If you want check the battery-pack’s capacity, you can select discharge function
after you full charged this battery-pack.

Program flow
NiMH/NiCd
Batter
y
Li-ion Battery
p
ro
g
ram Lead-acid
Batter
y
Select
Function
0.5 A
Char
g
e Mode
1.0 A
Char
g
e Mode
2.0 A
Char
g
e Mode
2.5 A
Char
g
e Mode
Discharge
Mode
3.6V Li-ion
BAT
7.2V Li-ion
BAT
10.8V
Li-ion BAT
14．4V
Li-ion BAT
6V
Lead-acid BAT
12V
Lead-acid BAT

●NiMH/NiCd battery program:
1) Connecting to the battery.
Connect the Red clip to the Positive terminal of the NiMH/NiMd battery, this terminal is usually
marked ‘+’or marked in RED.
Connect the Black clip to the Negative terminal of the NiMH/NiCd battery, this terminal is usually
marked ‘-‘or marked in BLACK.
2) Plug the DC output terminal of adapter or car lighter in the Input
power hole of the charger/discharger, the displays on the screen is
as the left side，then select battery type carefully with MD button.
(If not check the power supply and fuse in the main supply).
3) With ST button to confirm the battery type,and choose the
function for charging with MODE(MD) button,The
program circle is below with each press:
0.5A charging.
1.0A charging.
2.0A charging.
2.5A charging.
0.5A discharging.
0.5A charging…………..
4) Start the Charging/Discharging program with S/T (Run/Stop)
button while the function in the program you select is on the
screen.
5) At the beginning of the Charging/Discharging program starting,
the charger/discharger will test its condition at that time.
If there are some errors for connectting with the battery, the
following errors displays will be on the screen:
a The output is connected to a battery with incorrect
polarity(Reverse polarity/RV) or shorted.
. b. This will be displayed in case of disconnecting with the
battery(No battery/NB) or the open circuit of the battery.
6)Resume the process with MODE(MD) button and start it by
S/T(Run/Stop) button.
7) To pause/stop the charging/discharging process,press S/T(Run/Stop)
button for more than 3 seconds(you can alter the charging current
from 0.5A to2.5A with MODE(MD) button),and you can resume the
process with S/T(Run/Stop) button.
8）When the charging/discharging is finished, the audible sound
indicates you the end of process

●Li-ion battery program:
1) Connecting to the battery.
Connect the Red clip to the Positive terminal of the Li-ion battery,thi s terminal is usually
marked ‘+’or marked in RED.
Connect the Black clip to the Negative terminal of the Li-ion battery,this terminal is usually
marked ‘-‘or marked in BLACK.
2) Plug the DC output terminal of adapter or car lighter in the Input
power hole of the charger/discharger,the displays on the screen is as
the left side,then select the battery type carefully with MD button.
(If not check the power supply and fuse in the main supply).
3)With ST button to confirm the battery type,and choose the function
for charging with MODE(MD) button,The program circle is below
with each press:
0.5A charging.
1.0A charging.
2.0A charging.
2.5A charging.
0.5A discharging…………..
0.5A charging…………..
4) Start the Charging/Discharging program with S/T(Run/Stop)
button while the function in the program you select is on the
screen.(If not check the power supply and fuse in the main supply).
5) At the beginning of the Charging/Discharging program starting, the
charger/discharger will test its condition at that time.
If there are some errors for connectting with the battery, the
following errors displays will be on the screen: a The output is
connected to a battery with incorrect polarity(Reverse polarity/RV)
or shorted.
. b. This will be displayed in case of disconnecting with the Battery
(No battery/NB) or the open circuit of the battery.
6)Resume the process with MODE(MD) button and start it
by S/T(Run/Stop) button.
7) To pause/stop the charging/discharging process,press
S/T(Run/Stop) button for more than 3 seconds(you can
alter the charging current from 0.5A to2.5A with
MODE(MD) button),and you can resume the process with
S/T(Run/Stop
8）When the charging/discharging is finished, the audible
sound indicates you the end of process.

Lead-acid battery program:
1) Connecting to the battery.
Connect the Red clip to the Positive terminal of the Lead-acid battery,thi s terminal is usually
marked ‘+’or marked in RED.
Connect the Black clip to the Negative terminal of the Lead-acid
battery,this terminal is usually marked ‘-‘or marked in BLACK.
2) Plug the DC output terminal of adapter or car lighter in the Input
power hole of the charger/discharger,the displays on the screen is as
the left side,then select the battery type carefully with MD button.
(
If not check the
p
ower su
pp
l
y
and fuse in the main su
pp
l
y)
.
3) With ST button to confirm the battery type,and choose the
function for charging with MODE(MD) button,The program
circle is below with each press:2) Plug the DC output terminal of
adapter or car lighter in the Input power hole of the
charger/discharger,the displays on the screen is as the left
side,then select the battery type carefully with MD button.
(If not check the power supply and fuse in the main supply).
0.5A charging.
1.0A charging.
2.0A charging.
2.5A charging.
0.5A discharging.
0.5Acharging …………
4) Start the Charging/Discharging program with S/T (Run/Stop) button
while the function in the program you select is on the screen.
5) At the beginning of the Charging/Discharging program starting, the
charger/discharger will test its condition at that time.
If there are some errors for connectting with the battery, the following
errors displays will be on the screen:
a The output is connected to a battery with incorrect polarity(Reverse
polarity/RV) or shorted.
b. This will be displayed in case of disconnecting with the battery(No
battery/NB) or the open circuit of the battery.4) Start the
Charging/Discharging program with S/T (Run/Stop) button while the
function in the program you select is on the screen.
6)Resume the process with MODE(MD) button and start it
by S/T(Run/Stop) button.
7) To pause/stop the charging/discharging process,press
S/T(Run/Stop) button for more than 3 seconds(you can
alter the charging current from 0.5A to2.5A with
MODE(MD) button),and you can resume the process with
S/T
(
Run/Sto
p
8）When the charging/discharging is finished, the audible
sound indicates you the end of process.

●Specifications:
-Input voltage:10~18VDC. -Max.input current:4.0A.
-Output voltage range:3~20VDC. -Max.output power:.50W.
-Charge current range:0.5~2.5A. -Discharge current:0.5A.
-Demensions:154X76X36mm. -Weight:452g(Noaccessories).
-Suited battery standard:1-4 series Li-ion/poly,3~12cell in series NiMH/NiCd and 6V & 12V
Lead-acid(Pb) battery packs..
●Warranty and service：
-We warrant this product for a period of one year (12 months) from the date of purchase.During
this period,we will repair or replace without service charge any product deemed defective due to
material or operational defects.You will be required to present proof of purchase (invoice or
receipt).This warranty does not cover the damage due to wear,overloading,incompetent handing or
using of incorrect accessories.
PowerStream.com
Dealer: http://www.PowerStream.com
