Powertrain hgm-pow-j06-blk User manual
1
Product may change slightly from the item above due to model
upgrades.
Read all instructions in this manual before using this equipment.
Keep this manual for future reference.
hgm-pow-j06-blk
2
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS____________________________________ 3
2 COMPONENT DETAIL TABLE_______________________________ 4
3. ACCESSORIES DETAIL TABLE________________________________ 5
4. ASSEMBLY INSTRUCTIONS_________________________________ 6
5. WARRENTY & CONTACT DETAILS____________________________ 12
3
1. SAFETY INSTRUCTIONS
1. Read this manual before assembling and using the equipment.
2. Consult your physician before beginning an exercise program. This
is especially important for people with pre-existing health problems.
3. Incorrect or too much exercise can injure or damage your health.
Stop exercising immediately if you feel light headed, short of breath
or any type of pain.
4. Keep children away from this machine at all times. This equipment
is for adults only.
5. The exercise equipment is designed to support a maximum user
weight of 150kg.
6. This exercise equipment is for indoor use only. Keep it away from
moisture and dust.
7. Make sure that the equipment is on a solid flat level surface with
some type of cover under it to protect your floor. To avoid any
hazards the equipment should have 2 meters of free space around
it.
8. All nuts and bolts are to be properly tightened before using the
equipment. Stop exercising if you hear noises out of the ordinary
coming from the equipment. Any worn parts are to be replaced
immediately.
9. Wear suitable clothing while using the equipment to prevent any
accidents. Avoid wearing baggy clothing that may get caught in the
equipment or limit your exercising.
10. Be careful when moving or lifting the equipment. Careless lifting
may cause accidents and/or injuries.
11. Make sure you take care when lifting or moving the equipment so
you do not injure your back.
12. Always keep these instructions handy for reference.
4

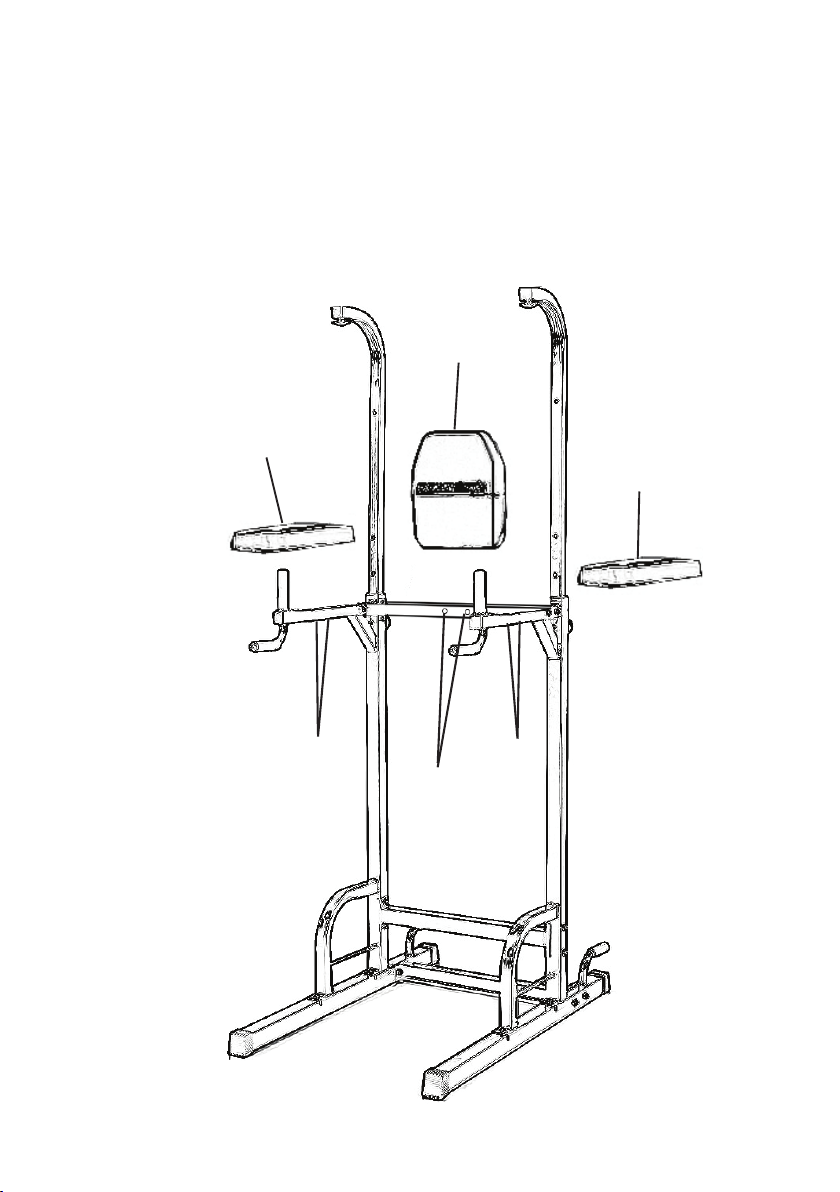

2. COMPONENT DETAIL TABLE
Push-up Bar
Support Bar
Lower Transverse Bar
Upper Transverse Bar
Back Pad Bar
Name Quantity
1
2
3
4
5
2
2
1
1
1
Upper Elbow Bar
Elbow Pads
Back Pad
Pull-up Bar
Name Quantity
6
7
8
9
2
2
1
1
NO.NO.
Push-up Bar (1)
Support Bar (2) Support Bar (2)
Lower Transverse
Bar (3)
Upper Transverse
Bar (4)
Back Pad
Bar (5)
Upper Elbow Bar (6)
Elbow Pads (7)
Back Pad (8)
Pull-up Bar (9)
Push-up Bar (1)
Elbow Pads (7)
Upper Elbow Bar (6)
5

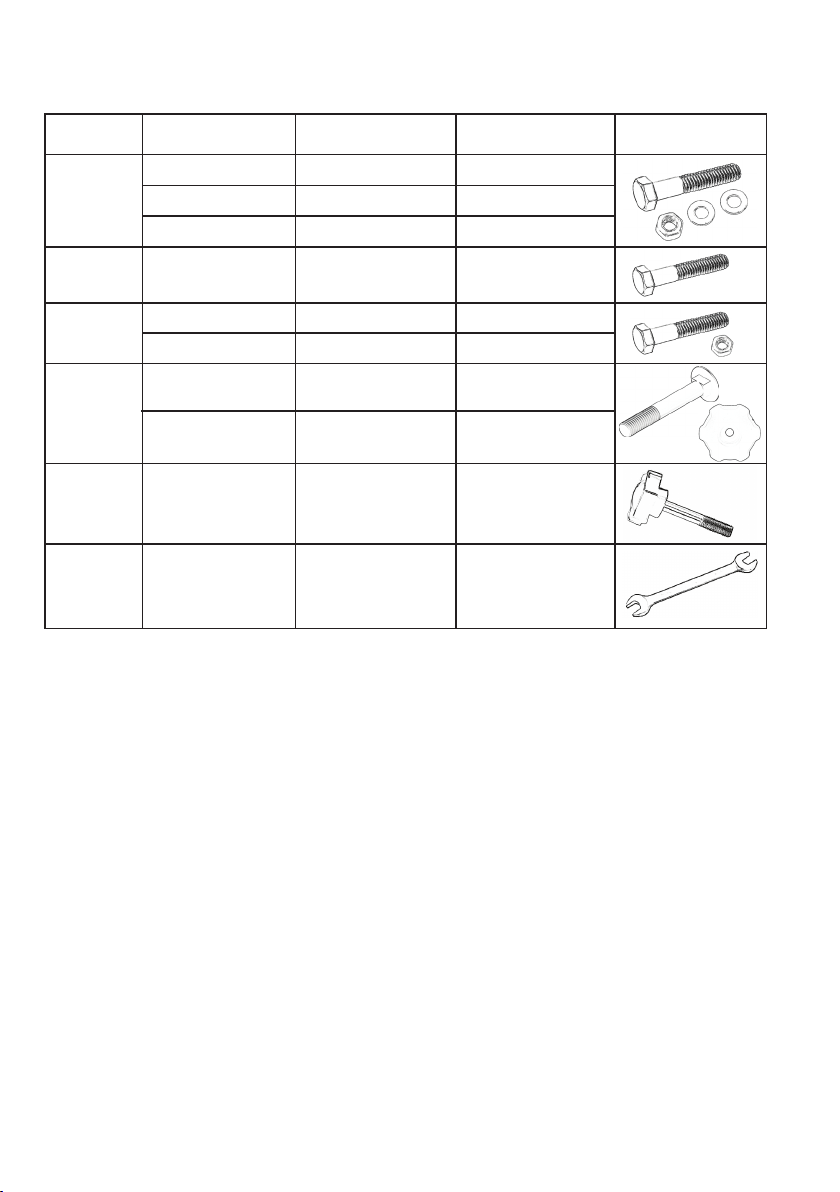

3. ACCESSORIES DETAIL TABLE
Name QuantityNO. GroupModel
10
11
Bolt
Nut
Washer M10
M10
M10x60 16
16
32
Bolt M8x50 6
12 Bolt M8x50 4
Nut M8 4
13
Knob M10x70 2
Carriage Bolt M10x70 2
14 Knob M10x70 2
15 Wrench 1
6
4. ASSEMBLY INSTRUCTIONS

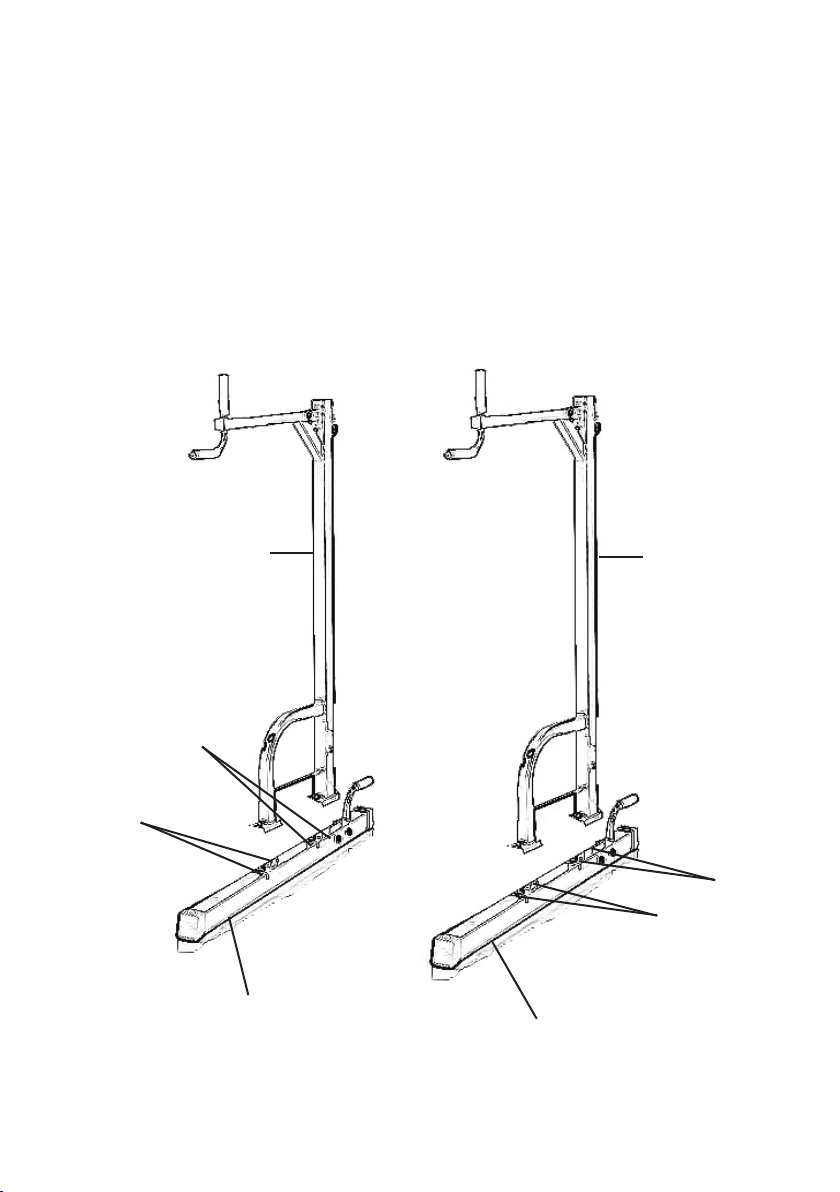

Step 1
1. Place the Support Bar (2) onto the Push Up Bar (1) and use four
M10x60 Bolts (10) to tighten and secure into place.
2. Place the Support Bar (2) onto the Push Up Bar (1) and use four
M10x60 Bolts (10) to tighten and secure into place.
Support Bar (2)
Push Up Bar (1)
Push Up Bar (1)
Support Bar (2)
(10)
(10)
(10)
(10)
7

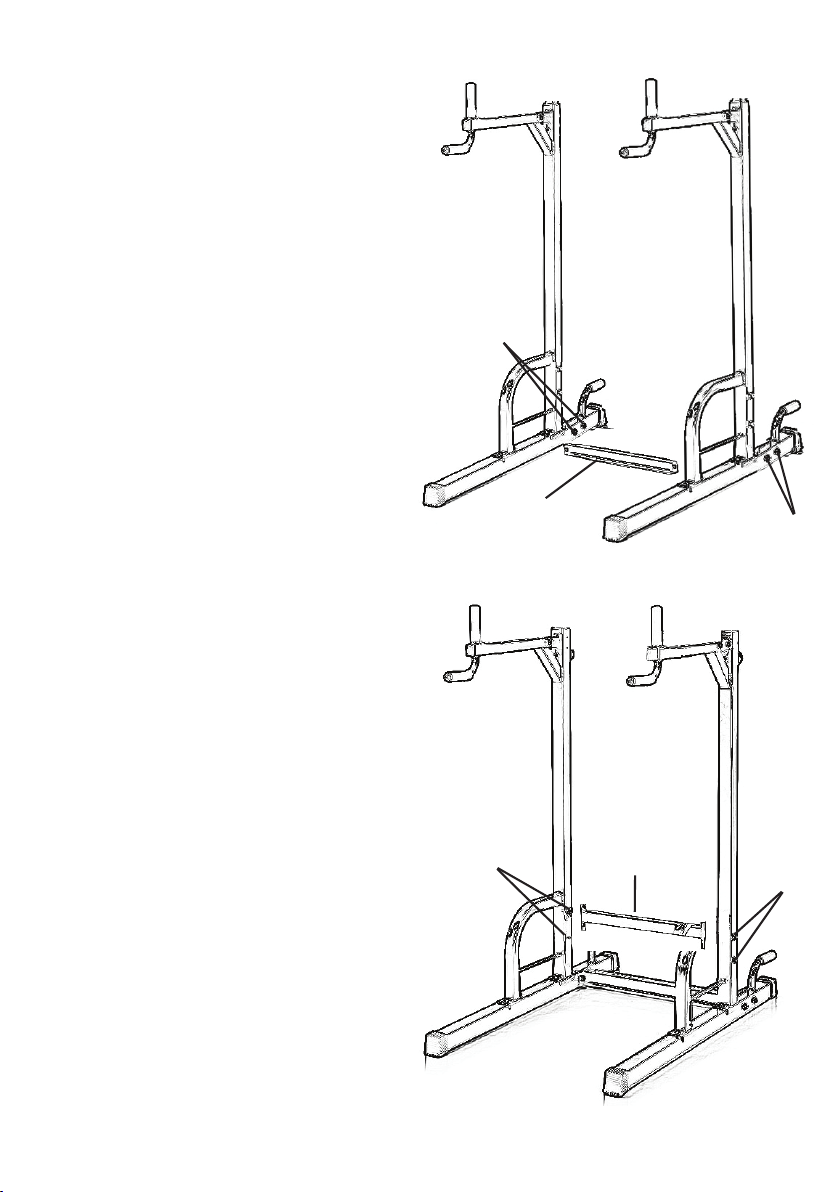

Step 2
2. Secure the Upper Transverse Bar (4)
to the 2 Support Bars (2) with four
M10x60 Bolts (10).
1. Place the Lower Transverse Bar (3)
to the Push Up Bars (1) and insert
four M10x60 Bolts (10).
Upper Transverse
Bar (4)
Lower Transverse
Bar (3) (10)
(10)
(10)
(10)
8
Step 3
1. Secure and tighten the Back Pad Bar (5) to the 2 Support Bars (2) with
the four M8x50 bolts and nuts (12)
Back Pad Bar (5)
(12)
(12)
9
Step 4
1. Insert the Upper Elbow Bars (6) into the Support Bars (2) and tighten
into desired position with the two Knobs (14)
Upper Elbow Bar (6) Upper Elbow Bar (6)
(14)
(14)
10
Step 5
1. Place the Elbow Pads (7) onto the Support Bar (2) area by using
four M8x50 (11) bolts and tighten to keep in place.
2. Place the Back Pad (8) onto the Back Pad Bar (5) area by using
two M8x50 (11) bolts and tighten to keep in place.
Back Pad (8)
Elbow Pad (7)
Elbow Pad (7)
(11)
(11)
(11)
11
Step 6
1. Place the Pull-up Bar (9) to the two Upper Elbow Bars (6) and
tighten using the two Knobs and Carriage Bolts (13).
Pull-up Bar (9)
(13) (13)
12
5. WARRENTY & CONTACT DETAILS
Kmate Pty Ltd provides a 12 month warranty for this product when used for domestic
purposes. Commercial use of the product will void all warranty.
The benefits of this warranty are provided in addition to other rights and remedies you may
have under a law in relation to the goods and services to which this warranty relates. Our
goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
Before making a claim under warranty, please refer to your user/installation manual to
ensure that you have followed correct operating procedures of your product, and refer to the
trouble shooting section (if such exists) to assist solving any problems.
The warranty period begins from the day of purchase. Your proof of purchase must be
produced before assistance will be provided.
Where the Product is replaced pursuant to this Warranty, the replacement Product will be
subject to the warranty terms and warranty commencement date of the original product.
This warranty is only valid if the product is operated and maintained in accordance with the
manufacturer’s instructions.
Damage to property including but not limited to furniture, carpets, walls, ceilings or any
other event either directly or indirectly are excluded from warranty as well as any losses or
expenses incurred by you in relation to the product or making a claim under this warranty
including without limitation any costs associated with installation, reinstallation or
transporting the product.
Light globes, remote controls, batteries, filters or similar perishable parts are not covered
under this warranty.
A claim may be refused if the defective claim has arisen for reasons other than a
manufacturers fault or defective parts or workmanship. Circumstances in which a warranty
claim may be declined include, but are not limited to the following:
• Normal wear and tear;
• Misuse or abuse, including failure to properly maintain or service;
• Damage caused by improper or incorrect installation, force-majeure are not eligible for
warranty repair;
• Insect or vermin infestation;
• Failure to clean or improper cleaning and/or operation of the product;
• If the product is modified without authorisation from Kmate Pty Ltd in writing;
Contact Details
Kmate Pty Ltd
PO Box 234, Mount Waverley VIC 3149
Phone: 03 9790 0055
