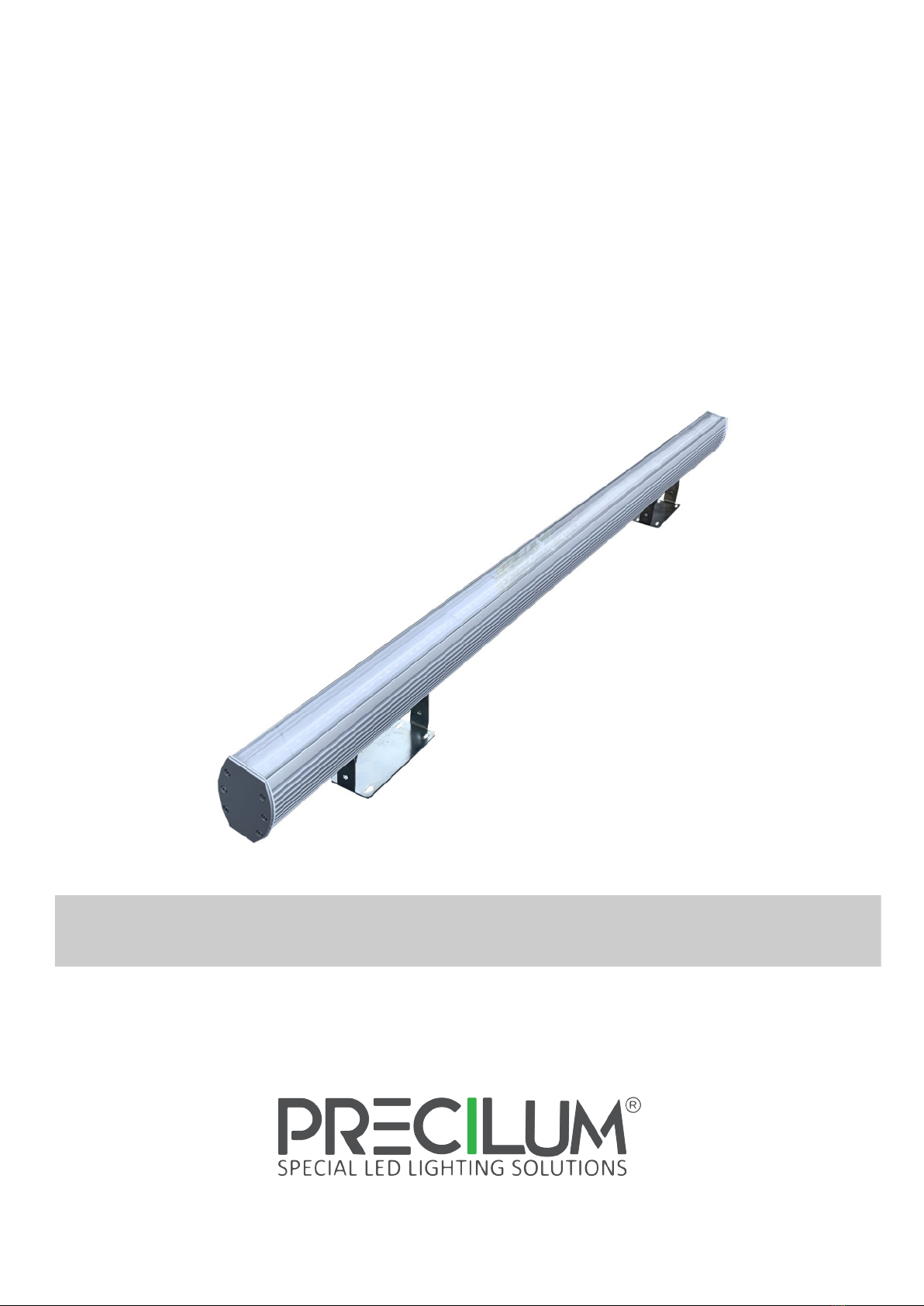

PRECILUM TRILOBIT ECO User manual
TRILOBIT ECO
Lenght = 290/570/850/1130
INSTRUCTIONS MANUAL
ON/OFF o DALI
TABLE OF CONTENTS
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 1
1. INTRODUCTION
2. SAFETY AND OPERATION
3. INSTALLATION
4. CONNECTION DIAGRAMS
5. CARE AND MAINTENANCE
6. TECHNICAL SPECIFICATION
7. WARRANTY STATEMENT
2
6
7
15
16
17
18
FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION
MANUAL CAREFULLY BEFORE BEGINNING SETUP AND
INSTALLATION.
LED
Elect ostatic Sensitive Device
(EDS)
WWW.PRECILUM.COM
1. INTRODUCTION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 2
TRILOBIT ECO WHITE - LED surface-mount light line for static or
dynamic surface illumination, for indoor and mainly for outdoor use
The linear fixture Trilobit White utilises the latest TRIDONIC LED
technology The refined thermal management system incorporates a
sleek and robust heatsink directly into the fi xture to ensure maximum
heat transfer and long LED life This linear module bringing the
flexibility to outdoor application It is ideally suited to use in fasade
illumination, and IP66 ensures safe operation in even the most
demanding areas Available lenghts 290, 570, 850, 1130 mm as standard
It made using highest quality materials and construction methods,
bringing the flexibility to outdoor application This powerful lighting
fixture is ideally suited to use in landscape and building illumination
and IP66 ensures safe operation in even the most demanding areas
1.1 About the p oduct
WWW.PRECILUM.COM
200 - 300
min 285
max 385
110
25
1. INTRODUCTION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 4

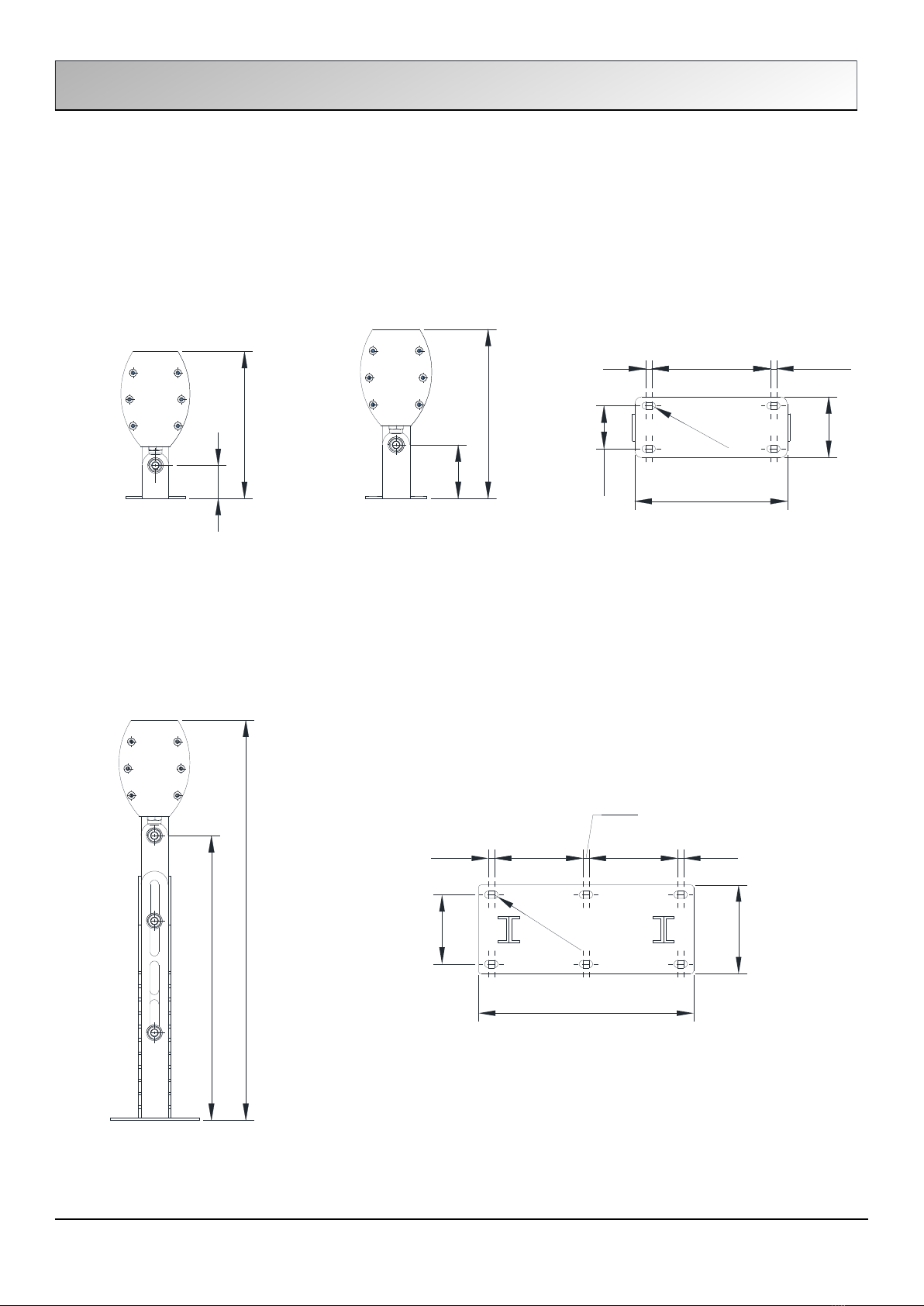

1.3 Dimensions of hanging b acket
4,8 4,888
113,5
31,8
45
R2,6
1.3.1 Fixed b acket
1.3.2 Adjustable b acket
125
40
Bracket 25 mm: Bracket 40 mm:
Bracket 200 - 300 mm:
4,5
66 66 4,54,5
160
51,5
66
R2,75
Wall mounted part:
Wall mounted part:
WWW.PRECILUM.COM
●Consider the respective national norms during the installation!
●Do not install the fixture near high inflammable liquids or materials
●Do not looking directly into the LED light beam at close range
●Turn off the power prior to light fixture installation!
●The light fixture may be installed only by a qualified person!
●The light fixture must be wired according to respective electrical
standards
●The manufacturer shall not be liable for any modifications of the
product of incorrect installation of the product
●Never install the luminaire on rain, fog or high humidity
2. SAFETY AND OPERATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 6
CAUTION - DANGEROUS VOLTAGE CONSTITUTING A RIS OF
ELECTRIC SHOC IS PRESENT WITHIN THIS UNIT!
CAUTION - THE POWER SUPPLY MUST BE UNPLUG FROM THE
MAINS POWER BEFORE CONNECTING ANY CABLES TO AVOID
DAMAGING THE PRODUCT!
CAUTION – FOR YOUR OWN SAFETY AVOID LOO ING DIRECTLY
INTO THE LED LIGHT SOURCE!
ANY PERSONS WHO INSTALLING THIS PRODUCT MUST BE
QUALIFIED FOR THE HANDLING OF ELECTRICAL
EQUIPMENT AND INSTALLATION MUST BE PERFORMED WITH
LOCAL STANDARTS AND REGULATIONS!
WWW.PRECILUM.COM
●Drill the holes into the wall according to the holes in the hanging
bracket
●Mount the hanging bracket according Fig 1 Use dowels and screws
(Fig 1)
●First screw the top of the bracket, then turn the luminaire and fix the
other side (Fig 2)
●Make sure it is mounted firmly and precicely
3. INSTALLATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 7
3.1 Installation of fixtu e
Fig 1 Fig 2
WWW.PRECILUM.COM
●Adjust required angle of the luminaire (Fig 3)
●Stabilize the angle by tightening the screws (Fig 3)
●Fasten the cable coming out from the luminaire to the bracket using
cable-ties in such a way that it does not touch the wall By this way
water will not be leaking on the wall (Fig 4)
3. INSTALLATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 8
Fig 3 Fig 4
WWW.PRECILUM.COM
3. INSTALLATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 11
3.2.3 Wi ing - ON/OFF option – cable output IN/OUT
3.2 Connection
Wire L (Live) – black
Wire N (Neutral) – blue
Wire PE (Earth) – yellow/green
MALE (IN) - Front view FEMALE (OUT) - Front view
MALE (IN) - Rear view (soldering) FEMALE (OUT) - Rear view (soldering)
3 PIN CONNECTOR
MALE (IN) 3 PIN CONNECTOR
FEMALE (OUT)
L L
L L N
N
N N
PE PE
PE PE
WWW.PRECILUM.COM
3. INSTALLATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 12
3.2.4 Wi ing - DALI option – cable output IN/OUT
3.2 Connection
Wire DA2 (Dali) – white
Wire L (Live) – black
Wire N (Neutral) – blue
Wire PE (Earth) – yellow/green
Wire DA1 (Dali) – white
3 + 5 PIN
CONNECTOR
MALE (IN)
3 + 5 PIN
CONNECTOR
FEMALE (OUT)
MALE (IN) - Front view FEMALE (OUT) - Front view
FEMALE (OUT) - Rear view (soldering)MALE (IN) - Rear view (soldering)
L
LL
LN
N
NN
PE
PE PE
PE
DA2 DA1 DA1 DA2
DA2 DA1
DA1 DA2
WWW.PRECILUM.COM
Use a SCAME IP box or similar (not included)
Must be made a waterproof connection of at least IP68 We strongly
recommend to use special two components silicone GEL for sealing
junction boxes containing electrical connections If the IP rating of the
connection is not observed, the complaint will not be accepted!
For example:
https://www etelec com/prodotto/mpgel/
Video tutorial:
https://wwwyoutube com/watch?v=tj6ksKdzuE0
PRECILUM equi ement:
3. INSTALLATION
13
3.3 IP connection - cable output in the middle
WWW.PRECILUM.COMTRILOBIT ECO INSTRUCTIONS MANUAL v1.1
3. INSTALLATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 14
3.3 IP connection - cable output in the middle
Use a TECHNO® IP circular junction connector (TeeTube®) or TECHNO®
IP juction box (TeeBox®) Not included!
●3 poles (ON/OFF) TeeTube® (THR 390 S3T):
https://www techno it/en/products/all/thr-390-s3t/
●5 poles (DALI) TeeTube® (THB 402 C1F R):
https://www techno it/en/products/all/thb-402-c1f-r/
●3 poles (ON/OFF) TeeBox® (THR 200 S3M):
https://www techno it/en/products/all/thr-200-s3m/
●5 poles (DALI) TeeBox® (THB 200 E5E):
https://www techno it/en/products/all/thb-200-e5e/
TeeTube® TeeBox®
PRECILUM eccomendation:
WWW.PRECILUM.COM
4. CONNECTION DIAGRAMS
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 15
4.1 ON/OFF o DALI option
4.1.1 Cable output in the middle
4.1.2 Cable output IN/OUT
Description:Type of cable:
ON/OFF – 3 x 1,5 mm (230V)
2
DALI - 5 x 1,5 mm (230V + DALI)
2
Max QTY – issue to be
specified by electr designer
- Luminaire
- Junction box
Description:Type of cable:
ON/OFF – 3 x 1,5 mm2 (230V)
DALI - 5 x 1,5 mm2 (230V + DALI)
Max QTY – issue to be
specified by electr designer
End connector
- Luminaire
- Connector
WWW.PRECILUM.COM
Clean the front transparent cover at least every 6 months Use a moist,
lint-free cloth Never use alcohol or solvents
A scheduled maintenance programme must be carried out on the
installation and the fittings regardless of their IP rating or application –
these must include the following operations:
●Clean the fittings from dirt that may be deposited in the heads of the
screws by following the installation instructions attached to each
fitting
●Check that the screws are not loose on the various components of
the luminaire (glass frame, cable entry , )
●Check each cable gland, and cable for damage and that the cable
gland has not come loose
●For each Isolation Class 1 fitting check that the earth cable has not
come loose The clip must not show signs of oxidation,damage or
become loose
●For class 2 fittings check any eventual plastic / isolating covering in
order to verify any damage
●Check that all the seals are in good condition and that they are not
damaged or split
The internal components such as the ballasts, transformers, washers
and screws must not show clear signs of oxidation or rust
Clear traces of rust and oxidation will indicate the presence of water
inside the luminaire
In case of damage the components must be replaced by original
components and spare parts before using the fitting
We also recommend to check the fitting at least once a year or within
the prescribed maintenance schedule period depending on the type of
installation
5. CARE AND MAINTENANCE
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 16
PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND
QUALITY AND SHOULD BE TREATED WITH CARE. THE
RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD
USE AND LONGEVITY FROM THE PRODUCTS.
WWW.PRECILUM.COM
6. TECHNICAL SPECIFICATION
TRILOBIT ECO INSTRUCTIONS MANUAL v1.1 17
Mounting:
Optical system:
LED device:
LED colour:
Lumen output:
Input voltage:
Driver type:
Max power conpusion:
Service lifetime:
Operation ambient temp:
Materials:
Dimensions:
Enviroment:
Weight:
Accesories:
See 1 3 Dimensions of hanging bracket
Narrow, Medium, Wide, Flood
TRIDONIC PCB board
2700K, 3000K, 3500K, 4000K, 5000K, 5700K
See datasheet
230V 50Hz AC
Electronic control gear TRIDONIC
TRILOBIT ECO 290
8W (current 300mA)
TRILOBIT ECO 570
15W (current 300mA)
TRILOBIT ECO 850
23W (current 300mA)
TRILOBIT ECO 1130
31W (current 300mA)
120 000 hrs /L70 @25°C
-20°C/+40°C
Housing: extruded aluminium
Cover: clear tempered glass
See dimensional drawing
IP66
TRILOBIT ECO 290: 0,8 kg
TRILOBIT ECO 570: 1,9 kg
TRILOBIT ECO 850: 3,0 kg
TRILOBIT ECO 1130: 3,9 kg
See website
WWW.PRECILUM.COM
