PRECILUM TRILOBIT 300 User manual

TRILOBIT
Lenght = 300/600/900/1200
INSTRUCTIONS MANUAL
ON/OFF or DALI

TABLE OF CONTENTS
TRILOBIT INSTRUCTIONS MANUAL v1.1 1
1 INTRODUCTION
2 SAFETY AND OPERATION
3 INSTALLATION
4 CONNECTION DIAGRAMS
5 CARE AND MAINTENANCE
6 TECHNICAL SPECIFICATION
7 WARRANTY STATEMENT
2
6
7
15
16
17
18
FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION
MANUAL CAREFULLY BEFORE BEGINNING SETUP AND
INSTALLATION.
LED
Electrostatic Sensitive Device
(EDS)
WWW.PRECILUM.COM

1 INTRODUCTION
TRILOBIT INSTRUCTIONS MANUAL v1.1 2
The modules generate white light by means of the high power LEDs.
The products were designed for exterior use and they are ideal for
locations where effect lighting with long lifetime is required. The
TRILO IT range combines OSRAM LED technology with a balanced
design profile to create truly specific lighting systems. Using precision
manufacturing techniques the TRILO ITE provides professional
solutions for your lighting requirements. Also, it has a passive cooling
for optimum thermal management.
It made using highest quality materials and construction methods,
bringing the flexibility to outdoor application. This powerful lighting
fixture is ideally suited to use in landscape and building illumination
and IP66 ensures safe operation in even the most demanding areas.
1 1 About the product
WWW.PRECILUM.COM

1 INTRODUCTION
TRILOBIT INSTRUCTIONS MANUAL v1.1 3
Lenght = 300 mm
1 2 Dimensions of fixture
Lenght = 900 mm
Lenght = 1200 mm
Lenght = 600 mm
70
5112001200
600 51
70
300 51
70
900 51
70
WWW.PRECILUM.COM

200 - 300
min. 285 max. 385
110
25
1 INTRODUCTION
TRILOBIT INSTRUCTIONS MANUAL v1.1 4

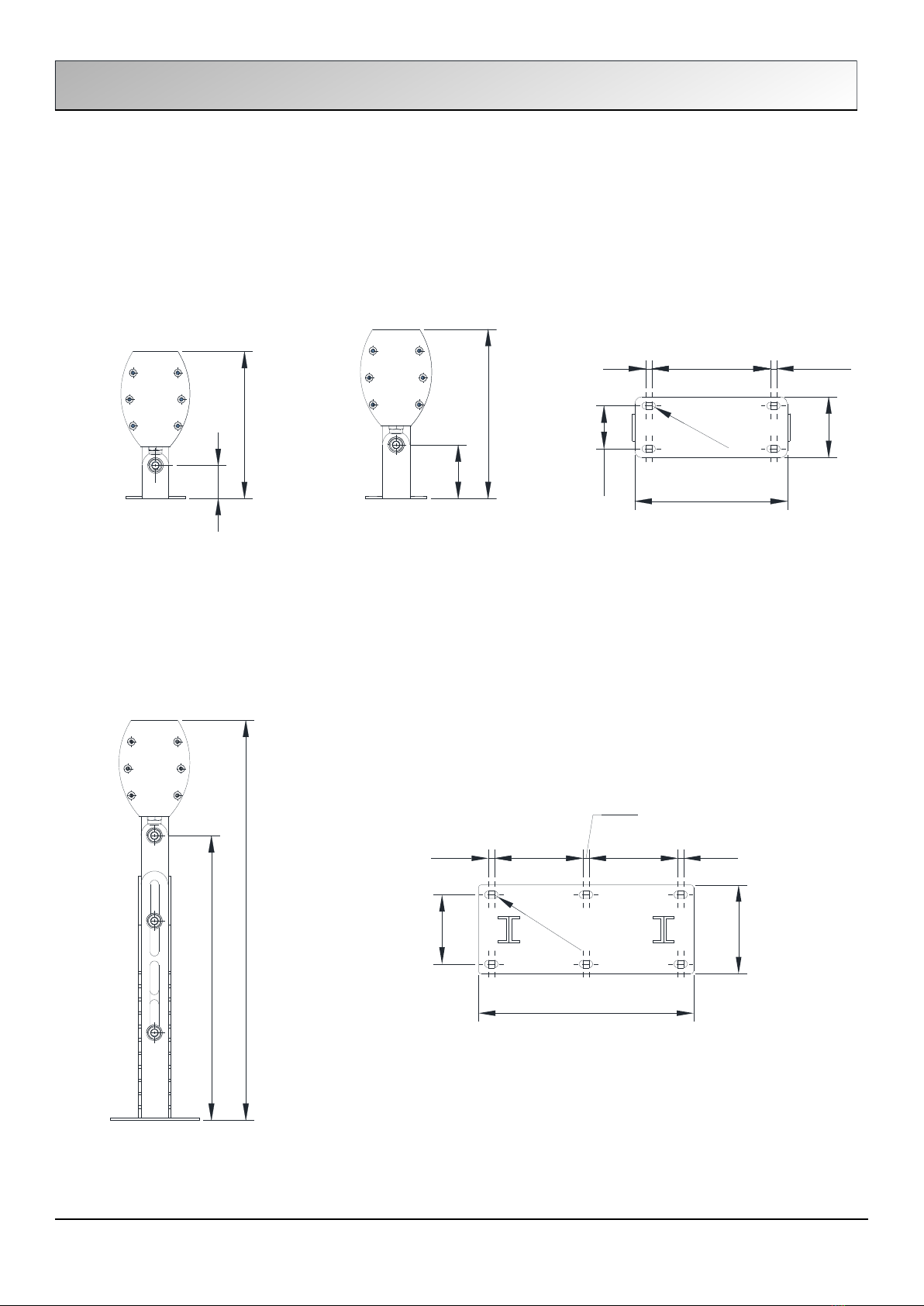

1 3 Dimensions of hanging bracket
4,8 4,888
113,5
31,8
45
R2,6
1 3 1 Fixed bracket
1 3 2 Adjustable bracket
125
40
racket 25 mm: racket 40 mm:
racket 200 - 300 mm:
4,5
66 66 4,54,5
160
51,5
66
R2,75
Wall mounted part:
Wall mounted part:
WWW.PRECILUM.COM

1 INTRODUCTION
TRILOBIT INSTRUCTIONS MANUAL v1.1 5
1 3 3 Fixation methods
MAX. ROTATION 176° MAX. ROTATION 204°
MAX.
racket 40 mm:racket 25 mm:
racket 200 - 300 mm:
WWW.PRECILUM.COM

●Consider the respective national norms during the installation!
●Do not install the fixture near high inflammable liquids or materials.
●Do not looking directly into the LED light beam at close range.
●Turn off the power prior to light fixture installation!
●The light fixture may be installed only by a qualified person!
●The light fixture must be wired according to respective electrical
standards.
●The manufacturer shall not be liable for any modifications of the
product of incorrect installation of the product.
●Never install the luminaire on rain, fog or high humidity.
2 SAFETY AND OPERATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 6
CAUTION - DANGEROUS VOLTAGE CONSTITUTING A RIS OF
ELECTRIC SHOC IS PRESENT WITHIN THIS UNIT!
CAUTION - THE POWER SUPPLY MUST BE UNPLUG FROM THE
MAINS POWER BEFORE CONNECTING ANY CABLES TO AVOID
DAMAGING THE PRODUCT!
CAUTION – FOR YOUR OWN SAFETY AVOID LOO ING DIRECTLY
INTO THE LED LIGHT SOURCE!
ANY PERSONS WHO INSTALLING THIS PRODUCT MUST BE
QUALIFIED FOR THE HANDLING OF ELECTRICAL
EQUIPMENT AND INSTALLATION MUST BE PERFORMED WITH
LOCAL STANDARTS AND REGULATIONS!
WWW.PRECILUM.COM

●Drill the holes into the wall according to the holes in the hanging
bracket.
●Mount the hanging bracket according Fig.1. Use dowels and screws.
(Fig. 1)
●First screw the top of the bracket, then turn the luminaire and fix the
other side. (Fig. 2)
●Make sure it is mounted firmly and precicely.
3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 7
3 1 Installation of fixture
Fig. 1 Fig. 2
WWW.PRECILUM.COM

●Adjust required angle of the luminaire. (Fig. 3)
●Stabilize the angle by tightening the screws. (Fig. 3)
●Fasten the cable coming out from the luminaire to the bracket using
cable-ties in such a way that it does not touch the wall. y this way
water will not be leaking on the wall. (Fig. 4)
3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 8
Fig. 3 Fig. 4
WWW.PRECILUM.COM

L
N
PE
DALI
DALI
Wire L (Live) – brown (black)
Wire N (Neutral) – blue
Wire PE (Earth) – yellow/green
Wire DA1 (Dali) – white
Wire DA2 (Dali) - white
3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 10
3 2 2 Wiring - DALI option – cable output in the middle
3 2 Connection
WWW.PRECILUM.COM

3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 9
3 2 1 Wiring - ON/OFF option – cable output in the middle
3 2 Connection
L
N
PE
Wire L (Live) – brown (black)
Wire N (Neutral) – blue
Wire PE (Earth) – yellow/green
WWW.PRECILUM.COM

3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 11

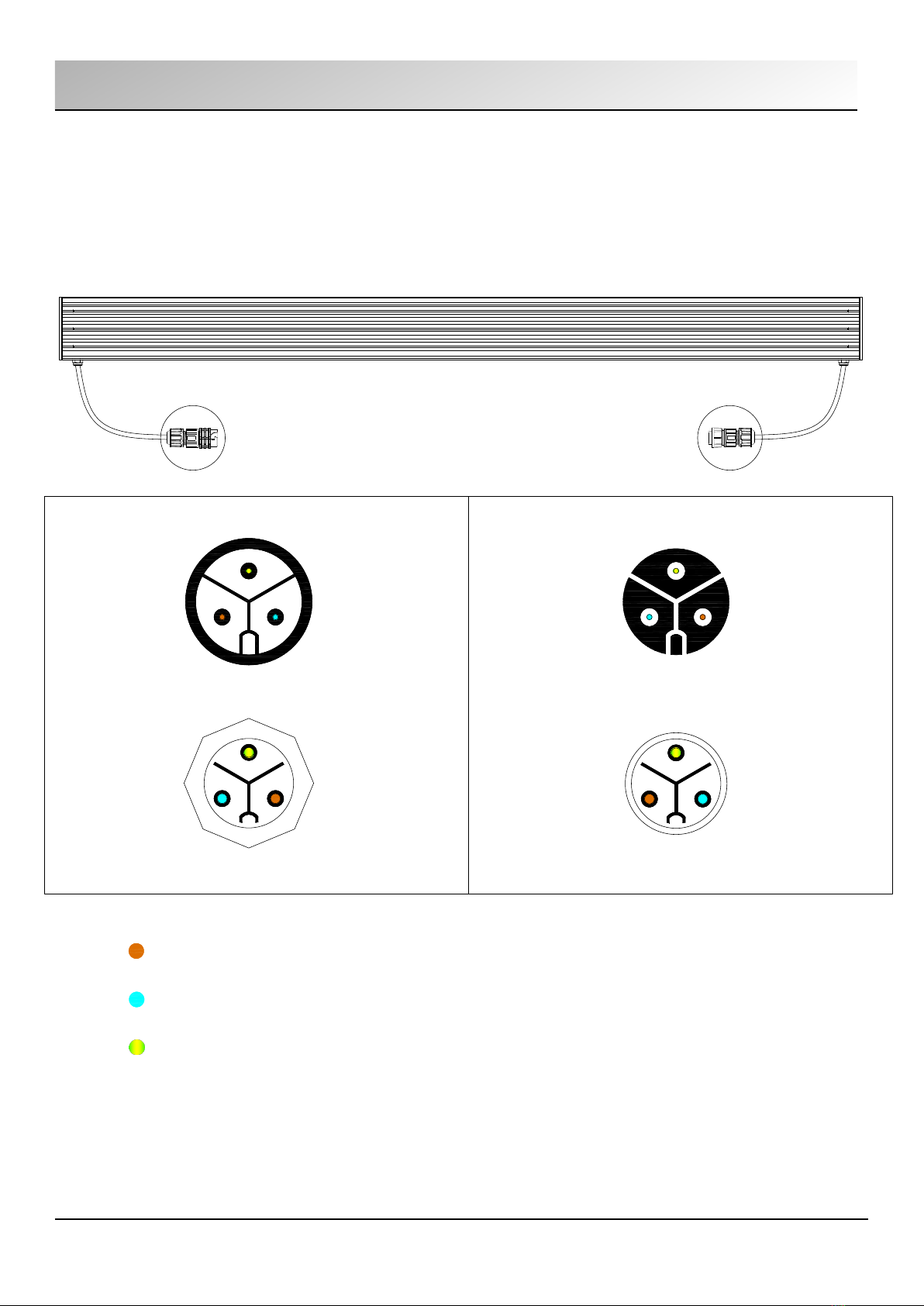

3 2 3 Wiring - ON/OFF option – cable output IN/OUT
3 2 Connection
Wire L (Live) – black
Wire N (Neutral) – blue
Wire PE (Earth) – yellow/green
MALE (IN) - Front view FEMALE (OUT) - Front view
MALE (IN) - Rear view (soldering) FEMALE (OUT) - Rear view (soldering)
3 PIN CONNECTOR
MALE (IN) 3 PIN CONNECTOR FEMALE (OUT)
L L
L L N N
N N
PE PE
PE PE
Wire L (Live) – brown (black)
WWW.PRECILUM.COM

3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 12
3 2 4 Wiring - DALI option – cable output IN/OUT
3 2 Connection
Wire DA2 (Dali) – white
Wire L (Live) – black
Wire N (Neutral) – blue
Wire PE (Earth) – yellow/green
Wire DA1 (Dali) – white
3 + 5 PIN
CONNECTOR
MALE (IN)
3 + 5 PIN
CONNECTOR
FEMALE (OUT)
MALE (IN) - Front view FEMALE (OUT) - Front view
FEMALE (OUT) - Rear view (soldering)MALE (IN) - Rear view (soldering)
L
LL
LN
N
NN
PE
PE PE
PE
DA2 DA1 DA1 DA2
DA2 DA1 DA1 DA2
Wire L (Live) – brown (black)
WWW.PRECILUM.COM

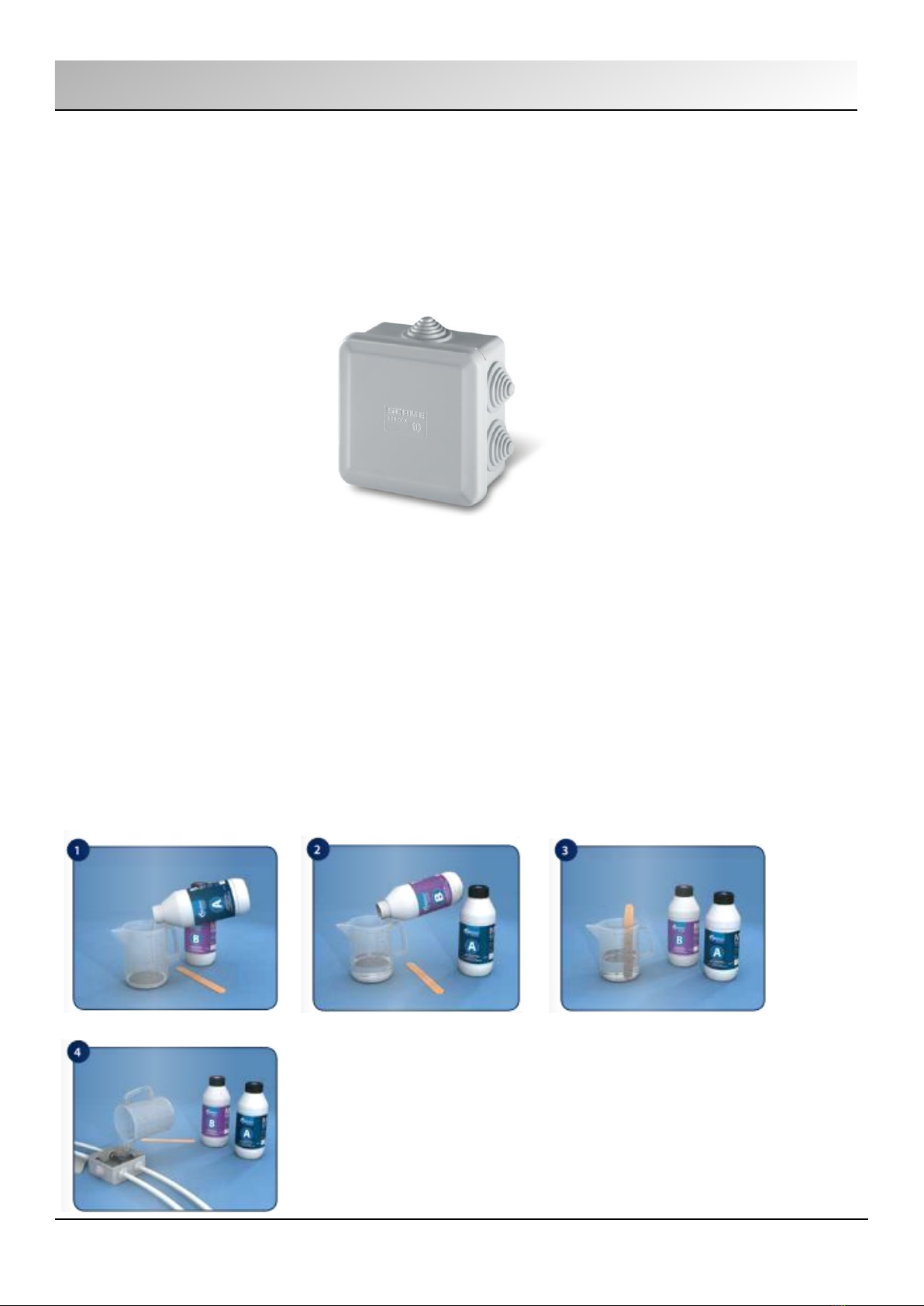

Use a SCAME IP box or similar (not included).
Must be made a waterproof connection of at least IP68. We strongly
recommend to use special two components silicone GEL for sealing
junction boxes containing electrical connections. If the IP rating of the
connection is not observed, the complaint will not be accepted!
For example:
https://www.etelec.com/prodotto/mpgel/
Video tutorial:
https://www.youtube.com/watch?v=tj6ksKdzuE0
PRECILUM requirement:
3 INSTALLATION
13
3 3 IP connection - cable output in the middle
WWW.PRECILUM.COMTRILOBIT INSTRUCTIONS MANUAL v1.1

3 INSTALLATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 14
3 3 IP connection - cable output in the middle

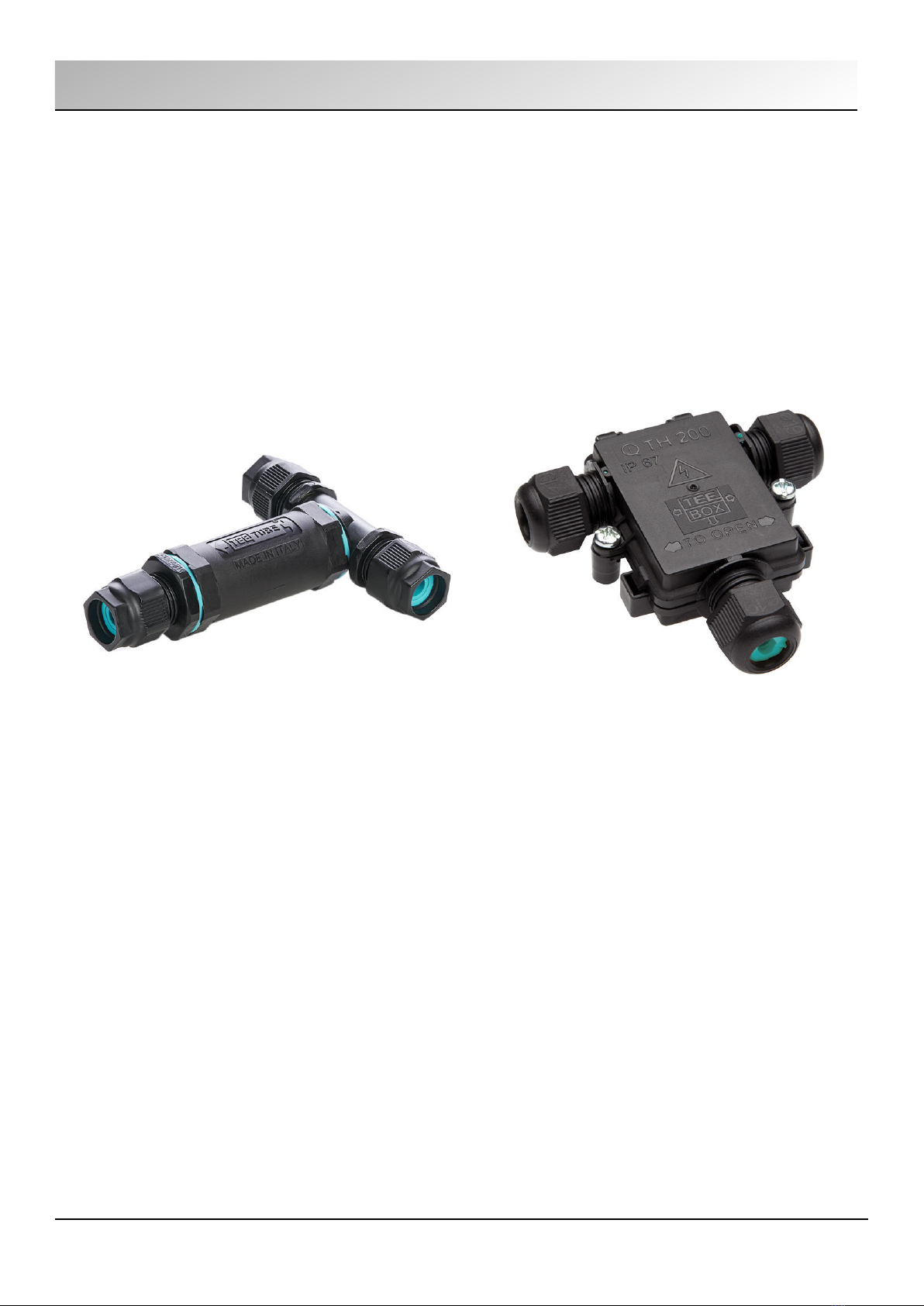

Use a TECHNO® IP circular junction connector (TeeTube®) or TECHNO®
IP juction box (Tee ox®). Not included!
●3 poles (ON/OFF) TeeTube® (THR.390.S3T):
https://www.techno.it/en/products/all/thr-390-s3t/
●5 poles (DALI) TeeTube® (TH .402.C1F.R):
https://www.techno.it/en/products/all/thb-402-c1f-r/
●3 poles (ON/OFF) Tee ox® (THR.200.S3M):
https://www.techno.it/en/products/all/thr-200-s3m/
●5 poles (DALI) Tee ox® (TH .200.E5E):
https://www.techno.it/en/products/all/thb-200-e5e/
TeeTube® Tee ox®
PRECILUM recommendation:
WWW.PRECILUM.COM

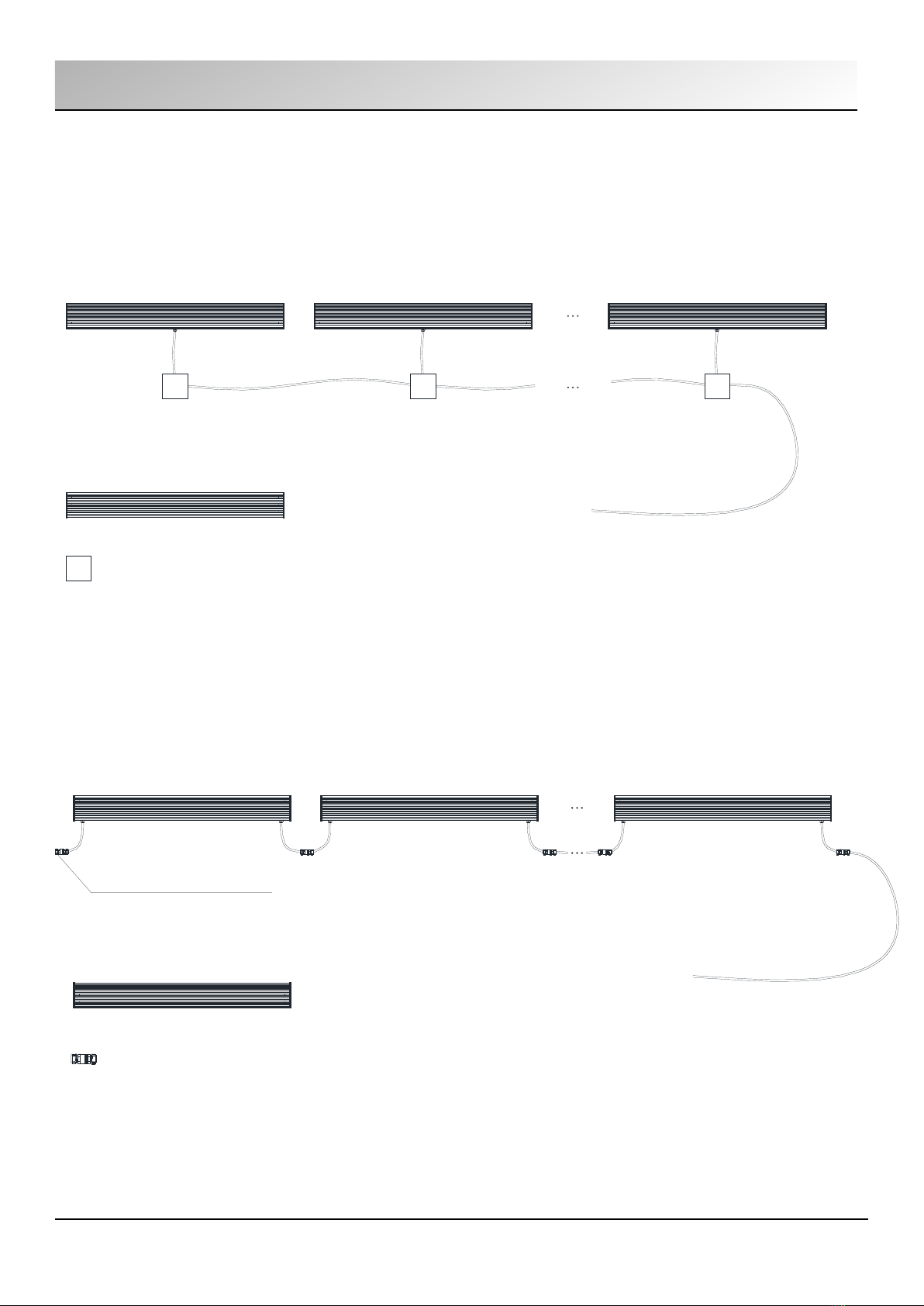

4 CONNECTION DIAGRAMS
TRILOBIT INSTRUCTIONS MANUAL v1.1 15
4 1 ON/OFF or DALI option
4 1 1 Cable output in the middle
4 1 2 Cable output IN/OUT
Description:Type of cable:
ON/OFF – 3 x 1,5 mm (230V)
2
DALI - 5 x 1,5 mm (230V + DALI)
2
Max. QTY – issue to be
specified by electr. designer
- Luminaire
- Junction box
Description:Type of cable:
ON/OFF – 3 x 1,5 mm2 (230V)
DALI - 5 x 1,5 mm2 (230V + DALI)
Max. QTY – issue to be
specified by electr. designer
End connector
- Luminaire
- Connector
WWW.PRECILUM.COM

Clean the front transparent cover at least every 6 months. Use a moist,
lint-free cloth. Never use alcohol or solvents.
A scheduled maintenance programme must be carried out on the
installation and the fittings regardless of their IP rating or application –
these must include the following operations:
●Clean the fittings from dirt that may be deposited in the heads of the
screws by following the installation instructions attached to each
fitting.
●Check that the screws are not loose on the various components of
the luminaire (glass frame, cable entry , ...).
●Check each cable gland, and cable for damage and that the cable
gland has not come loose.
●For each Isolation Class 1 fitting check that the earth cable has not
come loose. The clip must not show signs of oxidation,damage or
become loose.
●For class 2 fittings check any eventual plastic / isolating covering in
order to verify any damage.
●Check that all the seals are in good condition and that they are not
damaged or split.
The internal components such as the ballasts, transformers, washers
and screws must not show clear signs of oxidation or rust.
Clear traces of rust and oxidation will indicate the presence of water
inside the luminaire.
In case of damage the components must be replaced by original
components and spare parts before using the fitting.
We also recommend to check the fitting at least once a year or within
the prescribed maintenance schedule period depending on the type of
installation.
5 CARE AND MAINTENANCE
TRILOBIT INSTRUCTIONS MANUAL v1.1 16
PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND
QUALITY AND SHOULD BE TREATED WITH CARE. THE
RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD
USE AND LONGEVITY FROM THE PRODUCTS.
WWW.PRECILUM.COM

6 TECHNICAL SPECIFICATION
TRILOBIT INSTRUCTIONS MANUAL v1.1 17
Mounting:
Optical system:
LED device:
LED colour:
Lumen output:
Input voltage:
Driver type:
Max. power conpusion:
Service lifetime:
Operation ambient temp:
Materials:
Dimensions:
Enviroment:
Weight:
Accesories:
See 1.3 Dimensions of hanging bracket
Spot, Narrow, Medium, Wide, Flood, Oval, Assym.
High power OSRAM LEDs
2700K, 3000K, 4000K, 5700K
See datasheet
230V 50Hz AC
Electronic control gear TRIDONIC
TRILO IT 300
13W (current 500mA)
TRILO IT 600
27W (current 500mA)
TRILO IT 900
40W (current 500mA)
TRILO IT 1200
54W (current 500mA)
100 000 hrs./L70 @25°C
-30°C/+45°C
Housing: extruded aluminium
Cover: clear tempered glass
See dimensional drawing
IP66
TRILO IT 300: 0,8 kg
TRILO IT 600: 1,9 kg
TRILO IT 900: 3,0 kg
TRILO IT 1200: 3,9 kg
See website
WWW.PRECILUM.COM

7 WARRANTY STATEMENT
TRILOBIT INSTRUCTIONS MANUAL v1.1 18
Precilum provides a product warranty for a period of five (5) years
from date of purchase.
Please refer www.precillum.com for all warranty terms and conditions.
WWW.PRECILUM.COM

Please check for latest updates and changes on the Precilum website.
©2021 PRECILUM s.r.o ALL RIGHT RESERVED. All specifications subject to change
