Lightolier Baselyte-BSL10 User manual

Lighting Systems Baselyte-BSL10
Page 1 of 4 1 Light T5 HO Wall Mount Direct/Indirect
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Ordering Information
Family
H= T5 HO
8 = Wall Mount
01 CN
H
8
BSL
01 = 1 Light 04 = 4’
08 = 8’
12 = 12’
C= Custom Color
W= Standard
White
Distribution Lamp Type No. of Lamps Housing Module Length Wiring Voltage Ballast Finish
Weight = 3.0 lb./ft
CN = cutout
w/baffles
1= 1cct.
3 = 1cct.
w/EC/NL
5= 1cct.
w/EM Battery
7= 1cct.
w/Dimming
8 = 1cct. w/1cct.
Thru wire
E = Standard
<10% THD
F = Standard
<10% THD
w/fusing
Note: Please
consult wiring
section of spec
sheets for more
wiring options.
Specifications
Features
1. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: one T5 HO lamp
4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows
5. Ballasts: electronic 120V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Flexible mounting locations.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.
Individual Fixtures
1. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
1. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the
‘Run Configuration’ table on the next page for more details.
Ordering Instructions
D= Dual 120V
& 277V
1= 120V
2= 277V
Note: Option‘D’ is
standard. Voltage
options 1 and 2 are
only available with
EM Battery and
Dimming wiring
options.



Lighting Systems Baselyte-BSL10

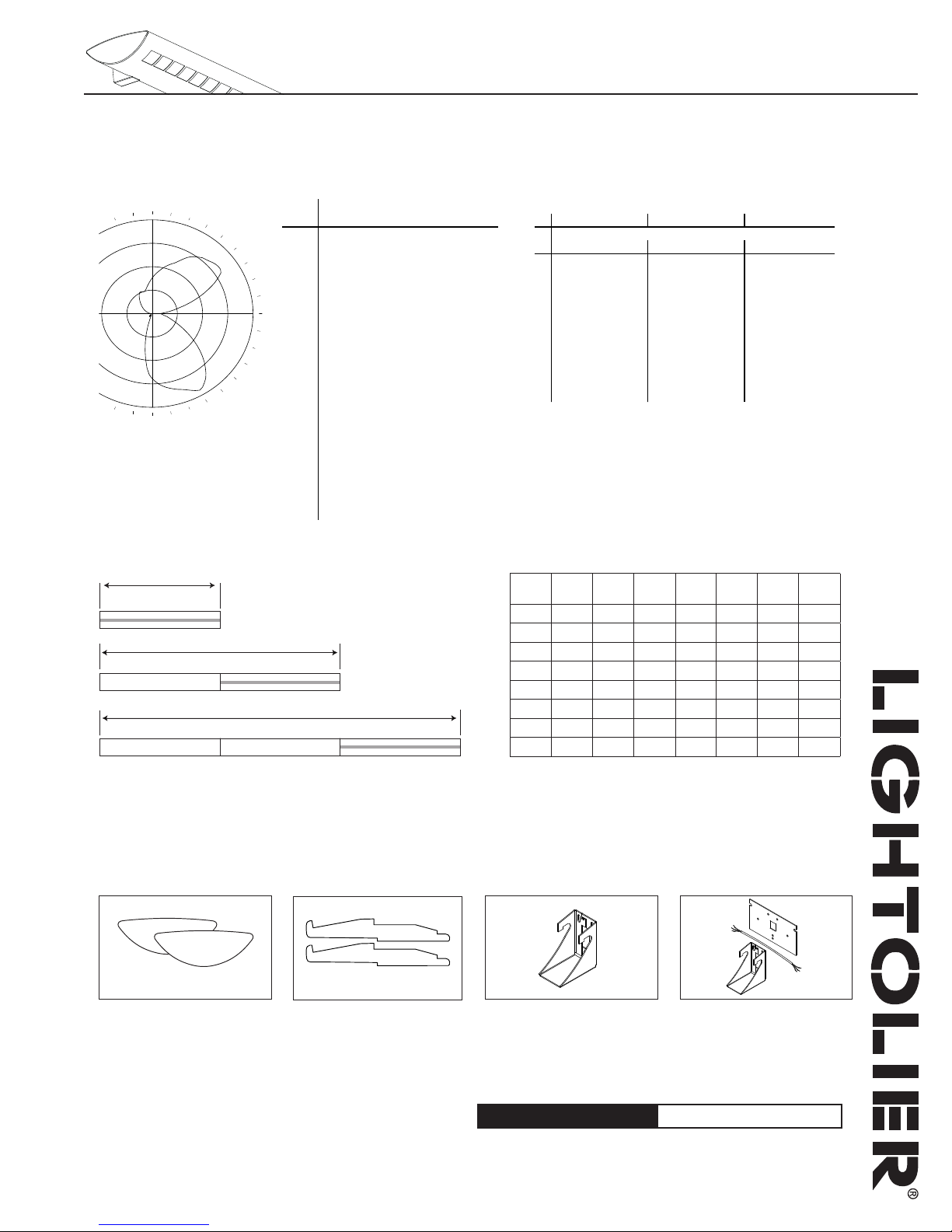

Page 2 of 4 1 Light T5 HO Wall Mount Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Performance
Candlepower Curve Candlepower Summary Coefficients of Utilization
Report No: 2101681
Lamps: F54T5
Lumens per Lamp: 4650
Efficiency: 62.3%
Up: 55.1% Down: 44.9%
Zonal Lumen Summary
ZONE LUMENS %BARE LAMP %LUMINAIRE








































CANDLEPOWER SUMMARY
ZONE CANDLEPOWER
DEG. 0 45 90 135 180
180 341 341 341 341 341
175 385 371 339 310 298
165 469 426 329 250 231
155 554 475 311 211 230
145 667 531 284 210 200
135 715 584 249 175 148
125 744 579 206 125 105
115 556 553 159 81 70
105 300 332 101 43 42
95 121 117 31 17 19
90 71 61 2 4 6
85 91 78 12 1 1
75 154 141 40 1 1
65 270 276 80 3 1
55 456 455 178 28 7
45 659 619 284 38 33
35 812 690 395 29 34
25 813 699 491 117 15
15 749 707 572 337 201
5 679 669 619 563 525
0 623 623 623 623 623
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 66 66 66 60 60 60 50 50 50
1 57 55 53 52 50 49 44 42 41
2 50 46 43 46 43 40 38 36 34
3 44 40 36 40 37 33 34 31 29
4 39 34 30 36 32 28 30 27 24
5 35 30 26 32 28 24 27 24 21
6 31 26 23 29 24 21 24 21 18
7 28 23 20 26 22 19 22 19 16
8 25 21 17 24 19 16 20 17 14
9 23 19 15 22 17 15 18 15 13
10 21 17 14 20 16 13 17 14 11
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180 2899
1599
1300 44.8
55.2
100.0
28.0
34.4
62.3
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 66 66 66 60 60 60 50 50 50
1 57 55 53 52 50 49 44 42 41
2 50 46 43 46 43 40 38 36 34
3 44 40 36 40 37 33 34 31 29
4 39 34 30 36 32 28 30 27 24
5 35 30 26 32 28 24 27 24 21
6 31 26 23 29 24 21 24 21 18
7 28 23 20 26 22 19 22 19 16
8 25 21 17 24 19 16 20 17 14
9 23 19 15 22 17 15 18 15 13
10 21 17 14 20 16 13 17 14 11
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180 2899
1599
1300 44.8
55.2
100.0
28.0
34.4
62.3
Module Lengths & Mounting Distances Run Configuration
Run
Length
4’
Module
8’
Module
12’
Module Joiner End Set Mount Power Mount*
4’ run 1 1 1 1
8’ run 1 1 1 1
12’ run 1 1 1 1
16’ run 2 1 1 2 1
20’ run 1 1 1 1 2 1
24’ run 2 1 1 2 1
28’ run 2 1 2 1 3 1
32’ run 1 2 2 1 3 1
-ODULE,ENGTH
-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
@
@
@
Note: Shaded area indicates locations of emergency sections (emergency wiring
controls all lamps or optional battery pack controls one or two lamps).
*Note: Additional power mounts may be required for some runs with T5 HO
lamping options, longer runs, and runs with wiring options that are more complex.
Please consult factory for assistance.
Joiner
BSLEWW = wall mount standard white
End Set
BSLJW = wall mount joiner
System Components & Accessories
Non-Power Wall Mount Power Wall Mount
BSLWP1 = 1-power mount
BSLWP2 = 2-power mount
BSLWN = non-power wall mount

Lighting Systems Baselyte-BSL10
Page 3 of 4 1 Light T5 HO Wall Mount Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 1 Circuit
1 Circuit with Emergency Circuit/Night Light (EC/NL)
One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal
circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.
Type 3: 1cct. w/EC/NL
All lamps wired on one circuit.
1 Circuit
Type 5: Chloride standard
CTP700
Type M: Bodine standard
LP550
Type E: Chloride high performance
CTP1300
Type P: Bodine high performance
LP600
All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected
to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by
installer. Leads for both normal circuit and battery pack are wired to fixture ends.
1 Circuit with Emergency Battery Pack (EM)
One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery
pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together
or wire separately if controlled independently. Leads for normal circuit, EC/NL circuit and EM wired
to fixture ends. All lamps in EC/NL section to be wired together.
1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack
Type J: Chloride standard
CTP700
  
  %#.,
%-
��
  %#.,%-
Type 1: 1cct.
Type 8: 1cct. w/1cct. thru wire
Type H: 1cct. w/2cct. thru wire
Type 7: 1cct. w/dimming

Lighting Systems Baselyte-BSL10
Page 4 of 4 1 Light T5 HO Wall Mount Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 2 Circuit A/B Switching (alternate 4’ sections)
Type D: Chloride standard
CTP700
Type O: Bodine standard
LP550
Type G: Chloride high performance
CTP1300
Type R: Bodine high performance
LP600
Fixture wired for two circuits (A/B switching), plus a battery pack is wired to one lamp. A hot lead
is connected to the battery pack and would act as a ‘trigger’ wire when connected to a constant hot
by installer. Leads for both normal circuit and battery pack are wired to fixture ends.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Battery Pack (EM)
Fixture wired for two circuit. Lamps wired for A/B switching in alternate 4’ sections.
2 Circuit A/B Switching (alternate 4’ sections)
Type B: 2cct.
Type A: 2cct. w/1cct. thru wire
Type S: 2cct. w/2cct. thru wire
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light (EC/NL)
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit. Leads
for both normal circuit and EC/NL circuit wired to fixture ends.
Type C: 2cct. w/EC/NL
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit, in
addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if
controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL
circuit and battery pack are wired to fixture ends. All lamps in EC/NL module to be wired together.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light and Emergency Battery Pack
Type L: Chloride standard
CTP700
 

%-
%#.,%-
%#.,
