Precision Digital Corporation ProtEX-RTP PD6830 Series User manual

PD6830 Explosion-Proof Pulse Input Rate/Totalizer
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]
www.predig.com
•Fully-Approved Explosion-Proof Pulse Input Rate/Totalizer
•Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave, Isolated Inputs
•0.7" (17.8 mm) 5 Digits Upper Display for Rate or Total
•0.4" (10.2 mm) 7 Alphanumeric Characters Lower Display for Rate, Total, Grand Total, Units, and Tag
•Display Mountable at 0°, 90°, 180°, & 270°
•SafeTouch Through-Glass Button Programming
•13-Digit Totalizer with Total Overflow Feature
•Gate Function for Rate Display of Slow Pulse Rates
•K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization
•Automatic Rate, Total, and Grand Total Unit Conversions
•Backlight Standard on All Models
•Isolated 4-20 mA Output for Rate, Total, or Grand Total
•Two Isolated Open Collector Pulse Outputs, Up to 5 kHz
•Battery, DC, or Output Loop-Powered Models
•Operating Temperature Range: -40 to 75°C (-40 to 167°F)
•FM Approved as Explosion-Proof / Dust-Ignition Proof / Flame-Proof
•CSA Certified as Explosion-Proof / Dust-Ignition Proof / Flame-Proof
•ATEX and IECEx Certified as Flame-Proof and Protection by Enclosure
•Conformal Coated PCBs for Dust and Humidity Protection
•Password Protection
•On-Board Data Logging of up to 1024 points
•Free Meterview EX Programming Software
•Modbus Communications Isolated RS-485 Option
•Wide Viewing Angle
•Flanges for Wall or Pipe Mounting
•Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum Enclosure
•Three 3/4" NPT Threaded Conduit Openings (One Plug Installed)
•2" U-Bolt Kits Available
•Stainless Steel Tag Available
•3-Year Warranty

PD6830 Explosion-Proof Pulse Input Rate/Totalizer
Instruction Manual
2
Disclaimer
The information contained in this document is
subject to change without notice. Precision
Digital Corporation makes no representations
or warranties with respect to the contents hereof;
and specifically disclaims any implied warranties
of merchantability or fitness for a particular
purpose.
•Read complete instructions prior to installation
and operation of the meter.
•Risk of electric shock or personal injury.
•This product is not recommended for life support
applications or applications where malfunctioning
could result in personal injury or property loss.
Anyone using this product for such applications
does so at his/her own risk. Precision Digital
Corporation shall not be held liable for damages
resulting from such improper use.
•Failure to follow installation guidelines could
result in death or serious injury. Make sure only
qualified personnel perform the installation.
•Never remove the meter cover in explosive
environments when the circuit is live.
•Cover must be fully engaged to meet
flameproof/explosion-proof requirements.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Limited Warranty
Precision Digital Corporation warrants this
product against defects in material or
workmanship for the specified period under
“Specifications” from the date of shipment from
the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase
value, repair, or replacement of the defective unit.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
© 2021 Precision Digital Corporation.
All rights reserved.
Introduction
The ProtEX-RTP PD6830 is a rugged, explosion-
proof, pulse input rate/totalizer for demanding applica-
tions in hazardous areas. It can be powered from
9-30 VDC, battery, or from the 4-20 mA output loop;
includes two isolated open collector pulse outputs and
is available with an isolated RS-485 option for Mod-
bus communications. The instrument will operate over
a temperature range of -40 to 75°C (-40 to 167°F).
The top numeric display will read rate or total up to
five digits and the alphanumeric bottom display will
read up to 7 digits, 13 digits with the total overflow
feature. The alphanumeric display can also be pro-
grammed to show any combination of numbers and
letters up to seven characters long for rate, total,
grand total, engineering units and/or identification tag.
The backlight makes the display more visible in any
lighting condition. The enclosure is provided with
threaded conduit holes and integrated pipe or wall
mounting flanges.

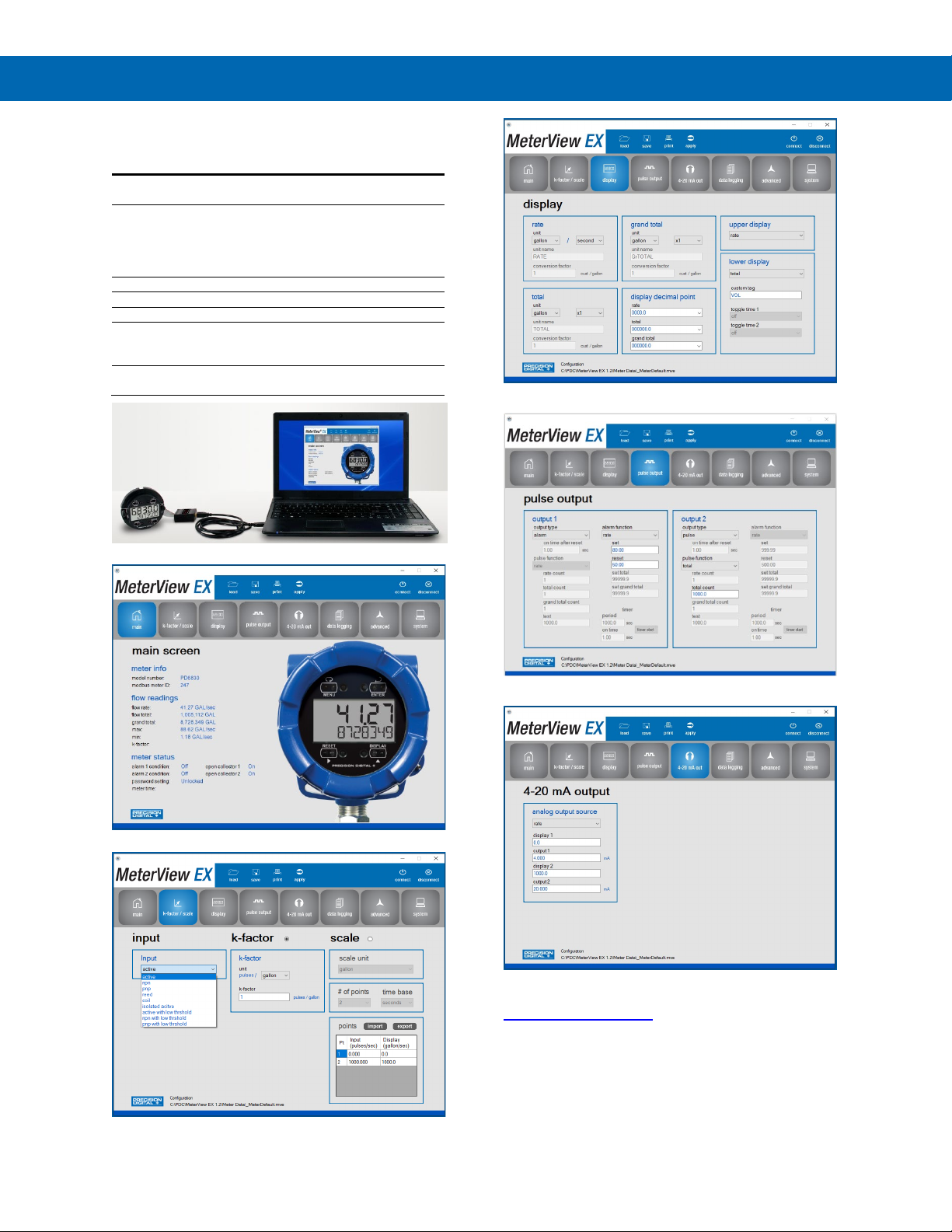

Free, PC-based, MeterView EX software that connects
to the meter via the PDA8068, PDA7485-I, or the
PDA8485-I is available for programming and setup of
the instrument.
The instrument can also be programmed using the
four SafeTouch through-glass buttons, without remov-
ing the cover, or with four internal push-buttons.
The PD6830 includes on-board data logging of up to
1024 points.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
3
Ordering Information
Model Description
PD6830-AP0-0
9-30 VDC Powered, Constant
Backlight, 2 Pulse Outputs
PD6830-APA-0
9-30 VDC Powered, Constant
Backlight, Isolated 4-20 mA Output,
2 Pulse Outputs
PD6830-BM0-0
Battery Powered
1
, or DC-Powered
with Battery Backup, Backlight2,
2 Pulse Outputs
PD6830-BMA-0
Battery (or 9-30 VDC) Powered1, or
DC Powered with Battery Backup,
Backlight2, Isolated 4-20 mA Output,
2 Pulse Outputs
PD6830-BTA-0
Battery Powered1, or DC Powered
with Battery Backup, Loop Output
Powered Backlight, Isolated 4-20 mA
Output, 2 Pulse Outputs
PD6830-CTB-0
4-20 mA Output-Powered,
Loop-Powered Backlight,
Non-Isolated 4-20 mA Output,
2 Pulse Outputs
PD6830-DTB-0
4-20 mA Output-Powered with
Battery Backup, Loop Output
Powered Backlight2, Non-Isolated
4-20 mA Output, 2 Pulse Outputs
-I Option
Isolated 2-wire RS-485 with Modbus
protocol3.
Replace ending -0 in part number
above with –I
(Example: PD6830-APA-I). Not
available on -CTB or -DTB models.
Notes:
1.
When DC-powered, battery will provide backup power when DC
power is lost.
2.
Backlight is constant when DC powered and momentary when
battery powered.
3.
Communication disabled when actively powered by battery.

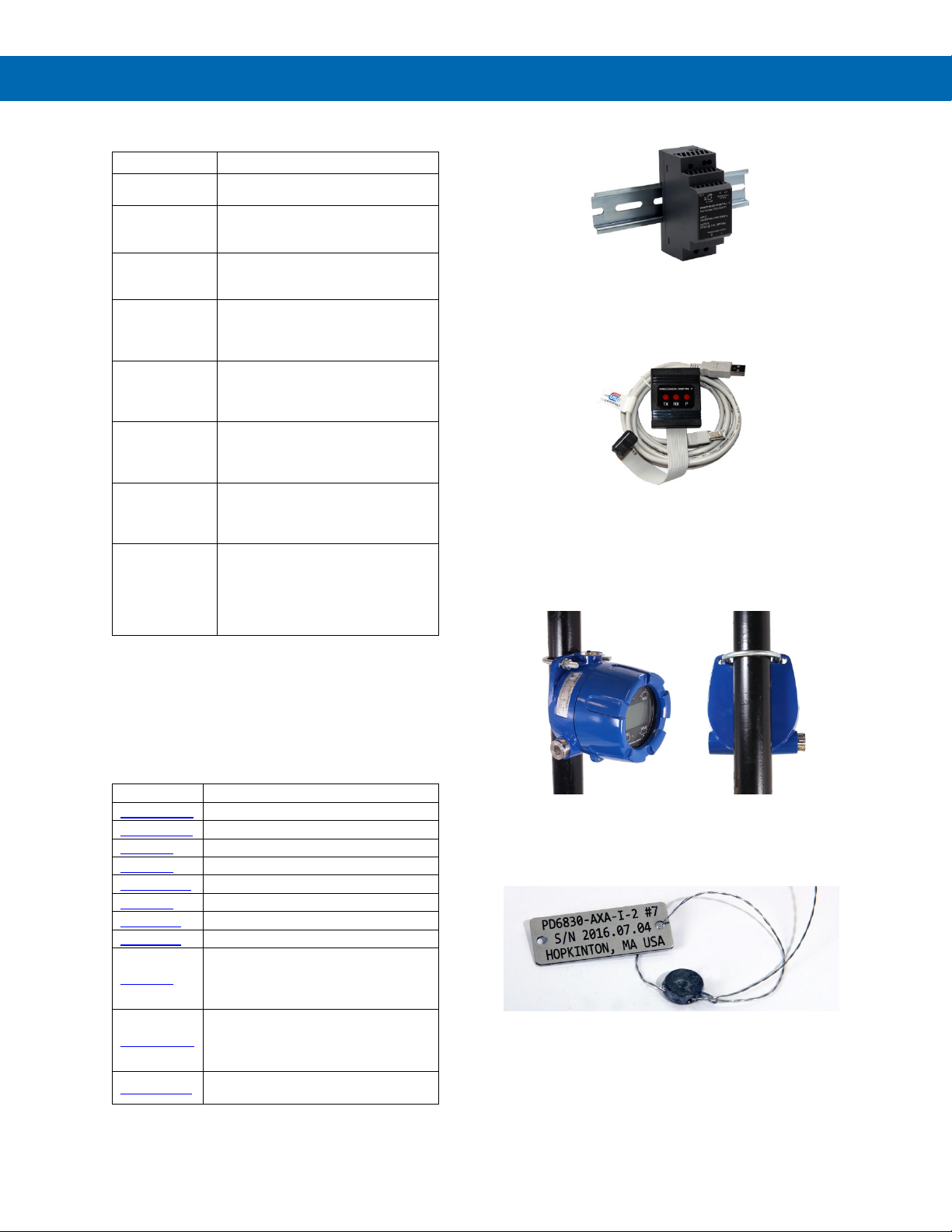

Accessories
Model
Description
PDAPLUG75
3/4" Metal Conduit/Stopping Plug
PDABAT36C
3.6 V C Cell Lithium Battery
PDA0001
3/4" M-NPT to F-M20 Reducer
PDA0002
3/4" M-NPT to 1/2" F-NPT Reducer
PDA1024-01
24 VDC Power Supply for DIN Rail
PDA8068
USB Serial Adapter for Programming
PDA7485-I
RS-232 to RS-485 Isolated Converter
PDA8485-I
USB to RS-485 Isolated Converter
PDA6846
Steel 2" U-Bolt Kit. All Material: Zinc
Plated Steel; (1) U-Bolt for 2" Pipe with
(2 each) Washers, Lock Washers, and
Nuts.
PDA6846-SS
Stainless Steel 2" U-Bolt Kit. All
Material: Stainless Steel; (1) U-Bolt for
2" Pipe with (2 each) Washers, Lock
Washers, and Nuts.
PDA-SSTAG
Custom Stainless Steel Tag (see
website for convenient ordering form)
PDA1024-01 24 VDC Power Supply
The PDA1024-01 is a DIN rail mounted 1.5 A,
24 VDC power supply that can be used to power
the PD6830.
PDA8068 USB Serial Adapter
The PDA8068 USB serial adapter is used to connect
the PD6830 directly to a computer via USB. It is
intended to be used for programming only. No live
monitoring is possible with this module.
PDA6846 2"U-Bolt Kits
The PDA6846 U-Bolt Kits provide a convenient way to
mount the PD6830 to 1.5" or 2" pipes. They are avail-
able in steel and stainless steel.
PDA-SSTAG Stainless Steel Tag
The PDA-SSTAG is a laser etched stainless steel tag
that can be customized with three lines of text. Each
tag comes with a stainless steel wire and lead seal for
easy mounting wherever you need.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer
Instruction Manual
4
Table of Contents
Introduction......................................................................................................... 2
Ordering Information.......................................................................................... 3
Specifications ..................................................................................................... 6
General............................................................................................................ 6
Rate Input........................................................................................................ 7
Rate/Totalizer.................................................................................................. 7
4-20 mA Transmitter Output.......................................................................... 8
Open Collector Output................................................................................... 8
Serial Communications ................................................................................. 8
MeterView EX Programming Software ......................................................... 9
Product Ratings and Approvals.................................................................. 10
Electromagnetic Compatibility.................................................................... 10
Safety Information........................................................................................ 10
Installation......................................................................................................... 10
Unpacking..................................................................................................... 11
Pre-Installed Conduit Plug .......................................................................... 11
Battery Activation Pull Tab.......................................................................... 11
Mounting ....................................................................................................... 11

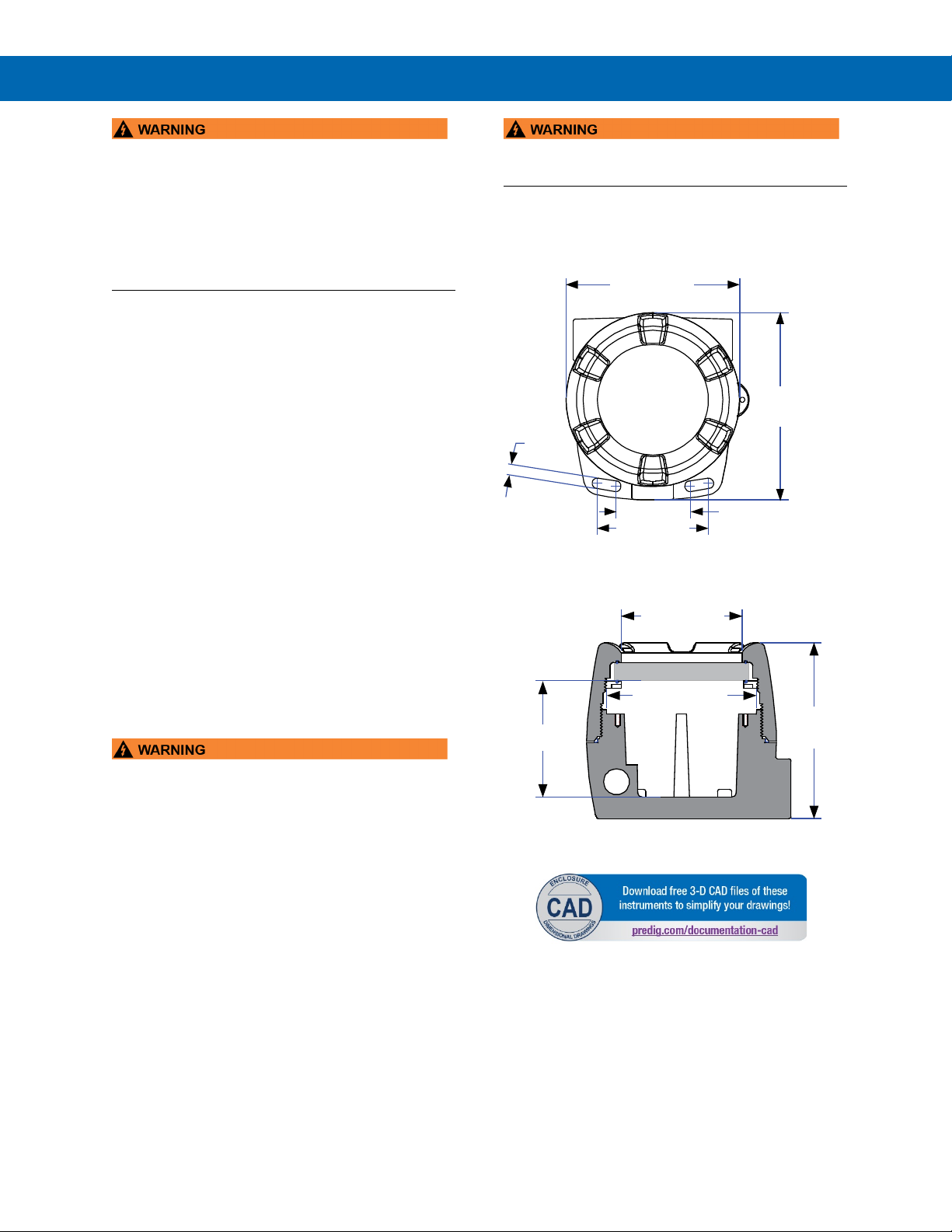

Dimensions................................................................................................... 11
Cover Jam Screw ......................................................................................... 12
Connections ................................................................................................. 12
Wiring Diagrams........................................................................................... 13

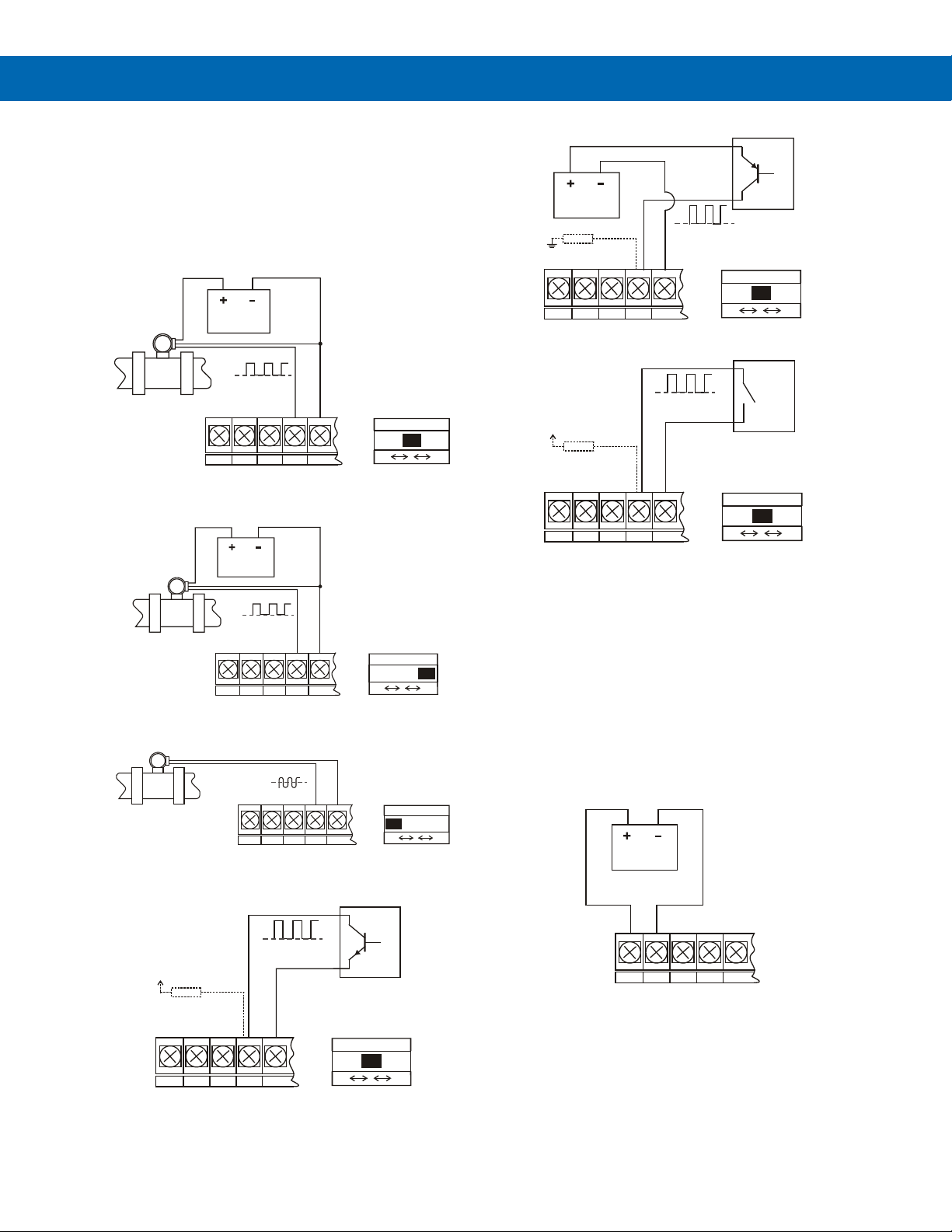

Input Signal Connections ........................................................................... 13
DC Power Connection ............................................................................... 13

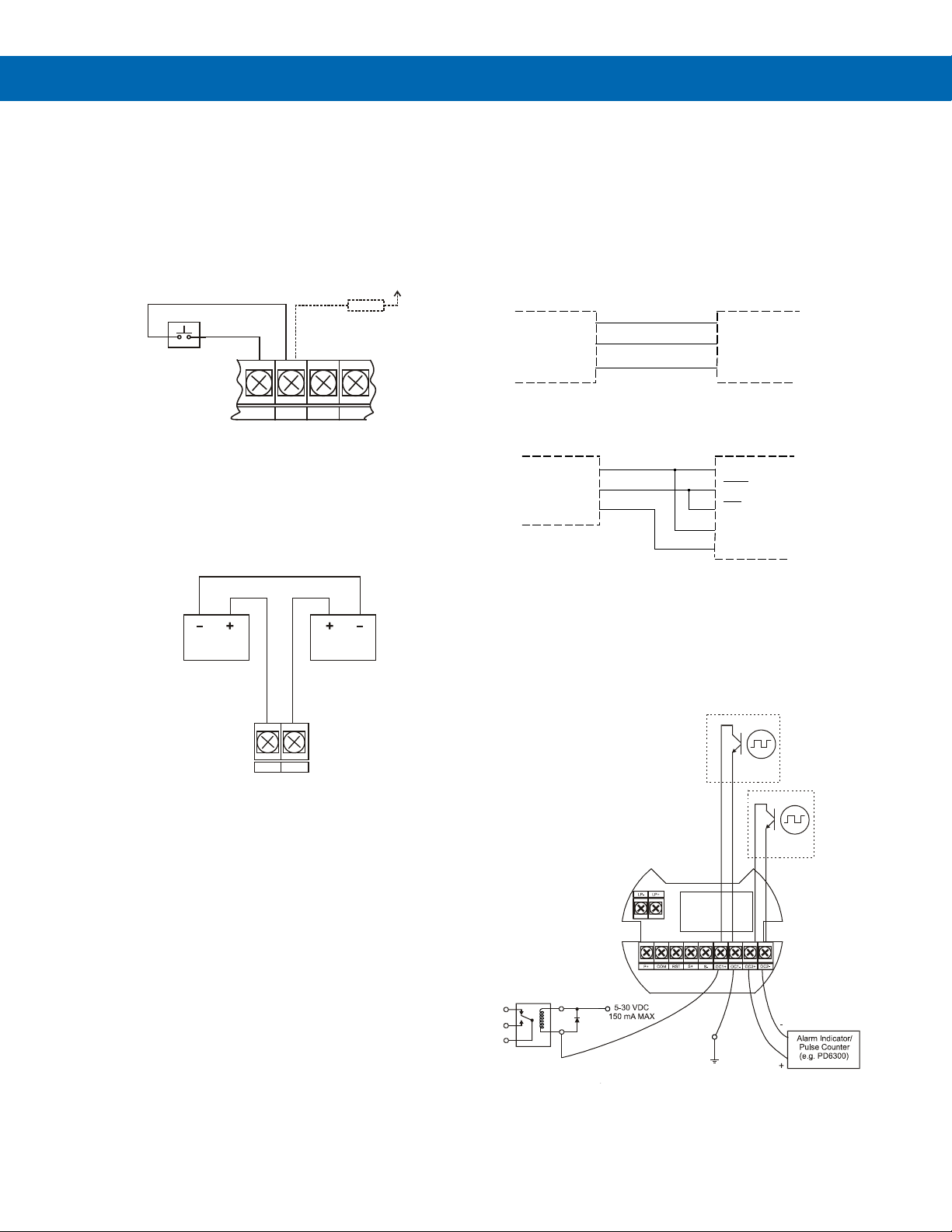

External Total Reset Connection ............................................................... 14
4-20 mA Transmitter Output Connections.................................................. 14
RS-485 Serial Connections........................................................................ 14
Open Collector Output Connections .......................................................... 14
Battery Replacement ................................................................................. 15
Setup and Programming.................................................................................. 15
Overview ....................................................................................................... 15
MeterView EX Programming Software ....................................................... 15
SafeTouch Buttons ...................................................................................... 16
SafeTouch Button Tips and Troubleshooting............................................. 16
Buttons and Display..................................................................................... 17

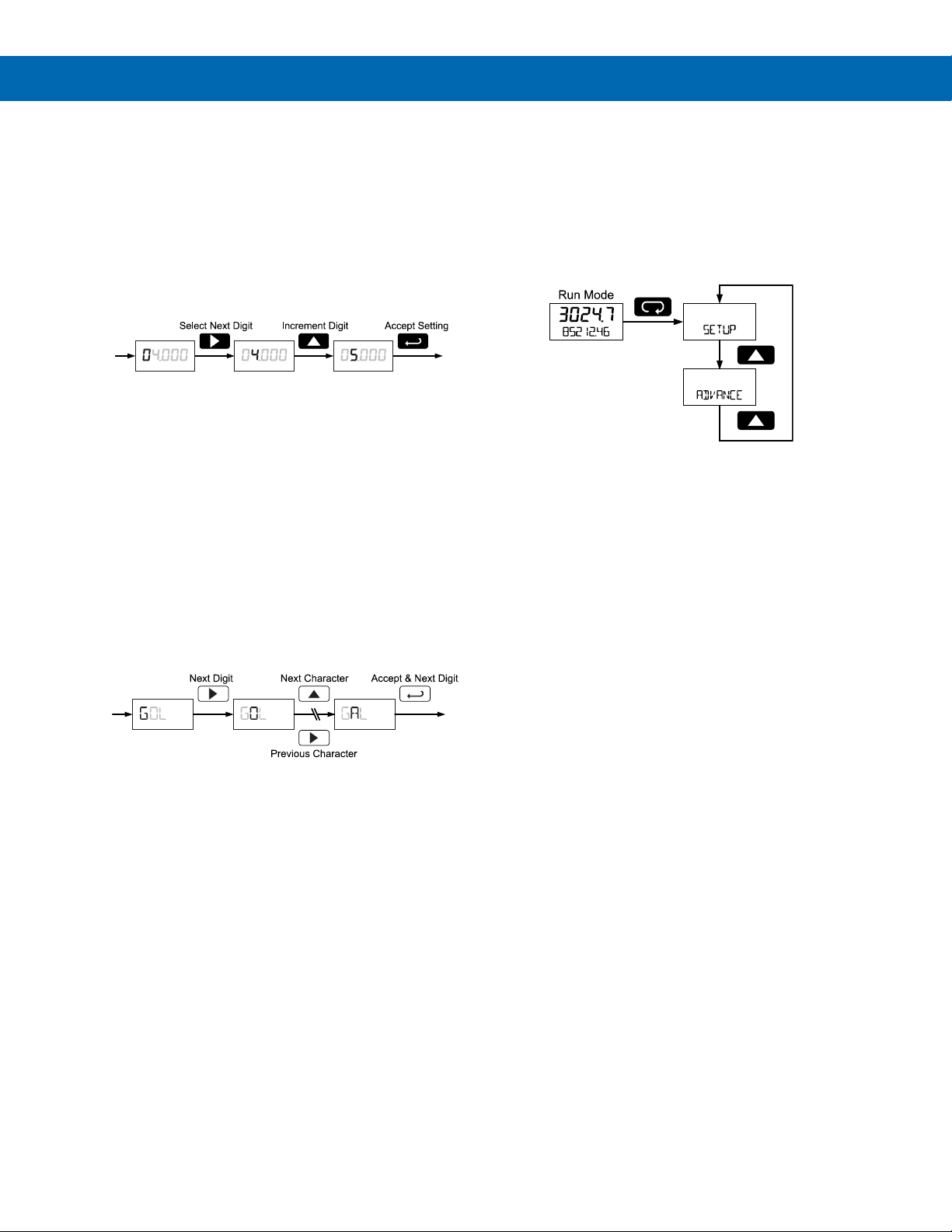

Setting Numeric Values ............................................................................... 18
Setting Alphanumeric Labels (LABEL)......................................................... 18
Main Menu..................................................................................................... 18
Setup Menu Display Functions & Messages ............................................. 19
Setting Up the Meter (SETUP) ....................................................................... 20
Selecting Input Type (Input) ..................................................................... 21
Entering the K-Factor (Factr).................................................................... 22
Display Units (Units)................................................................................. 22
Setting the Decimal Point (dec.PT) ............................................................. 26
Configuring the Display (Dsply)................................................................. 27

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
5
Advanced Features Menu............................................................................ 28
Advanced Features Menu & Display Messages......................................... 28
Open Collector Outputs (OUTPUT) .............................................................. 31
Scaling the 4-20 mA Analog Output (Aout)................................................ 33
Gate Function (GATE) ................................................................................. 33
Contact Debounce Filter (FILTER) ............................................................. 33
Low-Flow Cutoff (CUTOFF).......................................................................... 33
Scaling & Calibration (SCALCAL)................................................................. 34
Total Reset (T Reset) ............................................................................... 36
Setting Up Passwords (PASSWRD)............................................................... 38
Custom Menu (CUSTOM) ............................................................................. 40
System (SYSTEM)........................................................................................ 41
Serial Communications (COMM)................................................................... 43
Standby Mode (STANDBY)........................................................................... 43
Operation........................................................................................................... 44

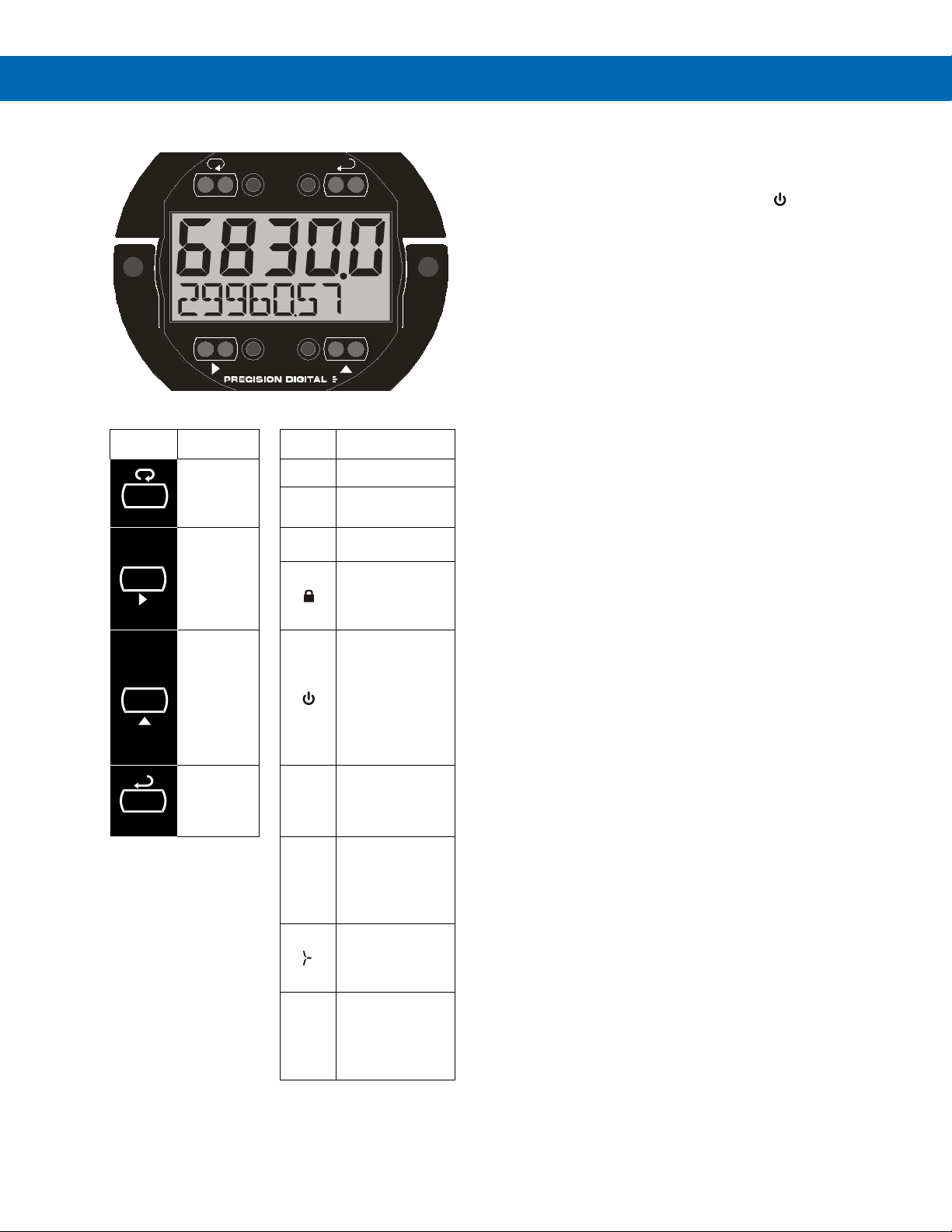

Front Panel Buttons Operation ................................................................... 44
Grand Total Reading (GrTOTAL)................................................................... 45
Previous Total & Grand Total...................................................................... 45
Display Max, Min & Previous Totals ........................................................... 45
Resetting the Total (RESET TOTAL?) .................................................................. 45
Resetting the Grand Total (RESET GrTOT?) ................................................. 45
Resetting Max/Min Readings (RESET MAXIMUM, MINIMUM)........................... 45
Reset Meter to Factory Defaults.................................................................. 46
Factory Defaults & User Settings................................................................ 46
Troubleshooting ............................................................................................... 47
Troubleshooting Tips................................................................................... 47
Quick User Interface Reference ..................................................................... 48
EU Declaration of Conformity.......................................................................... 49
Table of Figures
Figure 1. Enclosure Dimensions – Front View............................................... 11
Figure 2. Enclosure Dimensions – Side Cross Section View ....................... 11
Figure 3. Connector Board Mounted in Base of Enclosure .......................... 12
Figure 4. Connectors & Switches on Rear of Display Module...................... 12
Figure 5. Flowmeter Powered by External Supply (Active)........................... 13
Figure 6. Isolated Flowmeter Powered by External Supply (ISO)................. 13
Figure 7. Self-Powered Magnetic Pickup Coil Flowmeter (Coil) ................... 13
Figure 8. NPN Open Collector Input................................................................ 13
Figure 9. PNP Sensor with External Power .................................................... 13
Figure 10. Switch Contact Input (Reed).......................................................... 13
Figure 11. DC Power Connections .................................................................. 13
Figure 12. Reset Connections ......................................................................... 14
Figure 13. 4-20 mA Output Connections ........................................................ 14
Figure 14. RS-485 2 Wire Serial Connections ................................................ 14
Figure 15. RS-485 4 Wire Serial Connections ................................................ 14
Figure 16. Open Collector Output Connections............................................. 14
Figure 17. Battery Orientation ......................................................................... 15
Figure 18. Date Display Example .................................................................... 41

PD6830 Explosion-Proof Pulse Input Rate/Totalizer
Instruction Manual
6
Specifications
Except where noted all specifications apply to operation at +25°C.
General
Display
Top
Five digits, (0-99999),
0.7" (17.8 mm) high,
7- segment,
automatic lead zero blanking.
Bottom
Seven alphanumeric characters,
0.4" (10.2 mm) high,
14-segment,
automatic lead zero blanking.
Symbols
Total, grand total, battery
power/low battery, high alarm, low
alarm, SafeTouch button sleep
mode/disable, password lock
Display
Assignment
Top Display: Rate or total
Bottom Display: Combinations of rate,
total, grand total, units, and custom tag
Backlight
White; it can be disabled/enabled in the
Advanced - System menu. The backlight is
automatically turned off below -20°C.
Alarm
Indication
Flashing display plus HI/LO (rate) or SET
(total) indicators
Display
Orientation
Display may be mounted at 90° increments
up to 270° from default orientation.
Display
Update Rate
Ambient > -20°C: 1 update/second
Ambient < -20°C: 1 update/10 seconds
Note: Update is dependent on gate
settings.
Overrange
Display flashes 99999
Programming
Method
Four SafeTouch through-glass buttons
when cover is installed. Four internal
pushbuttons when cover is removed.
Free MeterView EX software.
Recalibration
Recalibration is recommended at least
every 12 months.
Max/Min
Display
Max/Min readings reached by the process
are stored until reset by the user or until
power to the meter is turned off.
Password
Menu Options
Three programmable password selections
can be used for the following: restrict
modification of settings, prevent resetting
the total or grand total without the
password, or permanently lock out the
ability to change or reset the grand total or
any grand total related settings (making a
non-resettable grand total).
Pass: Restricts modifications of
programmed settings to require re-entering
the password to make changes.
Pass T: Restricts the reset of total to
require re-entering the password. Disables
the manual mode reset contact.
Pass GT: Restricts the reset of grand total
to require re-entering the password. May
enable a non-resettable grand total and
permanent lockout of grand total-related
settings with a specific password.
Power Options
9-30 VDC Powered, 2.2 W max
4-20 mA Output Powered, 30 VDC max
Battery Power
9-30 VDC Powered with Battery Backup
4-20 mA Output Powered with Battery
Backup
Battery
3.6 V Primary Lithium (Li-SOCl2),
non-rechargeable Model PDABAT36C
Expected Service Life & Recommended
Replacement Interval
Operating
Condition
Estimated
Service
Life
Suggested
Replacement
Interval
Open
collector
outputs off,
SafeTouch
buttons off,
minimal
backlight
use
7.5 years 5.5 years
<100 Hz
open
collector
outputs,
minimal
SafeTouch
button or
backlight
use
5.5 years 4 years
<2 kHz
open
collector
outputs,
minimal
SafeTouch
button or
backlight
use
2.5 years 2 years
<5 kHz
open
collector
outputs,
minimal
SafeTouch
button or
backlight
use
1.3 years 1 year
Backup
power only N/A 10 years
Data Logging
Up to 1024 records, recorded 4/day at
specific times or at defined time intervals.
Record contains date, time, rate, total,
grand total, and log number.
Isolation
All Models:
500 V opto-isolated
input-to-power/output
with isolated input
enabled
PD6830-BTA:
500 V input-to-output
PD6830-APA:
500 V
input/power-to-output
Note: Requires
separate output supply
Environmental Operating temperature range: -40 to 75°C
Storage temperature range: -40 to 75°C
Backlight deactivated below
temperatures ≈ -20°C
Relative humidity: 0 to 90% non-condensing
Printed circuit boards are conformally coated.
Non-Volatile
Memory
All programmed settings and total reading
are stored in non-volatile memory for a
minimum of ten years if power is lost.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
7
Connections
Screw terminals accept 12 to 22 AWG wire
Enclosure
NEMA 4X, IP68 Explosion-proof die cast
aluminum, 0.30% max copper content,
corrosion resistant epoxy coating,
Color: Blue
Window: Glass
Three ¾" NPT threaded conduit openings.
One ¾" NPT nickel plated brass conduit
plug with 12 mm hex key fitting installed.
Mounting
May be mounted directly to conduit. Two
slotted flanges for wall mounting or NPS
1½" to 2½" or DN 40 to 65 mm pipe
mounting.
See Dimensions on page 11.
Overall
Dimensions
5.65" x 5.25" x 4.86" (W x H x D)
(144 mm x 133 mm x 124 mm)
Weight
5.00 lbs (80 oz, 2.27 kg)
Warranty
3 years parts and labor. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.
Rate Input
Pulse/Transistor/
Contact Closure
Input
Field selectable; Sourcing or sinking
pulse or square wave 0-5 V, 0-12 V,
or 0-24 V; TTL; NPN or PNP
transistor; Open collector 100 kΩ
pull-up to 3 V; Switch contact 100 kΩ
pull-up to 3 V; PNP transistor 100 kΩ
pull-down to ground (COM) Active
input 100 kΩ to battery level, 10 kΩ
to power
Maximum Frequency: 64 kHz
Minimum Pulse Width: 5 µs
Threshold Setting Low (V) High (V)
Normal
1.2
2.0
Low
0.2
1.2
Opto-Isolated
Input
Sourcing pulse or square wave 0-5 V,
0-12 V, or 0-24 V;
Logic High: 2-24 V, Logic Low: < 1 V
Maximum Frequency: 20 kHz
Minimum Pulse Width: 20 µs
Input Current: 1 mA @ 5 V,
2.5 mA @ 12 V, 5 mA @ 24 V
Low Voltage Mag
Pickup Input
Sensitivity: 20 mVp-p to 24 Vp-p
Maximum Frequency: 6 kHz
Minimum Input
Frequency
0.0001 Hz. Minimum frequency is
dependent on high gate setting
(rate display).
Input Impedance
Pulse input: Greater than 75 kΩ@ 1 kHz.
Open collector/switch input:
100 kΩpull-up to 3 V.
Accuracy
±0.03% of calibrated span ±1 count
Temperature Drift
Rate display is not affected by changes
in temperature.
Low-Flow Cutoff
0.1 to 99,999 or disable. Point below at
which the display always shows zero.
Decimal Point
Up to four decimal places or none:
4.4444, 33.333, 222.22, 1111.1, or 00000
Calibration
May be calibrated using K-Factor, scale
without signal source, or by applying an
external calibration signal.
K-Factor
Field programmable K-Factor converts
input pulses to rate in engineering units.
May be programmed from 0.000001 to
9,999,999 pulses/unit.
Calibration Range
Input 1 signal must be ≥ 1 Hz; input 2
signal may be set anywhere above
input 1 setting. Minimum input span is
1 Hz. An Error message will appear if
the input 1 and input 2 signals are too
close together.
Input Contact
Debounce Filter
Programmable contact debounce filter.
Input signal frequency speed selections
of Hi (no filter), Med (250 Hz max input,
2 ms pulse width), and Low (100 Hz
max input, 5 ms minimum pulse width).
Time Base
Second, minute, hour, or day
Gate
Low gate: 1-99 seconds;
High gate: 2-9,999 seconds
Rate/Totalizer
Display
Assignment
The Top display is assigned to rate or
total. The Bottom display is
programmable to display total; total and
units; total and tag; total, total units, and
rate units; grand total; grand total and
grand total units; grand total and tag;
grand total, grand total units, and rate
units; rate units; rate; rate and total
units; rate and rate units; rate and tag;
rate units; total units; a custom tag; or
be off (blank).
Rate Display
Units
Gallons, liters, imperial gallons, cubic
meters, barrels, bushels, cubic yards,
cubic feet, cubic inches, liquid barrels,
beer barrels, hectoliters, or custom.
Rate Display
Time Base
Rate display may be calculated in
terms of units per second, minute,
hour, or day.
Total & Grand
Total Display
Units
Gallons, liters, imperial gallons, cubic
meters, barrels, bushels, cubic yards,
cubic feet, cubic inches, liquid barrels,
beer barrels, hectoliters, or custom.
Setting is independent for each.
Total & Grand
Total Display
Unit Multiplier
x1, x100 (h), x1000 (k), or x1,000,000
(M) multiplier (and prefix) applied to
total or grand total display units. Setting
is independent for each.
Total & Grand
Total Decimal
Point
Up to six decimal places or none:
6.666666, 55.55555, 444.4444, 3333.333,
22222.22, 111111.1 or 0000000 Total
and grand total decimal points are
independently programmed, and are
independent of rate decimal point.
Totalizers
Calculates total and grand total based
on rate and field programmable
multiplier to display total in engineering
units. Time base must be selected
according to the time units in which the
rate is displayed. The total and grand
total utilize the same time base, with
different conversion factors and resets.
Totalizer Reset
Via SafeTouch RESET button,
mechanical button (cover off), external
contact closure (total only),
automatically via user selectable preset
value and time delay (1 – 99,999 sec).
Manual reset may be disabled or
protected by password for the total and
grand total. Total and grand total reset
independently.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
8
Total Overflow
And Rollover
The total can display up to
9,999,999,999,999. Up to 9,999,999
can be displayed on the lower display
normally. An overflow display will toggle
between the first six digits and last
seven digits (999999 <> 9999999) for a
13-digit total. The total will rollover
beyond thirteen digits. The T indicator
on the display will flash to indicate total
overflow, and the six most significant
digits (first six numbers of the total) are
indicated with the flashing overflow
symbol .
Grand Total
Overflow And
Rollover
The grand total can display up to
9,999,999,999,999. Up to 9,999,999
can be displayed on the lower display
normally. An overflow display will toggle
between the first six digits and last
seven digits (999999 <> 9999999) for a
13-digit total. The grand total will
rollover beyond thirteen digits. The GT
indicator on the display will flash to
indicate grand total overflow, and the six
most significant digits (first six numbers
of the grand total) are indicated with the
flashing overflow symbol .
External Total
Reset
External total reset connections are
made between RST and COM.
Logic High: 1.4 V, 3.3V max;
Logic Low: < 0.8 V.
32 ms debounce.
4-20 mA Transmitter Output
Output Source
Rate/process, total, grand total, or
disabled
Scaling Range
4.000 to 20.000 mA for any display
range.
Disable
If disabled, the output will output 3.2 mA
Calibration
Factory Calibrated:
0.0 to 1000.0 = 4- 20 mA output
Underrange
Output Underrange: 3.8 mA
Overrange
Display Overrange: 20.5 mA
Output Overrange: 20.5 mA
Accuracy
± 0.05% of calibrated span ± 0.004 mA
Temperature Drift
0.08 µA/°C max from -40 to 75°C
ambient
External Loop
Power Supply
30 VDC maximum
Output Loop
Resistance
Power
Supply
Minimum
Maximum
24 VDC
10 Ω
750 Ω
30 VDC
100 Ω
1100 Ω
Note: loop-powered backlight subtracts
150 Ω
from maximum resistance figures
above.
Open Collector Output
Output
Assignment
Two open collector pulse outputs Out 1
and Out 2.
Individually programmable for rate, total,
or grand total alarms; rate, total, or
grand total pulse outputs; or
retransmitting of pulse inputs; constant
timed pulse output; quadrature outputs
(requires Out 1 and Out 2); or off.
Rating
Isolated open collector, sinking NPN
30 VDC @ 150 mA max.
Alarm Output
Assign to rate for high or low alarm trip
point.
Assign to total or grand total for total or
grand total alarms.
Alarm Deadband
0-100% FS, user selectable
Alarm
Acknowledge
Front panel ENTER button resets output
and screen indication.
Pulse Output
(Count)
InvK-Factor =
Volume/Pulse
The InvK-Factor (
couNT
) is programma-
ble from 0.000001 to 9999999. Total
and grand total pulses are generated for
every total or grand total increment
selected. (e.g. InvK-Factor = 100 gal/p
will generate one pulse every time the
total is incremented by 100 gallons).
Rate pulses are generated as a scaled
output of the input frequency with one
output pulse per InvK-Factor (count).
Rate retransmission outputs one pulse
per one input pulse, up to the maximum
output speed.
Pulse Output
Pulse Width
Unless otherwise stated, pulses are
50% duty cycle for required frequency.
A pulse rate retransmit output will
generate 100 to 130 μs pulses at the
falling edge of every input pulse.
Pulse Output
Maximum
Frequency
5 kHz, pulse width at 50% duty cycle. If
the programming of the outputs would
exceed 5 kHz, the meter will display
pUlse
OVERRNG
Quadrature
Output
Output set to quadrature will lag the
other pulse output by 90°
(1/4 duty cycle) at output frequency.
Minimum 1 Hz
Timer Output
Programmable On and Off time,
repeating cycle. Minimum On time: 0.01
second, maximum On time: 10,000
seconds. Minimum Off time (Delay
Period): 0.1 second, maximum Off time
(Delay Period): 100,000 seconds.Ýelay
Period: Countdown time delay (Off)
after start is pressed.Ðn Time: Time the
open collector stays on.
Serial Communications
Protocol
Modbus® RTU
Meter Address/
Slave Id
1 - 247
Baud Rate
1,200; 4,800; 9,600; 19,200; 38,400;
57,600; or 115,200 bps
Transmit Time
Delay
Programmable between 0 and 199 ms
Parity/Stop Bit
Even, odd, none with 1 stop bit, or none
with 2 stop bits
Byte-To-Byte
Timeout
Max of 1.5 character times or 750 μs
Note: Refer to Modbus Register Tables at www.predig.com for details.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
9
MeterView EX Programming
Software
System
Requirements
Windows® 7/8/10 (Windows 32-bit or
64-bit operating systems)
Communications
PDA8068 Meter-to-USB Adapter,
PDA7485-I RS-232 to RS-485 Isolated
Converter (Cable not included),
PDA8485-I USB to RS-485 Isolated
Converter (Cable not included).
Protocol
Modbus RTU
Meter Address
1-247
Baud Rate
1200 bps to 115,200 bps
Configuration
Configure one meter at a time.
File format: Saved as “.mve".
Printing: Configuration can be printed.
Data Logging
Report
Saved as “.csv” file format.
For detailed programming software instructions
or to download MeterView EX software, visit
predig.com/meterview-ex.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
10
Product Ratings and Approvals
FM
Explosion-proof for use in:
Class I, Division 1, Groups B, C and D
Dust-ignition proof for use in:
Class II/III, Division 1, Groups E, F and G; T6
Flame-proof for use in:
Class I, Zone 1, AEx d Group IIC; T6
Protection by Enclosure:
Zone 21, AEx tb IIIC; T85°C
Ta = -40 to 75°C.
Enclosure: Type 4X, IP66.
Certificate number: 3040391
CSA
Explosion-proof for use in:
Class I, Division 1, Groups B, C and D
Dust-ignition proof for use in:
Class II/III, Division 1, Groups E, F and G; T6
Flame-proof for use in:
Zone 1, Ex d IIC T6
Ta = -40 to 75°C.
Enclosure: Type 4X & IP66/IP68.
Certificate number: 2325749
ATEX
II 2 G D. Flame-proof for use in:
Zone 1, Ex d IIC T6 Gb
Protection by Enclosure for use in:
Dust Atmospheres (Zone 21)
Ex tb IIIC T85°C Db IP68.
Ta = -40°C to +75°C
Certificate number: Sira 10ATEX1116X
IECEx
Flame-proof for use in:
Zone 1, Ex d IIC T6 Gb
Protection by Enclosure for use in:
Dust Atmospheres (Zone 21)
Ex tb IIIC T85°C Db IP68.
Ta = -40°C to +75°C
Certificate number: IECEx SIR 10.0056X
Special Conditions for Safe Use:
Use suitably certified and dimensioned cable entry device
and/or plug. The equipment shall be installed such that the
supply cable is protected from mechanical damage. The cable
shall not be subjected to tension or torque. If the cable is to be
terminated within an explosive atmosphere, then appropriate
protection of the free end of the cable shall be provided.
Year of Construction:
This information is contained within the serial number with
the first four digits representing the year and month in the
YYMM format.
For European Community:
The PD6830 must be installed in accordance with the ATEX
directive 2014/34/EU, and the product certificate Sira
10ATEX1116X.
Electromagnetic Compatibility
Emissions
EN 61326-1
Safety requirements for measurement,
control, and laboratory use – Industrial
Group 1 Class A ISM emissions
requirements
EN55022
Class A ITE emissions requirements
EN61000-6-4
Emissions for heavy industrial envi-
ronments - Generic
Radiated
Emissions
Class A
Immunity
EN 61326-1 Measurement, control,
and laboratory use – Industrial
EN61000-6-2 Immunity for heavy envi-
ronments - Generic
ESD
±4 kV contact, ±8 kV air
RFI –
Amplitude
Modulated
80-1000 MHz @ 10 V/m,
1.4-2.0 GHz @ 3 V/m,
2.0-2.7 GHz @ 1 V/m,
80% AM (1 kHz)
EFT
±2 kV DC mains, ±1 kV other
Telco Surge
±1 kV
CRFI
3 V, 0.15-80 MHz, 1 kHz 80% AM
Power
Frequency
Magnetic Field
30 A/m 70% V for 0.5 period
Safety Information
•Read complete instructions prior to installation and
operation of the meter.
•Installation and service should be performed only
by trained service personnel. Service requiring
replacement of internal components (not including
battery, if equipped) must be performed at the
factory.
•Disconnect from supply before opening enclosure.
Keep cover tight while circuits are alive. Conduit
seals must be installed within 18" (450mm) of the
enclosure.
•Verify that the operating atmosphere of the meter
is consistent with the appropriate hazardous
locations certifications.
•If the meter is installed in a high voltage
environment and a fault or installation error occurs,
high voltage may be present on any lead.
Installation
For Installation in USA:The PD6830 must be in-
stalled in accordance with the National Electrical
Code (NEC) NFPA 70.
For Installation in Canada:The PD6830 must be
installed in accordance with the Canadian Electrical
Code CSA 22.1.
For European Community: The PD6830 must be
installed in accordance with the ATEX directive
2014/34/EU and the product certificate Sira
10ATEX1116X.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
11
•Installation and service should be performed only
by trained service personnel. Service requiring
replacement of internal components must be
performed at the factory.
•Disconnect from supply before opening
enclosure. Keep cover tight while circuits are
alive. Conduit seals must be installed within
18" (450mm) of the enclosure.
Wiring connectors are accessed by opening the
enclosure. To access electrical connectors, remove
the two captive screws, then disconnect the ribbon
cable from the display module and set the display
module aside.
Unpacking
Remove the meter from box. Inspect the packaging
and contents for damage. Report damages, if any, to
the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.
Pre-Installed Conduit Plug
The PD6830 typically includes three ¾" NPT threaded
conduit openings and one ¾" NPT metal conduit plug
with 12 mm hex key fitting installed. Additional conduit
opening configurations and plugs may be available;
verify quantity and sizes on specific device labeling
during installation. The pre-installed plug and its in-
stallation are included in the hazardous area approv-
als for the PD6830.
The conduit/stopping plug included in a typical
PD6830 has an internal 12 mm hexagonal socket
recess for removal.
•In hazardous areas, conduit and conduit/stopping
plugs require the application of non-setting
(solvent free) thread sealant. It is critical that all
relevant hazardous area guidelines be followed for
the installation or replacement of conduit or plugs.
Battery Activation Pull Tab
PD6830 models with battery or battery backup power
will include a battery activation pull-tab. This tab as-
sures the meter is not operational during shipment or
storage and is located with the battery. Remove this
tab during installation of the meter.
Mounting
The PD6830 has two slotted mounting flanges that
may be used for pipe mounting or wall mounting.
Alternatively, the unit may be supported by the
conduit using the conduit holes provided.
Refer to Figure 1 and Figure 2.
•Do not attempt to loosen or remove flange bolts
while the meter is in service.
Dimensions
All units: inches [mm]
Figure 1. Enclosure Dimensions – Front View
Figure 2. Enclosure Dimensions –
Side Cross Section View
3.35 (85.1)
2.25 (57.1)
(8.2)
5.25 (133.4)
(143.5)
5.65
0.32
3.35 (85.0)
4.15 (105.5)
3.22 (81.9) (123.5)
4.86

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
12
Cover Jam Screw
The cover jam screw should be properly installed
once the meter has been wired and tested in a safe
environment. The cover jam screw is intended to
prevent the removal of the meter cover in a
flameproof environment without the use of tools.
Using a M2 hex wrench, turn the screw clockwise until
the screw contacts the meter. Turn the screw an
additional ¼ to ½ turn to secure the cover. Caution:
Excess torque may damage the threads and/or
wrench.
Connections
To access the connectors, loosen the cover jam
screw (if tightened) with an M2 hex wrench, remove
the enclosure cover and unscrew the two captive
screws that fasten the display module into the enclo-
sure. Disconnect the ribbon cable and remove the
display module.
RS-485 serial connections are made to a removable
terminal block on the back of the display module.
Power and signal connections are made to a screw
terminal connector in the base of the enclosure.
Grounding connections are made to the two ground
screws provided on the base – one internal and one
external. Use proper grounding techniques for explo-
sion-proof areas and observe all local and national
electric codes.
S+ Input signal positive terminal connection
S- Input signal negative terminal connection
COM DC power supply input return/negative,
reset contact closure common
RST Contact closure reset pull-up to 1.8 VDC
P+ DC Power positive terminal connection
LP+ 4-20 mA transmitter DC power positive
terminal connection.
LP-4-20 mA transmitter regulated current
output terminal connection
OC1+ Open collector output 1 positive terminal
OC1- Open collector output 1 negative terminal
OC2+ Open collector output 2 positive terminal
OC2- Open collector output 2 negative terminal
Refer to Figure 3 and Figure 4for terminal positions.
•Observe all safety regulations. Electrical wiring
should be performed in accordance with all
agency requirements and applicable national,
state, and local codes to prevent damage to the
meter and ensure personnel safety.
•Static electricity can damage sensitive
components.
•Observe safe handling precautions for
static-sensitive components.
•Use proper grounding procedures/codes.
•If the meter is installed in a high voltage
environment and a fault or installation error
occurs, high voltage may be present on any lead
or terminal.
Figure 3. Connector Board Mounted in Base of
Enclosure
Figure 4. Connectors & Switches on Rear of Display
Module
Board to Board
Interconnect
Battery (if ordered)

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
13
Wiring Diagrams
Input Signal Connections
Signal connections are made to a barrier terminal
mounted in the base of the enclosure. Input level and
type are configured using the slide switches on the
bottom of the display module as shown in the lower
right of the following figures.
Figure 5. Flowmeter Powered by External Supply
(Active)
Figure 6. Isolated Flowmeter Powered by External
Supply (ISO)
Figure 7. Self-Powered Magnetic Pickup Coil Flowmeter
(Coil)
Figure 8. NPN Open Collector Input
Figure 9. PNP Sensor with External Power
Figure 10. Switch Contact Input (Reed)
DC Power Connection
Models configured for DC power (PD6830-A) are pro-
vided with a terminal labeled P+ and are wired as
shown in Figure 11. Models configured for battery
power (PD6830-B) may optionally be connected to DC
power and the battery will function as backup power
when DC is lost. The same power supply may be used
to power other circuits including a PNP-type sensor,
however, to maintain input isolation, a separate power
supply must be used to power the isolated 4-20 mA
transmitter as shown in Figure 13 and/or to power the
Opto-Isolated Flowmeter as shown in Figure 6.
Figure 11. DC Power Connections
Flowmeter
(Pulse Output)
Power
Supply
COM RST
P+ S+ S-
INPUT LEVEL
mV V ISO
Flowmeter
(Pulse Output)
Power
Supply
COM RST
P+ S+ S-
INPUT LEVEL
mV V ISO
Flowmeter
(Magnetic Pickup Coil)
COM RST
P+ S+ S-
INPUT LEVEL
mV V ISO
+3.0 V
100 kOhm
Internal Pullup
NPN
SENSOR
COM RST
P+ S+ S-
INPUT LEVEL
mV V ISO
100 kOhm
Internal Pull-Down
PNP
SENSOR
Power
Supply
COM RST
P+ S+ S-
INPUT LEVEL
mV V ISO
+3.0 V
100 kOhm
Internal Pullup
SWITCH
CONTACT
COM RST
P+ S+ S-
INPUT LEVEL
mV V ISO
Power
Supply
COM RST
P+ S+ S-

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
14
External Total Reset Connection
External total reset connections are made between
RST and COM. Connect to a contact closure source
such as a relay or a pushbutton as shown in Figure 12.
Avoid extended contact closure to preserve battery life.
The total is reset when the button is pressed. The me-
ter will start to totalize immediately. Holding down the
button has no effect on the total.
Figure 12. Reset Connections
4-20 mA Transmitter Output
Connections
Output connections are made to two terminals labeled
LP+ and LP-. Connect to an input device such as a
remote display or chart recorder as shown in Figure 13.
Figure 13. 4-20 mA Output Connections
RS-485 Serial Connections
The meter may include an optional RS-485 two-wire
serial connection. The cabling used for an RS-485
serial communications network should always be a
high quality cable such as Belden 8162 or Alpha
6203C. A two-wire system requires two twisted pairs,
and a four-wire system requires three twisted pairs
(the extra twisted pair is needed for the signal
ground).
Figure 14. RS-485 2 Wire Serial Connections
Figure 15. RS-485 4 Wire Serial Connections
Open Collector Output Connections
Open collector output 1 and 2 connections are made to
terminals labeled OC1+ and OC1-, and OC2+ and
OC2-. Connect the alarm or pulse input device as
shown in Figure 16.
Figure 16. Open Collector Output Connections
COM RST+ S+ S-
+3.0 V
100 kOhm
Internal Pullup
LP- LP+
Power
Supply
4-20 mA Input
Device
ProtEX RS-485 DEVICE
D+
D-
G
D+
D-
G
ProtEX
DO
DO
DI
DI
GND
RS-485 DEVICE
D+
D-
G

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
15
Battery Replacement
Battery-equipped models have a battery charge moni-
tor. When the battery is nearing the end of its capacity
the screen will periodically flash the message
LO BATTERY and the BAT indicator on the screen will
flash. The recommended replacement interval for mod-
els using the battery as a primary power source is de-
termined by the power and feature use, as shown on
page 6. The battery should be replaced when the low
battery indication is on the screen.
The total is backed up in non-volatile memory when the
low battery monitor is tripped. It is recommended that
an updated reading be manually backed up prior to
changing out the battery.
•Fire, explosion, and burns may result if not
handled properly. Do not recharge, short circuit,
crush, disassemble, heat above 100°C (212°F),
incinerate, or expose contents to water.
•Battery disposal should be in accordance with
applicable regulations, which vary by location. In
many locations trashing of used batteries is
forbidden and disposal is done through local
battery disposal facilities. Spent batteries should
be packaged in such a way as to prevent short
circuits during handling and transport.
NOTICE: Battery may only be replaced with an original
Model PDABAT36C supplied by Precision Digital. Do not
recharge battery. Do not replace with used battery.
•Remove cover and display module and disconnect
display module ribbon cable.
•Carefully cut and remove the cable ties supplied
for shipping (if present).
•Remove the spent battery and prepare it for
disposal.
•Install new PDABAT36C into battery clip with
polarity as shown in Figure 17.
•Reconnect and fasten display module. Install
enclosure cover.
•Resume operation.
Figure 17. Battery Orientation
Setup and Programming
There is no need to recalibrate the meter for frequency
in Hz when first received from the factory.
The meter is factory calibrated for Hz prior to shipment.
The calibration equipment is traceable to NIST standards.
Overview
Setup and programming is done through the infrared
through-glass SafeTouch buttons, using the mechani-
cal buttons when uncovered, or with MeterView EX
programming software. There are two slide switches
located on the display module. One is used to config-
ure the input and the other is to lock or unlock the
SafeTouch Buttons.
MeterView EX Programming
Software
The fastest and easiest way to program the meter is
using the free Meterview EX programming software.
This software greatly simplifies the programming pro-
cess and allows the user to save configuration files for
later use.
The MeterView EX software requires the PDA8068
USB Serial Adapter, PDA7485-I RS-232 to RS-485
Isolated Converter,or the PDA8485-I USB to RS-485
Isolated Converter to connect the PC to the meter.
To download the MeterView EX programming
software, visit predig.com/meterview-ex.
PDABAT36C
-
+
+
+
++++++++
+
+

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
16
SafeTouch Buttons
The PD6830 is equipped with four sensors that oper-
ate as through-glass buttons so that it can be pro-
grammed and operated without removing the cover
(and exposing the electronics) in a hazardous area.
These buttons can be disabled for security by setting
the THRU-GLASS BUTTONS switch located on the
back of the display module to OFF.
SafeTouch Button Operation
To actuate a button, press and remove one finger
to the glass directly over the marked button area.
Remove finger to at least 4 inches away from the
window in between button activations. SafeTouch
and mechanical buttons may be held to cycle through
menus or digits in place of repeatedly pushing a
button.
SafeTouch Power Save Mode
SafeTouch buttons enter a power saving mode
after three minutes of inactivity. This mode is
indicated by the SafeTouch power symbol ( )
appearing in the lower right of the display. Only the
MENU button is monitored in this mode. To
activate the SafeTouch buttons, press and hold the
menu button for up to five seconds. The display will
read AWAKE, and the SafeTouch buttons will be fully
enabled.
SafeTouch Disabled Mode
When the cover is removed, the four mechanical
buttons located next to the sensors may be used.
The sensors are disabled when a mechanical
button is pressed and will automatically be re-
enabled after 60 seconds of inactivity. The
SafeTouch power symbol ( ) will blink in the lower
right of the display if the buttons are disabled due
to a mechanical pushbutton being pressed.
•SafeTouch will not work if two or more buttons
are detected as being pressed simultaneously.
Be careful to avoid triggering multiple buttons or
reaching across one button location to press
another.
SafeTouch Button Tips and
Troubleshooting
The SafeTouch Buttons are designed to filter normal
levels of ambient interference and to protect against
false triggering, however it is recommended that the
SafeTouch Buttons be turned off (slide THRU-GLASS
BUTTONS switch located on the back of the display
module to OFF) if there is an infrared interference
source in line-of-sight to the display or if the buttons
are not needed.
SafeTouch Button Tips:
•To the extent possible, install the display facing
away from sunlight, windows, reflective objects
and any sources of infrared interference.
•Keep the glass window clean.
•Tighten the cover securely.
•Use a password to prevent tampering.
•If the cover has not been installed and secured
tightly, it may take a moment for the SafeTouch
buttons to properly self-calibrate when the
cover is tightened.
After all connections have been completed and veri-
fied, connect the ribbon cable to the display module,
fasten the display module to the base, install enclo-
sure cover, and then apply power.
SafeTouch Button Equalize Delay
The SafeTouch buttons are designed to constantly
recalibrate for ambient conditions. When the cover
position is changed, the cover is removed, or an
object is removed that was placed over the front
window, it may take a moment for the SafeTouch
buttons to recalibrate to the change in conditions.
Allow up to 2 minutes for the SafeTouch buttons to
recalibrate to new conditions in these cases where
the cover position was changed, or the front window
is being unblocked.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
17
Buttons and Display
ENTER
DISPLAYRESET
MENU
Button
Symbol
Description Symbol Status
Menu /
Safe-
Touch
Awake
HI High Alarm
LO Low Alarm
Right
Arrow /
Reset
SET Total Alarm
Settings
Lockout
Password
Enabled
Up
Arrow /
Display
SafeTouch
Power
Save/Disable.
Flashing:
Temporarily
Disabled Due
to Mechanical
Button
Enter /
Alarm
Ack
T
Total Display
Flashing: Total
Overflow
Indication
GT
Grand Total
Display
Flashing: Total
Overflow
Indication
13 Digit Total
Overflow, 6
Most Significant
Digits
BAT
Flashing: Low
Battery Indicator
Steady:
Powered by
Battery Backup
Menu Button
•Hold the Menu SafeTouch button when in
power save mode (display will show ) to
awaken SafeTouch buttons.
•Press the Menu button to enter Programming
Mode.
•Press the Menu button during Programming
Mode to return to the previous menu
selections.
•Hold the Menu button for 1.5 seconds at any
time to exit Programming Mode and return to
Run Mode.
•Press and hold the Menu button for 3 seconds
to access the Advanced Features of the meter.
Right / Reset Button
•Press the Right arrow button to move to the
next digit or decimal position during
programming.
•Press Right to go forward through most
selection menus.
•Press Reset to reset the total, or values
displayed in the bottom display (grand total,
max, or min). Press Enter after Reset to
confirm the reset.
Up / Display Button
•Press Display when in Run Mode to display
the grand total, again to display the maximum,
and again to display the minimum reading
since last reset. These displays will time out in
12 seconds, or press Display until total is
displayed in the lower display. Press Enter to
lock this display, and disable the 12 second
time out.
•Press the Up arrow button to scroll forward
through the menus, decimal point, or to
increment the value of a digit.
Enter Button
•Press the Enter button to access a menu or to
accept a setting.
•Press Enter to lock display of grand total, Max
or Min readings (disables 10 second timeout).
•Press Enter while the grand total, max, or min
reading is locked on the lower display to return
to run mode.
•Press Enter to acknowledge alarm (if enabled).
MENU
ENTER
DISPLAY
RESET

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
18
Setting Numeric Values
The numeric values are set using the Right and Up
arrow buttons. Press Right arrow to select next digit
and Up arrow to increment digit.
The digit being changed blinks.
Press the Enter button, at any time, to accept a set-
ting or Menu button to exit without saving changes.
The decimal point is set using the Right or Up arrow
button in the Setup, Decimal Point menu.
Setting Alphanumeric Labels
(LABEL)
Fully alphanumeric values are set using the Right but-
ton to select the digit, the Up and Right arrow buttons
to select the digit reading, and the Enter button to con-
firm and select the next digit.
Menus using this entering method will display LABEL in
the upper display. After selecting the digit, and using
the Up and Right arrows to modify the digit, the display
will read CHAR. Using Enter to confirm the new digit will
return the display to reading LABEL.
The digit being changed blinks.
Press the Menu button to exit without saving changes.
Main Menu
The main menu separates the most commonly used
functions in the Setup menu, and more complex fea-
tures in the Advanced Features menu.
Press Menu button to enter Programming Mode then
press the Up arrow button to scroll through the main
menu.
•Press Menu, at any time, to return to the
previous menu selection. Press and hold the
Menu button for 1.5 seconds at any time to return
to Run Mode.
•Changes to the settings are saved to memory
only after pressing Enter.
•The display moves to the next menu every time a
setting is accepted by pressing Enter.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
19
Setup Menu Display Functions
& Messages
The meter displays various functions and messages
during setup, programming, and operation. The fol-
lowing table shows the main menu functions and
messages in the order they appear in the menu.
Display Parameter Action/Setting
SETUP Setup Enter Setup menu
Input Input Enter Input type selection
menu
Activ Active Set active input type
npn NPN Set NPN input type
pnp PNP Set PNP input type
Reed Reed Set reed switch input type
COIl Coil Set coil input type
iso Isolated Set isolated input type
ActlO Active low Set active input type with
low threshold
npnlO NPN low Set NPN input type with
low threshold
pnplO PNP low Set PNP input type with
low threshold
Factr K-Factor Enter the K-Factor menu
FUNIT K-Factor units Enter the K-Factor units
P/GAL Pulses/gallon Set K-Factor in pulses per
gallon
P/L Pulses/liter Set K-Factor in pulses per
liter
P/IGAL
Pulses/imp
gallon
Set K-Factor in pulses per
imperial gallon
P/M3 Pulses/meter3Set K-Factor in pulses per
meter cubed
P/BBL Pulses/barrel Set K-Factor in pulses per
barrel
P/BUSH
Pulses/bushel Set K-Factor in pulses per
bushel
P/cuyD
Pulses/cubic
yard
Set K-Factor in pulses per
cubic yard
P/cuFt
Pulses/cubic
feet
Set K-Factor in pulses per
cubic foot
P/cuIn
Pulses/cubic
inch
Set K-Factor in pulses per
cubic inch
P/LiBBL
Pulses/liquid
barrel
Set K-Factor in pulses per
liquid barrel
P/BBBL
Pulses/beer
barrels
Set K-Factor in pulses per
beer barrel
Display Parameter Action/Setting
P/HECtL
Pulses/hectoliter Set K-Factor in pulses per
hectoliter
P/CUST
Pulses/custom Set K-Factor custom unit
Dec.pT K-Factor
decimal point
Set the number of
decimal points in the
K-Factor
FAcTR K-Factor value Set the K-Factor for
custom units
Unit``s Units Select standard units or
custom unit/tag
TbASE Rate time base Enter the Time Base
menu
seC Second Units per second
min Minute Units per minute
hour Hour Units per hour
day Day Units per day
RateU Rate units Select rate display units
GAL Gallons Set units as gallons
L Liters Set units as liters
IGAL Imperial gallons Set units as imperial
gallons
M3 Meters cubed Set units as cubic meters
BBL Barrels Set units as barrels
BUSH Bushels Set units as bushels
cuyD Cubic yards Set units as cubic yards
cuFt Cubic feet Set units as cubic feet
cuIn Cubic inches Set units as cubic inches
LiBBL Liquid barrels Set units as liquid barrels
BBBL Beer barrels Set units as beer barrels
HECtL Hectoliter Set units as hectoliters
CUSt Custom unit Use a custom unit
USER User Set a custom unit
LABEL Label Select a custom unit label
character
CHAR Character Set a character in a
custom unit label
ratCF Rate conversion
factor
Enter the Rate
Conversion Factor menu
Tot U Total units Select total display units
Nmult Total multiplier Select the total units
multiplier
X1 x1 (no
multiplier)
Select no multiplier
X100 h
x100 (h) Select x100 multiplier with
h unit prefix

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual
20
Display Parameter Action/Setting
X1000 k
x1000 (k) Select x1,000 multiplier
with k unit prefix
X1.0e6
M x1.0*106(M) Select x1,000,000
multiplier with M prefix
TotCF Total conversion
factor
Enter the Total
Conversion Factor menu
GToTU Grand total units Select grand total display
units
Nmult Grand total
multiplier
Select the grand total
units multiplier
GrtCF Grand total
conversion
factor
Enter the Grand Total
Conversion Factor menu
for custom units
Dec..pt Decimal point Enter Decimal Point
menu
Rate Rate decimal Set rate display decimal
point
total Total decimal Set total display decimal
point
Grtot Grant total Set grand total display
decimal point
Dsply Display Set the function of the top
and bottom displays
tOp Top Set the function of the top
display
Rate Rate Display rate
Total Total Display total
BOtnm Bottom Set the function of the
bottom display
Total Total Display total
TOgle Toggle Toggle between the
values shown in the
bottom display
TOTAL+U`````````````````
Total & units Display total and units
TOT+TAG
Total & Tag Display the total and
custom tag
T+U+RU
Total & units &
rate units
Display the total, total
units, and rate units
Grtot Grand total Display grand total
GrTOT+U`````````
Grand total &
units
Display grand total and
units
GT+TAG
Grand total &
tag
Display the grand total
and custom tag
GT+U+RU
Grand total &
units & rate
units
Display the grand total,
grand total units, and rate
units
rate Rate Display the rate
RaTe+TU
Rate & total
units
Display the rate and total
units
Display Parameter Action/Setting
RaTe+RU
Rate & units Display the rate and rate
units
RAT+TAG
Rate & tag Display the rate and
custom tag
RUnit Rate unit Display the rate units
TotUn Total units Display the total units
TAG Custom tag Enter the custom tag to
be displayed
Off Off Turn off the bottom
display
Tag
TIME Tag Time Set time to display
custom tag
Unit
TIME Unit Time Set time to display lower
display unit
Rate
TIME Rate Unit Time Set time to display rate
unit
Setting Up the Meter (SETUP)
The Setup menu is used to select:
1. Input type selection (INPuT)
2. K-Factor number and units (FActr)
3. Display rate, total, and grand total units (Units)
4. Rate and total decimal point position (dec.pt)
5. Select what will appear on the lower display
(DSPLY)
Press the Enter button to access any menu or press
Up arrow button to scroll through choices. Press the
Menu button to back out of a menu, or hold the Menu
button to exit at any time.
