Precision PDS-800 User manual

2 Remote Controls
This opener is supplied with a three-button remote control (the second and third buttons can be used to control an
additional opener or gate). Additional single and multi-button remote controls can be purchased. The short wire on
the back of the opener serves as an antenna for the remote controls. Do not cut off the wire or the remote controls
will not operate well.
To Add or Remove a Remote Control
1 Press the opener’s LEARN button. The opener’s light
and red light will ash once and turn on for about 15
seconds. A remote must be added or removed
while the red light is still on.
2 Send a signal from a remote. The opener’s light and the
red light will ash once if a remote was added, or the
opener’s light and the red light will ash four times if a
remote was removed.
3 Repeat Steps 1 & 2 for any additional remote controls.
To Remove all Remote Controls
1 Press and hold the opener’s LEARN button for ten
seconds or more.
2 Release the LEARN button. The red light and opener’s
light will blink three times signaling that all of the
remotes in the opener’s memory were erased. The
red light will turn off, then turn on for 15 seconds. A
remote control can be entered during this time using
Step 2 above.
Testing
1 Before testing the remote control, straighten out the
opener’s antenna wire so it points up.
2Stand clear of the door, press the remote control’s
button and verify that the opener starts.
Replacing a Remote Control’s Batteries
When the red light on the remote glows dimly, or fails to
light at all when the remote is activated, the batteries need
replacing.
1 Open the remote’s case and remove the circuit board.
2 Replace old battery with a Type CR032 battery.
3 Re-assemble the remote.
3 Garage Door Opener Maintenance
Weather conditions may affect the door operation which
could require some re-setting of the opener’s adjustments.
Doors may swell and become heavier during wet periods,
door hinges and rollers might bind during cold periods. To
insure safe operation of the door, perform the following
tests, including any additional test steps described.
Every Month
1 With the door closed, pull the red release handle to
disconnect the opener from the door.
2 From outside the garage, slowly open the door manually
all the way, and then close it all the way. Notice if there
is any binding, sticking or rubbing. The door should
move smoothly in both directions.
3 Raise the garage door about halfway up. Carefully
release the door and see if the door balances. It should
stay in place. Close the door.
� NOTE: If the garage door is unbalanced or the door
travel isn’t smooth, have a qualied garage door
professional adjust or repair the door.
4 To reconnect the opener, ip the release lever up and
run the opener.
5 Perform the Safety Beam Test (Section 4).
6 Perform the Safety Reversal System Test as described
in Section 8.
After Servicing the Opener
1 Perform the Safety Beam Test (Section 4).
2 Perform the Open and Close Limit Adjustments
(Section 5).
3 Perform the Safety Reversal System Test (Section 8).
Every 6 Months
Check the belt or chain tension.
• For belt-drive rails, examine the length of the tension
spring in the traveler. It should be about 1” long.
• For chain-drive rails, examine the spacing between
the turnbuckle and the rail. The turnbuckle should be
slightly above the rail.
� NOTE: Too much or too little chain tension will cause
excessive sprocket noise.
Chain Adjustment
If necessary, use the following steps to adjust the chain.
1 Hold the turnbuckle with a at blade screwdriver and
loosen the two locknuts with a 7/16” end wrench.
2 Twist the turnbuckle to adjust the chain tension. Adjust
the chain until the turnbuckle is sightly above the rail.
3 Hold the turnbuckle with a at blade screwdriver and
tighten the two locknuts with a 7/16” end wrench.
Belt Adjustment
The tension spring in the traveler keeps the belt taut. The
factory setting for the tension spring length is .9” long. If
the tension spring is longer than 1”, adjust the belt.
1 Hold the traveler so the adjustment wheel is visible
through the large slot.
2 Use a at blade screwdriver to turn the adjustment
wheel to compress the tension spring until its length is
between .9” and 1” long.
Every Year
Check the door hardware for lubrication needs. Lubricate
door hinges, rollers and bearings according to door
manufacturer’s recommended procedures.
Belt-drive or chain-drive DC motor garage door operator
Homeowner’s instructions
For Sectional Type Doors
IMPORTANT SAFETY NOTES
Please read the instructions carefully! This garage door opener is designed to provide safe and reliable service if installed
and tested as described in these instructions. A garage door is the largest mechanical appliance in a residence. Care must
be taken to prevent injury or death during installation and operation of the garage door and garage door opener.
THE FOLLOWING FORMATS ARE USED FOR SAFETY NOTES IN THESE INSTRUCTIONS.
1 Using the Garage Door Opener
Opening the Door
1 With the door in view, press the wall station’s UP/DOWN
ARROW button, the button assigned to the opener on
the remote control, or enter a valid access code and
press START/STOP on a remote keypad.
2 When the opener is activated, the opener’s light will turn
on and the door will begin to open.
3 The door will open until the open limit is reached. If
an obstacle is encountered (opener’s light ashes four
times) while the door is opening, the door will stop.
4 The opener’s light will stay on for about ve minutes
after the door stops.
Closing the Door
1 With the door in view, press the wall station’s UP/DOWN
ARROW button or the button assigned to the opener on
the remote control, or enter a valid access code and
press START/STOP on a remote keypad.
2 When the opener is activated, the opener’s light will turn
on and the door will begin to close.
3 The door will close until the close limit is reached. If
an obstacle is encountered (opener’s light ashes four
times), or the safety beam is interrupted (opener’s light
ashes three times) during closing, the door will stop,
then re-open.
4 The opener’s light will stay on for about ve minutes
after the door stops.
Stopping the Door Mid-travel
1 The door can be stopped immediately at any time
by pressing the wall station’s UP/DOWN ARROW
button, the remote control’s pushbutton, or press
the START/STOP button on a remote keypad (if
the remote keypad was used to start the door).
2 The next time the opener is activated, the door will
move in the opposite direction.
Vacation Lock for Additional Security
1 Slide the wall station’s LOCK switch to the locked
position to prevent remote controls from opening the
door after the door is completely closed. The remotes
can close the door, but not open it. The door can still be
opened or closed by using the wall station’s UP/DOWN
ARROW pushbutton.
� NOTE: To signal that the vacation switch is locked,
the opener’s light and red light will ash ve times if
a remote is activated in an attempt to open the door.
2 Slide the wall station’s LOCK switch to the unlocked
position to return the opener to normal operation.
Controlling the Opener’s Light
1 The opener’s light can be lit by pushing the wall station’s
LIGHT button. The light will remain on until the LIGHT
button is pressed again or the opener is cycled.
2 If the opener’s light is on, pushing the wall station’s
LIGHT button will turn the opener’s light off.
Disconnecting the Door from the Opener
1 With the door in any position (preferably closed),
carefully pull the red release handle. USE CAUTION IF
THE DOOR IS OPEN, THE DOOR MAY DROP.
2 The disconnected door can be opened or closed
manually.
3 To reconnect the opener, ip the release lever up. Raise
or lower the door manually until the opener reconnects.
IMPORTANT USER SAFETY INSTRUCTIONS
WARNING
A MOVING GARAGE DOOR CAN CAUSE INJURY OR DEATH!
TO REDUCE THE RISK OF DEATH OR SEVERE INJURY:
1 READ AND FOLLOW ALL INSTRUCTIONS.
2 Use this operator only with sectional overhead doors no more than 10 ft. tall.
3 NEVER LET CHILDREN OPERATE, OR PLAY WITH DOOR CONTROLS! KEEP REMOTE CONTROL AWAY
FROM CHILDREN!
4 Always keep moving door in sight and away from people and objects until it is completely closed.
NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
5 NEVER GO UNDER A STOPPED, PARTIALLY OPEN DOOR.
6 Test door opener monthly. The garage door MUST reverse on contact with a 1-1/2 inch object (or
a 2x4 board laid at at the center of the door) on the oor. If adjusting either the force or the limit
of travel, re-test the door opener. Failure to adjust the opener properly may cause severe injury or
death.
7 If possible, use the red emergency release handle only when the door is closed. Use caution when
using this release with the door open. Weak or broken springs may cause the door to fall rapidly,
causing injury or death.
8 KEEP GARAGE DOORS PROPERLY BALANCED. (See Garage Door Opener Maintenance) An improperly
balanced door could cause severe injury or death. Have a qualied service person make repairs to
cables, spring assembly and other hardware.
9SAVE THESE INSTRUCTIONS.
THE DOOR SHOULD
BALANCE WITHOUT
GOING UP OR DOWN
CHECKING THE DOOR BALANCE
TEST WITH SMALL OBSTACLE
THE DOOR MUST REVERSE
WITHIN 2-SECONDS AFTER
IMPACT WITH A 2 x 4 BOARD
2 x 4 BOARD LAID FLAT
UNDER CENTER OF DOOR
TESTING THE SAFETY REVERSAL SYSTEM
IF PROPERLY
BALANCED, THE
DOOR WILL STAY AT A
HALFWAY POSITION
IF PROPERLY
BALANCED, THE
DOOR WILL STAY AT A
HALFWAY POSITION
PRINTER’S INSTRUCTIONS:
INSTR,HOMEOWNERS,LDCO,PVT LBL GDD; GTO PN: 231604-D; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 11.000” x 17.000”; FOLDING: 1-FOLD VERTICAL, 1-FOLD HORIZONTAL, FINISH 8.500” X 5.500” WITH LOGO SHOWING; SCALE: 1-1; SIDE 1 OF 2
WARNING
This type of warning note is used to indicate
possible mechanical hazards that may cause
serious injuries or death.
CAUTION
This type of warning note is used to indicate
the possibility of damage to the garage door
or garage door opener.
WARNING
The garage door opener must not be installed
and used on an unbalanced door. The opener’s
internal door force sensor will not function
properly on an unbalanced door. Risk of
serious injury or death may result.
WARNING
Garage door hardware (springs, cables,
brackets, pulleys, etc.) are under extreme
pressure and tension. DO NOT ATTEMPT
TO LOOSEN, TIGHTEN OR ADJUST ANY DOOR
HARDWARE. CALL A QUALIFIED GARAGE DOOR
INSTALLATION PROFESSIONAL!
WARNING
Always perform the entire Safety Reversal
System Test (see Section 8) after making any
adjustments to the opener.
IF DOOR BECOMES OBSTRUCTED,
PULL DOWN ON HANDLE
NOTICE
IF DOOR BECOMES OBSTRUCTED,
PULL DOWN ON HANDLE
NOTICE
TO DISCONNECT OPENER
PULL THE RED
RELEASE HANDLE
TO DISCONNECT
THE OPENER FROM
THE DOOR
FLIP THE LEVER UP
AND RAISE OR
LOWER THE DOOR
TO RECONNECT
THE OPENER
TO RECONNECT OPENER
WARNING
Children operating or playing with a garage
door opener can injure themselves or others.
The garage door could cause serious injury
or death. Do not allow children to operate the
remote control(s) or the wall station. A moving
garage door could injure or kill someone under
it. Activate the opener only when the door is
clearly visible, free of obstructions and adjusted
properly.
SEND A SIGNAL
FROM A REMOTE
THE OPERATOR'S LIGHT AND
RED LIGHT WILL FLASH ONCE IF A
REMOTE IS ADDED, THE OPERATOR'S
LIGHT AND THE RED LIGHT
WILL FLASH FOUR TIMES
IF A REMOTE IS REMOVED
1
2
ADDING OR REMOVING A REMOTE
PRESS A
BUTTON
- OR -
ENTER A CODE
AND PRESS UP/DOWN BUTTON ( )
PRESS THE LEARN BUTTON
FOR 10 SECONDS OR MORE
1
2
REMOVING ALL REMOTES
THE RED LIGH
AND OPERATOR’S LIGH
T
T
WILL BLINK 3 TIMES
SIGNALING THAT
ALL REMOTES
WERE REMOVED
PRESS THE
LEARN BUTTON
REMOTE MUST BE ENTERED
WHILE RED LIGHT IS ON
2
PREPARING TO ADD OR REMOVE A REMOTE 1
THE RED LIGHT WILL
GLOW FOR 15 SECONDS
TURNBUCKLE
LOCKNUTS
TO OPENER LOCKNUTS
TIGHTEN
LOCKNUTS
LOOSEN
HOLD TURNBUCKLE
WITH FLAT BLADE
SCREWDRIVER TO
BACKUP LOCKNUTS
TWIST
TURNBUCKLE
CHAIN
TIGHTENCHAIN
LOOSEN
ADJUSTING A CHAIN-DRIVE
PRESS THE
WALL STATION'S
UP/DOWN ARROW
PRESS A REMOTE
CONTROL BUTTON
OPENING OR CLOSING THE DOOR
- OR -- OR -
ENTER AN
ACCESS CODE
WALL STATION REMOTE
KEYPAD
AND PRESS
UP/DOWN BUTTON ( )
THE DOOR CAN BE STOPPED
AT ANY POSITION USING THE
WALL STATION, REMOTE CONTROL,
OR A REMOTE KEYPAD
STOPPING THE DOOR WALL
STATION
REMOTE
KEYPAD
LOCK UNLOCK
PREVENTING REMOTES
FROM OPENING THE DOOR
SLIDE THE VACATION SWITCH
DOWN TO LOCK (REMOTES DISABLED)
OR UP TO UNLOCK (REMOTES NORMAL)
CONTROLLING THE
OPENER'S LIGHT
PRESS THE LIGHT
BUTTON TO TURN THE
LIGHT ON OR OFF
THE LIGHT WILL STAY ON UNTIL
THE LIGHT BUTTON IS PRESSED
OR THE OPENER IS CYCLED
IF DOOR BECOMES OBSTRUCTED,
PULL DOWN ON HANDLE
NOTICE
IF DOOR BECOMES OBSTRUCTED,
PULL DOWN ON HANDLE
NOTICE
IN CASE OF POWER FAILURE
OR IF DOOR BECOMES OBSTRUCTED
PULL THE RED
RELEASE HANDLE
TO DISCONNECT
THE OPENER FROM
THE DOOR
FLIP THE LEVER UP
AND RAISE OR
LOWER THE DOOR
TO RECONNECT
THE OPENER
4 5 6
1 2 3
USE COIN OR VISOR
CLIP IN SLOT TO
OPEN CASE
REPLACING THE REMOTE CONTROL BATTERY
CARFULLY REMOVE
THE BOARD
LIFT OFF TOP
OF CASE
REMOVE OLD
BATTERY AND
DISPOSE OF
PROPERLY
INSERT NEW
CR2032
BATTERY
PLUS SIDE UP
RE-ASSEMBLE
REMOTE CONTROL
ADJUSTING A BELT-DRIVE
TIGHTEN
LOOSEN
TURN THE ADJUSTMENT
WHEEL UNTIL THE TENSION
SPRING IS ABOUT 1" LONG
ADJUSTMENT WHEEL
MEASURE THE TENSION
SPRING LENGTH
TRAVELER
WHENEVER OPERATING
THE LIGHT WILL TURN ON
FOR ABOUT 5 MINUTES
NOTE: A FLASHING
LIGHT INDICATES
TROUBLE
SAFETY LIGHTING
PDS-800

7 Automatic Door Force Setup
The opener automatically measures the door force throughout the entire travel of the door each time the opener
cycles. The opener will automatically adjust to changing door hardware conditions over time due to weather and wear.
Your installer has used these steps during setup of the opener. You can also perform these steps at any time.
Automatic Door Force Setup
1 Be sure that the trolley latch is up and the door is
connected to the opener.
2 Operate the door through four complete open and close
cycles.
8 Safety Reversal System Test
The opener determines that there is an obstruction if a higher than expected amount of force is detected during a
door cycle. If an obstruction is encountered during a closing cycle, the opener and door will stop then fully open. If an
obstruction is encountered during an opening cycle, the opener and door will stop.
Safety Reversal System Test
1 Lay a 2 x 4 board at on the oor where it will be struck
by the center of the door as it closes.
2 Verify that the door reverses when it strikes the board.
The door must reverse within two seconds after striking
the board.
9 Adjusting the Force Factor (Installation Option, Normally Not Used)
The opener uses the peak force measured during each of the last four complete cycles plus a “force factor” to
calculate the maximum allowed force setting for the current door cycle. If the calculated maximum force setting is
exceeded during the current door cycle, the opener reacts to the obstruction. As door hardware conditions change
over time with weather and wear, the calculation of the maximum door force setting using the four cycle running
average will compensate for the current conditions of the installation.
10 Field Reset
In installations where the door spring, door, or hardware is being replaced, and the opener was already programmed
for the old door, reset the opener using the following steps.
11 Troubleshooting
LAMP FLASHES
TROUBLE CODE PROBLEM CAUSE REMEDY
1 FLASH No problem Remote control entered into
memory
Add any additional remote controls
(MegaCode™ type only)
2 FLASHES Door won’t close Shorted wall station wires
Check wall station wires. Be sure both are
connected to the terminal screws. Check for
a staple in the wall station wires. Remove any
staples compressing the wire.
3 FLASHES Door won’t close Safety beam obstacle Check for obstacles. Align the safety beam
(Section 4)
4 FLASHES
Door reverses
or won’t open or
close
Open or Close force exceeded
Check for obstruction or binding of garage
door. Perform eld reset (Section 8) if
necessary.
5 FLASHES
Door won’t open
from remote
control
Remote was activated while
vacation switch was locked Unlock vacation switch on wall station
6 FLASHES Motor ran longer
than 30 seconds
Mechanical or electronic
failure Call your Precision Door Service professional
7 FLASHES Limit error Encoder has detected error or
down limit set above up limit.
Re-set the open and close limits. If error
occurs again, call your Precision Door Service
professional.
FCC NOTICE
Changes or modications not expressly described in this manual or approved by the manufacturer could void the user’s authority to operate the equipment. This device complies
with Industry Canada and FCC Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation.
LIMITED WARRANTY
This Precision Door Service LLC product is warranted to the original consumer against defects in material and workmanship for:
MODEL ELECTRONICS MECHANICAL MOTOR BELT CHAIN
PDS-800 1 year 5 years Lifetime Lifetime 5 years
This product is warranted to the original consumer against defects in material and workmanship for the periods mentioned above. Precision
Door Service LLC will repair, or at its option, replace, any device that it nds requires service under this warranty. This warranty does not
apply to damage to the product from negligence, abuse, abnormal usage, misuse, accidents, normal wear or tear or due to failure to follow
Seller’s instructions, or arising from improper installation, storage or maintenance. In no event will Precision Door Service LLC be responsible
for incidental, compensatory, punitive, consequential, indirect, special or other damages. The remedies provided by this warranty are exclusive.
Some states do not allow the exclusion or limitation of incidental and consequential damages, so the above limitation or exclusion may not apply
to you. Any warranties implied by law are limited to the time periods set forth above. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives you specic legal rights, and you may also have other rights
which vary from state to state.
For warranty service, contact Precision Door Service LLC at www.precisiondoor.net. In order to be protected by this warranty, save your proof
of purchase should repair be required.

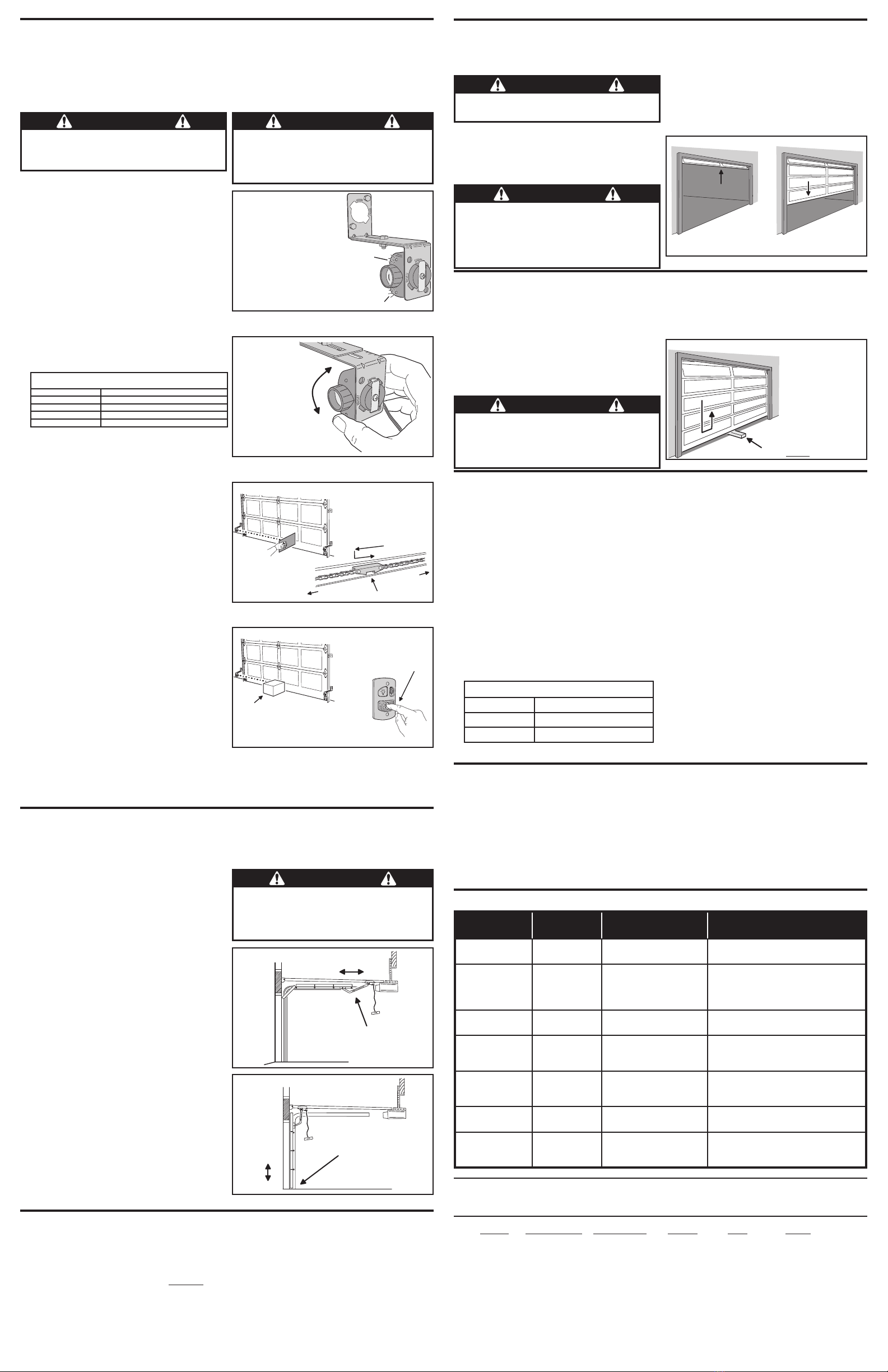

4 Testing the Infrared Safety Beam
The safety beam has two components, a sender and a receiver. The sender produces a narrow infrared beam that
travels across the bottom of the door opening to the infrared receiver. If an object blocks the infrared beam while the
door is closing, the door will stop, then reverse and fully open (the opener’s light will ash three times).
As a safety feature, the opener will ignore signals from all remote controls if the door is open and the
infrared safety beam is blocked or out of alignment. In this case, the door can be forced closed by
pressing and holding the wall station’s up/down arrow pushbutton (be sure the door area is in clear
view).
Safety Beam Test
1 Check that the opener has power. The green lights on
the sender and receiver should be lit.
2 If the receiver’s green light is on, but the red light is off,
the receiver has power but is not detecting the infrared
beam from the sender. The red light might ash when
the beam is partially detected. This can be caused by
mis-alignment or something blocking the beam. Adjust
the safety beam sender and receiver while watching the
receiver’s red light (stay out of the beam while aligning
it). When the red light stays on, rotate the sender towards
the ceiling and stop when the red light on the receiver
begins to icker. Rotate the sender back towards a
horizontal position with the oor and stop as soon as the
red light on the receiver lights solid. The beam is now
properly aligned.
SAFETY BEAM INDICATOR TABLE
GREEN ON POWER ON
GREEN OFF POWER OFF
RED ON BEAM OK - NO BLOCKAGE
RED OFF BEAM BLOCKED OR MIS-ALIGNED
RED FLASHING BEAM ALIGNED POORLY
� NOTE: If the receiver’s red light remains off, check
for: 1) Dirt on the receiver’s lens, 2) Sunlight shining
into the receiver’s lens, 3) A short in the safety beam
wiring (from staples or at the opener terminals).
3With the door closed and the opener disengaged
from the door, press the wall station’s UP/DOWN
ARROW button to move the traveler (the part on the belt
or chain that the trolley engages with) to the up position
(away from the door). NOTE: Do not cycle the opener
to full travel without the door connected.
4 Push the wall station’s UP/DOWN ARROW button again.
While the traveler is moving to the down position (toward
the door), block the safety beam. THE TRAVELER MUST
STOP, THEN REVERSE TO THE UP POSITION. The
opener’s light and red light should ash three times.
5 Place an object in the path of the safety beam. Check
that constant pressure is required on the wall station’s
UP/DOWN ARROW button to cause the traveler to move
toward the down position. Release the pushbutton
before the opener stops; check that the traveler returns
to the up position.
� NOTE: The garage door opener will not respond to a
CLOSE command from a remote control if the safety
beam is blocked.
6 To reconnect the opener, ip the release lever up. Raise
the door manually until the opener reconnects.
� NOTE: If the door remains idle for 5 minutes, the
beam light will turn off to save power. The beam
power turns on for 5 minutes when door moves down
to the fully closed position. The beam power can be
restored for 5 minutes by pressing the light button.
5 Adjusting the Open and Close Limits
The limit settings control how far the door will open or close. The limits should be set so the door opens just short of
any door stops, and closes at the oor level.
If required, use the following steps to adjust the limits. After beginning to adjust the limits, if no buttons are pressed
for one minute, the opener will return to normal operation.
Adjusting the Open Limit
1 Use the wall station or a remote control to move the
door to the open limit position.
2 On the back of the opener, press both the UP and
LEARN buttons for three seconds. The green indicator
and opener’s light will ash twice then stay on.
3 Use the UP and DOWN buttons to jog the door at slow
speed to ne-tune the open limit position.
4 When the door is at the proper open limit position, press
the LEARN button to store the setting and exit setup.
The green indicator and the opener’s light will ash two
times.
Adjusting the Close Limit
1 Use the wall station or a remote control to move the
door to the close limit position.
2 On the back of the opener, press both the DOWN and
LEARN buttons for three seconds. The red indicator and
opener’s light will ash twice then stay on
3 Use the UP and DOWN buttons to jog the door at slow
speed to ne-tune the close limit position.
4 When the door is at the proper close limit position, press
the LEARN button to store the setting and exit setup.
The red indicator and the opener’s light will ash two
times.
� NOTE: If the opener is eld reset per Section 10,
both the open and close limits must be adjusted and
the automatic door force setup must be completed
for proper operation.
6 Replacing the Opener’s Lamp
If the opener’s safety lamp fails to light manually or when the opener is cycled, the light bulb needs replacing. Use the
following steps to replace the light bulb.
1 Remove the light cover to expose the light bulb and
lamp socket.
2 Replace the light bulb with a 100 watt maximum rough
service bulb (sometimes called a garage door bulb).
3 Reattach the light cover.
4 Press the wall station’s lamp button to test the lamp.
CAUTION
Set the open and close limits carefully. Setting
the limits beyond the distance that the door
can travel could cause damage to the door, the
door hardware, or opener.
Copyright © 2017 231604-D
SAFETY BEAM INDICATORS
RED LIGHT
GREEN LIGHT
GREEN LIGHT
ON = POWER ON
OFF = POWER OFF
RED LIGHT
ON = BEAM ALIGNED, NO OBSTRUCTION
OFF = BEAM NOT ALIGNED, OR OBSTRUCTION
BLINKING = BEAM NEEDS BETTER ALIGNMENT
ADJUSTING THE BEAM
1. ADJUST THE SENDER
AND RECEIVER UNTIL
THE RED INDICATOR
LIGHTS SOLID
2. ADJUST SENDER
UP UNTIL RECEIVER'S
RED INDICATOR FLASHES
3. ADJUST SENDER DOWN
JUST UNTIL RECEIVER'S
RED INDICATOR LIGHTS SOLID
BLOCK THE BEAM
WHILE THE TRAVELER
IS MOVING DOWN
TOWARD
DOOR
TOWARD
OPENER
UP
DOWN
CHECKING FOR REVERSAL
TRAVELER
THE TRAVELER MUST REVERSE
WHEN THE BEAM IS INTERRUPTED
PLACE AN OBJECT
IN THE BEAM'S PATH
VERIFY THAT CONSTANT
PRESSURE IS REQUIRED
ON THE WALL STATION'S
PUSHBUTTON TO MAKE
THE TRAVELER GO DOWN
RELEASE PUSHBUTTON
BEFORE THE OPENER STOPS,
THE TRAVELER SHOULD
RETURN TO THE UP POSITION
CHECKING FORCED CLOSURE FEATURE
WARNING
With the door closed, disengage the trolley
from the chain during these alignment tests by
pulling the red release handle.
WARNING
Serious injury or death from a closing garage
door may result because of failure to test and
adjust safety reverse system. Repeat this test
monthly and adjust as needed.
DOWN
UP
EXAMINE THE SPOT WHERE
DOOR CLOSES
ADJUSTING THE CLOSE LIMIT
DOWN UP
EXAMINE THE SPOT WHERE
THE DOOR OPENS
ADJUSTING THE OPEN LIMIT
WARNING
Always perform the Safety Reversal System Test
after making any adjustments to the opener.
PERFORM THE SAFETY REVERSAL SYSTEM TEST
MONTHLY!
WARNING
STAY CLEAR OF THE DOOR DURING THIS
PROCEDURE!
TEST WITH SMALL OBSTACLE
THE DOOR MUST REVERSE
WITHIN 2-SECONDS AFTER
IMPACT WITH A 2 x 4 BOARD
2 x 4 BOARD LAID FLAT
UNDER CENTER OF DOOR
TESTING THE SAFETY REVERSAL SYSTEM
OPERATE THE DOOR THROUGH
FOUR FULL OPEN AND CLOSE CYCLES
DOOR FORCE SETUP
4
4
CAUTION
Do not cycle the opener full travel without
the door connected. The automatic door force
setting will adjust to the unloaded condition
and may trip the safety system when the door
is reconnected.
Changing the Force Factor Setting
As an installation option, the opener’s “force factor” can
be adjusted to change the amount of pressure exerted on
an obstacle before the opener reacts to the obstruction.
1 Press both the UP and DOWN buttons for three
seconds. The red and green indicators and opener’s
light will ash twice.
2 Use the UP or DOWN buttons to set the force factor.
Pressing the UP button increases the force factor,
pressing the DOWN button decreases the force
factor.
FORCE FACTOR INDICATOR TABLE
GREEN ON LOW FORCE FACTOR
RED & GREEN ON MEDIUM FORCE FACTOR
RED ON HIGH FORCE FACTOR
3 After selecting the force factor, press the LEARN
button to store the setting and exit setup. The red
and green indicators and the opener’s light will ash
two times. (If the force factor is not set within one
minute, the opener will return to normal operation
at its previous force factor setting.)
4 After changing the force factor setting, perform the
Safety System Reversal Test.
1 Press and hold down the UP, DOWN, and LEARN
buttons at the same time for ten seconds. The red
and green indicators and the opener’s light will ash
twice.
2 Release the buttons. The opener will reset force
setting and erase all set limits, but will still retain
all programmed remote controls in memory.
3 AFTER PERFORMING A FIELD RESET, BOTH THE
OPEN AND CLOSE LIMITS MUST BE ADJUSTED
AND THE AUTOMATIC DOOR FORCE SETUP
COMPLETED BEFORE THE OPENER WILL
FUNCTION.
