Precision Strata Planters are a premium range of planter
boxes.
These planter boxes are provided complete with moulded
ABS pot liners that provide both strong support and
moisture protection.
Strata Cabinet Planters
Strata Cabinet Planters are a range of standard planter
boxes that are designed to be used on top of
Smartstore® Generation 2 tambour door cabinets.
Strata Park
Strata Park planter is a freeform version that can be used in a variety of configurations, to
facilitate the integration of plants into the office environment.
Strata Park Planters feature adjustable feet
as standard. Alternatively castors may be
used on smaller units to provide mobility.
A range of accessories is also possible
including seat cushions, LPL MDF and steel
infill top panels.

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 1 – Product Introduction
Page 1.2
Components
Strata Planters are available in 2 variations; Strata Cabinet Planters and Strata Park. Each
version is constructed in a similar manner and made up of similar style components as detailed

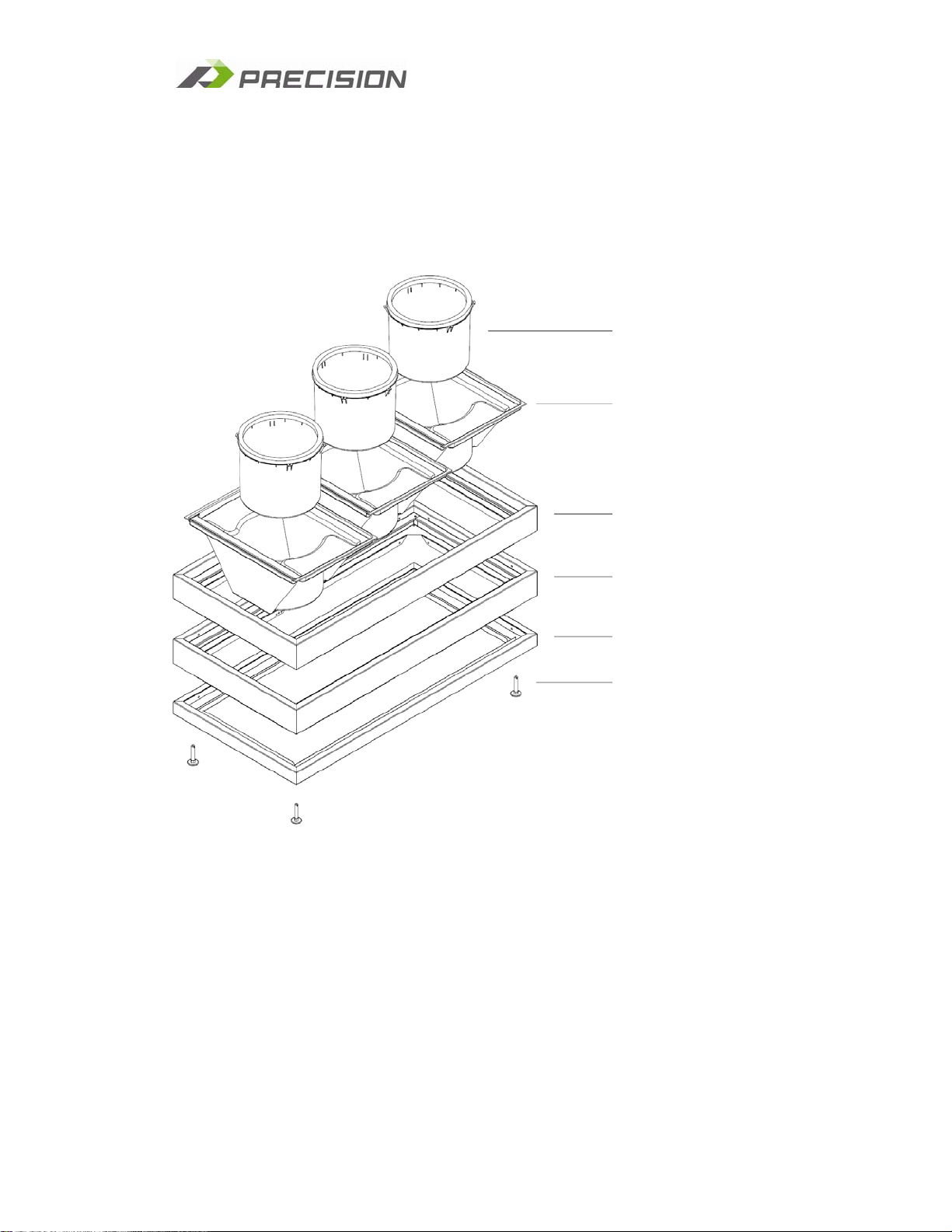

in the diagram below.
Pots (by others)
- Self Watering Pot preferred
ABS Pot Liners
Top Segment
Mid Segment
Base
Adjustable Feet or optional
castors
(Cabinet Planters feature rubber
feet)
Materials
Components of the planter products are typically produced from the following materials and
finishes
Material Base and Segments: High strength zinc coated steel
Pot Liners: Formed ABS
Finish Base and Segments: Powder Coated
Pot Liners: Black

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 1 – Product Introduction
Page 1.3
PRODUCT PARAMETERS
Strata Planters are designed to operate within the following standard parameters.
Floor
The floor should be of solid construction designed to accept loads imposed by the product.
Loads
Individual loads should be stable and self supporting, with a maximum unit weight within the
safe working recommendations.
Operating Conditions
Components and load data are based on dry internal applications.
Temperature
+3°c to +40°c.
Note:
For applications that require operating parameters that are outside those indicated above,
please contact Dexion Commercial for technical guidance on your particular application.

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.1
SECTION 2
STRATA CABINET PLANTERS
STRATA CABINET PLANTERS
Strata Cabinet Planters are designed to be used on top
of Smartstore® Generation 2 tambour door cabinets.
These planter boxes are provided complete with moulded
ABS pot liners that provide both strong support and
moisture protection.
Strata Cabinet Planters are designed to accept 200mm
(8”) pots as standard.

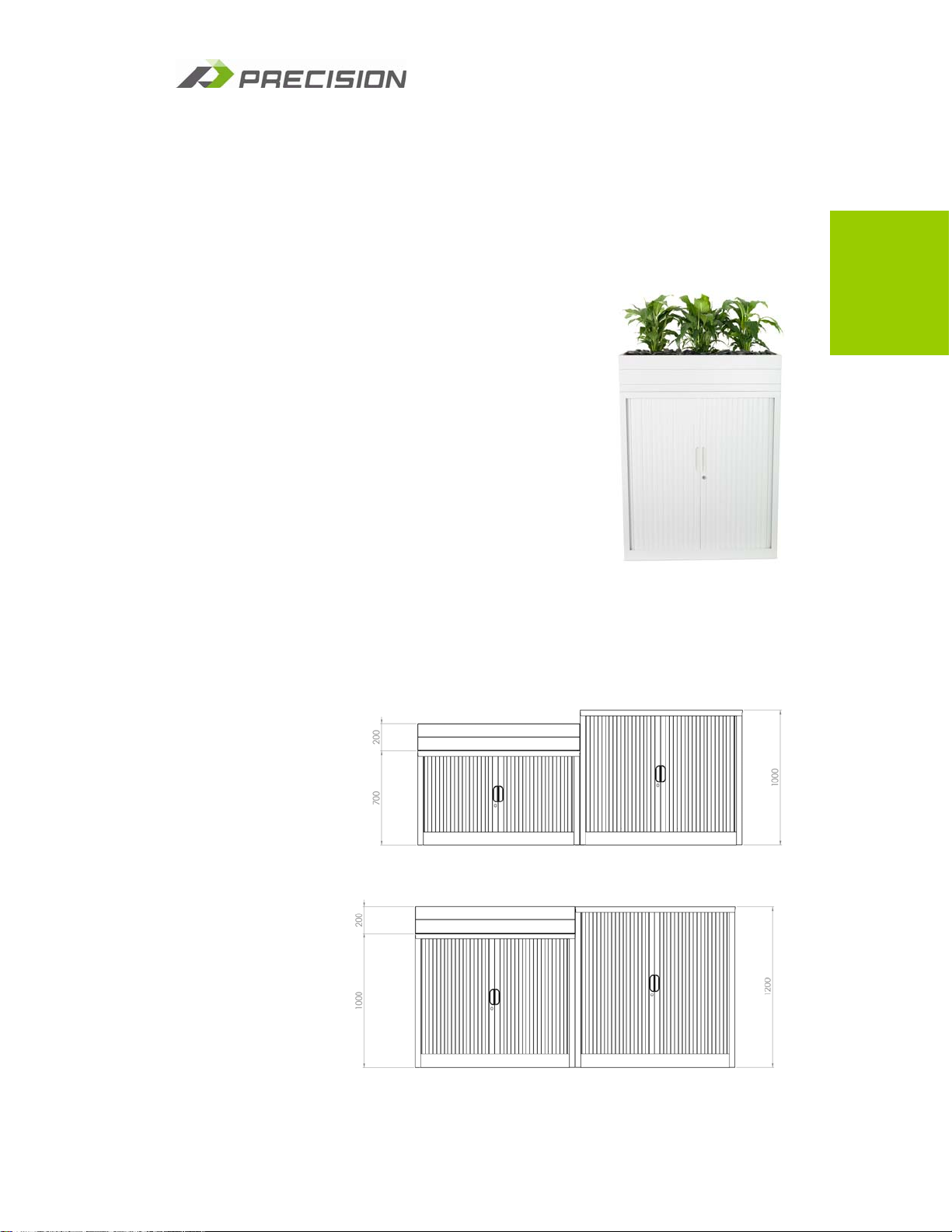

Strata Cabinet Planters are available in the following dimensions:
Widths: 900mm and 1200mm.
Height: 200mm.
Depth: 470mm deep to match the depth of the cabinets
Note that the combined
height of cabinet and
planter should not
exceed 1400mm

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.2
Strata cabinet mounted planters are available in widths of 900mm and 1200mm.
Overall height is 200mm, which is made up from 2 x 100mm high segments
The cabinet mounted planters accommodate the following pots
•900mm wide planters - 3 x 200mm (8”) pots
•1200mm wide planters - 4 x 200mm (8”) pots
These planters are supplied as a complete assembled unit.
Code Description
515-0017 STRATA CABINET MOUNTED PLANTER SET 900MM WIDE
515-0018 STRATA CABINET MOUNTED PLANTER SET 1200MM WIDE
Note: Strata cabinet planters can be manufactured with different layer colours in the same unit;
when specifying, or ordering, please indicate the base layer colour first, then the top layer colour
(e.g. 515-0017/S2WS – 900mm wide planter set, base layer colour Silver Comet, top layer
White Satin).

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.1
SECTION 3
STRATA PARK
STRATA PARK PLANTERS
Strata Park planter units are the freeform version that can be used in a variety of configurations,
to facilitate the integration of plants into the office environment.
These planter boxes are also provided complete with moulded ABS pot liners that provide both
strong support for the potted plants and moisture protection.
Strata Park planters feature adjustable feet as standard, or alternatively castors can be fitted to
smaller units to provide mobility.
A range of accessories is also possible including seat cushions and steel infill tops are
available.
Note that Strata Park units are 450mm deep to facilitate modular configuration of the units.
Strata Park is designed to use 200mm (8”) pot liners, however can accommodate 300mm (12”)
liners in special circumstances. Please see following or contact Precision for further
information.

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.2
Park Configurations
Strata Park Planter units can be configured as straight runs, and also freeform units in ‘L’ , ‘Z’, &
‘U’ shapes, and many more as required. The height can also vary within a configuration by
simply stacking extra segments.
Straight Units
Strata Park Units can be configured as straight units in standard lengths of 900mm. These units
are configured as ‘straight stacked’, however brick patterning of the segments is also possible.
Longer units are also possible by configuring the segments in a brick pattern. Refer to Freeform
units on the next page of this document.
As shown above, when using 200mm (8”) diameter pot liners the 900mm wide top layer must sit
on top of a 900mm wide segment. This provides a 200mm high clear vertical opening within the
planter allowing the liners to sit without being obstructed by other layer components.
As an alternative, if 300mm (12”) diameter pot liners are required, each liner MUST sit within a
450mm wide top layer. In the case of a 900mm wide planter, as shown above, 2 x 450mm top
layers are required to house 2 x pot liners.
These rules MUST apply when designing a freeform unit also.

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.3
Freeform Units
Freeform units can be configured to almost any shape imaginable. In freeform units the carcass
segments are brick patterned. This brick pattern configuration is both aesthetically pleasing, and
also forms a structurally superior assembly.
The depth of Strata Park units is 450mm, and lengths are in 450mm increments. The minimum
length is any direction is 900mm. Each 450mm module accommodates 1 x 300mm (12”)
diameter pot and each 900mm module can accommodate 3 x 200mm (8”) diameter pots.
When configuring a unit, the plan view is on a 450 square grid. The actual segments are any
combination of 450 x 450 and 450x900 rectangles.
Theoretically, any length is possible in a freeform unit with the segments brick patterned.
Example Freeform Unit
Note that the unit is configured on a 450mm grid, using segments of 450 x 450 and 900 x 450.
Virtually any shape is possible on this grid pattern, using these segment sizes.
Also note that when using 200mm (8”) diameter pot liners, a 900mm top must be placed over a
corresponding 900mm segment to create a 200mm high block. 450mm wide tops MUST be
used if 300mm (12”) diameter pot liners are to be used (1 top for each liner).

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.4

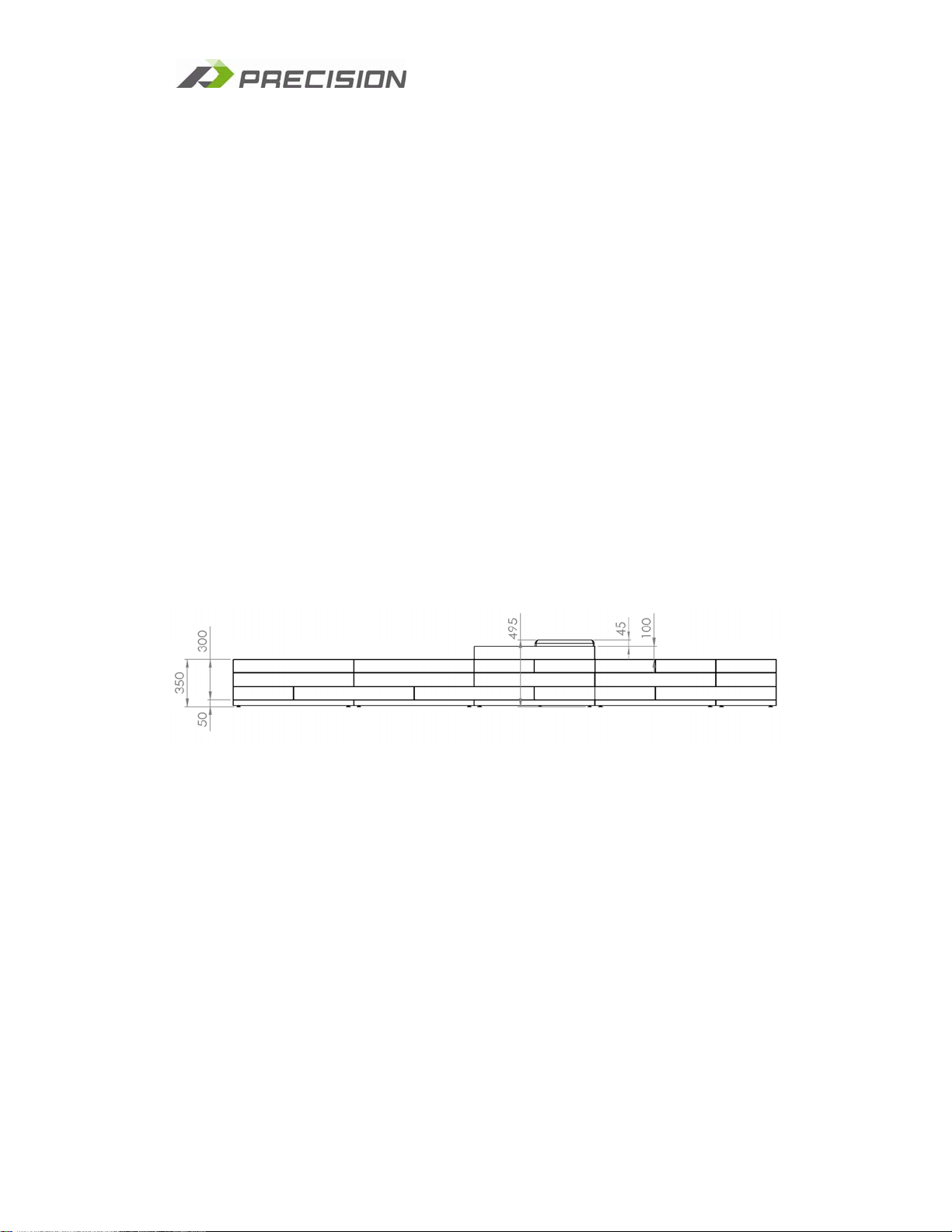

Default Heights
The default height of a floor mounted park unit is generally 350mm high. This height consists of:
Default Height Base 50mm (40mm base + 10mm for adjustable feet)
Body 300mm (2 x 100mm mid segments + 100mm top segment)
---------------------
Total 350mm
When a seat cushion is required, another 100mm segment is added. The cushion also
protrudes 45mm above the steel segment; this therefore adds an additional 145mm to the
height of the unit which equals a total of 495mm.
Default Seat Base 50mm (40mm base + 10mm for adjustable feet)
Height Body 300mm (2 x 100mm mid segments + 100mm top segment)
Extra Segment 100mm (100mm top segment)
Cushion 45mm (cushion protrudes 45mm above top segment)
--------------------------------
Total 495mm
Segments can be stacked higher to create almost endless unit configurations.

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.5
Components

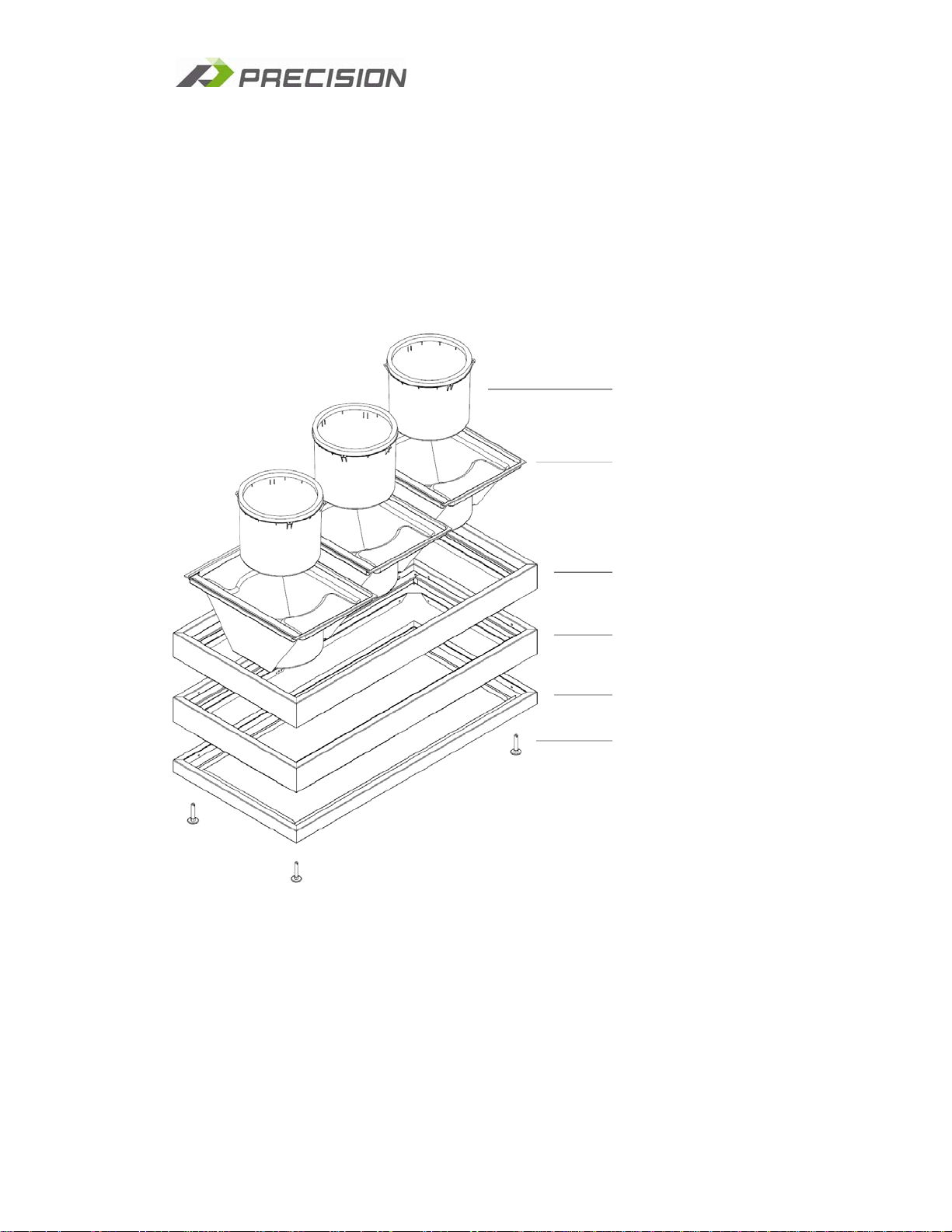

The diagram shows the components of Strata Park Planters
Pots (by others)
- Self Watering Pot preferred
ABS Pot Liners
Top Segment
Segment
Base
Adjust Feet or optional castors
(Cabinet Planters feature rubber
feet)
More detail on each of these components is shown on the following pages.

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.6
Park Pot Liners
Pot Liners are specially designed to support the potted plants, and also provide moisture
protection by limiting the entry of water into the planter box. Pot liners are formed from strong
and rigid ABS material and overlap each other to assist excluding the entry of water into the
Park components. Pot Liners are available as standard to suit 200mm (8”) pot sizes, at 300mm
centres. Each 900mm wide top segment will accommodate 3 x pot liners.
Liners to suit 300mm (12”) pots are also available however these can ONLY be used within a
450mm x 450mm top segment. Combinations of 450mm wide top layers must be used where
300mm (12”) pot liners are required within a Park system
Note that each pot liner has a maximum load rating of 25kg.
Material Formed ABS
Finish Black
Load Rating 25kg Max Allowable Load
Code Description Application
169401 PLANTER LINER 409D x 303W – 8”
POTS Use for 450D x 900W top segments
169244B PLANTER LINER 409D x 409W – 12”
POTS Use for 450D x 450W top segments

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.7
Park Bases
Strata Park Bases are formed from high strength zinc coated steel, and are finished with powder
coat. They are designed to provide an enclosed sturdy platform for the planter assembly, and
feature M10 threaded inserts that allow the use of either adjustable feet, or castors.
Depth 450mm
Height 40mm
Widths 450mm & 900mm
Code Description
515-0001 Strata Park base 450mm wide x 40mm high x 450mm deep
515-0002 Strata Park base 900mm wide x 40mm high x 450mm deep
Park Mid Segments (Intermediate)
Strata Park Segments are formed from high strength zinc coated steel, and are finished with
powder coat. They are designed to be stacked in varying height combinations to achieve the
desired overall height.
Depth 450mm
Height 100mm
Widths 450mm & 900mm
Code Description
515-0003 Strata Park intermediate segment 450mm wide x 100mm high x 450mm deep
515-0004 Strata Park intermediate segment 900mm wide x 100mm high x 450mm deep
Park Top Segments
Strata Park Top Segments are formed from high strength zinc coated steel, and are finished
with powder coat. They feature a 20mm wide x 30mm deep top lip that mimics the look of
joinery, and also provides a recess that securely locates the pot liners, as well as a set down to
allow the use of decorative pebbles etc.
Depth 450mm
Height 100mm
Widths 450mm & 900mm
Code Description
515-0005 Strata Park top segment 450mm wide x 100mm high x 450mm deep
515-0006 Strata Park top segment 900mm wide x 100mm high x 450mm deep

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.8

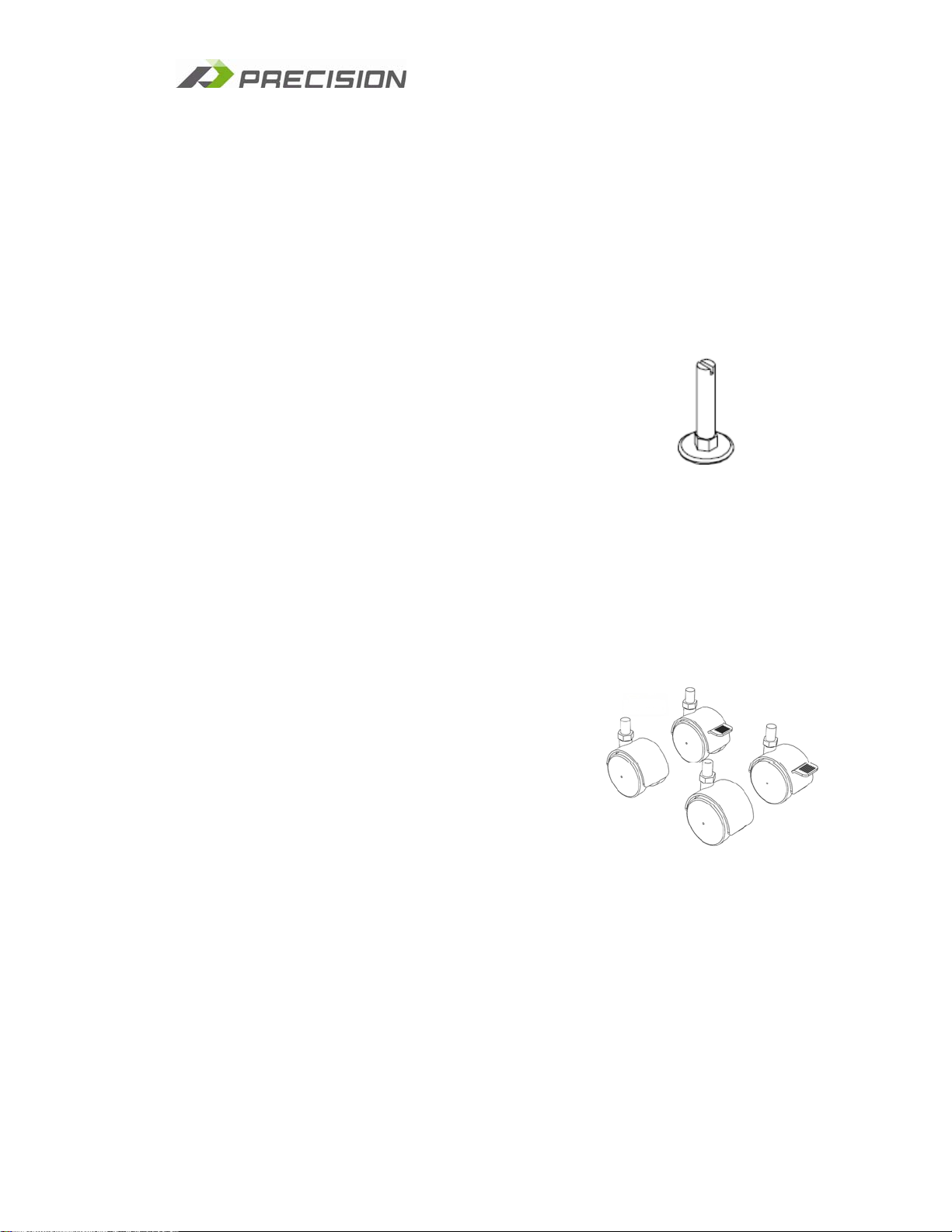

Adjustable Foot
Strata Park Adjustable Feet are manufactured from high strength steel, and are zinc plated to
protect against corrosion. They feature a 3/8” threaded shank, and a forged hex drive to allow
adjustment of the foot from under the planter using an open spanner, or alternatively a slot is
provided on the top to allow adjustment with a screw driver from the top.
The adjustable foot adds a minimum 5mm to the over height of the planter assembly, and
provides 33mm of adjustment.
Material High strength steel
Finish Zinc Plated
Code Description
RM17366 ADJUST FOOT ERL187 50MM LONG
Note: the adjustable feet come standard with all Park bases
Castors
Strata Park Castors are manufactured from high strength steel and plastic.
They are 50mm diameter and when used they replace the adjustable feet utilising the same
threaded insert.
The castor adds 65mm to the over height of the planter
assembly.
Material High strength steel and Plastic
Finish Black
Code Description
515-0027 CASTOR KIT – 2 x BRAKED & 2 x NON-
BRAKED M10 CASTORS

Strata Planters
Design Manual
Issue 1 - Feb 2011
Section 3 – Strata Park
Page 3.9
Park Seat Cushion
Strata Park Seat Cushions are available upon request. They consist of an 18mm thick MDF
base, with 25mm thick high resilience foam cushioning and a fabric cover.
Depth 440mm (to suit 450mm deep top segments)
Widths 440mm & 890mm (to suit 450mm & 900mm wide top segments), the cushions
sit on top, and finish slightly in-board, of the top segment
Height 45mm
Cushion Materials
Base 18mm MDF Board Base
Foam 25mm thick High Resilience Foam
Fabric Specified
Note that no adhesive is used in the manufacture
of the seat cushion.
Code Description Fabric Requirement
515-0015 Strata Park Seat Cushion 450mm x 450mm 0.35 lineal metres
515-0016 Strata Park Seat Cushion 900mm x 450mm 0.70 lineal metres
Park Top Infill Panels
Strata Park Top Infill Panels are available upon request and are manufactured using either steel
(powder coated to match, or compliment, the Park segments) or low pressure laminated MDF.
They provide a clean, neat, top surface that sits flush with the top of the planter carcass.
Depth 410mm (to suit 450mm deep planter)
Widths 410mm & 860mm (to suit 450 & 900 top segments)
Height 30mm (flush with top of planter)
Top Infill Panel
Code Description
515-0011 Strata Park Top Cover 450mm x 450mm – LPL MDF
515-0012 Strata Park Top Cover 900mm x 450mm – LPL MDF
515-0013 Strata Park Top Cover 450mm x 450mm – Powder coated steel
515-0014 Strata Park Top Cover 450mm x 450mm – Powder coated steel
