Premier Hazard EC003-000 User manual

User manual Easy check device
EC003-000

2
Notice
The purpose of this manual is to kindly aid the user for the operation for EC003-000 device.
The information in this manual was current when published. The manufacturer reserves the right to
revise and improve its products. All specifications are therefore subject to change without any notice.
Copyright
Under copyright laws, the content of this manual may not be copied, photocopied, reproduced,
translated or reduced to any electronic medium or machine- readable form, in whole or in part, without
prior written consent of Premier Hazard.

3
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy stress, violent vibration,
impact and water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do not put anything on Easy
Check.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified technicians and engineers. We do
not undertake any responsibility caused by unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from direct sunlight,
flammable or explosive substances, etc.
6) Accessories
Make sure to use accessories from the manufacturer recommended in the attachment.
Insulate circuit ground and metal shell for all the peripherals.
Before installation, please open the package and ensure that all parts are included.
If there are any problems, please contact us as soon as possible.

4
Contents
1. Product Characteristics........................................................................................................................................ 5
1.1. Overview......................................................................................................................................................5
1.2. Features.......................................................................................................................................................5
1.3. Specifications..............................................................................................................................................5
1.4. Dimension....................................................................................................................................................6
2. Software Instrument.............................................................................................................................................. 7
2.1. Software Log In.......................................................................................................................................... 7
2.2. Module Overview....................................................................................................................................... 8
2.3. Function Overview..................................................................................................................................... 8
2.3.1. Common...........................................................................................................................................8
2.3.2. Preview...........................................................................................................................................10
2.3.3. Playback.........................................................................................................................................11
2.3.4. Preference..................................................................................................................................... 13
2.3.5. Help.................................................................................................................................................23

5
1.Product Characteristics
1.1. Overview
EC003-000 is a combination of the EC003-000 wireless device working in unison with the MDVR Easy
Check app from the Android or Apple store. This allows for an easy way to access and modify settings on
your DVR.
1.2. Features
WIFI Module Features
1) It is useful in applications with limited space thanks to extension intergrated USB cable.
2) Plug and play, just plug device into DVR and open app on phone/tablet and connect automatically.
3) Supports external SD card file backup.
Software Features
1) Search and find the DVR via WIFI network in a second;
2) Check the status information of device;
3) Supports multi-channel HD video real-time preview;
4) Supports main and sub streams switch automatically when switching images;
5) Supports video/track, speed curve playback analysis;
6) Supports video backup and unlock the locked video;
7) Supports the export of device alarm log, user operation log and parameter file;
8) Supports single firmware update.
1.3. Specifications
Product Series
EC003-000
Function Overview
Preview, playback, search, setting
System
Operation System
No
Control Mode
WIFI
Interface
USB
USB 2.0x1
SD
SDx1
Network
WIFI
Support(802.11b/g/n) 2.4GHz
Transmission Rate
20 Mb/s
Available Range
Within 10 meters
Power
Voltage
DC 5V
Current
500mA@5V
Physical Characteristics
Dimension(L x W x H)
49.9x90x18 mm
Environment
Working Temperature
-10℃~+50℃
Working Humidity
20%-80%(Non-condensing)

6
1.4. Dimension
Unit: mm
Connection Diagram
EC003-000 shown connecting into USB port on the front of the DVR

7
2. Using the app software
2.1. Software Log In
After installing the software app on the tablet/phone, enter the login interface.
Click Refresh and the software will search for WIFI devices automatically in the Local Area Network.
User needs to select the device, click Login, then it works.

8
2.2. Module Overview
There are five main menus: Common, Preview, Playback, Preference and Help.
2.3. Function Overview
2.3.1. Common
There are Basic Information, Device Module, Storage Device and Version Information.
1) Common: It displays the fault log report of device.
2) Device Module: It displays the details of communication modules.

9
3) Storage Device: It displays the current status of the storage device, Storage can be formatted from this
menu.
4) Version Information: This displays Device Model, Firmware Version and MCU Version. The user
could upgrade the firmware and MCU in this menu screen if it has be preloaded onto SD card in
EC003-000.
5) Other: Export alarm log, Export user log, Export configuration file, Export black box file
and Restore default settings can be accessed from this menu screen.

10
2.3.2. Preview
In this menu a preview of the split screens of 1 channel or 4 channels is shown. However, the user
needs to switch the channels by turning pages when there are more than 4 channels in use. If the
current channel is IPC, it automatically switches to main stream from sub-stream as the single channel
is amplified.
Sound on/off: User can turn on or turn off the sound when previewing. The icon will display in the
preview interface.
2.3.3. Playback
There are Alarm Calendar, Locked Calendar and Video Calendar.
The steps to playback:

11
1) Search, then enter the playback interface, and start to search by date.
2) Select Stream Type and Channel.
3) Enter the playback timeline interface, select the desired playback point, click play.

12
4) Access the video playback interface, her current playback can be stopped, fast forwarded, rewinded, slow
play, frame play and other operations.

13
2.3.4. Preference
1) Register info: User can set the information of device, vehicle and driver here.

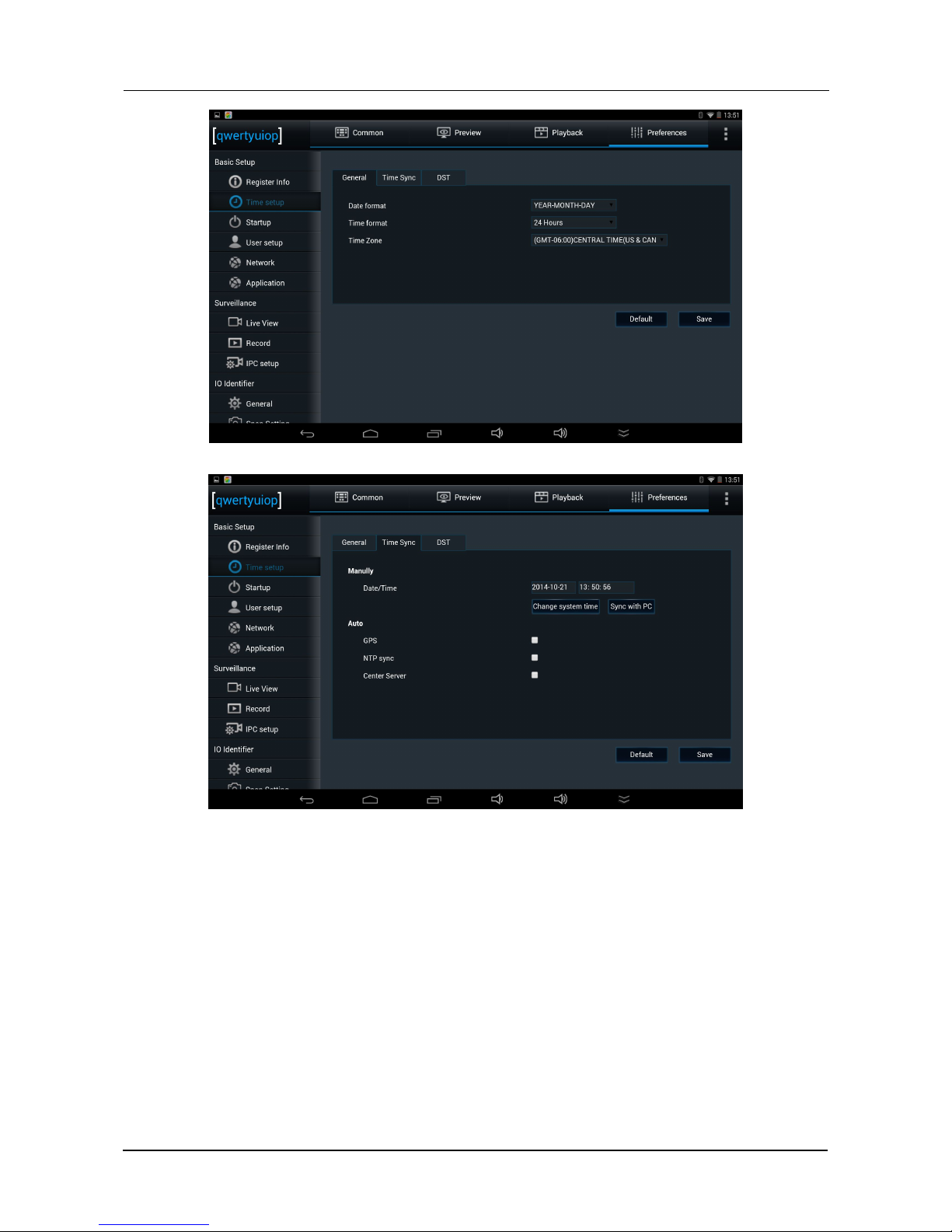

2) Time Setup: User can alter the current time system, such as date format, time format, and time
zone etc.

14

15
3) Startup: User can set up ON/OFF mode, Regular boot time, sleep mode and low-voltage mode.
protection.

16
4) User setup:User can set idle time, add, delete or edit user information.
5) Network: User can configure server connection and network, such as wire network, WIFI and
3G/4G.

17

18
6) Live View: Three choices ofview: Preview, Sub-stream and Live OSD.
Preview: User can set information of startup screen and auto loop.
Sub-stream: User can set information of current bandwidth and network transmission mode.
Live OSD: User can set information of time, vehicle speed, vehicle number, GPS, alarm etc.

19
7) Record: Alterations can be made here for the following record modes: General, Main Stream, Dual Stream
and OSD. User can set information of video
type, overwrite etc.

20
