SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS
Electrical Code
Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of

that the cable ground shall be connected to the grounding system of the facility. Outlet shall be
installed near the equipment and shall be easily accessible.

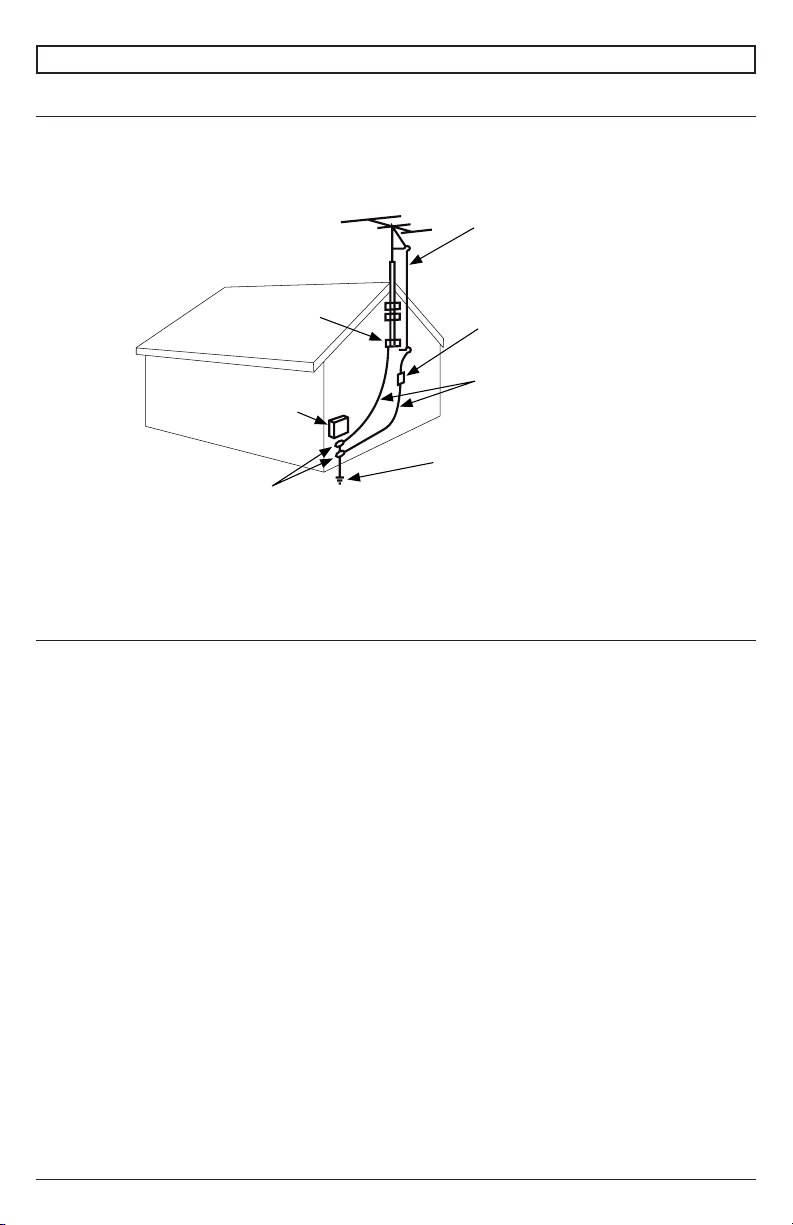

Antenna discharge unit
(NEC Section 810-20)
NEC National Electric Code
Ground clamp
Electric service
equipment
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
Grounding conductors
(NEC Section 810-21)
Antenna lead-in wire
Power Source
The display must be connected to a mains socket outlet with a protective grounding connection.
The mains plug is used as the disconnect device and shall remain readily accessible.
Electrical installation shall be in accordance with the applicable parts of Chapter 8 of ANSI/NFPA70.
An outdoor antenna should not be located near overhead electrical lines or any electrical circuits.

protect against voltage surges and built up static charges. Section 810 of the National Electric Code,
ANSI/NFPA No 70-1984, provides information with respect to proper grounding for the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna discharge unit, connection to grounding electrodes and requirements
for the grounding electrode.
These displays operate on 120 volt 60 Hz, AC current. Insert the power cord into a 120 volt

To prevent electric shock from the display, do not use with an extension cord, receptacle, or other
outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.
All secondary lines must be routed through grounded conduit and kept separate from AC line.
Note: Installation shall incorporate UL Listed external surge protection rated 2500 Vpk or less, for 150
to 300 Vac mains, installed in accordance with Article 285 of ANSI/NFPA 70 or applicable local codes.

32020-11-24 #:180-9152-3 (2020-01-20)
Relevant Information
Record your display's model and serial number here for future reference. Keep this user manual in an
accessible location in the event service is required.
Note: Your display's serial number can be found on the box and underneath the rear cover plate.
Model Number ____________________________________
Serial Number ____________________________________
FCC CAUTION
To assure continued compliance and possible undesirable interference, ferrite cores may be used
when connecting this display to video equipment; maintain at least 400mm (15.75 inches) spacing to
other peripheral devices.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with these instructions,
may cause harmful interference to radio communications; however, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
󰀨
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. 󰀨
connected.
4. Consult the dealer or an experienced radio/display technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.

42020-11-24 #:180-9152-3 (2020-01-20)
Read before operating equipment
Thank you for purchasing our product. Before using it, please read this user guide carefully and follow
the instructions for safe operation. Please keep this manual for future reference and always include it
󰀨
GENERAL SAFETY PRECAUTIONS



• In case of product malfunction or unusual events such as electrical burning smell, smoke, or
󰀨
cord and contact the manufacturer.
• Do NOT disassemble, modify or service product in any way other than that contained in this

warranty.
• Do NOT touch antenna lines or wires, electrical cables or plugs when lightning or thunder is
present or with wet hands
• Do NOT submerge in water.
• Do NOT destroy, process, or place close to any heat source.
• Do NOT install near poisonous gas or chemically unstable atmosphere.
• 
• Do NOT install the product in unstable locations or near moving objects, constantly vibrating
equipment, or uneven surfaces.
• 
• Do NOT operate the product if it has been dropped or struck. Severe physical impact to the
product may cause components to fall out of place within and break.
• Do NOT bend or twist electrical cords, electrical plugs, cables, or wires with excessive force.
• Do NOT block ventilation slots or place any heavy object on the product.
• Use properly rated electrical voltage.
• Do NOT use any electrical sockets or power strips with many other devices jointly plugged
in. Use a single, directly dedicated and rated GFCI electrical outlet for the product for safe
operation.
• Do NOT move or transport with any cables (electrical, content connectivity) plugged in to the
source devices.
• 
always pull on the plug and not the cord.
• 󰀨
cables.
• Do not defeat the safety purpose of the polarized or grounding type electrical plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If the

outlet.
• Protect the electrical cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
To avoid personal injury, this appliance must be grounded and wall mounted according to installation
instructions.
WARNING

52020-11-24 #:180-9152-3 (2020-01-20)
WARNING
• Never apply pressure to the exterior of the LCD screen.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Do NOT climb on the product.
• 
• Do NOT use if ambient air temperature exceeds the operating limits; Maximum operating
temperature is -22°F ~ 122°F (-30°C ~ 50°)
• The product is intended for outdoor, shaded operation. Place the TV in an area that never
receives direct sunlight, such as under canopy or on the side of a structure. Placing the TV in
direct sunlight will decrease the panel life and void the warranty.
• 
display. Air inside fully encased display must be ventilated.
• The product is to be secured to building before operation.
• Product must be carried and supported by at least two persons.
• 󰀨
operation.
• 

62020-11-24 #:180-9152-3 (2020-01-20)
System Installation And Electrical Requirements ..................................................................................2
Electrical Code ...............................................................................................................................2
Power Source ................................................................................................................................2
FCC Caution...................................................................................................................................3
FCC Statement...............................................................................................................................3
Relevant Information .....................................................................................................................3
General Safety Precautions ...................................................................................................................4
Set Up Instructions .................................................................................................................................7
Parts List ........................................................................................................................................7
Removing I/O Terminal Cover ........................................................................................................8
Connecting Cords...........................................................................................................................9
Installing IR Repeater ....................................................................................................................9
freePath Technology ......................................................................................................................9
Replacing I/O Terminal Cover.......................................................................................................10
Cable Management......................................................................................................................11
Prepare The Display For Mounting ..............................................................................................12
Connecting To The Power Source................................................................................................13
Remote Control Battery Installation And Replacement ................................................................14
Operating Instructions ..........................................................................................................................15
 󰀨.............................................................................................................15
Onboard Controls.........................................................................................................................15
Navigating The On-Screen Menu ................................................................................................16
Picture .................................................................................................................................16
Sound ..................................................................................................................................16
Time ....................................................................................................................................16
Setup ...................................................................................................................................17
Lock .....................................................................................................................................17
Channel ...............................................................................................................................17
Media Functionality .....................................................................................................................18
Compatible Media ........................................................................................................................20
(RS-232C) Serial Control Of The TV ...........................................................................................22
Maintenance ........................................................................................................................................23
Care Of Screen ...........................................................................................................................23
Mobile Telephone Caution ...........................................................................................................23
End Of Life Directives ..................................................................................................................23
 ..............................................................................................................................................24
CONTENTS

72020-11-24 #:180-9152-3 (2020-01-20)
SET UP INSTRUCTIONS

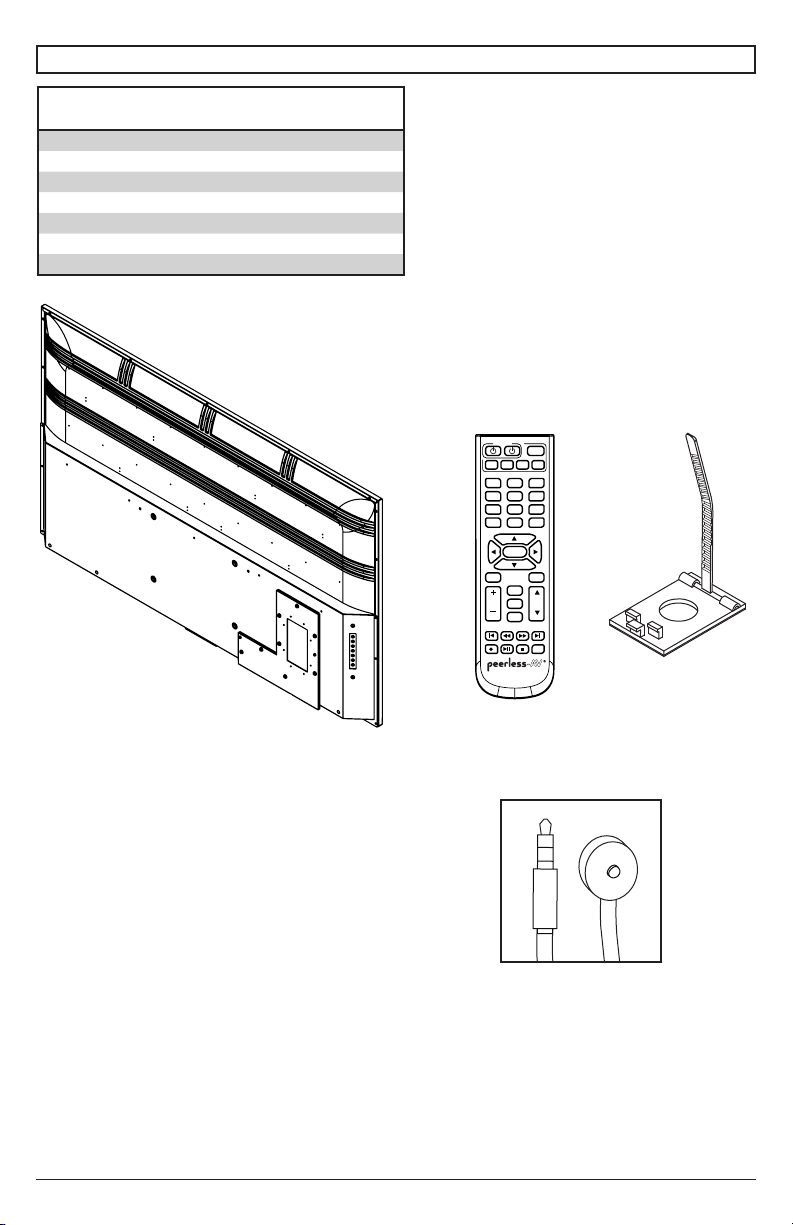

Parts List
Description Qty
Atelevision 1
Bremote control 1
Cadhesive cable holder 3
DIR repeater 1
Euser guide (not shown) 1
Ftechnical support insert (not shown) 1
Gwarranty registration card (not shown) 1
A (1)
television B (1) remote control
D (1)
IR repeater
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
C (3)
cable tie holder

82020-11-24 #:180-9152-3 (2020-01-20)

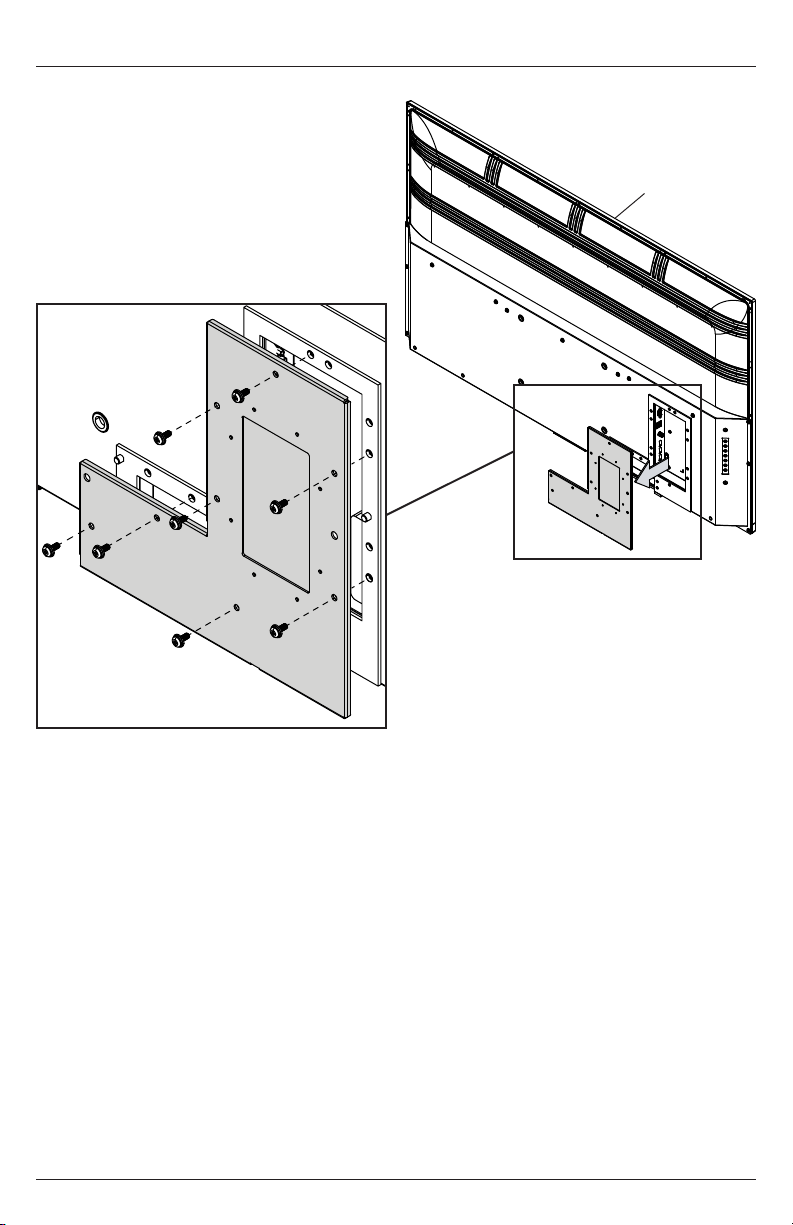

Removing I/O Terminal Cover
Remove I/O terminal cover and (8) screws to access source connection panel.
A

92020-11-24 #:180-9152-3 (2020-01-20)
Connecting Cords

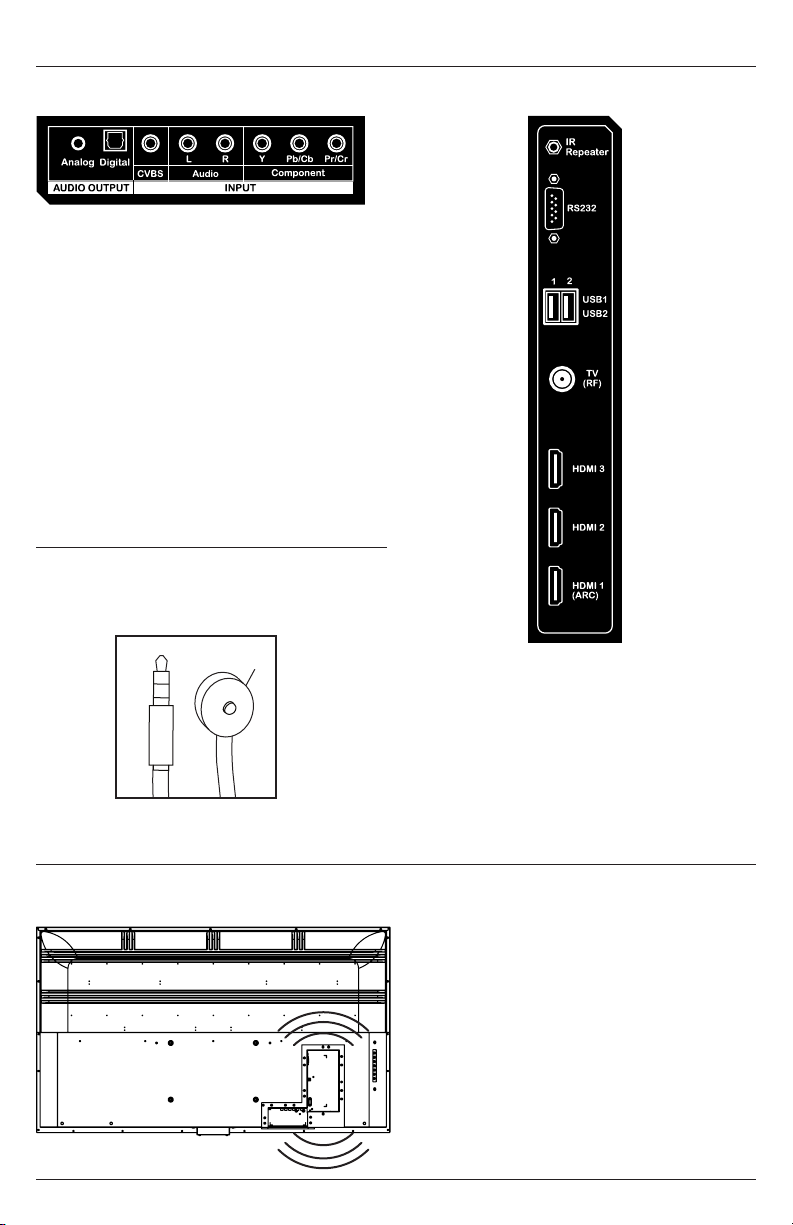

freePath Technology

connectivity of Smart TV devices stored within the I/O terminal compartment
Connect source devices to appropriate display input. Make all connections prior to powering on the
display.
HDMI 2
HDMI 3
RS232
IR Repeater
USB 1 + 2
Antenna/Cable
HDMI 1
(ARC)
Audio Out
S/PDIF Optical
Audio In Component In CVBS
Installing IR Repeater (Optional)
D
Insert the 3.5mm end of the included 5V IR
repeater into the IR Repeater port on the input
panel of the display. IR Repeater port may not be
compatible with other 3rd party repeaters.

10 2020-11-24 #:180-9152-3 (2020-01-20)
Replacing I/O Terminal Cover
1. Run cables through bottom of I/O terminal cavity across foam gasket. All cables must exit toward
bottom of display to retain seal when I/O terminal cover is installed. Do not run cabling through
the top or sides of I/O terminal cavity. Leave approximately 1/2" (13mm) between cables to
retain seal when I/O Terminal Cover is installed.
2. Replace I/O terminal cover onto I/O terminal guides, keeping cables between the bottom
gaskets.
3. Replace and-tighten (8) screws until I/O terminal cover gasket is fully compressed to back of
display.
CAUTION
Failure to follow these instructions can result in the product being damaged, destroyed, and
voiding the warranty.
• Ensure cord bend radius does not exceed limits set by
the manufacturer.
• Ensure cords are seated properly in the cable channels
to avoid potential damage to cords when I/O terminal
cover is installed.
• Do not run cables through the top or sides of I/O terminal
cavity. All cables must exit toward bottom of display to
retain seal when I/O terminal cover is installed.
CAUTION
Do not overtighten screws
guides
Replace
guides

11 2020-11-24 #:180-9152-3 (2020-01-20)
Cable Management

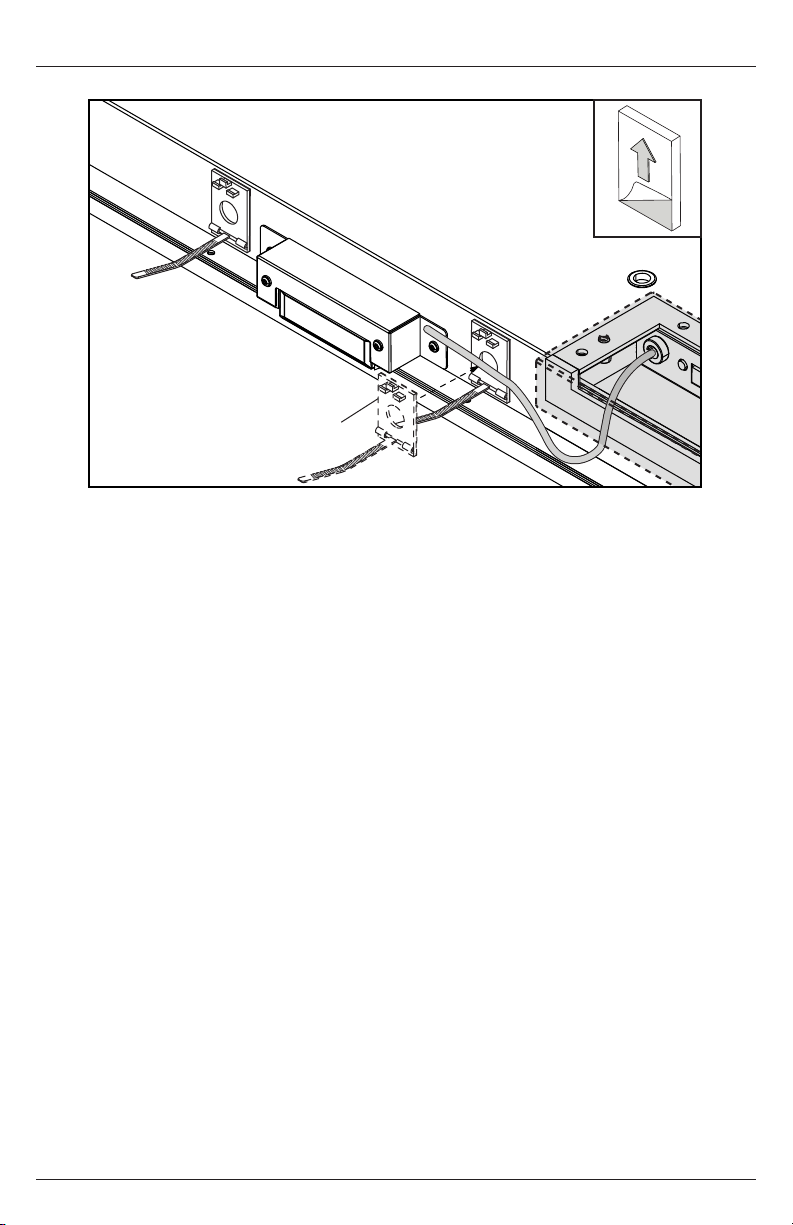

Secure cables to display with adhesive cable holders.
C (3)
C

12 2020-11-24 #:180-9152-3 (2020-01-20)
B
D

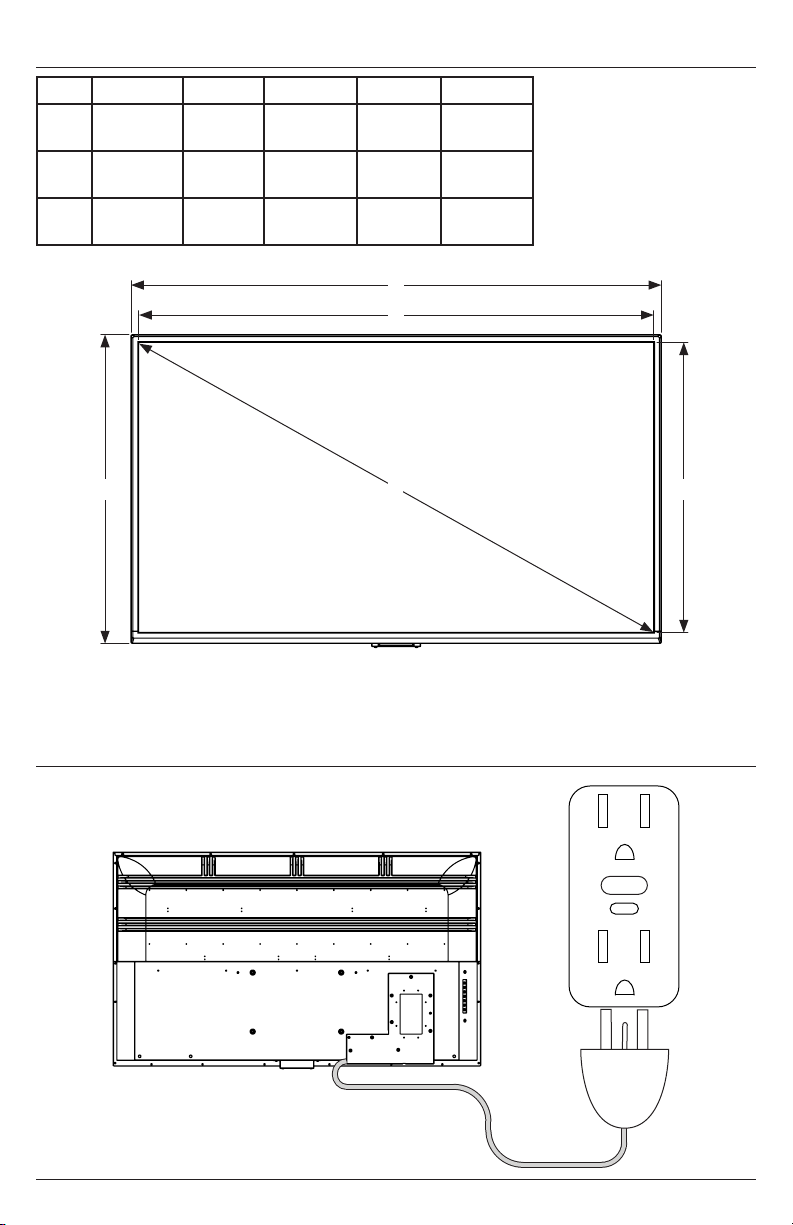

Required
Mounting Screws
(4) M8 screws
(17.4mm long)
Size A B C D E F
55" 11.81"
(300mm)
7.87"
(200mm)
18.65"
(474mm)
4.61"
(117mm)
1.61"
(41mm)
3.11"
(79mm)
65" 11.81"
(300mm)
7.87"
(200mm)
22.89"
(582mm)
5.42"
(138mm)
1.61"
(41mm)
3.11"
(79mm)
75" 15.75"
(400mm)
7.87"
(200mm)
25.27"
(642mm)
7.45"
(189mm)
2.00"
(51mm)
4.01"
(102mm)
REAR VIEW SIDE VIEW
A
F
C E
Prepare The Display For Mounting
Install cords to your display before mounting. Input panel may be obstructed once the display is
mounted.
For your safety, only install on an outdoor-rated mount that is suitable for the application and supports

ensure longevity in harsh environments.


13 2020-11-24 #:180-9152-3 (2020-01-20)
Prepare The Display For Mounting
Size A B C D E
55" 49.09"
(1247mm)
28.54"
(725mm)
47.69"
(1211mm)
26.85"
(682mm)
54.64"
(1388mm)
65" 57.59"
(1463mm)
33.31"
(846mm)
56.24"
(1428mm)
31.62"
(803mm)
64.53"
(1639mm)
75" 66.29"
(1684mm)
38.18"
(970mm)
65.16"
(1655mm)
36.74"
(933mm)
74.52"
(1893mm)
FRONT VIEW
C
A
B D
E
Connect To The Power Source
Connect power cord to GFCI outlet.

14 2020-11-24 #:180-9152-3 (2020-01-20)
Remote Control Battery Installation and Replacement
1. To remove the battery module of the remote
control, remove the two screws on the end
of the battery module. Slide the battery
module out of the remote control.
2. Insert two new “AAA” size batteries into
the battery module. Ensure the positive
and negative marks on the batteries are
correctly oriented with the markings on
the inside of the remote control's battery
compartment.
3. Slide the battery module back into the
remote control, and reinsert the two screws
in the end of the battery module to maintain
a waterproof seal (do not over tighten).
The remote control is powered by two 1.5V AAA batteries installed at the factory.
If the Red LED light on the remote fails to illuminate when a button is pressed, the batteries may need
to be replaced. Follow the directions below to replace the batteries.
CAUTION
Incorrect usage of batteries can result in leaks
or bursting. Peerless-AV recommends the
following battery use:
• Do not mix battery brands.
• Do not combine new and old batteries. This
can shorten the battery life or cause battery
acid leaks.
• Remove dead batteries immediately to
prevent battery acid from leaking into the
battery compartment.
• Do not touch exposed battery acid as it
may injure skin.
• Remove the batteries if you do not intend
to use the remote control for a long period
of time.
• Do not expose the batteries to excessive

sources or batteries could explode.
• Fully tighten screws to maintain the ingress
protection rating of the remote.
B
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT

15 2020-11-24 #:180-9152-3 (2020-01-20)
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
Power On/O󰀨 The Display
Power on your display by using the remote control or the rear power button on the side of the display.
The display will power on but image may not appear for several seconds as it completes its power up
sequence.
Point the remote control at the IR sensor located
below the Peerless-AV logo at the center of the
display, and press the power button.
OPERATING INSTRUCTIONS
Menu Mode Direct Mode
󰀨 󰀨
OK Input Select
Menu Menu
Up Channel Up
Down Channel Down
Right Volume Up
Left Volume Down
Onboard Controls
Direct Mode: Allows for quick access to source selection, volume settings and channel selection.
Menu Mode: Press the Menu button to access Menu Mode and activate the On Screen Display
(OSD). For a description of OSD operation refer to the next section.
The keypad buttons are assigned as indicated in the table below.
VOL
M
CH
VOL
M
CH
VOL
M
CH
VOL
M
CH
VOL
M
CH

16 2020-11-24 #:180-9152-3 (2020-01-20)
Navigating The On Screen Menu
Navigate Enter Exit Return
OK
MENUEXIT
OK MENU
EXIT
OK
MENU
EXIT
OK EXIT
TV/SPK
1 32
4 65
7
•
9
LAST
8
0
OK
MUTE
VOL
MENU
CH
INFO
INPUT
EXIT
Sound
Sound Mode Standard
Music
Movie
Sports
Custom
Balance L50 ~ R50
Digital Audio 󰀨
Surround 󰀨
AVL 󰀨
Time
Sleep Timer 󰀨
5 min
10 min
15 min
30 min
60 min
90 min
120 min
180 min
240 min
Time Zone East
Central
Mountain

Alaska
Hawaii
Atlantic
Daylight Savings 󰀨
Time Format 12-hour
24-hour
Auto Clock 󰀨
Picture Mode Standard
Mild
Vivid
User
Color Temp. Cool
Standard

Advanced Settings
Aspect Ratio Cinema
Zoom
Point to Point
Normal

Noise
Reduction
Middle
Low
High
󰀨
Dynamic
Contrast
󰀨
HDMI Mode Auto
Video
Graphic
HDR Low
Middle
High

17 2020-11-24 #:180-9152-3 (2020-01-20)
Navigate Enter Exit Return
OK
MENUEXIT
OK MENU
EXIT
OK
MENU
EXIT
OK EXIT
Navigating The On Screen Menu
TV/SPK
1 32
4 65
7
•
9
LAST
8
0
OK
MUTE
VOL
MENU
CH
INFO
INPUT
EXIT
Channel
Air / Cable Choose between antenna
and cable
Auto Channel
Scan
Searches for available
channels
Favorite Shows favorite channels
Channel List View tuned in channels
View/Skip Select channels to view
or hide
Channel Number Shows selected channel
Channel Label Assign characters to
selected channel
Setup
Menu
Languages
English
French
Spanish
On-Screen
Display Timeout
5 seconds
15 seconds
30 Seconds
45 seconds
60 Seconds
Input Label TV
AV
Component
Media
HDMI 1
HDMI 2
HDMI 3
Blue Screen 󰀨
Audio Only 󰀨
HDMI 4K Standard / Enhancement
Reset Yes / No
peerConnect (CEC)
peerConnect 󰀨
Device Auto
Power O󰀨
󰀨
TV Auto
Power On
󰀨
ARC 󰀨
Voice Guidance
Voice Guidance 󰀨
Volume Low
Midde
High
Speed Slow
Standard
Fast
Pitch Low
Midde
High
Video
Description
󰀨
Lock
System Lock
Enter Password to enter System Lock settings
Defaut Password: 0000
Change
password
Allows the password to be
changed
System Lock 󰀨
Input Block TV, AV, Component, HDMI
1, HDMI 2, HDMI 3, Media

18 2020-11-24 #:180-9152-3 (2020-01-20)
Input Source
TV
AV
Component
HDMI1
HDMI2
HDMI3
Media
1 2

the input panel of the display. Select media source to access content.
USB 2.0
Data
Media Functionality

19 2020-11-24 #:180-9152-3 (2020-01-20)
4
Photos – To view a single photo,
select photo and press play. To view
a slide show, select multiple photos
and press play. Use on screen
menu to control slide show.
Music – To listen to a single song,
select song and press play. To listen
to a playlist, select multiple songs
and press play. Use on screen
menu to control playlist.
Movies – To view a single video,
select video and press play. To view
a playlist, select multiple videos and
press play. Use on screen menu to
control playlist.
Text


press play. Use on screen menu to
control playlist.
Media Functionality
3
Return C
MUSIC MOVIE TEXT
Return C
MUSIC MOVIE TEXT
Select media type and folder where content is stored.
Navigate Enter Exit Return
OK
MENUEXIT
OK MENU
EXIT
OK
MENU
EXIT
OK EXIT
TV/SPK
1 32
4 65
7
•
9
LAST
8
0
OK
MUTE
VOL
MENU
CH
INFO
INPUT
EXIT

20 2020-11-24 #:180-9152-3 (2020-01-20)
Compatible Media
Compatible Video
File Format Container Bandwidth
(Mbps)
Frame
Rate
(FPS)
Resolution
AVI MPEG-1 80 30 1920x1088
MPEG-2 MP@HL 80 30 1920x1088
MPEG-4 SP@L0-3,ASP @L0-5 50 30 1920x1088
H.264 100(VCL) 30 3840x2160
MP,[email protected] 120(NAL) - -
H.263 5 30 1280x720
VP6 40 30 1920x1088
MJPEG - 30 1920x1080
MPEG-2 TS
Transport Stream
(.ts)
MPEG-2 MP@HL 80 30 1920x1088
MPEG-4 SP@L0-3,ASP @L0-5 50 30 1920x1088
H.264 MP,HP@Level 4.1 100(VCL)
120(NAL)
30 3840x2160
VC1 (AP) 45 30 1920x1088
H.265 100 30 3840x2160
MPEG File Format
(.mpeg)
MPEG-1 80 30 1920x1088
MPEG-2 MP@HL 80 30 1920x1088
H.264 MP,HP@Level 4.1 100(VCL)
120(NAL)
30 3840x2160
MPEG-4 Part 14
(.mp4)
H.264 MP,HP@Level 4.1 100(VCL)
120(NAL)
30 3840x2160
MPEG-4 SP@L0-3,ASP @L0-5 50 30 1920x1088
H.265 100 30 3840x2160
QuickTime (.mov) H.264 MP,HP@Level 4.1 100(VCL)
120(NAL)
30 3840x2160
MPEG-4 SP@L0-3,ASP @L0-5 50 30 1920x1088
MJPEG - 30 1920x1080
H.265 100 30 3840x2160
Matroska (.mkv) H.264 MP,HP@Level 4.1, 100(VCL)
120(NAL)
30 3840x2160
VP9 - 30 1280x720
H.265 100 30 3840x2160
 H.264 MP,HP@Level 4.1 100(VCL)
120(NAL)
30 3840x2160
H.263 5 30 1280x720
Transport Stream
(.ts)
H.264 MP,HP@Level 4.1 100(VCL)
120(NAL)
30 3840x2160
Video Object (.vob) MPEG-2 MP@HL 80 30 1920x1088
DAT (.dat) MPEG-1 80 30 1920x1088
