Premier View 20-CM-32AH User manual

ver. 1.0 PRINTED IN KOREA
20-CM-32AH
20-CM-32AHW
REAR-VIEW FOR VEHICLE
Thank you for purchasing this product.
For proper usages and application,
Please read this instruction manual thoroughly.
INSTRUCTION MANUAL
※ Design and specications could be changed without notices.

3
CONTENTS
Safety Rules
1. Features
2. Box Contents
3. Installation
4. Connection
5. Cleaning & General maintenance
6. Specications
..................................................................................... 4
........................................................................................ 5
.............................................................................. 5
.................................................................................. 6
................................................................................. 7
...................................... 8
............................................................................. 9

4 5
■ 1/3” COLOR CCD image sensor
■ 6 pcs of IR LEDs for night
■ Audio Built-in
■ Waterproof (IP-66)
■ Heating function Built-in
■ Aluminum die-casting housing
■ Night vision using the CdS sensor
1FEATURES

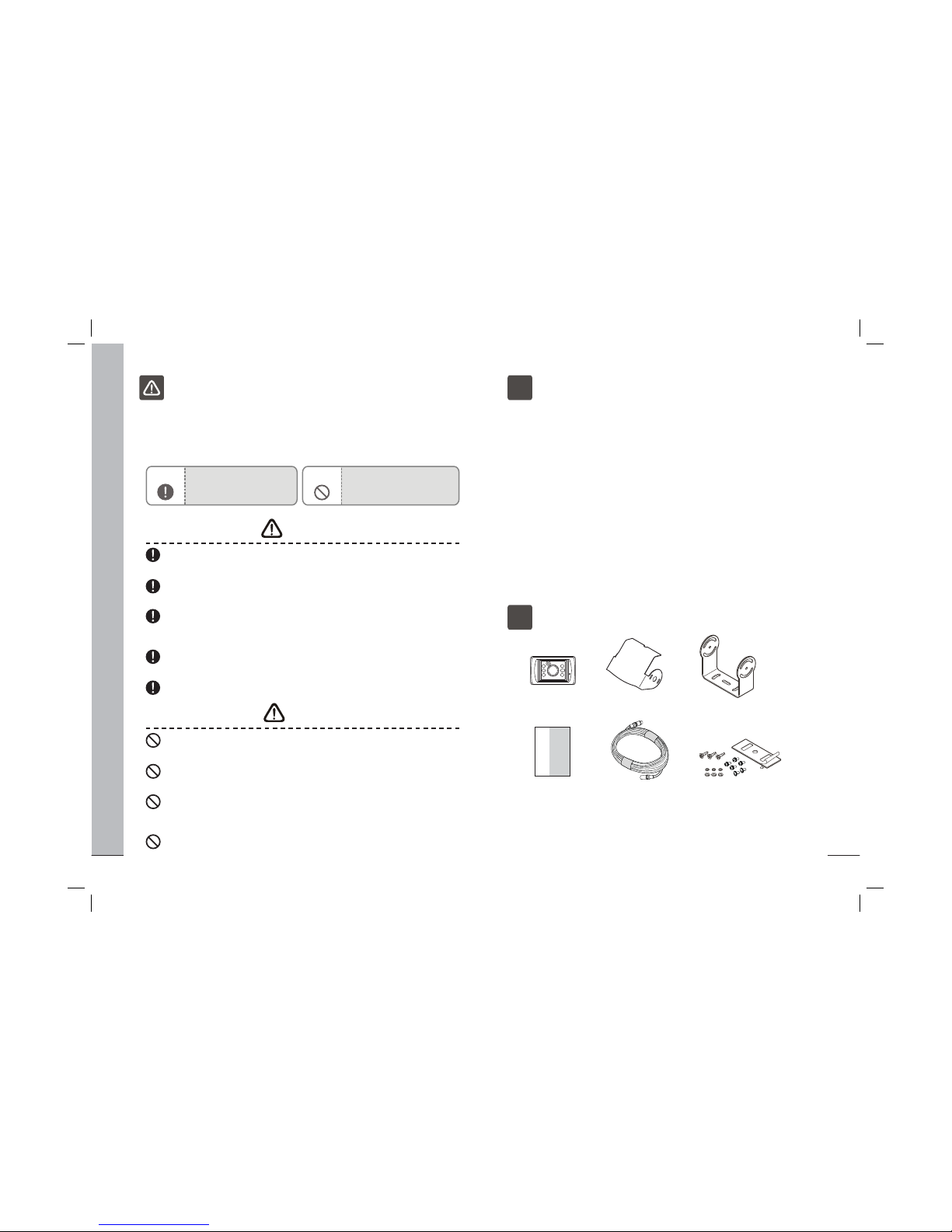

2BOX CONTENTS
Camera Bracket
Camera
Instruction
Manual
Sun Visor
Extension Cable
70ft (22m)
Accessory Pack
WARNING
Please read the “Safety Rules” carefully before using this product. Following the
safety rules prevents users from damages related with the misuse of the product.
It is very important to follow these safety rules. We state “Caution” and “Warning”
to clarify any potential risk for a damage associated with the misuse of the product.
SAFTY RULES
May cause bodily harm or even
death if the user ignores these
warnings in the safety rules.
Warning May cause a damage or shorten
the life time of the product if the
user ignores these cautions in
the safety rules.
Caution
CAUTION
When the power cable cord touches a metal case, cover it with a insulation tape.
--- Short circuit or disconnection of wire may cause a re or accident.
Do not use bolts or nuts from a parts for vehicle.
--- Using bolt or nuts from steering column or break may cause an accident.
Let professional engineers or the sale store install the camera.
--- It require the experience and skills from professional engineers for proper
installation and wiring.
After installing the camera, check it break lamp, head lamp and wipe works
properly.
Install this camera to the vehicle with DC 12V.
Do not dissassemble the device.
--- It may cause a re or malfunction of device.
Do not install the camera projected out from the vehicle.
--- It may harm the pedestriants.
Do not let the extension cable pass through the seat rail. properly wire the
cables.
--- It may cause a re or and accident.
Do not install the camera bracket on the surface of glass.
--- Use the screws to install the camera bracket.

6 7
3INSTALLATION
※ Based on the condition and place, the installation procedures
could be varied.
(1) Determine a position and a direction of installation so that the rear
view can be eectively seen on the monitor screen.
(2) Fix the camera bracket to the vehicle using the provided adhesive
tape and tapping screws with spring washers.
(3) Fix the camera between the camera bracket and sunvisor using
machine screws and adjust the angle of camera and fasten the
screws rmly.
(4) Run the cable from the monitor to the camera.
Monitor
(Option)
Extension Cable
70ft (22m)
Camera
4CONNECTION
CAMERA CONNECTOR
1. POWER IN (DC +12V)
2. HEATING B+ (DC +12V)
3. N.C
4. VIDEO OUT
5. AUDIO OUT
6. NOR/MIR
7. GND
⑥
TAPPING SCREW T1 M4.0 X 10 (3ea)
SPRING WASHER M4 (3ea)
FLAT WASHER M4 (3ea)
⑤
Before making the connection, disconnect the ground terminal of the car battery
to avoid short circuiting.
Before inserting plug, should check pin specication and the plug should insert
to jack or connector rmly.
If forced insert wrong direction, it may cause malfunction.
When connect extension cable, turn it right direction as described arrow.
MACHINE SCREW M3.0 X 5 (2ea)
MACHINE SCREW M3.0 X 7 (4ea)

8 9
5CLEANING & GENERAL MAINTENANCE 6SPECIFICATION
※ If your vehicle has been parked in direct sun light resulting in a considerable
rise in temperature inside the vehicle, allow the unit to cool o before
operating.
CLEANING
Unplug or power o mode before cleaning. Do not use liquid cleaners or
aerosol ceaners. Use a damp cloth for cleaning.
OBJECT AND LIQUID ENTRY
Never push objects of any kind into this monitor equipment through
holes as they may touch dangerous voltage points or short-out parts that
could result in a re of electric shock. Never spill liquid of any kind on the
product.
SERVICING
Do not attempt to service this system by yourself as opening or removing
covers may eapose you to dangerous voltage or other hazards. Refer all
servicing to qualied service personnel.
Operating temperature
-5℉to 149℉ / -20℃to 65℃
0.88lb (0.4kg)
Minimum illumination
0.01Lux
Image device (NTSC)
1/3” COLOR CCD Image Sensor
View of angle
95 (H) / 70(V) / 120 (D)
Input Voltage
DC 12V/200mA max
Camera Weight
Demension
2.7(W) x 1.7(H) x 2.2(D) inch
70(W) x 44(H) x 57(D) mm
Camera Bracket ----------------------------------------- 1
Accessories
Sun Visor -------------------------------------------------- 1
Extension Cable --------------------------------------- 1
Accessory Pack ---------------------------------------- 1
Operating temperature
-5℉to 149℉ / -20℃to 65℃
0.88lb (0.4kg)
Minimum illumination
0.01Lux
Image device (NTSC)
1/3” COLOR CCD Image Sensor
View of angle
114 (H) / 85(V) / 145 (D)
Input Voltage
DC 12V/200mA max
Camera Weight
Demension
2.7(W) x 1.7(H) x 2.2(D) inch
70(W) x 44(H) x 57(D) mm
Camera Bracket ----------------------------------------- 1
Accessories
Sun Visor -------------------------------------------------- 1
Extension Cable --------------------------------------- 1
Accessory Pack ---------------------------------------- 1
20-CM-32AHW
20-CM-32AH
