Premier SX-013DVDR User manual

INSTRUCTION MANUAL
SX-013DVDR
5-DISC DVD VIDEO AND AUDIO
CD PLAYER
OPEN/CLOSE
CHAPTERSTOP 1EXCHANGE DISC SKIP
2345
PAUSEPLAY
DVD/CD/MP3 PLAYERDVD/CD/MP3 PLAYER
STANDBY

Page 1
To ensure proper use of this product, please read this owner manual carefully
and retain for future reference. Should the unit require maintenance, contact
an authorized service location.

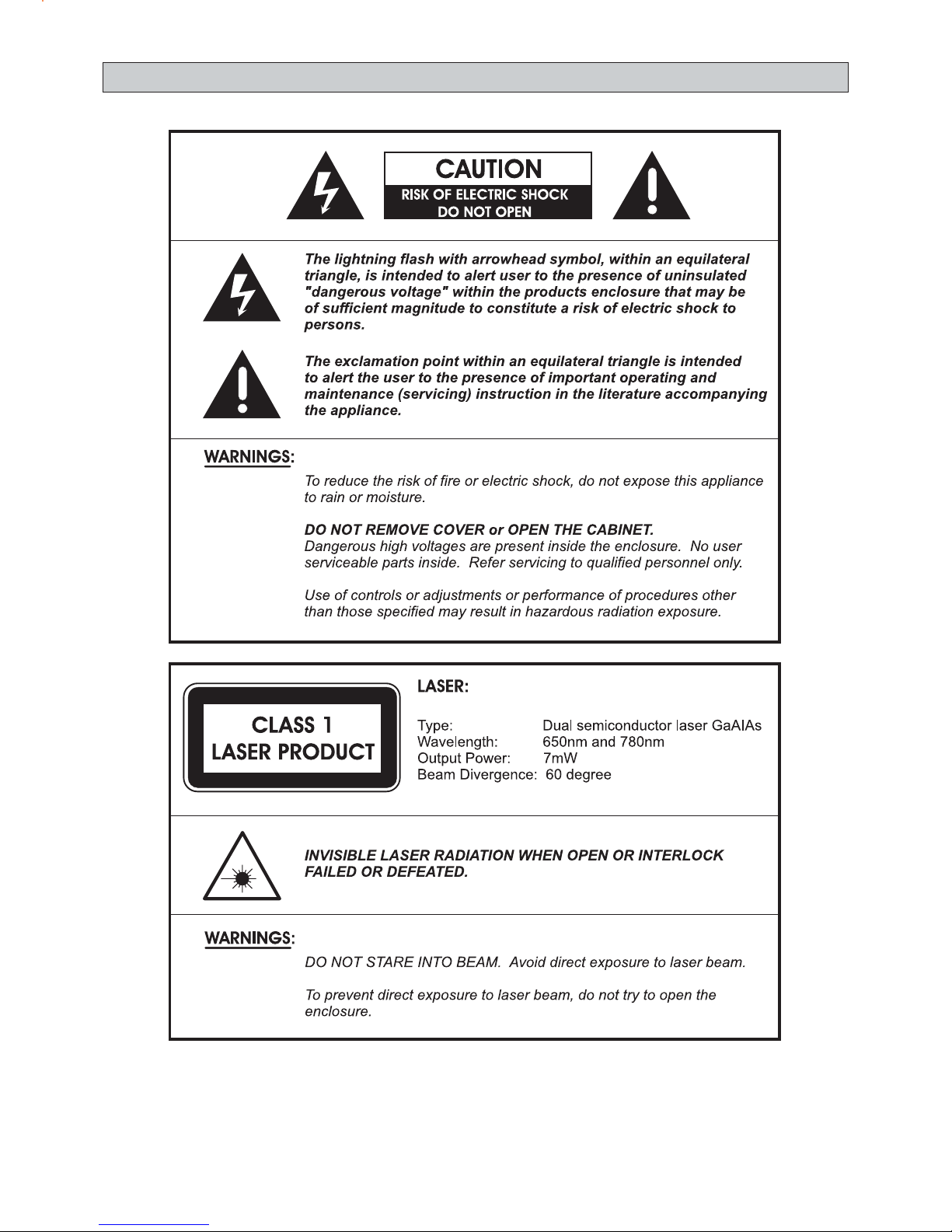

SAFETY

Page 2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following proce-
dures for installation, use and servicing. This unit does not contain any parts that can be repaired by the user.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near
water.
• Clean only with dry cloth.
• Do not block any ventilation
openings. Install in accordance
with the manufacturer’s
instructions.
• Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
• Do not defeat the safety purpose
ofthepolarizedorgrounding-type
plug. A polarized plug has two
blades, one wider than the other.
A grounding type plug has two
blades and a third grounding
prong. Thewidebladeorthethird
prong is provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
• Protectthepowercordfrombeing
walked on or pinched particularly
at plugs, convenience
receptacles and the point where
they exit from the apparatus.
• Only use attachments/
accessories specified by the
manufacturer.
• Unplug this apparatus during
lightning storms or when unused
for long periods of time.
• Useonlywitha cart, stand, tripod,
bracket or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
usecautionwhenmovingthecart/
apparatus combination to avoid
injury from tip-over.
• Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as when the power supply cord
or plug is damaged, liquid has
beenspilledorobjectshavefallen
into the apparatus, the apparatus
has been exposed to rain or
moisture, does not operate
normally, or has been dropped.
•Disc Tray
Keepyour fingers well clear of the
disc tray as it is closing. It may
cause serious personal injury.
•Burden
Do not place a heavy object on,
orstepontheproduct. Theobject
mayfall,causingseriouspersonal
injury and serious damage to the
product.
•Disc
Do not use a cracked, deformed,
or repaired disc. These discs are
easily broken and may cause
serious personal injury and
product malfunction.
•Damage Requiring Service
Unplug this product from the wall
outlet and refer servicing to
qualified service personnel under
the following conditions:
a) When the power-supply cord or plug
is damaged.
b) If liquid has been spilled, or objects
have fallen into the product.
c) If the product has been exposed to
rain or water.
d) If the product does not operate nor-
mally by following the operating in-
structions.Adjust only those controls
that are covered by the operating in-
structions. Improper adjustment of
other controls may result in damage
and will often require extensive work
by a qualified technician to restore
the product to its normal operation.
e) If the product has been dropped or
damaged in any way.
f) When the product exhibits a distinct
change in performance - this indi-
cates a need for service.
•Servicing
Do not attempt to service this
product yourself as opening or
removing covers may expose you
to dangerous voltage or other
hazards. Refer all servicing to
qualified service personnel.
•Replacement Parts
When replacement parts are
required, be sure the service
technician has used replacement
parts specified by the
manufacturer or have the same
characteristicsastheoriginalpart.
Unauthorized substitutions may
result in fire, electric shock, or
other hazards.
•Safety Check
Upon completion of any service
or repairs to this product, ask the
service technician to perform
safety checks to determine that
the product is in proper operating
condition.
• USA & Canada versions comply
with ETL requirements.

Page 3
Examine the contents of the box for your DVD player.
There should be the following:
• DVD Player with attached power cord
• Remote Control
• 2 batteries
• A/V Cable
• Instruction Book
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Re-orient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to a supply outlet different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and
4,907,093 licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Software Licence and Copyright Notice
All software that is supplied as part of this equipment is protected by copyright laws and
international copyright treaties, as well as other intellectual property laws and treaties.
This software is licensed, not sold and is intended for use on this device only.
All title and copyrights in and to the software (including but not limited to any images,
photographs, animations, video, audio, music, text, instructions, code and "applets" incor-
porated into the software) are owned by Orient Power Video Manufacturing Ltd. or its sup-
pliers.
You may not reverse engineer, decompile, or disassemble this software for any purpose.
No part of this software may be copied, reproduced, loaned, rented, leased or transmitted
in any form or by any means electronic or mechanical, without the express written permis-
sion of Orient Power Video Manufacturing Ltd.
COrient Power Video Manufacturing Ltd. All rights reserved.
CONTENT
PACKAGE
Safety ____________________________________________________________________ 1
Important Safety Instructions __________________________________________________ 2
Contents & Package ________________________________________________________ 3
Installation ________________________________________________________________ 4
Remote Control ____________________________________________________________ 5
Front Panel________________________________________________________________ 6
Rear Panel ________________________________________________________________ 6
Connections _______________________________________________________________ 7
Basic Operation ____________________________________________________________ 9
Playing DVD/CD/VCD Disc __________________________________________________ 12

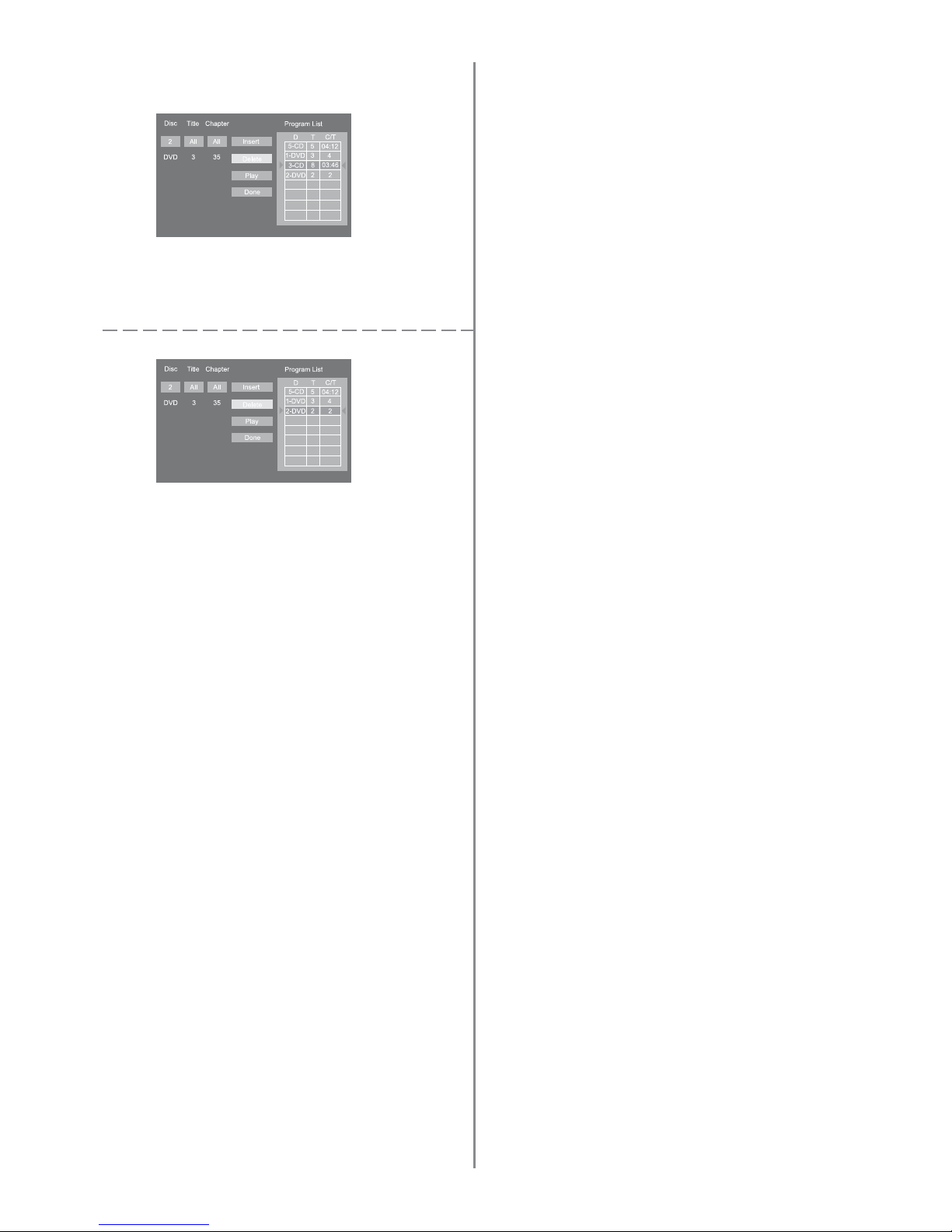

Example shows how to Create Program and Delete Selection for DVD ________________ 16
Playing MP3 Disc __________________________________________________________ 18
Playing Picture (JPEG) CDs _________________________________________________ 21
Controls (MP3 / JPEG Disc)__________________________________________________ 23
Disc You Can Play _________________________________________________________ 24
Problems ________________________________________________________________ 25

Page 4
DVD Discs
Forthepurpose ofdistributionof DVD Discs,theworld has been
separated into 6 zones. The zone your unit is intended for is
indicated on the Zone Label. This should be the same as the
labelondiscs available in your region. Ifyouhaveany difficulties
in playing a disc, make sure that the disc is for the same zone
as your player.
Some DVD discs have anti-copying devices.
Withthesediscstheplaybackon aTelevisionwill givethe highest
quality picture, however you will not be able to record this signal
on a VCR.

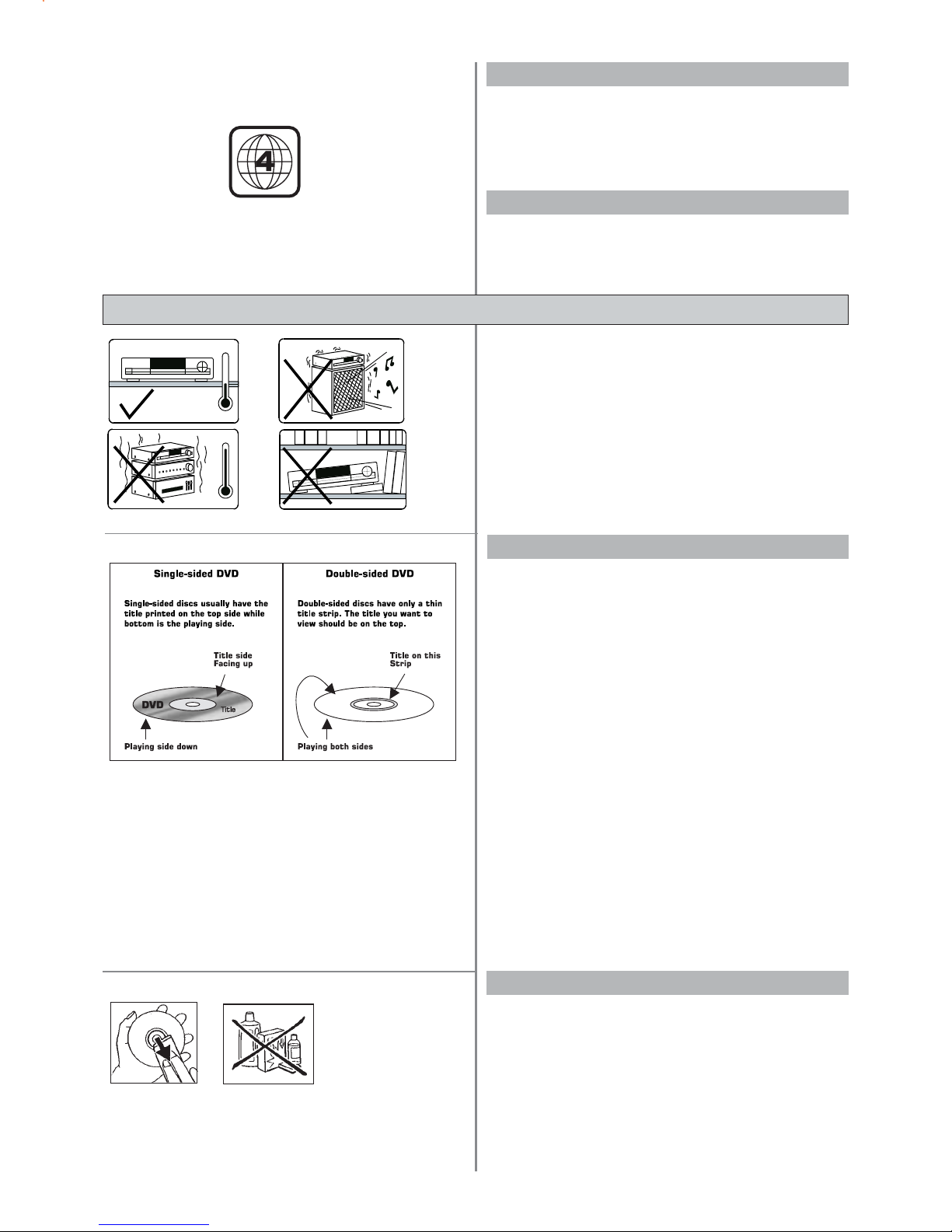

• Install your unit on a stable flat surface. There must be suffi-
cient room in front of the unit for the drawer to be opened and
the unit should be positioned so that it can see the remote
control.
• Do not expose your unit to extremes of temperature or humidity.
• Avoid standing it on a hot surface such as on top of other hot
running equipment and ensure that there is adequate ventilation
to the unit.
Caution:
Do not install this equipment in confined space such
as a book case or similar unit!
There are several types of DVD Disc:
Single-sided discs plays for approximately 2 Hours
Single-sided disc with 2-layer plays forapproximately 4 Hours
Double-sided disc plays forapproximately 4 Hours
Double-sided disc with 2-layer on both sides plays forapproximately 8 Hours
DVD discs have Titles and Chapters:
* There can be several Titles on one disc and each Title can
contain several Chapters. Titles and Chapters are numbered,
e.g. Title 1, Title 2, Chapter 1 and etc.
* Usually Title one will show the disc publisher and studio logos.
The next Title will be the film. Other Titles contain trailers for
other films, production notes, or alternative endings for the
film. There are many possibilities with Digital Versatile Disc.
* Chapters within the main Title allow you to search quickly for a
specific point on the disc. Many discs have a Chapter Menu
sometimes called Scene Index or Scene Menu that displays
the first shot from each Chapter, which allows you to select a
shot and play the disc from that point onwards.
DVD discs can be PAL or NTSC. This player can play both
types (if the player zone is correct).
DVDdiscs allow upto 8 Languages and32 subtitles ona single
disc. You can select and change the language and subtitle to
suit yourself and play the whole disc or just part of it and view
it from different angles.
Picture freezing & sound skipping or repeating can occur if the
disc inside the player is dirty.
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe
the disc from the center out.
• Do not wipe in a circular motion. Circular scratches can cause
picture distortion or render the disc unplayable.
Caution:
Do not use solvents, commercially available cleaners,
or antistatic spray intended for analog discs.
Anti-Copy Disc Protection
Player Zones
Cleaning Disc
INSTALLATION
Region 4

Page 5

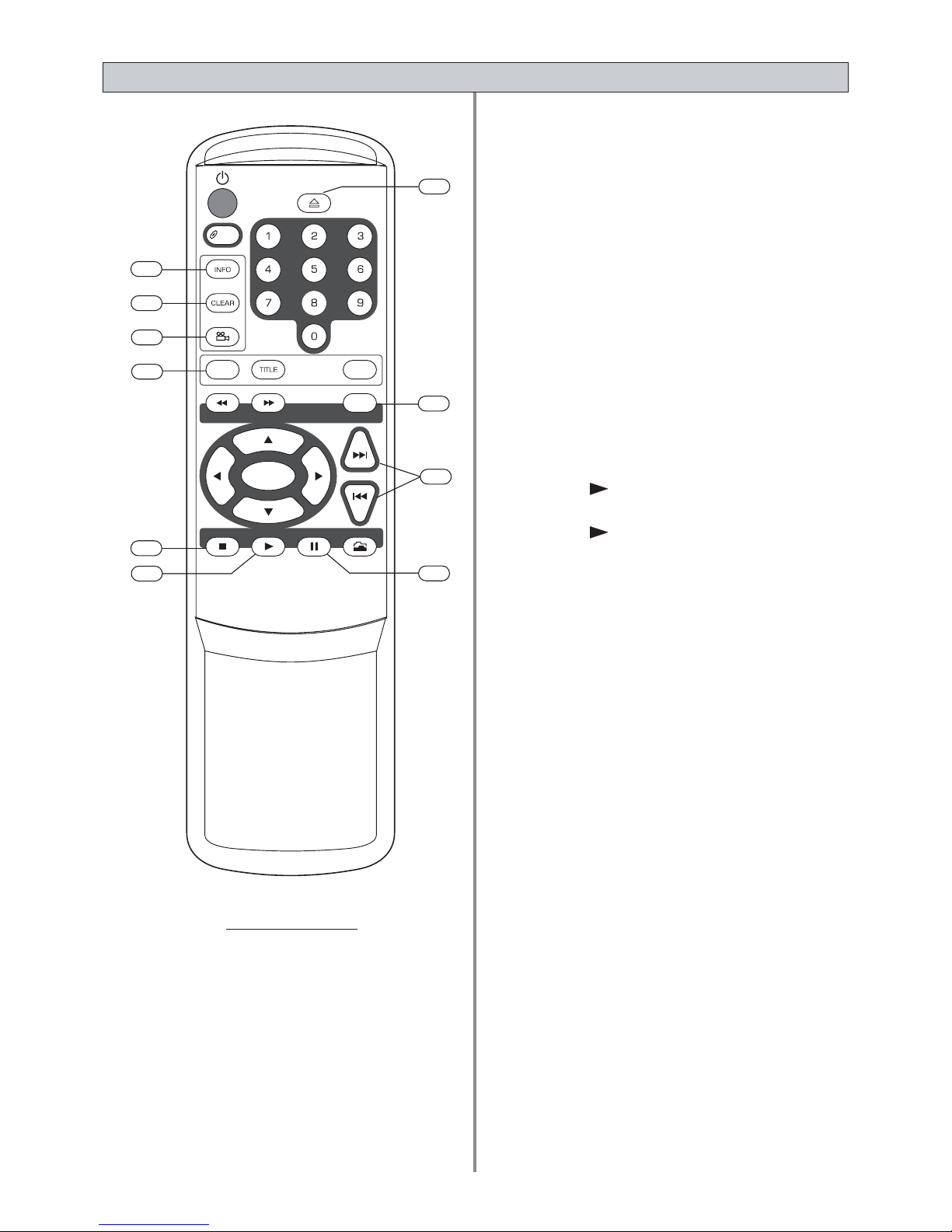

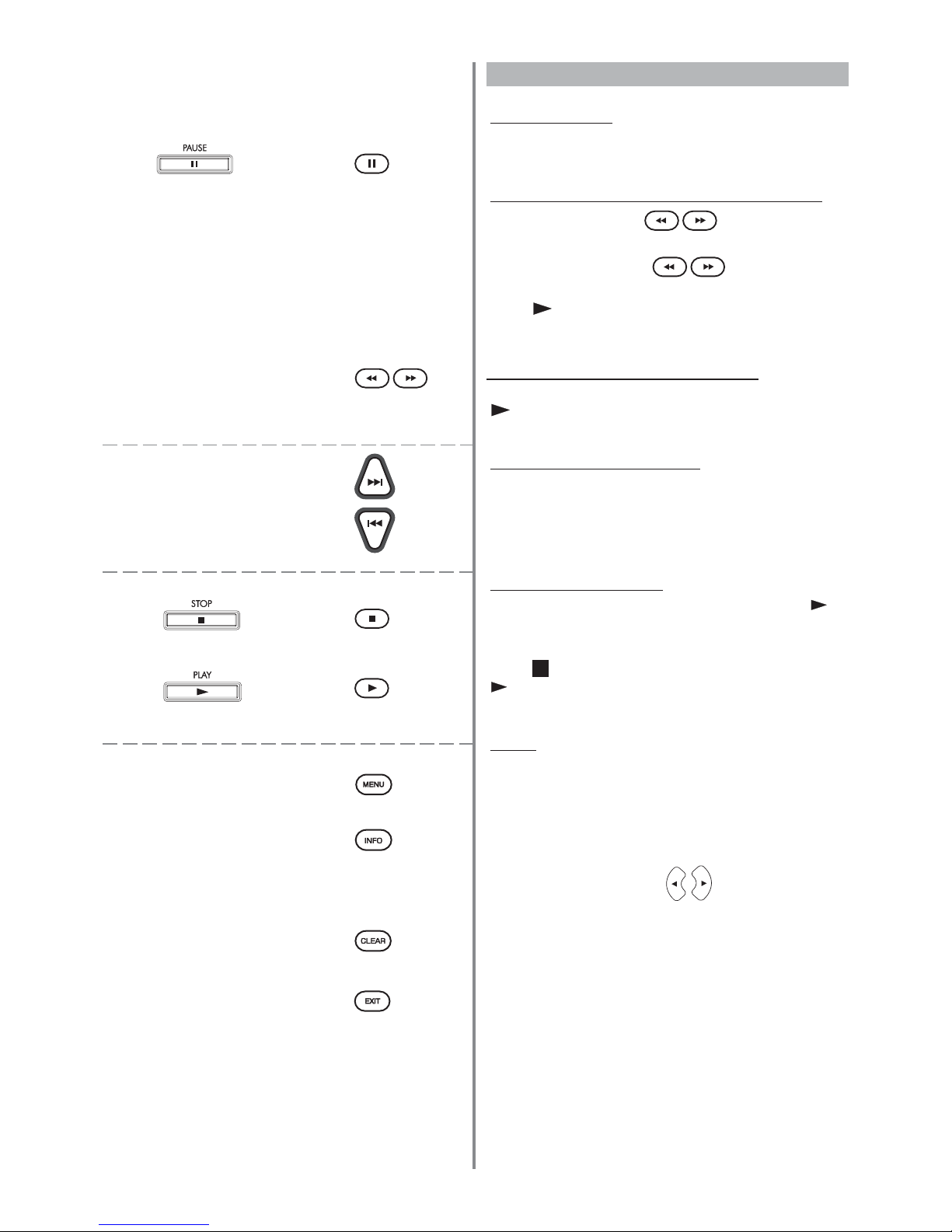

REMOTE CONTROL
1. switches the player between Standby and On.
2. SKIP changes to next disc tray.
3. INFO enters and exits Active Navigation mode.
4. CLEAR exits menus and Active Navigation mode.
5. displays angle menu if present on discs.
6. MENU displays setup menu when stopped and
disc menu when playing.
7. opens or closes disc loading tray.
8. 0 - 9 (Numeric keys) are used for direct selections
of title, chapter, track and time input.
9. TITLE displays title menu if present on discs.
10. EXIT exits menus and Active Navigation mode.
11. plays backward quickly (Fast Search).
12. plays forward quickly (Fast Search).
13. ZOOM selects zooming options when playing
DVD.
14. (Active Navigation keys) advance in
indicated directions for making
selections in menus and Active
Navigation mode.
15. OK confirms selections.
16. skips to next chapter or track.
17. skips to previous chapter or track.
18. stops playing.
19. starts playing.
20. opens index menu of DVD/CD.
21. pauses playing.
OK
2
1
3
4
5
6
11
12
14
18
19 21
20
17
16
13
10
15
9
8
7

Page 6

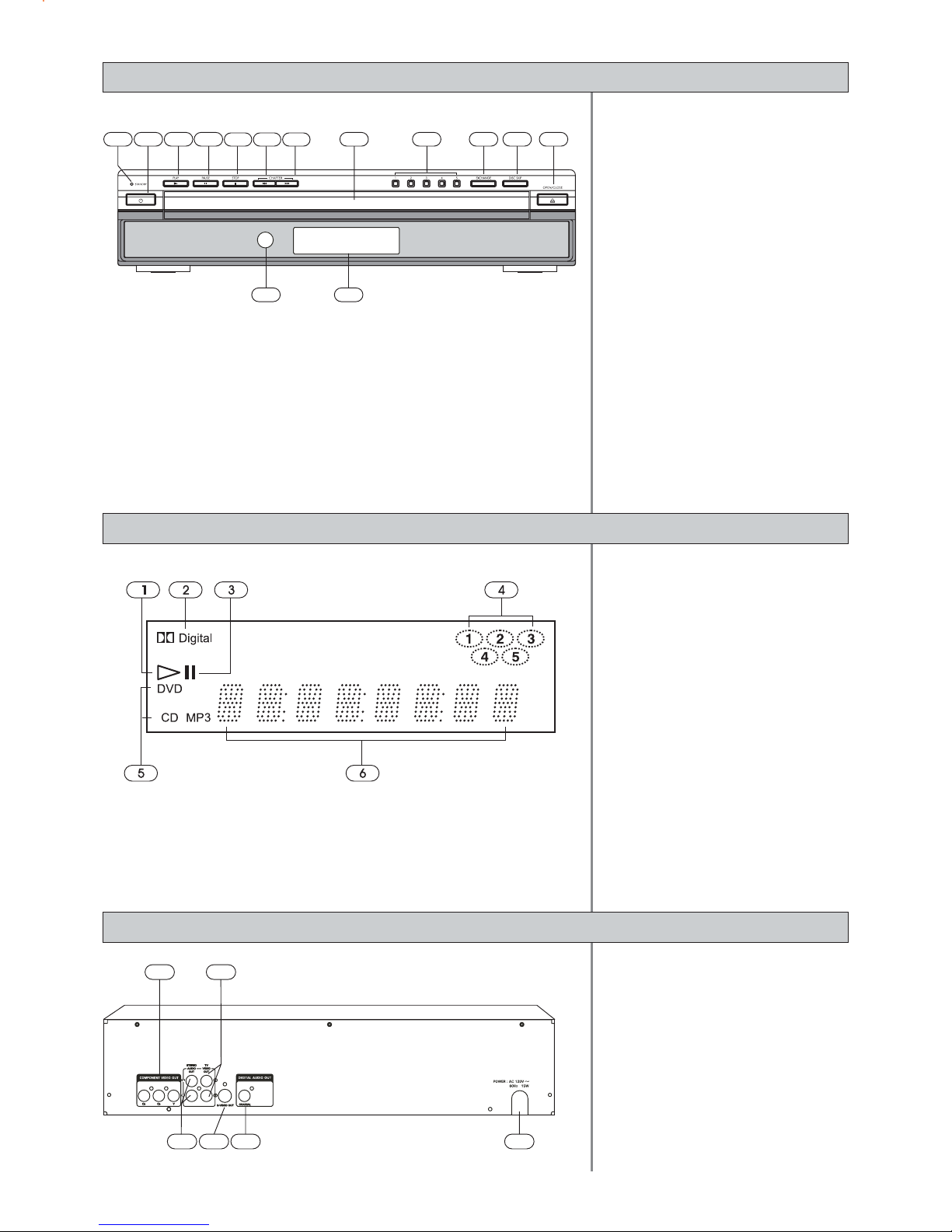

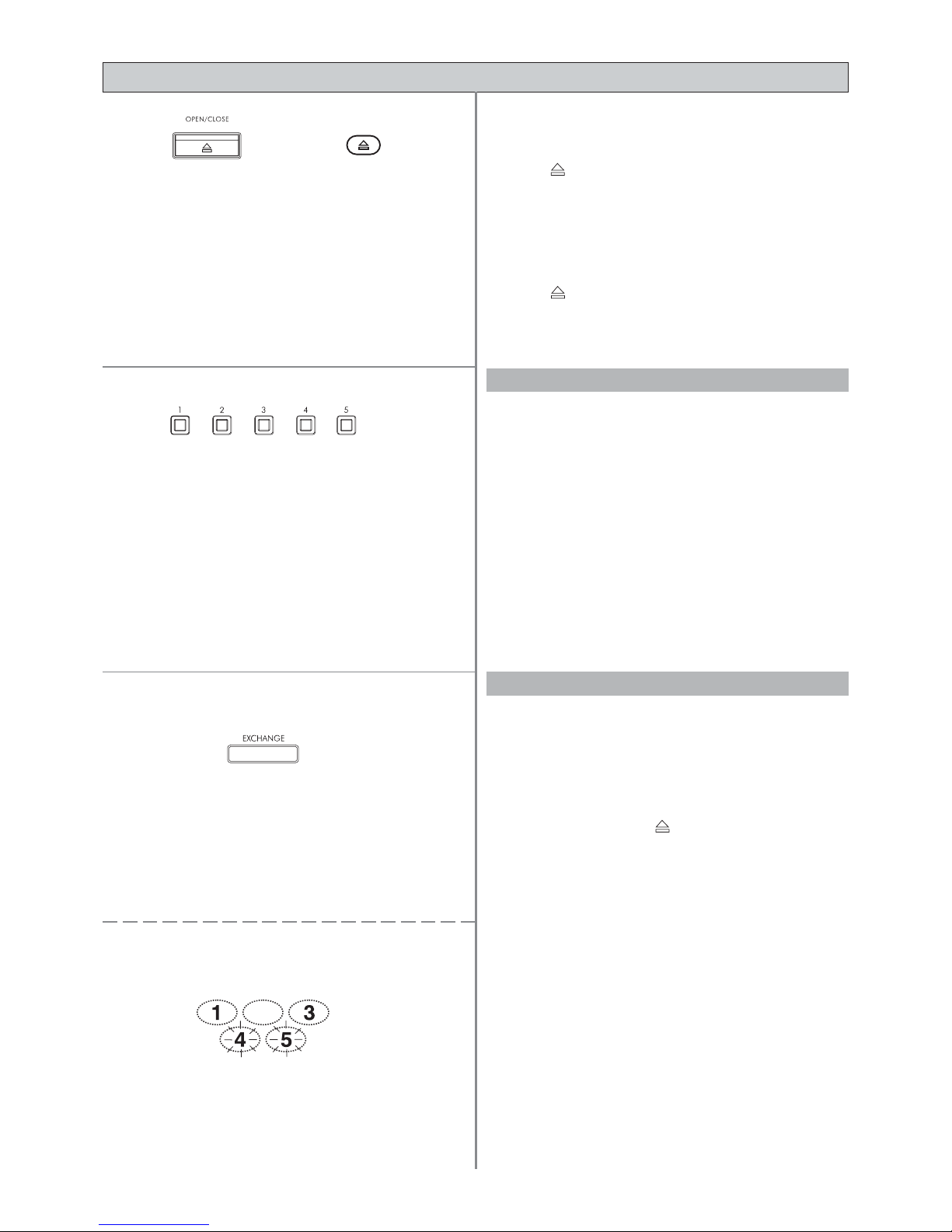

FRONT PANEL
REAR PANEL
DISPLAY
1. Standby indicator
2. Turns unit on/off
3. Starts playing
4. Pauses playing
5. Stops playing
6. Skips to previous chapter/track
7. Skips to next chapter/track
8. Discs loading tray
9. Select disc tray directly and start
playing disc on respective disc
tray.
10.Opens disc loading tray for disc
exchange when playing
11.Skips to next disc tray
12.Opens/closes discs loading tray.
13.Remote control signal receiver
14.Display area
1. Unit is playing.
2. Presence of Dolby Digital on
playing disc.
3. Unit is paused.
4. Disc tray icons. Empty one stands
for no disc on the corresponding
disc tray.
5. Type of disc (DVD, CD, MP3)
currently playing.
6. Shows elapsed playing time, disc
title, chapter and track number
etc.
(Note: Display area will dim automat-
icallywhenplayingDVDdiscs. Return
to original brightness when the disc is
stopped or unloaded.)
1. Component Video Outputs
2. Video Output - 1 & 2
3. Audio Output - Left & Right
4. S-Video Output
5. Digital Audio Output - Coaxial
6. Power Cord
2
1
3
56 4
DVD PLAYER
DVD PLAYER
11 12
1413
1210
34 8
9
5 6 7

Page 7
Video Connections
The way in which you connect your DVD player and the kinds of cabling you choose can make a noticeable differ-
ence in picture and sound quality. Before you select one of the options, please make sure that your other equip-
ment (e.g. TV, receiver) has the required input/output channel.
Use either options of below:
CONNECTIONS
For good picture quality, use COMPOSITE
VIDEO CABLE
For better picture quality, use COMPONENT
VIDEO CABLES
For better picture quality, use S-VIDEO CABLE
DVD PLAYER
DVD PLAYER
COMPOSITE
VIDEO CABLE
COMPOSITE
VIDEO CABLE
DVD PLAYER
DVD PLAYER
S-VIDEO CABLE
(Not Included)
S-VIDEO CABLE
(Not Included)
DVD PLAYER
DVD PLAYER
COMPONENT VIDEO CABLES
(Not Included)
COMPONENT VIDEO CABLES
(Not Included)

Page 8
Audio Connections
Before you select one of the options, please make sure that your other equipment (e.g. TV, receiver) has the
required input/output channel.
Use either options of below:
For better sound quality, use RCA AUDIO CABLE
For best sound quality, use Coaxial Audio Cable
(Not Included)
Connecting 5.1 CH Receiver
Do not connect the L-R Audio sockets to the TV (in case the L-R connections are made, you need to set the TV
volume control to zero).
Connect the Digital Audio Out socket from the DVD to the Input socket of your 5.1 Ch. Receiver. Use Coaxial
Audio Cable.
DVD PLAYER
DVD PLAYER
RCA AUDIO CABLE
RCA AUDIO CABLE
DVD PLAYER
DVD PLAYER
Subwoofer
Rear speaker
( right surround )
Rear speaker
(right surround )
Rear speaker
( left surround )
Rear speaker
( left surround )
Front
speaker
(left)
Front
speaker
(left )
Front
speaker
( right )
Front
speaker
(right )
TV
Centre
speaker
Centre
speaker
5.1 CH RECEIVER
Rear
speaker
( left )
Rear
speaker
(left )
Front
speaker
( right )
Front
speaker
(right )
Centre
speaker
Centre
speaker
Sub
woofer
Sub
woofer
Front
speaker
( left )
Front
speaker
(left )
Rear
speaker
( right )
Rear
speaker
(right )
DIGITAL COAXIAL AUDIO IN
DIGITAL COAXIAL AUDIO IN
COAXIAL AUDIO CABLE
(NOT INCLUDED)
COAXIAL AUDIO CABLE
(NOT INCLUDED)
DIGITAL OPTICAL AUDIO IN

Page 9

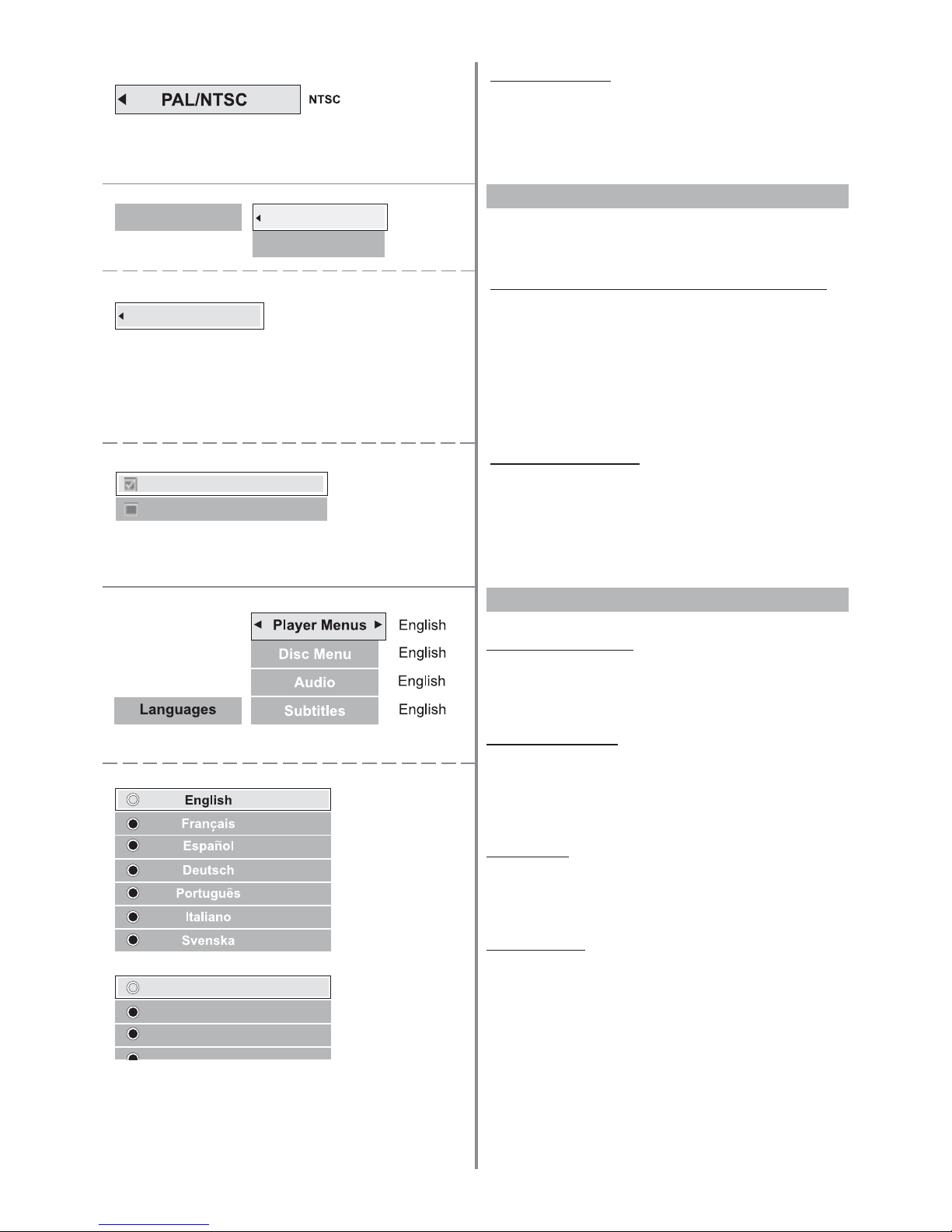

To access the setup menu the unit must be in STOP
mode.Use Active Navigation keys to make selections
and then press OK to confirm.
3. Lock
Use Active Navigation keys to select a sub-menu
3.1 Lock Player
Press OK and create your password with numeric keys
Note: You must know this password in order to
change it in future. Refer to “Problems” section if you
forgot the password.
3.2 Unlock Player
Press OK to cancel all password settings.
3.3 Change Password
Change your existing password to a new one with
numeric keys.
3.4 Rated Titles
Pressing to set the player’s parental
control level.
Parental levels are assigned to DVD disc. The range of
parental controls is from 1 to 8.
If the unit’s rating limit is set to 8, it will play all discs. If
the player’s rating limit is set below 8, only discs with
a higher or equal parental level will play.
Note: Some discs do not have parental control level
assigned and will play irrespective of the player
setting.
2. Play Mode
Press OK to select a play mode
(See “When Playback is stopped”, No menu available
without disc loaded. )
1. Play
Press OK to list the content of disc
(No menu available without disc loaded.)
BASIC OPERATION
Change Password
Rated Titles
Lock Lock Player
Unlock Player
Unlock Player
Enter New Password
OK
Enter New Password
OK
2
3
4
5
6
7
1
8
Free Access
Password Required
