PremierOne MUV-401H Installation and operating instructions

MUV-401H MultiVoltage
Germicidal Air Purier
Installation & Maintenance Instructions
UNPACKING THE UNIT
Each MUV-401H germicidal air purier is shipped with the germicidal
lamp placed in a lamp box. Carefully remove lamp from the lamp box
taking care to not touch the glass portion with bare hands. Oils from the
hands can cause “hot spots” which reduce lamp life. Handle by the plas-
tic end cap or use a soft cloth. Clean the lamp, using the included alcohol
cleaning pad or a soft cloth dampened with rubbing alcohol. The lamp
is fragile and proper care must be taken when removing from packaging.
The following parts are included: • MUV-401H Multivoltage Germicidal Air Purier
• Germicidal Twin H Lamp (packed in lamp box)
• Four Self Tapping Sheet Metal Screws
• Installation & Maintenance Instructions
• 120 VAC Power Cord
• Alcohol pad to clean lamp
When installing and using this electrical equipment, basic safety precautions
should always be followed including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. SAVE THESE INSTRUCTIONS.
3. Always be sure the unit is unplugged during installation or service procedures.
4. The ultraviolet light produced by the UV lamp is harmful to your eyes. Do not look directly at
the lamp. Should it become necessary to view the lamp, use UV-protected sunglasses.
Lors de l’installation et de l’utilisation de cet équipement, des précautions devront être suivies.
1- Lire et suivre les étapes attentivement.
2- Conserver ces instructions.
3- Assurez vous de toujours débrancher avant l installation ou le service.
4- Ne pas regarder la lampe directement avec les yeux. Si nécessaire de le faire,
veuillez porter les lunettes de soleil contre les rayons U.V.
IMPORTANT: SAFETY INSTRUCTIONS
Important: Instructions de securité
3099107

INSTALLATION:
Do not locate the unit within 20” of plastic materials that will be directly exposed to the UV light, such as wiring, return
side humidier or certain types of air lters. Check with the lter manufacturer to see if their material is UV resistant.
Over time, UV light may degrade some plastics and petroleum based materials.
Do not touch the glass portion of the lamps with bare hands because oils from the hands can cause “hot spots” which
reduce lamp life. Handle either by the end caps or use a soft cloth. If you accidentally touch a lamp, wipe it off using
the included alcohol cleaning pad or a soft cloth dampened with rubbing alcohol.
1. Cut out the shaded area of the installation template (See page insert). Center the template
on the longitudinal axis of the plenum and attach with tape. Trace the hole pattern
for the unit and mark centers for mounting screws.
2. Cut opening for the unit. (If using a 2” hole saw, center over the area marked.)
3. Attach the unit to the air duct using the four self tapping sheet metal screws provided.
4. Remove the cover from the unit by removing the top and bottom retaining nuts using a 11/32 size nut driver.
5. Remove germicidal lamp holder using a 11/32 size nut driver (Photo A).
6. Slide germicidal lamp into lamp opening and reinstall lamp holder
7. Plug lamp into lamp connector.
8. Supply power by wiring unit according to instructions below.
9. Replace and secure cover using the two retaining nuts.
WIRING
The multivoltage ballast is self-adjusting and operates with voltages from 120 - 240 VAC. Install provided
power cord. For 120V wiring connect the black wire to L1, white wire to neutral, green wire to ground. For 240V
wiring install 5 amp in-line fuses to both legs of power, then connect the black wire to L1, white wire to L2, green
wire to ground. Be sure power cord is secured with included strain relief connector.
It is not necessary to cycle the germicidal air purier with the furnace blower. You may allow the unit to run
continuously or have it interlocked with the furnace blower. If a 120 VAC EAC terminal is available, supply power
to the unit from the EAC terminal. Connect in accordance with local wiring codes. If there is no EAC terminal,
interlock the UV unit with the furnace blower using an appropriate alternate. Wire the unit in accordance with local
wiring codes. After installing, verify voltage is operating between 120 - 240 VAC with air handler operating.
For Technical Support Call [phone] © 2020

Photo A
Germicidal
lamp holder
MUV-401H
can be mounted either on the
return or supply side.
15” or 18”
2 3/4”
AIR STREAM
12” OR 16”
Germicidal UVC Lamp
Box size is
8.75 high x 4.25 wide.

TROUBLESHOOTING
• The LED should light when the furnace blower is running.
If the LED does not light: 1. Check to be sure there is power to the unit.
2. Be sure lamp connectors are fastened securely.
3. If the LED still does not light, replace lamp(s).
4. If still not operating, replace ballast.
Note: Standard off-the-shelf lamps are not compatible with this unit. Use of improper lamps will void warranty.
WARRANTY RETURNS
All electronic components carry a lifetime warranty to the original homeowner. In addition there is a four-year
warranty from the date of installation for any subsequent owner. The original lamp is warranted for a period of
two years. This warranty does not cover broken lamps due to shipping, installation or handling. Please see the
complete warranty statement in the center of this booklet.
All returns are routed through your wholesaler and must be approved and accompanied by an RGA number.
Please call PremierOne Products, Inc. at 800-982-1840 and we will guide you through the return procedure.
This warranty gives you specic legal rights and you may also have other rights which vary from state to state.
MAINTENANCE
This maintenance schedule is only a guideline, determined by average conditions. Actual conditions will dictate
the frequency of cleaning and/or replacement of lamps. Do not touch the glass portion of the lamps with bare hands
because oils from the hands can cause “hot spots” which reduce lamp life. Handle either by the end caps or use a
soft cloth. If you accidentally touch a lamp, clean it using a soft cloth dampened with rubbing alcohol.
CLEANING THE LAMPS - Recommended interval: 12 months (Follow the procedure below)
Replacement lamps are available through your HVAC contractor.
REPLACING THE LAMPS - Recommended interval: 24 months. (Follow procedure below excluding #6.)
Note: Standard off-the-shelf lamps are not compatible with this unit. Use of improper lamps will void warranty.
1. Unplug the power cord from the outlet, or disconnect power to the unit.
2. Remove the cover from the unit by removing the top and bottom retaining nuts using a 11/32 size nut driver.
3. Unplug the lamp from the lamp connector.
4. Remove the lamp holder using a 11/32 size nut driver (Photo A).
5. Remove the lamp by grasping the end cap and extract carefully.
6. Using a soft cloth moistened with rubbing alcohol, wipe down the lamp. If there is a large build-up of dust
particles, you may wish to use a can of air rst. Always handle lamps by end caps.
7. Slide the lamp back into lamp opening. Reinstall lamp holder..
8. Plug the lamp into the lamp connector.
10. Replace and secure the cover using the two retaining nuts.
11. Plug power cord back into outlet, or restore power to unit.
For Technical Support Call [phone] www.premieroneproducts.com ©2020

8 3/4”
4”
UV
Lamp 1. Cut out area of template indicated by the grey area.
2. Place template on the return path (or supply side) of the HVAC system and trace the hole
pattern for the unit and mark centers for mounting screws.
3. Cut opening for the unit. (Or use a 2” hole saw centered over the area marked.)
4. Install unit into air duct using the four self tapping sheet metal screws provided.

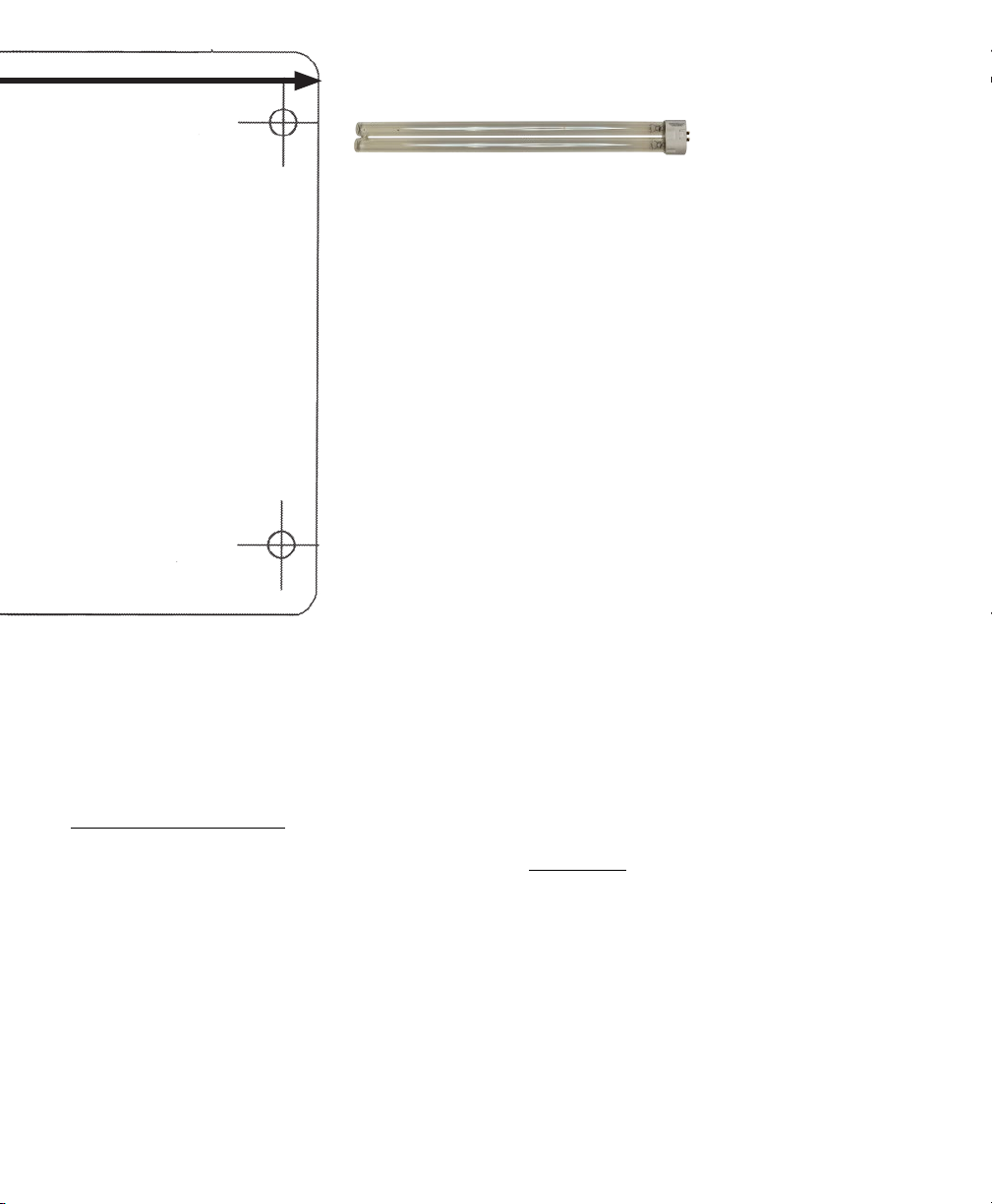

INSTALLATION TEMPLATE MUV-401H
Use a 2” hole saw to cut opening indicated by the gray circle.
