Kampmann KA-520 L User manual

Luftreiniger KA-520
Assembly instructions
EN Assembly instructions
4
SAP 1418105 03/21
1 Overview
8
12
3
4
5
7
6
KA-520 XL
KA-520 XXL
KA-520 L
KA-520 XL Pro
1 H14 particulate filter
2 ISO Coarse pre-filter
3 Filter cover
4 Air outlet grille
5 Main switch (green light indicates operation)
6 Mains power connection
7 Switch for operating stage I and II
8 Timer Setting
2 Safety
Mains power supply/Mains power cable
Do not route close to heaters.
Do not route under heavy objects that could alter the cross-section of the mains power cable.
Only use the unit with the stated mains voltage! Incorrect connection to a mains power
socket can lead to fire or electrocution.
Do not use the unit if the mains power plug or mains power cable are faulty or damaged.
First switch off the unit, then disconnect the mains power plug before commencing mainten-
ance work!
IMPORTANT NOTE!
Do not cover the air inlet and outlet!
Do not place objects or textiles close to the air inlet and outlet, as this will impair
the efficiency of air purification.
IMPORTANT NOTE!
Do not damage the unit by heavy loads!
Avoid heavy loads (this is not a seat), as this may damage the casing and can im-
pair the operation of the unit.
DANGER!
Avoid electric shocks and/or fire hazards!
Prevent liquids or flammable cleaning agents from penetrating the unit.
Do not clean the unit with water, flammable cleaning agents or other li-
quids.
2.1 Correct use
The air purifier KA-520 uses air circulation to filter the smallest particles (e.g. bacteria, viruses,
pollen, etc.) out of the air using a particulate filter (Hepa filter).
Intended use of the unit also includes adherence to these instructions.
Any use beyond or other than the stated intended use is considered as misuse.
Any change to the unit or use of non-original spare parts will cause the expiry of the warranty
and the manufacturer’s liability.
2.2 Limits of operation and use
IMPORTANT NOTE!
Warning of misuse!
In the event of misuse, as itemised below, there is a danger of limited or failing
operation of the unit. Ensure that the airflow can circulate freely.
Never operate the unit in humid areas, such as swimming pools, wet areas
etc.
Never operate the unit in rooms with an explosive atmosphere.
Never operate the unit in aggressive or corrosive atmospheres (e.g. sea air).
2.3 Risk from electrocution!
DANGER!
Risk of fatal injury from electrocution!
Contact with live parts will lead to fatal injury from electrocution. Damage to the
insulation or individual components can lead to a fatal injury.
Only permit qualified electricians to work on the electrical system.
Immediately disconnect the system from the power supply and repair it in
the event of damage to the insulation.
Keep live parts away from moisture. This can cause a short circuit.
Properly earth the unit.
First switch off the main switch, then disconnect the plug before working
on the unit.
Assembly instructions:
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: [email protected]
www.ka-520.de

Luftreiniger KA-520
Assembly instructions
5
3 Transport, storage and packaging
3.1 General transport instructions
Check on delivery for completeness and transport damage.
Proceed as follows in the event of visible damage:
Do not accept delivery or only accept with reservations.
Record any transport damage on the transportation documents or on the transport company's
delivery note.
Submit a complaint to the freight forwarder.
IMPORTANT NOTE!
Warranty claims can only be made within the applicable period for complaints.
(More information is available in the T&Cs on the Kampmann website)

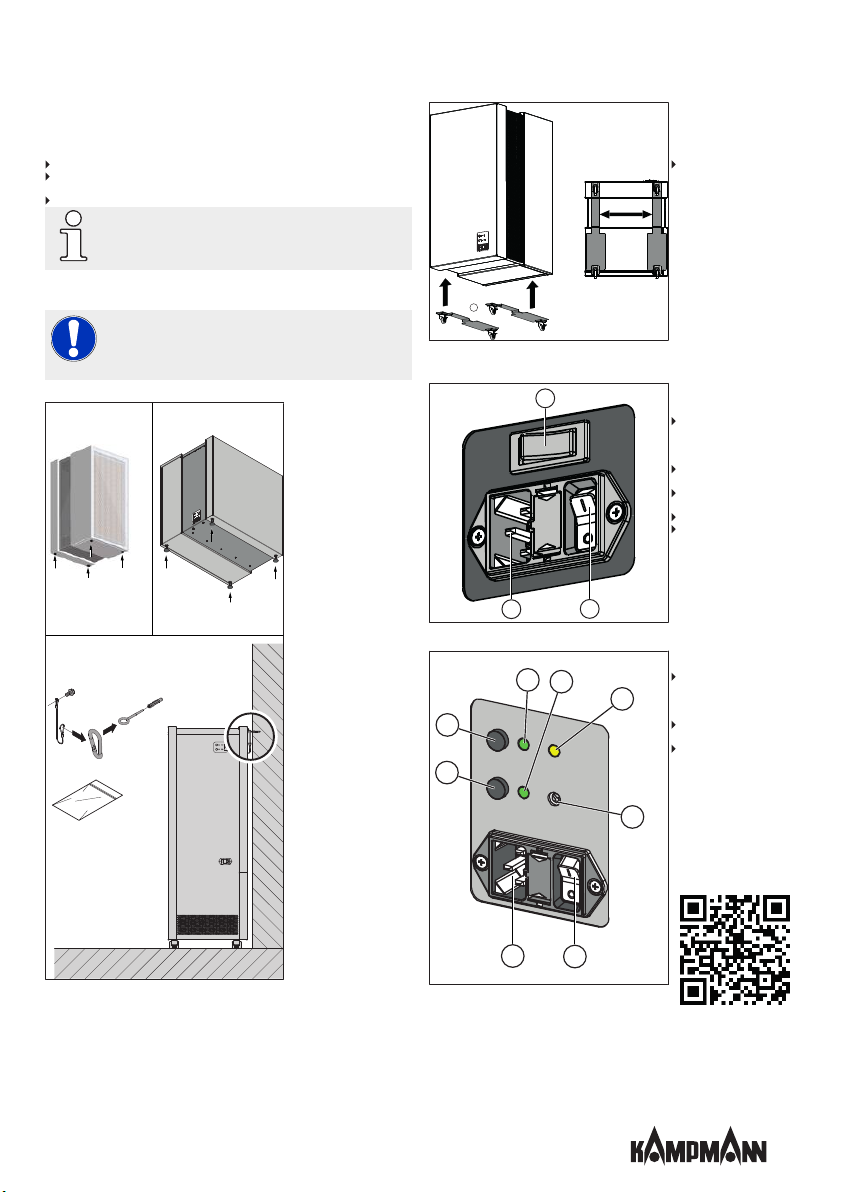

4 Installation and wiring
IMPORTANT NOTE!
Ensure that the unit is horizontal and maintain minimum clearances!
Only position the unit on a horizontal, stable base surface with a minimum clear-
ance of 15 cm to the rear and to the wall at the side! Leave 50 cm clear in front
of the air inlet and outlet to guarantee optimum operation of the unit.
Position of the unit
Position standing
KA-520 L / XL KA-520 XXL
Bond the felt glider
on site!
recommendation:
KA-520 L / XL: The air purifier
can be used standing upright or
lying horizontally. Attach the
felt gliders supplied to the un-
derside of the unit to prevent
damage to the floor!
KA-520 XL Pro / XXL: The ad-
justment feet or rolls supplied
must be screwed into the un-
derside of the unit!
Adhering floor castors to the underside of the unit
max.
1
Beispielbild Luftreiniger L
Attach floor castors pre-as-
sembled on metal plates 1
(accessory) to the underside of
the unit.
Remove the protective film
from the adhesive strips and
press the plates onto the un-
derside of the unit as shown
in the figure.
5 Commissioning
Electrical connection area of KA-520 L
1
2
3
Commissioning the KA-520 L
Insert the connection cable
supplied into the mains
socket 3, then into the
power socket.
Use the main switch 2 to
switch on the unit.
Select the required operating
level 1:
I: low power
II: high power, e.g. for tem-
porary flushing of the room
Electrical connection area of KA-520 L
6
8
7
5
3
4
2
1
Commissioning the KA-520
Insert the connection cable
supplied into the mains
socket 1, then into the
power socket.
Use the main switch 2 to
switch on the unit.
Select the required operating
stage I 4 (low power) or II
3 (high power, e.g. for
temporary flushing of the
room): Refer to the adhesive
label on the back for further
information on the status
lights 5 6 7 and timer
operation.
Operation video:

Luftreiniger KA-520
Assembly instructions
6

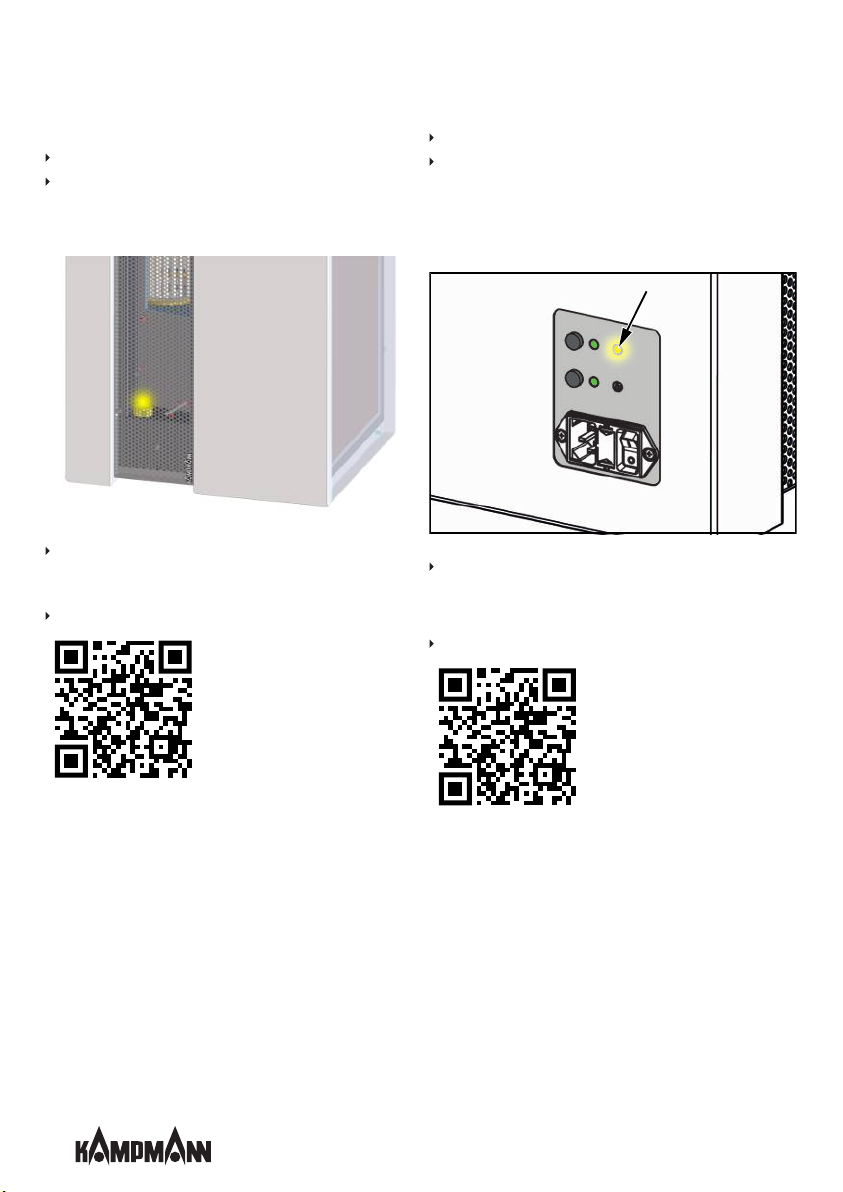

6 Maintenance
Filter maintenance KA-520 L
Take appropriate hygiene precautions to protect against harmful influences when changing the
filter:
Turn off the air purifier 5 hours before maintenance, so that the viruses contained in the filter
can die off!
Wear full protective clothing (long sleeves, long trousers, gloves, respiratory mask min. pro-
tective class FFP2, protective goggles)!
H14 particulate filter
Replace the H14 particulate filter at least every 6 months. Replace the filter immediately if the
indicator light below the suction grille lights up yellow before the specified time period!
Filter warning light
Place used filters in a plastic bag, then seal and dispose of the bag.
ISO Coarse pre-filter
Carefully vacuum the ISO Coarse pre-filter once a week or replace it if it becomes too dirty or
damaged.
Order replacement filters here:
Filter maintenance KA-520
Take appropriate hygiene precautions to protect against harmful influences when changing the
filter:
Turn off the air purifier 5 hours before maintenance, so that the viruses contained in the filter
can die off!
Wear full protective clothing (long sleeves, long trousers, gloves, respiratory mask min. pro-
tective class FFP2, protective goggles)!
H14 particulate filter
Replace the H14 particulate filter at least every 6 months. Re-order the filter (see QR code) if the
filter status light flashes (remaining operating time 50 hours). Replace the filter immediately if
the filter status light lights up permanently yellow before the specified time period! After repla-
cing the filter, reset the filter as stated on the adhesive sticker on the rear. The unit can only be
operated at operating stage II while the filter warning signal is on.
Filter warning light
Place used filters in a plastic bag, then seal and dispose of the bag.
ISO Coarse pre-filter
Carefully vacuum the ISO Coarse pre-filter once a week or replace it if it becomes too dirty or
damaged. Adjust the required cleaning intervals to the level of dirt if there are signs of dirt dur-
ing regular checks.
Order replacement filters here:
