PRESIDIUM PCS-50LFT Instruction Manual

Language Contents
1. English Language pg. 03
2. Chinese Language pg. 15
3. French Language pg. 27
4. German Language pg. 40
5. Italian Language pg. 53
6. Russian Language pg. 66
7. Spanish Language pg. 79
2

I. Disclaimers, Exclusions and Limitations
of Liability pg. 04
II. About this Book pg. 05
III. About your Presidium Carat Scale pg. 06
IV. IMPORTANT NOTICE pg. 08
1. GETTING STARTED with your Presidium
Carat Scale pg. 09
2. PERFORMING A TEST your Presidium
Carat Scale pg. 12
3. TROUBLESHOOTING your Presidium
Carat Scale pg. 13
4. TAKING CARE of your Presidium
Carat Scale pg. 14
Contents
(English Version)
3

I. Disclaimers, Exclusions and Limitations of Liability
PLEASE READ AND NOTE PRESIDIUM WARRANTY
TERMS AND CONDITIONS as stated in the warranty
card. Presidium warranty for its testers are subject to
proper use by its users in accordance with all the terms
and conditions as stated in the relevant user handbook
and shall cover only manufacturing defects.
Due to continuous product improvement, Presidium
reserves the right to revise all documents including
the right to make changes to the handbook without
notice and without obligation to notify any person of such
revisions or changes. Users are advised to check
Presidium’s website http://www.presidium.com.sg/ from
time to time.
Presidium shall not be responsible for any damage or
loss resulting from the use of this tester or handbook, and
under no circumstances shall Presidium, its manufacturer
or any of its subsidiaries, licensors, distributors, resellers,
servants and/or agents be liable for any direct or indirect
damages, resulting from the use of this tester.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, under no circumstances shall
Presidium, its manufacturer or any of its subsidiaries,
licensors, distributors, resellers, servants and/or
agents be responsible for any special, incidental,
consequential or indirect damages howsoever caused.
The tester or Presidium Carat Scale (PCS-50LFT)
referred to in this handbook is provided and/or sold on
an “as is” basis. Except as required by applicable law,
no warranties of any kind, either expressed or implied,
including, but not limited to, the implied warranties of
merchantability and tness for a particular purpose.
4

II. About this Book
Thank you for purchasing the Presidium Carat Scale
(PCS-50 / PCS-50LFT).
This handbook is designed to help you set up your scale
and describes all you need to know about how to use
your scale accurately and take care of it in line with its
requirements. Please read these instructions carefully
and keep them handy for future reference.
This book also contains the terms and conditions in
relation to the use of the tester including the Disclaimer,
EXCLUSION and Limitation of Liability clauses stated
above in Section I.
5

III. About your Presidium Carat Scale
The Presidium Carat Scale utilizes a strain gauge
load-cell to provide output in terms of millivolts, which is
then converted to weight by a micro-controller inside the
scale.
The Presidium Carat Scale features the following:
• Four conversion options (gram, carat, ounce, grain)
• Three trays for di󰀨erent uses
All Presidium scales are factory calibrated. Currently
the PCS-50LFT is Legal For Trade in the 34 US states,
shown below.
Alabama Arkansas Arizona California Colo-
rado
Connecti-
cut
Florida Georgia Illinois Indiana
Kansas Kentucky Louisiana Maine Mary-
land
Massa-
chusetts
Michigan Minnesota Missis-
sippi
Mon-
tana
Nevada New
Hamp-
shire
New
Jersey
New York Ohio
Oklahoma Oregon Pennsyl-
vania
Texas Utah
Virginia Washing-
ton
Wisconsin Wyoming
Product specications:
• Weighing capacity: 50.00ct/10.000g
• Division size: d=0.01ct/0.002g
• Accuracy: Class II
6

1 Display Window
2 Gram /Carat Conversion Button
3 Grain/ounce Conversion Button
4 Tray
5 Transparent Lid
6 Opening Recess
7 Battery Cover
8 Reference Load (10g)
9 Adaptor Inlet
10 Vessel
11 TARE Button
12 ON/OFF Button
Included in your package:
• Presidium Carat Scale (PCS-50 / PCS-50LFT)
• Tray
• User handbook
• Warranty card
• Protective carrying case
7

IV. IMPORTANT NOTICE
• Keep the tester dry. Precipitation and all types of
liquids or moisture can contain minerals that will
corrode electronic circuits. If your tester does get wet,
remove the battery, and allow the tester to dry
completely before replacing it.
• Do not use, store or expose the scale in dusty and dirty
areas. Its moving parts and electronic components can
be damaged.
• Do not use, store or expose the scale in hot areas.
High temperatures can damage or shorten the life of
the tester, damage batteries, and warp or melt certain
plastics.
• Do not use, store or expose the scale in cold areas.
When the tester returns to its normal temperature,
moisture can form inside the tester and damage
electronic circuit boards.
• Do not attempt to open the scale other than as
instructed in this handbook.
• Do not drop, knock, or shake the scale. Rough
handling might break internal circuit boards and ne
mechanics.
• Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the scale.
• Do not paint the tester. Paint can clog the moving parts
and prevent proper operation.
If the tester is not working properly, kindly contact
Presidium Customer Service at [email protected].
sg or:
Presidium Instruments Pte Ltd
Unit 7, 207 Henderson Road
Singapore 159550
Attn: Customer Service Executive
8

1. GETTING STARTED with your Presidium Carat
Scale
Powering up your Presidium Carat Scale
This scale can be powered by either the use of an AC
adaptor (optional item sold separately) or through the use
of batteries. If AC adaptor is used, connect one end of the
AC adaptor to the tester and the other end directly into a
suitable electrical outlet (Fig 1.1). Please ensure that only
the adaptor supplied by Presidium is used.
Fig. 1.1
Fig. 1.2
If batteries are used (4 x AAA batteries), take note of the
positive (+) and negative (-) directions of batteries when
inserting the batteries into the scale (Fig. 1.2). The use
of alkaline batteries is preferred, as it should generally
give approximately two and a half hours of continuous
operation, while the use of ordinary batteries will give a
shorter working life.
9

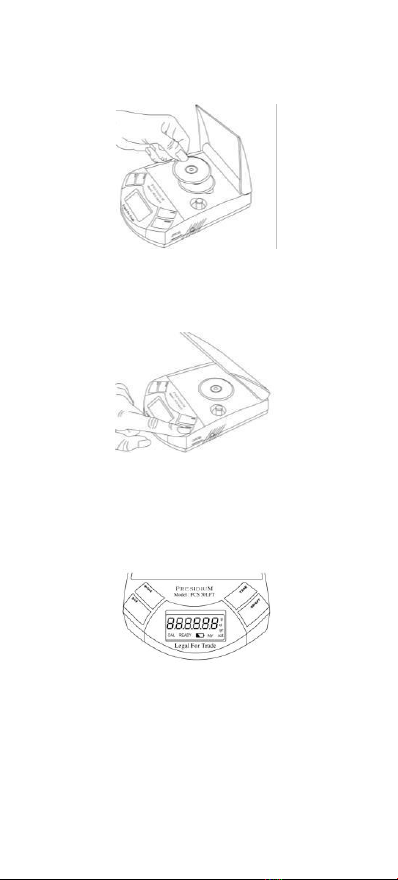

Fig. 1.3
Press the [ON/OFF] button (Fig.1.4) to turn on the scale
All segments on the Display should blink three times
(Fig. 1.5). for self-testing to ensure that the LCD is
functioning properly.
Fig. 1.4
Fig. 1.5
Turning on your Presidium Carat Scale
Place the scale on a at level surface. Lift the transparent
lid. Place the tray on the weighing arm, then close the lid
(Fig. 1.3).
10

Calibration
PCS-50LFT is calibrated according to the surface gravity
of the location which is indicated on its packaging as well
as on the LCD window. Due to di󰀨erences in surface gravity,
for permanent usage in other cities, please send the unit
back to the manufacturer for recalibration.
Recommended testing conditions
The recommended testing temperature is 18°C – 27°C
or 65°F – 80°F.
In case of change of working environment or
temperature change exceeding 5°C, allow the unit to set
for 30 minutes before using.
Battery information
Stop using the unit when the low battery indicator is
displayed to prevent inaccurate measurements.
Do not leave worn out batteries in the
battery compartment as the batteries may
corrode, leak or damage the scale. Batteries should be
removed when the instrument is expected
to be stored for an extended period of time.
To prevent inaccurate readings, replace with new
batteries as soon as the low battery
indicator lights up or starts to blink. A test should not be
performed when the battery power is low or weak.
Batteries do not have to be removed when the AC
adaptor is in use.
11

2. PERFORMING A TEST with your Presidium Carat
Scale
Place the gemstone to be measured on the weighing tray
(Fig.2.1). after the word “READY” appears. The result
will be displayed immediately on the LCD. For accurate
reading, take the reading only after the word “READY”
appears.
Fig. 2.1
For conversion between di󰀨erent measuring units, press
“g/ct” to toggle between ‘gram’ or ‘carat’ or press “gr/ozt”
to toggle between ‘grain’ or ‘ounce’.
Tips for using your Presidium Carat Scale
Keep the transparent lid closed when scale is in
operation.
The [EEEEE] sign appears when the weighing range
exceeds 50ct/10g weighing capacity.
It is advisable to take multiple readings if any doubt exists
regarding the test results indicated.
12

3. TROUBLESHOOTING your Presidium Carat Scale
[CAL] does not stop blinking:
• The calibration weight was removed from the tray
during calibration and calibration was terminated. The
calibration process must be repeated.
[Error] sign appears during calibration:
• The calibration weight was placed onto the tray before
the [CAL] started blinking.
[Err LO] sign appears during calibration:
• The calibration weight is below the standard weight
(10g).
13

4. TAKING CARE of your Presidium Carat Scale
• For accuracy of reading, avoid shocks (such as
dropping the instrument) or vibrations to the unit. Do
not shake or cause impact to the unit.
• Do not attempt to dismantle the unit.
• Do not leave worn out batteries in the battery compartment
as the batteries may corrode. Batteries should be
removed when the instrument is expected to be stored
for an extended period of time.
Your scale is a product of extensive design and craftsmanship
and should be treated with care.
Thank you for taking time to go through the user handbook
which will enable you to understand your recent purchase
better.
Presidium also recommends that you register your warranty
by sending the warranty registration card to us or registering
online at http://www.presidium.com.sg/
14

Presidium 克拉秤
(PCS-50/PCS-50LFT)
用户手册
15

I. 关于本手册 pg.17
II. 关于 Presidium 克拉秤 pg.18
III. 重要通知 pg.20
1. 开始使用 Presidium 克拉秤 pg.21
2. 使用 Presidium 克拉秤执行检测 pg.24
3. 为 Presidium 克拉秤排除故障 pg.25
4. 维护 Presidium 克拉秤 pg.26
目录
(Chinese Version)
16

I. 关于本手册
感谢您选购 Presidium 克拉秤 (PCS-50/PCS-50LFT)。
本手册旨在帮助您设置克拉秤，并且将介绍关于如何正确
地使用您的克拉秤及按照要求对其进行护理的所有知识。
请仔细阅读这些说明，将其放在方便之处以便将来参考。
17

II. 关于 Presidium 克拉秤
Presidium 克拉秤利用一种应变式称重传感器输出以毫伏
计算的测量结果，然后仪器内部的微控制器再将此结果换
算为重量。
Presidium 克拉秤 (PCS-50/PCS-50LFT) 的特点如下：
• 四种换算选项（克、克拉、盎司和格令
• 三种称重盘，适合不同用途
所有 Presidium 克拉秤在出厂前均已校准。 目前，
PCS-50LFT 在美国的 34 个州已获得“合法贸易品”认
证，这些州包括
阿拉巴
马州
阿肯色州 亚利桑
那州
加利福尼
亚州
科罗拉
多州
康涅狄
格州
佛罗里
达州
乔治亚州 伊利诺
伊州
印地安
那州
堪萨斯州 肯塔基州 路易斯安
那州
缅因州 马里兰
州
马萨诸
塞州
密歇根州 明尼苏
达州
密西西
比州
蒙大拿
州
内华达州 新罕布什
尔州
新泽西州 纽约州 俄亥俄
州
俄克拉荷
马州
俄勒冈州 宾夕法尼
亚州
德克萨
斯州
犹他州
弗吉尼
亚州
华盛顿州 威斯康
星州
怀俄明州
产品规格：:
• 最大称重量： 50.00 克拉/10.000 克
• 分刻度大小： d=0.01 克拉/0.002 克
• 精度： Class II
包装物品：:
• Presidium 克拉秤 (PCS-50/PCS-50LFT)
• 称重盘
• 用户手册
• 质保卡
• 保护性便携袋
18

1 显示窗
2 克/克拉换算按钮
3格令/盎司换算按钮
4 称重盘
5透明护盖
6 开盖凹槽
7 电池盖
8 参考负载（10 克）
9适配器插口
10 容器
11 归零按钮
12 打开/关闭 (ON/OFF) 按钮
19

III. 重要说明
• 保持检测仪干燥。 雨水以及任何形式的液体或湿气
均可能含有对电子线路具有腐蚀性的矿物质。 如
果检测仪被打湿，请取出电池，让检测仪彻底晾
干，如仍然故障则需更换设备。
• 切勿在多灰尘和脏乱的环境中使用、存放或曝露
克拉秤。 这有可能损坏其活动部件或电子元件。
• 切勿在高温环境中使用、存放或曝露克拉秤。 高
温有可能损坏或缩短检测仪的寿命、损伤电池以及
使某些塑料部件变形或熔化。
• 切勿在低温环境中使用、存放或曝露克拉秤。 当检
测仪回到正常温度时可能在仪器内部形成湿气，
从而对电子线路板造成损害。
• 切勿尝试通过未在本手册中说明的方法来打开克拉
秤。
• 切勿跌落、撞击或摇晃克拉秤。 粗暴地使用可能
导致内部电路板和精密器械断裂。
• 切勿使用刺激性化学物质、清洁溶剂或强力洗涤
剂来清洗克拉秤。
• 切勿给检测仪上漆。 油漆可能会阻塞活动部件，影
响其正常工作。
如果检测仪无法正常工作，请通过以下方式联系
Presidium 客户服务部门 - 电子邮件：
[email protected] 或者寄信至：
Presidium Instruments Pte Ltd
Unit 7, 207 Henderson Road
Singapore 159550
Attn: Customer Service Executive
20
