PRESIDIUM PCS-100 Instruction Manual

Language Contents
1. English Language pg. 03
2. Chinese Language pg. 16
3. French Language pg. 28
4. German Language pg. 42
5. Italian Language pg. 56
6. Russian Language pg. 70
7. Spanish Language pg. 84
2

I. Disclaimers, Exclusions and Limitations
of Liability pg 04
II. About this book pg 05
III. About your Presidium Carat Scale pg 06
IV. IMPORTANT NOTICE pg 08
1. GETTING STARTED with your Presidium
Carat Scale pg 09
2. PERFORMING A TEST with your
Presidium Carat Scale pg 12
3. TROUBLESHOOTING your Presidium
Carat Scale pg 14
4. TAKING CARE of your Presidium
Carat Scale pg 15
Contents
(English Version)
3

I. Disclaimers, Exclusions and Limitations of Liability
PLEASE READ AND NOTE PRESIDIUM WARRANTY
TERMS AND CONDITIONS as stated in the warranty
card. Presidium warranty for its testers are subject to
proper use by its users in accordance with all the terms
and conditions as stated in the relevant user handbook
and shall cover only manufacturing defects.
Due to continuous product improvement, Presidium
reserves the right to revise all documents including the
right to make changes to the handbook without notice and
without obligation to notify any person of such revisions
or changes. Users are advised to check Presidium’s
website http://www.presidium.com.sg/ from time to time.
Presidium shall not be responsible for any damage or
loss resulting from the use of this tester or handbook, and
under no circumstances shall Presidium, its manufacturer
or any of its subsidiaries, licensors, distributors, resellers,
servants and/or agents be liable for any direct or indirect
damages, resulting from the use of this tester.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, under no circumstances shall
Presidium, its manufacturer or any of its subsidiaries,
licensors, distributors, resellers, servants and/or
agents be responsible for any special, incidental,
consequential or indirect damages howsoever caused.
The tester or Presidium Carat Scale (PCS-100)
referred to in this handbook is provided and/or sold on
an “as is” basis. Except as required by applicable law, no
warranties of any kind, either expressed or implied,
including, but not limited to, the implied warranties of
merchantability and tness for a particular purpose.
4

II. About this book
Thank you for purchasing the Presidium Carat Scale
(PCS-100).
This handbook is designed to help you set up your scale
and describes all you need to know about how to use
your scale accurately and take care of it in line with its
requirements. Please read these instructions
carefully and keep them handy for future reference.
This book also contains the terms and conditions in
relation to the use of the tester including the Disclaimer,
EXCLUSION and Limitation of Liability clauses stated
above in Section I.
5

III. About your Presidium Carat Scale
The Presidium Carat Scale utilizes a strain gauge
load-celltoprovideoutputintermsofmillivolts,whichisthen
converted to weight by a micro-controller inside the scale.
The Presidium Carat Scale features the following:
• Four conversion options (gram, carat, ounce, grain)
• Three trays for di󰀨erent uses
Product specications:
• Weighing capacity: 100.00ct/20.000g
• Division size: d=0.01ct/0.002g
Included in your package:
• Presidium Carat Scale (PCS-100)
• Tray
• User handbook
• Warranty card
• Protective carrying case
6

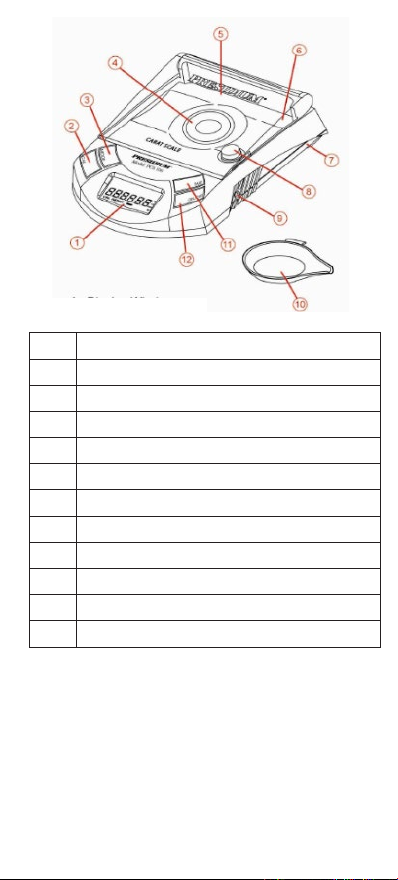

1 Display Window
2 Calibration Button
3 Mode Button
4 Tray
5 Transparent Lid
6 Opening Recess
7 Battery Cover
8 Reference Load (20g)
9 Adaptor Inlet
10 Vessel
11 TARE Button
12 ON/OFF Button
7

IV. IMPORTANT NOTICE
• Keep the tester dry. Precipitation and all types of
liquids or moisture can contain minerals that will
corrode electronic circuits. If your tester does get wet,
remove the battery, and allow the tester to dry
completely before replacing it.
• Do not use, store or expose the scale in dusty and
dirty areas. Its moving parts and electronic
components can be damaged.
• Do not use, store or expose the scale in hot areas.
High temperatures can damage or shorten the life of
the tester, damage batteries, and warp or melt certain
plastics.
• Do not use, store or expose the scale in cold areas.
When the tester returns to its normal temperature,
moisture can form inside the tester and damage
electronic circuit boards.
• Do not attempt to open the scale other than as
instructed in this handbook.
• Do not drop, knock, or shake the scale. Rough
handling might break internal circuit boards and ne
mechanics.
• Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the scale.
• Do not paint the tester. Paint can clog the moving parts
and prevent proper operation.
If the tester is not working properly, kindly contact
Presidium Customer Service at [email protected].
sg or:
Presidium Instruments Pte Ltd
Unit 7, 207 Henderson Road
Singapore 159550
Attn: Customer Service Executive
8

1. GETTING STARTED with your Presidium Carat
Scale
Powering up your Presidium Carat Scale
This scale can be powered by either the use of an AC
adaptor (optional item sold separately) or through the use
of batteries. If AC adaptor is used, connect one end of the
AC adaptor to the tester and the other end directly into
a suitable electrical outlet. Please ensure that only the
adaptor supplied by Presidium is used (Fig. 1.1).
If batteries are used (4 x AAA batteries), take note of the
positive (+) and negative (-) directions of batteries when
inserting the batteries into the scale (Fig. 1.2). The use
of alkaline batteries is preferred, as it should generally
give approximately two and a half hours of continuous
operation, while the use of ordinary batteries will give a
shorter working life.
Fig. 1.1
Fig. 1.2
9

Turning on your Presidium Carat Scale
Place the scale on at level surface. Lift the transparent
lid. Place the tray on the weighing arm, then close the lid
(Fig. 1.3).
Press the [ON/OFF] button (Fig. 1.4) to turn on the scale.
Fig. 1.3
Fig. 1.4
Fig. 1.5
All segments on the Display should blink three times (Fig. 1.5)
for self-testing to ensure that the LCD is functioning properly.
BLINKS
10

Calibration

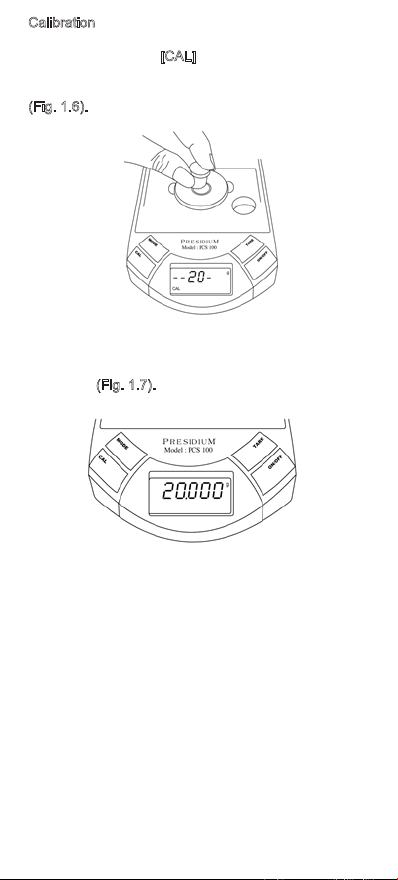

When power on unit, [CAL] will appear and start
blinking. When the display prompts, make sure the
Calibration Weight (20g) is placed on the weighing tray
(Fig. 1.6). Close the transparent lid.
“CAL” will become stable and after a few seconds,
“20.000g” will appear, this signies the completion of
calibration (Fig. 1.7).
The unit is now ready for use after calibration
If required to calibrate again, press “CAL” to initiate
calibration process (Fig. 1.6 – Fig. 1.7) of unit.
Fig. 1.7
Fig. 1.6
11

2. PERFORMING A TEST with your Presidium Carat
Scale

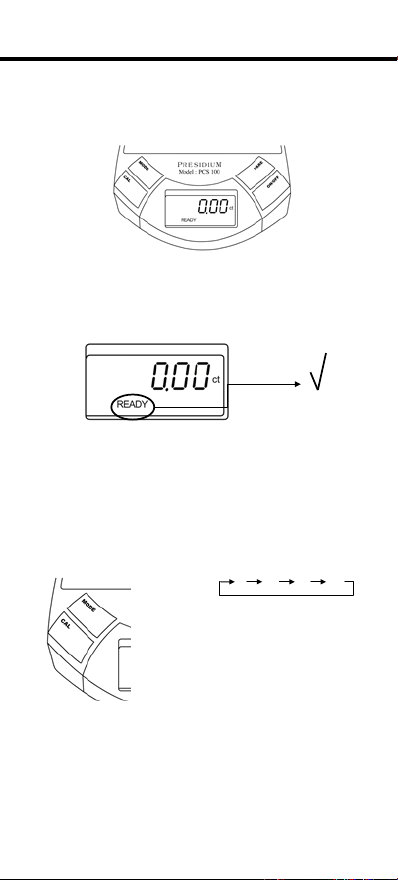

Place the gemstone to be measured on the weighing tray
(Fig. 2.1) after the word “READY” appears. The result will
be displayed immediately on the LCD.
For accurate reading, take the reading only after the word
“READY” appears (Fig. 2.2).
Fig. 2.1
Fig. 2.2
Fig. 2.3
For conversion between di󰀨erent measuring unit, press
“MODE”. It will change the measuring units (g, ct, gr, ozt)
(Fig. 2.3).
Mode Sequence: g ct gr ozt
12

In case a “Vessel” is required, place it on the weighing
arm, press “TARE” to o󰀨set the weight of the vessel.
Tips for using your Presidium Carat Scale
Keep the transparent lid closed when the scale is in
operation.
It is advisable to take multiple readings if any doubt exists
regarding the test results indicated.
13

3. TROUBLESHOOTING your Presidium Carat Scale
[CAL] does not stop blinking:
• The calibration weight was removed from the tray
during calibration and calibration was terminated. The
calibration process must be repeated.
[Error] sign appears during calibration:
• The calibration weight was placed onto the tray
before the [CAL] started blinking.
[Err LO] sign appears during calibration:
• The calibration weight is below the standard weight
(20g).
[Err HI] sign appears during calibration stage:
• The calibration weight has exceeded that standard
weight (20g).
[EEEEE] sign appears:
• The weighing range exceeds 100ct/20g weighing
capacity.
14

4. TAKING CARE of your Presidium Carat Scale
• For accuracy of reading, avoid shocks (such as
dropping the instrument) or vibrations to the unit. Do
not shake or cause impact to the unit.
• Do not attempt to dismantle the unit.
• Do not leave worn out batteries in the battery
compartment as the batteries may corrode, leak or
damage the scale. Batteries should be removed
when the instrument is expected to be stored for an
extended period of time.
Your scale is a product of extensive design and
craftsmanship and should be treated with care.
Thank you for taking time to go through the user
handbook which will enable you to understand your
recent purchase better.
Presidium also recommends that you register your
warranty by sending the warranty registration card to us
or registering online at http://www.presidium.com.sg/
15
