PRESIDIUM Diamond Mate PDMT Series Instruction Manual

1

2
Language Contents
1. English Language pg. 03
2. Chinese Language pg. 17
3. French Language pg. 31
4. German Language pg. 46
5. Italian Language pg. 61
6. Russian Language pg. 77
7. Spanish Language pg. 93

3
I. Disclaimers, Exclusions and Limitations
of Liability pg 03
II. About this book pg 04
III. About your Presidium Diamond Mate pg 05
IV. IMPORTANT NOTICE pg 07
1. GETTING STARTED with your
Presidium Diamond Mate pg 08
2. PERFORMING A TEST with your
Presidium Diamond Mate pg 12
3. READING TEST RESULTS on your
Presidium Diamond Mate pg 14
4. TAKING CARE of your Presidium
Diamond Mate pg 15
Contents
(English Version)

4
I. Disclaimers, Exclusions and Limitations of Liability
PLEASE READ AND NOTE PRESIDIUM WARRANTY
TERMS AND CONDITIONS as stated in the warranty
card. Presidium warranty for its testers are subject
to proper use by its users in accordance with all the
terms and conditions as stated in the relevant user
handbook and shall only cover manufacturing defects.
Due to continuous product improvement, Presidium
reserves the right to revise all documents including
the right to make changes to the handbook without
notice and without obligation to notify any person of such
revisionsorchanges.UsersareadvisedtocheckPresidium’s
website at http://www.presidium.com.sg/ from time to time.
Presidium shall not be responsible for any
damage or loss resulting from the use of this tester or
handbook,andundernocircumstancesshallPresidium,its
manufacturer or any of its subsidiaries, licensors,
distributors, resellers, servants and/
or agents be liable for any direct or indirect
damages, resulting from the use of this tester.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, under no circumstances shall
Presidium, its manufacturer or any of its s
ubsidiaries, licensors, distributors, reseller, servant
and/or agent be responsible for any special, incidental,
consequential or indirect damages howsoever caused.
The tester or Presidium Diamondmate (PDMT)
referred to in this handbook is provided and/or sold on
an “as is” basis. Except as required by applicable law, no
warranties of any kind, either expressed or implied,
including, but not limited to, the implied warranties of
merchantability and tness for a particular purpose.

5
II. About this book
Thank you for purchasing the Presidium Diamond Mate
(“PDMT” or “tester”).
This handbook is designed to help you set up your tester
and describes all you need to know about how to use
your tester accurately and take care of it in line with its
requirements. Please read these instructions
carefully and keep them handy for future reference.
This handbook is written for both PDMT-A and PDMT-C.
This book also contains the terms and conditions in
relation to the use of the tester including the Disclaimer,
EXCLUSION and Limitation of Liability clauses stated
above in Section I.

6
III. About your Presidium Diamond Mate
The Presidium Diamond Mate is a pocket-sized
instrument that instantly veries the authenticity of
diamonds based on their thermal properties.
It is based on an invention of Professor Julian
Goldsmid from the University of New South Wales in
Australia. Diamonds, with their exceptional heat
conductivity properties, are unlike any other simulants,
natural or synthetic, and are therefore not easily replicable.
As with all thermal testers in the market, the Presidium
Diamond Mate is not able to di󰀨erentiate between natural
diamonds and moissanite.
The Presidium Diamond Mate has been subjected
to thorough and extensive laboratory tests, and will
generally give a clear and reliable reading of the
gemstone being tested under proper use. However,
you are advised to conduct further supporting tests.
The Presidium Diamond Mate features the following:
• Retractable thermoelectric probe tip that ensures
constant pressure between probe tip and
gemstone
• Industry’s thinnest probe tip (0.6mm) for testing
gemstones as small as 0.02ct
• Metal alert buzzer to ensure that probe tip is in
contact with gemstone during testing
• No waiting time between tests
• Clear and easy-to-read LED display
• Low battery indicator
• Low battery consumption
Included in your package:
• Presidium Diamond Mate Tester
• User handbook
• Warranty card
• Protective carrying case
• 3 x AAA rechargeable batteries*
• AC adaptor/Charger (120/230 volts)*
* For PDMT-C only

7
1Retractable Probe Tip
2 Power Indicator LED
3 Display Panel
4 Adaptor Inlet
5 Battery Compartment
6 Serrated Metal Part
7 ON/OFF Switch
8 Probe Protective Cap

8
IV. IMPORTANT NOTICE
• Keep the tester dry. Precipitation and all types of
liquids or moisture can contain minerals that will
corrode electronic circuits. If your tester gets wet,
remove the battery, and allow the tester to dry
completely before replacing it.
• Do not use, store or expose the tester in dusty and
dirty areas. Its moving parts and electronic
components can be damaged.
• Do not use, store or expose the tester in hot areas.
High temperatures can damage or shorten the life
of the tester, damage batteries, and warp or melt
certain plastics.
• Do not use, store or expose the tester in cold areas.
When the tester returns to its normal temperature,
moisture can form inside the tester and damage its
electronic circuit boards.
• Do not attempt to open the tester other than as
instructed in this handbook.
• Do not drop, knock, or shake the tester. Rough
handling may break internal circuit boards and ne
mechanics.
• Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the tester.
• Do not paint the tester. Paint can clog the moving
parts and prevent proper operation.
If the tester is not working properly, kindly contact our
Customer Service at [email protected]. or:
Presidium Instruments Pte Ltd
Unit 7, 207 Henderson Road
Singapore 159550
Attn: Customer Service Executive

9
1. GETTING STARTED with your Presidium Diamond
Mate

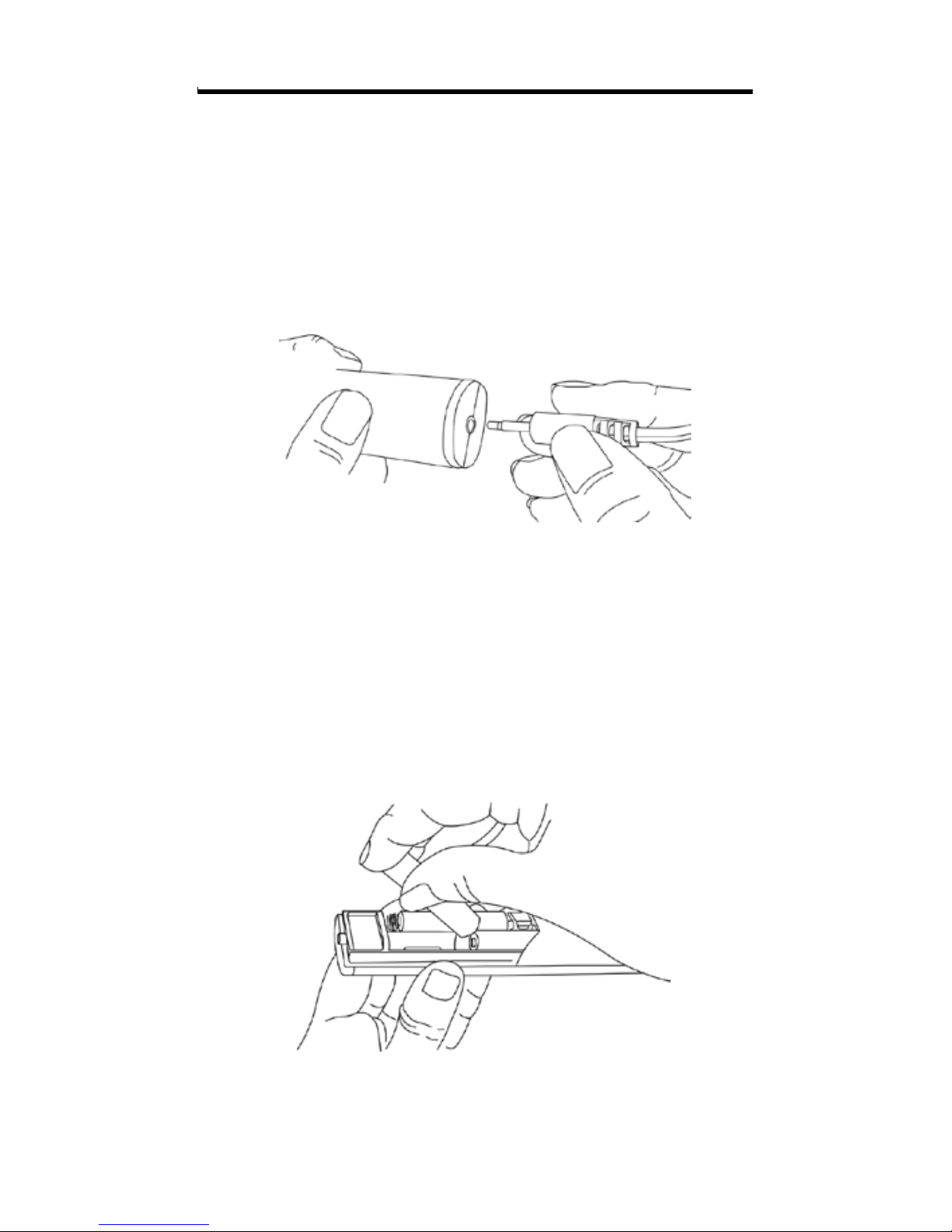

Powering up your Presidium Diamond Mate-A
This tester can be powered by either the use of an AC
adaptor (optional item sold separately) or through the use
of batteries. If AC adaptor is used, connect one end of
the AC adaptor to the tester (Fig. 1.1) and the other end
directly into an electrical outlet. Please ensure that only
the adaptor supplied by Presidium is used.
If batteries are used (3 x AAA batteries), take note of the
positive (+) and negative (-) directions of batteries when
inserting the batteries into the tester (Fig. 1.2). The use
of alkaline batteries is preferred, as it should generally
give approximately two and a half hours of continuous
operation, while the use of ordinary batteries will give a
shorter working life.
Fig. 1.1
Fig. 1.2

10
Powering up your Presidium Diamond Mate-C
Batteries will need to be charged for at least 6 hours
prior to the rst use. Simply insert the AC adaptor /
Charger (supplied with this model) into a
suitable electrical outlet. Your Diamond Mate can be
used while the batteries are being charged. A fully
charged battery should work continuously for 2 hours.
Batteries do not have to be removed when the AC
adaptor is in use.
Turning on your Presidium Diamond Mate
Remove the protective cover from the probe tip
(Fig 1.3).
Fig. 1.3
Fig. 1.4
Fig. 1.5
Press the [ON/OFF] button (Fig. 1.4) and wait for about
20 seconds to warm up the instrument.
While in this preparation mode, a Green light will blink
continuously. The light will stop blinking when it is
“READY” to be used (Fig. 1.5).

11
The tester will shut down automatically after 10 minutes
of inactivity.
Calibration
All testers have been calibrated during the manufacturing
process and no further adjustment or user intervention to
the tester is required.
Self-calibration should not be attempted. To minimize
any risks associated, users should contact Presidium
at [email protected] or its service center for
assistance. In the event that users require the
manufacturer to re-calibrate the unit, the users will bear
the associated to/fro freight cost for the shipping of unit to
the service center.

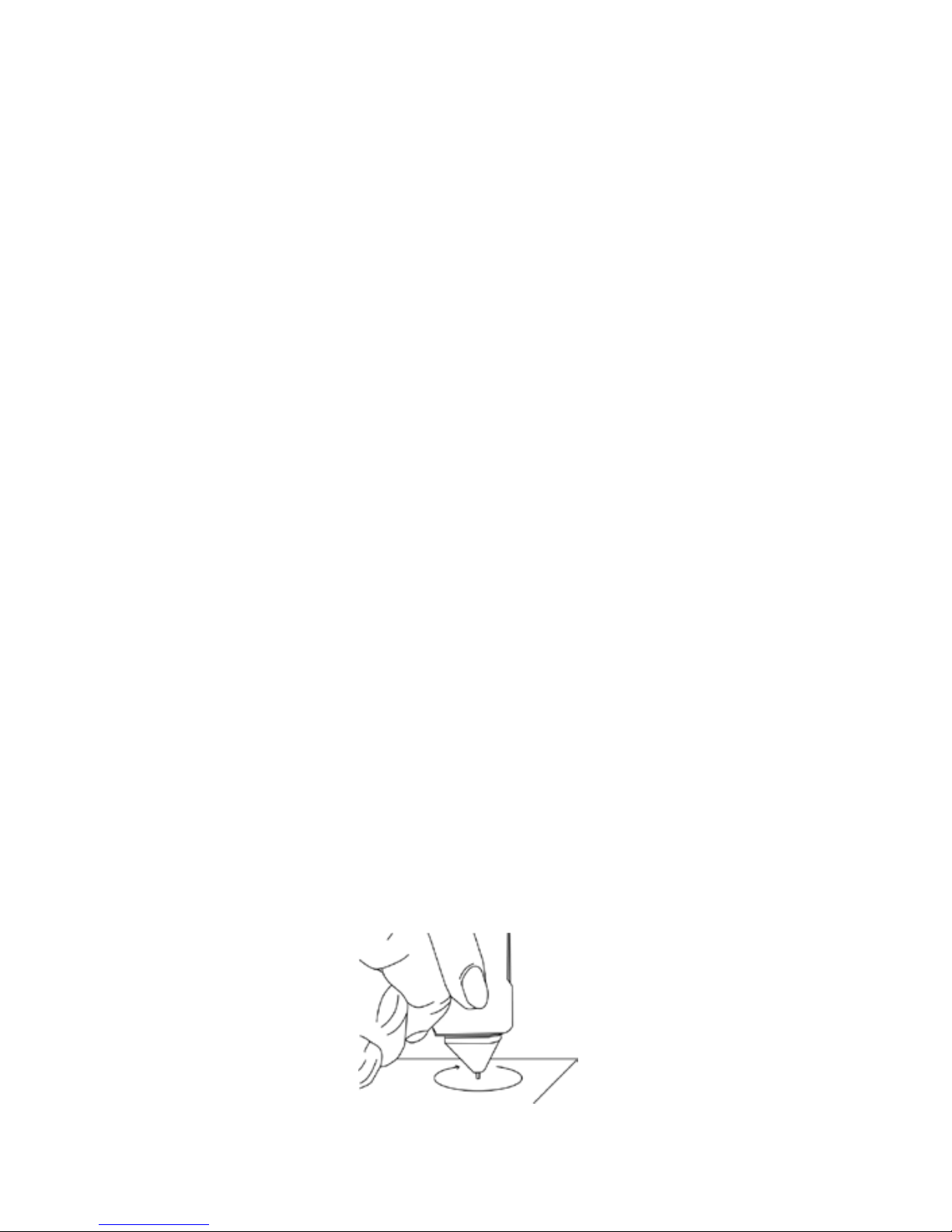

Recommended testing conditions
The gemstone should be clean and dry before testing.
However, elaborate cleaning procedures are not normally
necessary (Fig 1.6).
The recommended testing temperature is 18°C-27°C or
65°F-80°F. Please allow the gemstone or jewelry piece
to adjust to room temperature prior to testing. Exposure
and/or operation of the tester outside room temperature
will a󰀨ect the results and performance of the tester.
Battery information
Do not leave worn-out batteries in the battery
compartment as the batteries may corrode, leak, and
damage the tester. Batteries should be
removed when the tester is expected to be stored for an
extended period of time.
Fig. 1.6

12
To prevent inaccurate readings, replace with new
batteries as soon as the low battery
indicator lights up or starts to blink. A test should not be
performed when the battery power is low or weak.
Batteries do not have to be removed when the AC
adaptor is in use.

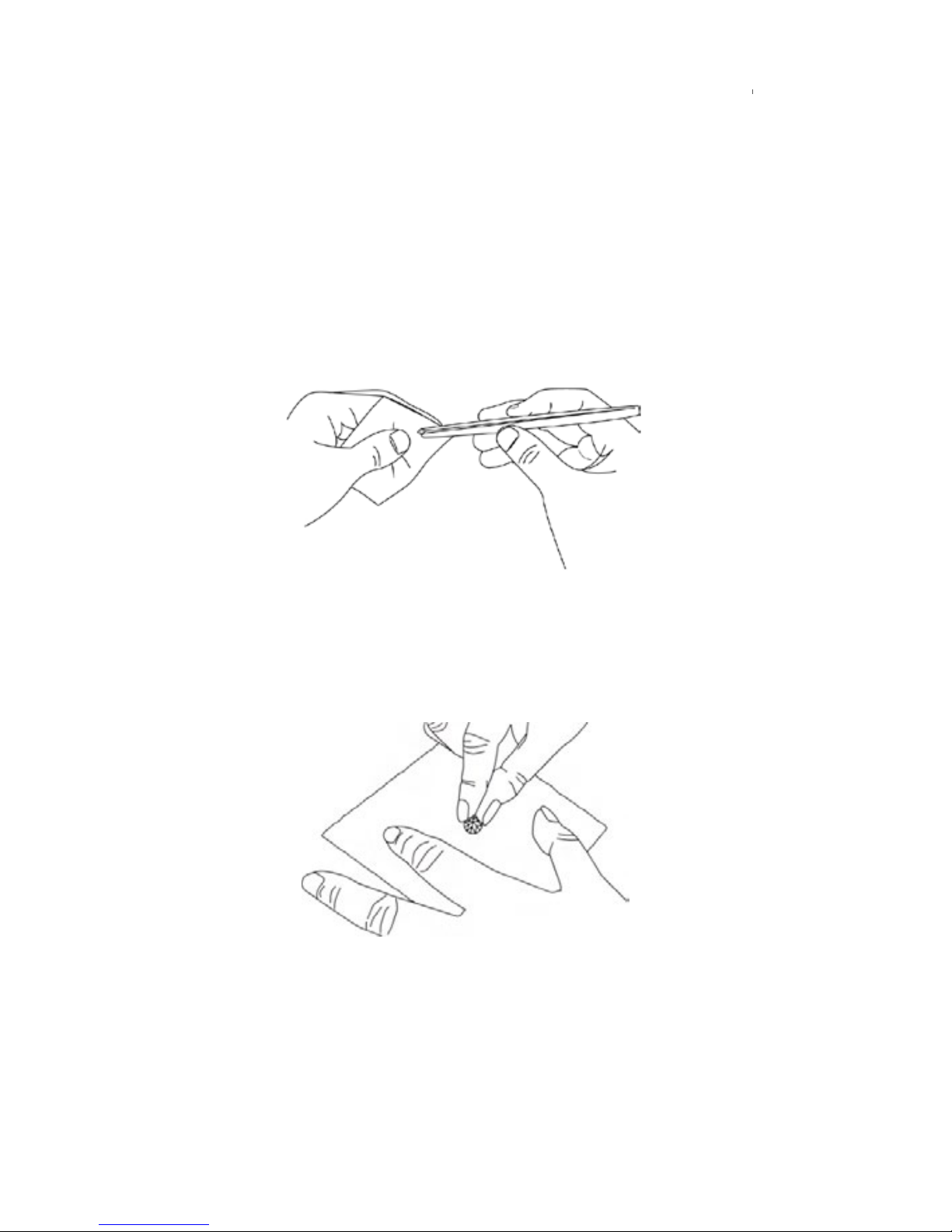

Cleaning your gemstone prior to testing
Prepare a clean tissue. Carefully retrieve the gemstone
with tweezers and place the gemstone face down on the
table (Fig. 1.7).
Gently rub the table of gemstone against the
tissue/jewellery cloth and place the gemstone on the
centre of the Test Pad (Fig. 1.8).
Fig. 1.7
Fig. 1.8

13
2. PERFORMING A TEST with your Presidium
Diamond Mate
Place the tip of the probe pen against the gemstone.
Apply minimal pressure to fully depress the tip into the
probe pen for correct reading. This is to provide steady
and constant contact between the probe tip and the
gemstone.
For mounted jewelry or gemstones:
Hold the jewelry or gemstone with one hand and the
tester with the other hand (Fig. 2.1). For proper
operation of the tester, the thumb and index nger must
always be placed on the metal-plated serrated part
located on both sides of the tester at all times. Care
should be taken when testing mounted jewelry. User
must ensure that the stones are securely mounted before
conducting a test as gap between stone and setting might
lead to inaccurate reading.
For testing loose gemstones:
Place the gemstone on the metal stone rest and hold the
metal stone rest with one hand while holding the tester
with the other hand (Fig. 2.2).
Fig. 2.1
Fig. 2.2
Note : Metal stone rest is not provided by Presidium.
Tips for using your Presidium Diamond Mate
The probe tip must be placed at a right angle or
perpendicular to the facet of the gemstone for an
accurate reading.

14
Test should be conducted on the table of the gemstone.
In the event of any doubt, kindly test on the girdle of the
gemstones instead.
For proper operation of the tester, ngers must be placed
on the metal-plated serrated located on both sides of the
tester at all times.
To achieve optimum accuracy for tests involving very
small mounted gemstones (1.2 mm exposed diameter
and below), it is extremely important that no contact is
made on any mounted/ metal part of the jewelry piece.
To achieve optimum accuracy for tests involving very
small gemstones (10 points and below), it is important
to allow the gemstone to cool down before subsequent
tests.
It is advisable to take multiple readings regarding the test
results indicated.
Cleaning the probe tip
Please note that if the tester is being used for the rst
time, or if the tester has not been used for a week, it is
advisable to clean the probe tip using a piece of paper to
attain a consistent and accurate reading:
• Ensure the unit is switched o󰀨.
• Hold the probe pen with the pen tip forming a
right-angle (90-degree) with any paper or stone rest
(as provided). Gently move in a circular motion
without retracting the tip (Fig. 2.3).
• Repeat the same motion several times. The cleaning
process is completed and the tester is now ready
for use.
Fig. 2.3

15
3. READING TEST RESULTS on your Presidium
Diamond Mate
The test results are indicated as follows:
1. Red LED lights up:
• Simulant is detected
2. Green LED lights up:
• Diamond is detected with a continuous audible
beep.
3. Metal is detected with an intermittent beep at
“Metal” segment

16
4. TAKING CARE of your Presidium Diamond Mate
• The probe and wire tip is extremely sensitive and
should be handled with care, especially during the
removal of the protective cap from the pen tip.
Always replace the protective cap of the pen tip
when the probe is not in use. Caution should be
taken so as not to damage the probe and wire tip.
• Do not leave worn out batteries in the battery
compartment as the batteries may corrode, leak,
and damage the tester. Batteries should be removed
when the tester is expected to be stored for an
extended period of time.
Your tester is a product of extensive design and
craftsmanship and should be treated with care.
Thank you for taking the time to go through
the user handbook which will enable you
to understand your recent purchase better.
Presidium also recommends that you register your
warranty by sending the warranty registration card to
us or registering online at http://www.presidium.com.sg/

17

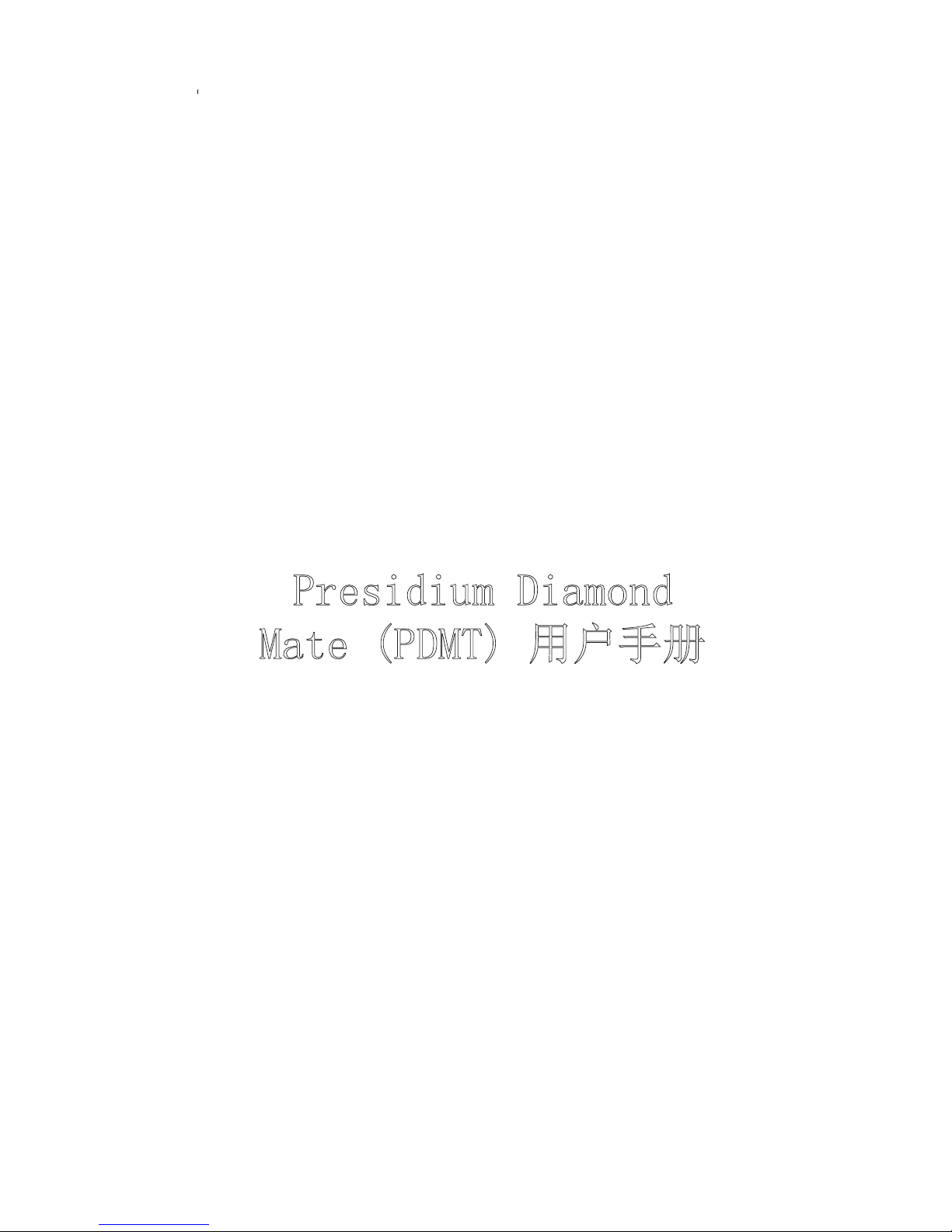

Presidium Diamond
Mate (PDMT) 用户手册

18
I. 关于本手册 pg 19
II. 关于Presidium Diamond Mate pg 20
III. 重要说明 pg 22
1. 开始使用 Presidium Diamond Mate pg 23
2. 在 Presidium Diamond Mate
上执行检测 pg 27
3. 在 Presidium Diamond Mate
上读取检测结果 pg 29
4. 维护 Presidium Diamond Mate pg 30
目录
(Chinese Version)

19
I. 关于本手册
感谢您购买 Presidium Diamond Mate（简称“PDMT”
或“检测仪”）。
本手册旨在帮助您设置检测仪，并且将介绍关于如何正确
地使用检测仪及按照要求对其进行护理的所有知识。 请
仔细阅读这些说明，将其放在方便之处以便将来参考。
本手册可同时用于 PDMT-A 与 PDMT-C。

20
II. 关于 Presidium Diamond Mate
Presidium Diamond Mate 是一种袖珍仪器，可根据导特
性即刻鉴别钻石的真伪。 它是以澳大利亚新南威尔士大
学 Julian Goldsmid 教授的发明为基础的。 钻石具有
优异的导热性，与其他任何天然或人造仿品都不同，因此
并不容易复制。
和市面上所有热敏检测仪一样，Presidium Diamond Mate
不能分辨天然钻石和莫桑石。
Presidium Diamond Mate 经过周密广泛的实验室测试，
在正确使用的条件下可为受测宝石给出明确而可靠的读
数。 但是建议您执行可资旁证的其他检测。
Presidium Diamond Mate 的特点如下：
• 可伸缩的热电探针头，确保探针头和宝石之间的
压力保持恒定
• 业内最细的探针头 (0.6mm)，可用于检测小至
0.02ct 的宝石
• 金属报警蜂鸣器，确保在检测时探针头与宝石
保持接触
• 可连续检测，无须等待
• 清晰易读的 LED 显示屏
• 低电量指示灯
• 电池消耗量很低
包装物品：
• Presidium Diamond Mate 检测仪
• 用户手册
• 质保卡
• 保护性便携袋
• 3 节 AAA 充电电池*
• AC 适配器/充电器（120/230 伏）*
* 仅限于 PDMT-C
