Pressalit Care SELECT R4950 User manual

SELECT wash basin lifter – Operation and maintenance manual en
SELECT vaskeløfter – Brugs- og vedligeholdelsesvejledning dk
SELECT Waschtisch-Lifter – Gebrauchs- und Pegeanleitung de
SELECT support de lavabo – Manuel d’utilisation et d’entretien fr
SELECT muurframe voor wastafel – Gebruiks- en onderhoudshandleiding nl
SELECT upphängning till tvättställ – Bruks- och underhållsanvisning sv
SELECT oppheng til servant – Bruks- og vedlikeholdsveiledning no
SELECT soporte de lavabo - Instrucciones de uso y mantenimiento es
SELECT 󳣽 - 操作和维护手册 中文
R4950 - R4951
R4952 - R4953

en The guarantee covers faults or defects in material or manufacture within a period of 5 years.
Products are subject to minor technical modifications and design deviations. E. & O.E.
dk Garantien dækker i 5 år fra fakturadato for materiale- og fabrikationsfejl. Der
tages forbehold for trykfejl, tekniske ændringer og modelafvigelser.
de Die Garantie gilt für 5 Jahre ab Rechnungsdatum für Material- und Herstellungsfeh-
ler. Druckfehler, technische Änderungen und Modellabweichungen vorbehalten.
fr La garantie couvre les vices de fabrication et de matériaux pour une durée de 5 ans à partir de
la date de facturation. Sous réserve de modifications techniques et d’erreurs d’impression.
nl De garantie is tot 5 jaar na factuurdatum geldig voor materiaal- en fabricagefouten.
Onder voorbehoud van drukfouten, technische wijzigingen en modelafwijkingen.
sv Garantin gäller i 5 år från fakturadatum för material- och fabrikationsfel. Med
reservation för tryckfel, tekniska ändringar och modellavvikelser.
no Garantien gjelder i 5 år fra fakturadato for material- og fabrikasjonsfeil. Med
forbehold for trykkfeil, tekniske endringer og modellforskjeller.
es La garantía cubre fallos de material o fabricación durante los 5 años posteriores
a partir de la fecha de factura. Mantenemos reservas en caso de problemas de
presión, modificaciones técnicas y variaciones de modelo.
中文 保修涵盖 5 年内出现的材料或制造故障或缺陷。产品的技术和设计可能稍微发生变
化，恕不另行通知。
English ................................................................. 3
Dansk ................................................................. 18
Deutsch ............................................................... 33
Français ............................................................... 48
Nederlands ............................................................ 63
Svenska................................................................ 78
Norsk.................................................................. 93
Español............................................................... 107
中文 ............................................................122

3
en
Content
Symbols used in this manual............................................4
General safety .........................................................5
Product label..........................................................6
Intended use ..........................................................8
Intended operator profile ............................................8
Operating environment..............................................8
Assembly and installation ..............................................9
Versions .............................................................10
Optional installation covers .........................................10
Optional wash basins...............................................11
Operating instructions ................................................12
Safety stop function...................................................13
To remove limescale................................................14
Maintenance.........................................................14
Service inspection .................................................15
Technical data........................................................16
Trouble-shooting .....................................................17
Disposal and recycling ................................................18
Original instructions
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.pressalitcare.com.

4
en

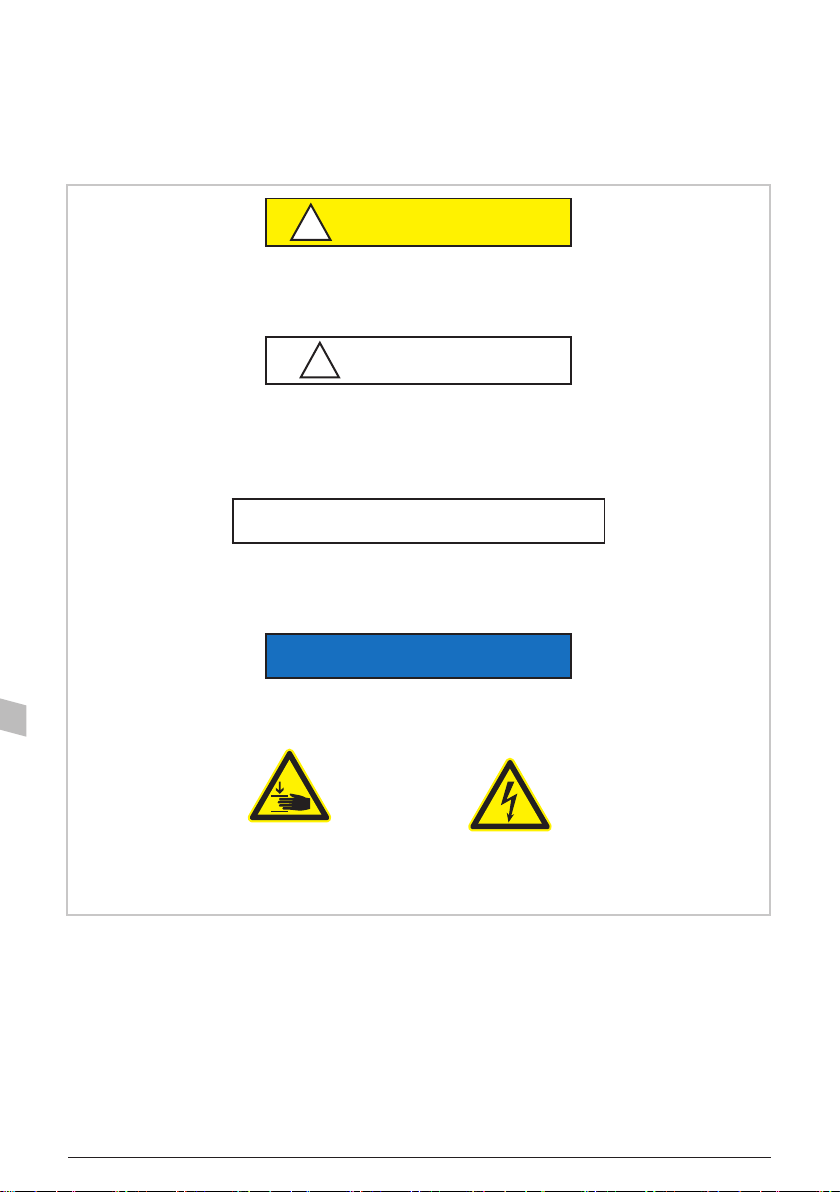

Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury
warning
Electricity or potentially
dangerous voltage.

5
en
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
General safety
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.

6
en
    
⑮








    
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com

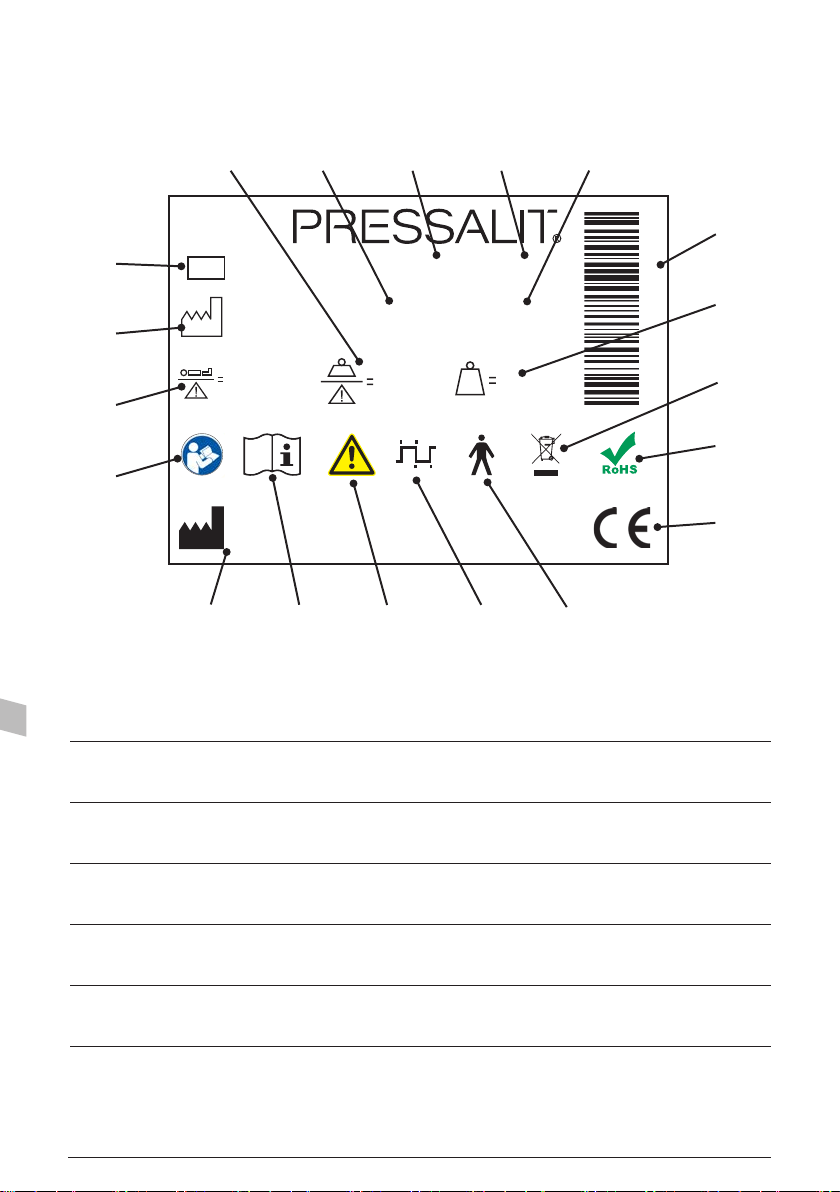

REF
YYYY-MM-DD XXX V
XX-XX Hz
IPXX
XX WRZZZZYYYXXX-X
xxx kg
xxx lbs
xxx kg
xxx lbs
xxx kg
xxx lbs
(01)0XXXXXXXXXXXXX(10)YYMMDD
Article number
Production date
Maximum user weight
Consult manual for use
Safe working load
Mains voltage
Frequency
Product label

7
en
Maximum power consumption
IP class
Name and address of manufacturer
Consult manual for use
Consult the manual for important cautionary information such as
warnings and precautions.
Duty cycle. The motor on height-adjustable products can be used
for a maximum of 2 minutes of continuous operation, followed by
18 minutes pause.
Type B applied part Part of the product in normal use necessarily
comes into physical contact with the patient to perform its function
The product complies with requirements of IEC 60601-1 to provide
protection against electric shock.
⑮GS1-128 barcode
Product weight
Do not dispose as unsorted municipal waste. The product should
be collected separately and returned to the designated recycling
service.
This product does not contain any of the hazardous substances
mentioned in the Council Directive 2011/65/EC on RoHS.
This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. It also complies with all
relevant requirements in the Council Directive 2006/42/EC (of 17
May 2006) on machinery and with Council Directive 2011/65/EC
(of 8 June 2011) on RoHS. A declaration of conformity can be found
at www.pressalitcare.com.

8
en
Intended use
This product is intended for optimum ergonomics at a wash basin, for both
seated and standing users with disabilities.
Intended operator profile
The product can be used by all - adults, children, young and old.

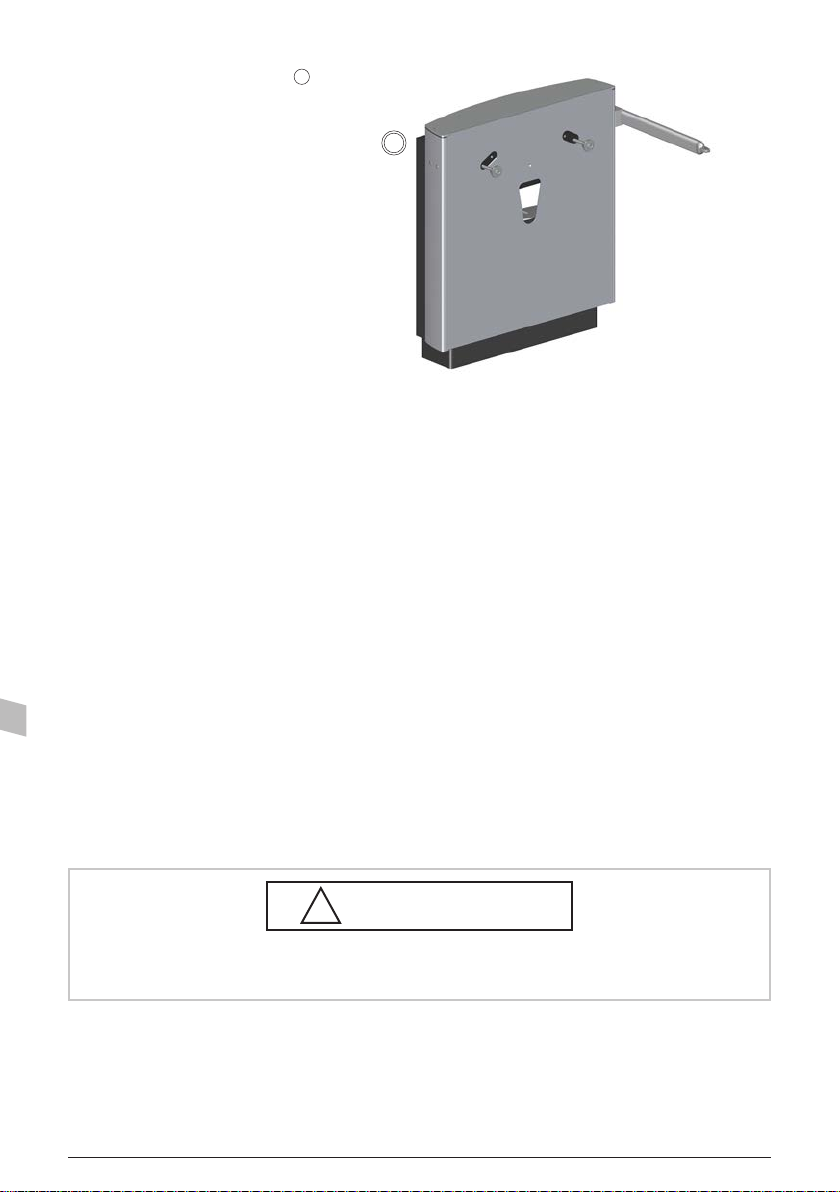

Operating environment
For indoor use in a wet environment, such as a bathroom or wash room.
The product is intended to be used at room temperature, in a stand-alone
environment, in private homes, nursing homes and hospitals under normal
working conditions.
!CAUTION
Never place objects underneath the wash basin.
Product label placement 1.
1

9
en
Versions
The wash basin lifter comes in four versions.
R4950 R4951
R4952
R4953
Optional installation covers
R2056
Fits wash basins R205x
R2057
Fits wash basins R202x

10
en
R2052 R2053
R2020 R2021
Optional wash basins

11
en
Operating instructions
R4951 and R4953
The height adjustment is controlled by the wired hand
control unit.
Press and hold the Up button to raise the wash basin,
and press and hold the Down button to lower it. When
the button is released, the motion stops.
R4950 and R4952
The height is adjusted by the
lever control.
Press and hold the lever up
to raise the wash basin, and
press and hold the lever down
to lower the basin. When the
lever is released, the motion
stops.
The wash basin lifter can
be adjusted 300 mm up and
down.
Max load is 150 kg.
Take care to
avoid injury to
hands when in the
vicinity of moving
mechanical parts.

12
en
Safety stop function
The wash basin lifters R4952 and R4953 are equipped with a safety stop
function.
If the wash basin comes in
contact with an object when it is
being lowered, the motion stops
immediately.
If an object comes is in contact with
the underside of the wash basin when
it is stationary, the safety function is
activated and the wash basin is lifted.
The wash basin lifter can be used
again as soon as the obstruction has
been removed.

13
en
To remove limescale
To remove limescale marks on the aluminium parts, use 3 parts of 30%
household vinegar to 7 parts water and afterwards wipe the parts with a cloth
wrung out in clean water.
In countries with relatively high levels of lime in the water supply, it may be
necessary to remove limescale deposits from the aluminium parts using a
de-scaling agent such as acetic acid. Test this first on a area that is not visible
when the wash basin lifter is in use.
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions for the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.
Maintenance
Expected service life of the wash basin lifter is 10 years, provided that
maintenance is carried out as described below:
It is recommended on a weekly basis to run the motors on the product to their
maximum positions by raising the product to its full height, and then lowering
it to its lowest position, so that the internal parts are lubricated.
It is recommended that service inspection is done once a year.

14
en

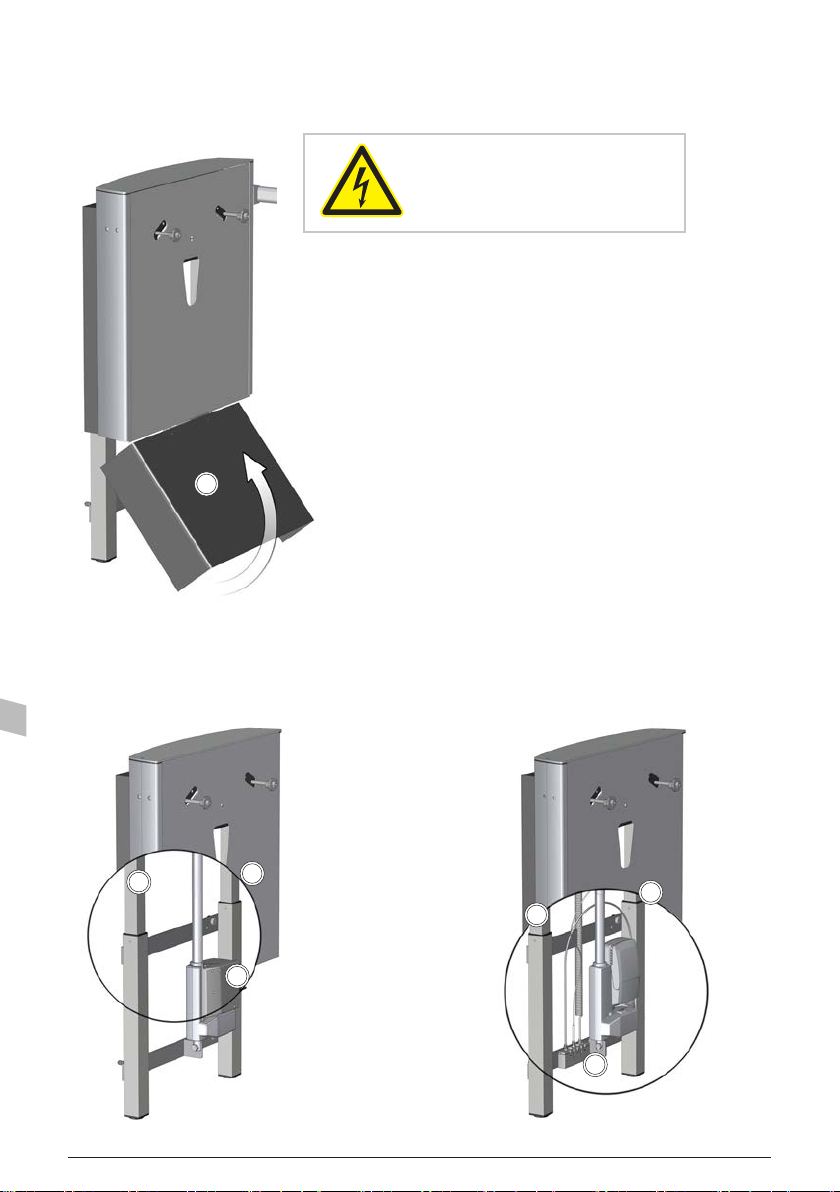

Service inspection
Take the wash basin to its highest position.
1
2
2
33
3
3
Disconnect mains before
removing the covers.
Remove the lower front cover ①.You do not need
any tools, as the cover has a click lock.
Check all electrical connections for the control box ②.
Lubricate the inner square tubes ③.with WD-40 or
equivalent.You have to reach up under the upper
front cover to reach the tubes.
Reconnect mains.
Lower the wash basin to its lowest position, and
then run it to the top position again to distribute
the lubricant.
Reattach the lower front cover.
R4952 and R4953
R4950 and R4951

15
en
Technical data
Max load 150 kg
Materials Powder-laquered stainless steel
Aluminium
Plastics
Dimensions
(width x height x depth)
666 mm x 750 mm x 170 mm
Weight R4950, R4952: 28.5 kg
R4951, R4953: 28 kg
IP class IPX6
Power specifications
Max consumption 75 W
Voltage Mains connection: 230V/120V/100V
Frequency 50/60 Hz
Current 3.7 A

16
en
Trouble-shooting
Symptom Cause Action
The product will not
work, even though
the controls is used
correctly.
Fault in power supply. Check that all wires and
plugs are intact and
correctly connected.
Contact Pressalit A/S or
your local dealer.
The product runs up
and down unevenly.
The inner square
tubes are not properly
lubricated.
Oil the inner square
tubes as described under
”Maintenance”.
Contact Pressalit Care or your dealer if the problem cannot be remedied.
Do not attempt to repair the product yourself, as this will invalidate the
guarantee.

17
en
Disposal and recycling
The unit contains reusable materials. There are no known hazards or risks
associated with disposal of the product. All components can be discarded
after having been cleaned and disinfected.
When disposing of the product, we recommend that it be disassembled and
broken down into different waste groups for recycling or combustion.
The following table provides information on the recycling and handling of the
product.
Recyclable
components Material
Aluminium Aluminium is theoretically 100% recyclable without
any loss of its natural qualities. It requires only 5% of
the energy used to produce primary aluminium. The
quality of recycled aluminium is so high that it can
be used again and again, even in the case of anodised
products as the anodised layer is a natural part of the
aluminium.
Steel Steel can be recycled by being melted down and
included as a secondary material in the production of
new steel.
Polystyrene Use plastic sorting and recycling systems where they
are locally available, otherwise incinerating plastic
has the added benefit of generating energy which can
be used for, for example, combined heat and power
production.

dk
18
Indhold
Monteringsvejledning.................................................18
Symboler, der er anvendt i denne vejledning ............................19
Generel sikkerhed ....................................................20
Produktmærkning ....................................................21
Tilsigtet brug .........................................................23
Tilsigtet brugerprofil ...............................................23
Betjeningsmiljø ...................................................23
Versioner ............................................................24
Valgfrie installationsinddækninger ....................................24
Valgfrie håndvaske .................................................25
Betjeningsinstruktioner ...............................................26
Sikkerhedsstop .......................................................27
Sådan fjernes kalkaflejringer .........................................28
Vedligeholdelse.......................................................28
Serviceinspektion..................................................29
Tekniske data ........................................................30
Fejlfinding ...........................................................31
Bortskaffelse og genbrug ..............................................32
Monteringsvejledning
Der følger en monteringsvejledning med dette produkt. Den
kan også downloades fra www.pressalitcare.com.

dk
19
Symboler, der er anvendt i denne vejledning
Følgende symboler er anvendt i denne vejledning og i den tilhørende
dokumentation, der følger med produktet.
!ADVARSEL
ADVARSEL angiver en potentielt farlig situation, som, hvis den ikke
undgås, kan medføre dødsfald eller alvorlig personskade.
!FORSIGTIG
FORSIGTIG angiver en potentielt farlig situation, som, hvis den ikke
undgås, kan medføre større eller mindre personskade. Det kan også bruges
til at advare om usikre fremgangsmåder.
VIGTIGT
VIGTIGT angiver vigtige oplysninger om håndtering og anvendelse af
produktet.
BEMÆRK
BEMÆRK vedrører fremgangsmåder, der ikke er forbundet med personlig
sikkerhed.
Advarsel om
håndskade.
Elektricitet eller potentielt
farlig spænding.

dk
20
!FORSIGTIG
• Følg disse instruktioner for at undgå, at produktet beskadiges eller
ødelægges.
• Der må ikke foretages reparationer, demonteringer, samlinger,
udvidelser, tilpasninger eller ændringer på dette produkt. Dette må kun
udføres af Pressalit eller af personer, som er autoriseret af Pressalit.
• Lad ikke børn betjene dette produkt uden opsyn. Produktet er ikke
beregnet til leg.
• Produktet må ikke benyttes, hvis det er defekt eller beskadiget. Et defekt
produkt må ikke anvendes, før det er repareret.
Generel sikkerhed
!ADVARSEL
• Læs og forstå hele vejledningen før brug. Opbevar vejledningen tæt på
produktet.
• Følg denne vejledning for at undgå uheld og alvorlig personskade.
• Dette produkt må aldrig bruges eller håndteres på anden måde end
som angivet i denne vejledning, da dette vil kunne udgøre en risiko for
din sikkerhed og beskadige produktet.
• Sørg for, at alle, der installerer eller bruger dette produkt og dets
systemer, har de nødvendige oplysninger samt adgang til denne
vejledning.
BEMÆRK
• Oplysningerne i denne vejledning er baseret på korrekt justering
af produktet i overensstemmelse med vores monteringsvejledning.
• Pressalit kan ikke holdes ansvarlig, hvis produktet bruges på andre
måder end som beskrevet i vejledningen.
• Vi forbeholder os ret til ændre denne vejledning uden forudgående
varsel.
