Prestige AirFixture PDD-08R-Wi User manual

Installation Instructions
PDD-08R-Wi (Wireless VAV Omni-Directional Displacement)
1. Connect Thermostat Controller to 24V building power
source at designated location – power cable is typically
run from ceiling through pre-cut opening in wall behind
Thermostat mounting position.
2. Connect Wireless Concentrator to Thermostat (3 wires –
24VAC Power, 0-10VDC Heat, 0-10VDC Cool).
3. Lay all Prestige Wireless Diffusers designated for current
zone on easily accessible surface (table, etc.) (maximum
32 diffusers).
4. Press and hold Sync Button on Wireless Concentrator for
approximately 5 seconds – LED indicator light will begin
to ash green in 1 second intervals (1 second on, 1
second off), indicating that it is in Pairing Mode. NOTE:
The Wireless Concentrator will remain in Pairing Mode
for a 15-minute window once activated.
5. Power on rst Wireless Diffuser by connecting battery
to control boards. To do this, locate two loose wires (one
connected to battery, one split between the control
boards). Each wire has a matching connector on the end,
which t together. Once connected, the LED indicator
light will illuminate red for 2 seconds, then turn off.
6. Press and hold Sync Button on Wireless Diffuser for
approximately 5 seconds – LED indicator light will ash
green three times, then turn off for 5 seconds. This
display (ashing three times, then turning off for 5
seconds) will repeat until the unit has successfully paired
with the Wireless Concentrator. Once paired, the LED
indicator light will remain off.
7. Repeat Steps 5 & 6 for each remaining Wireless Diffuser,
until all diffusers in the zone are paired. NOTE: The 15-
minute pairing mode window for the Wireless
Concentrator will restart every time a new Wireless
Diffuser is paired.
8. Once pairing process is complete, press sync button on
Wireless Concentrator to terminate pairing mode. In idle
mode, the LED indicator light will remain off.
9. Place each Wireless Diffuser in a pre-cut 8-5/16"Ø
(211mm) oor opening. Tighten center screw to lock
retention bar against underside of raised access oor
panel and secure diffuser in place.
10. Mount Wireless Concentrator inside wall below thermostat,
through opening cut for thermostat power cable.
11. Mount thermostat to wall over pre-cut opening.
ALL DIMENSIONS NOMINAL +/- 0.1" (2.5mm)
REFER TO PAGE 2 FOR IC / FCC COMPLIANCE
AirFixture ©2019 AirFixture, LLC 51 Kansas Avenue | Kansas City, KS 66105 | P: 913.312.1100 | F: 913.312.1105 | www.airxture.com
1
V190906

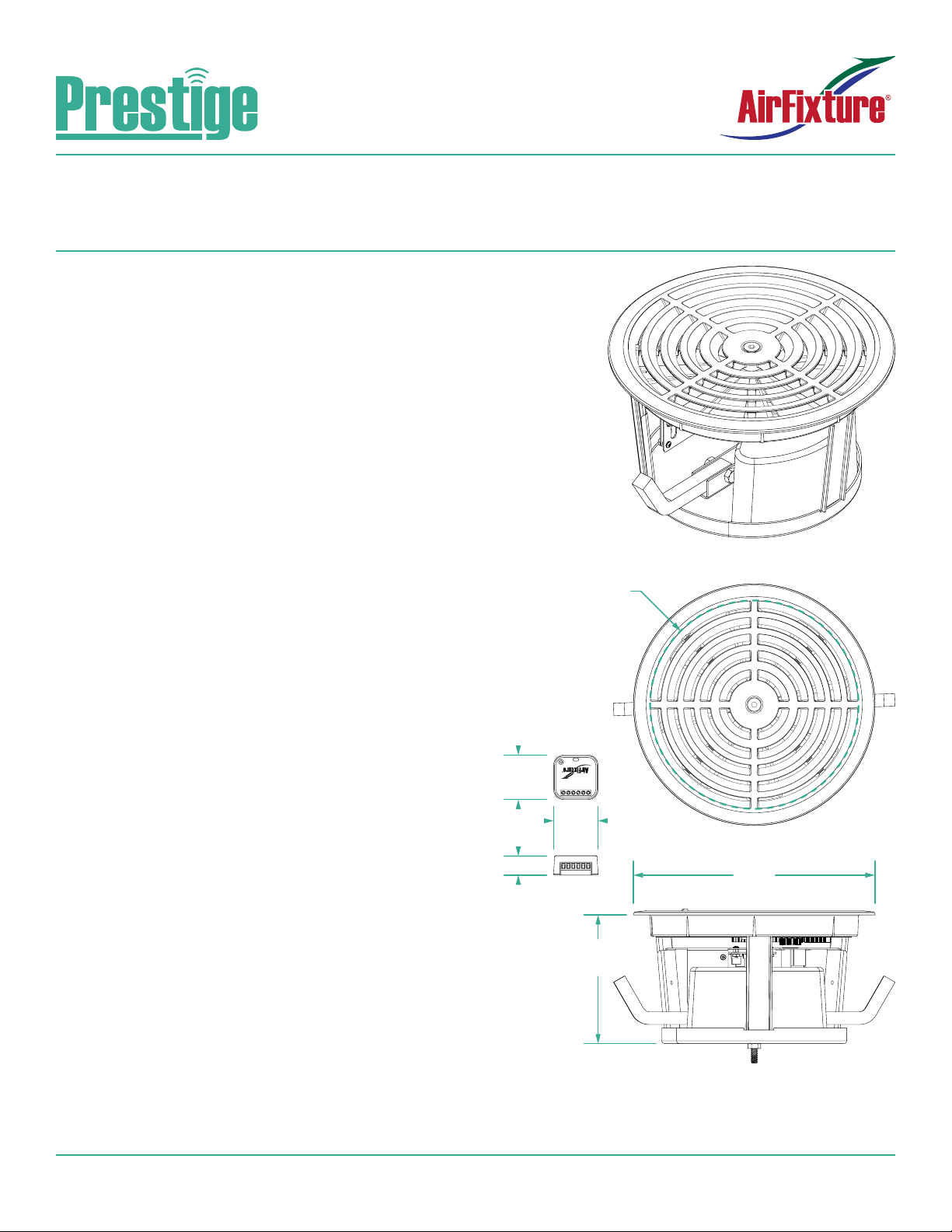

N/O COM N/O 24V HOT 24V COM HEAT COOL
8ӯ
203mm
WIRELESS
CONCENTRAT OR
5.1”
130mm
9.5”
241mm
1.8”
45mm
0.8”
20mm
1.8”
45mm
N/O COM N/O 24V HOT 24V COM HEAT COOL
8ӯ
203mm
WIRELESS
CONCENTRATOR
5.1”
130mm
9.5”
241mm
1.8”
45mm
0.8”
20mm
1.8”
45mm

Installation Instructions
PDD-08R-Wi (Wireless VAV Omni-Directional Displacement)
PATENT PENDING
IC Compliance
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme aux CNR exempts de licence d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes :
(1) Ce dispositif ne peut causer des interférences ; et
(2) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l’appareil.
This radio transmitter (identify the device by certication number) has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet émetteur radio (identier le périphérique par numéro de certication) a été approuvé par Industrie Canada pour fonctionner avec les
types d’antenne énumérés ci-dessous avec le gain maximal admissible indiqué. Les types d’antennes ne gurant pas dans cette liste,
ayant un gain supérieur au gain maximum indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil.
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
