Theselectablefeaturescanbesetmanuallyasexplainedbelow, or with the RF feature programmer. TosetfeaturesusingtheRF programmer,followtheinstructions packagedwiththeprogrammer. Factory default settings are indicated by bold text. Note : The method of manual override can either be selected to operate from the valet switch or operate as custom code. Be certain to place a check mark indicating the method used in the box located on the last page of the owner's manual. NOTE: Keyless Entry Models with no horn output will Flash the Parking Lights instead of chirp where chirp is indicated. Also, No data will be indicated if a feature is not available for a particular model. The unit will enter the feature but no selection will be available. RF Programmable Feature Bank 1 Is For Transmitter Programming See Transmitter Programming Guide. RF Programmable Features Bank 2 Is Alarm Selectable Features: Feature Selection 1 Chirp 2 Chirps 3 Chirps 4 Chirps 5 Chirps 6 Chirps 1st DoorL/UL 1 Sec. 3.5 Sec. 1 Sec L, Dbl. U/L Dbl L, 1 Sec UL DblL,DblUL 1 Sl/350mS ul 2nd Accy Lock Not Available 3rd Accy. UL Not Available 4th Headlights Not Available 5th Passive Locks Not Available 6th Pass/Act Arm Not Available 7th Siren/Horn Not Available 8th Horn Chirp Not Available 9th O/R Method Not Available 10th 2 Step U/L Not Available 11th Chp Del Tx Not Available 12th Voltage/Hd Wire Not Available 13th Trigger Circuits Not Available 14thLock/Unlock Poll Not Available 15th Aux Ch 5 Sel Not Available 16th Aux Ch 6 Sel Not Available 17th Aux Ch 7 Sel Not Available 18th Trigger Delay Not Available When using the RF programmer, enter the program mode as follows: Turn the ignition on Press and release valet switch 3 times turn ignition off then on Press and hold valet switch for 5 seconds Siren and or lights chirp/flash 2 times indicating access to RF feature program mode.
Model APS-57a
Installation Manual
From APS57 Change Transmitters To 07S3BP 5/07

128-8111
2 of 20
To program these selectable features;
Action System Response
Turn ignition on No response
Press and release the valet switch 3 times 1 Chirp - LED 1 flash
Within 3 seconds, turn ignition Off Then On Short chirp, then long chirp
This Action Accesses Feature Bank 2 Alarm Selectable Features
First Press and release the valet switch 1 time 1 chirp = 1 second door lock & unlock
Press transmitter Lock button to change 2 chirps = 3.5 second door lock & Unlock
Press transmitter Lock button to change 3 chirps = 1 sec. lock, dbl 1 sec. unlock
Press transmitter Lock button to change 4 chirps = dbl 1 sec lock, 1 sec unlock
Press transmitter Lock button to change 5 chirps = dbl 1 sec lock, dbl 1 sec unlock
Press transmitter Lock button to change 6 chirps = 350mS unlock. 1 sec lock
or
Second Press and release the valet switch Non Functional On This Unit
or
Third Press and release the valet switch Non Functional On This Unit
or
Fourth Press and release the valet switch Non Functional On This Unit
or
Fifth Press and release the valet switch Non Functional On This Unit
or
Sixth Press and release the valet switch Non Functional On This Unit
or
Seventh Press and release the valet switch Non Functional On This Unit
or
Eighth Press and release the valet switch Non Functional On This Unit
or
Ninth Press and release the valet switch Non Functional On This Unit
or
Tenth Press and release the valet switch Non Functional On This Unit
or
Eleventh Press and release the valet switch Non Functional On This Unit
or
Twelfth Press and release the valet switch Non Functional On This Unit
or
Thirteenth Press and release the valet switch Non Functional On This Unit
or
Fourteenth Press and release the valet switch Non Functional On This Unit
or
Fifteenth Press and release the valet switch Non Functional On This Unit
or
Sixteenth Press and release the valet switch Non Functional On This Unit
or
Seventeenth Press and release the valet switch Non Functional On This Unit
or
Eighteenth Press and release the valet switch Non Functional On This Unit
or
Press and release the valet switch or turn the ignition off to: ExitProgramming Mode
or
Turn ignition switch off then on to advance to feature Bank 3:
2

128-8111
3 of 20
To exit program mode, turn ignition off, or press and release valet switch. RF Programmable Features Bank 3 Is Remote Start Selectable Features: Feature Selection 1 Chirp 2 Chirps 3 Chirps 4 Chirps 5 Chirps 6 Chirps 1st Defrost Output Not Available 2nd RF Start Chirp Not Available 3rdRun Time 5 Mins 10 Mins 15 Mins 20 Mins 4th Parking Lights On Steady Flashing 5th Input Check Voltage Tach DBIInput 6th Voltage Level >0.5V B4 Start < 0.5V B4 Start 7th Ign. 2 Select Off During Crank On During Crank Same As Accy. 8th Ign. 3 Select Not Available 9th Diagnostics Off On 10thCrank Time 0.8 Sec 1.0 Sec 1.5 Sec 2.0 Sec 11th Gas/Diesel Gas Diesel 10 Diesel 15 Diesel 20 12th Transponder O/P While R/S On During Start Until Ign. Off 13th Temp Start Not Available 14th Crank Averaging Averaging Preset Time Note: When averaging, the engine must be started 4 times with the key to be effective. 15th R/S Shock Not Available 16th Turbo Select Not Available 17th Black/Blue (Aux O/P) Single Pulse As Feature #1Bank 2 Note: When setting feature #17 to operate as feature #1 Bank 1 the transmitter will also control this output only while running under R/S command. So in other words, if this output is used to unlock the doors with the transmitter, the doors will unlock on startup. To re-lock the doors, use the After Start Black Green wire of the 4 pin connector. When using the RF programmer, enter the program mode as follows: Turn the ignition on Press and release valet switch 3 times turn ignition off then on Press and hold valet switch for 5 seconds Siren chirps 2 times indicating access to RF feature program mode. To exit program mode, turn ignition off, or press and release valet switch.
3

128-8111
4 of 20
Action System Response
Turn ignition on No response
Press and release the valet switch 3 times 1 Chirp - LED 1 flash
Within 3 seconds, turn ignition Off, On, Off, On Short chirp, then 2 long chirps
This Action Accesses Feature Bank 3 Remote Start Selectable Features
First Press the valet switch one time 1 chirp = defrost output pulsed
Press transmitter Lock button to change 2 chirps = defrost output 10 Mins
or
Second Press and release the valet switch 2 chirps = RF start chirp on
Press transmitter Lock button to change 1 chirp = RF start chirp off
or
Third Press and release the valet switch 2 chirps = run time set for 10 mins
Press transmitter Lock button to change 3 chirps = run time set fro 15 mins
Press transmitter Lock button to change 4 chirps = run time set for 20 mins
Press transmitter Lock button to change 1 chirp = run time set for 5 mins
or
Fourth Press and release the valet switch 1 chirp = parking lights on steady w/RS active
Press transmitter Lock button to change 2 chirps = parking lights flashing w/RS active
or
Fifth Press and release the valet switch 2 chirps = tachometer input checking
Press transmitter Lock button to change 1 chirp = voltage sense input checking
or
Sixth Press and release the valet switch 1 chirp = greater than 0.5 V check before start
Press transmitter Lock button to change 2 chirps = less than 0.5 V check before start
or
Seventh Press and release the valet switch 2 chirps = ign 2 on during crank
Press transmitter Lock button to change 3 chirps = ign 2 same as accessory
Press transmitter Lock button to change 1 chirp = ign 2 off during crank
or
Eighth Press and release the valet switch 2 chirps = ign 3 on during crank
Press transmitter Lock button to change 3 chirps = ign 3 same as accessory
Press transmitter Lock button to change 1 chirp = ign 3 off during crank
or
Ninth Press and release the valet switch 1 chirp = diagnostics off
Press transmitter Lock button to change 2 chirps = diagnostics on
or
Tenth Press and release the valet switch 2 chirps = crank time 1.0 sec
Press transmitter Lock button to change 3 chirps = crank time 1.5 sec
Press transmitter Lock button to change 4 chirps = crank time 2.0 sec
Press transmitter Lock button to change 1 chirp = crank time 0.8 sec
or
Eleventh Press and release the valet switch 1 chirp = unit set for gasoline engine
Press transmitter Lock button to change 2 chirps = unit set for diesel engine 10 sec delay
Press transmitter Lock button to change 3 chirps = unit set for diesel engine 15 sec delay
Press transmitter Lock button to change 4 chirps = unit set for diesel engine 20 sec delay
or
Twelfth Press and release the valet switch 1 chirp = transponder output while R/S active
Press transmitter Lock button to change 2 chirps = transponder output during start only
Press transmitter Lock button to change 3 chirps = transponder output until ignition turned off
or
Thirteenth Press and release the valet switch Non Functional On This Unit
or
Fourteenth Press and release the valet switch 1 chirp = crank averaging w/voltage input checking
Press transmitter Lock button to change 2 chirps = preset crank time w/voltage input check
or
Fifteenth Press and release the valet switch Non Functional On This Unit
or
Sixteenth Press and release the valet switch Non Functional On This Unit
or
Seventeenth Press and release the valet switch 1 chirp = aux o/p Black/Blue single pulse
Press transmitter Lock button to change 2 chirps = aux o/p Black/Blue as alarm feature #1
Press and release the valet switch or turn
the ignition off to: ExitProgramming Mode
Note : Once you enter the feature programming mode, do not allow more than 15 seconds to pass between steps or the
programming will be terminated.
4

128-8111
5 of 20
This Remote Start/Keyless Entry System is designed for use with Automatic Transmission Vehicles Only! The
unit provides wait to start input for glow plug pre-heat which will be used for all diesel applications. If this wire is
not connected, then the unit will remain in the Gasoline mode setting, which will crank the car when the RF signal
is received with no delay. Regardless of the vehicle, Gasoline or Diesel, for every installation, the vehicle MUST
HAVE a Tach Signal Input, and anAutomatic Transmission.
INSTALLATION OF THE MAJOR COMPONENTS:
CONTROLMODULE:
Select a mounting location inside the passenger compartment (up behind the dashboard). The mounting location
selected must be within 24" of the ignition switch wiring harness to allow connection of the 6 pin main wiring harness.
Be certain that the chosen location will not interfere with proper operation of the vehicle. Avoid mounting the module
to or routing the wiring around the steering shaft/column, as the module or wiring may wrap around or block the
steering wheel preventing proper control of the vehicle. Secure the module in the chosen location using cable ties or
screws as necessary.
NOTE: Do Not Mount The Module In The Engine Compartment, as it is not waterproof.
HOOD PIN SWITCH:
The hood pin switch included in this package is required for the safety shut down of the remote start unit. If the
vehicle is being worked on, this hood switch prevents the remote start activation even if the RF command to start is
issued. This hood pin switch MUST be installed in all applications. Failure to install the hood pin switch may result
in personal injury or property damage. Mount the hood pin switch in an area under the hood that is away from water
drain paths. If necessary, the included brackets may be used to move the hood pin switch away from rain gutters or
allow mounting to the firewall behind the hood seal. In either case the hood pin switch must be set up to allow the
hood to depress the switch at least 1/4" when the hood is closed and fully extended when the hood is opened. For
direct mounting, a 1/4" hole must be drilled. Carefully check behind the chosen location to insure the drill will not
penetrate any existing factory wiring or fluid lines. Drill a 1/4" hole in the desired location and thread the hood pin
switch into it using a 7/16" nut driver or deep well socket. If using the mounting bracket, first secure the bracket to the
desired location and secure the hood pin switch in the pre-threaded mounting bracket hole.
PUSH-BUTTONLED SWITCH
Select a mounting location known and accessible to the operator of the vehicle. A dash knockout plug or front dash
panel is desirable as the now Push-Button LED assembly needs the LED to be visible from the outside of the
vehicle and will be used for valet modes, programming features, programming transmitters, and for overriding the
remote start unit when the vehicle is being serviced. Inspect behind the chosen location to insure that adequate
clearance is allowed for the body of the switch, and also that the drill will not penetrate any existing factory wiring or
fluid lines. Drill a 5/16" or 8mm hole in the desired location and mount the switch by passing the connectors, one
at a time, through the panel from the front side and pressing on the bezel until the switch is fully seated.
The Remote Start System is to be used in vehicles with AUTOMATIC TRANSMISSIONS only! Although this combina-
tion Keyless Entry/Remote Start unit is a sophisticated system with many advanced features, IT MUST NOT be
installed into a vehicle with a manually operated transmission. Doing so may result in serious personal injury and
property damage.
5

128-8111
6 of 20
6
THERECEIVER/ANTENNAASSEMBLY:
The Superheterodyne Receiver Antenna Assembly provided with this unit allows routing from below the dashboard
for maximum operating range. Choose a location above the belt line (dashboard) of the vehicle for best reception.
Special considerations must be made for windshield glass as some newer vehicles utilize a metallic shielded
window glass that will inhibit or restrict RF reception. In these vehicles, route the antenna toward a rear window
location for best reception. Secure the antenna with double stick tape provided. After securing the antenna with tape,
we advise also securing a section of the antenna cable to a fixed support. This will prevent the antenna from
dropping down in case the double stick tape is exposed to extreme heat, which may loosen its gummed surface.
Route the 3 pin connector toward the control module using caution not to pinch the cable as this will cause poor or
no RF reception to the control module. IMPORTANT!
DO NOT PLUG THE SIX PIN MAIN POWER HARNESS ORTHE MULTI PIN INPUT / OUTPUTHARNESS INTOTHE
CONTROLMODULEUNTILALLCONNECTIONSTOTHE VEHICLE HAVE BEENMADE. AFTER SELECTINGYOUR
TARGETWIRESASDEFINED BELOW,DISCONNECTTHENEGATIVEBATTERYCABLE FROMTHEVEHICLEBAT-
TERYPRIORTOMAKINGANYCONNECTIONS.

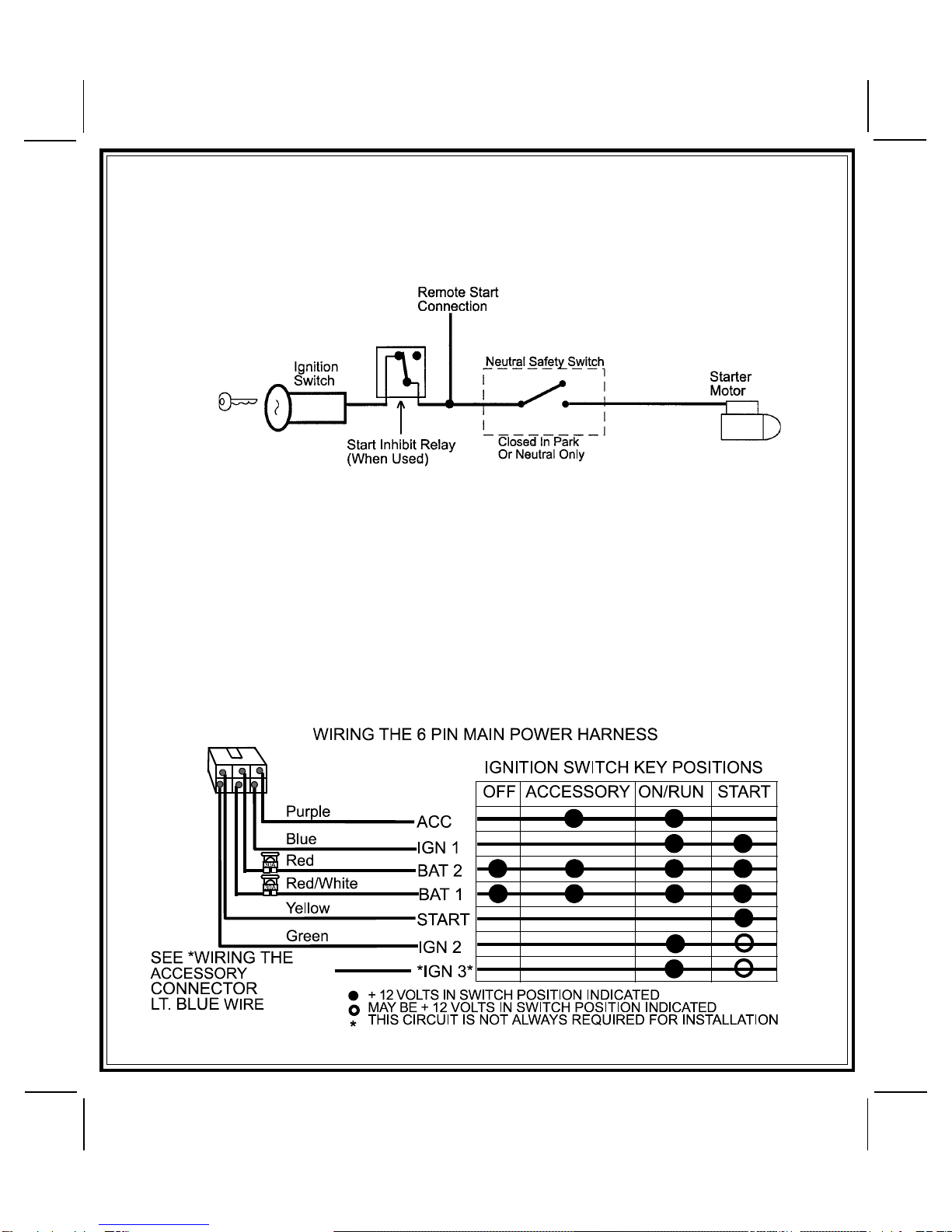

WIRING THE 6 PIN MAIN POWER HARNESS:
Note: Do not remove the fuse holders from this wire harness. Fuses must be used and located as
close as possible to the power source for adequate protection of the vehicle.
Fused RED w/ WHITE TRACE WIRE: + 12 volt Battery 1 Source
Locate the vehicle battery wire(s) at the ignition switch. Verification: These wires will register voltage in all
positionsof the ignitionswitch. Connect the Redw/Whitewire to thevehicle'sbattery wire. This wireprovides
power for the control circuit as well as the ignition 1 and ignition 2 relays.
Fused RED WIRE: + 12 Volt Battery 2 Source
Locate the vehicle battery wire(s) at the ignition switch. Verification: These wires will register voltage in all
positionsof the ignition switch. Connect the Red wire to the vehicle's battery wire. This wire provides power
for the start relay and the accessory relay. IMPORTANT!
ITISTHERESPONSIBILITYOFTHE INSTALLINGTECHNICIANTODETERMINETHELOADFACTOROF
THEVEHICLESELECTRICALCIRCUITSWHENTHEVEHICLEIS RUNNINGANDTOADEQUATELYFUSE
THE TWO POWER WIRES BASED ON THAT LOAD. IF THE VEHICLE, RUNNING UNDER LOAD WITH
THEAIRCONDITIONER,HEATERBLOWERMOTOR,ANDACCESSORIESEXCEEDS24AMPSCONTINU-
OUS, WE RECOMMEND THAT TWO FUSES BE USED IN COMBINATION ON EACH POWER WIREAS
SHOWNBELOW. FORADDITIONALINFORMATIONSEETECHUPDATEISSUED9/30/96.
YELLOW WIRE:StarterOutput
Careful consideration for the connection of this wire must be made to prevent the vehicle from starting while in
gear. Understanding the difference between a mechanical and an electrical Neutral Start Switch will allow you
to properly identify the circuit and select the correct installation method. In addition you will realize why the
connection of the safety wire is required for all mechanical switch configurations.
Failure to make this connection properly can result in personal injury and property damage. In all installations it is the
responsibility of the installing technician to test the remote start unit and assure that the vehicle cannot start via RF
control in any gear selection other than park or neutral.
In both mechanical and electrical neutral start switch configurations, the connection of the Yellow wire will be made
to the low current start solenoid wire of the ignition switch harness. This wire will have +12 volts when the ignition
switch is turned to the start (crank) position only. This wire will have 0 volts in all other ignition switch positions.

128-8111
7 of 20
NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the electrical neutral
switch configuration, this connection must be made between the starter inhibit relay, (when used) and the
neutral safety switch as shown in the following diagram.
Failure to connect this wire to the ignition switch side of the neutral safety switch can result in personal injury and
property damage.
SEENEUTRALSTARTSAFETYTESTFORFURTHERDETAILS.
BLUE WIRE: Ignition 1 Output
Connect this wire to the ignition 1 wire from the ignition switch. This wire will show +12 volts when the ignition key
is turned to the to the "ON" or "RUN" and the "START" or CRANK" positions and will have 0 volts when the key is turned
to the "OFF" and "ACCESSORY" positions.
For Diesel Applications, this wire must be connected to the ignition circuit that powers the glow plugs if the vehicle
requires glow plug pre-heating.
GREEN WIRE: Ignition 2 Output
Connect this wire to the ignition 2 wire from the ignition switch. This wire will show + 12 volts when the ignition key
is turned to the "ON" or "RUN" position and is some cases the "START" or CRANK" position. This wire will show 0
volts when the key is turned to the "OFF" and "ACCESSORY" positions.
NOTE: See programming information concerning this wire to allow output during the "START" mode.
7

128-8111
8 of 20
VIOLET WIRE:AccessoryOutput
Connect this wire to the Accessory wire from the ignition switch. This wire will show + 12 volts when the ignition
switch is turned to the "ACCESSORY" or "ON" and "RUN" positions and will show 0 volts when the key is turned to the
"OFF" and "START" or "CRANK" positions.
WIRING CONNECTIONS: 12 Pin Input / Output Harness
Black Wire: Chassis Ground Source
Connect the Black wire to a known vehicle ground source or to a solid clean metal part of the chassis. Be certain to
remove any paint or grease and secure this wire with a self-tapping screw and ring terminal.

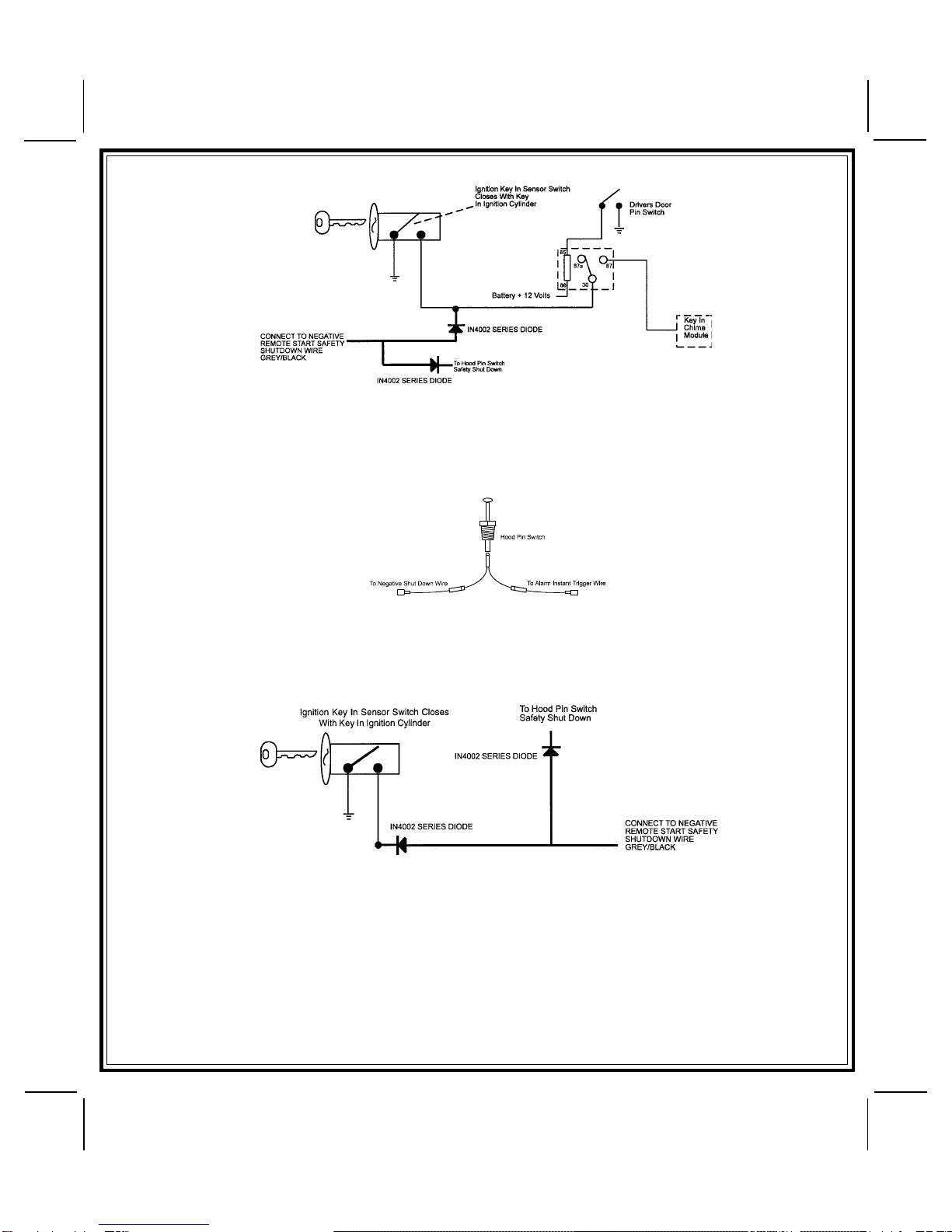

GRAYWIRE:NegativeInhibitInput1
ConnecttheGRAY wire tothepreviouslymountedhood pin switchprovided. Thiswirewillbe routed throughthefirewall
into the engine compartment. It is necessary to use an existing grommet when passing wires through the firewall to
prevent short circuiting. This is an important safety feature of the System, failure to use this feature can result in serious
injury. Route the wire to the pin switch and connect it using the bullet connector provided.
GRAYw/BLACKTRACERWIRE:NegativeInhibitInput2
Any time the gray w/ black tracer wire is grounded, the Remote Starter will stop operating, even if the signal is received
from the transmitter.
If the brake light switch in the vehicle switches ground to the brake light circuit, connect the Gray w/ Black trace wire
to the output of the brake light switch. If the brake light switch in the vehicle switches +12 Volts, do not use the Gray
w/ Black wire; see Brown w/ Black tracer wire.
BROWNWIRE:PositiveInhibitInput1
Any time + 12 Volts is applied to the Brown wire, the Remote Starter will stop operating, even if the signal is received
from the transmitter.
Ifthevehiclehasafactoryinstalledhoodpin switch and that switch provides + 12 Volts to an under hood light, the Brown
wire can be connected to the existing pin switch.
BROWN w/ BLACK Tracer Wire: Positive Inhibit Input 2
Anytime + 12 Volts isapplied to the Brown w/Black tracer wire, theRemote Starter will stop operating,even if the signal
isreceivedfromthetransmitter.Ifthebrakelightswitchinthevehicleswitches+12Voltstothebrakelightcircuit,connect
theBrownw/Blacktracewiretotheoutputofthebrakelightswitch.Ifthebrakelightswitchinthevehicleswitchesground,
do not use the Brown w/ Black wire; see Gray w/ Black tracer wire.
8

128-8111
9 of 20

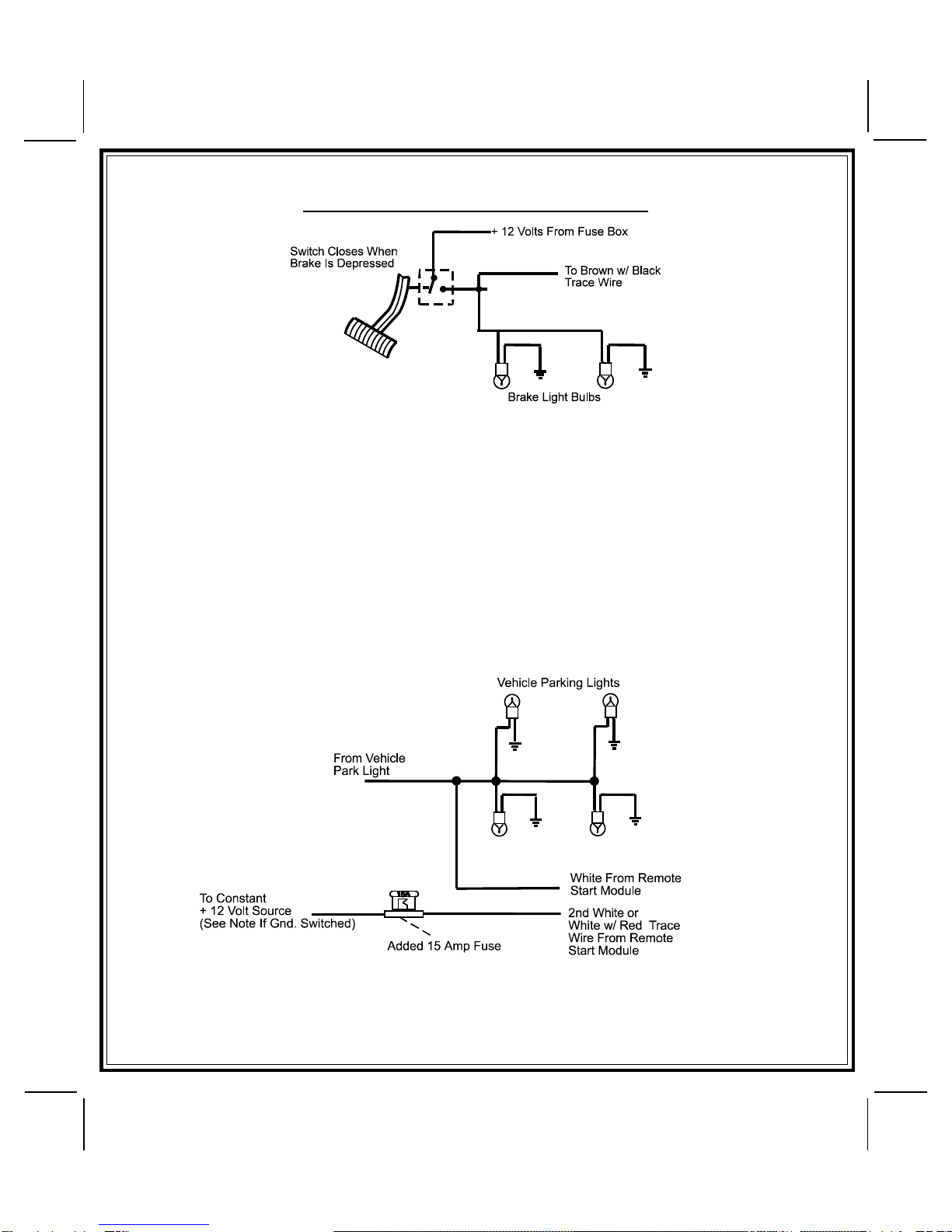

Brake Switch Positive Shutdown Detail
YELLOW w/ BLACK Tracer Wire: + 12 Volt Alarm By - Pass Output
NOTE: You must disconnect the ignition input of the alarm from any other wire that it is presently connected to
in the vehicle.
This wire provides a + 12 Volt output when the ignition key is turned to the “ON” position, and 0 Volts when the ignition
key is “OFF” and when the vehicle is running under the control of the remote starter.
This wire should be connected to the ignition input of the alarm system.
The Yellow w/ Black wire output will allow you to remote start the vehicle while leaving the alarm armed, and to lock/
unlock the doors while running under control of the remote start unit.
(2) WHITE Wires: Parking Light Flasher
These wires are the COMMON and NORMALLY OPEN contacts of the on-board parking lamp relay.
If the vehicle's parking lights are a +12 volt switched system, connect (1) of the White wires to a fused (15A max.) +12
volt battery source, and connect the second White wire to the vehicle's parking light wire.
If the vehicle's parking lights are a chassis ground switched system, connect (1) of the White wires to a chassis ground
source, and connect the second White wire to the vehicle's parking light wire.
LIGHT BLUE Wire: Ignition 3 / Shock Disable Output
This wire provides a 300mAground output that becomes active 3 seconds before the Remote Start Unit initializes, and
remains grounded while running plus an additional 4 seconds after the Remote Start Unit turns off. In all of the
applications described below, a relay will be required. The Light Blue wire can be used to accommodate the following
situations:
9
Switch

128-8111
10 of 20
A. Shock Sensor By Pass:
If there is Shock Sensor used with an alarm system and it is not shunted during the Remote Start activation period,
then vibration from the running vehicle can cause the alarm to trigger. In this case, connect the Light Blue Wire to
terminal #86 of a external relay. Connect terminal #85 of the relay to a fused + 12 volt battery source. Cut the shock
sensor trigger wire and connect one end of the cut wire to terminal #30 and the other end of the cut wire to terminal
#87a. Just before the Remote Start unit is activated, the relay contacts will open, preventing the shock sensor's
operation until the Remote Start unit shuts off.
B.Ignition 3 Output:
Some newer vehicles use a third ignition wire, which is required to start and keep the vehicle's engine running. If
this is the case, connect the Light Blue wire to terminal #86 of an external relay. Connect terminal #30 & #85 to a
fused + 12 volt battery source rated for a minimum of 25 Amp. Connect terminal #87 to the third ignition wire in the
vehicle.
C.GMVATS Key Override:
If the vehicle has the General Motors VATS system installed, you will need to bypass the system while the vehicle
is operating under the control of the Remote Start Unit. To Do This;
1. Measure the resistance of the resistor pellet on the ignition key then select a resistor within 5% of the key's value
from the resistor pack supplied.
2. Locate the pair of VATS wires in the vehicle, usually a pair of thin gauge wires running from the ignition switch to
the VATS control module.
NOTE: These wires are typically White w/ Black trace and Violet w/ Yellow trace, however in later model Cadillacs,
they are run through an orange sleeve, and are either both Black, both Yellow, or both White wires. Consult
the factory service manual for additional information.
3. Connect the Light Blue Wire from the Remote Start Unit to terminal #86 of an external relay. Connect terminal #85
of the relay to a fused + 12 volt battery source.
4. Cut (#1) wire (as shown), and connect the ignition switch side of the cut wire to terminal #87a of the relay. Connect
the other side of the (#1) wire to terminal #30.
5. Connect the previously selected resistor from terminal #87 to the second (#2) wire (as shown).
NOTE: The above information and following diagram is for the GM VATS system only. For GM PASS LOCK System
you will require theAudiovoxAS-PASS II Module.

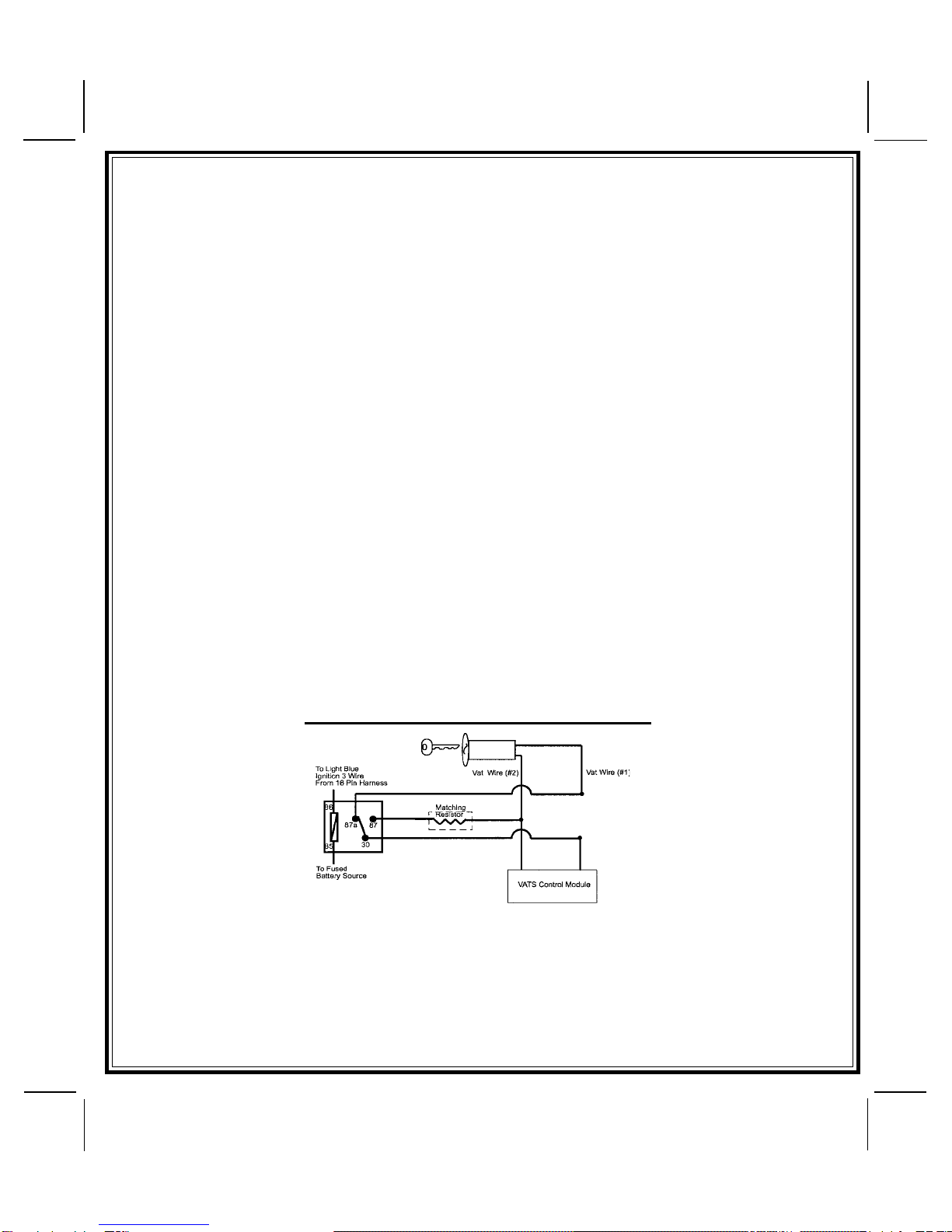

General Motors VATS By-Pass Diagram
Green/Orange Wire: Tach Sensor Input
This wire will continually monitor the engine tach rate while the unit is under power of the Remote Start module. This
wire will be routed to the vehicle ECM tach input or through the firewall into the engine compartment and connect to
the negative side of the ignition coil. This Remote Start unit learns the tach rate of the vehicle and in most cases will
operate properly from one multi coil pack regardless of the number of cylinders. If the vehicle has a single coil unit
for each cylinder, it may be necessary to connect this wire to more than one cylinder for proper tach reference. See
multi coil wiring detail shown later in this manual for additional information.
10

128-8111
11 of 20
Tachometer Input Wiring Detail
11
Green/Yellow Wire: Diesel Wait To Start Input
The Green/Yellow wire of the 2 pin connector will connect to a diesel vehicles glow plug wire. When the unit receives
a start command, this wire must go to + 12 then to ground to allow the crank sequence to begin. When ignition #1 is
activatedbytheremotestartunit,theglowplugcircuitgetsenergized,(+12volts),whentheglowplugcircuitofthevehicle
drops the + 12 volts, which effectively grounds the wait to start input, then 500mS later the starter will engage. This wire
can also be connected to the Glow Plug Bulb wire in the vehicle if this bulb wire gets + 12 volts when the ignition comes
on and drops low when the glow plug circuits temperature is reached. Be sure to fuse the wire with a 1 Amp Fuse when
connecting to a high current circuit such as a factory glow plug wire. The fuse should be installed as close to the high
current wire as possible. If you are installing this unit in a Gasoline vehicle, this wire is not used.
WIRING THE 4 PIN AUXILIARY OUTPUT HARNESS
The auxiliary 4 pin connector provides low current outputs to control various functions in the vehicle during
differentstagesoftheRemoteStartunit'soperation. Understandingtheseoutputsand the time in which they
occurwill allowyouto determine iftheyare neededforthe particular vehicleyouare workingonas well ashow
to use them.
Black w Blue Trace Wire: Pulsed Ground Output Before Start
The Black w/ Blue Trace wire will provide a 1 second 300 mA pulsed ground output 1.5 second before the
remote start unit activates as well as when the transmitter is used to disarm the system. Typical use for this
outputwould be to disarmafactory theft deterrent systemtoprevent false triggering ofthefactoryalarm when
the remote start unit engages or when the transmitter is used to unlock the doors.
Black w/ Light Green Trace Wire: Pulsed Ground Output After Start
TheBlackw/LightGreenTrace wire will provide a 1 second 300mA pulsed ground output after the vehicle is
startedundercontrolofthe remote startunit. Typicallythis wire will beused to re-lock the vehicle doors if the
doors unlock automatically when the factory anti-theft system is disarmed.
Black w/ Red Trace Wire: Pulsed Ground OutputAfter Shutdown
TheBlackw/Red Trace wire will provide a 1 second 300 mA pulsed groundoutput after the remote start unit
shuts down. This output will occur regardless of whether the circuit times out or is manually terminated.
Typically this outputwill be used tore-lockthe vehicle doorsifthe doors unlockautomaticallywhen the ignition
circuit transitions to off.
Black w/ Yellow Trace Wire: Ground Output During Start (Crank)
TheBlack w/YellowTracewirewill provide a300mAground output while thestarteroutputofthe remote start
unit is active. This output can be used to activate the Crank Low/Bulb Test wire found in some GM vehicles.
This wire is also referred to as the ECM wake up wire in some Chrysler vehicles.
NOTE: Theoutputs above are low currentoutputsand must be used with arelayif the circuit's requirement is
more than 300 mA.
Push-Button LED Programming Switch Assembly: (2 Pin Blue & 2 Pin White Connectors)
Route the gray and black wires in the 2 pin connector and the red and blue in the two pin connector from the previously
installed push-button LED programming switch assembly to the control module and plug these into the mating blue
and white connectors on the side of the module.
2 Pin Door Lock/Unlock Harness: (WhiteConnector)
The Red & Green Door Lock/Unlock output wires provide either a pulsed ground or pulsed + 12 volts to control the

128-8111
12 of 20
vehicle door lock / unlock circuits. The output of these wires has a maximum switching capability of 300mA. Many
vehicles today have factory door lock relays which can be connected directly to these outputs, however always confirm
that the factory relays in your particular vehicle do not exceed the rated 300mA output of the units door lock/unlock
circuit. Plug the 2 pin connector of the door lock/unlock harness into the mating connector shell of the control module.
Determine the door lock circuit of the vehicle you are working on and wire according to the diagrams shown.
3 Wire Ground Switched Door Lock Circuits:
In this application, the Red wire of the 2 pin harness provides a ground pulse during the arming sequence, or pulsed
ground lock output. Connect the Red wire to the low current ground signal wire from the factory door lock switch to the
factory door lock relay.
The Green wire of the 2 pin harness provides a ground pulse during the disarming sequence, or pulsed ground
unlock output. Connect the Green wire to the low current ground signal wire from the factory door unlock switch to the
factory door unlock relay. See Below For Wiring Detail.
3 Wire Ground Switched Door Lock/Unlock Wiring Detail
3 Wire Positive Switched Door Locks:
In this application, the Red wire of the two pin harness provides a + 12 volt pulse during the disarming sequence, or
pulsed 12 volt unlock output. Connect the Red wire to the low current 12 volt signal wire from the factory door unlock
switch to the factory door unlock relay.
The Green wire of the two pin harness provides a + 12 volt pulse during the arming sequence or pulsed 12 volt lock
output. Connect the Green wire to the low current 12 volt signal wire from the factory door lock switch to the factory
door lock relay. See Below For Wiring Detail.
3 Wire Positive Switched Door Lock/Unlock Wiring Detail
Resistive Circuits, As Well As 4 Wire Polarity Reversal and 5 Wire Alternating 12 Volt
Door Lock Control Circuits
These applications require the use of additional components which may include relays, fixed resistors, or for conve-
nience, theAS 9159a Door Lock Interface. Refer to theAUDIOVOX Door Lock Wiring Supplement and or theAudiovox
fax back service for information on your particular vehicle for properly connecting to these types of circuits.
12

128-8111
13 of 20

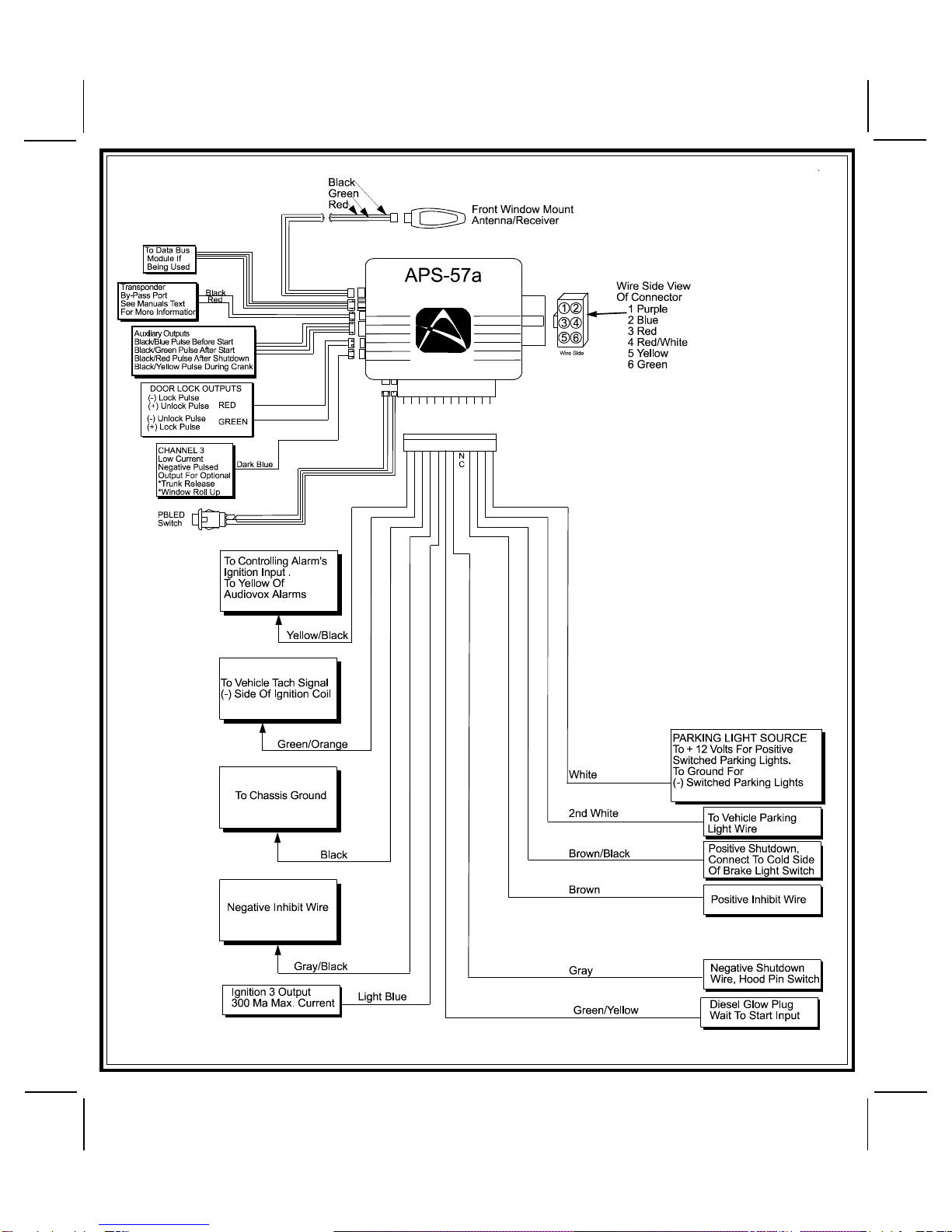

13
2 Pin Blue Connector : Programming Switch
Route the gray and black wires in the 2 pin connector from the previously installed programming switch to the control
module and plug it into the mating blue connector on the side of the module.
2 Pin White Auxiliary Output Connector : Low Current Trunk Release Output (1Blue Wire Loaded)
Thiswire pulses to ground via an independent RF channel from thekeychaintransmitter.Thisis a transistor-
ized, low current output and should only be used to drive an external relay coil.
WARNING: Connecting this wire to the high current switchedoutputoftrunkrelease circuits will damage the
controlmodule.
Connect this wire to terminal 86 of the AS - 9256 relay (or equivalent 30A automotive relay) and wire the
remaining relay contacts to perform the selected function of this output.
3 Pin Antenna/Receiver Connector: (White Connector)
Plugthe previously routedthreepin connector from theantennareceiver assemble intothemating connector
ofthe control module. This connectorsupplies12 volts, ground and RFdatafrom the antenna receiver tothe
remote start module. Be certain this connector is firmly seated making good contact to the control unit.
2. Programming Tach Rate:
NOTE: All applications require that tach be programmed.
Theunitwillnotoperateunlesstachisprogrammed. Ifanattemptismadetostartthevehicleviatheremotestartwithout
first programming tach, the unit will flash the parking lights 7 times indicating tach has not been learned and stored.
If the tach rate is not properly programmed to the specific vehicle, the unit may not realize that the vehicle is running
in certain instances and could re-engage the starter motor.
The Remote Car Starter will learn the tach rate of most vehicles single ignition coils, multiple coil packs, and or single
injector. To learn tach;
1. Turn the ignition key to the ON position.
2. Press and release the program switch 3 times.
3. Immediately turn the ignition key OFF.
4. Hold the program switch ON, then start the vehicle using the ignition key.
5. When the unit senses the tach signal, the parking lights will begin to flash.
6. Release the program switch. The parking lights will turn on for 3 seconds to indicate that the tach signal is stored
and the unit is now out of the program mode.
3.Diagnostics:
1. Be sure that programmable feature number #9 is set to the "Diagnostics On" mode.
2. Press and hold the program switch on, then turn the ignition key to the "ON" position.
3. The lights will flash and the number of flashes will indicate the reason for shutdown on the last remote start attempt.
The indications are as follows.
1Flash 5, 10, 15, or 20, minute run timer expired.
2 Flashes Low or No tach signal received.
3 Flashes Positive input shut down.
4 Flashes Control switch was moved to "Off" position.
5 Flashes RF Shutdown command received.
6 Flashes High RPM signal over speed shut down.
7 Flashes Tach has NOT learned.
8 Flashes Negative input shut down
Multi Coil Pack Adapter: (Optional)
The multi coil pack adapter, (P/N 136B1400), is designed for use with vehicles that do not respond to single coil tach
programming. Although the tach resolution of this circuit is designed to interface direct with most vehicles, there may
be an occasion where the following circuit may be required.
To use the adapter, the Green/Black wires must connect to the negative side of the ignition coil(s).
1. For vehicles utilizing independent coils per cylinder, connect the three Green/Black leads to alternate coils. To

128-8111
14 of 20
14
achieve optimum performance the coil signals must be evenly distributed. This is accomplished by first mapping
out the firing order of the engine in groups of as indicated below. Draw a circle around any of the columns. The
Green/Black wires should be connected to the negative (-) terminal of the respective cylinder number which
appears in any of the circles.
2. For vehicles utilizing 2 cylinder firing per coil pack, connect Green/Black to the tach side of each coil pack. For 8
cylinder, four coil systems, connect to any of the three coils.
3. Connect the Yellow wire to a +12 volt ignition 1 source. This wire will have +12 volts with the ignition in the on and
start position and have 0 volts with the ignition in the off position.
4. Connect the Green wire to the tach input of the Audiovox remote start unit.
TESTINGYOURINSTALLATION:
WARNING!! The following procedure must be performed after the installation of an Audiovox Remote Start
Device. It is the responsibility of the installing technician to complete these tests. Failure to test the unit in the
following manner may result in personal injury, property damage, or both.
HOOD PIN SAFETY SHUT DOWN:
The intention of the hood pin safety shut down is to prevent the Remote Start unit from being activated while a
mechanic or vehicle owner is performing normal routine vehicle maintenance.
To test the integrity of this circuit:
1. With the driver's window in the down position, start the vehicle using the RF transmitter.
2. Reach inside the car and pull the hood release.
3. Raise the hood and confirm that the remote start unit shuts down.
If the unit fails this test, recheck your pin switch connection to the Gray/Black wire of the Audiovox Remote Start Unit.
WARNING!!
DONOT RELEASE THIS VEHICLE TO THE CONSUMER UNTIL YOU CONFIRM THE
OPERATION OF THE HOOD PIN SAFETY SHUT DOWN FEATURE.
MANUALSHUT DOWN /ENABLE CIRCUIT:
The intent of the manual shut down / enable circuit is to allow the vehicle operator to prevent operation of the Remote
Start Unit regardless of the RF transmitter operation.
1) With the system disarmed/unlocked, and the ignition switch off Press and Hold the PRLED on.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED begins to flash two short flashes followed by one long flashes and continues this pattern until
returned to normal mode of operation.
This puts the unit into the R/S Override mode indicating that the remote start is in the service mode and will not
start from RF or any other input Posse or otherwise.
To Exit R/S Override Mode
1) With the system disarmed, Press and Hold the PRLED on.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED turns off indicating that the R/S unit is fully functional one again.
WARNING!!
DONOT RELEASE THIS VEHICLE TO THE CONSUMER UNTIL YOU CONFIRM THE
OPERATION OF THE MANUALSHUTDOWN / ENABLE FEATURE.
NEUTRALSTARTSAFETYTEST:

128-8111
15 of 20
The intent of the neutral start switch is to prevent the vehicle from starting while the gear selector is in any position
other than Park, or Neutral. When installing a Remote Start Device, it is imperative that the Yellow Starter wire be
connected to the ignition switch side of the Neutral Start Switch. Consideration for the placement of a starter inhibit
relay is important as well, and should be connected to the ignition switch side of the Yellow Start Wire.
To test the integrity of the Neutral Start Safety Circuit:
1. Set the vehicle parking brake.
2. Block the drive wheels to prevent vehicle movement.
3. Temporarily disconnect the Brown/Black positive shut down wire from the vehicle's brake switch.
4. Sitting in the vehicle, start the engine using the vehicle's ignition key.
5. Step on the brake pedal and shift the gear selector into reverse.
6. Allow the transmission to shift. When you feel the engine pull, do not move the gear selector just turn the ignition
switch off. DO NOT attempt to remove the key.
7. Keeping the brake pedal depressed, activate the RF transmitter in an attempt to start the vehicle. The car should
not start.
8. Repeat the above test this time move the gear selector to the drive position. If the unit attempts to start, failing this
test, recheck your Yellow Wire's connection. This wire must be connected to the ignition switch side of the Neutral
Start Switch. If the vehicle you are working on does not have an Electrical Neutral Safety Switch, it will be necessary
to reconfigure the Remote Starts Wiring to accommodate this vehicle. The information concerning the Mechanical
Neutral Safety Switch provided below will help you to determine if the vehicle you are working on has this type of
safety switch and will provide alternate wiring methods to accommodate this situation.
WARNING!!
REMEMBERTORECONNECTTHEBROWN/BLACK WIRE TEMPORARILY
DISCONNECTEDIN STEP 3.
DO NOT RELEASE THIS VEHICLE TO THE CONSUMER UNTILYOU CONFIRM THE OPERATION OF
THENEUTRALSAFETY STARTFEATURE.
MECHANICALNEUTRALSAFETYSWITCHCONSIDERATIONS:
Mechanical neutral safety switch configurations differ slightly in that they do not offer the same level of safety when
installing a remote start device. Often when the ignition switch is turned off while the gear selector is in any position
other than park or neutral, the mechanical function will not allow the key to be turned to the start position or be removed
from the ignition cylinder. This configuration prevents mechanical operation while the vehicle is in gear but offers no
consideration for electrical operation. Because of this potential problem, this installation requires the additional
connection of a safety wire from the remote start device to the vehicle Park/Neutral ECM Input or the vehicle key in
sensor. This connection will prevent remote start operation if the key is left in the ignition switch regardless of the gear
selector position.
PARK/ NEUTRALECMINPUT:
The Park / Neutral ECM input is the preferred method of installation. This not only maintains the integrity of the factory
circuit, it is also the easiest to install, providing the vehicle you are working on has this ECM input.
The installation required for this application (shown below), indicates the slight reconfiguration of the control switch
wiring and the addition of a 4000 series diode. Shown is a typical GM Park/Neutral ECM input circuit. To connect the
Audiovox remote start unit to the GM Park / Neutral ECM input:
1. Locate the Orange / Black reference wire in the "C2" connector found at the ECM in GM B Body vehicles or, locate
the equivalent reference wire in the vehicle you are installing the Audiovox Remote Start Unit in.
2. Connect the Cathode, (Striped) end, of a 4000 series diode to this reference wire.
3. Connect the Anode, (Non Striped) end, of the diode to one side of the Remote Start enable switch.
4. Connect the other side of the enable switch to the Black/White enable input wire of the Remote Start unit.

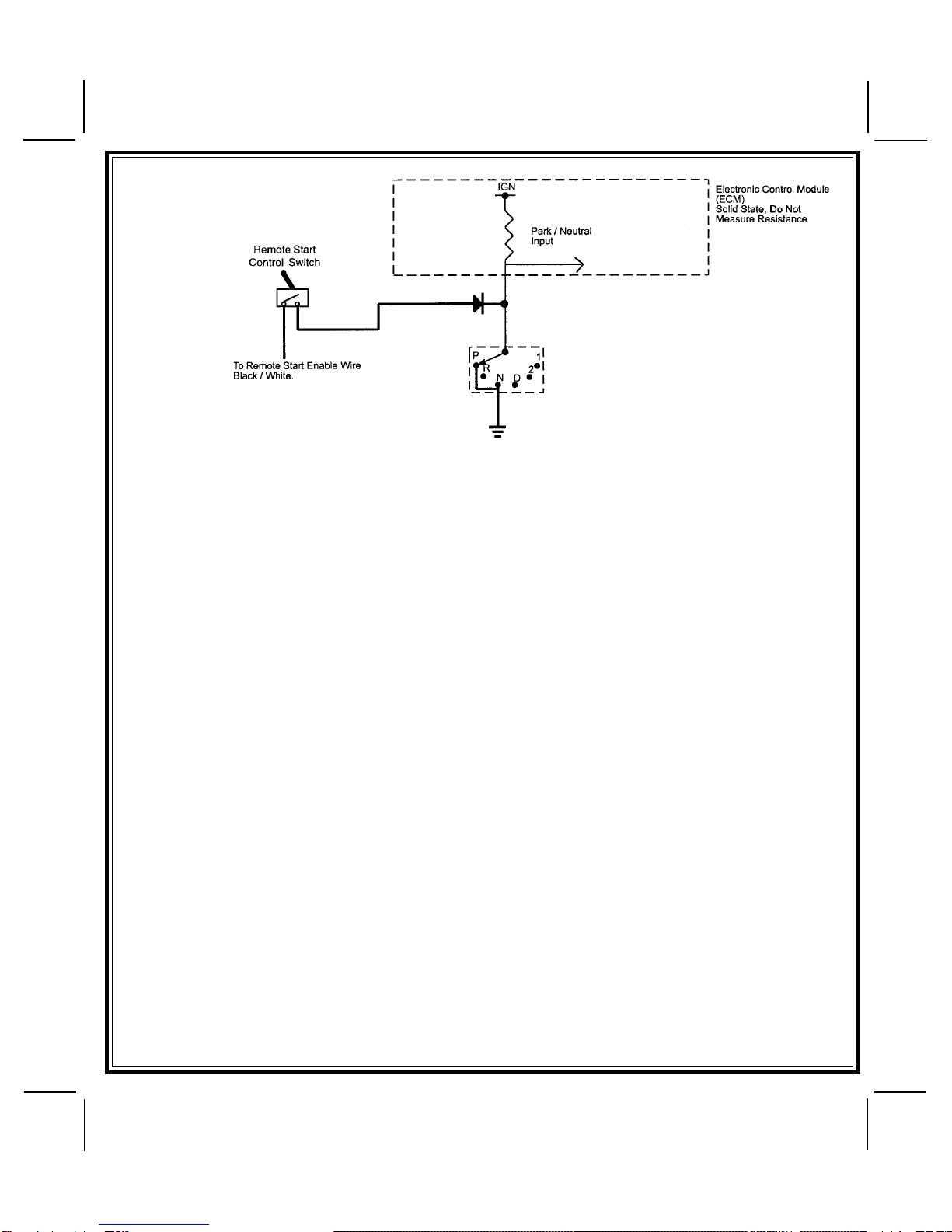

The reference diagram below shows a typical GM B Body ECM reference wire and how it is to be connected to the
Remote Start Unit.
15

128-8111
16 of 20
KEYIN SENSORCIRCUITS:
If the vehicle you are working on does not have or you cannot locate the ECM reference wire, there are two alternatives
available. Although not preferred, the vehicle Key In Sensor may be reconfigured to allow a margin of safety and will
prevent the vehicle with a Mechanical Neutral Start Switch from starting in gear.
AUDIOVOX ADVISES THAT YOU MAINTAIN THE FACTORY CIRCUIT WHENEVER POSSIBLE. The following two
circuits may be used only if the above circuit is not available.
NOTE: When completing an installation using either of the following key in sensor circuits, if the operator inserts the
ignition key while the vehicle is running under the control of the Remote Start, the vehicle will shut down. This
must be explained to the operator as it is in contrast to the normal operation of a vehicle utilizing an electrical
neutral start switch and is inconsistent with the operator's manual.
Additional information concerning Key In Sensor methods 1 & 2 are listed below and should be reviewed before
considering either alternative.
Method 1 will allow the safety required for the remote start unit and prevent the vehicle from starting while in any gear
other than Park or Neutral while the key is in the ignition cylinder. However, if the key is left in the ignition switch and
the door is left opened, the added relay will be energized causing a 150mA drain on the battery.
Method 2 will allow the safety required for the remote start unit and prevent the vehicle from starting while in any gear
other than Park or Neutral while the key is in the ignition cylinder. However, the original factory key in chime module will
not alert the owner that the key has been left in the ignition switch. In addition, this may also effect other warning tones
such as the light on reminder.
These situations should be carefully considered before altering the vehicle's wiring and must be fully explained to the
consumer.
Circuits may be used only if the above circuit is not available.
To connect to the key in sensor as shown in method 1:
A. Locate the control wire that connects the drivers door pin switch to the key in sensor switch.
B. Cut this wire and connect the ignition cylinder side to chassis ground.
C. Locate the key in sensor switch wire that connects the chime module to the ignition cylinder .
D. Cut this wire and connect the ignition cylinder side to terminal #30 of a P&B VF45F11 or equivalent relay.
E. Connect the cathode (striped) side of a 4002 series diode to this same wire, and connect the (non striped) side to
the negative shut down safety wire (Gray / Black) of theAudiovox Remote Start Unit.
F. Connect terminal #86 of the relay to a fused +12 volt constant battery source.
G. Connect terminal #87 of the relay to the Chime Module side of the previously cut wire in step D.
H. Connect terminal #85 of the relay to the Drivers Door side of the pin switch wire previously cut in step B.
METHOD1
16

128-8111
17 of 20
METHOD 2
To connect to the key in sensor circuit as shown for method 2:
A. Locate the control wire that connects the drivers door pin switch to the key in sensor switch.
B. Cut this wire and connect the ignition cylinder side to chassis ground.
C. Locate the key in sensor switch wire that connects the chime module to the ignition cylinder .
D. Cut this wire and connect the ignition cylinder side to the Remote Start Negative Safety Shut down Wire Gray/Black,
using a 4002 series diode as shown above.
NOTE: A second 4002 series diode may be required to maintain the integrity of the hood open, shut down circuit. If
this is the case, it must be installed as shown in the diagram above. The anode (Non Striped) side must be
connected to the Gray/Black wire of the Remote Start Unit. The cathode (Striped) side must be connected to
the hood pin switch. If the hood pin switch is also used for an alarm trigger input, be certain to use the dual
diode assembly packaged with the Audiovox Remote Start Unit as shown in this installation guide.
AFTER THE CONNECTION OF THE NEUTRAL START SAFETY WIRE AS INDICATED INANY OF THE PREVIOUS
ALTERNATECONFIGURATIONS,THIS CIRCUITMUSTBETESTEDFOR OPERATION.
Retest by following the steps outlined in the NEUTRAL START SAFETY TEST shown in this manual.
17
NOTE: A second 4002 series diode may be required to maintain the integrity of the hood open, shut down circuit. If
this is the case, it must be installed as shown in the diagram above. The anode (Non Striped) side must be
connected to the Gray/Black wire of the Remote Start Unit. The cathode (Striped) side must be connected to
the hood pin switch. If the hood pin switch is also used for an alarm trigger input, be certain to use the dual
diode assembly packaged with the Audiovox Remote Start Unit as shown below.

128-8111
18 of 20
COMPLETING THE INSTALLATION:
After you have confirmed the operation of the Audiovox Remote Start unit and tested all the safety features of the
system:
1. If you have not done so already, place the red rubber handle cover over the handle of the control switch for ease of
identification. This will allow your customer to distinguish the Remote Start control switch from the program
switch.
2. Mount the control module up and behind the dash securing it in place with cable ties or screws. Be certain that the
chosen mounting location will not inhibit any of the controls of the vehicle.
3. Securely harness and tie all wiring up and away from all hot and moving parts that they may come in contact with
under the dash board or in the engine compartment areas.
CAUTION: Particularly avoid the area around the steering shaft and column, as wires can wrap around these
mechanisms and impair the safe operation of the vehicle.
4. Applythe Caution Labels supplied withthis kit to a conspicuous area in the enginecompartment. Make sure to clean
the surface before affixing the label.
5. Check the vehicle's wipers, lights, horn, etc.... to insure proper operation.
6. Replace all panels that were removed during installation, and retest the system.
7. Explain all activated features and safety systems associated with Remote Start Unit installed to the customer.
8. Place the Valet Switch Tag and or the Remote Start Control Switch Tag on their respective switches and
point these out to the customer.
18

128-8111
19 of 20
19

128-8111
20 of 20
© 2007 Audiovox Electronics Corp., Hauppauge, NY 11788
128-8111
