1
Safety Precautions
Do not subject the device to severe impact or drop it from heights.
Do not use the device in extreme hot or cold, dusty or damp conditions.
Do not expose it to direct sunlight.
Avoid using the device near strong magnetic fields.
Keep the device away from water and other liquids. In the event that
water or other liquids enter the device, power off the product
immediately and clean the device.
Do not use chemicals to clean the device in order to avoid corrosion.
Clean it with a dry cloth.
We are not responsible for damage or lost data caused by malfunction,
misuse, modification of the device or battery replacement.
Do not attempt to disassemble, repair or modify the product. This will
invalidate the warranty.
If the device will not be used for an extended period of time, please
charge the battery at least once per month to maintain battery life.
Charge the battery if:
a) The battery level icon displays as empty.
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and
battery full.
When the device is being formatted or transferring a file, do not
interrupt the connection. Otherwise, data may be corrupted of lost.
When the device is used as a portable HD, please use only per the
instructions.
Otherwise, permanent data loss could occur.
Please use and install data using the attachments/accessories
provided and only according to the manufacturer’s instruction.
Please refer to the information on the bottom of the device for
electrical and safety information before installing data or operating the
device.
To reduce the risk of fire or electric shock, do not expose this device to
rain or moisture. The device should not be exposed to dripping or
splashing. Never place objects filled with liquids, such as vases, on the
device.
There is danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type.

2
The battery (battery or batteries or battery pack) should not be
exposed to excessive heat such as sunlight, fire or the like.
Please follow responsible procedures for battery disposal.
If the power adaptor is disconnected from the device, the device will
remain operable as long as the battery has sufficient charge.
The power adaptor is a CLASS II apparatus with double insulation, and
no external ground is provided.
Safety symbol explanation:
-The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of
non-insulated ―dangerous voltage‖ within the product enclosure
that may be of sufficient magnitudes to constitute a risk of
electric shock.
-To reduce the risk of electric shock, do not remove the cover (or
back) as there are no user-serviceable parts inside. Refer
servicing to qualified personnel.
-The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the
device.
This product should not be disposed of with other household waste in
the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To dispose of your used
device, please use the return and collection systems available in your
area or contact the retailer where the product was purchased. They
can take this product for safe environmental recycling.
Do not leave the device on in a confined space such as a book case or
similar. The ventilation should not be impeded by covering the

3
ventilation openings with items such as newspaper, table-cloths,
curtains, etc.
No open flames, such as lighted candles, should be placed on the
device.
Use the device in moderate climates.
Listening Precautions
Do not listen to your earphones or headphones at a high volume.
Hearing expert advice against continuous extended play.
Excessive volume through earphones and headphones can cause
hearing loss.
If you experience a ringing in your ears, reduce volume or discontinue
use.
Do not use while operating a motorized vehicle. It may create a traffic
hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in
potentially hazardous situations created by obstructed hearing.
Even if your headphones or earphones are the open-air type designed
to let you hear outside sounds, don’t turn up the volume so high that
you can’t hear what’s around you.
Sound can be deceiving. Over time your hearing ―comfort level‖
adapts to higher volumes of sound. What sounds ―normal‖ can actually
be loud and harmful to your hearing. Guard against this by setting the
volume of your device at a safe level BEFORE your hearing adapts.
To establish a safe volume level:
a. Start your volume control at a low setting.
b. Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion. Once you have established a
comfortable sound level, leave it there.

4
Table of Contents
Safety Precautions
1
Listening Precautions
3
1. Packing List
5
2. Device Overview
5
3. Charging
6
4. Power on/Power off
6
5. Inserting a Memory Card
7
6. Calibration
7
Home screen
8
7. Home screen bars
8
8. Prestigio home screen
9
9. Customizing the home screen
10
10. Pop-up menu
11
Touch Screen
13
eBook Reader
14
11. On-screen Google search bar
16
12. Keyboard settings
19
13. Memory cards and storage
20
Connecting to Internet
22
14. Connecting to WiFi
22
15. Browsing the Web
22
16. Using Web Links and History
24
17. Managing Bookmarks
25
Settings
26
18. Sound & Display settings
26
19. Language settings
27
Applications
28
20. Transferring content from PC
28
21. Using applications
28
22. Managing applications
29
23. Downloading and installing applications
30
24. Uninstalling applications
32
25. Downloading content from AppsLib
33
26. Email
34
Technical Specifications
35
Disclaimer
35

5
1. Packing List
1. Prestigio MultiPad
2. AC Adapter
3. Earphone
4. USB Cable
5. Quick Start Guide
6. Carrying Case
7. Warranty Card
2. Device Overview
Page Jump
Buttons
Turn to the previous/next page in eBook
Reading Mode
Press and hold the Previous Page Button to
return to Home page. Press and hold the Next
Page Button to return to previous page.
SD Card Slot
Insert SD card
Reset Button
Reset the device to default settings
Mini USB Port
USB connection
4
3
2
1
1
2
3
4
5
6
7

6
Earphone Jack
Earphones connection
DC Port
AC adapter connection
Power Button
Turn on/off the device; Suspend/Activate the
device.
3. Charging
Insert the AC connector to the DC port on the device and connect the
power adapter to the wall socket for charging.
Normally it takes approximately 3 hours to fully charge the device.
Operating the device while charging with the AC adapter may extend
the time of full charging.
4. Power on/Power off

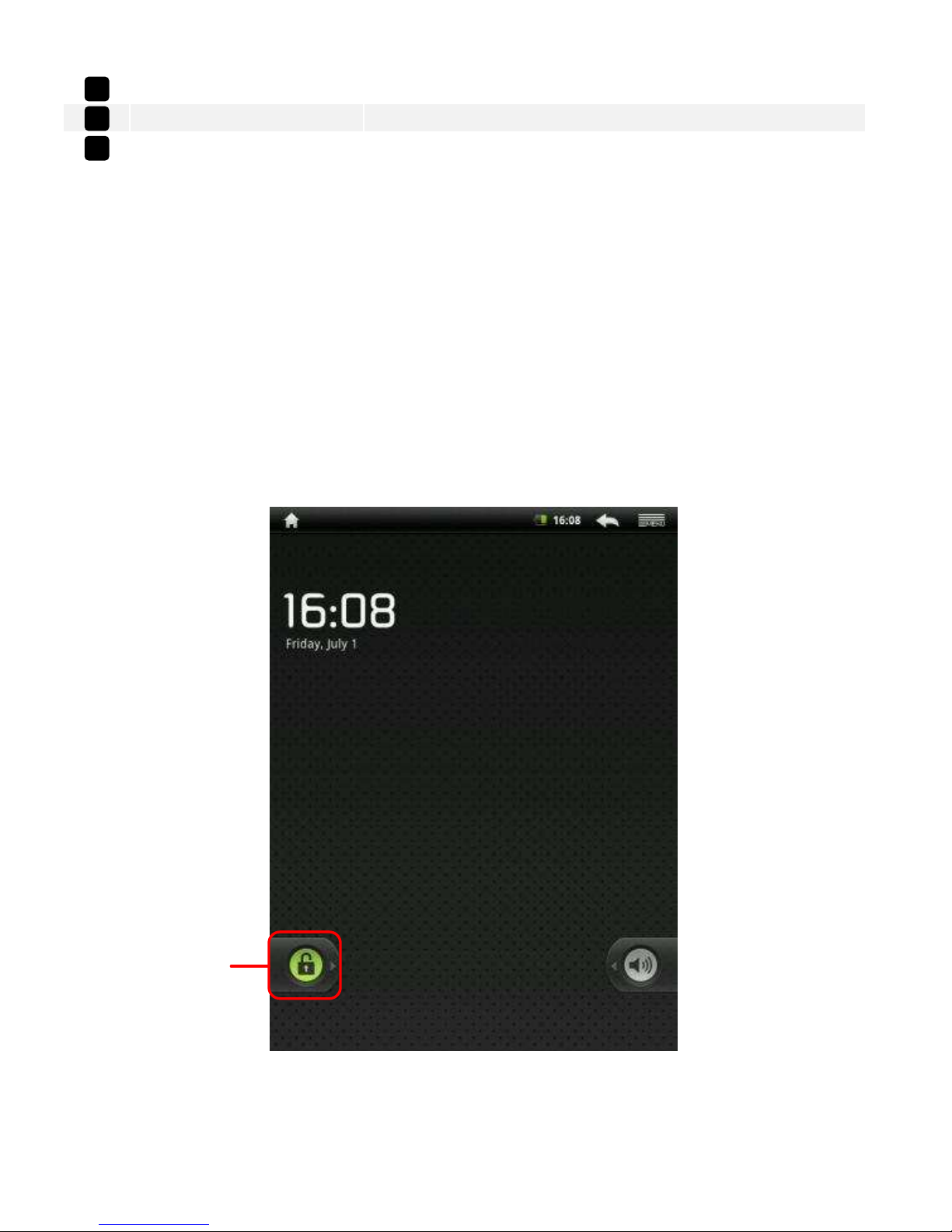

Press and hold the Power Button to turn on the device. It will
automatically enter the Lock screen after the start-up screen:
To unlock the device touch and drag horizontally the Unlock button.
Press the Power Button once to enter sleep mode and press it again
to awake the device. The device will automatically enter the Lock
screen. To unlock it touch and drag horizontally the Unlock button.
7
5
6
Unlock button

7
Press and hold the Power Button, and then tap on Power
off/Standby to power off the device or to enter sleep mode.
5. Inserting a Memory Card
The device supports SD/SDHC cards.
To insert a SD card, place the card connector towards the device and
the card label towards the rear side of the device.
To remove the SD card, gently press the edge of the card to release
the safety lock and pull the card out of the slot.
To access the files on the memory card, select Explorer mode and
tap on SD Card.
6. Calibration
When using the device for the first time (or after erasing all user’s
personal data) the device will automatically performs the G-sensor
calibration.
At the Calibration screen place the device on the flat horizontal
surface and follow the on-screen instructions. If failed to do so you
may notice deviations of the screen image from the device position in
space later on. In this case it is recommended to calibrate the device
again by touching Settings > Touch panel calibration.
After successful calibration the device will enter the home screen.

8
Home screen
7. Home screen bars
Your device has the resistive screen. It is operated by touching the
screen surface with your finger.
Status bar
Widget
Buttons panel
Page scroll
Page scroll

9
Status bar
The status bar displays the home button, time, battery status, alarm,
WiFi as well as Return and Menu buttons.
Time and WiFi area
Displays the current time and the alarm symbol,
when Alarm is activated.
Connected to a WiFi network.
Battery status
Displays the battery power or charging progress.
Battery is full
Battery is low and must be recharged
Battery is extremely low and must be
recharged immediately
Battery is empty and must be recharged
immediately
Battery is charging
Return button
Return to the previous screen.
Menu button
Displays the current options.
Home Button
Touch the home button to return to the
home screen. Touch and hold the home button
to display recently opened items.

10
Buttons panel
Applications drawer
Open the list of all applications, folders
and shortcuts on the device.
eBook Reader shortcut
Open the eBook reader application.
Settings
Open the settings options.
Widget
Home screen weather forecast widget, providing you with up-to-date
weather information in a selected location.
The widget displays cloudiness and local time and date for a selected city.
Touch the widget to configure it. The configuration screen will appear,
allowing to choose location and temperature measurements units.
To change the city in the widget, touch Search City and enter the city
name. As you type the device will suggest most probable city names.
Choose the desired city and touch Add.
Note:
To obtain weather forecast your device must be connected to WIFI. For
instructions on how to establish a WIFI connection, please, refer to
section 12. Connecting to WIFI.
8. Prestigio home screen
Prestigio home screen allows to adjust it according to the user’s
preferences.
Prestigio home screen is made up of five individual screens. Each
room fits the physical display border and can be set to have its own
shortcuts and widgets. You can move around the home screen in two
ways:
1. Flick the Home screen horizontally until the desired room is
displayed.
2. Touch the dots at the right and left bottom of the screen to
move to the desired room of the home screen.
All the space of the side screens can be used for installing applications,
widgets and shortcuts.
The home screen shortcuts are direct shortcuts (by touching them

11
you are directed straight to the application). You can add or remove
any applications.
For optimal viewing experience, the screen orientation changes
automatically to portrait or landscape depending on how you hold the
device.
Downloaded applications may not support automatic screen
orientation to portrait or landscape.
To modify the default behavior, open the orientation settings by
touching Settings Sound & displayOrientation.
9. Customizing the home screen
To add an item to the home screen:
Touch the button, choose the desired item, touch it and hold,
until the home screen appears. Choose the desired shortcut on the
home screen (or a desired location on the side screen), and release
the item, or
Touch , then Add, and choose the item you wish to add from
the list.
To change wallpapers:
Touch , then Wallpapers, and choose the wallpaper you wish
to add from the list; or
Touch , then Add, and choose the wallpaper you wish to add
from the list.
To move an item:
Touch and hold the item you want to reposition until it magnifies and
becomes movable.

12
With your finger remaining in contact with the item on the screen,
drag the item to another location on the screen.
Release the item in the desired location.
To remove an item:
Touch and hold an item such as a widget, shortcut, or folder that you
want to remove, until it magnifies and becomes movable.
Drag the item onto the top of the delete icon , and when the item
becomes red release it.
10. Pop-up menu
Touch the Menu button to open or close the pop-up menu that
lists available options for the current application, or actions that you can
perform on the current screen.
To select an option or item on the pop-up menu:
Touch the Menu button to open the pop-up menu.
Touch the desired item on the pop-up menu.
If the menu has a scroll bar on the right side, you can flick the menu
until the desired item is found.
Touch the Menu button again to close the pop-up menu.

13
Touch Screen
Perform various touch operations with a finger or a stylus. Intensely tap
on the screen to select an item.
In the page view, swipe the screen
to turn pages.
Tap and drag on the screen to
scroll up/down.
Note: For your convenience it is recommended to use a stylus or a
plastic pen for touch operations. When scrolling up/down keep the finger
or the stylus on the screen.

14
eBook Reader
To open the eBook Reader touch at the buttons panel. The
following screen will appear.
Default Shortcuts
History
(Last read books)
My Library
(Books list)
More Applications
Tap to pop up applications page.

15
From History/My Library, tap on
/ to turn pages. Tap on a
desired book to open it.
Tap on History/My Library to
enter the last read books list/books
list.
Tap on Title/Author/Size to select
a desired sorting method.
When reading a book, swipe the
screen to turn pages.
You can also press Page Jump
Buttons to turn pages.
NOTE:
The device supports PDF, EPUB, TXT, FB2, HTML, PDB formats.

16
11. On-screen Google search bar
You can access the Google Search tool directly from home screen by
tapping anywhere on the Google search bar.
Note:
Please, make sure your device is connected to the Internet.

17
Keyboard controls for inserting text:
Touch to type letters into the field where the cursor appears.
Based on the letters being typed, the keyboard shows suggested
words under the keyboard, the most probable one highlighted in
color.
You can touch a suggested word to enter it into the text field.
Touch once to show the uppercase keyboard for typing a capital
letter.
Touch twice to enable the Caps Lock mode.
Touch to change back to the lowercase keyboard.
Touch to show the keyboard for typing numbers, punctuation
marks, and symbols other than the period.
Touch to switch back to the alphabet keyboard.
Touch to delete a typed character, symbol, or a space.
Touch and hold to quickly delete typed text.
Touch to search the input word.
5
4
3
2
1
1
2
3
4
5

18
If you need to type an accented letter, touch the letter and hold it, until
the accented letters appear.
Text editing:
After typing the text touch it and hold to display the following:
You can select parts of text or all text, cut, copy and paste it, change the
input method or add the typed text to the dictionary.

19
12. Keyboard settings
Touch the Menu button Settings Language &
keyboardAndroid keyboard.
To enable a setting, touch the setting option to select the check box
; to disable a setting, touch the setting option to clear the check
box .
Available keyboard settings:
Sound on keypress
The device beeps when you touch a key.
NOTE: To activate this item, you also need to
select SettingsSound & displayAudible
selection.
Auto-capitalization
The first letter of the word in a new sentence is
capitalized.
Input languages
Change the input language.
Quick fixes
Mark and correct wrong spellings and typos.
Show suggestions
Show suggested words as you type.
Auto-complete
If this mode is enabled, touching the spacebar
or a punctuation key automatically inserts a
highlighted word suggestion.
Creating personal dictionary:
The keyboard uses the default dictionary to display suggested words as
you type. You can create a personal dictionary to include words not found
in the main dictionary. The keyboard will also use the words that are
added to your personal dictionary to make word suggestions.
To add a word to the dictionary:
Touch the Menu button Settings Language &
