Prestigio PMP5570C Operating manual

PMP5570C
TECHNICAL
SERVICE MANUAL

产品规格书(Product Specification Sheet)
产品类型(Model): 平板电脑(Tablet)
型号(Machine Model)： SMB-C7016
品牌(Brand): 万利达(Malata)
描述(Description): 7 寸平板电脑(7 inch Tablet)
版本(Revision): 1.0
修改履历（Revision History）
日期 (Date) 版本 (Revision) 描述 (Comment)
2012-8-4 1.0 版本创建(Release for review)
1．基本参数(Basic Parameters)
操作系统(OS) Android 4.0
CPU 型号(CPU) Rockchip RK3066
CPU 核芯数(Core Model) Dual-core ARM Cortex-A9
CPU 频率(Frequency) 1.6GHz
系统内存 DDR(RAM) 1GB DDR3

2 / 2
存储容量(ROM) 8GB MLC
2．显示屏(Display Features)
屏幕尺寸(Screen Size ) 7 inch
屏幕分辨率(Resolution ) 1024 x600
显示比例(Aspect ratio) 16：9
屏幕类型(Display Technology) IPS LCD
屏幕最大亮度(Luminance,cd/m2) 400
屏幕对比度(Constrast Ratio) 800
垂直方向视角 (Vertical viewing angle) 85/85
水平方向视角(Horizontal viewing angle) 85/85
3．控制屏 (Touch Panel Controls)
电容触控屏(Capacitive touch screen) Multiple point(5)
电磁感应屏(Electromagnetic induction screen) No
电磁手写笔(Electromagnetic stylus)
4．无线网络参数(Wireless and cellular)
WiFi 功能(WIFI) 802.11b/g/n
蓝牙（Bluetooth）Bluetooth V4.0(HS)
3G 网络(3G Network) No
3G 支持频段(3G Support band)
5．传感器(Sensors)
重力传感器(Accelerometer Sensor) Yes
外界环境亮度传感器(Ambient light Sensor) No
电子罗盘(Electronic Compass) No
陀螺仪(GYRO Sensor) No
人体接近传感器(proximity sensor) No
振动马达(Vibration Motor) No
6．摄像头和 GPS(Camera and GPS)
后置摄像头（Rear Camera）2.0M pixels
前置摄像头（Front Camera）0.3M pixels
GPS 导航（GPS）No
7．电池 电源(Battery and Power)
电池容量（Battery Capacity）4100mAh 3.7V
类型（Type）Li-ion Polymer Battery
续航时间（Battery charging time）6.5 hours
电源适配器（Adapter）5V/2A
8．输入输出接口(Input and Output)
电源输入接口(DC Input Jack) Mini USB
音频接口(Headphone Jack) 3.5mm Headphone
USB 接口(USB Jack) Mini USB(OTG)
存储卡(SD Card) TF card(up to 32GB)
HDMI 接口(HDMI Jack) Yes(TYPE C)
SIM 卡(SIM Card) No
9．控制键(Buttons)
电源键（Power）Power
音量键（Volume）Vol-、Vol+
菜单键(Menu) No
返回键(Back) No
主界面键(Home) No
10．媒体支持类型(Mail attachment support)
图片（Image）JPG, JPEG, BMP,GIF,PNG
文档（Document）.doc, .xls, .ppt, .pdf, .txt
网页（Web Page）.htm,.html
11．音频(Audio)
频率响应（Frequency response）20Hz ~ 20KHz
支持格式 (解码)
（Formats supported (Decode)）
MP1, MP2, MP3, WMA7, WMA8,
WMA9, WAV, APE, OGG, OGA,
FLAC, AAC, M4A
支持格式 (编码)
（Formats supported (Eecode)）AMR-NB
扬声器（Speaker）0.5W x1
麦克风（Mirophone）Built in
12．视频(Video)
高清视视频解码
（HD Video Decode）
MPEG-1, MPEG-2,MPEG-4,
H.263, H.264, AVS, VC-1,RV,
VP6/VP8, Sorenson Spark,
MVC
高清视频编码（HD Video Encode）H.264, MVC,VP8
图像处理（Graphics Support）OpenGL ES1.1 and 2.0,
OpenVG1.1
13．尺寸和重量(Size and Weight)
长度 (Height) 195mm
宽度 (Width) 122.5mm
厚度 (Depth) 11.7mm
重(Weight) About 350g
14．外观(ID)

Line number Name Specifications Quantity Position number
1Assembly
components
SMB-C7002,Rear housing
components,black+pearl grey+surface
vacuum deposition bright silver
1
2
Plastic parts of
the die cutting
lens
SMBA7006-H01,camera lens,adhesive
3M55231,NR,black 1
3Middle housing
plastic pieces
SMBC7003-RE01,middle
housing,NR,black 1
4Irregular double-
sided adhesive
SMBC7003-H01,6050 PU foam
adhesive,touch panel double-sided
adhesive
1
5platen's metal
parts
SMBB1013-PT02,Earphones' platen,0.3
electrolytic zinc board 1
6Shielding cover's
metal parts
SMBC7016-PT01,motherboard's
shield,0.2mm tin plate 1
7Shielding cover's
metal parts
SMBC7016-PT02,power shield,0.2mm tin
plate 1
8Regular
conductive foam
NR,full conductive,single sided
adhesive,5*5*3mm,NR 1
9Regular
conductive cloth
NR,double-sided conductive,single
sided adhesive,adhesive 1
10 Regular
conductive cloth
NR,double-sided conductive,single
sided adhesive,adhesive 2
11
Graphite thermal HF2000-T02,L120*W30*T0.2,single
1
BOM list
11
pads sided adhesive,adhesive non-
1
12 Speaker mesh
SMBC7003-H02,speaker mesh,high-
density non-woven fabrics,3M467
adhesive(背3M467胶),NR,black
1
13 Regular sponge
pad
7*7*0.5mm,single sided
adhesive,ordinary adhesive,black 1Pasted on the speakers
14 Regular Poron 45*10*1mm,E200-10,one-sided 3M9080
adhesive(背3M9080胶),black 2Pasted on the battery
15 Regular double-
sided adhesive 3M9080,35*3mm,0.1 1 Pasted in key board
16
Irregularly
shaped PET
protective film
SMBC7003-H03,Screen's protective
film,0.05PET(contents silkscreen
multicolor,Eastern Europe Prestigio)
1
17 Copper nut M1.6*2,copper,knurled 6 Hot melt in the
middle housing
18 nickel metal M1.6*3CMHNI(K=0.5) 6
19 Screen touchpad ACE-CG7.OA-182,capacitive,7"&16:9,no
adhesive 1
20 Purchased -数字
LCD panel
TQ-LB7025,LG,7寸,LED,without
touchpad,without TCON 1
21 Cased battery BT-B0B6L,5058120(Lithium polymer-
WanZhong-HaiTaiYang),4100mAh,3.7V,NR 1
22 Speaker
VTSH1524E-03-W77-
J1,0.5W,8R,L24*W15*H3.6,with SUR0.8-
2P-80mm red black
1
23 Built-in passive
antenna
GX005S.300008.S01,nickel
silver,2.4GHz~2.5GHz,lead wire
D1.13*L170mm
1

24 Built - in camera
U-SMB-C7003-V3.0,CMOS,front 0.3 Mp &
rear 2 Mp,front 640*480 & rear
1600*1200,YUV
1
25 Printed carton Presigio,PMP5570C,V1.0 .1 single machine 0.10
26 Paper corner
protector 1000*60*60*5mm .05 By sea single machine 0.05
27 Other pallets 1200*1000*150mm,loading capacity .01 single machine
28 gift box inner Prestigio,PMP5570C,V1.0 1
29 Recycle bag 11*18cm 1 User manual's
packaging bag
30 Recycle bag 6.7*19cm 2
USB cable packaging
bag(1)、OTG cable
packaging bag(1)
31 Recycle bag 14*26cm 1 Device's packaging
32 Ziplock 7.5*8CM 2
European standard
plug's packaging
bag(1)、British
standard plug's
33 Shrink film
packaging bag 270*380mm,V1.0 1
34 Cardboard sheet 485*230mm,single B tile,double-sided
cattle card .2 Pads outside the box up and down
35 Warranty card Prestigio,WARRANTY CARD,V3.0 1
36 QSG Prestigio,PMP5570C,Quick Guide,V1.0 1
37 Legal handbook Prestigio_MULTIPAD,Legal And Safety
Notices,V2.0 1
38
Coated paper
self adhesive
SMB-C7016,T01,Eastern Europe
Prestigio,PMP5570C,triple S/N
3
38
self
-
adhesive
sticker sticker30*8mm(without the bar code)
blank,NR,V1.0
3
39
Coated paper
self-adhesive
sticker
SMB-C7016,T02,Eastern Europe
Prestigio,PMP5570C,UUID
sticker70*8mm(without the bar code)
blank,NR,V1.0
1
40
Dumb film
XiaoYinLong PET
sticker
SMB-C7016,T03,Eastern Europe
Prestigio,PMP5570C,gift box
sticker45*30mm,English,V1.0
1
41
Ordinary paper
self-adhesive
sticker
SMB-C7016,T04,Eastern Europe
Prestigio,PMP5570C,water damage
sticker7*10mm,NR,V1.0
1
42 Warranty seal Eastern Europe
Presigio,PMP5570C,V1.0 1
Size
specifications：
diameter 2.5MM,
Material：Easy
43 Leather case PMP5570C,MID protective
cover,PU+Velvet,black,NR 1
Main materials
:black imitated
sheepskin PU
material,exposed
grinding inside
44 Purchased -AC
adapter
HNB050200X,European standard&British
standard,USB,NR,NR,black 1
45 USB with cable
USB A-male-right angle=MiniUSB-
male[right angle,1m,without the
toroid,black]
1
46 USB with cable
USB A-female-right angle=Mini USB-
male[right angle,150mm,without the 1 OTG Min USB cable
toroid,black]

47
[Semifinished
product]-
Motherboard
8266C,Eastern Europe Prestigio,001 1
48
[Semifinished
product]-adapter
plate
8179C,Eastern Europe Prestigio,001 1
49
[Semifinished
product]-adapter
plate
8180C,Eastern Europe Prestigio,001 1
50 [Semifinished
product]-key 8184C,Eastern Europe PrestigiO,001 1

Maintenance
Common troubleshooting
1: what to do when the machine starts up what basic detection step?
Answer:
1） if connected to the power supply adapter can boot, said battery.
2） ensure the power adapter of the indicator light, the normal work of power adapter.
2 : does the machine accidentally when the water how to deal with?
Answer:
1） do not to boot, or let the computer damage more serious.
2） the machine surface water after drying, immediately send professional repair
processing.
3: how to restore the factory settings?
Answer:
open the " Settings " > " backup and reset " > " to restore the factory settings
" > reset the computer. Restore factory settings before save data.
4: how to prolong the life time of the battery?
Answer:
1）LCD liquid crystal display screen brightness is adjusted to a proper brightness.
2） adjust the volume to the appropriate size.
3 ）adjusting screen timeout time.
5: the network connection under normal circumstances, the Internet is slow to do?
Answer :
recommendations for clearing your browser cache, specific exercises please refer
to the " browser " partial correlation operation.
6: light ( light-sensor ) function can not be achieved and how?
Answer:
users are advised to open " automatic brightness adjustment ". Specific operations:
" set " > " display " > " Brightness ", open " automatic brightness adjustment
function.
7: the machine halts the how to do?
Answer:
press the power button to shut down.
Common corrective maintenance
1:Starting up failure and screen shows no self-checking picture of staring
up
1）、Press the power button to see the whether the power indicator
show red light. If not, then connect the power adaptor to make it work.
Then start it again after charging it for 10 minites (caused by no power)
A）、Check whether power socket of mainboard is poor contact，
B）、Check up whether the battery is 5V2A,or to check up if there
is short circuit and leakage failure
C）、Check up whether the mainboard has smell of scorching caused

by integrated heating or line short.
2）、Press the power button to see the power indicator and voltage
are all normal, there may be two situations:
A)firmware of software bug:programme the firmware again；
B)hardware bug:first to check up whether the mainboard integration
is heating with hand as well as the connecting line, and then use the relief
method that the trial run is replaced by mainboard and LCD；
2：Starting up crash at the stage of starting up picture
1）、Firmware of software: caused byloss of document package or too
many softwares, so we suggest to reinstall the firmware；
2）、Hardware trouble; a. check up whether the voltage is too low,
the adaptor is work well and no power of normal battery or failure of
battery。
3:The battery can’t be charged after starting up
1）、Check up whether the battery lines is in good condition and it
has leakage failure；

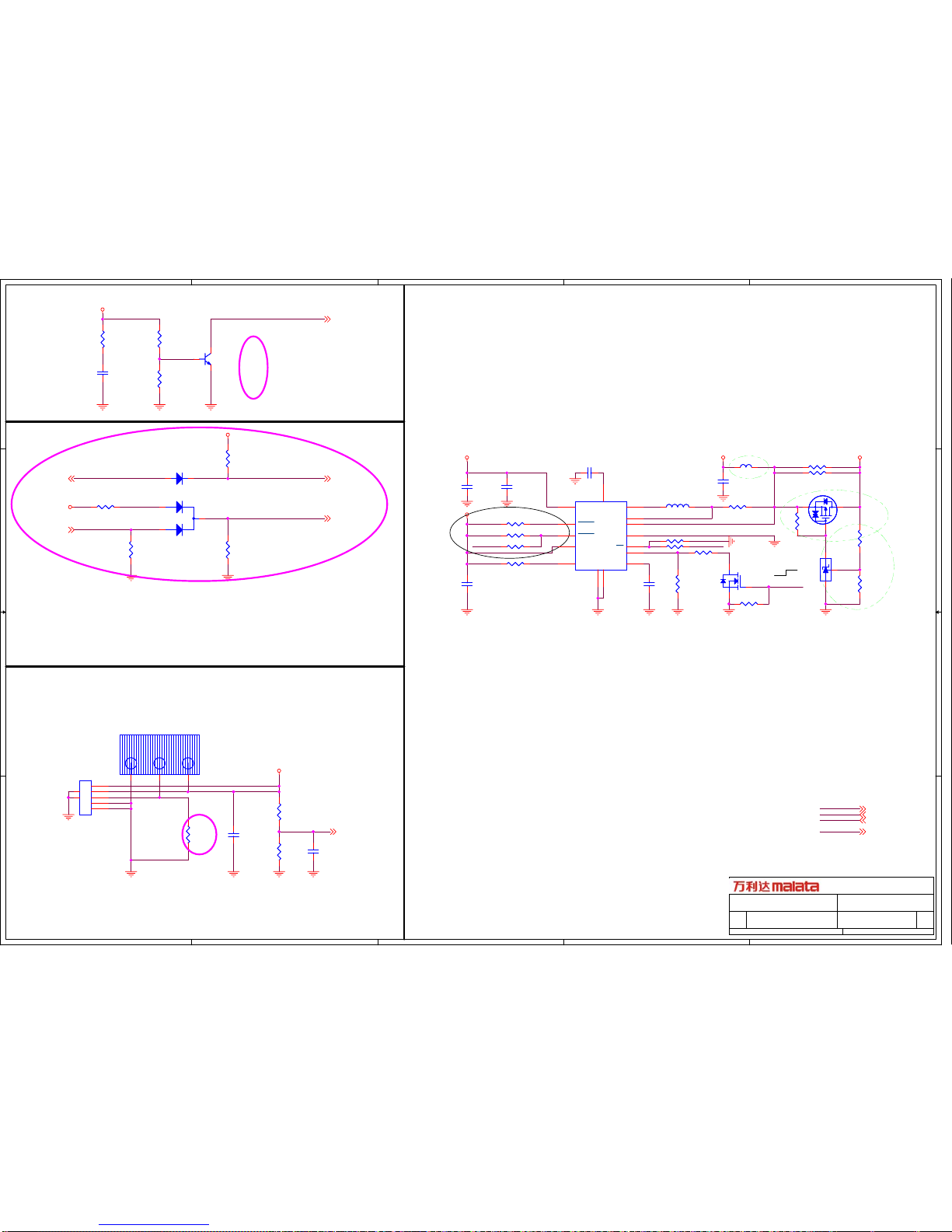

2）、Check up the power supply VCC+5v of battery is functioning. Its
control of circuit MAX8903 is showed as the below picture。
4： USB,HDM,SD card do no function
1）、The three connections lead to mainboard directly, so we should
check up that if there is bad contact or broken connection first；
2）、Check up that if the external device is compatible with native
machine；
3）、For the long terms of inserting and pullting out, check up that
whether the weld between connector and mainboard is in good condition,
reweld it or renew the connector。
5：Camera do not work
1）、check up if the camera can work or there is dust in external
camera
2、Check the hardware that whether sensor connect well with the
mainboard and replacing sensor judgement works well, or it is the
mainboard bug。
6: WIFI does not work
1）、chect whether WIFI can be started, please refer to the instruction to
get details；
2）、Check the hardware that WIFI board and external antenna are
in good connection, voltage of WIFI board, Y3 crystal oscillator and
effectiveness of WIFI。

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Index
A3
116Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Index
A3
116Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Index
A3
116Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
AUDIO
LCD PANEL
TOUCH PANEL
HDMI
CAMERA/G_SENSOR/KEY/COMP
DC/CHARG
USB OTG
DDR3
Block Diagram
INDEX
SYSTEM POWER DIAGRAM
Modify note
FLASH/TF CARD
GPIO
SYSTEM POWER
WIFI
above 80 miles
PCB POWER WIRE WIDTH INDICATE
above 50 miles
above 16 miles
above 30 miles
Under needs
No indicate
CONTENT INDEXING
6 LAYERS PCB STACK
Hoz(18um) + plating copper(18um)
1oz(35um)
1oz(35um)
1oz(35um)
1oz(35um)
Hoz(18um) + plating copper(18um)
Prepreg 3313*1 4.0MIL(0.10mm)
Prepreg 3313*1 4.0MIL(0.10mm)
Core 3.94MIL(0.1mm)
Core 3.94MIL(0.1mm)
Adjust
GND
S1(S2)
GND(POWER)
S2(BOTTOM)
TOP
POWER(S1)
标题 / 描述 页码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Block Diagram
A3
216Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Block Diagram
A3
216Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Block Diagram
A3
216Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
SDIO1
2918 PWR
UART2
I2C3
I2C2
I2S0
LCDC
RGB888
NAND FLASH *2
>=1GB
DDR3 *2
256M*8Bit
RK3066
32768Hz 24MHz
OSC 24M 32K
CLKIN
DDR3 *2
256M*8Bit
UART0
USB
OTG2.0
iNAND
RESET
USB
HOST2.0
NANDFLASH
PMIC
I2S1
DDR
Interface
CHARGE&
POWERSWITCH
CIF0 SDIO0
HSADC
IR IN
RK903
CIF1
FRONT CAMERA
REAR CAMERA
I2C4
RBG TO LVDS
LVDS PANEL
TOUCH PANEL&
LIGHT SENSOR
AUDIO CODEC
I2C0
I2C DEVICE
DEBUG
I2C1
Mini USB
5V/2A
BATTERY
3.7V
RTC 32K CLKOUT
RESET
HDMI PORT
HDMI1.4
UART3
KEY BOARD
GPIO
&AD
BATTRY DETECTOR
WIFI+BT+FM
WIFIUSB
YUV

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
System power diagram
A3
316Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
System power diagram
A3
316Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
System power diagram
A3
316Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
POWER DIAGRAM
1.5V
1.1V
RK3066_IO
AP0/AP1
LCD0/LCD1
3V
DC Adapter
5V/2A
WM8326
Battery Charge
power switch
SMB347
DC2VDD
DDR3-Device
ARM Core
RK3066_DDR-Ctrl
VDD_ARM
DCDC1
VCC_DDR
DC3VDD
VCC_IODC4VDD
VCC5 VCC_33
VCCIO_WL
VCC6
VCC_TP
VCCA_33
VCC2
VCC_25
VDD_11
VCC1
VCC18_CIF
VDD_12
VCC7
VCC28_CIF
WIFI ANOLOG
3.3V
3.3V
AUDIO CODEC
2.8V
PMU IO
1.8V
USB_PHY
USB CORE
CORE PLL
PMU CORE
3.3V
2.5V
WIFI MODULE IO
1.1V
NO USE
1.2V
NANDFLASH/SD
GSensor/Compass/GRY
1.8V
VDD_LOGDC1VDD
1.1V
LOG/GPU Core
TOUCH PANEL
VCCA_WL
VCC_PMIC
HDMI CORE
HDMI IO
USB PHY IO
CIF0/CIF1 ANALOG
3.3V
CODEC IO
VCC3
VCC4
VCC_IO
DCDC2
DCDC3
DCDC4
VSYS
AD KEYBOARD
MAX 2.5A
MAX 2.5A
MAX 1A
MAX 1A
MAX 300mA
MAX 200mA
MAX 200mA
MAX 100mA
MAX 150mA
MAX 100mA
MAX 100mA
MAX 200mA
MAX 200mA
MAX 150mA
CIF0/CIF1 IO&CORE
SPEAKER
VCC_IO
BAT DET
Power on/off Timing
VCC_LCD
VCCA_33
VCC_IO
VDD_ARM
VCC18_CIF
VDD_LOG
VCC_25
VDD_11
VCC_DDR
PWR_HOLD
VSYS
VCC_33
RESET
VCC28_CIF
VCC_LED
VCC18_FLASH
VCCIO_WL
PWR_EN
2 m s
2 m s
2 m s
2 m s
t1≥0
51ms
1 cell
battery
3.7v

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CHG_CTL
CHG_DET
OTG_INT
CHG_EN
CHG_CTL
CHG_DET
NTC
CHG_EN
DC_DET
DC_DET
NTC
VBUS0
VBATT
VBUS0
VSYS
VBUS0 VBATTVSYS
VREF33
PMIC_PWRON 5,14PWR_KEY6
BAT_DET 6
CHG_CTL 6,13
CHG_EN 9
CHG_DET 6
OTG_INT 6
PWR_HOLD6,13
PWR_EN 5
DC_DET 6
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
DC/Charge
A3
416Monday, August 20, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
DC/Charge
A3
416Monday, August 20, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
DC/Charge
A3
416Monday, August 20, 2012
Jacky Huang
SMB-C7016

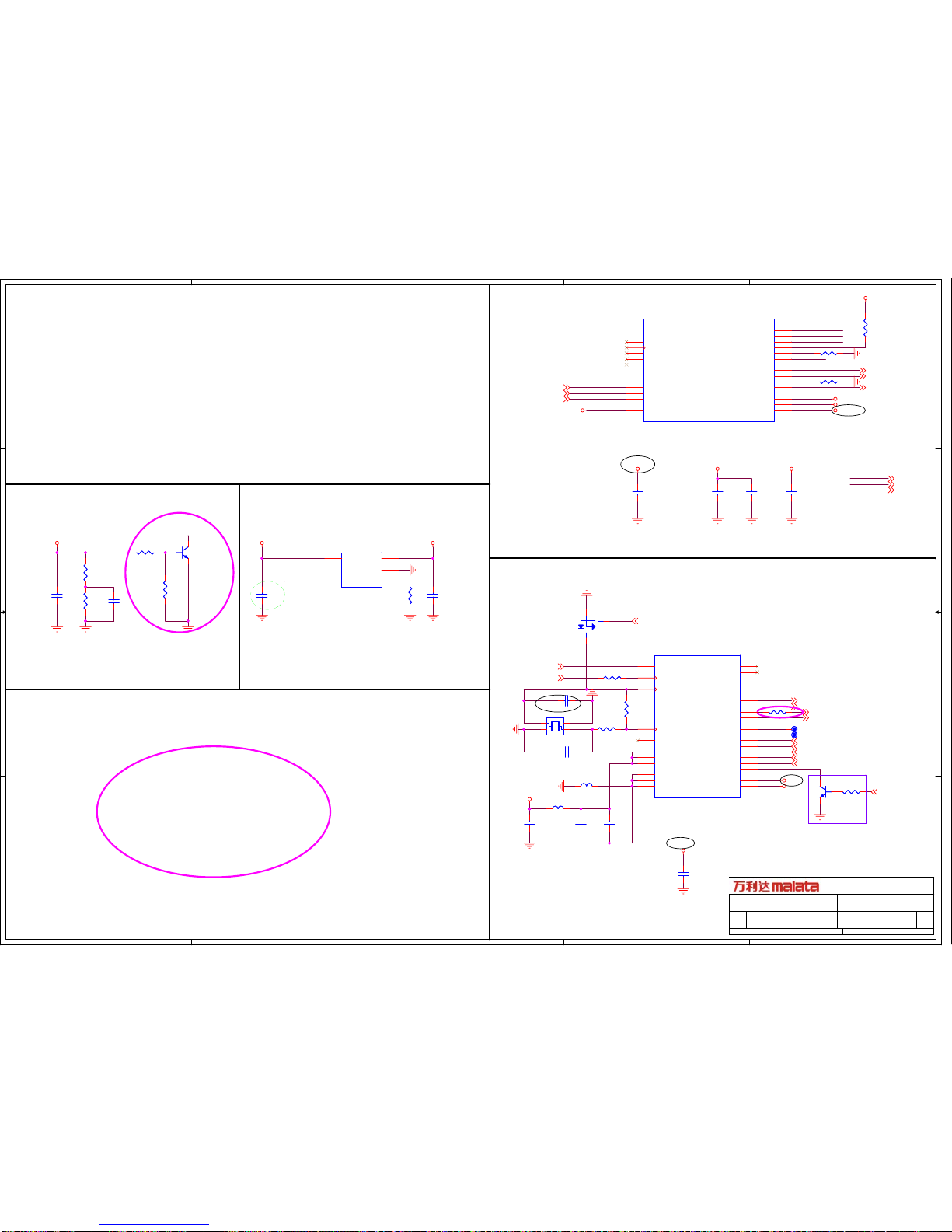

POWER CONTROL
BATTER
Note:
The battery pack must have a fuel gauge and a 10K NTC.
NOTES:
CHARGER&POWER PATH SELECTOR
Charging icon displayed if power key is long pressed
when adapter or usb is exist!
Note:
Please use a 5V DC.
DC IN
两焊盘间距 2mm
delete
IOUT = 0.10V/R39
2000mA
VBATT 3.4V poweroff
USB DC
1.24V
Iusb_lim=37000/Rlim(mA)
add a mosFET
R161 20K
R0402
R161 20K
R0402
R222
20K 1%
R0402
R222
20K 1%
R0402
MQ10
2SK3541
VMT3
MQ10
2SK3541
VMT3
2
1
3
TP1
VBAT
TP1
VBAT
1
R7 6.2R1210-AR7 6.2R1210-A
C2
10uF
C0805
C2
10uF
C0805
R165
75K 1%
R0402
R165
75K 1%
R0402
R62 24.3K 1%
R0402
R62 24.3K 1%
R0402
TP2
TEMP_BAT
TP2
TEMP_BAT
1
R42 50mR
1210-A
R42 50mR
1210-A
R24
200K%1
R0402
R24
200K%1
R0402
R225
10K/47K
R225
10K/47K
R47
NC/0R R0402
R47
NC/0R R0402
R5
47K
R0402
R5
47K
R0402
TP3
GND_BAT
TP3
GND_BAT
1
FB12 50R PB
1206-A
FB12 50R PB
1206-A
R26
200K%1
R0402
R26
200K%1
R0402
U26
TLV431B
SOT_23
U26
TLV431B
SOT_23
1
2 3
C6
1uF
C0402
C6
1uF
C0402
MQ1
VIC1127
SOT_23
MQ1
VIC1127
SOT_23
1
3 2
R16
10K R0402
R16
10K R0402
C13
0.1uF
C0201
C13
0.1uF
C0201
R8 6.2R1210-AR8 6.2R1210-A
U1
MP2611
QFN14
U1
MP2611
QFN14
ACIN 1
PGND 2
SW 3 USBIN
4
AGND
5
VREF33
6USBM 7
BATT 8
CSP 9
EN 10
STAT1
11
STAT2
12
NTC
13 TMR 14
PAD
15
R25
NC/10K
R0402
R25
NC/10K
R0402
R43 0R
R0402
R43 0R
R0402
D18
BAT54C
D18
BAT54C
3
2
1
R15
10K R0402
R15
10K R0402
R1
2R
1206-A
R1
2R
1206-A
R6 82K
R0402
R6 82K
R0402
R40 10K R0402R40 10K R0402
R4
47K
R0402
R4
47K
R0402
D2
1N4148WS
SOD323
D2
1N4148WS
SOD323
1 2
L1 1.5uH
L-4_5
L1 1.5uH
L-4_5
C1
4.7uF
C0805
C1
4.7uF
C0805
R2
150K
R0402
R2
150K
R0402
R220
34.8K 1%
R0402
R220
34.8K 1%
R0402
CN2
HS8805
CON5_HS8805
CN2
HS8805
CON5_HS8805
1
2
3
4
5
6
7
C4
22uF
C0805
C4
22uF
C0805
R3
10K R0402
R3
10K R0402
R14
47K
R0402
R14
47K
R0402
MQ11
VIC1127
SOT_23
MQ11
VIC1127
SOT_23
1
3 2
B
C
E
Q1
2N3904
SOT_23
B
C
E
Q1
2N3904
SOT_23
1
3 2
C3
10uF
C0805
C3
10uF
C0805
C5
1uF
C0402
C5
1uF
C0402
C7
224
C0402
C7
224
C0402
C12
1uF
C0603
C12
1uF
C0603
R10
150K
R0402
R10
150K
R0402

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RESET
VDD_FB
VDD_FB
GND GND
GND GND GND
GND GND GND
GND GND
GND GND GND GND
VSYS
VCC_IO
VCC25_HDMI
VSYS
VCC_25
VSYS
VCCA_33
VDD_11
VCC_DDR
VCC_TP
VDD_ARM
VCC_18
VCC18_CIF
VCC_RTC
VCC28_CIF
VSYS
VSYS
VCC_RTC
VCC_IO
VSYS
VSYS
VCC_IO
VDD_11 VDD11_HDMI
VCC_IO
VCC_IO
VSYS VDD_LOG
VCC_IO
PMIC_PWRON4,14
AVDD_COM 9
RTC_CLKOUT 6,15
DVS0_CTL9
RESET 6
PMIC_SLEEP6
PMIC_INT 6
I2C1_SDA9 I2C1_SCL9
PWR_EN4
HDMI_PWREN8 DVS1_CTL9
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
System power
A3
516Thursday, August 16, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
System power
A3
516Thursday, August 16, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
System power
A3
516Thursday, August 16, 2012
Jacky Huang
SMB-C7016
SYSTEM POWER
above 30 miles
above 50 miles
above 12 miles
Under needs
No indicate
above 80 miles
PCB POWER WIRE WIDTH INDICATE
4*4mm
4*4mm
Note: Please use a 1.5A or above power supply IC.
C43
22uF
C0805
C43
22uF
C0805
L3
2.2uH/2A
L3
2.2uH/2A
C29 4.7uF
C0603
C29 4.7uF
C0603
C38
4.7uF
C0603
C38
4.7uF
C0603
C47 20pF/12pF
C0402
C47 20pF/12pF
C0402
M2M2
1
R13 196K%1
R0402
R13 196K%1
R0402
C23 4.7uF
C0603
C23 4.7uF
C0603
H19
ICSRC3908SFR
H19
ICSRC3908SFR
1
12 23 3
C40
0.1uF
C0402
C40
0.1uF
C0402
L5
3.3uH/2A
L5
3.3uH/2A
L2 2.2uH/1A
L-3
L2 2.2uH/1A
L-3
R22
6K2%1
R0402
R22
6K2%1
R0402
C35 4.7uF
C0603
C35 4.7uF
C0603
H15
ICSRC3908SFR
H15
ICSRC3908SFR
1
12 23 3
U3 SY8009B
SOT-23-6
U3 SY8009B
SOT-23-6
EN
1
GND
2
LX 3 VIN
4
FB/OUT 6
NC 5
C16 10uF
C0805
C16 10uF
C0805
R29 100R
R0402
R29 100R
R0402
C21 4.7uF
C0603
C21 4.7uF
C0603
H20
ICSRC3908SFR
H20
ICSRC3908SFR
1
12 23 3
C45
0.1uF
C0402
C45
0.1uF
C0402
L4 2.2uH/1A
L-3
L4 2.2uH/1A
L-3
R21
100K%1
R0402
R21
100K%1
R0402
H6
ICSRC3908SFR
H6
ICSRC3908SFR
1
12 23 3
R23
120K%1
R0402
R23
120K%1
R0402
C26 NC
C0402
C26 NC
C0402
C28
10uF
C0805
C28
10uF
C0805
TP5TP5
1
C44
102
C0201
C44
102
C0201
H8
ICSRC3908SFR
H8
ICSRC3908SFR
1
12 23 3
M5M5
1
C19 4.7uF
C0603
C19 4.7uF
C0603
H1
ICSRC3908SFR
H1
ICSRC3908SFR
1
12 23 3
R36 47K
R0402
R36 47K
R0402
C49
223
C0402
C49
223
C0402
H7
ICSRC3908SFR
H7
ICSRC3908SFR
1
12 23 3
C33 4.7uF
C0603
C33 4.7uF
C0603
R33
1K
R0402
R33
1K
R0402
C36 4.7uF
C0603
C36 4.7uF
C0603
M3M3
1
C48
100pF
C0402
C48
100pF
C0402
C41
22uF
C0805
C41
22uF
C0805
C39
1uF
C0402
C39
1uF
C0402
C17 4.7uF
C0603
C17 4.7uF
C0603
H11
ICSRC3908SFR
H11
ICSRC3908SFR
1
12 23 3
C31 4.7uF
C0603
C31 4.7uF
C0603
C24
22uF
C0805
C24
22uF
C0805
H9
ICSRC3908SFR
H9
ICSRC3908SFR
1
12 23 3
M1M1
1
C15 10uF
C0805
C15 10uF
C0805
R32
10K
R0402
R32
10K
R0402
C27
10uF
C0805
C27
10uF
C0805
C22 4.7uF
C0603
C22 4.7uF
C0603
R20
100R
R0402
R20
100R
R0402
R12 14K7%1
R0402
R12 14K7%1
R0402
R27 100R
R0402
R27 100R
R0402
H4
ICSRC3908SFR
H4
ICSRC3908SFR
1
12 23 3
C30 4.7uF
C0603
C30 4.7uF
C0603
C37 4.7uF
C0603
C37 4.7uF
C0603
H10
ICSRC3908SFR
H10
ICSRC3908SFR
1
12 23 3
H17
ICSRC3908SFR
H17
ICSRC3908SFR
1
12 23 3
M6M6
1
C42
22uF
C0805
C42
22uF
C0805
C34 4.7uF
C0603
C34 4.7uF
C0603
U2
TPS659102A1RSL
QFN48-0_4MM
U2
TPS659102A1RSL
QFN48-0_4MM
PWRHOLD
1
VAUX33 4
VDIG2 5
VDIG1 7
SCL
9
VCC6
6
SDASR/EN2 10
VCC3
3
SCLSR/EN1 11
VMMC 2
SDA
8
VDDIO 12
VCCIO
13
SWIO 14
GNDIO 15
VFBIO 16
REFGND
17
VREF
18
BOOT1
19
OSC32KIN
20
OSC32KOUT
21
VDAC 22
VCC5
23
VPLL 24
TESTV
25
BOOT0
26
VBACKUP
27
VCC7
28
VRRTC 29
VFB3 30
SW3 31
VFB1 32
PWRON
33
GND1 34
SW1 35
VCC1
36
SLEEP
37
CLK32KOUT
38
GPIO/CKSYN
39
NRESPWRON
40
VCC2
41
SW2 42
GND2 43
VFB2 44
INT1
45
VAUX1 46
VCC4
47
VAUX2 48
PowerPAD
49
C20 4.7uF
C0603
C20 4.7uF
C0603
C14 104
C0402
C14 104
C0402
H12
ICSRC3908SFR
H12
ICSRC3908SFR
1
12 23 3
R30
4.99K%1
R0402
R30
4.99K%1
R0402
R11 7K5%1
R0402
R11 7K5%1
R0402
C25
10uF
C0805
C25
10uF
C0805
R35 47K
R0402
R35 47K
R0402
H5
ICSRC3908SFR
H5
ICSRC3908SFR
1
12 23 3
Y1
32.768KHZ 12.5pF
FC-135
Y1
32.768KHZ 12.5pF
FC-135
1 2
R31 20K%1
R0402
R31 20K%1
R0402
R28 0R
R0402
R28 0R
R0402
M4M4
1
C18 4.7uF
C0603
C18 4.7uF
C0603
MQ3
2SK3541
VMT3
MQ3
2SK3541
VMT3
2
1
3
C46 20pF/12pF
C0402
C46 20pF/12pF
C0402
C32 4.7uF
C0603
C32 4.7uF
C0603

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

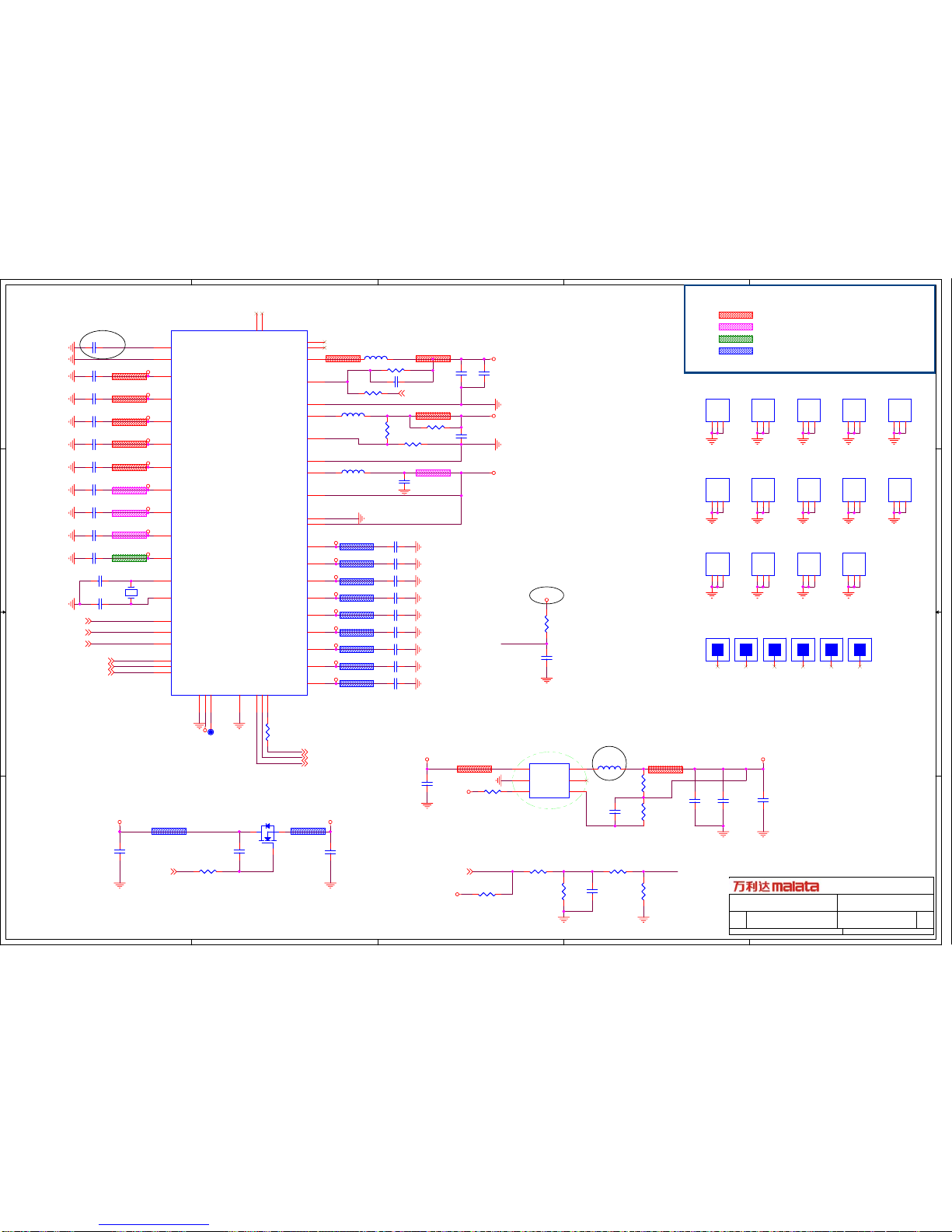

OTG_DM
OTG_DP
OTG_DET
OTG_ID
OTG_DET
OTG_INT
DC_DET
OTG_DRV
OTG_DRV
OTG_DM
OTG_DP
OTG_ID
DC_DET
HOST_DRV
VCC_IO
VBUS0
VCC_25
VDD_11
VDD_11
VDD_11
VCC_IO
VCC_IO
VCC_25 VDD_11
VCC_25
VCC_PWRVCC_5V
VCC_IO
VCC_IO
ADKEY_IN14
PWR_KEY 4
BL_EN 11
CHG_DET 4
PMIC_INT 5
PMIC_SLEEP 5
RTC_CLKOUT5,15
RESET5
BT_HOST_WAKE 15
PMIC_SLEEP 5
BAT_DET4
CHG_CTL 4,13
PWR_HOLD 4,13
OTG_INT 4
MIC_DET10
OTG_DP 13
OTG_ID 13
OTG_DM 13
HOST_DM 15
HOST_DP 15
HOST_DRV 15
DC_DET 4
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
USB OTG
A3
616Sunday, August 19, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
USB OTG
A3
616Sunday, August 19, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
USB OTG
A3
616Sunday, August 19, 2012
Jacky Huang
SMB-C7016
USB_DET
RK3066-E
delete VIBRATION
RK3066-F
Note:
Adjusted the load capacitance
according to the crystal specification.
Note:
If use RK901,PLS no paste these components.
Note:
Reduce the power consumption in deep sleeping.
Place it near to crystal.
Curent limit 640mA
USB HOST POWER
CE1610AHM
C63
10uF
C0805
C63
10uF
C0805
TP13TP13
1
R41
10K
R0402
R41
10K
R0402
R46
1M
R0402
R46
1M
R0402
R219
15K/NC
R0402
R219
15K/NC
R0402
FB1
FB0402
R0402
FB1
FB0402
R0402
R44
15K
R0402
R44
15K
R0402
B
C
E
Q5
2N3904/NC
SOT_23
B
C
E
Q5
2N3904/NC
SOT_23
1
3 2
U5
UP7534GMA5-10/SY6280AAC/TT9107/LPW5206H
SOT-23-5
U5
UP7534GMA5-10/SY6280AAC/TT9107/LPW5206H
SOT-23-5
OUT 1
GND 2
SET 3 EN
4
IN
5
R39 43R2
R0402
R39 43R2
R0402
FB2
FB0402
R0402
FB2
FB0402
R0402
R49
47K/NC
R0402
R49
47K/NC
R0402
R217 0R
R0402
R217 0R
R0402
C65
33pF/8pF C0402C65 33pF/8pF C0402
TP14TP14
1
U4F
RK3066
RK3066
U4F
RK3066
RK3066
OTG_DM AB16
OTG_DP AC16
OTG_VBUS AB5
OTG_ID AB4
GPIO0_A5/OTG_DRV J22
OTG_RKELVIN AA6
HOST_DM AB17
HOST_DP AC17
GPIO0_A6/HOST_DRV H18
HOST_RKELVIN W13
USBVDD_1V1 U14
USBVDD_2V5 U15
USBVDD_3V3 V14
TMS/PLL_BYPASS
G21 TDI/CPR_BYPASS
G22 TRSTN
G20 TCK/HSSCAN_SHIFT_CLOCK
H23 TDO
H22
SARADC_ANI0
W6 SARADC_ANI1
W8 SARADC_ANI2
W7
ADCVDD_2V5
V11
C58
0.1uF
C0201
C58
0.1uF
C0201
C59
10uF
C0805
C59
10uF
C0805
C68
0.1uF
C0201
C68
0.1uF
C0201
R38 43R2
R0402
R38 43R2
R0402
C56
0.1uF
C0201
C56
0.1uF
C0201
R170
10K
R0402
R170
10K
R0402
C70
0.1uF
C0201
C70
0.1uF
C0201
R37
10K
R0402
R37
10K
R0402
MQ2
2SK3541
VMT3
MQ2
2SK3541
VMT3
2
1
3
C55
0.1uF
C0201
C55
0.1uF
C0201
Y2
24M-20pF
CRY-SMD-4-CX3225SB
Y2
24M-20pF
CRY-SMD-4-CX3225SB
13 2
4
B
C
E
Q8
2N3904/NC
B
C
E
Q8
2N3904/NC
1
3 2
R48 22R
R0402
R48 22R
R0402
C60
1uF
C0402
C60
1uF
C0402
C69
103
C0402
C69
103
C0402
C67
1uF
C0402
C67
1uF
C0402
R45 10K
R0402
R45 10K
R0402
C57
0.1uF
C0201
C57
0.1uF
C0201
C61
103
C0402
C61
103
C0402
U4E
RK3066
RK3066
U4E
RK3066
RK3066
NPOR
Y7
CLKIN_32K
AA4
XOUT24M
AB11
XIN24M
AC11
CPU_PWROFF AB1
CORE_PWROFF AC1
PVCC_3V3 V13
PVDD_1V1 U13
GPIO6_B0 W10
GPIO6_B1 AB2
GPIO6_B2 AA2
GPIO6_B3 AC2
GPIO6_A0 W11
GPIO6_A1 AA3
GPIO6_A2 AB3
GPIO6_A3 AA5
GPIO6_A4 Y5
GPIO6_A5 Y6
GPIO6_A6 Y8
GPIO6_A7 AC4
EFUSE
W14
APLL_1V1
U10 DPLL_1V1
U11 C/GPLL_1V1
U12
AVSS_APLL
T11 AVSS_DPLL
T12 AVSS_C/GPLL
T13
C62
27pF/8pF C0402C62 27pF/8pF C0402
R218 47K/NC
R0402
R218 47K/NC
R0402

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

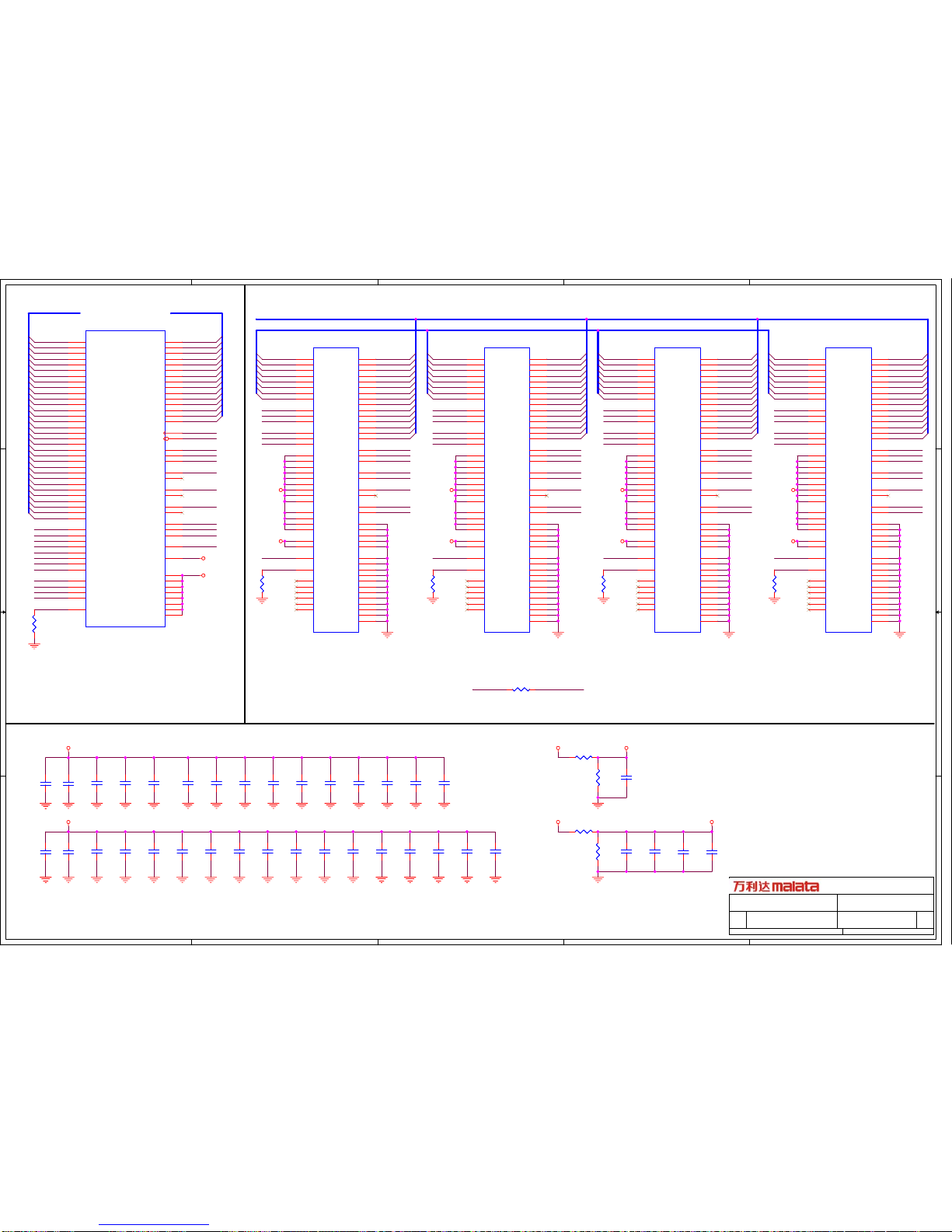

DDR_D1
DDR_D19
DDR_D4
DDR_D30
DDR_D9
DDR_D24
DDR_DM2
DDR_DQS1M
DDR_DQS3P
DDR_D26
DDR_DM1
DDR_D18
DDR_D17
DDR_DQS2M
DDR_D14
DDR_D8
DDR_D3
DDR_D21
DDR_D23
DDR_D13
DDR_DQS1P
DDR_D11
DDR_D10
DDR_D27
DDR_D7
DDR_DM0
DDR_DQS0M
DDR_D16
DDR_DQS2P
DDR_D29
DDR_D2
DDR_D20
DDR_D22
DDR_D12
DDR_D5
DDR_D31
DDR_D15
DDR_D25
DDR_D6
DDR_D0
DDR_DM3
DDR_DQS0P
DDR_DQS3M
DDR_D28
DDR_A10
DDR_RASN
DDR_ODT0
DDR_A3
DDR_CLKN
DDR_CASN
DDR_BA1
DDR_A7
DDR_A1
DDR_A11
DDR_BA2
DDR_BA0
DDR_CLK
DDR_A6
DDR_A4
DDR_A8
DDR_CS0N
DDR_A2
DDR_A12
DDR_WEN
DDR_CKE0
DDR_A5
DDR_A9
DDR_A0
DDR_A13
DDR_RST
DDR_A14
DDR_CLK DDR_CLKN
DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK
DDR_CLKN
DDR_DM0
DDR_DQS0P
DDR_DQS0M
DDR_A0
DDR_A1
DDR_A2
DDR_A3
DDR_A4
DDR_A5
DDR_A6
DDR_A7
DDR_A8
DDR_RST
DDR_A9
DDR_A10
DDR_A11
DDR_A12
DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK
DDR_CLKN
DDR_DM3
DDR_DQS3P
DDR_DQS3M
DDR_A13
DDR_A0
DDR_A1
DDR_A2
DDR_A3
DDR_A4
DDR_A5
DDR_A6
DDR_A7
DDR_A8
DDR_A9
DDR_A10
DDR_A11
DDR_A12
DDR_A13DDR_RASN
DDR_CS0N
DDR_CKE0
DDR_ODT0
DDR_CASN
DDR_WEN DDR_A14
DDR_RST
DDR_RASN
DDR_CS0N
DDR_CKE0
DDR_ODT0
DDR_CASN
DDR_WEN DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK
DDR_CLKN
DDR_DM2
DDR_DQS2P
DDR_DQS2M
DDR_A0
DDR_A1
DDR_A2
DDR_A3
DDR_A4
DDR_A5
DDR_A6
DDR_A7
DDR_A8
DDR_A9
DDR_A10
DDR_A11
DDR_A12
DDR_A13DDR_RASN
DDR_CS0N
DDR_CKE0
DDR_ODT0
DDR_CASN
DDR_WEN DDR_A14
DDR_RST
DDR_A14
DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK
DDR_CLKN
DDR_DM1
DDR_DQS1P
DDR_DQS1M
DDR_A0
DDR_A1
DDR_A2
DDR_A3
DDR_A4
DDR_A5
DDR_A6
DDR_A7
DDR_A8
DDR_A9
DDR_A10
DDR_A11
DDR_A12
DDR_A13DDR_RASN
DDR_CS0N
DDR_CKE0
DDR_ODT0
DDR_CASN
DDR_WEN DDR_A14
DDR_RST
DDR_D[0:31] DDR_A[0:14]
DDR_D[0:31]
DDR_A[0:14]
DDR_D7
DDR_D0
DDR_D6
DDR_D4
DDR_D1
DDR_D3
DDR_D5
DDR_D2
DDR_D25
DDR_D29
DDR_D28
DDR_D30
DDR_D31
DDR_D27
DDR_D24
DDR_D26
DDR_D20
DDR_D19
DDR_D23
DDR_D18
DDR_D21
DDR_D16
DDR_D17
DDR_D22
DDR_D13
DDR_D10
DDR_D15
DDR_D8
DDR_D9
DDR_D12
DDR_D14
DDR_D11
VCC_DDR VREF_MCUVCC_DDR
VCC_DDR VREF_DDR
VCC_DDR
VCC_DDR
VREF_MCU
VREF_DDR
VCC_DDR VCC_DDRVCC_DDR VCC_DDR
VREF_DDR VREF_DDR VREF_DDR
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
DDR3
A3
716Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
DDR3
A3
716Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
DDR3
A3
716Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
DDR3
RK3066-N
DDR FILTER
ADJUST D24/D30 D25/D30
C71
10uF
C0805
C71
10uF
C0805
C92
0.1uF
C0201
C92
0.1uF
C0201
C76
0.1uF
C0201
C76
0.1uF
C0201
C104
102
C0201
C104
102
C0201
C81
0.1uF
C0201
C81
0.1uF
C0201
C103
0.1uF
C0201
C103
0.1uF
C0201
R54
240R%1
R0201
R54
240R%1
R0201
C105
102
C0201
C105
102
C0201
C98
0.1uF
C0201
C98
0.1uF
C0201
C87
10uF
C0805
C87
10uF
C0805
C74
1uF
C0402
C74
1uF
C0402
U8
DDR3_256M_8BIT
FBGA78
U8
DDR3_256M_8BIT
FBGA78
DQ0
B3 DQ1
C7 DQ2
C2 DQ3
C8 DQ4
E3 DQ5
E8 DQ6
D2 DQ7
E7
NC1
A3
CKE
G9 CS#
H2 ODT
G1
RAS#
F3 CAS#
G3 WE#
H3
VDD1
A2 VDD2
A9 VDD3
D7
VDD6
K1 VDD7
K9
NC2
F1 NC3
F9
A0 K3
A1 L7
A2 L3
A3 K2
A4 L8
A5 L2
A6 M8
A7 M2
A8 N8
A9 M3
A10/AP H7
A11 M7
A12/BC# K7
A13 N3
BA0 J2
BA1 K8
BA2 J3
CK F7
CK# G7
DM/TDQS B7
DQS C3
DQS# D3
VSSQ1 B2
VSSQ2 B8
VSSQ4 D1
VSSQ5 D9
VSS1 A1
VSS2 A8
VSS3 B1
VSS5 F2
VSS6 F8
ZQ
H8
RESET#
N2
VDDQ1
B9 VDDQ2
C1 VDDQ3
E2 VDDQ4
E9
VDD8
M1 VDD9
M9
VREFDQ
E1 VREFCA
J8
NC4
H1 NC5
H9 NC6
J7
A14 N7
VSS7 J1
VSS8 J9
VSS9 L1
VSS10 L9
VSS11 N1
VSS12 N9
NC/TDQS# A7
VSSQ3 C9
VSS4 D8
VDD4
G2 VDD5
G8
C93
0.1uF
C0201
C93
0.1uF
C0201
U4N
RK3066
RK3066
U4N
RK3066
RK3066
DDR_D0
E17 DDR_D1
E21 DDR_D2
E20 DDR_D3
E18 DDR_D4
F19 DDR_D5
F21 DDR_D6
F22 DDR_D7
F20 DDR_D8
B9 DDR_D9
C10 DDR_D10
A10 DDR_D11
B10 DDR_D12
D10 DDR_D13
E11 DDR_D14
C11 DDR_D15
B12 DDR_D16
B21 DDR_D17
C22 DDR_D18
E16 DDR_D19
D17 DDR_D20
A23 DDR_D21
B23 DDR_D22
D21 DDR_D23
D22 DDR_D24
C7 DDR_D25
D7 DDR_D26
B7 DDR_D27
A7 DDR_D28
E8 DDR_D29
D8 DDR_D30
E10 DDR_D31
C8
DDR_DQS0
E22 DDR_DQS0n
E23 DDR_DQS1
B11 DDR_DQS1n
A11 DDR_DQS2
B22 DDR_DQS2n
A22 DDR_DQS3
B8 DDR_DQS3n
A8
DDR_DM0
D23 DDR_DM1
C9 DDR_DM2
C21 DDR_DM3
E7
DDR_A0 B15
DDR_A1 A17
DDR_A2 E14
DDR_A3 C15
DDR_A4 B17
DDR_A5 C17
DDR_A6 B18
DDR_A7 A19
DDR_A8 B19
DDR_A9 C18
DDR_A10 D18
DDR_A11 A20
DDR_A12 D19
DDR_A13 C19
DDR_A14 D16
DDR_CLK B16
DDR_CLKn A16
DDR_ODT0 B20
DDR_ODT1 C20
DDR_BA0 A14
DDR_BA1 B14
DDR_BA2 C14
DDR_RASn D14
DDR_CASn D13
DDR_WEn C13
DDR_CS0 B13
DDR_CS1 E13
DDR_VREF F13
DDR_PZQ
G15
DDR_CKE0 A13
DDR_CKE1 D11
DDR_RESET C12
MVDD1 F10
MVDD2 F11
MVDD3 F14
MVDD4 F16
MVDD5 F17
MVDD6 G10
MVDD7 G13
MVDD8 G14
C82
0.1uF
C0201
C82
0.1uF
C0201
C73
1uF
C0402
C73
1uF
C0402
C99
0.1uF
C0201
C99
0.1uF
C0201
R57
1K%1
R0201
R57
1K%1
R0201
C94
0.1uF
C0201
C94
0.1uF
C0201
C88
10uF
C0805
C88
10uF
C0805
C72
10uF
C0805
C72
10uF
C0805
C78
0.1uF
C0201
C78
0.1uF
C0201
C107
102
C0201
C107
102
C0201
R56
NC/100R
R0402
R56
NC/100R
R0402
U7
DDR3_256M_8BIT
FBGA78
U7
DDR3_256M_8BIT
FBGA78
DQ0
B3 DQ1
C7 DQ2
C2 DQ3
C8 DQ4
E3 DQ5
E8 DQ6
D2 DQ7
E7
NC1
A3
CKE
G9 CS#
H2 ODT
G1
RAS#
F3 CAS#
G3 WE#
H3
VDD1
A2 VDD2
A9 VDD3
D7
VDD6
K1 VDD7
K9
NC2
F1 NC3
F9
A0 K3
A1 L7
A2 L3
A3 K2
A4 L8
A5 L2
A6 M8
A7 M2
A8 N8
A9 M3
A10/AP H7
A11 M7
A12/BC# K7
A13 N3
BA0 J2
BA1 K8
BA2 J3
CK F7
CK# G7
DM/TDQS B7
DQS C3
DQS# D3
VSSQ1 B2
VSSQ2 B8
VSSQ4 D1
VSSQ5 D9
VSS1 A1
VSS2 A8
VSS3 B1
VSS5 F2
VSS6 F8
ZQ
H8
RESET#
N2
VDDQ1
B9 VDDQ2
C1 VDDQ3
E2 VDDQ4
E9
VDD8
M1 VDD9
M9
VREFDQ
E1 VREFCA
J8
NC4
H1 NC5
H9 NC6
J7
A14 N7
VSS7 J1
VSS8 J9
VSS9 L1
VSS10 L9
VSS11 N1
VSS12 N9
NC/TDQS# A7
VSSQ3 C9
VSS4 D8
VDD4
G2 VDD5
G8
C90
0.1uF
C0201
C90
0.1uF
C0201
C83
0.1uF
C0201
C83
0.1uF
C0201
R58
1K%1
R0201
R58
1K%1
R0201
C100
0.1uF
C0201
C100
0.1uF
C0201
C75
0.1uF
C0201
C75
0.1uF
C0201
U6
DDR3_256M_8BIT
FBGA78
U6
DDR3_256M_8BIT
FBGA78
DQ0
B3 DQ1
C7 DQ2
C2 DQ3
C8 DQ4
E3 DQ5
E8 DQ6
D2 DQ7
E7
NC1
A3
CKE
G9 CS#
H2 ODT
G1
RAS#
F3 CAS#
G3 WE#
H3
VDD1
A2 VDD2
A9 VDD3
D7
VDD6
K1 VDD7
K9
NC2
F1 NC3
F9
A0 K3
A1 L7
A2 L3
A3 K2
A4 L8
A5 L2
A6 M8
A7 M2
A8 N8
A9 M3
A10/AP H7
A11 M7
A12/BC# K7
A13 N3
BA0 J2
BA1 K8
BA2 J3
CK F7
CK# G7
DM/TDQS B7
DQS C3
DQS# D3
VSSQ1 B2
VSSQ2 B8
VSSQ4 D1
VSSQ5 D9
VSS1 A1
VSS2 A8
VSS3 B1
VSS5 F2
VSS6 F8
ZQ
H8
RESET#
N2
VDDQ1
B9 VDDQ2
C1 VDDQ3
E2 VDDQ4
E9
VDD8
M1 VDD9
M9
VREFDQ
E1 VREFCA
J8
NC4
H1 NC5
H9 NC6
J7
A14 N7
VSS7 J1
VSS8 J9
VSS9 L1
VSS10 L9
VSS11 N1
VSS12 N9
NC/TDQS# A7
VSSQ3 C9
VSS4 D8
VDD4
G2 VDD5
G8
C95
0.1uF
C0201
C95
0.1uF
C0201
R52
240R%1
R0201
R52
240R%1
R0201
R51
240R%1
R0201
R51
240R%1
R0201
R60
1K%1
R0201
R60
1K%1
R0201
C79
0.1uF
C0201
C79
0.1uF
C0201
R55
240R%1
R0201
R55
240R%1
R0201
C101
0.1uF
C0201
C101
0.1uF
C0201
C84
0.1uF
C0201
C84
0.1uF
C0201
C96
0.1uF
C0201
C96
0.1uF
C0201
C77
0.1uF
C0201
C77
0.1uF
C0201
R53
240R%1
R0201
R53
240R%1
R0201
R59
1K%1
R0201
R59
1K%1
R0201
C91
0.1uF
C0201
C91
0.1uF
C0201
U9
DDR3_256M_8BIT
FBGA78
U9
DDR3_256M_8BIT
FBGA78
DQ0
B3 DQ1
C7 DQ2
C2 DQ3
C8 DQ4
E3 DQ5
E8 DQ6
D2 DQ7
E7
NC1
A3
CKE
G9 CS#
H2 ODT
G1
RAS#
F3 CAS#
G3 WE#
H3
VDD1
A2 VDD2
A9 VDD3
D7
VDD6
K1 VDD7
K9
NC2
F1 NC3
F9
A0 K3
A1 L7
A2 L3
A3 K2
A4 L8
A5 L2
A6 M8
A7 M2
A8 N8
A9 M3
A10/AP H7
A11 M7
A12/BC# K7
A13 N3
BA0 J2
BA1 K8
BA2 J3
CK F7
CK# G7
DM/TDQS B7
DQS C3
DQS# D3
VSSQ1 B2
VSSQ2 B8
VSSQ4 D1
VSSQ5 D9
VSS1 A1
VSS2 A8
VSS3 B1
VSS5 F2
VSS6 F8
ZQ
H8
RESET#
N2
VDDQ1
B9 VDDQ2
C1 VDDQ3
E2 VDDQ4
E9
VDD8
M1 VDD9
M9
VREFDQ
E1 VREFCA
J8
NC4
H1 NC5
H9 NC6
J7
A14 N7
VSS7 J1
VSS8 J9
VSS9 L1
VSS10 L9
VSS11 N1
VSS12 N9
NC/TDQS# A7
VSSQ3 C9
VSS4 D8
VDD4
G2 VDD5
G8
C106
102
C0201
C106
102
C0201
C89
1uF
C0402
C89
1uF
C0402
C80
0.1uF
C0201
C80
0.1uF
C0201
C85
0.1uF
C0201
C85
0.1uF
C0201
C102
0.1uF
C0201
C102
0.1uF
C0201
C97
0.1uF
C0201
C97
0.1uF
C0201
C86
102
C0201
C86
102
C0201

5
5
4
4
3
3
2
2
1
1
E E
D D
C C
B B
A A
SDMMC_CMD
SDMMC_D3
SDMMC_D2
SDMMC_D1
SDMMC_D0
SDMMC_DET
SDMMC_CLK
SDMMC_D0
SDMMC_D1
SDMMC_D3
SDMMC_D2
SDMMC_CMD
SDMMC_CLK
SDMMC_DET
FLASH_D0
FLASH_D1
FLASH_D2
FLASH_D3
FLASH_D4
FLASH_D5
FLASH_D6
FLASH_D7
FLASH_RDN
FLASH_RDY
FLASH_WRN
FLASH_WP/EMMC_PWREN
FLASH_CLE
FLASH_ALE
FLASH_CS0
FLASH_CS1
FLASH_CS2/EMMC_CMD
FLASH_CS3
FALSH_DQS/EMMC_CLKO
FLASH_D0
FLASH_CS2/EMMC_CMD
FLASH_CS3
FLASH_RDN
FLASH_CS0
FLASH_CS1
FLASH_WRN
FLASH_CLE
FLASH_ALE
FLASH_WP/EMMC_PWREN
FLASH_D7
FLASH_D4
FLASH_D2
FLASH_D3
FLASH_D6
FLASH_D5
FLASH_D1
FLASH_D[0:7]
FLASH_D[0:7]
SDMMC_PWR
SDMMC_PWR
FALSH_DQS/EMMC_CLKO
FLASH_RDY
FLASH_D[0:7]
FLASH_RDY
FLASH_CS3
FLASH_CS2/EMMC_CMD
FLASH_RDN
FLASH_ALE
FLASH_CLE
FLASH_WRN
FLASH_WP/EMMC_PWREN FLASH_D2
FLASH_D4
FLASH_D7
FLASH_D1
FLASH_D5
FLASH_D6
FLASH_D0
FLASH_D3
FALSH_DQS/EMMC_CLKO
VCC_SD
VCCIO_FLASH
VCC_IO
VCCIO_FLASH
VCC_IO
VCC_SD
VCC_IO
VCC_IO
VCC_IO
VCCIO_FLASH
VCC_IO
VCCIO_FLASH
VCC_IO
VCCIO_FLASH
VCC_IO
VCC_IO
VCC_IO
VCCIO_FLASH
VCCIO_FLASH
VCC_IOVCC_IO
VCCIO_FLASH
VCC_18
HDMI_PWREN 5
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Flash/TF card
A3
816Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Flash/TF card
A3
816Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Flash/TF card
A3
816Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
RK3066-K
TF CARD
RK3066-H
Note:
Select the power type
follow FLASH IO need.
THE 1st FLASH THE 2nd FLASH(OPTION)
C120
102
C0201
C120
102
C0201
C109
0.1uF
C0201
C109
0.1uF
C0201
R68 33R R0402R68 33R R0402
RV7
RV0402
R0402
RV7
RV0402
R0402
RV11
RV0402
R0402
RV11
RV0402
R0402
C116
0.1uF
C0201
C116
0.1uF
C0201
C110
0.1uF
C0201
C110
0.1uF
C0201
R70 10K
R0402
R70 10K
R0402
C118
0.1uF
C0201
C118
0.1uF
C0201
U10
NAND_FLASH
TSOP48
U10
NAND_FLASH
TSOP48
VCC1
1VSS1
2NC1
3R/B1
4R/B2
5R/B3
6R/B4
7RE
8CE0
9CE1
10 NC2
11 VCC2
12 VSS2
13 CE2
14 CE3
15 CLE
16 ALE
17 WE
18 WP
19 NC3
20 NC4
21 NC5
22 VSS3
23 VCC3
24 VSS6 25
NC6 26
VSSQ1 27
VCCQ1 28
I/O0 29
I/O1 30
I/O2 31
I/O3 32
VSSQ2 33
VCCQ2 34
DQS 35
VSS4 36
VCC4 37
VCCQ5 38
VCCQ3 39
VSSQ3 40
I/O4 41
I/O5 42
I/O6 43
I/O7 44
VCCQ4 45
VSSQ4 46
NC13 47
VSS5 48
C111
0.1uF
C0201
C111
0.1uF
C0201
MQ4
DMP2215L
SOT_23
MQ4
DMP2215L
SOT_23
2
1
3
R212
NC/10K
R0402
R212
NC/10K
R0402
RV10
RV0402
R0402
RV10
RV0402
R0402
R64 33R R0402R64 33R R0402
R63 0R/NC
R0402
R63 0R/NC
R0402
R61
4.7K
R0402
R61
4.7K
R0402
R65 33R R0402R65 33R R0402
R69 33R R0402R69 33R R0402
R9 NC
R0402
R9 NC
R0402
RV6
RV0402
R0402
RV6
RV0402
R0402
RV9
RV0402
R0402
RV9
RV0402
R0402
U4K
RK3066
RK3066
U4K
RK3066
RK3066
FLASH_D0/EMMC_D0 P18
FLASH_D1/EMMC_D1 AA21
FLASH_D2/EMMC_D2 AB21
FLASH_D3/EMMC_D3 W22
FLASH_D4/EMMC_D4 Y22
FLASH_D5/EMMC_D5 V20
FLASH_D6/EMMC_D6 AA22
FLASH_D7/EMMC_D7 AB22
FLASH_RDY U20
FLASH_ALE T20
FLASH_CLE AC22
FLASH_RDN N20
FLASH_WRN AC23
FLASH_WP/EMMC_PWREN AB23
FLASH_CS0 Y23
GPIO4_B0/FLASH_CS1 N18
GPIO4_B1/FLASH_CS2/EMMC_CMD U21
GPIO4_B2/FLASH_CS3/EMMC_RST P21
GPIO3_D7/FLASH_DQS/EMMC_CLKO N21
FLASH_VCC N17
U11
NAND_FLASH
TSOP48
U11
NAND_FLASH
TSOP48
VCC1
1VSS1
2NC1
3R/B1
4R/B2
5R/B3
6R/B4
7RE
8CE0
9CE1
10 NC2
11 VCC2
12 VSS2
13 CE2
14 CE3
15 CLE
16 ALE
17 WE
18 WP
19 NC3
20 NC4
21 NC5
22 VSS3
23 VCC3
24 VSS6 25
NC6 26
VSSQ1 27
VCCQ1 28
I/O0 29
I/O1 30
I/O2 31
I/O3 32
VSSQ2 33
VCCQ2 34
DQS 35
VSS4 36
VCC4 37
VCCQ5 38
VCCQ3 39
VSSQ3 40
I/O4 41
I/O5 42
I/O6 43
I/O7 44
VCCQ4 45
VSSQ4 46
NC13 47
VSS5 48
C117
10uF
C0805
C117
10uF
C0805
R221
NC
R0402
R221
NC
R0402
SD1
SD-TB603-1111NO
SD1
SD-TB603-1111NO
GND3 12 GND4 13
DAT2
1
CD/DAT3
2CMD
3
VDD
4CLK
5
DAT0
7DAT1
8
GND2
11
CD_SW
9
VSS
6
GND1
10
C119
4.7uF
C0603
C119
4.7uF
C0603
U4H
RK3066
RK3066
U4H
RK3066
RK3066
GPIO3_B0/SDMMC0_CLKO U22
GPIO3_B1/SDMMC0_CMD P22
GPIO3_B2/SDMMC0_D0 M21
GPIO3_B3/SDMMC0_D1 U23
GPIO3_B4/SDMMC0_D2 T21
GPIO3_B5/SDMMC0_D3 K20
GPIO3_B6/SDMMC0_DET L20
GPIO3_B7/SDMMC0_WP N19
GPIO3_A7/SDMMC0_PWREN V22
GPIO3_A6/SDMMC0_RSTNO W23
C115
0.1uF
C0201
C115
0.1uF
C0201
C112
0.1uF
C0201
C112
0.1uF
C0201
C108
0.1uF
C0201
C108
0.1uF
C0201
RV8
RV0402
R0402
RV8
RV0402
R0402
C113
0.1uF
C0201
C113
0.1uF
C0201
R67 33R R0402R67 33R R0402
R66 33R R0402R66 33R R0402
RV12
RV0402
R0402
RV12
RV0402
R0402
C114
0.1uF
C0201
C114
0.1uF
C0201

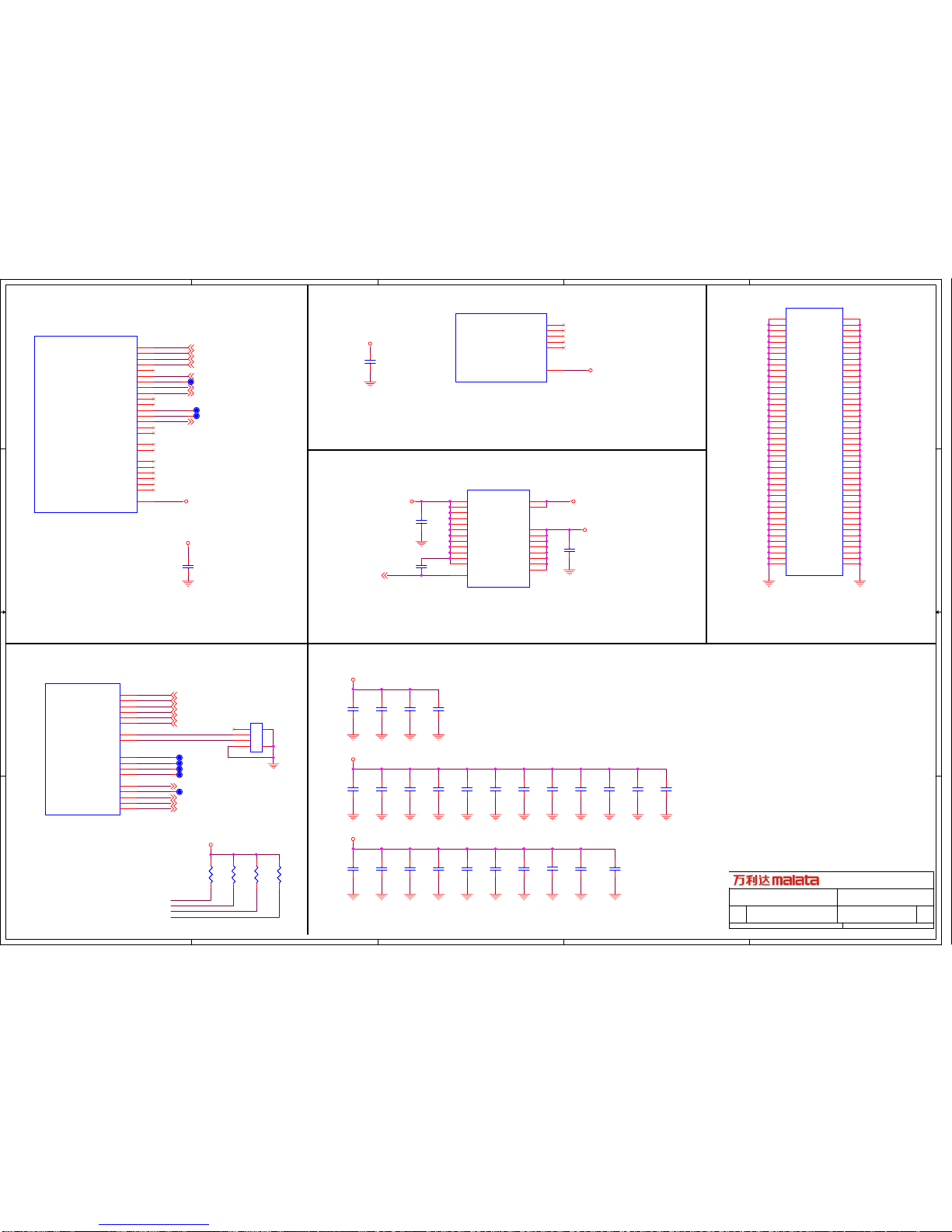

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
I2C0_SDA
I2C0_SCL
VIB_CON
UART2_TX
UART2_RX
UART3_CTS
UART3_RTS
UART3_RX
UART3_TX
GPS_RST
GPS_PWR
I2C1_SDA
I2C1_SCL
VCC_IO
VCC_IO
VCC_IO
VDD_ARM
VCC_IO
VDD_ARM
VDD_LOG
VCC_IO
VDD_LOG
VCC_IO
VCC_IO
I2C0_SCL 10,14
I2C1_SCL 5
I2C2_SCL 12
I2C2_SDA 12
I2C1_SDA 5
I2C0_SDA 10,14
TP_INT 12
GSENSOR_INT 14
COMP_INT 14
TP_RST 12
LCDC_BL 11
GYR_INT 14
VOL- 14
LCD_CS 11
AVDD_COM5
DVS0_CTL 5
DVS1_CTL 5
LCD_EN 11
CHG_EN 4
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
GPIO
A3
916Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
GPIO
A3
916Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
GPIO
A3
916Wednesday, August 01, 2012
Jacky Huang
SMB-C7016
RK3066-G
RK3066-Q
RK3066 CORE POWER FILTER
RK3066-J
RK3066-M
RK3066-P
For debug
Note:
Place these filter capacitors under CPU.
C124
0.1uF
C0201
C124
0.1uF
C0201
C145
102
C0201
C145
102
C0201
U4M
RK3066
RK3066
U4M
RK3066
RK3066
GPIO2_D4/I2C0_SDA G19
GPIO2_D5/I2C0_SCL G18
GPIO2_D6/I2C1_SDA L23
GPIO2_D7/I2C1_SCL K22
GPIO3_A0/I2C2_SDA K23
GPIO3_A1/I2C2_SCL Y19
GPIO1_B0/UART2_RX N22
GPIO1_B1/UART2_TX AB19
GPIO3_D3/UART3_RX L19
GPIO3_D4/UART3_TX K19
GPIO3_D5/UART3_CTS K18
GPIO3_D6/UART3_RTS L18
GPIO0_D7/PWM3 J21
GPIO0_D6/PWM2 H20
GPIO0_A4/PWM1 H21
GPIO0_A3/PWM0 AA15
GPIO6_B4 G23
TP30TP30
1
TP29TP29
1
U4G
RK3066
RK3066
U4G
RK3066
RK3066
GPIO1_A4/UART1_RX/SPI0_CSN0 AA7
GPIO1_A5/UART1_TX/SPI0_CLK AC5
GPIO1_A6/UART1_CTSN/SPI0_RXD AB6
GPIO1_A7/UART1_RTSN/SPI0_TXD AB7
GPIO4_B7/SPI0_CSN1 AC7
AP1_VCC V16
C139
0.1uF
C0201
C139
0.1uF
C0201
C125
0.1uF
C0201
C125
0.1uF
C0201
R74
4.7K
R0402
R74
4.7K
R0402
U4J
RK3066
RK3066
U4J
RK3066
RK3066
GPIO0_D3/I2S2_LRCK_TX/SMC_ADVN W21
GPIO0_D2/I2S2_LRCK_RX/SMC_OEN Y21
GPIO0_D0/I2S2_CLK/SMC_CSN0 P19
GPIO0_D1/I2S2_SCLK/SMC_WEN P20
GPIO0_C6/SMC_A2/TRACE_CLK T18
GPIO0_C7/SMC_A3/TRACE_CTL AB20
GPIO0_D5/I2S2_SDO/SMC_A1 AC20
GPIO0_D4/I2S2_SDI/SMC_A0 V21
GPIO4_C0/SMC_D0/TRACE_D0 Y17
GPIO4_C1/SMC_D1/TRACE_D1 W17
GPIO4_C2/SMC_D2/TRACE_D2 W16
GPIO4_C3/SMC_D3/TRACE_D3 T19
GPIO4_C4/SMC_D4/TRACE_D4 V17
GPIO4_C5/SMC_D5/TRACE_D5 U19
GPIO4_C6/SMC_D6/TRACE_D6 V19
GPIO4_C7/SMC_D7/TRACE_D7 W18
GPIO4_D0/SMC_D8/TRACE_D8 Y18
GPIO4_D1/SMC_D9/TRACE_D9 AA18
GPIO4_D2/SMC_D10/TRACE_D10 W20
GPIO4_D3/SMC_D11/TRACE_D11 AB18
GPIO4_D4/SMC_D12/TRACE_D12 U18
GPIO4_D5/SMC_D13/TRACE_D13 AC19
GPIO4_D6/SMC_D14/TRACE_D14 Y20
GPIO4_D7/SMC_D15/TRACE_D15 AA20
SMC_VCC R17
C131
22uF
C0805
C131
22uF
C0805
C129
0.1uF
C0201
C129
0.1uF
C0201
C122
10uF
C0805
C122
10uF
C0805
CN1
CON4_0.8MM
CON4_0_8MM
CN1
CON4_0.8MM
CON4_0_8MM
1
2
3
4
5
6
R73
4.7K
R0402
R73
4.7K
R0402
TP33TP33
1
TP34TP34
1
C151
0.1uF
C0201
C151
0.1uF
C0201
C128
0.1uF
C0201
C128
0.1uF
C0201
C140
0.1uF
C0201
C140
0.1uF
C0201
R71
4.7K
R0402
R71
4.7K
R0402
C135
0.1uF
C0201
C135
0.1uF
C0201
TP28TP28
1
C134
0.1uF
C0201
C134
0.1uF
C0201
R72
4.7K
R0402
R72
4.7K
R0402
C136
0.1uF
C0201
C136
0.1uF
C0201
TP32TP32
1
C132
102
C0201
C132
102
C0201
C143
22uF
C0805
C143
22uF
C0805
C130
22uF
C0805
C130
22uF
C0805
C137
0.1uF
C0201
C137
0.1uF
C0201
C147
0.1uF
C0201
C147
0.1uF
C0201
C138
0.1uF
C0201
C138
0.1uF
C0201
C148
0.1uF
C0201
C148
0.1uF
C0201
C127
0.1uF
C0201
C127
0.1uF
C0201
TP31TP31
1
C141
0.1uF
C0201
C141
0.1uF
C0201
C149
0.1uF
C0201
C149
0.1uF
C0201
C126
0.1uF
C0201
C126
0.1uF
C0201
C146
0.1uF
C0201
C146
0.1uF
C0201
C133
1uF
C0402
C133
1uF
C0402
C150
0.1uF
C0201
C150
0.1uF
C0201
C142
22uF
C0805
C142
22uF
C0805
U4P
RK3066
RK3066
U4P
RK3066
RK3066
VCCIO1 K17
VCCIO2 H17
CVDD1 G11
CVDD2 G16
CVDD3 H7
CVDD4 J17
CVDD5 L17
CVDD6 N7
CVDD7 P17
CVDD8 T17
AVDD1
N5 AVDD2
P5 AVDD3
P6 AVDD4
T5 AVDD5
T6 AVDD6
U5 AVDD7
U6 AVDD8
V5 AVDD9
U8 AVDD10
U9 AVDD11
V7 AVDD12
V8
AVDD_COM
V10
TP35TP35
1
C123
10uF
C0805
C123
10uF
C0805
C121
0.1uF
C0201
C121
0.1uF
C0201
C144
1uF
C0402
C144
1uF
C0402
U4Q
RK3066
RK3066
U4Q
RK3066
RK3066
VSS3
G12
VSS1
C16 VSS2
D20
VSS4
H8 VSS5
H9 VSS6
H10 VSS7
H11 VSS8
H12 VSS9
H13 VSS10
H14 VSS11
H15 VSS12
H16 VSS13
J8 VSS14
J9 VSS15
J10 VSS16
J11 VSS17
J12 VSS18
J13 VSS19
J14 VSS20
J15 VSS21
J16 VSS22
K8 VSS23
K9 VSS24
K10 VSS25
K11 VSS26
K12 VSS27
K13 VSS28
K14 VSS29
K15 VSS30
K16 VSS31
L8 VSS32
L9 VSS33
L10 VSS34
L11 VSS35
L12 VSS36
L13 VSS37
L14 VSS38
L15 VSS39
L16 VSS40
M8 VSS41
M9 VSS42
M10 VSS43
M11 VSS44
M12
VSS45 M13
VSS46 M14
VSS47 M15
VSS48 M16
VSS49 M17
VSS50 N8
VSS51 N9
VSS52 N10
VSS53 N11
VSS54 N12
VSS55 N13
VSS56 N14
VSS57 N15
VSS58 N16
VSS59 P7
VSS60 P8
VSS61 P9
VSS62 P10
VSS63 P11
VSS64 P12
VSS65 P13
VSS66 P14
VSS67 P15
VSS68 P16
VSS69 R7
VSS70 R8
VSS71 R9
VSS72 R10
VSS73 R11
VSS74 R12
VSS75 R13
VSS76 R14
VSS77 R15
VSS78 R16
VSS79 T7
VSS80 T8
VSS81 T9
VSS82 T10
VSS83 T14
VSS84 T15
VSS85 T16
VSS86 AA16
VSS87 AA17
VSS88 AB10

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MIC1N
I2S0_CLK
I2S_ADCDAT
I2S_DACDAT
I2S_BCLK
I2S0_SDI
I2S0_SDO0
I2S_MCLK
I2S0_LRCK_TX
I2S_BCLK I2S_DACDAT I2S_LRCK I2S_MCLK I2S_ADCDAT
I2S_LRCK
MIC1P
MIC1N
I2S0_LRCK_RX
I2S0_SCLK
PHONE_DET
HP_ROUT
PHONE_DET
I2S0_SDO0
I2S0_SCLK
I2S0_SDI
I2S0_LRCK_TX
I2S0_CLK
I2S0_LRCK_RX
HPO_L
HPO_R
SPO_LP
SPO_LN
SPO_LP
HPO_R
HPO_L
MIC1P
HP_LOUT
MIC_LINE_INMIC_LINE
SPO_LN
MIC_LINE
PHONE_DET
MIC_LINE
HP_ROUT
HP_LOUT
MIC_LINE_IN
MICBIAS1
VCC_IO
VCC_IO VCCA_33 DBVDD
VCC_SPKVSYS
MICBIAS1
VCC_SPK
DBVDD
VCCA_33
VCCA_33
VCC_IO
MICBIAS2
MICBIAS2
I2C0_SDA9,14 I2C0_SCL9,14
MIC_DET6
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Audio
Custom
10 16Thursday, August 16, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Audio
Custom
10 16Thursday, August 16, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Audio
Custom
10 16Thursday, August 16, 2012
Jacky Huang
SMB-C7016
CODEC
RK3066-L
MIC
Note:
Please place these components near to CODEC.
SPEAKER EARPHONE PORT
SLAVE ADDRESS 0X34
测试点焊盘 1.5*2.5mm ，两焊盘间距 2mm
MIC- MIC+
SPKL+
SPKL-
测试点焊盘 1.5*2.5mm ，两焊盘间距 2mm
EMI
FB5
FB0603
FB5
FB0603
C160
4.7uF
C0603
C160
4.7uF
C0603
C157
2.2uF
C0603
C157
2.2uF
C0603
FB4
FB0603
FB4
FB0603
R78 33RR0402 R78 33RR0402
MICP1MICP1
1
C170
4.7uF
C0603
C170
4.7uF
C0603
R79 33R
R0402
R79 33R
R0402
R90
22R
R0402
R90
22R
R0402
U4L
RK3066
RK3066
U4L
RK3066
RK3066
GPIO0_B0/I2S0_CLK T22
GPIO0_B1/I2S0_SCLK T23
GPIO0_B2/I2S0_LRCK_RX R22
GPIO0_B3/I2S0_LRCK_TX R21
GPIO0_A7/I2S0_SDI L21
GPIO0_B4/I2S0_D0 K21
GPIO0_B5/I2S0_D1 P23
GPIO0_B6/I2S0_D2 N23
GPIO0_B7/I2S0_D3 M22
GPIO1_B2/SPDIF_TX L22
R83 33R
R0402
R83 33R
R0402
R34
NC
R0402
R34
NC
R0402
C177
4.7uF
C0603
C177
4.7uF
C0603
CN8
CON2_0.8MM
CON2_0_8MM
CN8
CON2_0.8MM
CON2_0_8MM
2 1 3
4
MICN1MICN1
1
RV18
RV0402
R0402
RV18
RV0402
R0402
C176
0.1uF
C0201
C176
0.1uF
C0201
R172
4.7K
R0402
R172
4.7K
R0402
R77
2K
R0402
R77
2K
R0402
FB11
FB0603
R0603
FB11
FB0603
R0603
RV20
RV0402
R0402
RV20
RV0402
R0402
R84 33R
R0402
R84 33R
R0402
FB9
FB0603
FB9
FB0603
R91
22R
R0402
R91
22R
R0402
CN3
CON8_0.5MM
CON8_0_5MM
CN3
CON8_0.5MM
CON8_0_5MM
1
2
3
4
5
6
7
8
9
10
SPKLN1SPKLN1
1
C152
10uF
C0805
C152
10uF
C0805
C154
10uF
C0805
C154
10uF
C0805
R86
680R
R0402
R86
680R
R0402
SPKLP1SPKLP1
1
U12
ALC5631Q
QFN48-0_4MM
U12
ALC5631Q
QFN48-0_4MM
MIC1P
12 MIC1N
13
MIC2P
15 MIC2N
14
BB_RXP
11 BB_RXN
10
AXI_L/JID1
8AXI_R/JID2
9
MCLK
36 BCLK 32 LRCK 33
ADCDAT
31 DACDAT 30
AGND 18
SPKGND 1
DGND 41
HPO_L 29
HPO_R 28
CPVEE 27
ROUT_P 2
ROUT_N 3 MICBIAS1
7
Cdepop 21
VREF 17
SPO_RN 45
SCL
35 SDA 34
DCVDD 39
DBVDD 40
AVDD 16
SPKVDD_R 44
MICBIAS2
6
DMIC_SDA/GPIO
37 DMIC_SCL 38
SPO_RP 43
SPO_LP 48
SPO_LN 46
MONO_P 19
MONO_N 20
CPREE 22
CBN 26
CBP 24
SPKVDD_L 47
CPVDD 23
CPGND 25
RST
42
LOUT_P 5
LOUT_N 4
DGND 49
C171
0.1uF
C0201
C171
0.1uF
C0201
C164 1uF
C0402
C164 1uF
C0402
TP26TP26
1
RV16
NC
R0402
RV16
NC
R0402
R82
10K
R0402
R82
10K
R0402
C163
100pF
C0402
C163
100pF
C0402
C161
4.7uF
C0603
C161
4.7uF
C0603
R75
2K
R0402
R75
2K
R0402 C165 1uF
C0402
C165 1uF
C0402
C162
0.1uF
C0201
C162
0.1uF
C0201
C179
0.1uF
C0201
C179
0.1uF
C0201
R171 NC/0RR0402 R171 NC/0RR0402
RV14
NC
R0402
RV14
NC
R0402
RV15
RV0402
R0402
RV15
RV0402
R0402
RV19
RV0402
R0402
RV19
RV0402
R0402
C159
2.2uF
C0603
C159
2.2uF
C0603
C156
4.7uF
C0603
C156
4.7uF
C0603
R88 33R
R0402
R88 33R
R0402
C155
0.1uF
C0201
C155
0.1uF
C0201
R87
100K
R0402
R87
100K
R0402
RV13
NC
R0402
RV13
NC
R0402
C153
10uF
C0805
C153
10uF
C0805
R80 33RR0402 R80 33RR0402
R173
4.7K
R0402
R173
4.7K
R0402
C167
680pF
C0402
C167
680pF
C0402
CN7
CON2_0.8MM
CON2_0_8MM
CN7
CON2_0.8MM
CON2_0_8MM
2
13
4
FB3
FB0603
FB3
FB0603
C166
10uF
C0805
C166
10uF
C0805
C175
100pF
C0402
C175
100pF
C0402
C168 1uF
C0402
C168 1uF
C0402
R76
33R
R0402
R76
33R
R0402
C181
0.1uF
C0201
C181
0.1uF
C0201
FB6
FB0603
FB6
FB0603
RV17
NC
R0402
RV17
NC
R0402
C178 1uF
C0402
C178 1uF
C0402
C169
680pF
C0402
C169
680pF
C0402
TP27TP27
1
R81 33R
R0402
R81 33R
R0402
C158
1uF
C0402
C158
1uF
C0402
C174
100pF
C0402
C174
100pF
C0402
R85 33R
R0402
R85 33R
R0402
R89 33R
R0402
R89 33R
R0402
C180
0.1uF
C0201
C180
0.1uF
C0201

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LCDC_D5
LCDC_D4
LCDC_D12
LCDC_D15
LCDC_D11
LCDC_D9
LCDC_D23
LCDC_D10
LCDC_D22
LCDC_D21
LCDC_D20
LCDC_D3
LCDC_D2
LCDC_D1
LCDC_CLK
LCDC_VSYNC
LCDC_D14
LCDC_D19
LCDC_HSYNC
LCDC_D18
LCDC_D13
LCDC_D17
LCDC_D7
LCDC_D6
LCDC_D8
LCDC_D0
LCDC_D16
LCDC_DE
LCDC_D[0:23]
LED+
LED-
LCD_D9LCDC_D9
LCD_D0LCDC_D0 LCD_D1LCDC_D1
LCD_D2LCDC_D2 LCD_D3LCDC_D3 LCD_D4LCDC_D4
LCDC_HSYNC
LCD_D5LCDC_D5
LCDC_VSYNC
LCD_D6LCDC_D6 LCD_D7LCDC_D7 LCD_D10LCDC_D10 LCD_D11LCDC_D11
LCDC_DE
LCD_D12LCDC_D12
LCD_DE
LCD_D13LCDC_D13 LCD_D21LCDC_D21 LCD_D23LCDC_D23 LCD_D14LCDC_D14 LCD_D15LCDC_D15 LCD_D22LCDC_D22 LCD_D18LCDC_D18 LCD_D19LCDC_D19 LCD_D20LCDC_D20
LCD_HSYNC
LCD_VSYNC
LCDC_CLK
LCD_D17LCDC_D17 LCD_D16LCDC_D16
LCD_D8LCDC_D8
LCDC_D[0:23]
LCD_CLK
SELB
LED+
LED+
CABCEN0
STBYB
RSTB
LED-
LED-
UD
TXOUT0+
TXOUT0-
LR
TXOUT1+
TXOUT1-
CABCEN1
TXOUT2-
TXOUT2+
TCLK-
TCLK+
TXOUT3-
TXOUT3+
VCOM
SW
LCD_D20
LCD_D7
LCD_D21
LCD_D14
TXOUT3+
TXOUT1-
TXOUT1+
TCLK-
TCLK+
TXOUT2+
TXOUT2-
TXOUT0-
TXOUT0+
TXOUT3-
LCD_VSYNC
LCD_HSYNC
LCD_D8
LCD_D22
R_FB
LCD_D23
LCD_D0
LCD_D15
LCD_D16
LCD_D9
LCD_D1
LCD_D10
LCD_D2
LCD_D11
LCD_D3
LCD_D12
LCD_D17
LCD_D4
LCD_D18
LCD_D13
LCD_D5
LCD_D19
LCD_CLK
LCD_DE
LCD_D6
LCD_CLK
VCC_LCD
VCC_LVDS_PLL
VCC_LCD
VCC_LCD
VCC_LCD
VCC_LCD
VCC_LCDVCC_IO
VCC_LCD
VSYS
VCC_IO
LCD_AVDD
VGH
VCOM
VGL
VGH
VGL
LCD_AVDD
LCD_AVDD
LCD_AVDD LCD_AVDD
VCC_LCD
VCC_LCD
VCC_LCD VCC_LVDS_PLL
VCC_LCD
LCD_EN9
LCDC_BL9
BL_EN6
LCD_CS9
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
LCD panel
Custom
11 16Monday, August 20, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
LCD panel
Custom
11 16Monday, August 20, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
LCD panel
Custom
11 16Monday, August 20, 2012
Jacky Huang
SMB-C7016
LCD PANEL POWER
RK2918-A
Note: If using other LCD panel,
follow to the requirements of SPEC on the power supply.
LVDS Conector
LCDC_D5
LCDC_D6
LCDC_D7
LCDC_D8
LCDC_D9
LCDC_D10
LCDC_D11
LCDC_D12
LCDC_D13
LCDC_D14
LCDC_D16
LCDC_D17
LCDC_D18
LCDC_D19
LCDC_D20
LCDC_D21
LCDC_D22
LCDC_D23
note3
LCDC_D15
B0
B1
B2
B3
B4
B5
B6
NOTE:Please play this resistor close to node!
B7
LCDC_D0
LCDC_D1
LCDC_D2
Correspondence between LCDC DATA and RGB
LCDC_D3
G0
G6
G5
G4
G3
G2
G1
G7
LCDC_D4 R0
R6
R5
R4
R3
R2
R1
R7
4*4mm
VCOM = 2.7 - 4.7V(3.7V)
VGL = -6.5 - -7.1V(-6.8V)
VGH = 19.7 - 20.3V(20V)
AVDD = 10.8 - 11.2V(11V)
DVDD = 3.0 - 3.6V(3.3V)
R_VGH
R_VGL
LCD_AVDD
VGH/VGL
VCOM_BIAS
11.5V VCOM=4.48V
Note:
1024*600 LVDS PANEL:
(1)R202 174K_1%,R201 22K_1%---LCD_AVDD=11.13V;default
R199 9.1K_1%,R204 4.7K_1%---VCOM=3.75V;default
R199 8.1K_1%,R204 4.7K_1%---VCOM=4.04V;
(2)R202 200K_1%,R201 27K_1%---LCD_AVDD=10.51V;
R199 81K_1%,R204 4.7K_1%---VCOM=3.85V;
1.25V
(4.5V)
+20V(19.7V~20.3V)
-6.8V(-6.5V`-7.1V)
INNOLUX 1024*600
LCD config
4*4mm
Note1:
Rpullup: install only to use rising edge triggered clocking.
Rpulldown: install only to use falling edge triggered clocking.
SN75LVDS83BZQLR
8bit mode select
add Standby mode pin pullup
C288
0.1uF
C0402
C288
0.1uF
C0402
R100
150K/330K
R0402
R100
150K/330K
R0402
U13
SN75LVDS83B
R-PBGA-N56
U13
SN75LVDS83B
R-PBGA-N56
D0
J2 D1
K1 D2
K2 D3
J3 D4
K3
D5
K4 D27
J1 D6
J4
D7
K5 D8
K6 D9
J6 D12
G5 D13
G6 D14
F6 D10
H4 D11
H6 D15
E5 D18
D5 D19
C6 D20
B6 D21
B5 D22
A6 D16
E6 D17
D6 D24
A4 D25
B4 D26
A3 D23
A5
CLKIN
A2
CLKSEL
D4
SHTDN*
B3
GND1
A1 GND2 B1 GND3
C3 GND4 C5 GND5 D3 GND6
F2 GND7 F5 GND8
G3 GND9
H3 GND10
J5
IOVCC1 C4 IOVCC2 G4
VCC H5
PLLVCC B2
LVDSVCC F1
Y0M H1
Y0P H2
Y1M G1
Y1P G2
Y2M E1
Y2P E2
Y3M C1
Y3P C2
CLKM D1
CLKP D2
D9
BAT54S
D9
BAT54S
3
2
1
R203
20K1%/NC
R0402
R203
20K1%/NC
R0402
D15
1N5819HW
SOD-123
D15
1N5819HW
SOD-123
1 2
C296
0.1uF
C0201
C296
0.1uF
C0201
C285
10uF_16V
C0805
C285
10uF_16V
C0805
C191
1uF
C0402
C191
1uF
C0402
FB10
FB0603
R0603
FB10
FB0603
R0603
C291
22uF
C0805
C291
22uF
C0805
C190
0.1uF
C0201
C190
0.1uF
C0201
R111 33R R0402 R111 33R R0402
R97
1R1%
R0805
R97
1R1%
R0805
C280
0.1uF
C0402
C280
0.1uF
C0402
C187
4.7uF
C0603
C187
4.7uF
C0603
C289
0.1uF
C0402
C289
0.1uF
C0402
C301
6pF
C0402
C301
6pF
C0402
R112 33R R0402 R112 33R R0402
C295
1uF
C0402
C295
1uF
C0402
R92
NC
R0402
R92
NC
R0402
C281
0.1uF
C0402
C281
0.1uF
C0402
U4A
RK3066
RK3066
U4A
RK3066
RK3066
LCD0_DCLK E6
LCD0_DEN D4
LCD0_HSYNC D6
LCD0_VSYNC D5
LCD0_D0 C4
LCD0_D1 C3
LCD0_D2 C2
LCD0_D3 D3
LCD0_D4 D1
LCD0_D5 F5
LCD0_D6 D2
LCD0_D7 E4
LCD0_D8 F4
LCD0_D9 E3
LCD0_D10 E2
LCD0_D11 F3
LCD0_D12 E1
LCD0_D13 G5
LCD0_D14 G4
LCD0_D15 G6
LCD0_D16 F2
LCD0_D17 G3
LCD0_D18 G2
LCD0_D19 G1
LCD0_D20 H4
LCD0_D21 H3
LCD0_D22 H2
LCD0_D23 H5
LCD0_VCC0 K7
LCD0_VCC1 J7
C197
0.1uF
C0201
C197
0.1uF
C0201
R205
100K
R0402
R205
100K
R0402
CN14
CON40_0.5MM
CON40_0_5MM_FG
CN14
CON40_0.5MM
CON40_0_5MM_FG
10
9
8
7
6
5
4
3
2
1
11
13
12
15
14
16
20
19
18
17
30
29
28
27
26
25
24
23
22
21
32
31
36
35
34
33
40
39
38
37
41
42
D7
BAT54S
D7
BAT54S
3
2
1
C276
4.7uF_25V
C0805
C276
4.7uF_25V
C0805
C188
0.1uF
C0201
C188
0.1uF
C0201
L16
10uH/1.5A
L16
10uH/1.5A
R279 NC/4.7K
R0402
R279 NC/4.7K
R0402
R101
2R1%
R0805
R101
2R1%
R0805
R280 0R
R0402
R280 0R
R0402
C292
0.1uF
C0201
C292
0.1uF
C0201
C277 0.1uF
C0402
C277 0.1uF
C0402 D10
5.1V6.8V
IN4148
D10
5.1V6.8V
IN4148
12
C282
NC
C0402
C282
NC
C0402
C185
1uF/25V
C0805
C185
1uF/25V
C0805
C186
102
C0201
C186
102
C0201
MQ5
DMP2215L
SOT_23
MQ5
DMP2215L
SOT_23
2
1
3
R199
9.1K_1%
R0402
R199
9.1K_1%
R0402
C293 0.1uF
C0402
C293 0.1uF
C0402
R215
4.7K
R0402
R215
4.7K
R0402
C299
0.1uF
C0201
C299
0.1uF
C0201
C183
0.1uF
C0201
C183
0.1uF
C0201
R302 100K_1%
R0402
R302 100K_1%
R0402
C300
3pF
C0402
C300
3pF
C0402
R94 0R/NC
R0402
R94 0R/NC
R0402
R200 4.7K/2.2K
R0603
R200 4.7K/2.2K
R0603
C193
0.1uF
C0201
C193
0.1uF
C0201
C184
4.7uF
C0603
C184
4.7uF
C0603
R113 33R R0402 R113 33R R0402
R206
100K
R0402
R206
100K
R0402
C290
4.7uF_6.3V
C0603
C290
4.7uF_6.3V
C0603 R208 4.7K
R0402
R208 4.7K
R0402
U24
MP1540
U24
MP1540
IN 5
SW 1
EN
4
GND
2
FB 3
R201
10K/22K_1%
R0402
R201
10K/22K_1%
R0402
C198
0.1uF
C0201
C198
0.1uF
C0201
R207 4.7K/2.2K
R0603
R207 4.7K/2.2K
R0603
C283
0.1uF_25V
C0603
C283
0.1uF_25V
C0603
R96
5.1K/82K
R0402
R96
5.1K/82K
R0402
R209
4.7K
R0402
R209
4.7K
R0402
R93
0R
R0402
R93
0R
R0402
L7
10uH/1.5A
L7
10uH/1.5A
C182
10uF
C0805
C182
10uF
C0805
C189
1uF
C0402
C189
1uF
C0402
C278
0.1uF_25V
C0603
C278
0.1uF_25V
C0603
C195
0.1uF
C0201
C195
0.1uF
C0201
R102
NC/10K
R0402
R102
NC/10K
R0402
C286
10uF_16V
C0805
C286
10uF_16V
C0805
C284
0.1uF
C0402
C284
0.1uF
C0402
C298
4.7uF
C0603
C298
4.7uF
C0603
R210 4.7K
R0402
R210 4.7K
R0402
R114 33R R0402 R114 33R R0402
C196
0.1uF
C0201
C196
0.1uF
C0201
C194
0.1uF
C0201
C194
0.1uF
C0201
C287
0.1uF
C0402
C287
0.1uF
C0402
R99
10K/330K
R0402
R99
10K/330K
R0402
C279
0.1uF
C0402
C279
0.1uF
C0402
R95
47K
R0402
R95
47K
R0402
D8
16V/20V
IN4148
D8
16V/20V
IN4148
1 2
U14
MP1488
SOT-23-6
U14
MP1488
SOT-23-6
SW 1
GND
2
FB 3
IN
6
OV 5
EN
4
D4
1N5819HW
SOD-123
D4
1N5819HW
SOD-123
R204
8.2K/4.7K_1%
R0402
R204
8.2K/4.7K_1%
R0402
C192
0.1uF
C0201
C192
0.1uF
C0201
R98
10K
R0402
R98
10K
R0402
C294
0.1uF
C0201
C294
0.1uF
C0201
R202
82K/174K_1%
R0402
R202
82K/174K_1%
R0402

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DRV7 DRV7
SENS5 SEN5
SENS9 SEN9
DRV8 DRV8
DRV4 DRV4
DRV13 DRV13
DRV8 DRV8
DRV5 DRV5
DRV1 DRV1
DRV9 DRV9
DRV14 DRV14
DRV6 DRV6
DRV2 DRV2
DRV10 DRV10
DRV11 DRV11
DRV7 DRV7
DRV3 DRV3
DRV12 DRV12
DRV[14..0]
DRV0 DRV0
SENS0 SEN0
DRV9 DRV9
DVDD
VREF
DRV10 DRV10
SENS8 SEN8
DRV11 DRV11
VDDIO_GT811
DRV0 DRV0
SENS4 SEN4
DRV1 DRV1
SENS[9..0]
DRV12 DRV12
SENS3 SEN3
DRV2 DRV2
DRV13 DRV13
SENSOR_ID
SENS7 SEN7
DRV3 DRV3
SENS2 SEN2
DRV14 DRV14
DRV4 DRV4
SENS1 SEN1 DRV5 DRV5
SENS6 SEN6
DRV6 DRV6
SENS5 SEN5
SENS9 SEN9
SENS0 SEN0
SENS8 SEN8
SENS4 SEN4
SENS[9..0]
SENS3 SEN3
SENS7 SEN7
SENS2 SEN2
SENS1 SEN1
SENS6 SEN6
DRV[14..0]
VCC_TP
VCC_TP
AVDD_GT811
AVDD_GT811
AVDD_GT811
VDDIO_GT811
AVDD_GT811
VCC_TP
I2C2_SCL9
I2C2_SDA9
TP_RST 9
TP_INT 9
I2C2_SDA 9
I2C2_SCL 9
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Touch panel
A3
12 16Monday, August 20, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Touch panel
A3
12 16Monday, August 20, 2012
Jacky Huang
SMB-C7016
TitleSize
Document Number
Rev
Date: Sheet of
Designer
万利达（厦门）技术中心
Project
8266Y
1.0
Touch panel
A3
12 16Monday, August 20, 2012
Jacky Huang
SMB-C7016

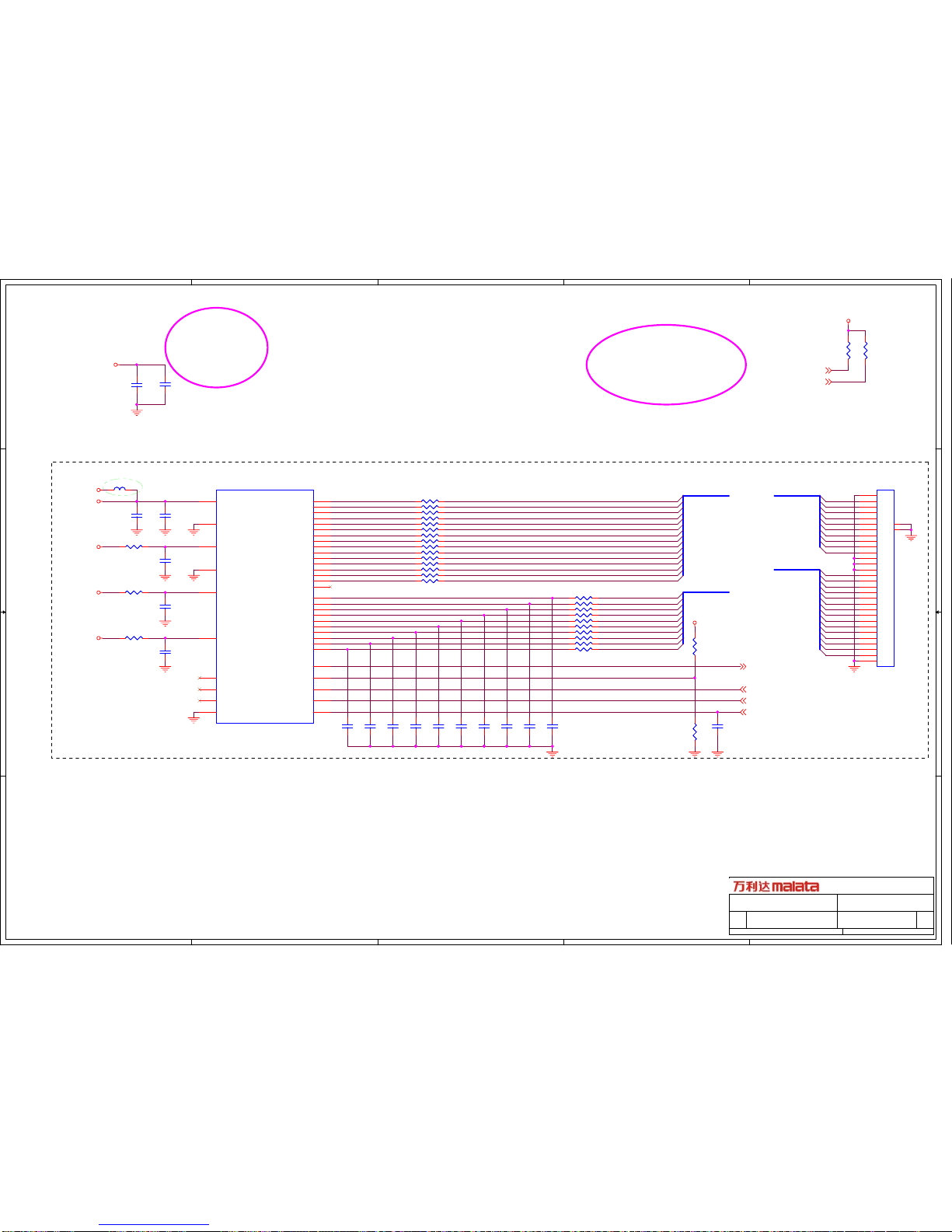

TOUCH PANEL
delete LIGHT SENSOR
Touch Panel
delete reversed GT811 model
FB13 FB0603
R0603
FB13 FB0603
R0603
C200
0.1uF
C0201
C200
0.1uF
C0201
R1982.2K
R02015%
R1982.2K
R02015%
R1762.2K
R02015%
R1762.2K
R02015%
C274
.1UF
6.3V
C0201
COMMON
+/-10%
X5R
C274
.1UF
6.3V
C0201
COMMON
+/-10%
X5R
C268
27PF
25V
C0201
+/-10%
NPO
C268
27PF
25V
C0201
+/-10%
NPO
C260
27PF
25V
C0201
+/-10%
NPO
C260
27PF
25V
C0201
+/-10%
NPO
R191 2.2K
R0201 5%
R191 2.2K
R0201 5%
R1852.2K
R02015%
R1852.2K
R02015%
R1902.2K
R02015%
R1902.2K
R02015%
R1812.2K
R02015%
R1812.2K
R02015%
R194
NC/100K
R0201
5%
COMMON
R194
NC/100K
R0201
5%
COMMON
R1672.2K
R02015%
R1672.2K
R02015%
R1862.2K
R02015%
R1862.2K
R02015%
C266
27PF
25V
C0201
+/-10%
NPO
C266
27PF
25V
C0201
+/-10%
NPO
R178 2.2K
R0201 5%
R178 2.2K
R0201 5%
C264
27PF
25V
C0201
+/-10%
NPO
C264
27PF
25V
C0201
+/-10%
NPO
U19
GT811
QFN-40-5MM
U19
GT811
QFN-40-5MM
SENS0 1
SENS1 2
SENS2 3
SENS3 4
SENS4 5
SENS5 6
SENS6 7
SENS7 8
SENS8 9
SENS9 10
NC1
11
AVDD
12
DVDD
13
DGND
14
INT 15
SENSOR_ID 16
NC2
17 I2C_SDA 18
I2C_SCL 19 NC3
20
VDDIO
21
/RSTB 22
DRV15 23
DRV14 24
DRV13 25
DRV12 26
DRV11 27
DRV10 28
DRV9 29
DRV8 30
DRV7 31
DRV6 32
DRV5 33
DRV4 34
DRV3 35
DRV2 36
DRV1 37
DRV0 38
VREF
39
AGND
40
PAD
41
R1822.2K
R02015%
R1822.2K
R02015%
R168
100K
R0201
5%
COMMON
R168
100K
R0201
5%
COMMON
C262
27PF
25V
C0201
+/-10%
NPO
C262
27PF
25V
C0201
+/-10%
NPO
R179 2.2K
R0201 5%
R179 2.2K
R0201 5%
R187 2.2K
R0201 5%
R187 2.2K
R0201 5%
R1952.2K
R02015%
R1952.2K
R02015%
R1832.2K
R02015%
R1832.2K
R02015%
R1922.2K
R02015%
R1922.2K
R02015%
C275
.01UF/NC
6.3V
C0402
COMMON
+/-10%
X5R
C275
.01UF/NC
6.3V
C0402
COMMON
+/-10%
X5R
R17 NC/0R
COMMONR0402 5%
R17 NC/0R
COMMONR0402 5%
R18 0R
COMMON R04025%
R18 0R
COMMON R04025%
R19 220K
COMMON R04025%
R19 220K
COMMON R04025%
R180 2.2K
R0201 5%
R180 2.2K
R0201 5%
R184 2.2K
R0201 5%
R184 2.2K
R0201 5%
C269
27PF
25V
C0201
+/-10%
NPO
C269
27PF
25V
C0201
+/-10%
NPO
R115
4.7K
R0402
R115
4.7K
R0402
C270
2.2UF
6.3V
C0402
COMMON
+/-20%
X5R
C270
2.2UF
6.3V
C0402
COMMON
+/-20%
X5R
R1932.2K
R02015%
R1932.2K
R02015%
R188 2.2K
R0201 5%
R188 2.2K
R0201 5%
C267
27PF
25V
C0201
+/-10%
NPO
C267
27PF
25V
C0201
+/-10%
NPO
R1742.2K
R02015%
R1742.2K
R02015%
C265
27PF
25V
C0201
+/-10%
NPO
C265
27PF
25V
C0201
+/-10%
NPO
R116
4.7K
R0402
R116
4.7K
R0402
CN4
JF0501F-30-120-PF
CN4
JF0501F-30-120-PF
10
9
8
7
6
5
4
3
2
1
11
13
12
15
14
16
20
19
18
17
30
29
28
27
26
25
24
23
22
21
31
32
C272
.01UF
6.3V
C0402
COMMON
+/-10%
X5R
C272
.01UF
6.3V
C0402
COMMON
+/-10%
X5R
R197 2.2K
R0201 5%
R197 2.2K
R0201 5%
C263
27PF
25V
C0201
+/-10%
NPO
C263
27PF
25V
C0201
+/-10%
NPO
R175 2.2K
R0201 5%
R175 2.2K
R0201 5%
R1772.2K
R02015%
R1772.2K
R02015%
C199
10uF
C0805
C199
10uF
C0805
R189 2.2K
R0201 5%
R189 2.2K
R0201 5%
C261
27PF
25V
C0201
+/-10%
NPO
C261
27PF
25V
C0201
+/-10%
NPO
C271
2.2UF
6.3V
C0402
COMMON
+/-20%
X5R
C271
2.2UF
6.3V
C0402
COMMON
+/-20%
X5R
R1962.2K
R02015%
R1962.2K
R02015%
C273
.1UF
6.3V
C0201
COMMON
+/-10%
X5R
C273
.1UF
6.3V
C0201
COMMON
+/-10%
X5R
