WITH NE, NE+, AND Q-LOGIC ELECTRONICSWITH NE, NE+, AND Q-LOGIC ELECTRONICS

WARNING! The troubleshooting and replacement procedures detailed in this troubleshooting
guide should only be performed by service personnel in accordance with the Provider Stan-
dards of Pride Mobility Products Corporation.
The symbols below are used throughout this troubleshooting guide to identify warnings and important infor-
mation. It is very important for you to read what follows the symbols and understand it completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury and/
or equipment damage. On the product, this icon is represented as a black symbol with a red
circle and red slash.
SAFETY GUIDELINES
© Pride Mobility Products Corp. 2011
Rev A/February 2011/INFMANU4132

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 3
Table of Contents
INTRODUCTION ....................................................................................................... 4
J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide ................................... 4
How to use Pride Model Specific Technical Troubleshooting Guides ............................................... 4
System Retest ................................................................................................................................. 4
SECTION 1: NO POWER .......................................................................................... 7
SECTION 2: POWER CHAIR WILL NOT DRIVE DUE TO SYSTEM LOCK .............. 9
NE Electronics ................................................................................................................................. 9
NE+ Electronics ............................................................................................................................. 10
Q-Logic Electronics ........................................................................................................................ 10
SECTION 3: ERROR CODE DIAGNOSTICS .......................................................... 12
Battery Charging or Drive Inhibit .................................................................................................... 13
Joystick Error ................................................................................................................................. 14
Power Module Error ....................................................................................................................... 15
Missing or Defective Power Module ............................................................................................... 15
Communication or Software Error .................................................................................................. 16
Open Motor Error ........................................................................................................................... 16
Motor/Brake Error .......................................................................................................................... 18

4 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
)
(
(+)
2b
)
(
50A
(+)
INTRODUCTION
J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
This J6 Technical Troubleshooting Guide covers diagnostic and repair scenarios for J6 units equipped with NE, NE+,
and Q-Logic electronics.
This guide is divided into three sections:
Section 1—No Power
Section 2—Power Chair Will Not Drive Due to System Lock
Section 3—Error Code Diagnostics
How to Use Pride Model Specific Technical Troubleshooting Guides
All new Pride ModelSpecificTechnicalTroubleshooting Guides follow the sameformat. They are divided into sections
addressing symptoms such as No Power. If the mobility product is capable of giving error codes, one section will deal
with each code for that model.
The troubleshooting guide utilizes diagrams that are located in the front and back of the guide. These diagrams identify
main components by number (1, 2, 3, etc.) and all connectors by number with a lower case extension (1a, 2a, 3a, etc.).
The diagrams also show how all of the components are connected.
Using the Table of Contents, locate the section that best describes your troubleshooting issue. Each section will include
a list of symptoms, followed by a diagnosis of the problem, and finally a solution or procedure to solve the problem. The
procedure is set up as a numbered list of instructions, which may include one or more tests. Results of these tests will:
Direct you to change a component and retest the system.
Go to the next numbered step.
Advance to a numbered step farther along in the section.
Figure 1. Diagram Insert
Use For Reference
System Retest
When a procedure specifies to replace a component, you
must retest the system after replacing that component.
To retest the system:
1. Replace the component.
2. Reconnect any harnesses that were disconnected.
3. Reconnect the batteries (if disconnected).
4. Power on the controller.
5. Operate the power base.
—If the power base operates normally, then reassemble
the power chair.
—If another problem has surfaced, then go to that pro-
cedure in this guide.
NOTE: Printed versions of Pride Technical Troubleshooting Guides include diagram inserts that can be used for refer-
ence while troubleshooting the mobility device. See figure 1
.

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 5

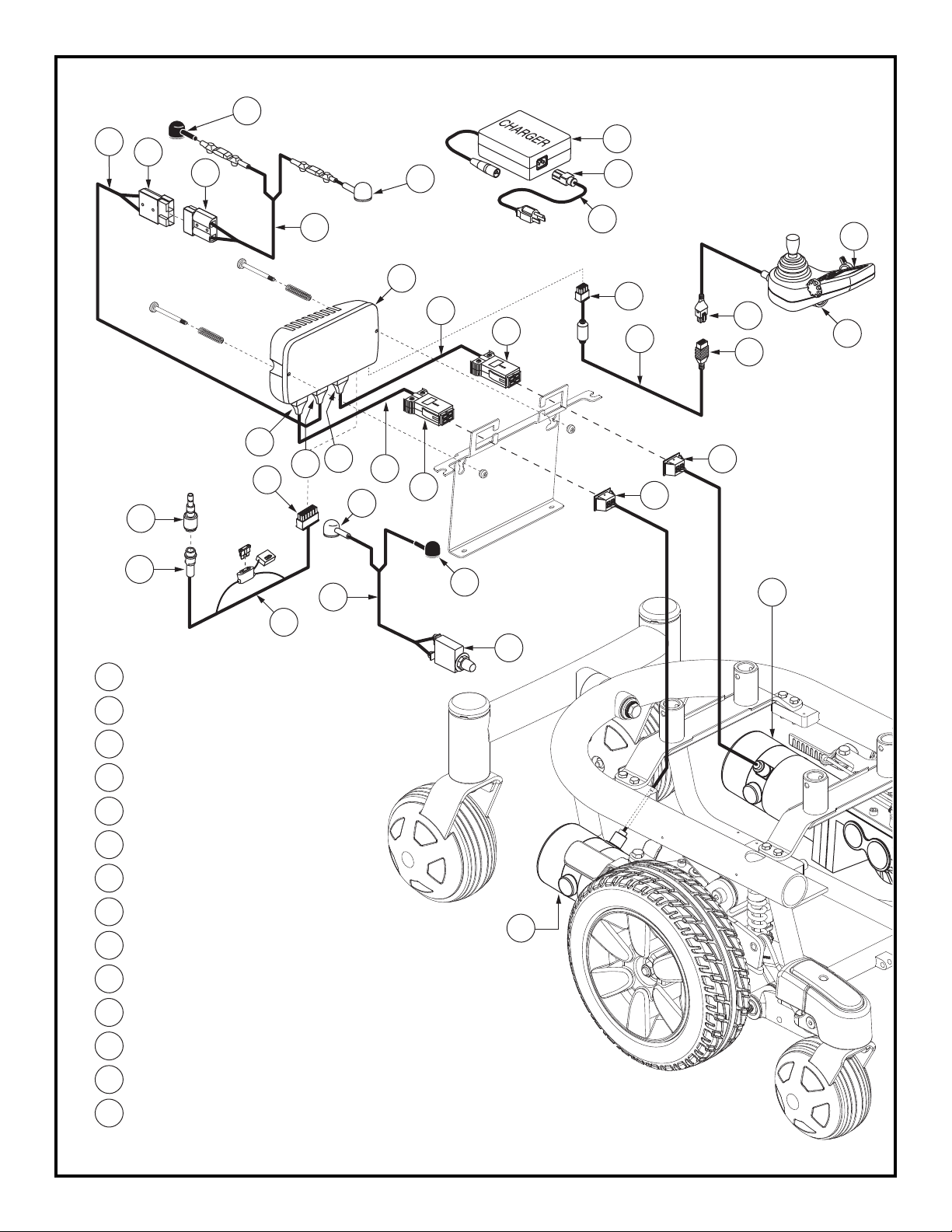

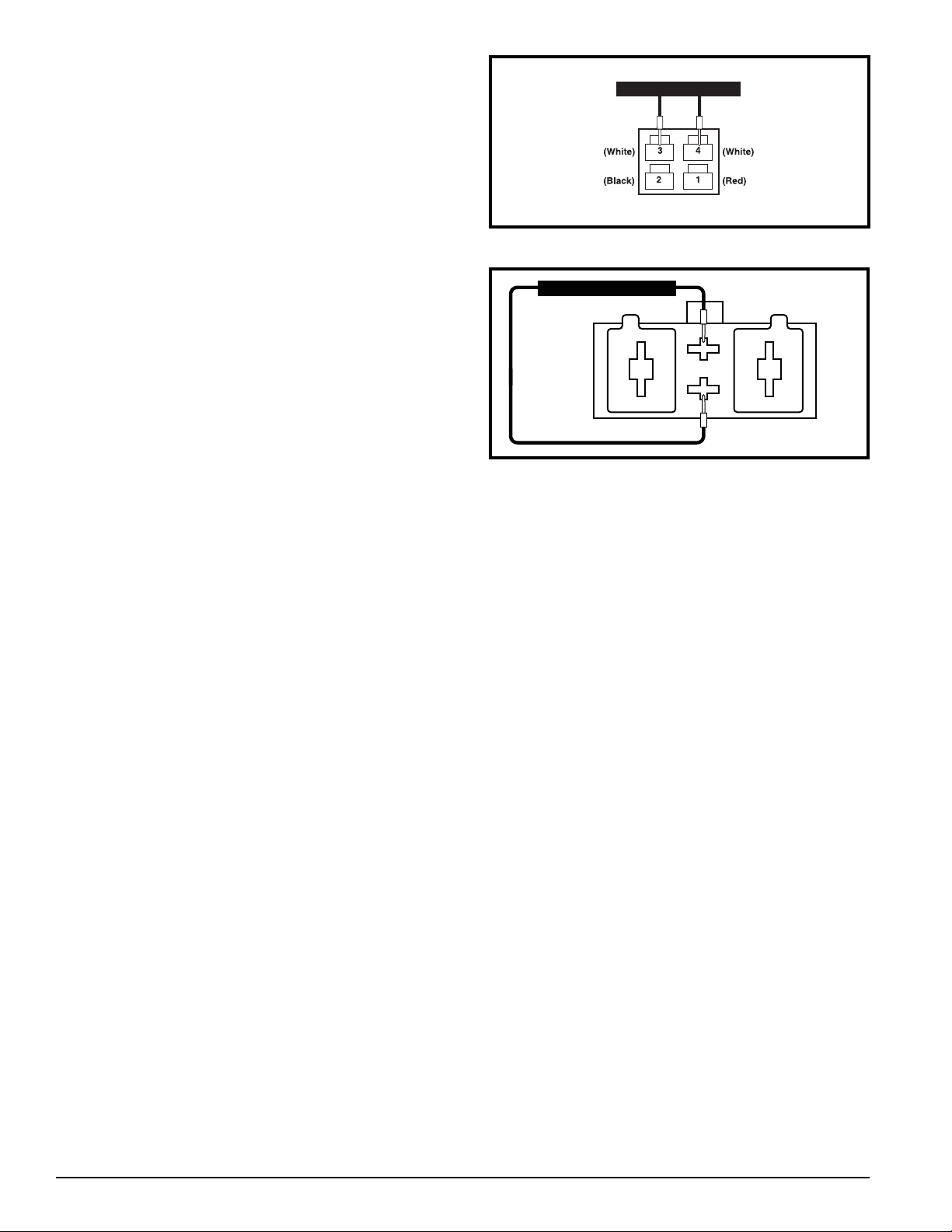

Diagram 1. J6 with NE or NE+ Electronics Troubleshooting Key
1 NE OR NE+ JOYSTICK MODULE
2 POWER MODULE
3BUSCABLE EXTENSION
4 RUN PLUG
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8LEFT MOTOR INTERFACE HARNESS
9RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13CHARGER POWER CORD
1
6
4
12
13
9
7
8
2
3
5
11
10
TO REAR BATTERY (-)
TO FRONT
BATTERY (+)

6 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide

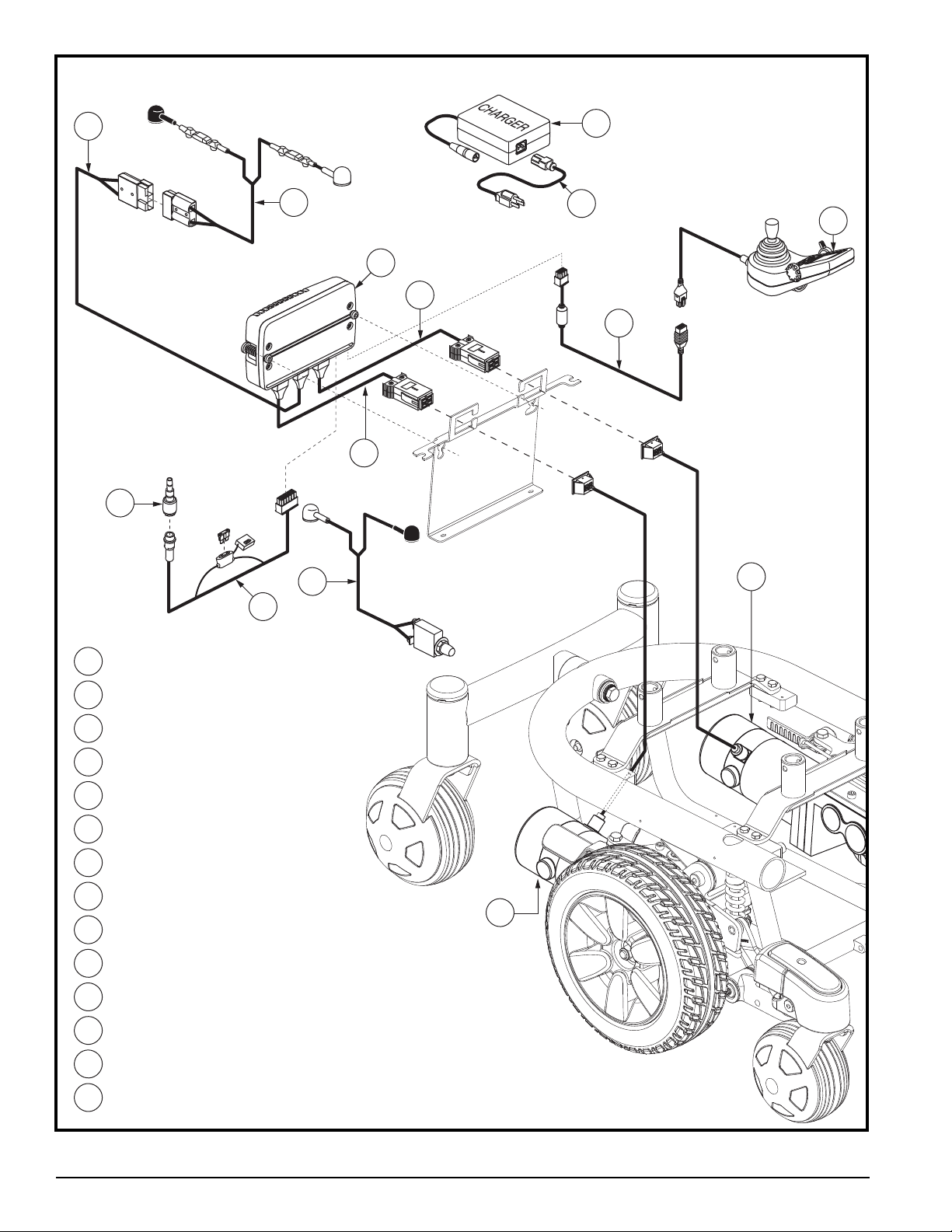

Diagram 2. J6 with Q-Logic Electronics Troubleshooting Key
TO REAR BATTERY (-)
TO FRONT
BATTERY (+)
1
6
12
13
9
7
8
2
3
5
4
14
11
10
1 Q-LOGIC JOYSTICK MODULE
2 POWER MODULE
3BUSCABLE EXTENSION
4 POWER TAKE OFF (PTO) HARNESS
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8LEFT MOTOR INTERFACE HARNESS
9RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13CHARGER POWER CORD
14 RUN PLUG

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 7
SECTION 1 - NO POWER
Symptoms:
The batteries are fully charged.
All electrical components are connected correctly.
 The power does not turn on when the on/off key is
pressed.
 The power does not turn on when the on/off mode select
lever is deflected on the Q-Logic joystick module (1).
Diagnosis:
The power has been interrupted somewhere in the system.
NOTE: The battery/circuit breaker harness (11) connects
the circuit breaker directly to the batteries. If this harness is
NOT CONNECTED TO THE POSITIVE TERMINAL OF
ONE BATTERY AND THE NEGATIVE TERMINAL OF
THE OTHER BATTERY, THE POWER CHAIR WILL
NOT POWER UP AND THE CIRCUIT BREAKER (11c)
WILL TRIP. Ensure the harness is correctly connected and
the circuit breaker (11c) is not tripped before proceeding.
Solution:
Use the following procedure to find the source of the inter-
ruption:
1. Measure voltage across pin 1 (B+) and pin 2 (B-) of
connector 1a. See figure 2 and diagram 5 or 6.
— If the multimeter indicates about 25VDC (with correct
polarity),
then replace the NE, NE+, or Q-Logic joystick
module (1) and retest the system.
— If the multimeter indicates less than 18VDC but greater
than 0VDC, then recharge the batteries and retest the
system.
— If the multimeter indicates 0VDC, then go to the next
step.
2. Remove the seat. Refer to the power base owner’s
manual.
3. Remove the rear and center shrouds. See figure 3 .
4. Unplug connector 10a from connector 5b. See diagram
3 or 4.
5. Measure voltage across pin 1 and pin 2 on connector
10a. See figure 4.
— If themultimeter indicates 0VDC, then go to the next step.
— If the multimeter indicates greater than 0VDC, then go
to step 9.
Figure 2. Connector 1a
B-
B+

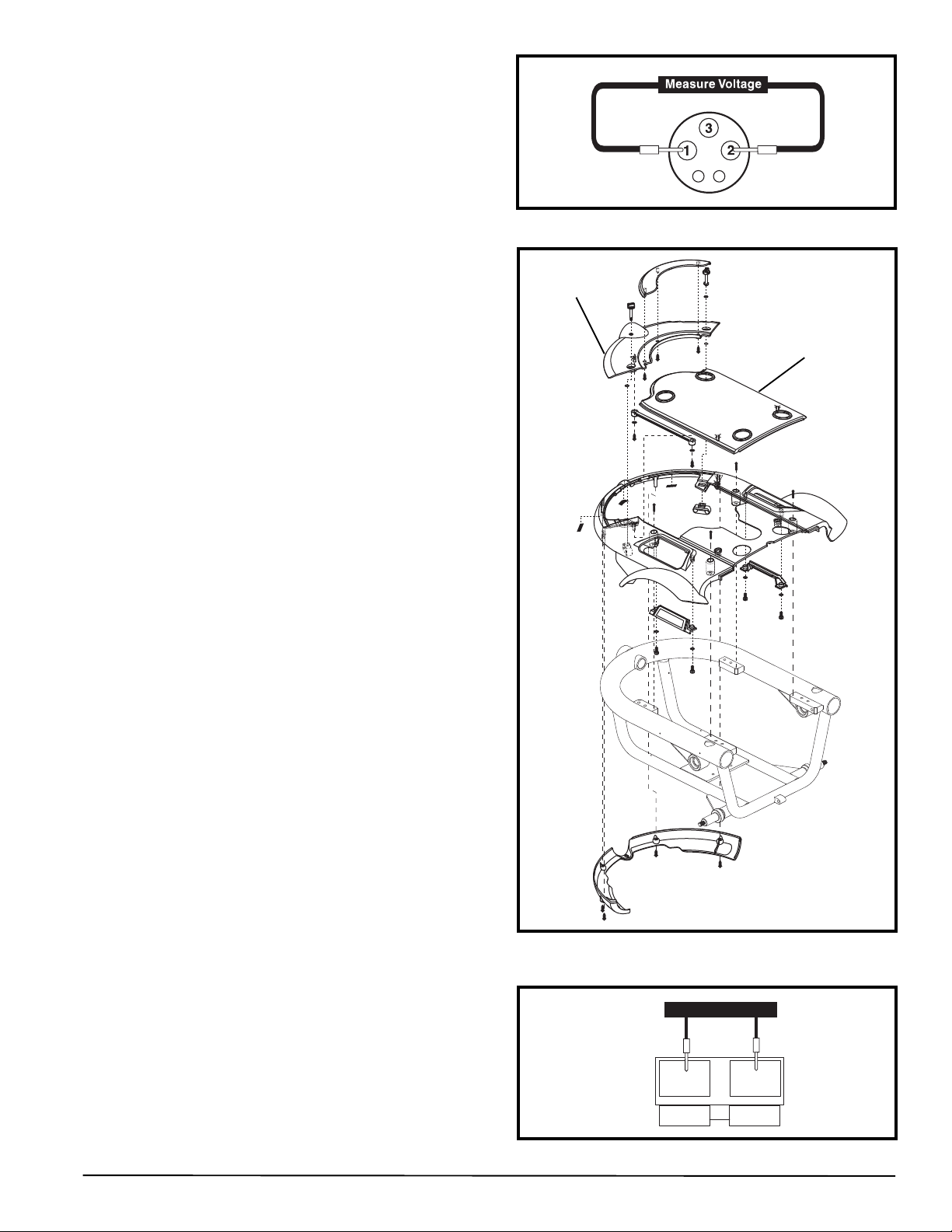

Figure 3. Rear and Center Shroud Removal/Install-
ation
Figure 4. Connector 10a
Measure Voltage
12
REAR SHROUD
CENTER SHROUD

8 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
Figure 6. Power Module (2) Disconnection
6. Measure voltage across connector 10b and connector
10c. See diagram 5 or 6.
—
If themultimeter indicates0VDC, then go to the next step.
— If the multimeter indicates greater than 0VDC, then
replace the battery cable (10) and retest the system.
7. With connector 10a and connector 5b still unplugged,
measure resistance across the negative terminal of the
front battery (11a) and the positive terminal of the rear
battery (11b). See diagram 3 or 4.
— If the multimeter indicates less than 1 ohm, then replace
the batteries and retest the system.
— If the multimeter indicates greater than 1 ohm, then go
to the next step.
8. Measure resistance across the terminals of the circuit
breaker (11c). See figure 5.
— If the multimeter indicates less than 1 ohm, then replace
the battery/circuit breaker harness (11) and retest the
system.
— If the multimeter indicates greater than 1 ohm, then
replace the circuit breaker (11c) and retest the system.
From step 5
9. Plug connector 10a back into connector 5b. See
diagram 5 or 6.
10. Disconnect the power module (2) from the module
mounting bracket. See figure 6.
11. Unplug connector 5a from connector 2c. See diagram 5
or 6.
12. Measure voltage across pin 1 (+) and pin 2 (-) on
connector 5a. See figure 7.
— If the multimeter indicates greater than 0VDC, then go
to the next step.
— If the multimeter indicates 0VDC, then replace the
power interface harness (5) and retest the system.
13. Plug connector 5a back into connector 2c. See diagram
5 or 6.
14. Unplug connector 3a from connector 2a. See diagram 5
or 6.
15. Measure voltage across pin 1 and pin 4 of connector 2a.
See figure 8.

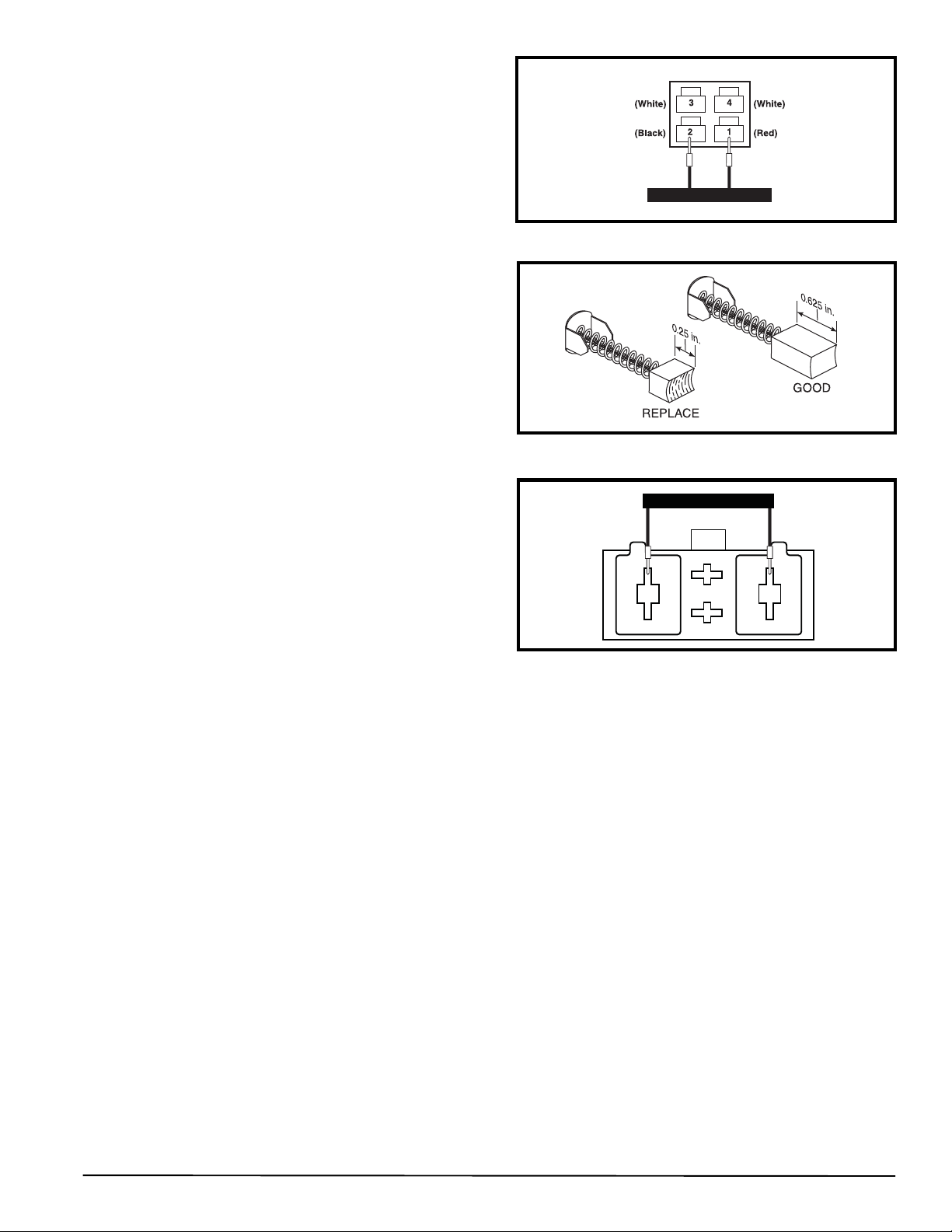

Figure 5. Circuit Breaker (11c)
Figure 7. Connector 5a
12
Measure Voltage
Figure 8. Connector 2a
123
456
Measure Voltage
— If the multimeter indicates 0VDC, then replace the power module (2) and retest the system.
— If the multimeter indicates greater than 0VDC, then go to the next step.
NOTE: If the chair is equipped with a power positioning system, refer to the troubleshooting guide for that particular
power positioning system.
SPRING
LOADED
MODULE
MOUNTING
BRACKET
2

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 9
Figure 10. System Lock Controller Programming
(NE and NE+)
Figure 9. Connector 3b
16. Plug connector 3a back into connector 2a. See diagram
5 or 6.
17. Unplug connector 3b from connector 1b. See diagram
5 or 6.
18. Measure voltage across pin 1 and pin 4 of connector 3b.
See figure 9.
— If the multimeter indicates 0VDC, then replace the BUS
cable extension (3) and retest the system.
— If the multimeter indicates greater than 0VDC, then
replace the NE, NE+, or Q-Logic joystick module (1)
and retest the system.
SECTION 2 - POWER CHAIR WILL
NOT DRIVE DUE TO SYSTEM
LOCK
NE Electronics
Symptoms:
The J6 powers on, but the NE joystick
module (1) allows no other functions.

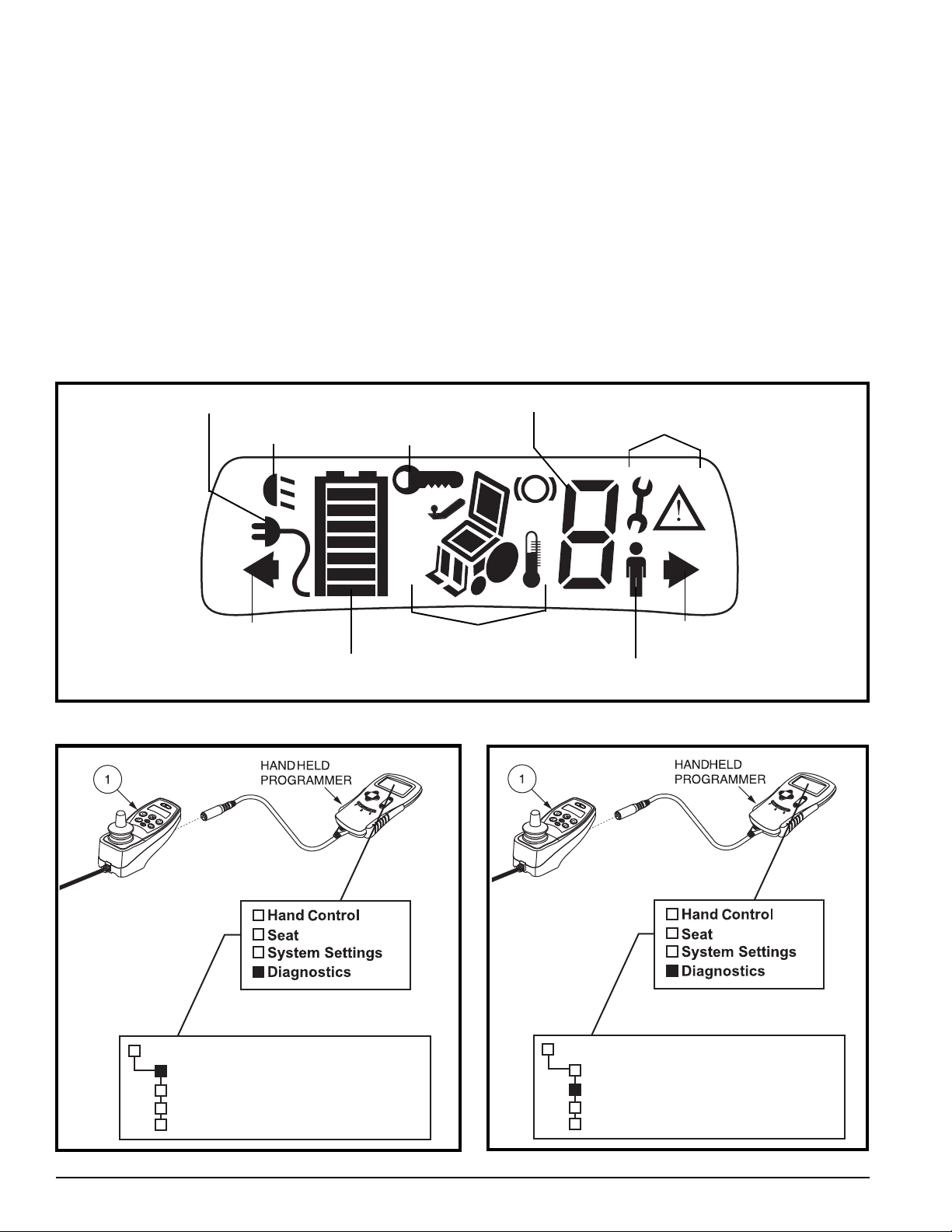

The NE joystick module (1) displays a key icon on the
LCD.
The batteries are fully charged.
All electrical components are properly connected.
Diagnosis:
The power chair is in System Lock mode.
NOTE: System Lock must be enabled (ON) in order to lock
out the NE joystick module (1). Refer to the programming
text. See figure 10.
Solution:
Use the following procedure to release the NE joystick module
(1) from System Lock mode:
1. Turn on the power to the NE joystick module (1).
2. Deflect the joystick to the full forward position until an
audible beep is heard.
3. Deflect the joystick to the full rearward position until an
audible beep is heard.
4. Release the joystick. The LCD screen returns to normal.
To lock the controller:
1. Press and hold the power button until the system shuts
off. The system is now locked.
123
456
Measure Voltage
1a

10 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
NE+ Electronics
Symptoms:
The J6 powers on but the NE+ joystick module (1)
allows no other functions.
The NE+ joystick module (1) displays a key icon to the
right of the battery gauge.
The batteries are fully charged.
All electrical components are properly connected.
Diagnosis:
The power chair is in System Lock mode.
NOTE: System Lock mustbe enabled(ON) inorder to lock
out the NE+ joystick module (1). Refer to the program-
ming text. See figure 10.
Solution:
Use the following procedure to release the NE+ joystick mod-
ule (1) from System Lock mode:
1. Turn on the power to the NE+ joystick module (1).
2. Deflect the joystick to the full forward position until an
audible beep is heard.
3. Deflect the joystick to the full rearward position until an
audible beep is heard.
4. Release the joystick. The LCD screen returns to normal.
Figure 11. System Lock Controller Programming
(Q-Logic)
1a
To lock the controller:
1. Press and hold both profile keys until the system shuts off. The system is now locked.
Q-Logic Electronics
Symptoms:
The J6 powers on, but the Q-Logic joystick module (1) allows no other functions.
The Q-Logic joystick module (1) displays the message “System Lock.”
The batteries are fully charged.
All electrical components are properly connected.
Diagnosis:
The power chair is in System Lock mode.

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 11
NOTE: System Lock must be enabled (ON) in order to lock out the Q-Logic joystick module (1). Refer to the pro-
gramming text. See figure 11.
Solution:
Use the following procedure to release the Q-Logic joystick module (1) from System Lock mode:
1. Turn on the power to the Q-Logic joystick module (1).
2. Deflect the joystick to the full forward position until an audible beep is heard.
2. Deflect the joystick to the full rearward position until an audible beep is heard.
4. Release the joystick. The LCD screen returns to normal.
NOTE: There are two ways to perform a System Lock:
1. Hold down the mode switch until the system shuts down.
2. Select “System Lock” in the AUX menu (if one is used).
Using the mode switch for system lock :
1. Turn on the power to the Q-Logic joystick module (1).
2. While the power is on, push and hold the on/off mode select lever forward until the unit shuts off.
3. The display states “System Lock.” After several seconds, the system will then power itself off.

12 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
SECTION 3 - ERROR CODE DIAGNOSTICS
NOTE: When there is an error or warning on the Q-Logic joystick module (1), the power chair icon will no longer
be shown. Q-Logic Error Codes are displayed on the LCD screen or enhanced display by number. These error codes
will usually indicate the system or componenet failure and a location.
The NE and NE+ joystick modules (1) have an LCD screen. See figure 12. The charging and light indicators are lit
steadily when the corresponding function is active. When these indicators are flashing, they indicate the location of a
problem. When encountering warning orerror indicators on the LCD screen, more information can be found by connect-
ing a Curtis Handheld Programmer and checking errors in the Diagnostics section of the programmer. If the error is
happening as you check with the programmer, then the information can be found under Actual Faults in the Diagnostics
section of the programmer. See figure 13. If the error occurred previously but is not currently displayed, then the infor-
mation can be found under Fault History in the Diagnostics section of the programmer. See figure 14. For any warning
or error indicator not noted in this technical troubleshooting guide, contact Quantum Technical Service for further trou-
bleshooting.
Figure 14. Fault History Controller Programming
Figure 13. Actual Faults Controller Programming
Figure 12. NE and NE+ LCD Screen
LIGHTS INDICATOR
CHARGING INDICATOR
LEFT TURN
INDICATOR BATTERY
CONDITION METER
ACTUATOR AND ERROR
INDICATORS
DRIVE PROFILE/SPEED INDICATOR
RIGHT TURN
INDICATOR
ERROR AND WARNING INDICATORS
ATTENDANT
CONTROL
LOCK OUT
DIAGNOSTICS
- Actual Faults
- Fault History
- Monitor
- Information
DIAGNOSTICS
- Actual Faults
- Fault History
- Monitor
- Information
NE+ CONTROLLER SHOWN NE+ CONTROLLER SHOWN

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 13
Battery Charging or Drive Inhibit
Symptoms:
The J6 powers on but will not drive.
The off-board charger is not plugged into the NE, NE+,
or Q-Logic joystick module (1).
The Q-Logic joystick battery condition meter LEDs
scroll when the joystick on/off mode select lever is
deflected. (Charger Inhibit Error #107 is displayed.)
The NE or NE+ joystick module (1) displays “Battery
Charging or Drive Inhibit” error code when the on/off
key is pushed. See table 1 or 2.
Diagnosis:
There is a problem in the inhibit circuit.
Solution:
Use the following procedure to find the source of the error:
NOTE: If the power chair is notequipped with a PTO har-
ness (4) with a round pin connector, it will have a 14-pin
run plug (4) attached to connector 2e. If the power chair is
equipped with a 14-pin run plug (4), go to step 3.
1. Unplug the run plug (14) or power positioning system
from connector 4b. See diagram 4.
2. Place a jumper between pin 3 and 4 of connector 4b. See
figure 15. Try to drive the chair.
WARNING! Jumping pins 1 and 2
could cause sparking and/or cause
the fuse in the harness to blow!
— If the power chair drives, then replace the run plug (14)
and retest the system.
Figure 16. Connector 2e (Jumpered, NE Electronics)
Figure 15. Connector 4b (Jumpered)
Figure 17. Connector 2e (Jumpered, NE+ or Q-Logic
Electronics)
— If the power chair drives and there is a power positioning system plugged into connector 4b, then please refer to the
appropriate power positioning system troubleshooting guide for further troubleshooting.
— If the power chair does not drive, then go to the next step.
3. Unplug connector 4a or the 14-pin run plug (4) from connector 2e. See diagram 5 or 6.
4. If the power chair is equipped with NE electronics, place a jumper from pin 4 to pin 6 on connector 2e.
See figure 16. If the power chair is equipped with NE+ or Q-Logic electronics, place a jumper from pin 1 to pin 9
on connector 2e. See figure 17. Try to drive the chair.
WARNING! Jumping the incorrect pins could cause sparking and/or damage to the electronics!
— If the power chair drives and there is a power positioning system plugged into connector 4b, then replace the power
take-off (PTO) harness (4) or the 14-pin run plug (4) and retest the system.
See diagram 5 or 6 .
— If the power chair does not drive, then go to the next step.
14 1312 11 10 98
7654321
14 1312 11 10 98
7654321

14 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
5. Verify the inhibit program. The charger inhibit
“chrgInb” should be set to “ON” for NE electronics or
to “High Inhibit” for NE+ or Q-Logic electronics. See
figure 18 for NE electronics or figure 22 for NE+ or
Q-Logic electronics.
— If the inhibit is programmed incorrectly, then reprogram
the inhibit and retest the system.
— If the power chair does not drive and the inhibit program
is correct,
then replace the power module (2) and retest
the system.
Joystick Error
Symptoms:
The batteries are fully charged.
All electrical components are properly connected.
An error code is displayed when the NE, NE+, or Q-
Logic joystick module (1) is powered on.
The joystick is in the neutral (centered) position when
the unit is powered on.
Diagnosis:
There is an input communications error.
Solution:
Use the following procedure to find the source of the error:
1. Check that the BUS cables and communication devices
are connected correctly. See diagram 5 or 6.
2. Measure resistance across connectors 3a and 3b of the
BUS cable extension (3). See figure 19.
— If the multimeter indicates an open for any of the
measurements, then replace the BUS cable extension
(3) and retest the system.
— If the multimeter indicates less than 1 ohm for all of the
measurements, then go to the next step.
3. If the power chair is equipped with multiple input
devices, then ensure there is a multiplier in the BUS line.
—If there is no multiplier, then contact Quantum
Technical Service for further troubleshooting help.
—If there is a multiplier on the BUS line, then go to the
next step.
4. Measure resistance on the multiplier BUS cable. See
figure 20.
—If the multimeter indicates an open for any of the
measurements, then replace the multiplier and retest the
system.
— If the multimeter indicates less than 1 ohm for all of the
measurements, then contact Quantum Technical
Service for further troubleshooting help.
Figure 18. Inhibit (i2) Programming (NE Electronics)
i1 i2 i3
Active Off OffOn
On OnOnactiveH
OOO
proSel
Off OffOndrvInh
Off OffOnchrgInb
General Drive
Timing
Motors & Wheels
Battery
Inputs
Miscellaneous
PROGRAM
Figure 19. BUS Cable Extension (3)
123
456
1 2 3
4 5 6
3b
3a
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Figure 20. Multiplier
123
456
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4 5 6
Measure Resistance
Measure Resistance

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 15
Power Module Error
Symptoms:
The batteries are fully charged.
All electrical components are properly connected.
An error code is displayed when the NE, NE+, or Q-
Logic joystick module (1) is powered on.
Diagnosis:
There is a module fault in the system.
Solution:
Use the following procedure to find the source of the error:
1. Ensure that the BUS connections are connected
correctly. See diagram 5 or 6.
2. Measure resistance across connectors 3a and 3b of the
BUS cable extension (3). See figure 19.
—If the multimeter indicates an open for any of the
measurements, then replace the BUS cable extension
(3) and retest the system.
— If the multimeter indicates less than 1 ohm for all of the
measurements, then contact Quantum Technical
Service for further troubleshooting help.
Missing or Defective Power Module
Symptoms:
The batteries are fully charged.
When the NE, NE+, or Q-Logic joystick module (1) is
powered on, the LCD screen displays a missing or
defective device (Sip & Puff, Environmental Control
Unit, Stand-alone Joystick, Enhanced Display, and/or
Attendant Control) error.
Diagnosis:
One of the modules is either missing or defective.
NOTE: If you are intentionally removing a module from
the system, this fault will appear.
Solution:
Use the following procedure to find the source of the error:
1. Make sure that all of the connections are correct.
— If the connections are correct, then call Quantum
Technical Service.
— If a module has intentionally been removed, then use the
Save System Configuration function on the
programmer. See figure 21..
Figure 21. Save System Configuration Function
Figure 22. Inhibit Programming (NE+ or Q-Logic
Electronics)

16 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
Communication or Software Error
Symptoms:
The batteries are fully charged.
All electrical components are properly connected.
The power turns on but displays a fault code other than previously discussed. See table 1, 2, or 3.
A communication or software fault is found under “Actual Faults” or “Fault History” in the diagnosis section of the
handheld programmer. See figures 13 and 14.
Diagnosis:
There is a module error in the system.
Solution:
Use the following procedure to find the source of the error:
1. Ensure that the BUS connections are correct. See diagram 5 or 6.
2. Measure resistance across connectors 3a and 3b of the BUS cable extension (3). See figure 19.
— If the multimeter indicates an open for any of the measurements, then replace the BUS cable extension (3) and retest
the system.
— If the multimeter indicates less than 1 ohm for all of the measurements, then go to the next step.
3. If the power chair is equipped with multiple input devices, then ensure there is a multiplier in the BUS line.
—If there is no multiplier, then contact Quantum Technical Service for further troubleshooting help.
—If there is a multiplier on the BUS line, then go to the next step.
4. Measure resistance on the multiplier BUS cable. See figure 20.
—If the multimeter indicates an open for any of the measurements, then replace the multiplier and retest the system.
— If the multimeter indicates less than 1 ohm for all of the measurements, then contact Quantum Technical Service for
further troubleshooting help.
Open Motor Error
Symptoms:
The batteries are fully charged.
All electrical components are properly connected.
The power turns on but displays “Open Motor” (NE or NE+ controllers) or a motor error (Q-Logic controller). See
table 1, 2, or 3.
One or both motors will not operate.
Diagnosis:
There is aproblem with the left motor (6), right motor (7), and/or the wiring between the motor(s) and the power module
(2).
Solution:
Use the following procedure to find the source of the error:
1. Remove the seat. Refer to the power base owner’s manual.
2. Remove the rear and center shrouds. See figure 3.
3. Unplug connector 6a from connector 8b. See diagram 5 or 6.

J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 17
4. Measure resistance across the red and black pins on
connector 6a. See figure 23.
—If the multimeter does not indicate about 0.5 to 1.5
ohms, then go to the next step.
— If the multimeter indicates about 0.5 to 1.5 ohms, then plug
connector 6a back into connector 8b and go to
step 6 .
5. Remove the brushes from the left motor (6) and inspect
them.
See figure 24 .
—If the motor brushes are worn below 0.25 in. or they are
physically damaged, then replace the motor brushes and
retest the system.
—If the motorbrushes are not wornbelow 0.25in. and are
not physically damaged, then replace the left motor (6)
and retest the system.
From step 4
6. Disconnect the power module (2) from the module
mounting bracket. See figure 6.
7. Unplug connector 8a from connector 2b. See diagram 5
or 6
.
8. Measure resistance across pin 1 and pin 2 on connector
8a. See figure 25.
—If the multimeter does not indicate about 0.5 to 1.5
ohms, then replace the left motor interface harness (8)
and retest the system.
—If the multimeter indicates about 0.5 to 1.5 ohms, then
go to the next step.
Figure 23. Connector 6a or 7a
Measure Resistance
Figure 24. Motor Brushes
Figure 25. Connector 8a or 9a
9. Unplug connector 7a from connector 9b. See diagram 5 or 6 .
10. Measure resistance across the red and black pins on connector 7a. See figure 23.
—If the multimeter does not indicate about 0.5 to 1.5 ohms, then go to the next step.
— If the multimeter indicates about 0.5 to 1.5 ohms , then plug connector 7a back into connector 9b and go to step 12.
11. Remove the brushes from the right motor (7) and inspect them. See figure 24.
—If the motor brushes are worn below 0.25 in. or they are physically damaged, then replace the motor brushes and
retest the system.
—If the motor brushes are not worn below 0.25 in. and are not physically damaged, then replace the right motor (7)
and retest the system.
From step 10
12. Unplug connector 9a from connector 2d. See diagram 5 or 6.
13. Measure resistance across pin 1 and pin 2 on connector 9a. See figure 25.
—If the multimeter indicates about 0.5 to 1.5 ohms, then replace the power module (2) and retest the system.
—If the multimeter does not indicate about 0.5 to 1.5 ohms, then replace the right motor interface harness (9).
12
3
4
Measure Resistance

18 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
Motor/Brake Error
Symptoms:
The batteries are fully charged.
All electrical components are properly connected.
The power turns on but displays “Motor/Brake Error”
(NE or NE+ controllers) or a brake error (Q-Logic
controller). See table 1, 2, or 3.
Diagnosis:
There isa problem with one or both brakes and/or the wiring
between the motor, brakes, and the power module (2).
Solution:
Use the following procedure to find the source of the error:
1. Ensure both freewheel levers are in drive mode. Refer to
the freewheel operation label located on the power base.
2. Remove the seat. Refer to the power base owner’s
manual.
3. Remove the rear and center shrouds. See figure 3.
4. Disconnect the power module (2) from the module
mounting bracket. See figure 6.
Figure 26. Connector 6a or 7a
Figure 27. Connector 8a or 9a
5. Unplug connector 6a from connector 8b. See diagram 5 or 6 .
6. Measure resistance across the two white pins on connector 6a. See figure 26.
—If the multimeter indicates about 60 ohms, then plug connector 6a back into connector 8b and go to the next step.
— If the multimeter indicates an open, then replace the left brake assembly and retest the system.
7. Unplug connector 8a from connector 2b. See diagram 5 or 6 .
8. Measure resistance across pin 3 and pin 4 on connector 8a. See figure 27.
—If the multimeter indicates about 60 ohms, then go to the next step.
— If the multimeter does not indicate about 60 ohms, then replace the left motor interface harness (8) and retest the
system.
9. Unplug connector 7a from connector 9b. See diagram 5 or 6 .
10. Measure resistance across the two white pins on connector 7a. See figure 26.
—If the multimeter indicates about 60 ohms, then plug connector 7a back into connector 9b and go to the next step.
— If the multimeter indicates an open, then replace the right brake assembly and retest the system.
11. Unplug connector 9a from connector 2d. See diagram 5 or 6 .
12. Measure resistance across pin 3 and pin 4 on connector 9a. See figure 27.
—If the multimeter indicates about 60 ohms, then replace the power module (2).
— If the multimeter does not indicate about 60 ohms, then replace the right motor interface harness (9) and retest the
system.
Measure Resistance
12
3
4
Measure Resistance

TO REAR BATTERY (-)
TO FRONT
BATTERY (+)
1 NE OR NE+ JOYSTICK MODULE
2 POWER MODULE
3 BUS CABLE EXTENSION
4 RUN PLUG
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8 LEFT MOTOR INTERFACE HARNESS
9 RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13 CHARGER POWER CORD
1
6
4
12
13
9
7
8
2
3
5
11
10
5b
10a
10c
10b 13a
11c
11a
3a
3b
6a
7a
1b
1a
11b
9b
8b
9a
5a 8a
Diagram 3. J6 with NE and NE+ Electronics 3D Wiring Diagram

TO REAR BATTERY (-)
TO FRONT
BATTERY (+)
1
6
12
13
9
7
8
2
3
5
4
14
11
10
1 Q-LOGIC JOYSTICK MODULE
2 POWER MODULE
3 BUS CABLE EXTENSION
4 POWER TAKE OFF (PTO) HARNESS
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8 LEFT MOTOR INTERFACE HARNESS
9 RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13 CHARGER POWER CORD
14 RUN PLUG
5b
10a
10c
10b 13a
11c
11a
3a
3b
6a
7a
1b
1a
11b
9b
8b
9a
5a 8a
4b
4a
Diagram 4. J6 with Q-Logic Electronics 3D Wiring Diagram
