Owner’s Manual

2Jazzy 1120
SAFETY GUIDELINES
Copyright © 2002
Pride Mobility Products Ltd.
Please read and follow all instructions in this owners manual before attempting to operate your
Power Chair for the first time. If there is anything in this manual you do not understand, or if
you require additional assistance for set-up, contact your local authorized Pride provider.
sing your Pride product safely depends upon your diligence in following the warnings, cautions,
and instructions in this owners manual. sing your Pride product safely also depends upon your
own good judgement and/or common sense, as well as that of your provider, caregiver, and/or
healthcare professional. Pride is not responsible for injuries and/or damage resulting from any
persons failure to follow the warnings, cautions, and instructions in this owners manual. Pride
is not responsible for injuries and/or damage resulting from any persons failure to exercise
good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It
is very important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your Power
Chair.

3
Jazzy 1120
CONTENTS
I. INTRODUCTION ......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. THE JAZZY 1120 .....................................................................................................................
IV. ASSEMBLY ................................................................................................................................. 13
V. COMFORT ADJUSTMENTS................................................................................................ 15
VI. DISASSEMBLY ......................................................................................................................... 20
VII. OPERATION ............................................................................................................................... 21
VIII. BATTERIES AND CHARGING ............................................................................................ 25
IX. CARE AND MAINTENANCE ................................................................................................ 29
X. OPTIONS AND ACCESSORIES ......................................................................................... 34
XI. WARRANTY ............................................................................................................................... 36

4Jazzy 1120
I. INTRODUCTION
Welcome to Pride Mobility Products, Ltd. (Pride) . Congratulations on the purchase of your new Jazzy power
chair. The Jazzy 1120 design combines the most advanced state-of-the-art components with modern, attractive
styling. We are certain that the design features and trouble-free operation of your new Jazzy power chair will add
convenience to your daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your Jazzy for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new Jazzy power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a Jazzy power chair. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to
following the instructions and recommendations set forth in this manual or any other instructions or recommendations
contained in other Jazzy related literature issued by Pride or contained on the Jazzy power chair itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you had purchased.
If you experience any problems with your Jazzy that your are unable to solve, or if you do not feel capable of safely
following any of the instructions and/or recommendations as contained in this manual, please contact your authorized
Pride provider for assistance.
Once you understand how to operate and take care of your Jazzy, we are certain that it will give you years of trouble-free
service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the
safety and reliability of your new Jazzy power chair, and about the service you received from your authorized Pride
provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and enjoy your Jazzy. Please feel free to write us at the
address below:
Pride Mobility Products, Ltd.
Unit 106, Heyford Park
Camp Road, Upper Heyford
Oxfordshire, OX6 3HD

5
Jazzy 1120
I. INTRODUCTION
My Authorized Pride Provider is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Jazzy Model:__________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and
we will be glad to send you a new one immediately.

6Jazzy 1120
Your Jazzy 1120 is a state-of-the-art, life-enhancement device designed to increase your mobility. There are
certain situations, including some medical conditions, where you will need to practice operating your Jazzy 1120 in
the presence of an attendant. Below are some safety tips that are designed to help you become accustomed to
operating your new Jazzy safely.
II. SAFETY
WARNING! Your Jazzy 1120 is a motorized vehicle. When you are seated in your Jazzy 1120 and
you anticipate that you are going to be in a stationary position for an extended period of time, turn
off the power. his eliminates the possibility of unexpected chair movement and conserves
battery power.
TRANSFERS
Transferring onto and off of your Jazzy 1120 requires a good sense of balance. Be sure to have an attendant or
health care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, we
ask that you verify the following before attempting a transfer:
1. Be sure the power is turned off. See VII. Operation.
2. Be sure your Jazzy 1120 is not in freewheel mode. See III. The Jazzy 1120.
3. Make sure the armrests are flipped up or removed from your Jazzy.
4. Flip the footrest up or move the leg rests aside; this helps to keep your feet from getting caught on the footrest
or on the leg rests during the transfer.
WARNING! Avoid putting all of your weight on the footrest. his may cause the Jazzy 1120 to tip
and cause injury.
MOTOR VEHICLE TRANSPORT
Although your Jazzy may be equipped with a positioning belt, this belt was not designed with the intent of providing
proper restraint during motor vehicle transport.
nIn an effort to improve the safety of its units during motor vehicle transport, Pride has crash tested numerous
Jazzy models. However, since there are unlimited variations of the Jazzy product, all variations could not
possibly be tested. Therefore, Pride recommends that Jazzy power chair users should not to be transported in
vehicles of any kind while in power chairs. As of this date, there are no standards approved for tie-down
systems in a moving vehicle of any type to transport a user while in a power chair.
nAlways be sure your Jazzy 1120 is properly secured when it is being transported.
WEIGHT LIMITATIONS
Your Jazzy 1120 is rated for a maximum 136-kg (21.6 stone) weight limit.
WARNING! Exceeding the weight limit voids your warranty and may result in personal injury!
STAIRS AND ESCALATORS
WARNING! Power chairs are not designed to travel up or down stairs or escalators. Always use an
elevator. If you try to negotiate steps or escalators, you can cause injury to yourself and to others!

7
Jazzy 1120
II. SAFETY
PUBLIC ROADS AND PARKING LOTS
WARNING! Do not operate your Jazzy 1120 on public streets and roadways. Please be aware it may
be difficult for traffic to see you when you are seated in your Jazzy. o ensure your safety, always
assume you cannot be seen. Obey all authorized pedestrian traffic rules. Safety accessories like
reflectors, fluorescent flags, and various lighting packages are available to order from your Pride
provider.
STEPS AND KERBS
WARNING! Never attempt to have your Jazzy 1120 climb or descend a step or a kerb that is higher
than 10 cm. Never attempt to have your Jazzy 1120 proceed backwards down any step, kerb, or
other obstacle. Doing so could cause your Jazzy 1120 to tip.
INCLINES AND UNEVEN TERRAIN
When climbing an incline, try to keep your Jazzy moving. If you must stop, start up again slowly, and then
accelerate cautiously.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.
Always drive your Jazzy straight up the incline. his greatly reduces the possibility of a tip or a fall.
Always exercise extreme caution when negotiating an incline. Never travel up or down an incline
that can be potentially hazardous (for example, areas covered with snow, ice, or cut grass).
When driving down an incline, do so slowly and in the forward direction only. If your Jazzy 1120 starts to move
faster than you anticipated or desired it would, allow the chair to come to a complete stop by releasing the joystick.
Push the joystick slightly forward and continue traveling slowly down the incline.
MAXIMUM RECOMMENDED INCLINE
Pride has performed extensive incline testing with the Jazzy 1120. Our results show that the maximum incline your
Jazzy 1120 can safely climb is .7% at maximum weight capacity. The angle of most handicap access ramps is
.7%. Any attempt to climb a steeper slope may put your Jazzy in an unstable position.

Jazzy 1120
III. THE JAZZY 1120
Your Jazzy 1120 has two main assemblies: the seat and the power base. See figure 1. There are a variety of seating
options that are designed to accommodate most users. The seating assembly includes the armrests, seat back, seat
base, and joystick/controller. Your Jazzy seat may also have some optional accessories attached to it, such as a
basket, a cane/crutch holder, a cup holder, or a power seat switch. See X. Options and Accessories.
The power base is the heart of your Jazzy 1120. The power base assembly includes two drive wheels, two anti-tip
wheels, two rear caster wheels, a footrest, and a body shroud. See figure 1.
SEAT
BACK
JOYSTICK
ARMRESTS
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
REAR CASTER WHEEL
Figure 1. The Jazzy 1120
FOOTREST
FREEWHEEL LEVER
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
CONTROLLER
SEAT BASE

9
Jazzy 1120
III. THE JAZZY 1120
Figure 2. The Jazzy 1120 Rear View
Figure 3. Utility Tray
AMMETER
REMOTE PLUS CONTROLLER HARNESS CONNECTOR
BATTERY CHARGER POWER
LEAD OUTLET
UTILITY TRAY

10 Jazzy 1120
III. THE JAZZY 1120

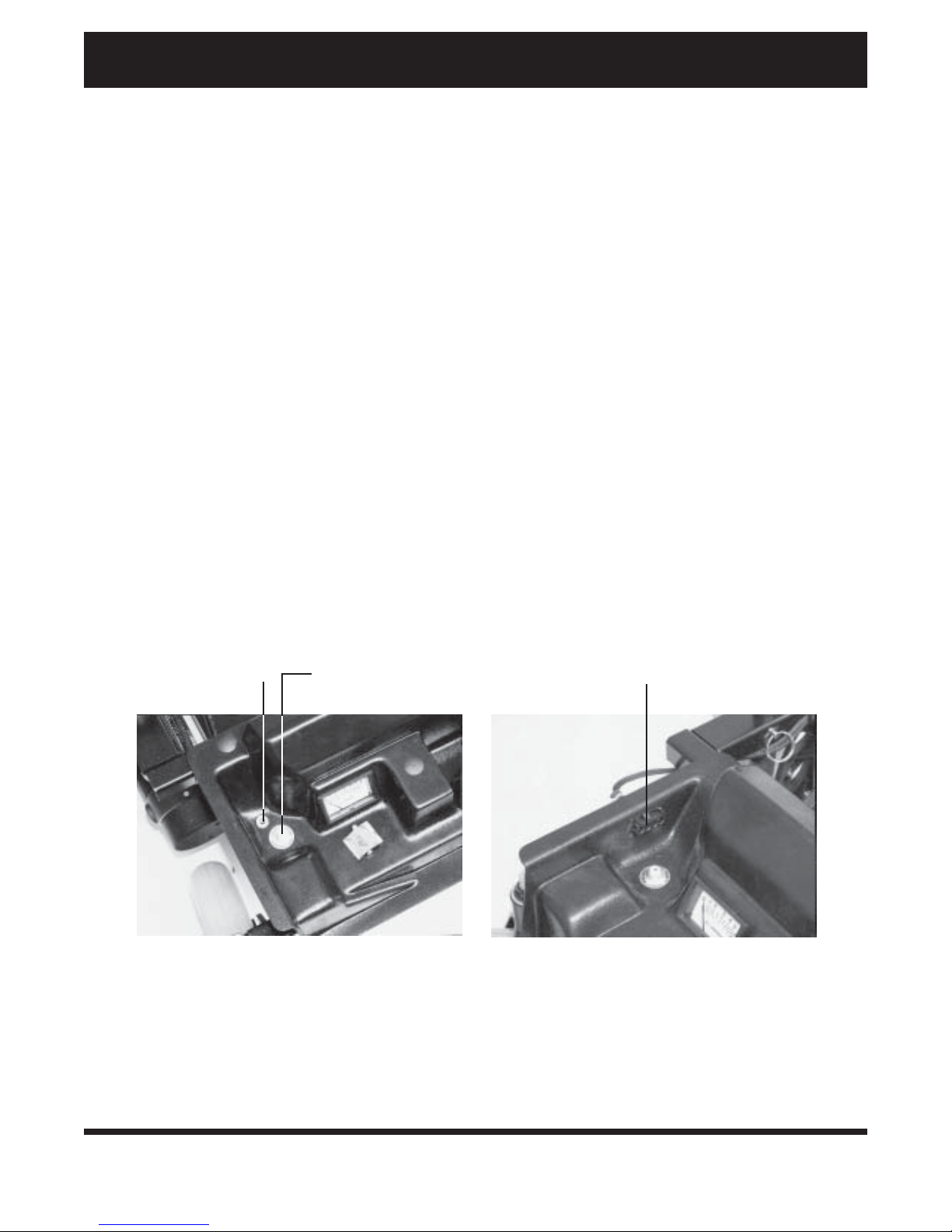

UTILITY TRAY
The utility tray is located on the rear of your Jazzy. See figure 2. A section of the utility tray is exposed through the
body shroud. The rest of the utility tray is located underneath the rear door. The utility tray consists of the ammeter,
the battery charger power lead, the main circuit breaker, the standard headlight/taillight connector, the full lighting
harness connector (optional), and the Remote Plus controller harness connector. See figures 3 - 5.
nAmmeter: The ammeter displays the chargers current output in amps. See figure 3. For more information,
see VIII. Batteries and Charging.
nBattery charger power lead: This lead is used whenever your battery needs recharging. See figure 3.
nMain circuit breaker: The main circuit breaker is a safety feature built into your Jazzy 1120. See figure 4.
When the batteries and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker
trips to prevent damage to the motors and the electronics. If the circuit trips, allow your Jazzy to rest for
approximately one minute. Next, push in the circuit breaker button, turn on the joystick controller, and continue
normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorized Pride provider.
nRemote Plus controller harness connector: This is where the joystick connects to the motors, batteries, and
charger. See figure 3.
null lighting harness connector: This 4-pin plug located in the rear utility tray is where the lighting harness
connects to the controller. See figure 5.
STANDARD HEADLIGHT/
TAILLIGHT CONNECTOR
Figure 4. Main Circuit Breaker
MAIN CIRCUIT BREAKER
Figure . Full Lighting Harness Connector
FULL LIGHTING HARNESS CONNECTOR

11
Jazzy 1120
III. THE JAZZY 1120

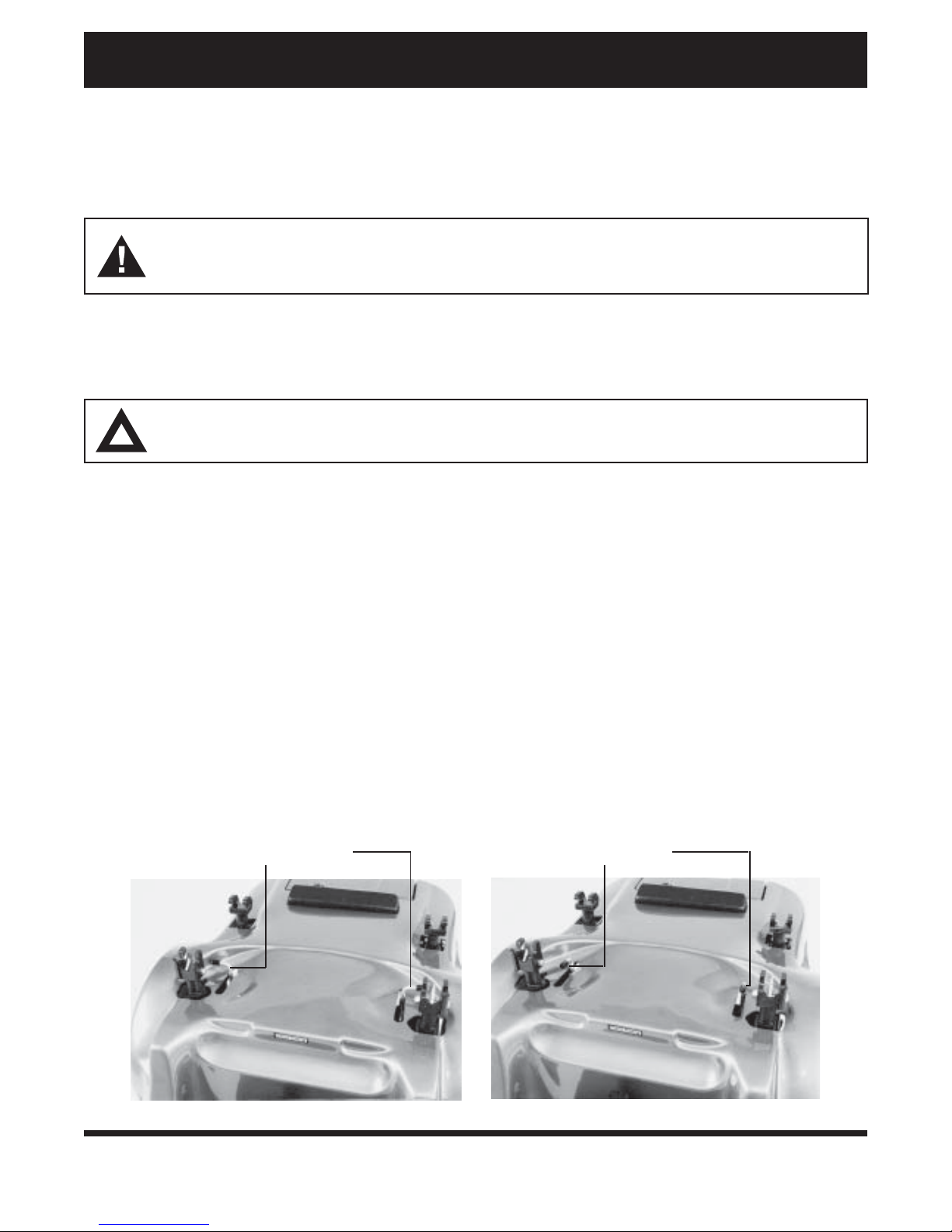

FREEWHEEL LEVERS
For your convenience, your Jazzy 1120 is equipped with two freewheel levers. See figures 6 and 7. These levers
allow you to disengage the drive motors and maneuver the chair manually.
WARNING! Do not use your Jazzy 1120 while the drive motors are disengaged unless you are in the
presence of an attendant! Do not disengage the drive motors when your Jazzy 1120 is on an incline.
he chair could roll down on its own, causing injury!
TT
TT
To engo eng
o engo eng
o engaa
aa
agg
gg
ge or disenge or diseng
e or disenge or diseng
e or disengaa
aa
agg
gg
ge the fre the fr
e the fre the fr
e the freeee
eeee
eeww
ww
wheel fheel f
heel fheel f
heel feaea
eaea
eaturtur
turtur
ture:e:
e:e:
e:
1. Turn the freewheel levers outward to disengage the drive motors. See figure 6.
2. Turn the freewheel levers inward to engage the drive motors. See figure 7.
CAU ION! It is important to remember that when your Jazzy 1120 is in freewheel mode, the
braking system is disengaged.
If a lever is difficult to move in either direction, rock your Jazzy 1120 back and forth slightly. The lever should then
move to the desired position.
ACTIVE-TRAC SYSTEM
Your Jazzy 1120 is equipped with an Active-Trac System (ATS). ATS is a suspension system designed to make
your Jazzy traverse different types of terrain and obstacles while maintaining smooth operation. With ATS, your
front anti-tip wheels work in conjunction with your motor suspension to help you maneuver over obstacles in
excess of cm in height.
As your front anti-tip wheels come in contact with an obstacle, the front anti-tip wheel assembly is drawn upward.
At the same time, your motors are forced downward. This reduces the possibility of your Jazzy 1120 becoming
caught on the obstacle.
ATS also helps in day-to-day operating conditions. For instance, when you release the joystick, your Jazzy begins
to slow down. As the chair slows down, the front anti-tip wheels will automatically drop toward the ground. This
will reduce the forward tip that is typically encountered with center-wheel drive chairs.
Figure 6. Drive Disengaged Figure 7. Drive Engaged
FREEWHEEL LEVERS FREEWHEEL LEVERS

12 Jazzy 1120
III. THE JAZZY 1120
Specifications
Suspension: Full suspension with Active-Trac System
Drive Wheels: 36 cm, pneumatic (solid tyres are optional)
Rear Casters: 20 cm, pneumatic, rear articulating
Anti-Tip: 15 cm, solid, front mounted
Maximum Speed: 6 km/hr
Brakes: “Intelligent Braking,” electronic regenerative, disc park brake
Ground Clearance: 9 cm
Turning Radius: 50 cm
Overall Size: Length: 100 cm
Width: 65 cm
Seating Options:
Mid-back Seat Power Elevating Option
High-back with headrest Recaro Seat (SE)
Reclining Seat
Versa Seat
Drive Train: Two motor, mid wheel
Batteries: Two 12-volt, Group 24 batteries (NF-22 batteries for the power seat option
)
Range: Up to 40 km
Battery Charger: Onboard
Off-board (optional)
Electronics: 70-amp Remote Plus Controller
Weight Capacity: 136 kg/21.6 stone
Jazzy Weights: Base: 37 kg Seat: 13 kg
Batteries: 20 kg each
Warranty: Lifetime limited warranty on frame Two-year warranty on electronics
Eighteen-month warranty on drive motors

13
Jazzy 1120
IV. ASSEMBLY
Figure 8. Rear Seat Towers
SLIDE SEAT ONTO REAR SEAT TOWERS
SEAT INSTALLATION
(Seat with H-frame)
The standard seat installation method incorporates the seat frame
(H-frame) and four (4) adjustable seatposts located on the power
base.
To install the seat:
1. Set the seat on the rear seat towers. See figure .
2. Push the seat back and down until the latches engage on the
front seat towers. See figure 9.
3. Plug the controller cable into the connector on the utility tray.
See figure 10.
4. Plug the power seat switch cable (if so equipped) into the
connector on the utility tray.
5. Secure the controller cable to the armrest receiver with one or
more wire ties.
6. Route the cable to ensure that the cable cannot be pinched in the
seat hinge.
(Seat with Euro H-frame)
1. Remove the shroud.
2. Remove the seat tower pins. See figure 11. You may need to
rotate the pins back and forth to remove them.
3. Insert the neoprene O-ring onto the seat tower receiver. See figure 12.
4. Insert the seat tower receiver into the frame.
5. Fasten the external snap-ring onto the end of the receiver so that
it seats into the groove. You can use your fingers to pull the
snap-ring into place. You may need to remove the front battery if
you want to use external snap-ring pliers.
6. Replace the shroud.
7. Insert the seat towers into the seat tower receivers.
Figure 11. Seat Tower Pins
SEAT TOWER PINS
Figure 12. Insert the Neoprene O-ring
SEAT TOWER RECEIVER NEOPRENE O-RING
EXTERNAL
SNAP-RING
Figure 10. Controller Cable
PLUG IN CONTROLLER CABLE
Figure 9. Front Seat Towers
LOCK SEAT INTO PLACE HERE

14 Jazzy 1120
IV. ASSEMBLY
. Insert the joystick into the mounting bracket and adjust the
length.
9. Tighten the joystick mounting setscrews.
10. Connect the joystick cable to the utility tray connection.
11. Use a zip tie to secure the joystick cable to the seat back.
JOYSTICK INSTALLATION
Depending on the various configurations and options you have
chosen for your Jazzy, it may have been shipped without the
joystick installed in the armrest.
TT
TT
To install the joo install the jo
o install the joo install the jo
o install the joysticystic
ysticystic
ystick:k:
k:k:
k:
1. Use a 3/16-in. hex key to loosen the setscrew. See figure 13.
2. Slide the joystick mounting bracket into or out of the armrest
to the desired position.
3. Retighten the setscrew.
POWER SEAT OPTION INSTALLATION
Your Jazzy may be equipped with the power seat option. While
the seat itself may be any one of the styles offered for this model,
the way the seat base attaches to the Jazzy power base is different.
To install the power seat:
1. Align the seat shaft to the hole in the power seat actuator. See
figure 14.
2. Rotate the seat to the forward position until it locks tightly.
VERSA SEAT OR VERSA TILT OPTION
If your Jazzy is equipped with a Versa Seat or Versa Tilt, please refer
to the instruction manual supplied with the Versa Seat/Versa Tilt.

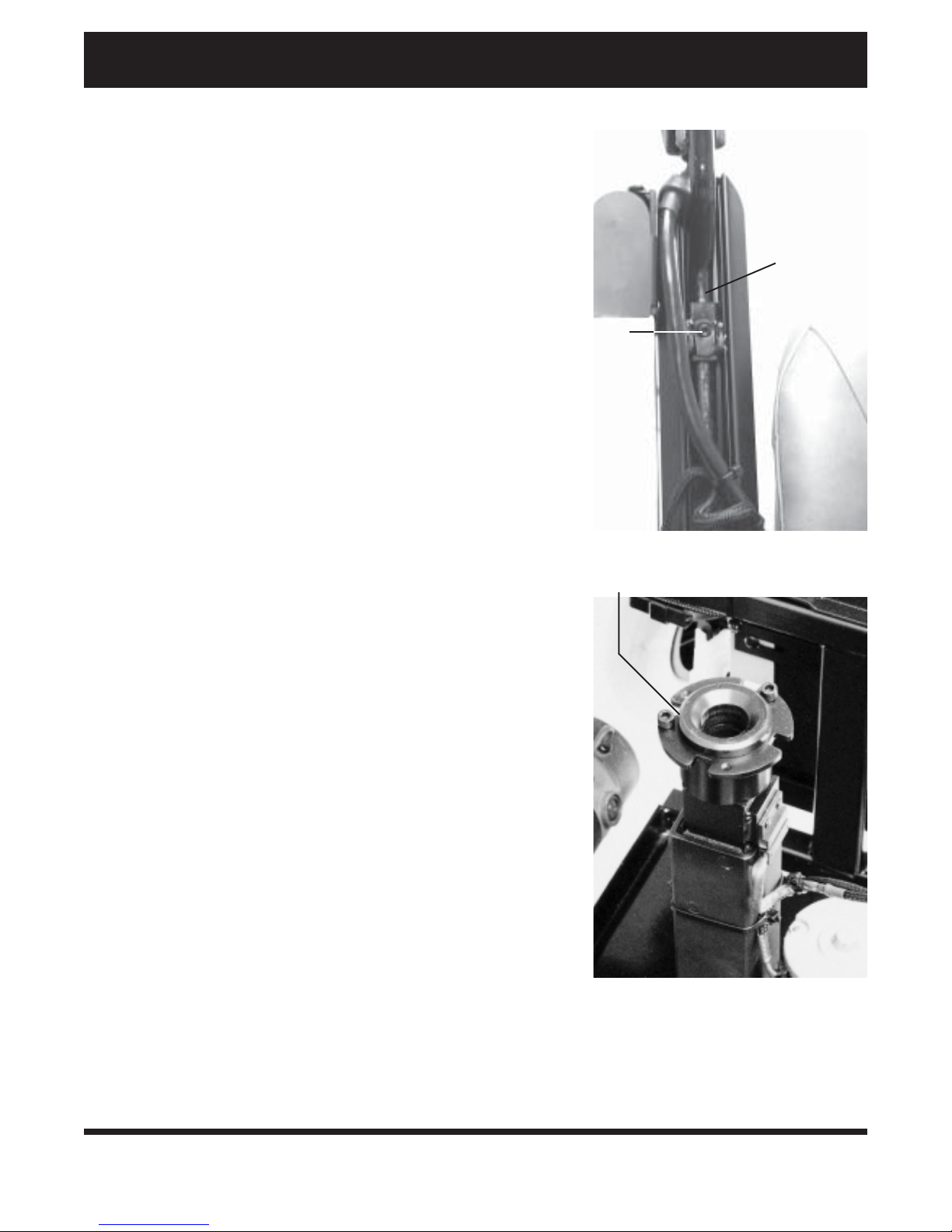

Figure 14. Power Seat Actuator
POWER SEAT ACTUATOR
Figure 13. Joystick
SLIDE JOYSTICK
INTO BRACKET
SETSCREW

15
Jazzy 1120
V. COMFORT ADJUSTMENTS

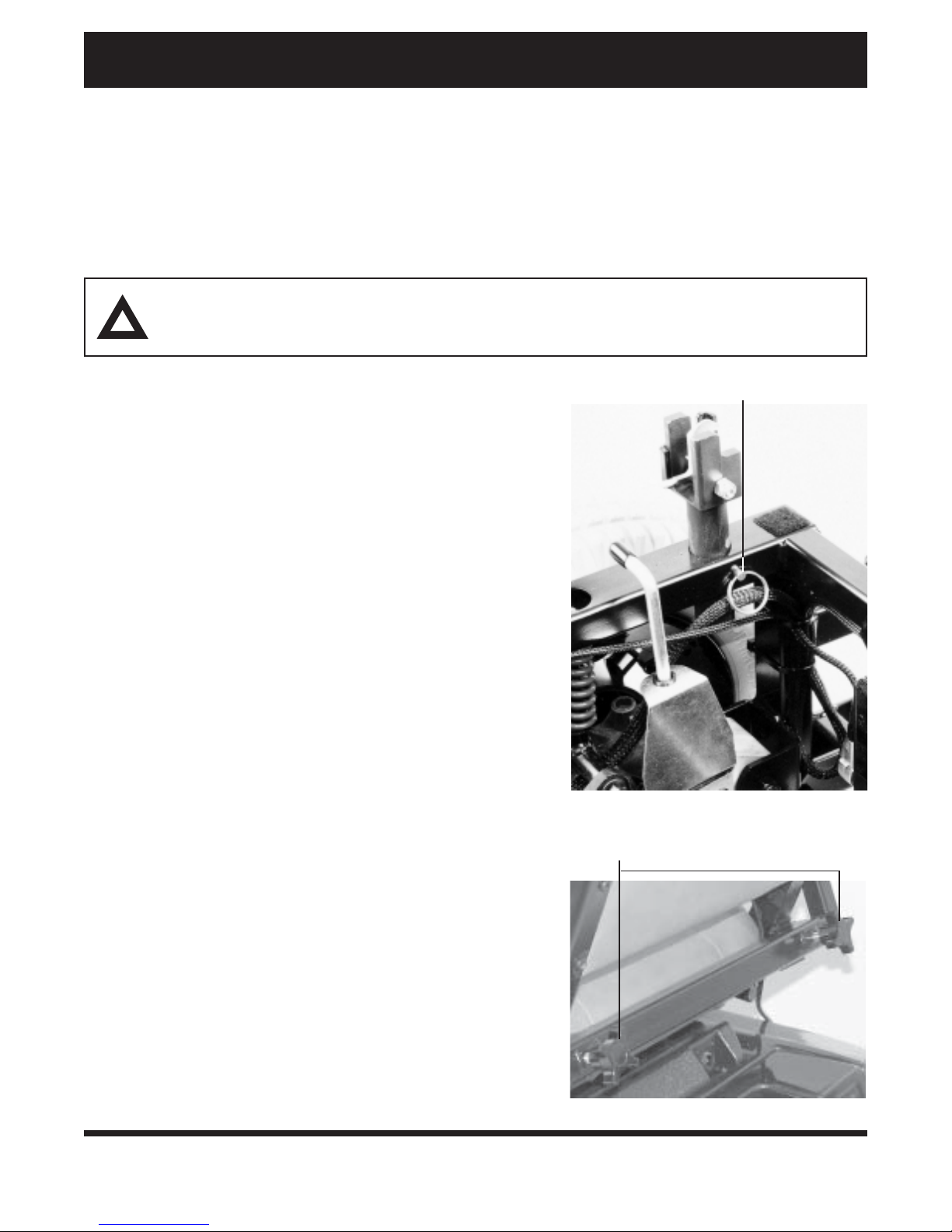

Figure 1 . Seat Tower
Figure 16. Armrest Width
LOOSEN KNOBS TO
MOVE ARMREST
BALL DETENT PIN
Once you are familiar with your Jazzys operation, you may find the need to adjust your seating position. There are
some adjustments you can make to increase your comfort, such as seat height and angle, armrest width and angle,
joystick position, and footrest height and angle.
Required Tools:
7/16-in. wrench, 5/32-in. hex key
CAU ION! If your Jazzy 1120 was configured at your authorized Pride provider, please consult your
health care professional before changing the seat position or before making any other adjustment.
Some adjustments may degrade your Jazzys performance and safety by changing its center of
gravity.
SEAT HEIGHT AND ANGLE
You can change the seat height by one of two ways: manually or
automatically. (If equipped with the optional Power Elevating Seat,
see Power Elevating Seat Option later in this section.)
To change the seat height:
1. Remove the seat. See VI. Disassembly.
2. Remove the shroud.
3. Remove the ball detent pin from each seat tower. See figure 15.
4. Raise or lower each seat tower to the desired position.
5. Install the ball detent pin into each seat tower.
6. Reinstall the shroud.
7. Install the seat.
You can change the seat angle by either raising or lowering only
one set of seat towers (front or rear).
ARMREST WIDTH
To change the armrest width:
1. Locate the two knobs on the armrest receiver bracket. See
figure 16.
2. Loosen the knobs and slide the armrests in or out to the desired
width.
3. Tighten the knobs.

V. COMFORT ADJUSTMENTS
ARMREST ANGLE
You can adjust the armrest angle to fit your specific needs.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the floor.
2. Use a 7/16-in. wrench to loosen the locking nut. See figure 17.
3. Use a 5/32-in. hex key to loosen the adjustment screw.
4. Turn the screw clockwise to lower the front of the armrest, or
turn the screw counterclockwise to raise the front of the armrest.
5. Lock the adjustment screw into place by tightening the locking nut.
ARMREST HEIGHT
Your Jazzy is equipped with height-adjustable armrests.
To change the armrest height:
1. Loosen the setscrew located underneath the armrest using a
3/16-in. hex key.
2. Remove the ball detent pin from the armrest.
3. Move the armrest up or down to the desired height.
4. Align the holes and reinsert the ball detent pin.
5. Retighten the setscrew.
JOYSTICK EXTENSION
The joystick control can easily slide out away from the armrest, or
in toward the armrest.
To extend the joystick:
1. Use a 3/16-in. hex key to loosen the setscrew. See figure 1 .
2. Slide the joystick mounting bracket into or out of the armrest
to the desired position.
3. Re-tighten the setscrew.
16 Jazzy 1120
SWING-AWAY JOYSTICK
Your Jazzy may be equipped with a swing-away joystick. This option enables you to move the joystick from the
front of the armrest to the side of the armrest, without disconnecting it. The joystick can be mounted to the left or
right side of your Jazzy. Contact your authorized Pride provider if you have any questions.
TURN THIS SCREW TO CHANGE ARMREST ANGLE
Figure 18. Joystick Extension
LOOSEN
THIS
SETSCREW
TO ADJUST
JOYSTICK
LOCKING NUT
LOCKS
ADJUSTMENT
SCREW IN
PLACE
Figure 17. Armrest Angle Adjustment

V. COMFORT ADJUSTMENTS

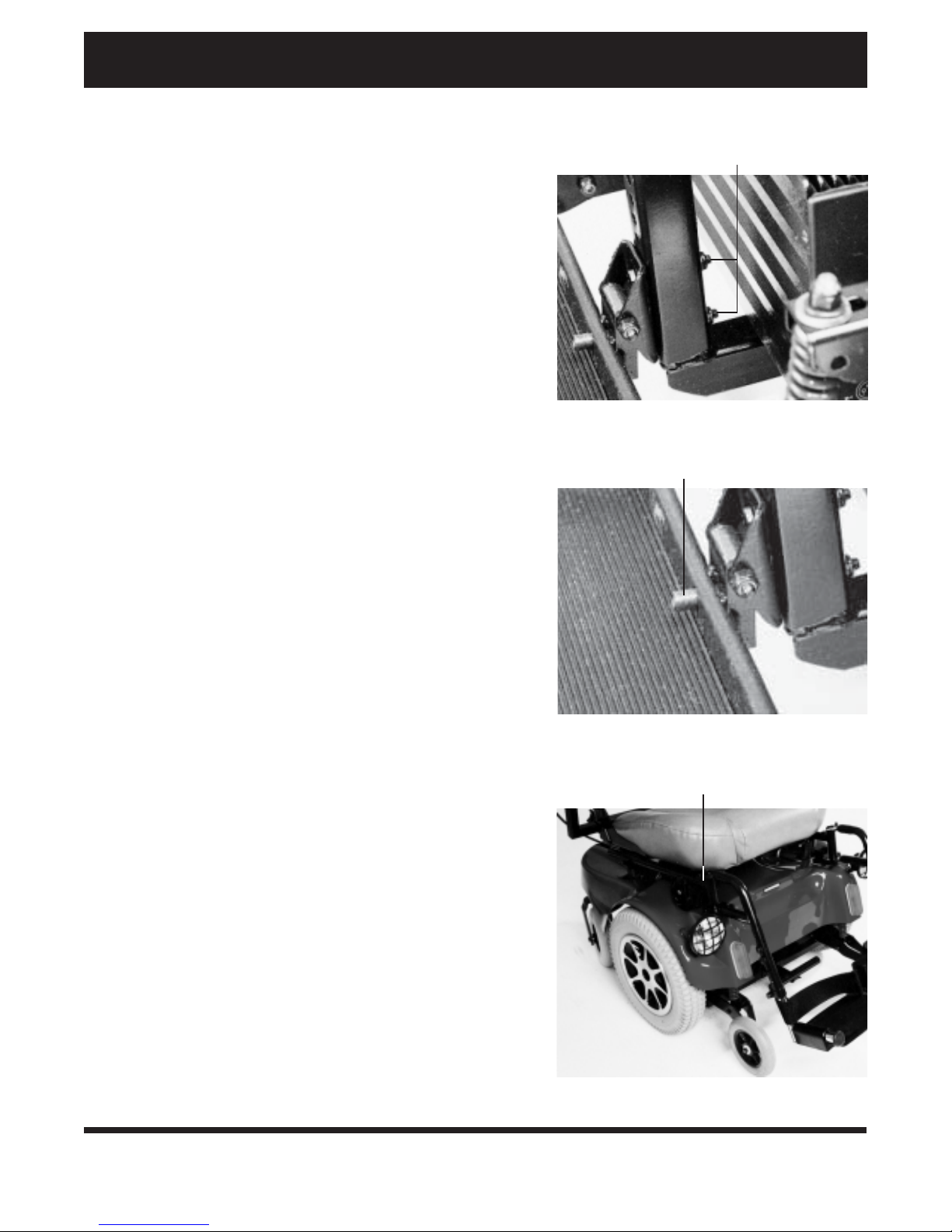

Figure 19. Footrest Height
REMOVE THESE NUTS AND BOLTS
TO RAISE OR LOWER THE FOOTREST
Figure 20. Footrest Angle
TURN SETSCREW TO CHANGE FOOTREST ANGLE
SFR RELEASE LEVER
Figure 21. Swing-away Footrests
FOOTREST HEIGHT
The footrest height is easily adjusted to one of six different heights
in 3 cm increments.
To raise or lower the footrest:
1. Remove the two 7/16-in. bolts and their nuts from the footrest.
See figure 19.
2. Raise or lower the footrest to the desired height.
3. Install the two 7/16-in. bolts and nuts into the footrest and tighten.
FOOTREST ANGLE
You can adjust the angle of the footrest with a 3/16-in. hex key.
See figure 20.
To adjust the footrest angle:
1. Turn the setscrew clockwise to raise the front of the footrest.
2. Turn the setscrew counterclockwise to lower the front of the
footrest.
SWING-AWAY FOOTRESTS OPTION
Swing-away footrests (SFRs) are an option. They enable you to
swing the footrest to the side before transferring from your Jazzy.
To swing the footrest:
1. Push in the SFR release lever. See figure 21.
2. Swing the footrest off to the side.
17Jazzy 1120

1 Jazzy 1120

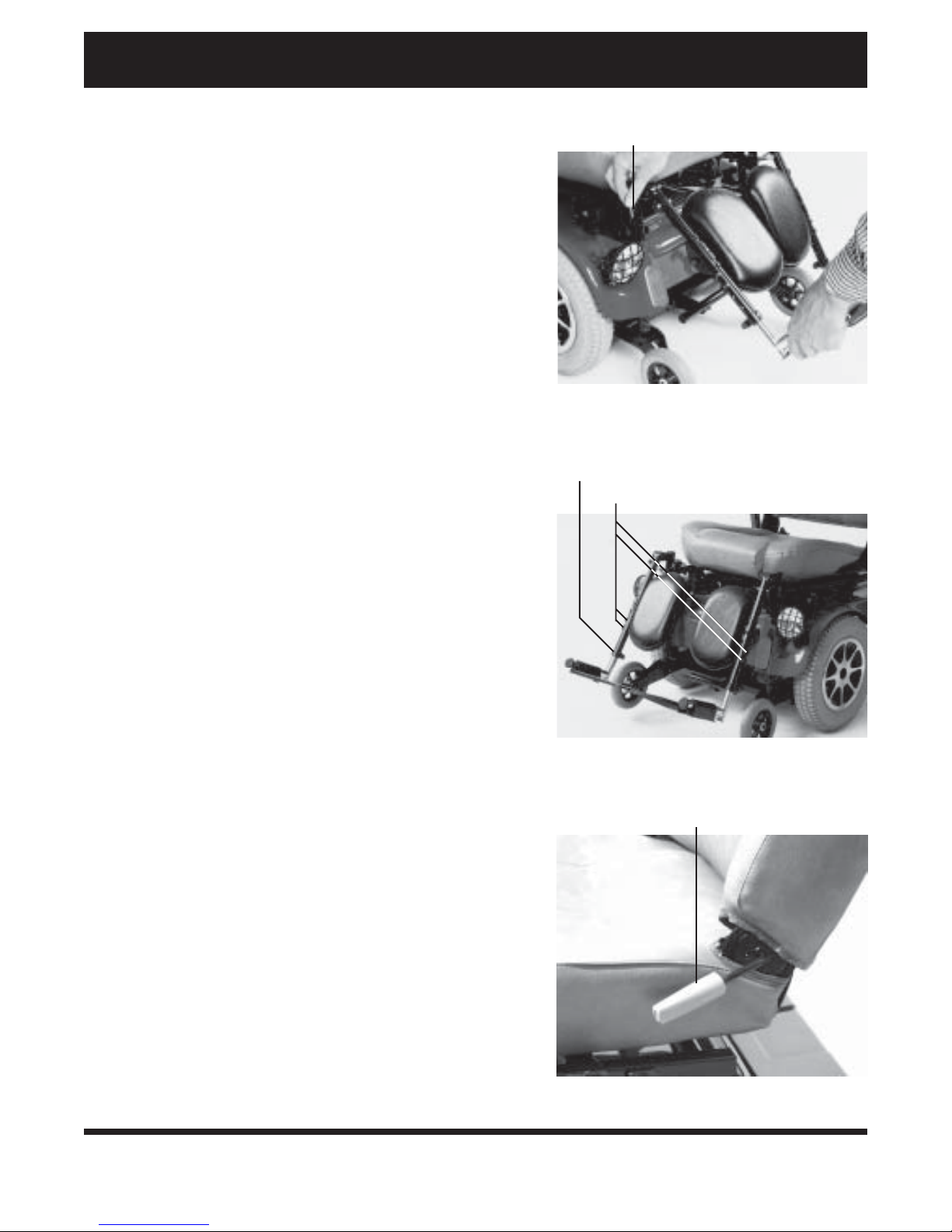

Figure 24. Seat back Release Lever
V. COMFORT ADJUSTMENTS
Figure 22. Elevating Leg Rests
ELR RELEASE LEVER
Figure 23. Elevating Leg Rests
LEG REST ADJUSTMENT BOLT
LEG REST ADJUSTMENT SCREWS
ELEVATING LEG RESTS OPTION
Elevating Leg Rests (ELRs) offer an infinite range of adjustment
between 0 and 70 degrees for the leg angle and a footrest
adjustment range of 3  50 cm.
To adjust the ELR angle:
1. Press the ELR release lever. See figure 22.
2. Move the leg rest to the desired angle.
To adjust the ELR footrest height:
1. Remove the two leg rest adjustment screws from the side of
each leg rest extension. See figure 23.
2. Loosen the leg rest adjustment bolt on the side of each leg
rest extension.
3. Slide the leg rest in or out to the desired length.
4. Tighten the leg rest adjustment bolt and reinstall the two leg
rest adjustment screws on each leg rest extension.
RECLINING SEAT OPTION
If your Jazzy is equipped with a reclining seat, you can adjust the
seat back angle and the armrest angle.
To adjust the seat back angle:
1. Press down on the seat back release lever. See figure 24.
2. Move the seat back down or up to the desired position.
3 Release the seat back release lever.
SEAT BACK RELEASE LEVER

19
Jazzy 1120
V. COMFORT ADJUSTMENTS
Figure 2 . Power Seat
POWER SEAT SWITCH
POWER ELEVATING SEAT OPTION
If your Jazzy is equipped with a power elevating seat, you can
change the seat height automatically. The power seat switch is
located on the armrest. See figure 25.
To change the seat height:
1. Push forward on the power seat switch to raise the seat.
2. Pull back on the power seat switch to lower the seat.
POWER SEAT CAUTIONS
Read your Jazzy 1120 Owners Manual thoroughly before
operating your Jazzy.
WARNING! he power seat option is intended for use while your Jazzy is on level surfaces only.
Always fasten the safety belt when operating the power elevating seat. he power elevating seat
option is equipped with a system that reduces your Jazzys speed by one half when the seat is
elevated more than 35 cm. Always check to be sure this system is operating properly before using
your Jazzy. Never raise the seat from its lowest position on an inclined surface, or while on bumpy
or uneven surfaces. Failure to heed this warning can result in your Jazzy tipping over and causing
injury. Operate your Jazzy only on a flat level surface whenever the elevating seat is raised from its
lowest position. Never raise the power elevating seat when the chair is in freewheel mode.
HIGH-BACK WITH HEADREST OPTION
If your Jazzy is equipped with the deluxe high-back seat, you can adjust the headrest height.
To adjust the headrest height:
1. Push in the headrest release button.
2. Move the headrest up or down to the desired position.

20 Jazzy 1120
VI. DISASSEMBLY
Figure 26. Removing The Seat
SEAT REMOVAL
You may wish to remove the seat for transportation. If you have a Versa Seat, please refer to the Versa Seat
Installation and Adjustment guide.
BODY SHROUD REMOVAL
The body shroud is a one-piece, molded plastic body that covers the power base frame. It helps protect the Jazzy
components from the environment. It also provides mounting points for lights and the standard light switch. You
must remove the body shroud in order to change the batteries and check the cable connections.
To remove the body shroud:
1. Turn the power off.
2. Make sure your Jazzy is not in freewheel mode. See III. The Jazzy 1120.
3. Unplug the controller wiring harness.
4. Remove the seat.
5. Disconnect the lighting harness (if your Jazzy is equipped with lights).
6. Lift the body shroud straight up. The body shroud is attached to the metal frame by reusable fasteners. The
body shroud should lift up easily.
WARNING! Your Jazzy 1120 batteries weigh approximately 20 kg each. Lifting weight above your
capability could result in injury!
BATTERY REMOVAL
To remove the batteries:
1. Turn the power off.
2. Remove the body shroud.
3. Remove the battery post caps (both red and black).
4. Unscrew the wing nuts on (+) red battery terminals, one at a time.
5. Remove the (+) red battery cables from the battery posts; be sure to secure the terminals away from the
batteries.
6. Loosen the wing nuts on (-) black battery terminals.
7. Remove the (-) black cables and secure the terminals away from the batteries.
. You can now remove the batteries from your Jazzy 1120.
To remove the seat:
1. Turn the power off.
2. Make sure your Jazzy is not in freewheel mode.
3. Unplug the main wire harness behind the seat.
4. Simultaneously depress the two plungers on the front of the
seat frame while lifting the front of the seat. See figure 26.
5. Lift the seat up and gently lower it back onto the front seat towers.
6. Pull the seat forward and lift it off of the rear seat towers.
To remove a power seat:
1. Push down on the seat release lever.
2. Lift the seat off of the power seat actuator.
