Prima FIT II User manual

13615 Marquardt Ave. Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
IMPORTANT!:
• Please refer to the Prima catalog for proper lamp type & max. wattage.
• Prima is not responsible for any fixture or system failure caused by lamps not supplied by Prima.
• Always contact Prima customer service for the latest updates on the proper use of the lamps.
• A specified transformer from Prima is needed for the low voltage FIT II System installations.
• Prima Lighting will not warrant the fixtures or systems if Prima transformers are not used.
• The Prima Lighting catalog provides general suggestions as to the proper style of dimmer switch.
However, always consult Prima customer service for the use of any specific dimmer.
• Prima Lighting is not responsible for any fixtures damaged or system malfunctions caused
• This track system is not intended for use with a power supply cord or convenience receptacle adapter.
by the incompatibility of non-specified or suggested dimmers.
REV. 052416
PRIMA LIGHTING - FIT II SYSTEM
IMPORTANT SAFETY INSTRUCTIONS
IF YOU HAVE ANY QUESTIONS REGARDING THE INSTALLATION OF
THIS PRODUCT, PLEASE CALL PRIMA CUSTOMER SERVICE AT
1-562-407-3079
INSTALLATION INSTRUCTION
A) READ ALL OF THESE INSTALLATION INSTRUCTIONS BEFORE INSTALLING THE FIT II
SYSTEM.
B) DO NOT INSTALL THIS SYSTEM IN DAMP OR WET LOCATIONS.
C) DO NOT INSTALL THIS SYSTEM OR ANY PART WHICH CONTAINS EXPOSED
WIRES LESS THAN 7 FEET FROM THE FLOOR.
D) DO NOT INSTALL ANY LUMINAIRE ASSEMBLY CLOSER THAN 6 INCHES FROM
ANY CURTAINS OR SIMILAR COMBUSTIBLE MATERIAL.
E) DISCONNECT ELECTRICAL POWER BEFORE ADDING TO OR CHANGING THE
CONFIGURATION OF THE TRACK.
F) DO NOT ATTEMPT TO ENERGIZE ANYTHING OTHER THAN LIGHTING TRACK
LUMINAIRES ON THE TRACK. TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT ATTEMPT TO CONNECT POWER TOOLS, EXTENSION CORDS,
APPLIANCES, AND THE LIKE TO THE TRACK.
G) DO NOT CONNECT A TRACK TO MORE THAN ONE BRANCH CIRCUIT UNLESS
THE TRACK IS CONSTRUCTED SO THAT IT CAN BE USED WITH MORE THAN
ONE BRANCH CIRCUIT. CHECK WITH A QUALIFIED ELECTRICIAN.
SAVE THESE INSTRUCTIONS AND REFER TO THEM WHEN ADDITIONS
TO OR CHANGES IN THE TRACK CONFIGURATION ARE MADE. THESE
INSTRUCTIONS CONTAIN IMPORTANT INFORMATION REGARDING
YOUR NEW PRIMA LIGHTING FIXTURES.

PRIMA LIGHTING - FIT II INSTALLATION MANUAL
CAUTION
1. Failure to properly install low voltage electrical products may void the warranty. Please ensure the proper
electrical connections as follows:
• Follow instruction guidelines when wiring and installing transformers.
•Firmly connect the transformer’s secondary leads to the FIT II System track as described in the power
feed instruction sheets.
ting connections at all conductive
•Be sure the lamp is firmly seated in the socket.
•Check to ensure that no wires, cables or packing materials are crossing both conductors of the
FIT II track.
2. Make sure all power connections are tight. Follow this procedure to ensure proper connection:
• Read all transformer instruction sheets before installation.
• Turn on the power only after system installation is complete.
• 60 minutes after power-up, check for excess heat at power connection areas.
• Tighten any connections that feel hot and assure to use 10 AWG THHN single standard wire from
transformer to powerfeed. The use of this wire is to maintain the standard 25 amp capacity.
• Do not use Romex cable or MC rigid cable for secondary wire connections.
•For long distance remote connections, please refer to the voltage drop table in the back of this
instruction manual.
3. Measure voltage after the installation is complete. Secondary voltage for 12V system should be between 11.3V
to 11.7V with 85% to 90% load without dimmer, and for 24V system should be between 22.6V to 23.4V
Since electronic transformers run at a higher frequency, the use of a high-end voltage meter such as
Fluke 87 is recommended.
4.Always turn off the power and allow the system to cool before attempting any adjustments such as moving
powerfeeds, adjusting pendant cable lengths, moving trackheads or changing light bulbs.
5. Prima Lighting includes lamps for each fixture we ship. The lamps included are top quality and well-
known name brands. We will normally send 50W MR16 for spotlights and 50W Xelogen G6.35 lamp for
pendants unless otherwise specified differently in the catalog. Prima will also ship according to customers’
specific lamp type or wattage per order. Lamps are complimentary, thus we will not offer free replacements,
nor will we issue any credit for lamps. However, customers may purchase lamps from us and receive standard
lamp warranty. We always encourage our customers to purchase replacement lamps directly from us
when replacements are needed.
6. If systems are ordered without transformers, all warranties are void and complimentary lamps will not be
supplied.
11.If you experience problems or irregular function of the system, stop the installation immediately and contact
Prima Lighting Customer Service for assistance.
13615 Marquardt Ave. Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
FIT II interconnecting joints.
with 85% to 90% load without dimmer. Magnetic transformers may be tested with most voltage meters.
7. The maximum permissible load allowed on any Prima Rail circuit is 25 amps. The rail can be operated at 12 volts
with a 300W maximum load or at 24 volts with a 600W maximum load.
8.
9. When cleaning FIT II System track, be sure to use a clean damp cotton cloth.
Prima Lighting systems are listed by ETL. Our system products are only listed when used as a complete system. All
components, including transformers, must be provided by Prima Lighting. The substitution of Prima products with
another manufacturer’s product will render the listing completely void. Prima Lighting is removed from liability
and any insurance to which you may be entitled will be jeopardized.
Questions or problems you can’t find answered here? Call 1-562-407-3079 during regular business hours
(Monday-Friday 7:00-4:00pm PST).
CAUTION! Bulbs, metal, and other parts of elements may become hot. Use protective gloves and adjust
elements by their coated handles and cords.
REV. 052416
10. Do not apply any paint material over our tracks and connectors.

13615 Marquardt Ave.Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
If your system does not turn on:
•ALWAYS check the fuse or thermal breaker first. Fuses and breakers are easily replaced and can be bought from any
local electrical distributor or directly from Prima Lighting. BYPASSING A FUSE OR THERMAL BREAKER CAN RESULT IN FIRE!!
• Check all switches and breakers, including the main panel breaker and the breaker button on the transformer.
•Make sure all wire connections and piercing contacts are tight and well connected (transformer to conductor leads,
junction box, connectors between rails).
• Check the output side of the transformer with a multimeter and make sure the power is there.
• Check that the bulbs and sockets are installed securely and are not burned out.
•The system will shut down if it is overloaded. Make sure that the total wattage of the lamp elements does not exceed
the transformer’s maximum wattage rating.
•The system will shut down if there is a short. Make sure that the rail and elements are not coming in contact with any
other metal surfaces and that each element is installed properly.
Common Troubleshooting on TRANSFORMER and BREAKERS
If the breaker at the transformer is tripping, please follow these troubleshooting steps:
1. Remove all lighting elements and reset the breaker.
2. Attempt to turn the system on.
If the system still trips, look inside the transformer housing and make sure all connections are secure and that there is no
short. If the system stays on, you most likely have a problem with one of the lighting elements. Re-install one element at
a time and check if the system works to find the defective element. Ensure that the lighting socket is okay, wires are not
stripped or shorted, and the lamps are within the allowed wattage.
If the breaker at the main panel keeps tripping when the system is first turned on, you may need to replace this
breaker with an inductive breaker, or you may have a short on the 120 volt side of the transformer.
Nuisance Tripping
Sometimes, for no apparent reason, the secondary circuit breakers on the transformers will trip. Some things to consider:
1. Allow a 20% safety factor in estimating your load wattage. The bulbs often sometimes carry a load of up to 5% more than
specified, wire length, gauge, and connection variation may impact the actual load. Using proper wire nuts and
ensuring wires have 1/2” long contacts length are essential to minimize loading.
by your local electrical codes (use the 20% safety factor as mentioned above), and all transformers should be mounted
as designed.
3. If using a dimmer, use a compatible low-voltage dimmer only.
If using remote magnetic transformer, the transformer has to be mounted vertically with the breakers facing downward
for better heat dissipation.
REV. 052416

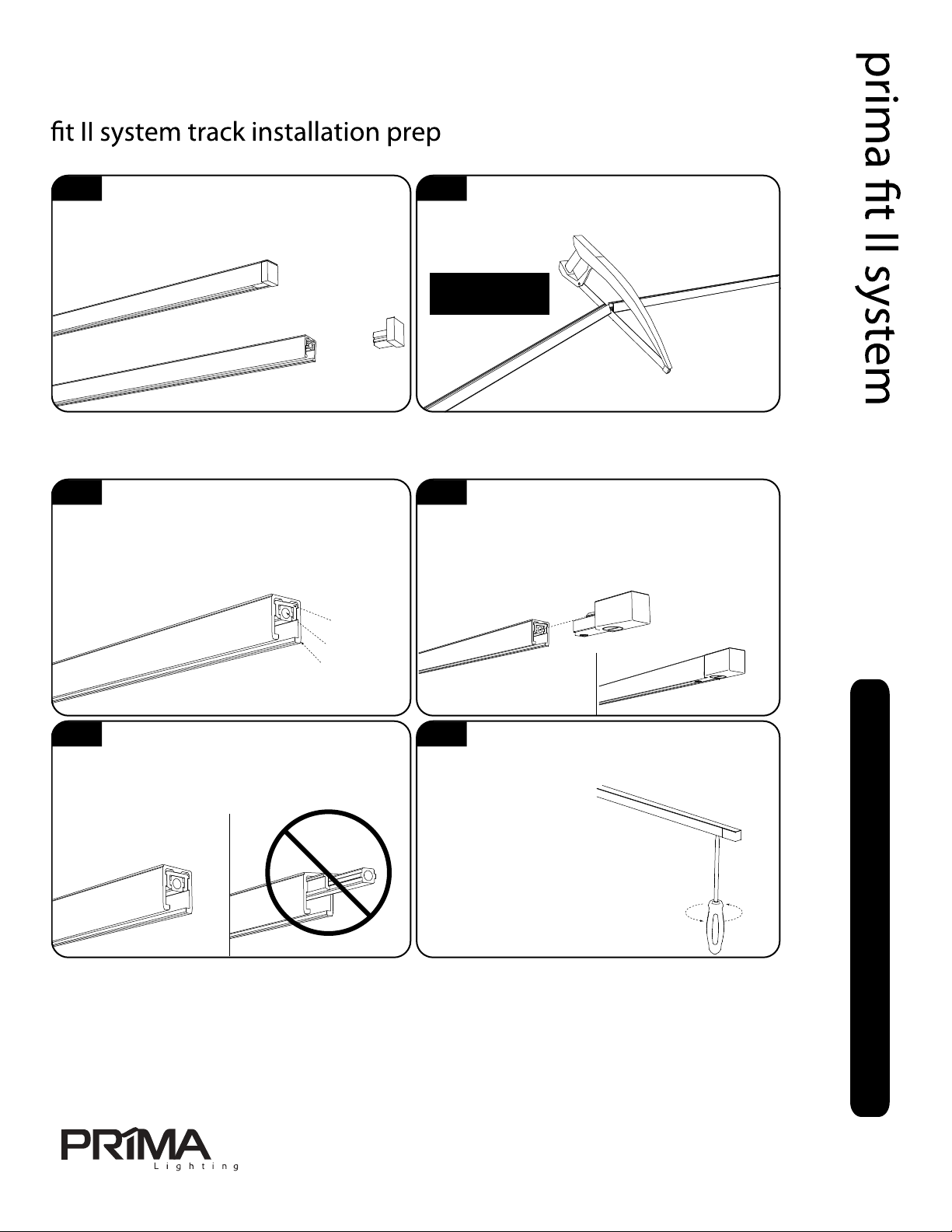

general installation instructions part 1 of 6
(22-79111, 22-79113)
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
A1 A2
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wattage for xtures.
Prima is not responsible for any xture or system failure caused by unsupported lamps. Contact Prima customer service for the latest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
our customer service department with any questions regarding dimmer specics. Prima is not responsible for any damage caused by improper
dimmer specication and usage. Use only qualied electrician for installation. Adhere to all local and national electrical codes prior to installation.
It is strongly recommended that gloves are used when handling the FIT II System track. Oils and dirt from ngers can sometimes permanently
mark the nish. Track should be cleaned with a damp cloth and thoroughly dried before xture installation.
Determine whether the FIT II track length will be installed as
part of a series of connected track lengths or as a single
stand alone track length. Before attempting to eld cut the FIT track,
ensure that the end caps are rmly installed into both ends. If an end
cap has become loose during shipping, replace it.
FOR FIELD CUTTING. Cut the track so that the desired eect
and lengths can be achieved. FIT II track may be eld cut with
an ordinary hacksaw. Be sure to use a FINE-TOOTH METAL CUTTING
BLADE. Be sure to deburr and clean all cuts prior to nal assembly.
t II system track connector/powerfeed basics
B1 B2
Connectors are available for extending track length, turning corners or creating intersections in the run. Great care must be taken to ensure
the connector is installed properly.
FIT II track is constructed of an aluminum housing which
doubles as the neutral conductor. The slot of the track includes
one conductor and one insulator. The slots may used as two separate
circuits with the proper use of power feeds.
When installing a connector or power feed, place the opposite
end of the track length against a solid at surface to keep the
internal parts of the track from sliding. Carefully align the connector pins
on the connector with the holes in the track’s conductors. Insert the
connector all the way into the track until it stops.
Track housing/
Neutral
Conductor
Insulator
B3 B4
When installing a connector at the end of a FIT II track length,
great care should be taken to ensure the connector is properly
installed. After the connector has been inserted into the end of the track,
inspect the opposite end of the track. If the inslulators and conductors
are ush with the end, then the installation was successful. If the
conductors protrude past the end of the track AT ALL then connector is
not properly installed.
When the connector or power feed is properly inserted into the
track length, secure the installation by tightening the lock
screws located at the top or bottom of connector. DO NOT
OVERTIGHTEN THE SCREWS.
Opposite end after a
proper connector installation.
Opposite end after an
improper connector installation.
FIT II SYSTEM TRACK
MAY NOT BE BENT IN
ANY WAY
FIT II System track
may not be bent
13615 Marquardt Ave.Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
*Caution:
Do not break the insulator inside
the chamber while using the
screw-in function. Broken insulator
will cause short of circuit.
*Caution
REV. 052416

prima t II system general installation instructions part 2 of 6
t II system xture adapter installation
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
C
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wattage for xtures.
Prima is not responsible for any xture or system failure caused by unsupported lamps. Contact Prima customer service for the latest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
our customer service department with any questions regarding dimmer specics. Prima is not responsible for any damage caused by improper
dimmer specication and usage. Use only qualied electrician for installation. Adhere to all local and national electrical codes prior to installation.
It is strongly recommended that gloves are used when handling the FIT II System track. Oils and dirt from ngers can sometimes permanently
mark the nish. Track should be cleaned with a damp cloth and thoroughly dried before xture installation.
FIT II System adapter are installed in the track using a twist-and-lock method. The adapter is inserted at the desired location on the track
length. Pressure is applied on the adapter to compress the internal contact/pressure mechanism. While applying said pressure, the
adapter is rotated 90º clockwise until it stops. To secure the adapter, the knurled locking ring is rotated clockwise by hand until sufcient pressure
creates a solid and secure mounting. IMPORTANT: Do not attempt to slide the adapter to other locations on the track length after it is installed. The
adapter must be completely removed from the track slot and reinstalled at the new location.
Insert the adapter into the
track slot
Apply pressure and
rotate 90º clockwise
After rotation,
adapter rests
inside track slot.
Rotate knurled
locking ring
clockwise to
secure the adapter.
There should now
be a gap between
the two knobs.
ure
installation.
C1
C2 C3 C4 C5
Ensure that there is
no gap between
the knurled knobs
before installation.
FIT II SYSTEM TRACK REQUIRES SUPPORT POINTS BE INSTALLED EVERY 4’
l mounted
support. The following steps cover the general task of inserting the support adapter into the track slot. See the individual steps for various
support method installation instructions. It is strongly recommended that gloves are used when handling the FIT II System track. Oils and dirt
DFIT II System support adapters are installed in the track using a twist-and-lock method. The support adapter is inserted at the desired
location on the track length. The adapter is rotated 90º clockwise until it stops. To secure the adapter, the knurled locking ring is rotated
on the track length after it is installed. The adapter must be completely removed from the track slot and reinstalled at the new location.
After rotation,
adapter rests
inside track slot.
Ensure that there is
no gap between
the knurled knobs
before installation.
Apply pressure and
rotate 90º clockwise
Rotate knurled
locking ring
clockwise to
secure the adapter.
There should now
be a gap between
the two knobs.
D1 D2 D3 D4 D5
to other locations
(22-79293, 22-65390 ~ 22-65398)
13615 Marquardt Ave.Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
DFIT System support adapters are installed in the track using a twist-and-lock method. The support adapter is inserted at the desired
location on the track length. The adapter is rotated 90º clockwise until it stops. With a stem suspended support adapter, it will be
necessary to SLIGHTLY loosen the stem coupler to allow the adapter to rotate and lock into the track slot. To secure the adapter, the knurled
locking ring is rotated clockwise by hand until sufcient pressure creates a solid and secure mounting. IMPORTANT: Do not attempt to slide the
adapter to other locations on the track length after it is installed. The adapter must be completely removed from the track slot and reinstalled at the
new location.
After rotation,
adapter rests
inside track slot.
Ensure that there is
no gap between
the knurled knobs
before installation.
Apply pressure and
rotate 90º clockwise
Rotate knurled
locking ring
clockwise to
secure the adapter.
There should now
be a gap between
the two knobs.
C4
D1 D2 D3 D4 D5
Black top knob is for
locking purposes.
Hold the bottom knob with
your fingers. Do not use a
plier or any other tools that
will hurt the adapter and finish.
REV. 052416

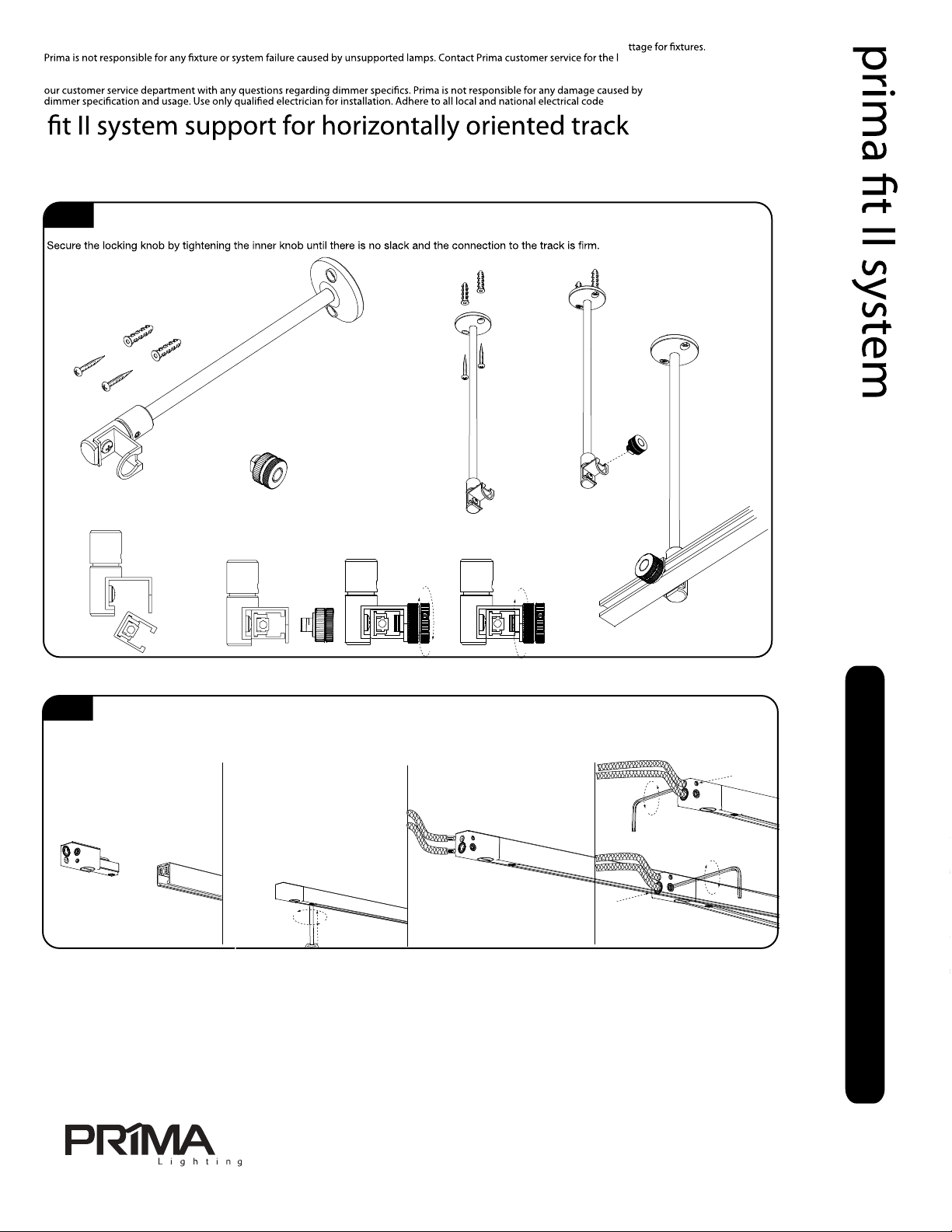

general installation instructions part 3 of 6
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wa
atest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
improper
s prior to installation.
Support points are required along the FIT System track run at 4ft maximum intervals. When using connectors, supports must be installed on the connector
or within 6” of the connector. Additional supports may be required when using certain glass pendants. It is strongly recommended that gloves are used when
handling the FIT II System track. Oils and dirt from ngers can sometimes permanently mark the nish. Track should be cleaned with a damp cloth and thoroughly
dried before xture installation.
(22-79131)
for end mounting point
Mounting
screws
Anchors
E
Track Support End Mount
Insert the Track Support End Mount to the
end of the track, and tightened the screw
with a screwdriver.
Insert the screw anchor, and tighten the screw
Be sure that the items indicated below are included in the package. Insert the Track Support End Mount to the end of the track, and tighten
it with a screw driver. Do both ends before mounting it on the ceiling. Mount screw anchor at the desired place, and use a mounting screw
to tighten it and cover the screw with the support cap.
Support Cap
E1
E2
E3
13615 Marquardt Ave.Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
EBe sure that the items indicated below are included in the package. Mount screw anchors in the mounting surface so that they align with
the holes in the mounting disk. Secure the mounting disk to the mounting surface with the included screws. Secure the track with the
locking knob. Insert the knob into the large hole on the side of the track bracket. Rotate the track locking knob 90º clockwise to lock the track.
Insert the track into the
track bracket
90º clockwiseInsert locking knob Tighten inner knob
(22-65240 ~ 22-65248)
FUse 22-79140 supporting clip for surface mount option. WOOD CEILING ONLY.
After rotation,
adapter rests
inside track slot.
Ensure that there is
no gap between
the knurled knobs
before installation.
Apply pressure and
rotate 90º clockwise
Rotate knurled
locking ring
clockwise to
secure the adapter.
There should now
be a gap between
the two knobs.
F1 F2 F3 F4 F5
22-79140
*Caution:
Do not break the insulator inside
the chamber while using the
screw-in function. Broken insulator
will cause short of circuit.
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
REV. 082217
WARNING: DO NOT ATTACH METAL CLIP TO ANY METAL CEILING, T-BAR, OR TRUSS

general installation instructions part 4 of 6
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wa
atest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
improper
s prior to installation.
Support points are required along the FIT System track run at 4ft maximum intervals. When using connectors, supports must be installed on the connector
or within 6” of the connector. Additional supports may be required when using certain glass pendants. It is strongly recommended that gloves are used when
handling the FIT II System track. Oils and dirt from ngers can sometimes permanently mark the nish. Track should be cleaned with a damp cloth and thoroughly
dried before xture installation.
(22-65240 ~ 22-65248)
13615 Marquardt Ave.Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
Rev. 021408
end power feed -
HFIT II System end power feeds are available in one model which have powerfeed entry on the end (22-79121 shown in the example below)
the side (22-79122) or the top (22-79123). Insert the connector into open end of a FIT track length. Secure the powerfeed by tightening the
set screws with a at head screwdriver at the top and bottom of the connector. Insert the transformer’s low voltage secondary leads into the power
entry holes on the connector. Using the supplied hex wrench, secure the transformer leads by tightening two set screws for each wire lead.
Transformer low voltage leads must be 10 AWG THHN stranded. Tighten screws
on both sides
Tighten
screws
on both
sides
Low voltage leads from
transformer. 10AWG THHN
stranded
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
for stem support G1 G2
G3
G4 G5 G6
Mounting stem assembly
w/ mounting disk and
track bracket
Locking knob
Mounting
screws
Anchors
GBe sure that the items indicated below are included in the package. Mount screw anchors in the mounting surface so that they align with
the holes in the mounting disk. Secure the mounting disk to the mounting surface with the included screws. Secure the track with the
locking knob. Insert the knob into the large hole on the side of the track bracket. Rotate the track locking knob 90º clockwise to lock the track.
Insert the track into the
track bracket
90º clockwiseInsert locking knob Tighten inner knob
(22-65240 ~ 22-65248)
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
(22-79121, 22-79122, 22-79123)
REV. 052416

prima t II system general installation instructions part 5 of 6
straight connector for horizontally or vertically oriented track
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wattage for xtures.
Prima is not responsible for any xture or system failure caused by unsupported lamps. Contact Prima customer service for the latest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
our customer service department with any questions regarding dimmer specics. Prima is not responsible for any damage caused by improper
dimmer specication and usage. Use only qualied electrician for installation. Adhere to all local and national electrical codes prior to installation.
It is strongly recommended that gloves are used when handling the FIT II System track. Oils and dirt from ngers can sometimes permanently
mark the nish. Track should be cleaned with a damp cloth and thoroughly dried before xture installation.Connectors are available for
extending track length, turning corners or creating intersections in the run. Great care must be taken to ensure the connector is installed
properly.
IThe Straight Inline connector for horizontal or vertical orientations has the benet of being virtually undetectable after installation. This
connector does not add any length to the over all track run. Insert the conductive (22-79132) or non-conductive (22-79133) inserts into the
conductor hole on one of the track lengths. Insert the top and bottom cover half way into the same track length and secure by tightening the set
screws with a at head screwdriver. Connect the second track length and secure by again tightening the set screws with a at head screw driver.
There should be no space between the connected track lengths after installation is complete.
connectors for horizontally oriented track
J FIT II system connectors are available in 2, 3 and 4 way versions. The example below demonstrates a three way connector for horizontally
ortant to ensure
that during the connector installation process, the track conductors were not pushed out the opposite side of the track length. This is explained in
detail in Part 1 of this instruction manual. Be sure to tighten all of the lock screws on the connector.
Track connector for horizontally oriented track Tighten all of the lock screws
KFIT II system connectors are available in 2, 3 and 4 way versions. The example below demonstrates a three way connector for vertically
oriented track. It is especially important to ensure that all track lengths are rmly attached to the connector. It is also important to ensure
that during the connector installation process, the track conductors were not push out the opposite side of the track length. This is explained in detail
in Part 1 of this instruction manual. Be sure to tighten all of the lock screws on the connector.
Tighten all of the lock screws
All track lengths are rmly attached
Track connector for vertically oriented track
connectors for vertically oriented track
13615 Marquardt Ave.Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
*Caution:
Do not break the insulator inside
the chamber while using the
screw-in function. Broken insulator
will cause short of circuit. This a pplies to 2, 3, and 4 way connectors.
*Caution
REV. 052416

M3 Rotate the top knurled knob counter
clockwise to tighten and secure the
contact. There should now be a gap
between the two knurled knobs.
M2 Insert the power feed into the track and
rotate the bottom knurled knob
counter clockwise until the feed rest
perpendicular to the track.
M1
Neutral Installation Instructions
Ensure that there is NO gap in between
both knurled knobs prior to installation.
L3 Rotate the bottom knurled knob
counter clockwise to tighten and
secure the contact. The gap between
the two knurled knobs should now be
smaller.
L2 Insert the power feed into the track and
rotate the top knurled knob counter
clockwise until the feed rest
perpendicular to the track.
Ensure that the top knurled knob is
raised as much as possible prior to
installation.
L1
Designed only for the
bottom track in the
vertical orientation.
prima t II system general installation instructions part 6 of 6
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
NEUTRALHOT
Designed only for the
bottom track in the
vertical orientation.
HOT Installation Instructions
Wire must be fed Wire must be fed
CAUTION
Always disconnect power prior to installation
or maintenance.
NOTE:
1.Both the Neutral and the Hot must be inserted into the same track in order to receive voltage.
2.Test Voltage and Temperature after installation to ensure proper installation and conductivity.
3.Remove the power feed before moving to ensure nish of track.
Voltage & Temperature Readings
Voltage: 11.3V 1 11.7V w/ 85% to 90% load
Temperature: 80° - 90°F Room Temperature
This additional piece is
necessary for Fit II
application.
13615 Marquardt Ave. Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com

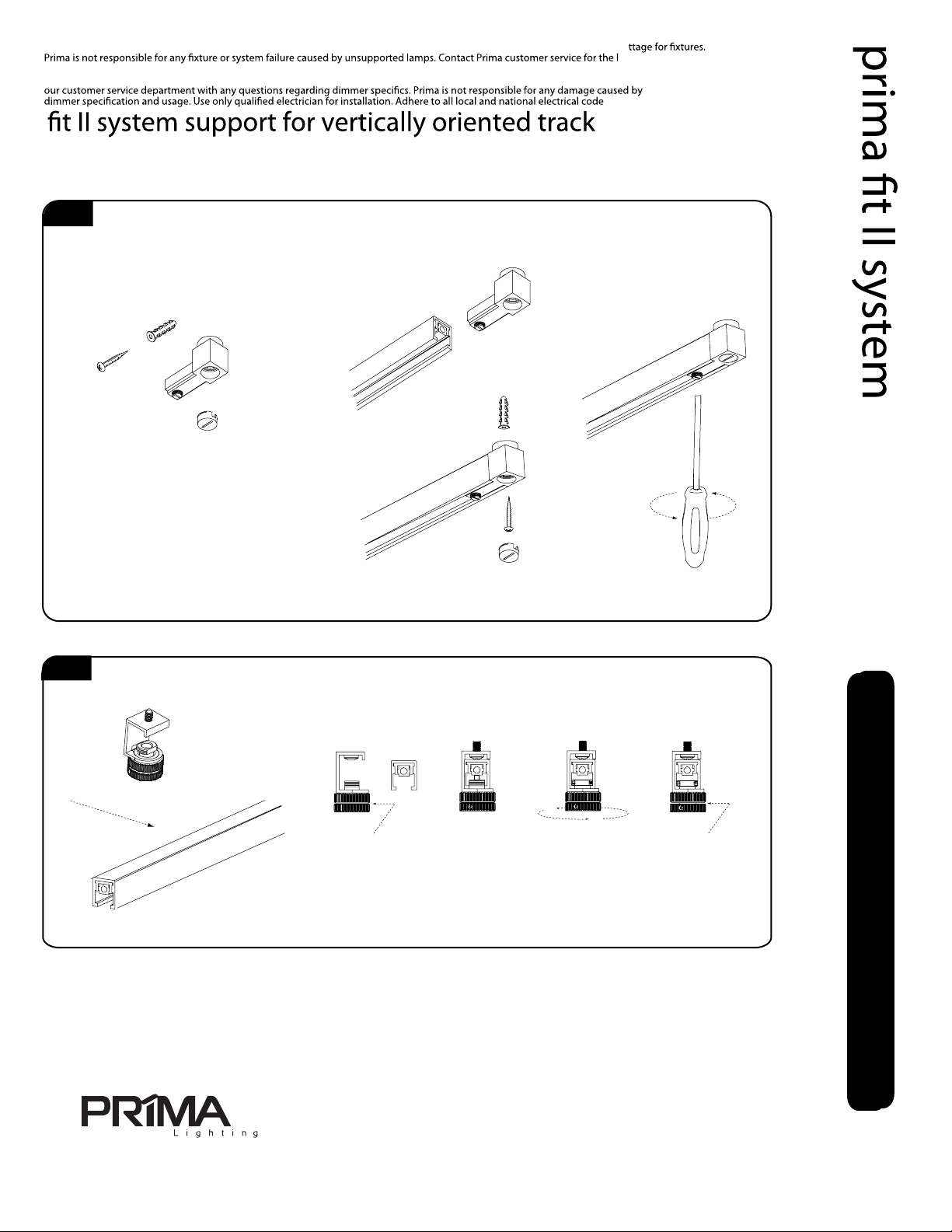

t II system support for vertically oriented track
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wattage for xtures.
Prima is not responsible for any xture or system failure caused by unsupported lamps. Contact Prima customer service for the latest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
our customer service department with any questions regarding dimmer specics. Prima is not responsible for any damage caused by improper
dimmer specication and usage. Use only qualied electrician for installation. Adhere to all local and national electrical codes prior to installation.
It is strongly recommended that gloves are used when handling the FIT II System track. Oils and dirt from ngers can sometimes permanently
mark the nish. Track should be cleaned with a damp cloth and thoroughly dried before xture installation.
t II system two piece power feed
IMPORTANT Please read these instructions prior to installation. Refer to the Prima catalog for proper lamp type and maximum wattage for xtures.
Prima is not responsible for any xture or system failure caused by unsupported lamps. Contact Prima customer service for the latest updates on
which lamps we support and proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties
are void if Prima transformers are not used. Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult
our customer service department with any questions regarding dimmer specics. Prima is not responsible for any damage caused by improper
dimmer specication and usage. Use only qualied electrician for installation. Adhere to all local and national electrical codes prior to installation.
It is strongly recommended that gloves are used when handling the FIT II System track. Oils and dirt from ngers can sometimes permanently
mark the nish. Track should be cleaned with a damp cloth and thoroughly dried before xture installation.
(22-79300-2)
REV. 052416

Class II
14 25’
12 39’
63’
100’
10
8
Max. Length
of Run (ft.)
Wire Size
(Gauge)
15V
300
n/a’
16’
25’
200
15’
23’
37’
14V
300
n/a’
15’
23’
200
13’
22’
34’
12V LengthWattageWire Size (Gauge)
10
12 26’ 20’
300W
150W
DC Transformer
12V LengthWattageWire Size (Gauge)
12 25’50W
AC Transformer
12V Length
Wattage
prima legacy transformer and voltage drop information
Magnetic & Toroidal Transformer Information
Electronic Transformer Information
Follow all local and national electrical codes.
For assistance please call Prima Customer Service at 562-407-3079
proper usage. Prima low voltage transformers must be used with all Prima Lighting product installations. All warranties are void if Prima transformers are not used.
Prima’s catalogs provide general information and suggestions for proper dimmer usage. Please consult our customer service department with any questions
installation. Adhere to all local and national electrical codes prior to installation.
IMPORTANT: USE ONLY LOW VOLTAGE DIMMERS WITH MAGNETIC & TOROIDAL TRANSFORMERS
Prima recommends the use of 10AWG THHN wire to maintain 25 amp capacity.
(Note: Using a dimmer may shorten the secondary length distance.)
Class I
ELECTRONIC TRANSFORMERS ARE DIMMABLE
Prima recommends the use of 10AWG standard wire on output. Attach wires firmly with wire nuts.
Watts (VA) Per Circuit
13V
300
n/a’
14’
21’
200
13’
20’
32’
12V
12 300 n/a’
13’
20’
200
12’
19’
30’
10
8
Total Watts on Rail
X
Length of Run
Cable Size Constant
= Voltage Drop
VoltageDropFormula
Cable Size
(Gauge)
Cable Size
Constant
12 7,500
11,920
18,960
10
8
Wire Size (Gauge)
10
10
12
12
12
5’
8’
10’
15’
30’
300W
200W
150W
100W
50W
AC Transformer
Class II Electronic Transformers
Class I Electronic Transformers
Wire Size
(Gauge)
MUST USE LOW VOLTAGE ELECTRONIC DIMMER TO FULFILL PRIMA WARRANTY.
13615 Marquardt Ave. Santa Fe Springs, CA 90670
Ph. 562-407-3079 . Fx. 562-407-3069
www.primalighting.com
REV. 052416
