prime mover CMX60 User manual

Part no: 301553-001 Date: September 15, 2005

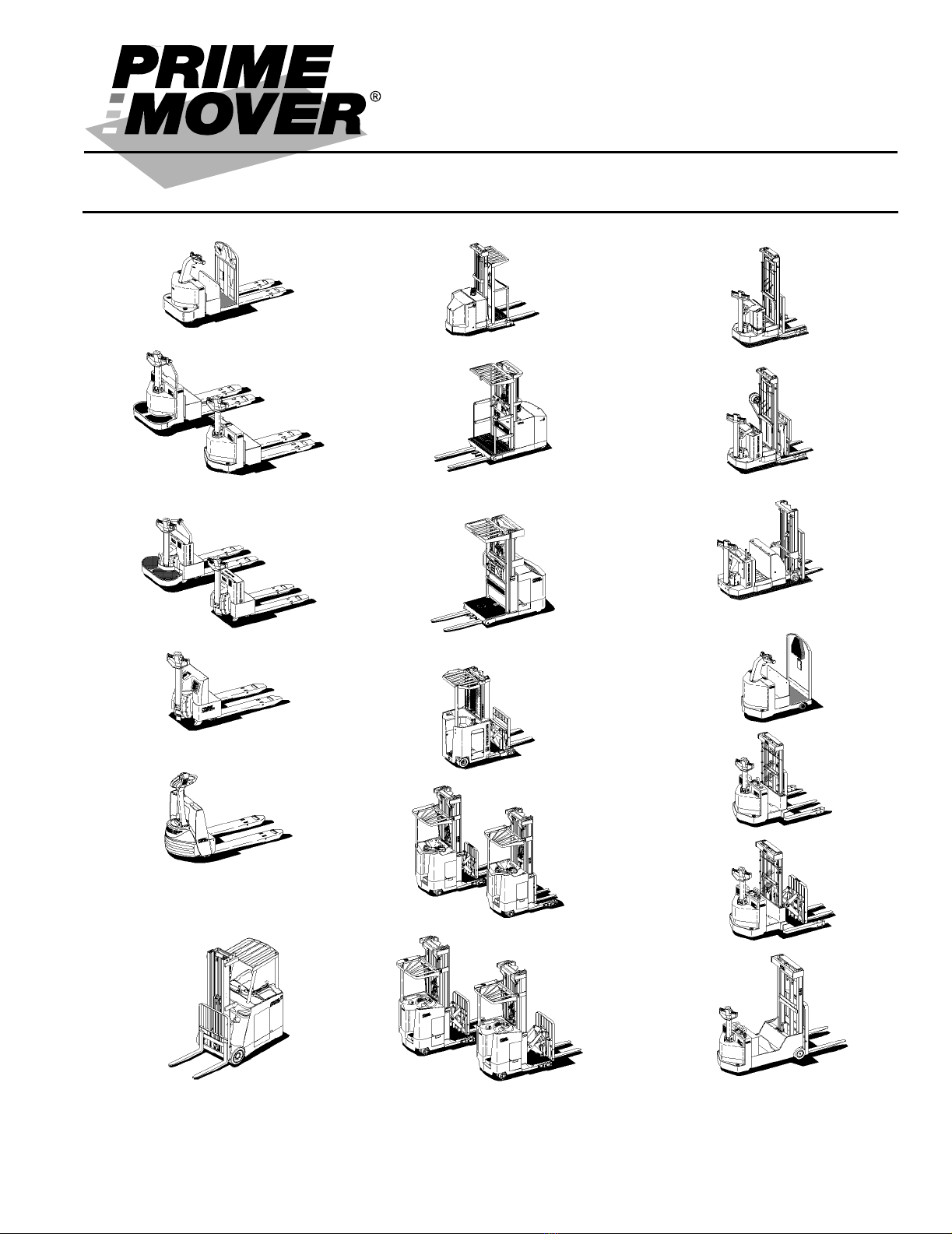

Industrial Truck Flat Rate
CMX60/80
CRX30/35/40/50 CSX10/20/30/40
OP15C
OE35
OPX30
PMX/QMX
PMX45
SMX45
SN20/30/40
SR30
SC10/20/30/40
HMX/RMX
TMX
WSX22/30/40
WRX30
RR30/34/45
RRX/RSX
RTX/RTX30DR
Return

Prime-Mover is a trademark of BT Prime-Mover Inc.,
©2005 BT Prime-Mover Inc., Muscatine, Iowa.
All Rights Reserved.
Return

BT Prime-Mover, Inc.
1
Table of Contents
Flat Rate Guide .............................................................................................. 3
Purpose of the Guide ................................................................................. 3
Using the Guide ......................................................................................... 3
This section identifies the major area of the machine. ............................... 4
Operation Description ........................................................................ 4
Labor Operation Number ................................................................... 4
Time ................................................................................................... 4
Review Of Labor Operation Times .................................................... 4
CMX Model ..................................................................................................... 5
CRX Model ..................................................................................................... 9
CSX Model .................................................................................................... 23
OE15C Model ................................................................................................ 27
OE35 Model ................................................................................................... 29
OPX30 Model ................................................................................................ 33
PMX/QMX Model ........................................................................................... 37
PMX45 Model ................................................................................................ 41
RDX30 Model ................................................................................................ 45
RMX/HMX Model ........................................................................................... 49
RR30C/RR34B Model ................................................................................... 53
RR45 Model ................................................................................................... 57
RRX35 Model ................................................................................................ 61
RRX45 Model ................................................................................................ 65
RRS40C Model .............................................................................................. 69
RRS50B Model .............................................................................................. 73
RSX40 Model ................................................................................................ 77
RSX50 Model ................................................................................................ 81
RTX35/45, RTX30DR Model ......................................................................... 85
SC Model ....................................................................................................... 89
SMX45 Model ................................................................................................ 93
Return

BT Prime-Mover, Inc.
2
Table of Contents
SN/SR Model ................................................................................................. 95
TMX Model .................................................................................................... 99
WRX Model .................................................................................................. 101
WSX22/30/40 Model ..................................................................................... 105
Labor Operation Time Review Request .................................................... 109
Return

Flat Rate Guide
Version no
000
BT Prime-Mover, Inc. 3
LON Manual 1998-04-10
Flat Rate Guide
1. Purpose of the Guide
The flat rate guide purpose is to provide BT Prime-Mover
dealers with a tool to estimate the length of time required to
repair BT Prime-Mover products. The flat rate guide is
divided into separate model series sections. For example,
there is a section on HMX, RRX45, etc. Use the appropriate
section for the machine being repaired. The guide will also be
used to evaluate dealer warranty claims.
2. Using the Guide
Information for each repair operation is presented in four
columns:
Group
Operation Description
Labor Operation Number (LON)
Time
Group
Return

000
Version no
Flat Rate Guide
4 LON Manual 1998-04-10
3. This section identifies the major
area of the machine.
3.1. Operation Description
The operation description identifies specific repairs and
combinations that are to be performed. The description is the
final result of the operation and any sub-operations which are
required to complete the major operation are included in the
operation description and time allowance.
3.2. Labor Operation Number
When an operation is performed, the “LON” number is to be
placed in the appropriate space on the warranty claim.
3.3. Time
The allowed time shown in this manual is the maximum time
required to completely perform the specific operation listed
using the proper tools, techniques and service information.
Times shown will be used for warranty compensation.
3.4. Review Of Labor Operation Times
If there is justification for a times guide change, complete the
review form at the end of this manual and send to:
BT Prime-Mover
Attention: Service Department
3305 North Highway 38
Muscatine, Iowa 52761-8800
Return

CMX Model
Version no
001
BT Prime-Mover, Inc. 5
LON Manual 2005-08-15
CMX Model
Group Operation Description LON Time
Transmission
Remove and Replace 1-001 1.5
Replace Axle Seal 1-002 1.0
Replace Drive Axle 1-003 2.5
Rebuild / Recondition 1-004 4.5
Replace Control Handle Head 1-006 1.0
Replace Control Handle Stem 1-007 1.0
Replace Hand Guard 1-008 0.7
Replace Brake Spring 1-010 1.0
Adjust Brake 1-011 0.3
Replace Drive Tire 1-012 0.5
Replace Brake Shoe 1-013 1.0
Electrical
Replace Horn 2-001 0.3
Replace BDI 2-002 0.5
Replace Hourmeter 2-003 0.5
Replace Backrest Wiring Harness 2-004 1.0
Replace Key Switch 2-005 0.5
Replace Brake Interlock Switch 2-006 0.5
Replace Emergency Disconnect Switch 2-007 0.3
Replace Control Handle Horn Switch 2-009 0.8
Replace Directional Control Switch 2-010 0.5
Replace Line Contactor 2-013 0.5
Replace Potentiometer 2-014 0.5
Replace Drive Motor 2-015 2.0
Replace Lift Pump Contactor 2-021 0.5
Replace Transistor Controller 2-028 0.8
Replace Battery Connector 2-036 0.6
Replace One Power Cable 2-037 1.0
Repair Open Wire 2-038 0.5
Replace Lift Pump Motor 2-039 1.5
Return

001
Version no
CMX Model
6LON Manual 2005-08-15
Reseal Lift Pump Motor 2-042 1.8
Replace Time Delay 2-045 0.3
Replace Circuit Breaker 2-050 0.3
Replace High Speed Relay 2-058 0.5
Replace Handle Head Harness 2-059 1.0
Replace Handle Harness 2-063 1.5
Replace Lift Switch 2-064 0.5
Replace Lower Switch 2-065 0.5
Replace Lift Switch Handrail 2-067 0.5
Replace Backrest Lift / Lower Switch 2-068 0.5
Replace Lift Limit Switch 2-069 0.5
Replace Drive Motor Brushes 2-073 1.5
Replace Pump Motor Brushes 2-074 1.5
Replace Cold Storage Thermostat 2-080 0.3
Replace Cold Storage Heater 2-081 1.0
Replace Platform Switch 2-082 0.7
Replace Prime-Trak Toggle Switch 2-083 0.3
Replace Prime-Trak Limit Switch 2-084 0.3
Replace Prime-Trak Solenoid Coil 2-085 0.3
Replace Prime-Trak Pump Contactor 2-086 0.3
Hydraulic
Replace Reservoir 3-001 1.5
Replace any Hydraulic Hose 3-011 0.7
Replace Lift Pump 3-013 2.0
Replace Lift Pump Check Valve 3-017 0.5
Replace Lift Cylinder 3-018 2.0
Reseal Lift Cylinder 3-019 2.5
Replace Lift Pump/Motor Assy 3-021 1.5
Replace Lowering Valve 3-022 0.3
Replace Prime-Trak Cylinder 3-025 1.0
Reseal Prime-Trak Cylinder 3-026 1.5
Replace Prime-Trak Pump 3-027 1.5
Replace Prime-Trak Solenoid Valve 3-028 0.8
Group Operation Description LON Time
Return

CMX Model
Version no
001
BT Prime-Mover, Inc. 7
LON Manual 2005-08-15
Frame
Replace Transmission Pivot Bearing 4-009 3.5
Replace Load Wheel 4-013 0.5
Replace Pull Rod 4-018 2.5
Replace Wheel Fork 4-019 1.0
Replace Lift Frame 4-020 4.0
Replace Lower Link/Lift Frame 4-021 2.0
Replace Carrier Frame 4-022 4.0
Replace Stabilizer Caster 4-023 0.6
Replace Caster Wheel 4-024 0.5
Replace Stabilizer Caster Spring 4-025 0.7
Replace Platform Cushion Bumper 4-026 0.5
Group Operation Description LON Time
Return

8LON Manual 2005-08-15
THIS PAGE INTENTIONALLY LEFT BLANK
Return

CRX Model
Version no
000
BT Prime-Mover, Inc. 9
LON Manual 2005-08-15
CRX Model
Group Operation Description LON Time
Finish and Accessories Overhead guard 2110 0.5
Cover assembly, (Any cover) 2120 0.1
Cover, bracket (right hand, left hand, and center) 2130 0.2
Cover, top support 2140 0.2
Covers, seat 2150 0.1
Covers, manual pocket 2160 0.25
Pad, foam (right hand or left hand) 2200 0.2
Pad, deadman pedal 2210 0.3
Pad, floor 2220 0.5
Pad, elbow 2230 0.3
Pad, seat 2240 0.5
Decal, (Any) 2310 0.3
Case, operators manual 2320 0.2
Battery gate 2400 0.1
Battery gate switch 2405 0.5
Battery roller 2410 0.25
Battery spacer, pipe 2420 0.25
Battery, roller assembly 2430 0.25
Battery roller shaft 2440 0.25
Battery ring retainer 2450 0.2
Battery gate switch 2504 0.5
Bracket, mounting (313666-458) 2510 0.5
Jack, banana 2530 0.2
Key, allen wrench 2540 0.1
Clamp cord 2550 0.1
Wheel, steering 2600 0.2
Wheel, steering knob 2610 0.2
Static strap 2620 0.1
Steering and Controls
Shaft, steer 3100 0.6
Valve, orbitrol, steer 3102 0.5
Return

000
Version no
CRX Model
10 LON Manual 2005-08-15
Plate, steering 3104 0.5
Chain, steer 3105 0.25
Chain, anchor, (313665-112) 3106 0.2
Plate, sensor, steer includes spacer 3108 0.3
Sprocket, steer includes key 3110 0.4
Adapter, mechanical or hydraulic 3112 0.2
Bracket, mounting 3114 0.2
Elbow, steer motor 3120 0.2
Switch, proximity multi head 3130 0.3
Wheel assembly, steer 3200 1.7
Pivot steer 3210 2.3
Hub 3220 2.6
Hub, steer 3230 1.0
Axle 3240 0.5
Key, woodruff 3250 0.7
Bearing, wheel, open 3260 2.6
Bearing, wheel, roller 3270 1.6
Bearing, wheel, cone 3280 2.6
Bearing, wheel, cup 3290 2.6
Seal, steer assembly 3300 1.5
Pin, spring, steer 3310 0.3
Wheel, hub assembly 3350 0.5
Hub, machine 3360 2.1
Tire, polyurethane 3370 2.1
Line assembly, hydraulic, steer tube 3380 0.85
Hose assembly, auxiliary pump (P to #1) 3390 0.5
Deadman pedal 3395 0.4
Drive and Brakes
Gear reducer, drive unit, right hand 4110 5.7
Gear reducer, drive unit, left hand 4120 5.7
Pin, dowel, drive unit 4130 1.3
Gear reducer, seals 4140 2.0
Fitting, reducer or airvent 4150 0.1
Switch, proximity speed 4160 0.2
Group Operation Description LON Time
Return

CRX Model
Version no
000
BT Prime-Mover, Inc. 11
LON Manual 2005-08-15
Key, woodruff, dive motor armature lower 4170 1.6
Plug, mechanical, drive 4180 0.1
Drive unit plate 4190 0.6
Wheel, hub assembly 4200 0.2
Wheel, drive tire bolt 4205 0.1
Wheel, hub, machined, includes pressing 4210 0.6
Tire, drive, rubber or polyurethane 4220 0.6
Brake assembly, electric 4300 0.6
Brake, rotor 4305 0.7
Brake, pads 4310 0.7
Brake, coil 4315 0.7
Brake, armature gear 4320 0.8
Spacer, brake rotor 4325 0.7
Spacer, brake mount 4330 0.7
Electrical System
Broken wire repair 5000 0.25
Software / PC Loader 5005 0.5
Vehicle manager 5010 0.5
Handle assembly 5020 0.3
Handle, Left hand, top 5030 0.4
Handle, right hand, bottom 5040 0.9
Shaft, handle assembly 5045 1.0
Bearing, sleeve, handle 5050 1.1
Spring, travel, or button-handle 5055 0.6
Spring, torsion - handle 5060 0.3
Handle, resistor, variable lift pot 5065 0.6
Handle, resistor, variable travel pot 5070 0.9
Roll pin - handle 5075 0.2
Switch, push button, handle 5080 0.5
Button, handle (310996-000) 5085 0.5
Button, handle, actuator (310994-000) 5090 0.6
Card assembly, SFC, handle 5100 0.6
Knob, lift 5105 0.1
Bracket, potentiometer 5110 0.4
Group Operation Description LON Time
Return

000
Version no
CRX Model
12 LON Manual 2005-08-15
Handle, positioner SFC 5115 1.0
Cable assemble, handle 5120 2.0
Horn assembly 5150 0.2
Insulator, shoulder washer-horn 5155 0.2
Horn with bracket 5160 0.2
Bracket tab, fan 5170 0.2
Fan, electric blower 5175 0.5
Operator display, indicator 5200 0.2
Spacer, hex, ODI 5205 0.3
Bracket assembly, ODI 5210 0.4
Bracket, base, ODI 5215 0.2
Card assembly, ODI 5220 0.3
Switch, rotary, 2 position includes keys, ODI 5225 0.3
Keys (set of 2), ODI 5230 0.1
Switch, operator EPO 5235 0.2
Base, contact switch, ODI 5240 0.2
Panel assembly, contactor 5300 0.6
Contactor, (Any) 5305 0.4
Card assembly (Fuse and Relay) 5310 0.5
Plate, contactor 5315 1.5
Fuse, contactor assembly, (Any) 5320 0.2
Insulator, standoff, contactor assembly 5325 0.4
Bar, bus, contactor 5330 0.3
Service kit, contactor 5335 0.3
Module assembly, attachment (FRU) 5350 0.3
Connector, battery assembly 5400 0.3
Connector (Includes Tip Set) 5405 0.5
Tip set 5410 0.5
Terminal, connector, battery, (Any) 5415 0.4
Cable, connector, battery 5420 0.5
Cable assembly, connector battery 5425 0.3
Switch assembly, speed sensor 5450 0.1
Switch, high speed limit (S-11) 5451 0.2
Sensor, pressure (Weight) 5455 0.2
Switch, brake 5460 0.2
Group Operation Description LON Time
Return

CRX Model
Version no
000
BT Prime-Mover, Inc. 13
LON Manual 2005-08-15
Amplifier, power traction or power lift 5465 0.4
Plate, electrical 5470 0.3
Bar, bus, electrical 5475 0.2
Bar, pivot weldment 5480 0.4
Strap, (tie wrap) 5485 0.1
Pin, roll, control handle 5490 0.2
Cable JH1-SOL2 or JA2-SOL12&10 5500 0.3
Cable assembly, JF3-S1, EPO 5505 0.3
Cable assembly, JC5-JD1 5510 0.3
Cable assembly, JC7-JS1, JS2 5515 0.2
Cable assembly, OJC7-OPC7 5520 0.2
Cable assembly, JC9-SOL1 thru SOL9 5525 0.5
Cable assembly, motor sense and brakes JC10 5530 0.4
Cable assembly, JC8 - Contactor panel 5535 0.5
Cable assembly, JC4 - JL, JTR and JL 5540 0.5
Cable assembly, JF1-B+-TP4 5545 0.2
Cable assembly, TPC-2 - LA - B+ 5550 0.3
Cable assembly, LA-B+M1-A1 5555 0.3
Cable assembly, LA-M - M1-A2 5560 0.3
Cable assembly, RA-B+ -M2-A1 5565 0.3
Cable assembly, LA-B+ - RA-B+ 5570 0.2
Cable assembly, RA-M - M2-A2 5575 0.3
Cable assembly, LA-F1 - M1-E1 5580 0.2
Cable assembly, LA-F2 - M1-E2 5585 0.2
Cable assembly, RA-F1 - M2-E1 5590 0.2
Cable assembly, RA-F2 - M2-E1 5595 0.2
Cable assembly, LPC2 - PA-B+ 5600 0.2
Cable assembly, PA-B+ - MP-D 5605 0.2
Cable assembly, PA-M - MP-A 5610 0.2
Cable assembly, STR-S - MS+ 5615 0.2
Cable assembly, MS- TP4 5620 0.2
Cable assembly, JA2 - S0L12, JH1 - PH2 5625 0.4
Bracket, electric light, (Any) 5650 0.3
Switch, rocker, electric light 5655 0.2
Switch, dummy, electric light 5660 0.1
Group Operation Description LON Time
Return

000
Version no
CRX Model
14 LON Manual 2005-08-15
Light, electric, travel 5665 0.2
Connector, pin housing, light, bin 5670 0.1
Pin, light, bin 5675 0.1
Light, bin assembly, includes bulb 5680 0.2
Light, bulb (Any) 5681 0.1
Bulb, bin assembly 5685 0.2
Cable assembly, Right or Left mast light 5690 0.1
Guard, cable/hose 5695 0.1
Cable assembly, work light option or warning light 5700 0.3
J Bolt, warning light 5705 0.1
Grommet, electric or warning light 5710 0.1
Anchor, plastic mount, electric light 5715 0.1
Plate, light 5720 0.5
Harness assembly, warning light 5725 0.5
Guard, warning light or cable 5730 0.2
Lamp, warning light assembly 5735 0.1
Light, warning, Amber or Red 5740 0.4
Lamp, warning light assembly
includes lens - Amber or Red 5745 0.4
Lens, warning light assembly, Amber or Red 5750 0.2
Bulb, warning light 5755 0.3
Card, multi voltage assembly, warning light 5760 0.3
Pad, foam, mounting, warning light 5765 0.4
Base mounting, warning light 5770 0.3
O Ring warning light 5775 0.2
Tubing, stop, warning light 5780 0.3
Housing, connector, warning light 5785 0.1
Pin contact, warning light 5790 0.1
Horn, alarm, travel 5800 0.5
Bracket, travel alarm 5805 0.5
Relay, plug-in 5810 0.1
Module, suppressor assembly, travel alarm 5815 0.1
Harness wiring, travel alarm 5820 0.3
Motor, traction (Drive Motor) 5900 1.5
Motor, drive, seal 5901 2.0
Group Operation Description LON Time
Return

CRX Model
Version no
000
BT Prime-Mover, Inc. 15
LON Manual 2005-08-15
Motor brush replacement 5902 0.5
Thermistor sensor 5903 1.5
Motor, lift 4K or 5K STD 5905 2.5
Motor, steer 5910 1.0
Hourmeter 5940 0.5
Hydraulic Components
Manifold assembly with out HSA 6002 1.0
Manifold 6004 1.6
Valve, solenoid, (Any) 6008 0.3
Valve, relief 6010 0.5
Valve, counterbalance 6012 0.3
Valve, relief proportional 6014 0.3
Compensator, pressure 6016 0.3
Nipple, filter mount 6018 0.4
Filter, medical cartridge (includes Element) 6022 0.3
Filter, element 6024 0.25
Manifold plug (313666-167) 6026 0.25
Manifold elbow, 90 degree, (Any) 6028 0.3
Manifold adapter, hydraulic, (Any) 6030 0.3
Manifold fitting, hose or elbow 6032 0.3
Cap dust, coupling 6034 0.2
Manifold assembly with HSA1 or HSA2 6100 0.3
Manifold, auxiliary and sideshift 6110 0.4
Manifold (313665-938) 6120 0.8
Manifold, solenoid 10-4B 6130 0.3
Seal kit (313665-939) 6140 0.6
Reservoir 6200 8.5
Cap, filler, breather 6210 0.3
Clamp, reservoir, (Any) 6220 0.1
Hose, drain, steer-suction, Lift-suction 6230 0.7
Plug, mechanical 6240 0.2
Hose assembly
(Manifold P1 to Pump P1 or Manifold P2 to Pump P2) 6300 0.4
Union tee 6305 0.3
Group Operation Description LON Time
Return

000
Version no
CRX Model
16 LON Manual 2005-08-15
Hose assembly (Manifold T1 to Union tee) 6310 0.3
Hose assembly (Manifold T2 to Swivel tee) 6320 0.3
Hose assembly (Swivel tee to Tilt ram rear, Left) 6330 0.3
Hose assembly
(Union tee to Tilt ram front, Left hand or Light hand) 6340 0.3
Hose assembly (Manifold cylinder to Lift ram at Mast) 6350 0.3
Hose (Manifold to Reservoir return) 6360 0.8
Hose assembly (Steer valve to Steer motor) 6380 0.3
Hose assembly (A1, A2 TO AUX A2 @ Mast) 6390 0.3
Hose assembly (Manifold A2 TO HSA, A2) 6400 0.3
Hose assembly
(Sideshift manifold A1 TO SSA1 @ Mast) 6410 0.5
Hose assembly
(Sideshift manifold A2 TO SSA2 @ Mast) 6420 0.5
Hose assembly (Manifold A1,2 to HSA, A1, A2) 6430 0.5
Hose assembly (Manifold A2 to AUX A2) 6440 0.3
Hose assembly (Manifold A2 to HSA A2) 6450 0.5
Motor, hydraulic, steer 6500 0.5
Pump, auxiliary 6620 0.7
Fitting, hose, motor to pump 6630 0.7
Motor, steer (Mast installed) 6640 1.2
Motor assembly, lift 6650 2.6
Pump, lift (Mast installed) 6660 1.2
Motor, or pump, lift (Mast removed) 6670 2.6
Valve, orbitrol steer 6800 0.5
Fork hang up valve 6805 0.75
Mast
Telescopic weld, mast inner (2 Techs) 7000 6.35
Telescopic weld, mast outer (2 Techs) 7002 6.5
Telescopic outer stud or spacer 7004 0.7
Main frame mast weld, replace or shim 7006 6.85
Mast, repair or removal 7008 3.5
Mast, repair or replace 7008 3.5
Drive unit plate with mast removal 7009 4.0
Cylinder, main, left or right (2 Techs) 7010 3.5
Group Operation Description LON Time
Return

CRX Model
Version no
000
BT Prime-Mover, Inc. 17
LON Manual 2005-08-15
Cylinder valve, hydraulic, flow control 7012 0.3
Cylinder, main piston (2 Techs) 7014 3.5
Cylinder, main housing (2 Techs) 7016 3.5
Cylinder, main bleeder screw, back-up ring, screw 7018 0.1
Cylinder, main piston cap (2 Techs) 7020 3.0
Cylinder, repack, square seal (2 Techs) (313665-971) 7022 3.0
Cylinder, main tee run 7024 0.3
Cylinder, free lift, center 7030 1.2
Cylinder, free lift valve, hydraulic flow control 7032 0.9
Cylinder, free lift piston (1 Tech) 7034 1.75
Cylinder, free lift housing (1 Tech) 7036 1.75
Cylinder, free lift ram housing cap 7038 1.5
Cylinder, repack, square seal (313665-969) 7040 1.75
Mast main Right hand or Left hand chain anchor block 7110 0.7
Mast main pulley, lift hose 7120 0.7
Mast, main spacer, pulley (2 Techs) 7130 1.0
Mast, main bearing, chain roller (2 Techs) 7140 1.1
Mast, main bearing, mast roller bottom, top, re-shim 7150 0.5
Mast main pin, pulley bracket, center ram 7160 0.6
Mast main spacer, pulley, center ram 7170 0.5
Mast main pulley, chain, center ram 7180 0.6
Mast, mast hose pulley free lift (2) 7185 0.5
Mast main stud, main frame roller 7190 0.5
Mast main sleeve, pulley 7200 0.6
Mast main bracket, formed standoff 7210 0.5
Mast, hose assembly, free lift, over pulley hose 7220 0.3
Mast, main anchor, chain, adjustment 7230 0.5
Mast main, chain, leaf 7240 0.6
Mast main, link, connecting 7250 0.2
Mast main, bolt, ram mounting (2 Techs) 7260 1.1
Mast main, adapter, hydraulic 7270 0.3
Mast, main hose assembly (313666-377) 7280 0.3
Mast, main hose assembly lift tractor to mast 7290 0.5
Auxiliary mast hose pulley free lift (2) 7295 0.06
Carriage weldment, fixed 7300 2.0
Group Operation Description LON Time
Return

000
Version no
CRX Model
18 LON Manual 2005-08-15
Mast tilt assembly 7330 0
Tube assembly, tilt ram 7340 1.5
Piston, tilt ram 7345 1.5
Rod, tilt ram 7350 1.5
Gland, tilt ram 7355 1.0
Bearing, tilt ram 7360 1.3
Seal kit, tilt ram 7365 1.3
Anchor, tilt ram 7370 0.4
Pin, clevis, tilt ram 7375 0.2
Bushing, oil impregnated, tilt ram 7380 0.5
Adapter, hydraulic, tilt ram 7385 0.3
Pin, cotter, tilt ram 7390 0.1
Sideshift carriage assembly 7400 1.0
Bearing, upper or lower, sideshift carriage 7405 1.3
Fitting, grease, sideshift carriage assembly 7415 0.2
Cylinder, sideshift assembly 7420 0.5
Cylinder, sideshift carriage snap ring 7425 0.6
Cylinder, sideshift carriage, retainer ring or O Ring 7430 1.2
Cylinder, sideshift carriage rod 7435 1.2
Cylinder, sideshift carriage assembly, washer, speed
control, elbow 7445 0.3
Cylinder, sideshift carriage service kit 7450 1.2
Load backrest 7475 0.4
Fork assembly, (Any length) 7500 0.1
Fork assembly, fork pin 7505 0.3
Quad mast freelift cylinder 7550 1.9
Wire pull, freelift cylinder, quad 7555 1.9
Piston, quad mast 7560 1.9
Ring, backup, quad mast 7565 1.9
Seal, quad mast 7570 1.9
Fuse, piston, quad mast 7575 0.5
Guide, spring, quad mast 7580 0.5
Fitting, quad mast 7585 0.5
Pin, quad mast 7590 0.2
Spring, quad mast 7595 0.5
Group Operation Description LON Time
Return
