Prismatibro Prisma Light Elliot User manual

CONTROL SYSTEMS
MANUAL

2Prisma Light | prismatibro.se
CONTENT
Introduction
Prisma Light Constant......................................................................................................................................................................3
Prisma Light DALI.............................................................................................................................................................................................3
Prisma Light Remote............................................................................................................................................................................4
Prisma Light Detect...................................................................................................................................................................................4
Prisma Light Nema.......................................................................................................................................................................................5
Prisma Light SR..........................................................................................................................................................................................................5
Remote control.......................................................................................................................................................................................................6-7
Detect, Android-app..................................................................................................................................................................8-23
Troubleshooting......................................................................................................................................................Back cover
Warranty..................................................................................................................................................................................................Back cover
Support, contact information............................................................................Back cover

3
prismatibro.se | Prisma Light
INTRODUCTION
Prisma Light Constant
The simplest models
They light up when the power is turned ON at the given power
output that was installed in the factory.
If you want to make any changes to the power output you
will have to send the luminaire back to PrismaTibro.
Prisma Light DALI
With a DALI-driver it is possible to change the power output and
night reduction after the luminaire has been installed.
The adjustments can be made in dierent ways:
Alternative 1 You go all the way up to the luminaire that is mounted
on the pole and you make the adjustments close to the driver.
Alternative 2 You buy the luminaire with a 5-wired cable, then you
can make the adjusments down at the
access point in the pole.

4Prisma Light | prismatibro.se
Prisma Support
Prisma Daps
2000•L
Prisma Daps
2000•M
INTRODUCTION
Prisma Light Remote
Control every individual luminaire with a Remote
Change power output The power output for a Prisma Light Remote
can be adjusted in steps of 1 W.
Prisma Moonlight More than a night reduction: Lower or raise the
power output during one optional time.
Control every luminaire Every luminaire can be controlled individualy.
Remote Settings can be made with a remote - see next spread.
Security 5-digit PIN-code, specially constructed remote.
Factory settings When ordering we ask every customer which settings
should be set in the factory. These settings can later be
changed with the remote.
Communication
• Between luminaries
• Between luminaries and those who need light
• Between luminaries and you
Accessories
• Gateway
• Dongle
• Android-app
Prisma Light Detect
Our most powerful system: Detect, light when it is needed.

5
prismatibro.se | Prisma Light
INTRODUCTION
Prisma Light Nema
Prepared and ready
DALI-driver on the inside and a NEMA-socket on the outside.
Remove the dust cap and connect your external node.
Prisma Light SR
Prepared and ready
The luminaire have a built in SR-driver using the Zhaga-standard.
On the outside a SR-socket is mounted – easy to connect the
external node when you have choosen how to
control your installation.
Remove the dust cap and connect your external node.

6Prisma Light | prismatibro.se
REMOTE
ESTABLISH CONNECTION Point the remote upwards
towards the center of the luminiare. Press
The luminiare responds with a blink.
UNLOCK + PIN-code, 5 digits.
Response: Blink, blink
ON/OFF Response: Light up or turns o.
The setting can´t be saved.
PRISMA + Time, 2 digits (e.g. 23) +
MOONLIGHT Response: Blink, blink
START* The setting is saved.
PRISMA + Hours, 2 digits (e.g. 06) +
MOONLIGHT Respons: Blink, blink
STOPP* The setting is saved.
DIMMING LEVEL + Power, 2 digits (e.g. 05) +
Reponse: Blink, blink
The setting is saved.
POWER + Power, 2 digits (e.g. 20) +
Response: Blink, blink
The setting is saved.

DAY 1
Prisma Light programs it’s self
through statistics starting from
day one. No Prisma Moonlight
on the rst night.
FOLLOWING DAYS
Prisma Light remembers the previous
days. Prisma Moonlight according to
the settings above.
* Hours
The time specied for the START and
STOP is approximate and is subject to
the night’s darkest moment regardless
of summer and winter.
The darkest moment is at midnight
during the period of winter time, e.g
START 23, STOPP 04.
Prisma Light Remote
Made in Tibro · Version 1805
1
WATT
3
2
START LEVEL
STOP
DIM
CITY DETECT
RETURN
4 65
7 98
0
On O
OK
UNLOCK
Unlock the luminaire to be able
to change the settings.
Requires PIN code that can be
obtained through
[e-mail]
ON/OFF
Switch on or o the luminaire.
NIVÅ (Level)
The power during Prisma Moon-
light.
STOPP (Stop)
Hours until Prisma Moonlight is
stopped.
START
The time when Prisma Moonlight
starts.
WATT (Power)
The ordinary power.

8Prisma Light | prismatibro.se
ANDROID-APP
Installation
Download the app from Google Play
Name: ”Prisma Conguration”
Internt-access needed.

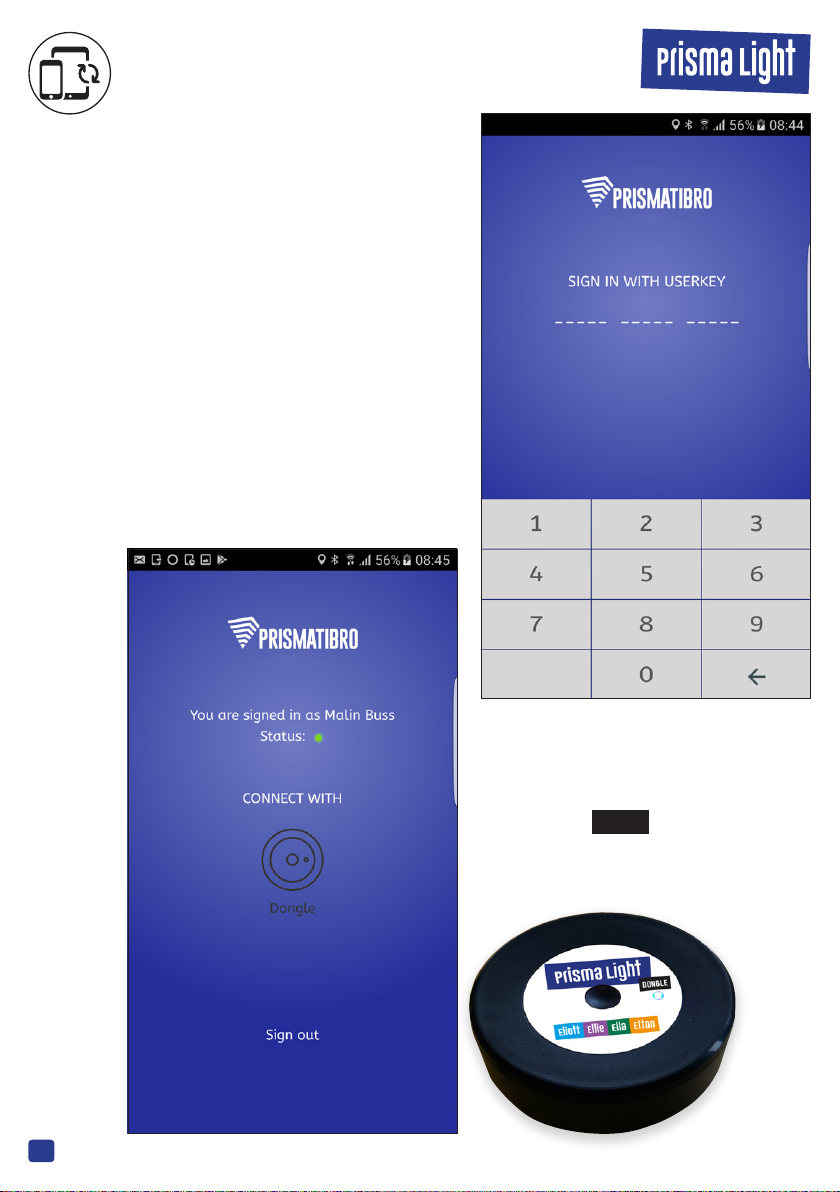

Login
The password is personal.
Call Prisma Tibro [phone]
Following details are necessary to
create a login:
• First name, Last name
• Phone number
• E-mail
• Company name
• End customer
• Project
Start dongle
Press the button, release when it
turns white. It will then go from red
to green to white to blue. When it
turns blue it is ready to use.

9
prismatibro.se | Prisma Light
ANDROID-APP ANDROID-APP

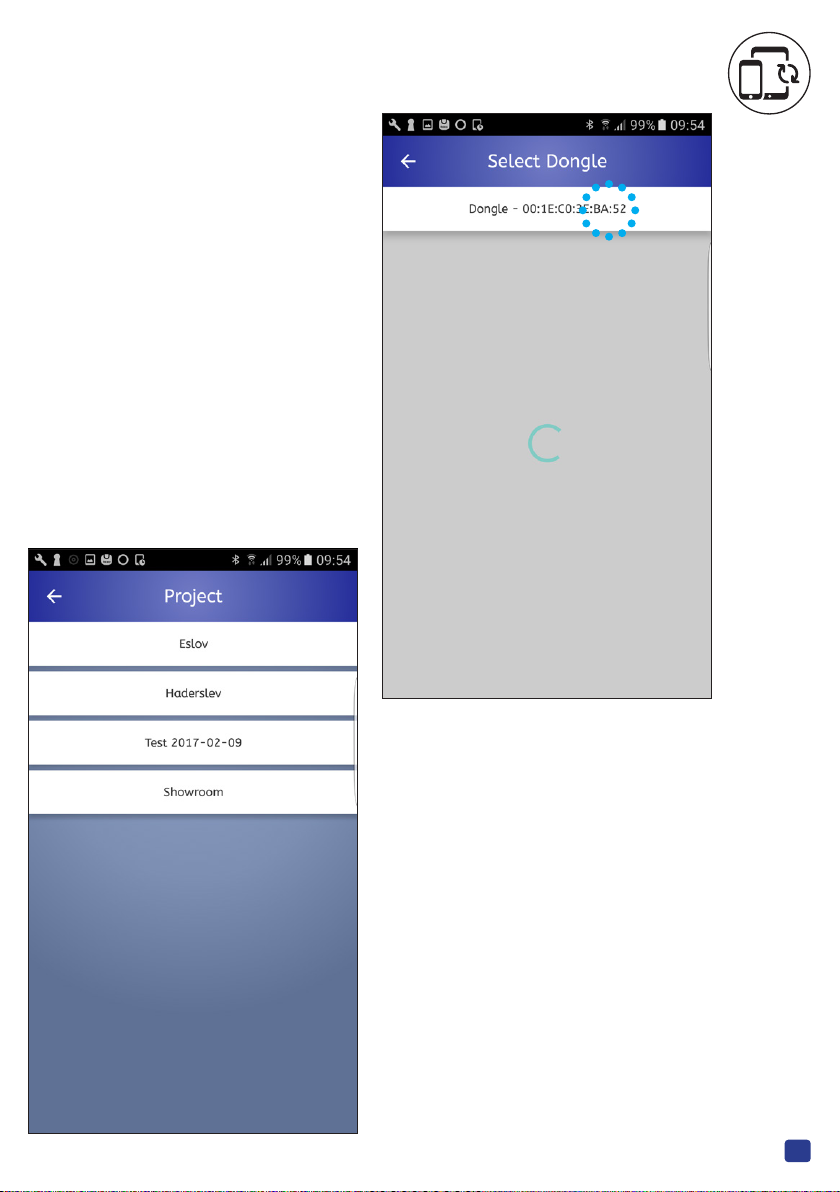

Select dongle
If there are several IDs to choose
from it depends on the fact that
there are other dongles closeby.
Look at the last four numbers on
the backside of the dongle to
identify yours.
In this example: BA:52
Select project
You can have access to several
projects.
Choose the project in the list
that you want to look at this
time.
In this example:
Showroom

10 Prisma Light | prismatibro.se
ANDROID-APP
Create site
1.
”Name the site” is the rst thing you
need to do. Type the name, probably
the village name or the name of the
area.
In this case we choose to call it
”Gata 4”
NOTE!
The installation need to have
power on.
2.
Add luminaries to the site:
Press on the ”lock”.
3.
When it is unlocked a
will be shown.
Press to add luminaire.

11
prismatibro.se | Prisma Light
ANDROID-APP ANDROID-APP

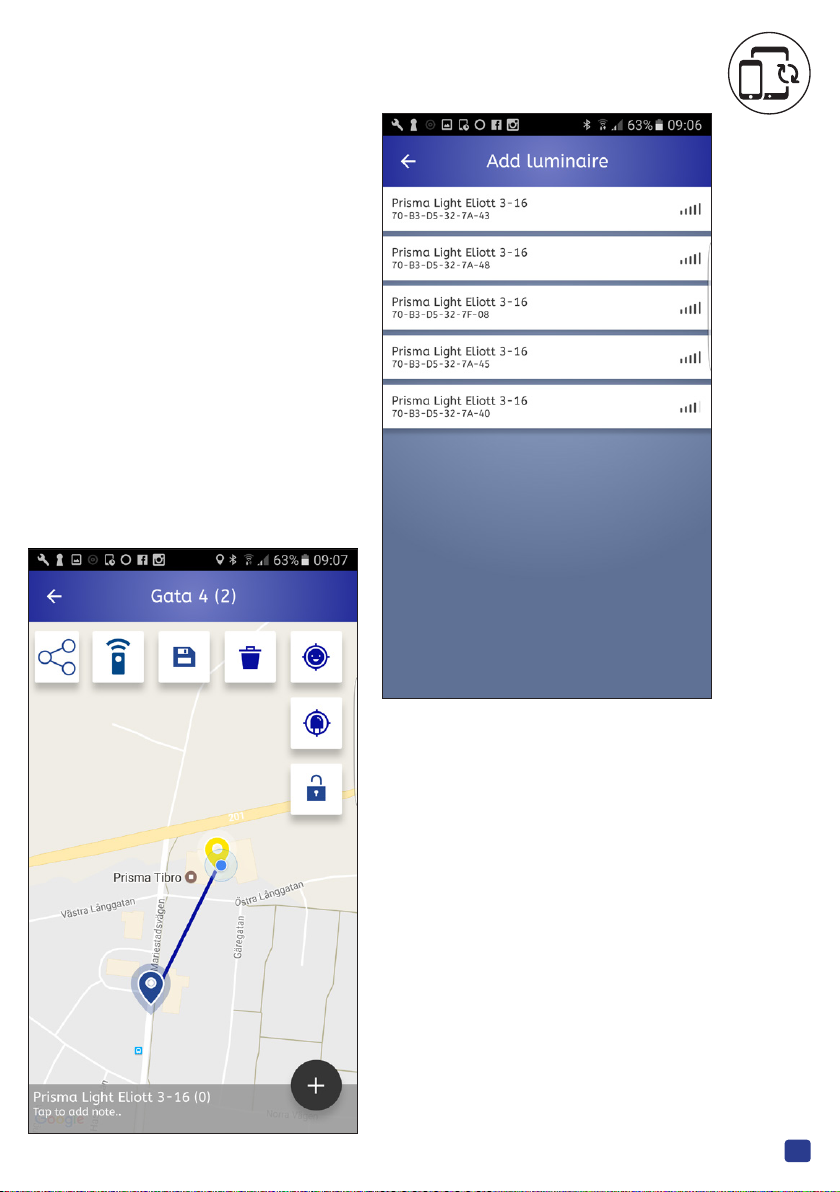

Create site
4.
A list shows the luminaries available.
The one you are standing closest to
will probably be at the top of the list.
But to be sure:
This can be conrmed if you press on
that one in the list. The luminaire will
start to blink.
Add the luminaire to the site by
pressing ”Add”.
”Add”will be shown in the top right
corner after you selected a luminaire.
5.
When you press ”Add”a mark will
show up on the map. Mark it with a
light click and then a longer push
to make it jump. Now you can
adjust the placement of the
luminaire.
Repeat item 4 and 5 until all
lumniaries are added to the site.
All luminaries that are added to the
site will disapear from the list. If the
area is big you might have to move
to get contact with all luminaries.

12 Prisma Light | prismatibro.se

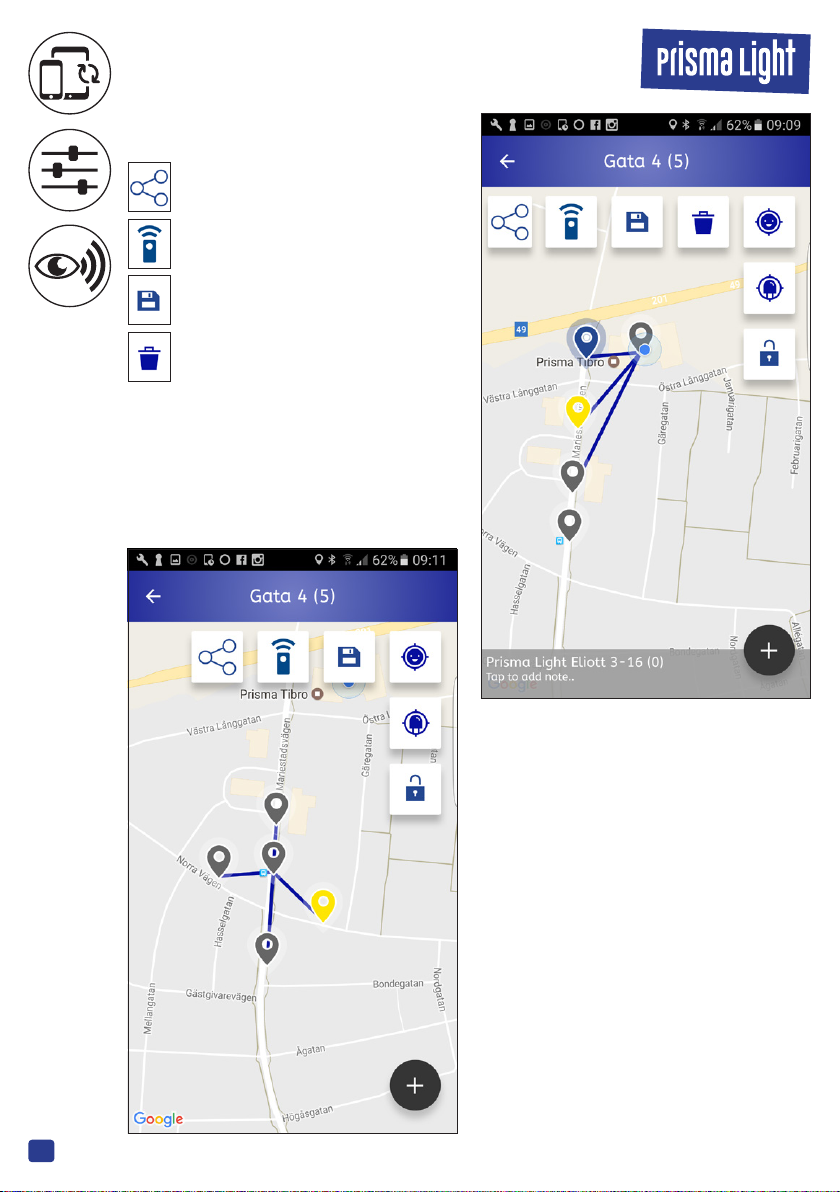

ANDROID-APP
Create site
Create links automatically
Send link
Remember to press ”Save”
Remove marked luminaire

13
prismatibro.se | Prisma Light

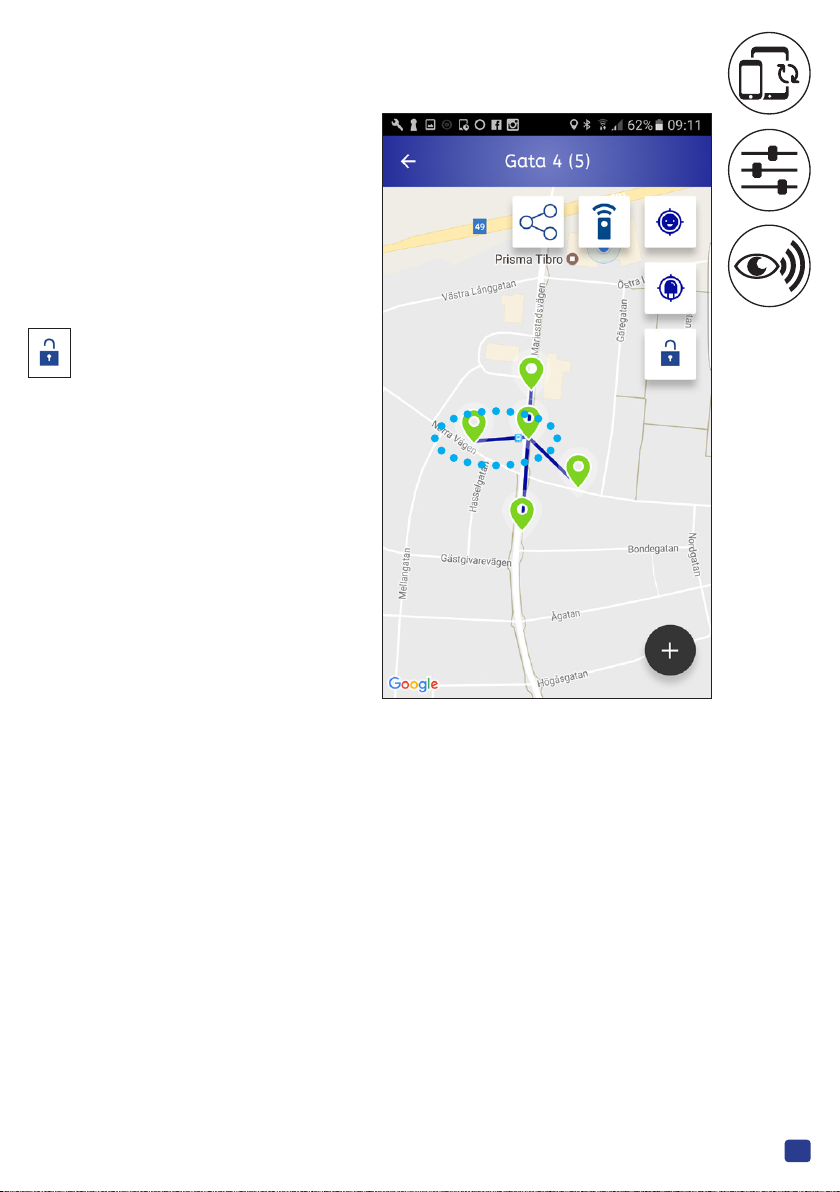

End create site
It is possible to create a link on your
own for example when you come to
an intersection.
Important:
You don’t create a loop
Finally: Press ”Lock”
ANDROID-APP ANDROID-APP

14 Prisma Light | prismatibro.se
ANDROID-APP
Select site
Log in using your personal PIN
NNNNN-NNNNN-NNNNN
You will see a list of all projects you
have access to. Choose a project
- in our case Showroom.
Then pick a site. Site is a name of a
group of lumniaries.
The maximum number of luminaries
in a site is 250 luminaries. But we
recommend to divide larger areas in
to smaller ones.
Select by pressing the name of site
you want to work with. A map of that
site will be shown, picture below.
Symbols
Prisma Light
Wireless link
Unlock to make changes
Your position
Zoom in site
Gateway

15
prismatibro.se | Prisma Light
ANDROID-APP ANDROID-APP

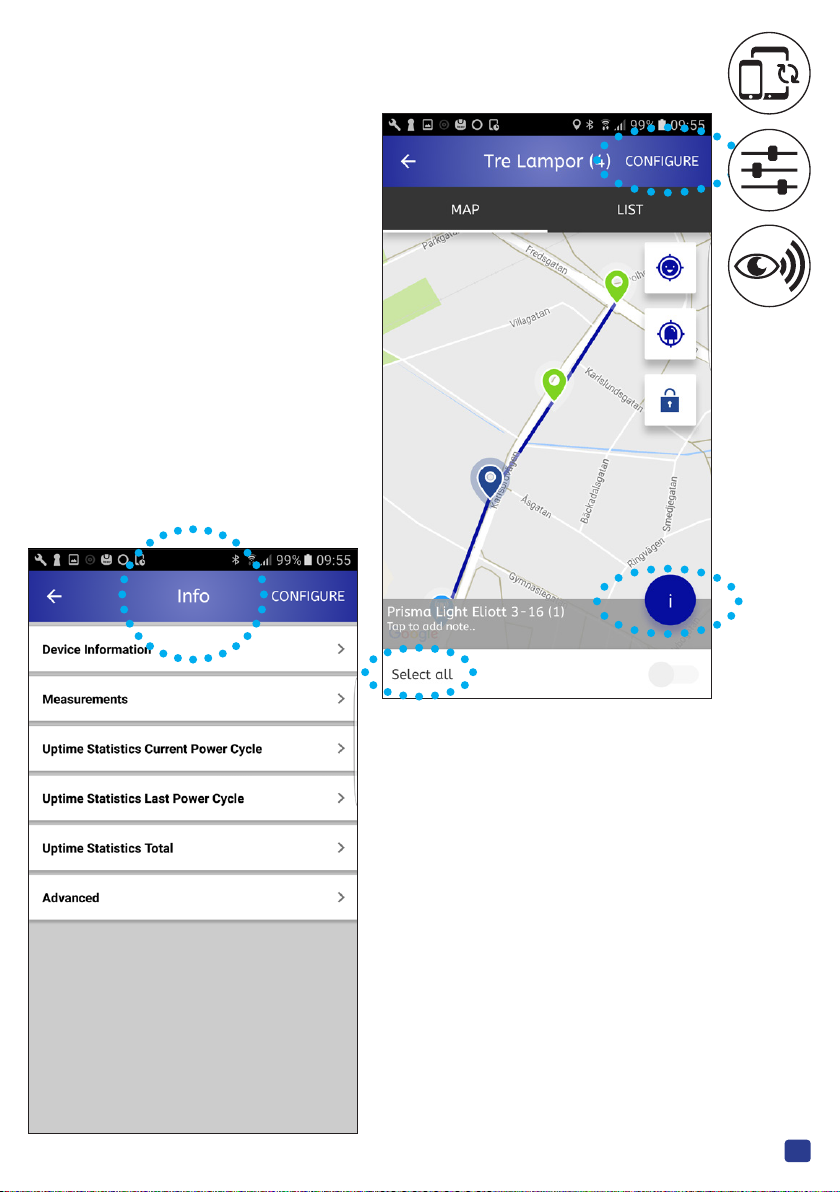

Congure
Press on a green symbol if you want
to adjust a single luminaire.
The symbol will turn blue .
The luminarie will also blink
to say that it is ready.
More info
A click in the circle with the ”i” will
show the picture below.
Select all
”Select all” can be used to
congure, not to show
information.

16 Prisma Light | prismatibro.se
ANDROID-APP

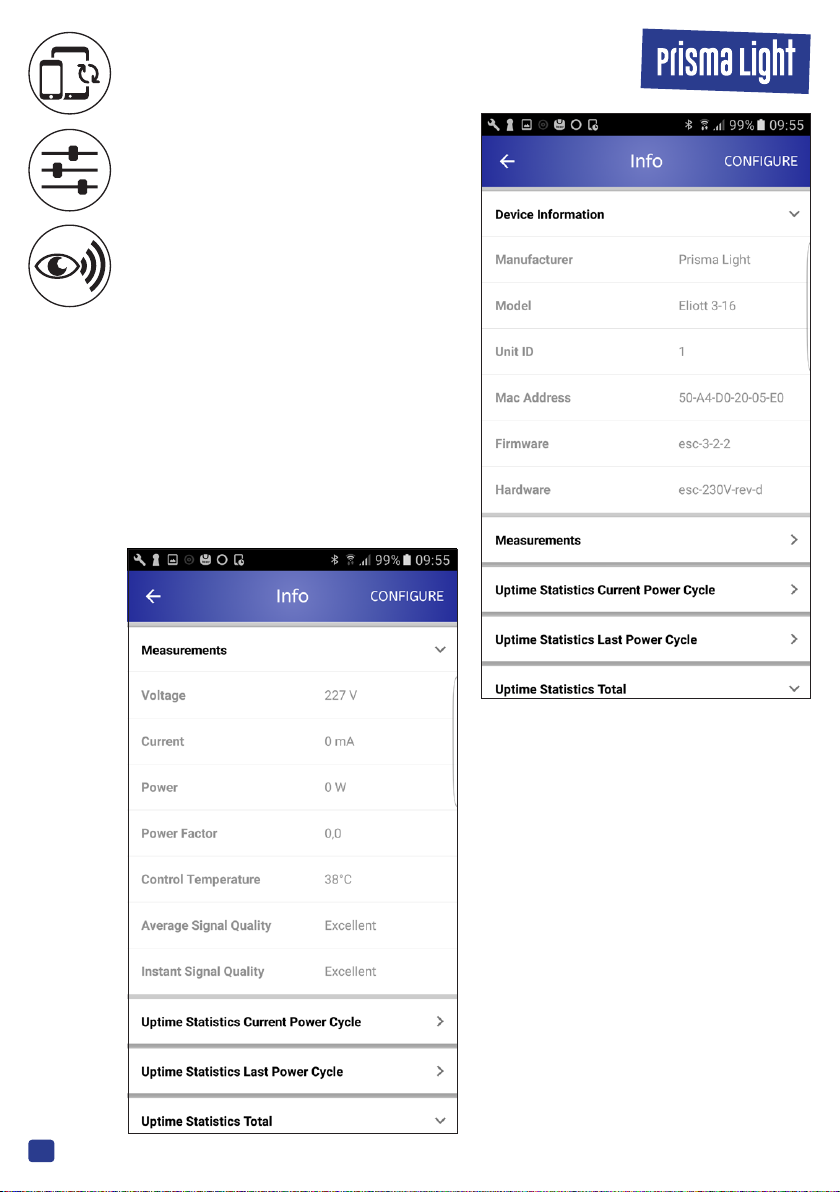

About the luminaire
• Manufacturer
• Model
• ID-number
• Mac-adress
• Software
• Hardware
Measurements
• Voltage
• Current
• Power
• Power factor
• Temperature
Note: High temperature because
this luminaire is mounted indoors.
• Average Signal Quality
• Instant Signal Quality

17
prismatibro.se | Prisma Light
ANDROID-APP ANDROID-APP
Statistics
Uptime Statistics Current Power Cycle.
Show the statistics since the power
was turned on.
Note:
This site is mounted in our factory
and is rarely turned o
• ON-timed
• Motion, detection
• Temperature: Min/Max/Avg
• Power used
• Lamp cycles
• Lamp ON time
Uptime Statistics Last Power Cycle.
Show the statistics since the
power was last turned on.
Note:
This site is mounted in our
factory and is rarely turned o
• ON-timed
• Motion, detection
• Temperature: Min/Max/Avg
• Power used
• Lamp cycles
• Lamp ON time
Continue on the next page....

18 Prisma Light | prismatibro.se
ANDROID-APP
Statistics
Uptime Statistics Total
Show the statistics since the site
was mounted
Note:
This site is mounted in our factory
and is rarely turned o
• Total ON time
• Motion, detection
• Temperature: Min/Max/Avg
• Power used
• Lamp cycles
• Lamp ON time

19
prismatibro.se | Prisma Light
ANDROID-APP ANDROID-APP

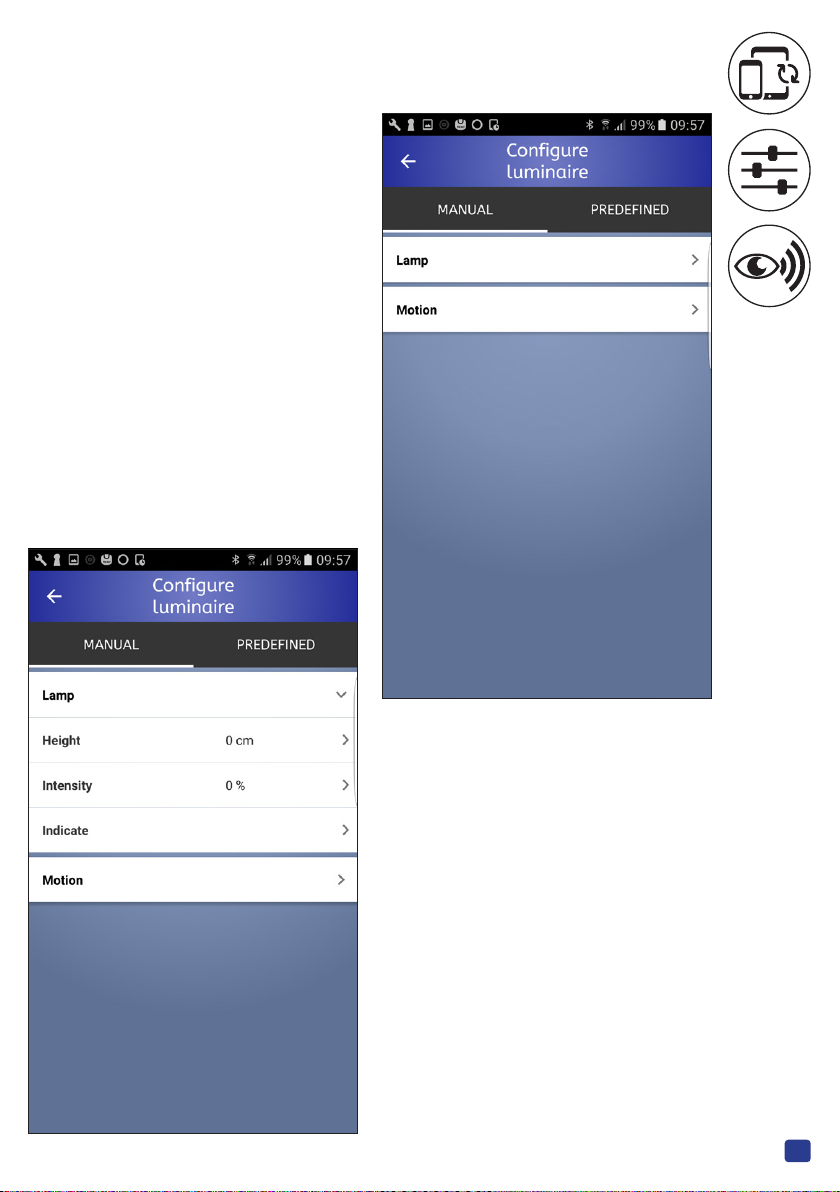

Congure luminaire
Start with adding facts under ”Lamp”
Press ”Lamp”
Look at page 15
One or several luminaries must be
choosen to be able to get to this
page.
• Pole height (not mandatory)
• Power when nobody is
• present
• Indicate: If you press, the
• luminaire you are conguring
• will start to blink.
Motion:
Detect of presence

20 Prisma Light | prismatibro.se
ANDROID-APP

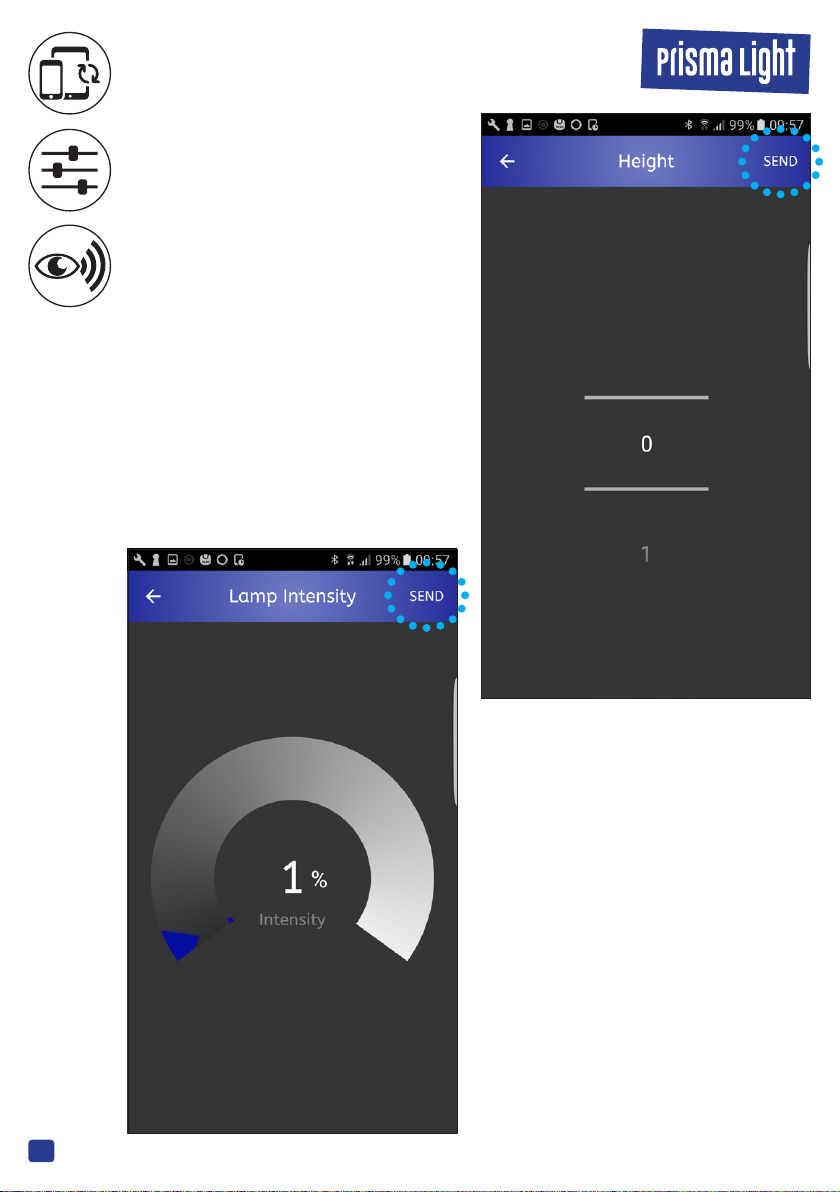

Pole height
1.
Swipe until the right number is
shown between the lines.
NOTE: In centimeters
If you prefer not to swipe to 500 cm:
Push and hold for a few seconds then
release and a keyboard will show up
and you can type in the right value.
2.
Press send to save the setting.
Power at absence
Power when no one is there
1.
Swipe until the right percent is
showing.
2.
Press ”Send” to save the setting.
