Prismatibro Prisma Light Ella User manual

MANUAL
MOUNTING AND INSTALLATION

2Prisma Light | prismatibro.se
PRODUCT INFORMATION
PRODUCT DESCRIPTION Prisma Light Ella is a bollard with LED technology.
APPLICATION Outdoors: Parks, footpaths and cycle paths, pathways,
parking, real estate.
WEIGHT Foundation mounting 10.2 kg
Ground plate mounting 8.8 kg
DIMENSIONS Height 930 mm
Width Ø 250 mm
CONNECTED POWER 230 V • 20 watts

3
prismatibro.se | Prisma Light
Mounting ground plate
1. Remove the opening cover.
2. Screw the tube to ground
and press the rubber collar
to the ground.
3. Connect the ground
cables (230V) to the fuse.
4. Attach the lamp head to
the pipe, tool T-30H
max 5 Nm
5. Connect the lamp head
contact to the fuse.
6. Attach the opening cover
Mounting foundation
1. Remove the opening cover.
2. Place the tube into the
foundation, hammer down
the locking wedge and push
the rubber collar to the
ground.
3. Connect the ground
cables (230V) to the fuse.
4. Attach the lamp head to the
pipe, tool T-30H max 5 Nm
5. Connect the lamp head
contact the fuse.
6. Attach the opening cover

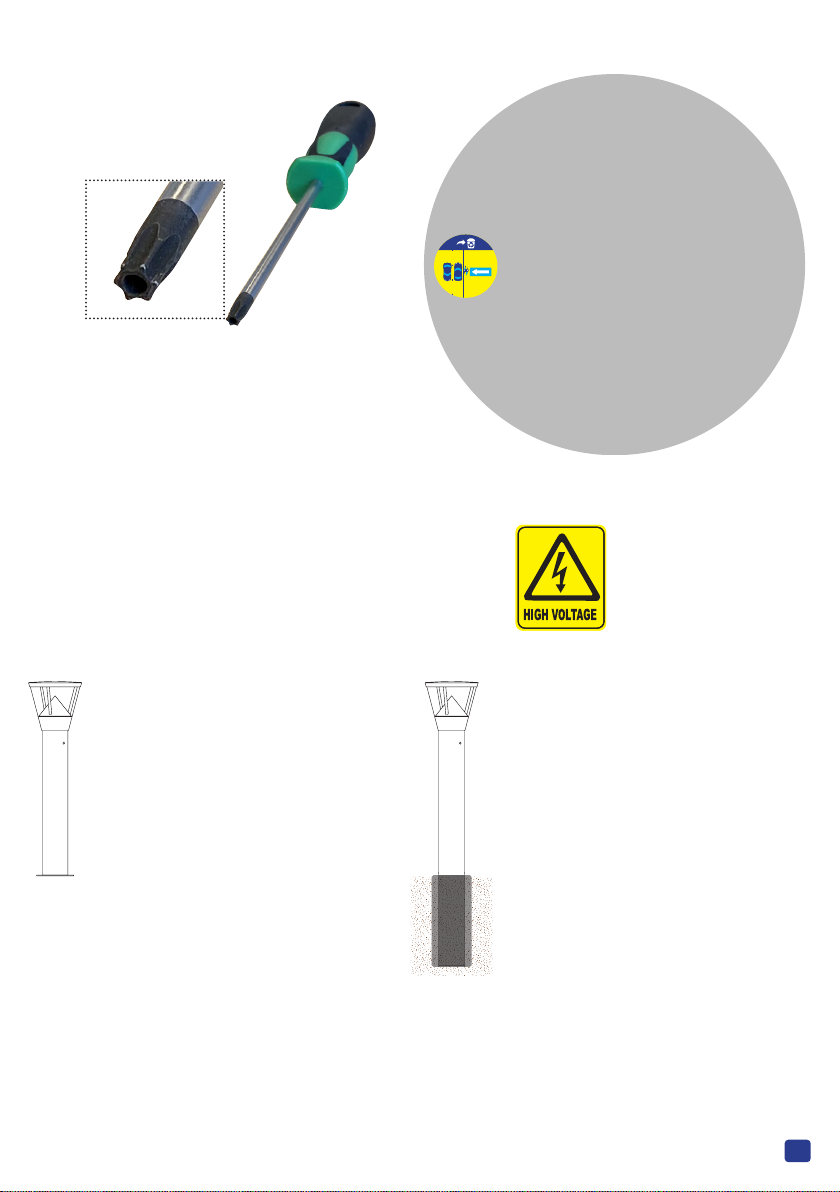

Tool
Tamper-resistant Torx T-30H
INSTALLATION
Installation
Note the round label on the top.
Prisma Light Ella should be turned so that the
label is pointing out towards the road for the
light distribution to be right. See the direction of the arrow.
This label should be removed after installation.
P
r
i
s
m
a
L
i
g
h
t
E
l
l
a
s
e
e
n
f
r
o
m
a
b
o
v
e
Only 230 V
Connection voltage 230V AC, 50Hz.
Connection power 20W
The luminaire is connected to wiring inside the pipe.
Prisma Light Ella is equipped with a driver with a xed setting.

The light source in the luminaire should only be replaced by qualied
personnel. PCB with LEDs are not accessible without screwing
the entire lamp apart. If you open up the optics section, the IP classication
is at risk. In case of any problems, the luminaire is returned complete and
is xed at PrismaTibro or replaced. Prisma Light Ella can be rinsed with
water under low pressure - no high pressure washing.
SERVICE AND MAINTENANCE
TROUBLESHOOTING
WARRANTY
RECYCLING AND PACKAGING
In case of any problems, the
luminaire is returned complete and
xed at PrismaTibro, or replaced.
For full warranty terms see the
website www.prismatibro.se or
call 0504-400 40 or send an email
to [email protected]
The packaging material is reuseable and/or recyclable.
More help!
prismatibro.se/en/error-el/
QR code leads you there.
This and many other documents
can be downloaded from:
www.prismatibro.se
QR code leads you there.
DOCUMENTS TO DOWNLOAD
