Pro Co Sound TradeTools MS3 User guide

CONTROLS:
MICROPHONE SPLITTER
Pro Co Sound
225 Parsons Street | Kalamazoo, MI 49007
800-253-7360
»www.procosound.com
INPUT:
Female 3-pin XLR-type connector accepts signal from low-
impedance (150 ohm nominal) microphone or similar source.
Input impedance (with 1.0 kohm loads on DIRECT and both
ISOLATED OUTPUTS): approx. 500 ohm.
DIRECT OUTPUT:
Male 3-pin XLR-type connector wired in parallel with INPUT
provides signal to feed mixer input.
ISO OUTPUTS:
Male 3-pin XLR-type connectors provide oating
transformer-isolated low-impedance outputs to feed mixer
inputs. Recommended load impedances: 1.0 kohm.
GND/LIFT:
GND position connects pin 1 of INPUT/DIRECT OUTPUT to
pin 1 of ISOLATED OUTPUT. LIFT position “oats”ISOLATED
OUTPUT. Used to reduce hum and buzz by eliminating
ground loops and providing proper grounding for various
conditions.
MS3
APPLICATION INFORMATION
XLR FEMALES
XLR MALE
PHANTOM POWER (IF REQUIRED)
MUST BE PROVIDED BY CONSOLE
CONNECTED TO DIRECT OUTPUT.
LOW-IMPEDANCE MICROPHONE
SIGNAL SOURCE
DIRECT BOX OUTPUT
MIC INPUT OF MIXING CONSOLE
SIGNAL PATH
MICROPHONE CABLE (Balanced)
MIC INPUT OF MIXING CONSOLE
MIC INPUT OF MIXING CONSOLE
I
NP
U
T
D
IRE
C
T
OU
TP
U
T
G
ND
LIFT
GND LIFT
ISO
OU
T 2
ISO
OU
T 1
XLR FEMALE

NOTES:
1. For safety reasons, all equipment with 3-wire AC line cords
should be connected to properly grounded receptacles.
If all mixers are grounded properly, GND/LIFT switches
should be set in the LIFT position for minimum hum and
buzz. If this setting does not minimize hum and buzz, it may
be indicative of poor grounding quality or improperly wired
AC receptacles. Such conditions may be hazardous and
should be investigated.
If a GND/LIFT switch seems non-functional, check the wiring of
all mic cables plugged into the unit. Cables with a jumper
between pin 1 and the connector shell can defeat the GND/LIFT
switches.
2. Microphones require a ground connection somewhere in the
signal path. For this reason it is suggested that a properly
grounded mixer always be connected to the DIRECT OUTPUT.
3. Direct boxes receiving inputs from AC-line-powered sources
such as keyboards or stage amplication should have their
GND/LIFT switches set to LIFT and the source equipment line
cords properly connected to grounded 3-wire receptacles
whenever possible. (See note 1).
4. Because of the use of a transformer, DC current cannot be
passed from an ISOLATED OUTPUT to the INPUT. This eectively
blocks phantom power such as may be required by condenser
microphones and some direct boxes. Phantom power must
be provided by the mixer connected to the DIRECT OUTPUT, or
by a suitable outboard power supply connected between the
microphone and the INPUT.
Pro Co Sound
225 Parsons Street | Kalamazoo, MI 49007
800-253-7360
»www.procosound.com
MS3-02 Rev. 12/11
APPLICATION INFORMATION

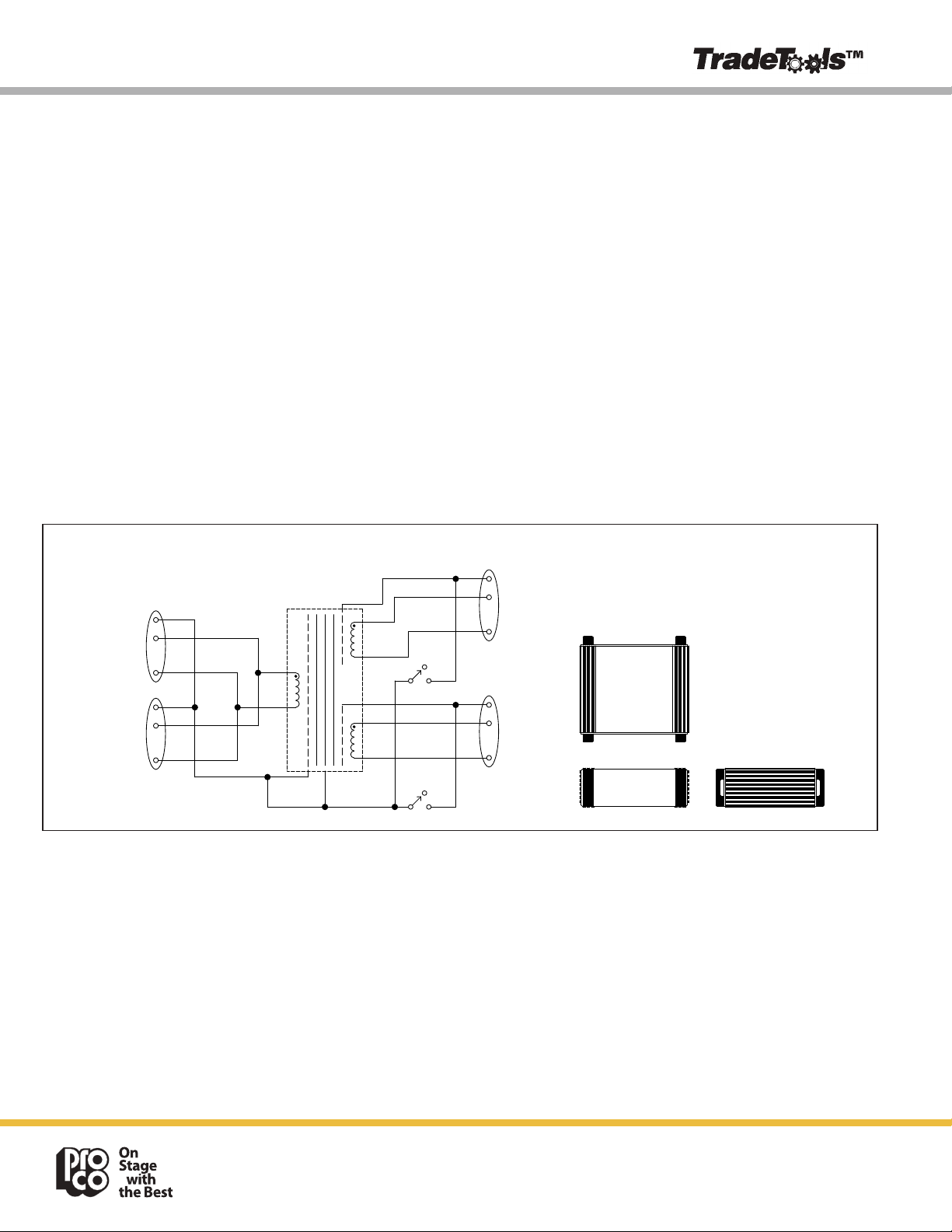

CIRCUIT DIAGRAM:
