USER'S MANUAL
¨
Serial
Number
Decal
Model No. PFTL38580
Serial No.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assistance
from our factory.
TO AVOID UNNECESSARY DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and PART LIST are attached to the center of this manual. Please save them for
future reference.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it. Do not
place the treadmill on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7),
plug the power cord into a surge protector
(not included) and plug the surge protector
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or
less in length. Do not use an extension cord.
12. Keep the power cord and the surge protector
away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 4 if the tread-
mill is not working properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS

3
14. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
16. To reduce the possibility of the treadmill over-
heating, do not operate the treadmill continu-
ously for longer than 1 hour.
17. Never leave the treadmill unattended while it
is running. Always remove the key when the
treadmill is not in use.
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 10.) You must be
able to safely lift 45 pounds (20 kg) in order to
raise, lower, or move the treadmill.
19. Do not change the incline of the treadmill by
placing objects under the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. Inspect and tighten all parts of the treadmill
regularly.
22. Never drop or insert any object into any opening.
23. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer-
cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

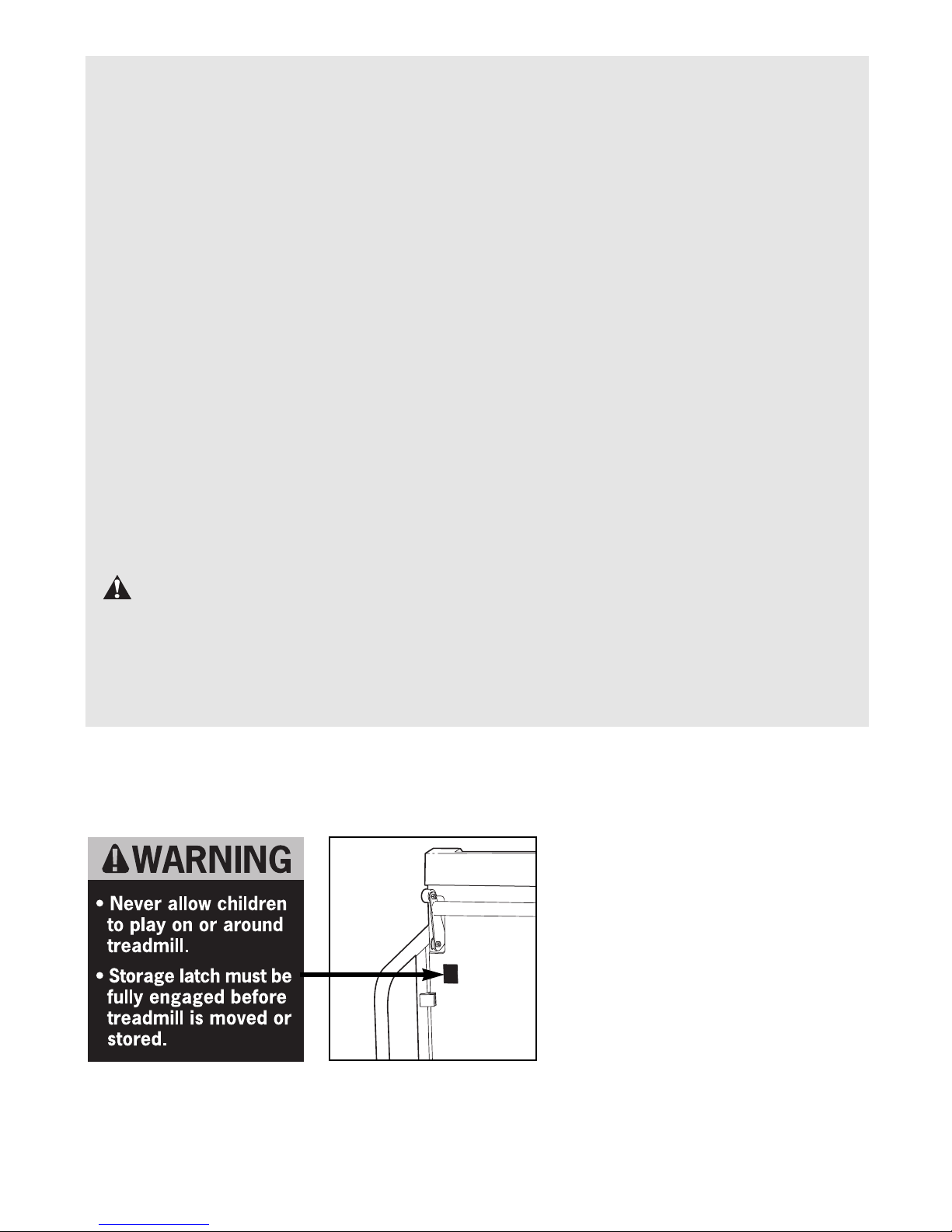

The decal shown below has been placed on your treadmill. If the decal is missing, or if it is not legible,
please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING
REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown.

4
Thank you for selecting the PROFORM¨385EX tread-
mill. The 385EX treadmill combines advanced technol-
ogy with innovative design to let you enjoy an excellent
form of cardiovascular exercise in the convenience and
privacy of your home. And when youÕre not exercising,
the unique 385EX can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL38580. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Handrail
Console
Storage Latch Key/Clip
Circuit
Breaker
Incline
Leg
Walking Belt
Hood
Cushioned Walking
Platform
Front Wheel
Foot Rails
Power Cord
Rear Roller
Adjustment Bolts
Water Bottle
Holder (Bottle
not included)
Accessory Tray
RIGHT SIDELEFT SIDE

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The treadmill walking deck is coated with
high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the
walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

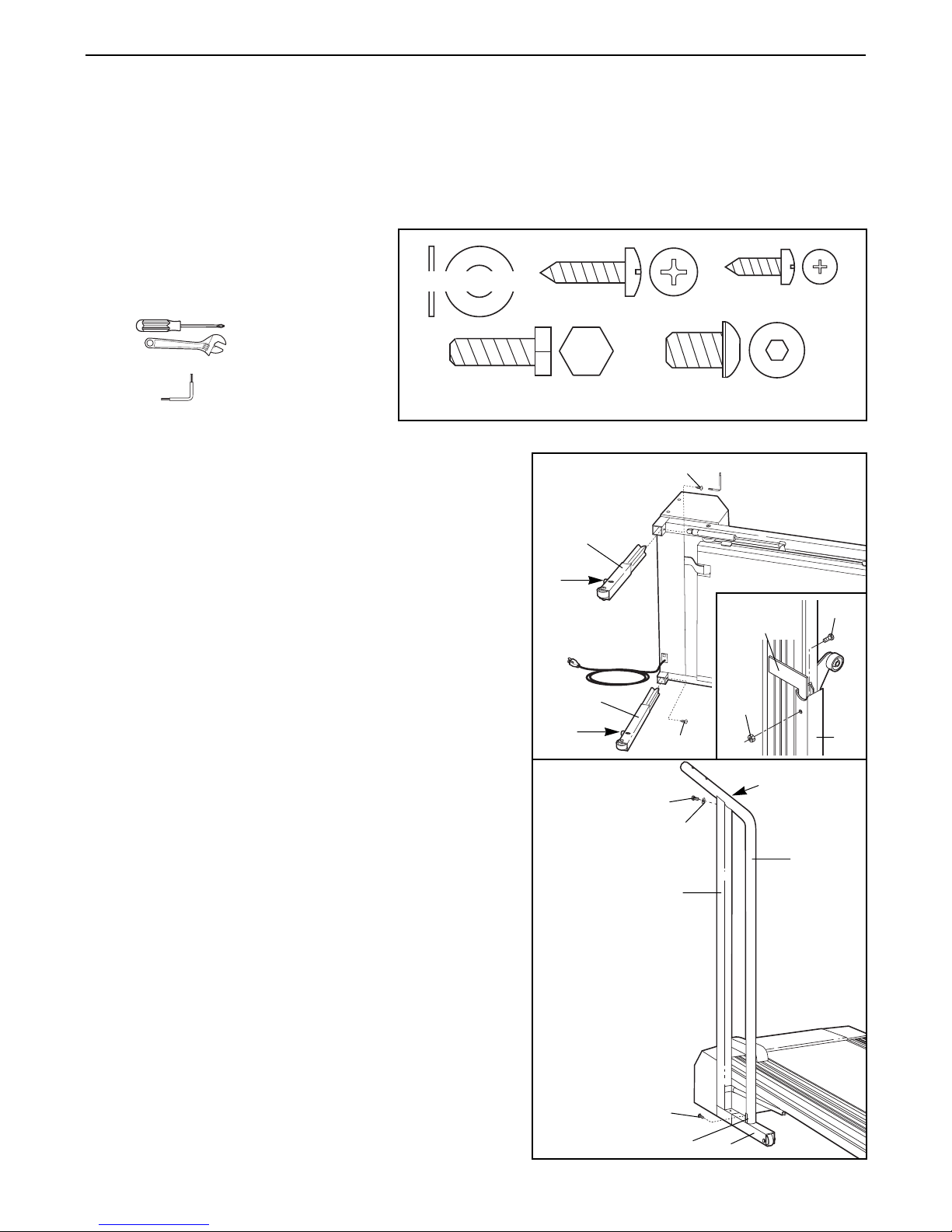

During assembly, refer to the drawings
at the right to identify the small parts
used in assembly.
Assembly requires a phillips screw-
driver , an adjustable
wrench , and scissors
(not included), as well as the included
allen wrench .
5
1. With the help of a second person, carefully lay the
treadmill on its right side as shown (refer to the drawing
on page 4 to identify the right side).
Insert the Extension Legs (41) into the treadmill. Make
sure that the Extension Legs are turned so the Base
Pads (36) are on the indicated side. Attach each
Extension Leg with an Extension Leg Screw (34).
With the help of a second person, carefully raise the
treadmill to the upright position so the Extension Legs
(41) are resting flat on the floor.
Refer to the inset drawing. Remove the nut, bolt, and
shipping bracket from the left Upright (14) and discard.
2. Refer to HOW TO LOWER THE TREADMILL FOR USE
on page 11. Follow the instructions in step 2 to lower the
treadmill.
Cut the plastic ties that hold the cage nuts in each
Handrail (2).
Position one of the Handrails (2) on the left Upright (14).
The lower end of the Left Handrail should be resting
against the bracket on the Extension Leg (41) as shown.
Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the left Upright and Handrail. Do not tighten the
Handrail Bolt yet.
Make sure that the hole in the bracket on the Extension
Leg (41) is aligned with the hole in the Handrail (2).
Tighten an Extension Leg Screw (34) into the bracket and
Handrail.
34
34
41
36
34
41
Bracket
15
16
14
2
Plastic Tie
41
36
1
2
Extension Leg Screw (34)Ð4
1/2" Screw (13)Ð2
Handrail Bolt (15)Ð2
3/4" Screw (59)Ð4
Washer (16)Ð2
Bolt
14
Nut
Shipping
Bracket

3. With the help of a second person, hold the Console Base
(6) and the other Handrail (2) near the right Upright (14)
as shown. Insert the Wire Harness (26) down into the right
Upright; bend the Wire Harness, if necessary. Next, route
the Wire Harness through the bracket on the Handrail and
insert the bracket into the right Upright. Make sure that
the Wire Harness is not pinched.
4. Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the right Upright (14) and the right Handrail (2). Do
not tighten the Handrail Bolt yet.
Make sure that the hole in the bracket on the Extension
Leg (41) is aligned with the hole in the Handrail (2).
Tighten an Extension Leg Screw (34) into the bracket and
Handrail.
5. Attach the Console Base (6) to the Handrails (2) with four
3/4Ó Screws (59).
Tighten all parts used in steps 2, 4, and 5.
6. Remove the backing from the Adhesive Clip (74). Press
the Adhesive Clip onto the base of the Uprights (14) in
the indicated location. Press the Allen Wrench (73) into
the Adhesive Clip.
7. Attach the Storage Latch (12) to the left Upright (14) with
two 1/2Ó Screws (13). Be careful not to overtighten the
Screws.
8. Make sure that all parts are tight before you use the
treadmill. (Note: The ratchet screws shown at the far
right are factory set and should not be adjusted.) To
protect the floor or carpet from damage, place a mat
under the treadmill.
6
26
Bracket
2
14
3
6
Bracket
34
41
15
16
14
2
4
59 6
59
2
2
5
73
74
14
Ratchet
Screws
12
13
14
6
78

7
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. They will deteriorate the walking belt and
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeÕs power.
Voltage surges, spikes, and noise interference can re-
sult from weather conditions or from other appliances
being turned on or off.
To decrease the pos-
sibility of your tread-
mill being damaged,
always use a surge
protector (not in-
cluded) with your
treadmill.
Surge protectors are
sold at most hardware
stores and department
stores. Use only a UL-
listed surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.
This product must be
grounded. If it should
malfunction or break
down, grounding pro-
vides a path of least re-
sistance for electric cur-
rent to reduce the risk of
electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an ap-
propriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole recep-
tacle as shown in drawing 2 if a properly grounded out-
let is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the productÑif it will
not fit the outlet, have a proper outlet in-
stalled by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet

DIAGRAM OF THE CONSOLE
8
Clip
Key
Speed Control
Monitor Displays
CAUTION: Before operating the con-
sole, read the following precautions.
¥ Do not stand on the walking belt when turning
on the power.
¥ Always wear the clip (see the drawing above)
while operating the treadmill. When the key is
removed from the console, the walking belt will
stop.
¥ Adjust the speed in small increments.
¥ The training zones marked beside the speed
control are general guidelines only. See page
14 or more information.
¥ To reduce the possibility of electric shock, keep
the console dry. Avoid spilling liquids on the
console and use only a sealable water bottle.
BATTERY INSTALLATION
The console requires three "AA" batteries (not in-
cluded). Alkaline batteries are recommended. To
install batteries, open the battery cover as shown. Press
the batteries into the battery compartment, with the neg-
ative ends of the batteries (marked ÒÐÓ) touching the
springs. Close the battery cover, push up on the battery
cover tab, and then push the tab forward as shown. Be
sure that the tab locks into place.
STEP BY STEP CONSOLE OPERATION
Step onto the foot rails of the treadmill. Find the clip
attached to the key (see the drawing above), and slide
the clip onto the waistband of your clothing. Follow the
steps below and on page 9 to operate the console.
Insert the key fully into the power switch.
Note: Inserting the
key will not turn on
the displays. The dis-
plays will turn on
when the ON/RESET
button is pressed or
when the walking belt
is started. If you just
installed batteries, the displays will already be on.
1
Note: If there is a thin sheet of clear
plastic on the console, remove it.
Batteries
Battery Cover
Battery
Cover Tab

9
Reset the console and start the walking belt.
Slide the speed control to the
RESET position. Note: Each
time the walking belt is
stopped, the speed control
must be moved to the RESET
position before the walking
belt can be restarted.
Next, slowly slide the speed
control until the walking belt be-
gins to move at slow speed.
Carefully step onto the walking
belt and begin exercising.
Change the speed of the walk-
ing belt as desired by moving
the speed control.
To stop the walking belt, step onto the foot rails and
slide the speed control to the RESET position.
Follow your progress with the four displays.
TIME/DISTANCE dis-
playÑThis display
shows the elapsed time
and distance that you
have walked or run, in
miles.
SPEED displayÑThis
display shows the speed
of the walking belt, in
miles per hour.
CALORIES/FAT CAL-
ORIES displayÑThis
display shows the ap-
proximate numbers of
calories and fat calories
you have burned. (See
FAT BURNING on page
14.) Every seven sec-
onds, the display will change from one number to
the other, as indicated by the mode arrows.
The displays can be
reset, if desired, by
pressing the ON/RESET
button.
Turn off the power.
To turn off the power, simply wait for about four
minutes. If the walking belt is stationary and the
console buttons are not pressed for four minutes,
the power will turn off automatically.
HOW TO CHANGE THE INCLINE OF THE TREADMILL
The incline of the treadmill can be changed by raising or
lowering the back end. Before changing the incline,
remove the key and unplug the power cord.
Hold the
rear roller
endcap
with both
hands.
When the
back end
of the
treadmill is
in the low-
est posi-
tion, the incline is about 10%. Raise the back end until it
clicks into position. (Note: It may be necessary to shake
the treadmill lightly so that it clicks into position.) The in-
cline will then be about 5%. Raise the back end again
until it clicks into position. The incline will then be about
3%. To lower the back end, raise it past the highest po-
sition and then lower it. CAUTION: Before exercising,
push on the back of the treadmill to make sure that
the incline legs are locked in position. Do not place
objects under the treadmill to change the incline;
change the incline only as described above.
4
3
2
Mode Arrow
Incline
Leg
Hold the Rear
Roller Endcap
in these locations

10
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Unplug the power cord. Caution: You must be able to
safely lift 45 pounds (20 kg) in order to raise, lower, or
move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. Caution: To decrease the possibility of in-
jury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85¡ Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the stor-
age latch is closed fully over the catch.
1. Hold the handrails and place one foot on the base as
shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
Base
Front Wheels
Catch
Closed
Storage
Latch

11

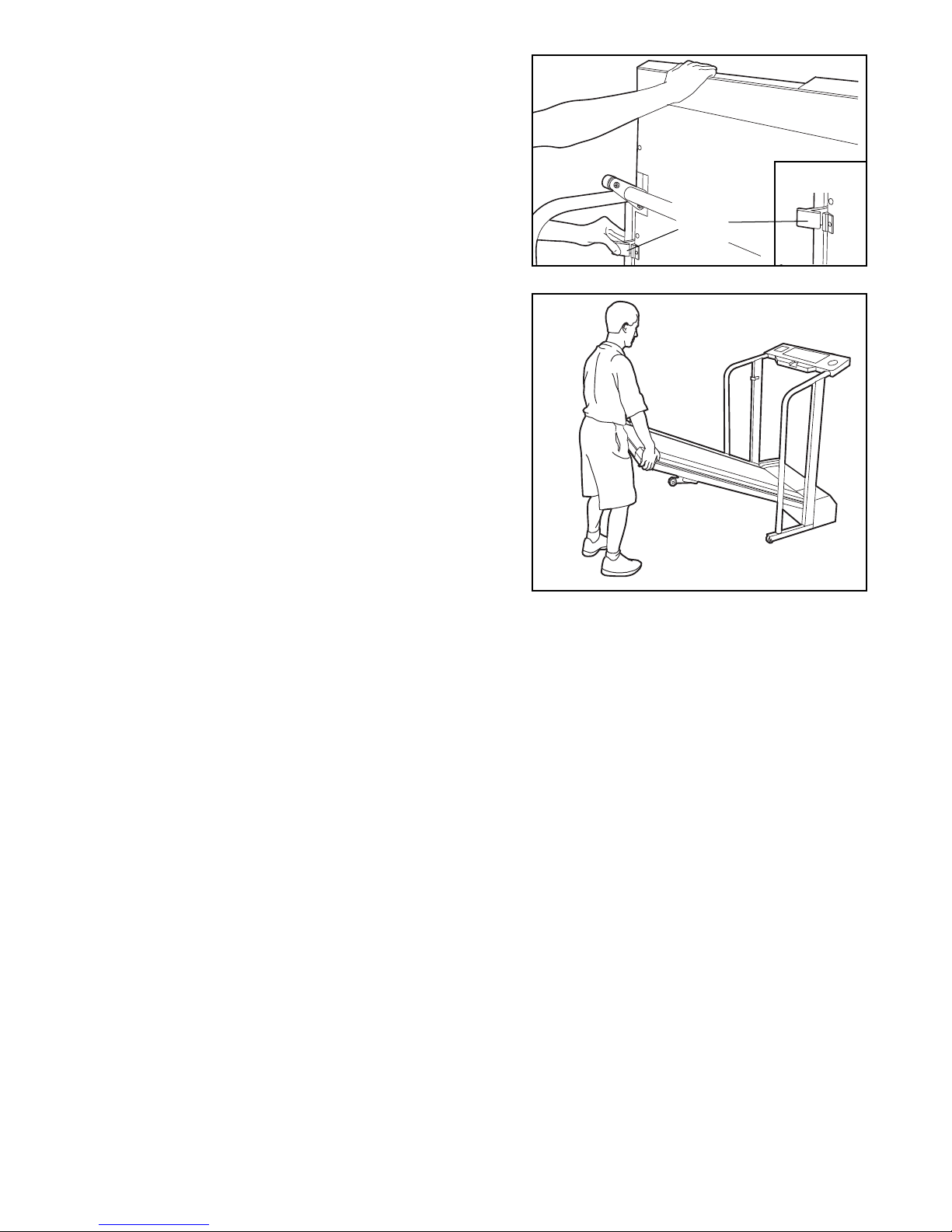

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left thumb, press the storage latch and
hold it. Pivot the treadmill until the frame and foot rail are
past the storage latch.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Caution: To decrease the possibil-
ity of injury, bend your legs and keep your back
straight.
Opened
Storage
Latch

12
MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-
free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is
plugged into a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page
7.) Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or
less in length.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-
sole. (See step 1 on page 8.)

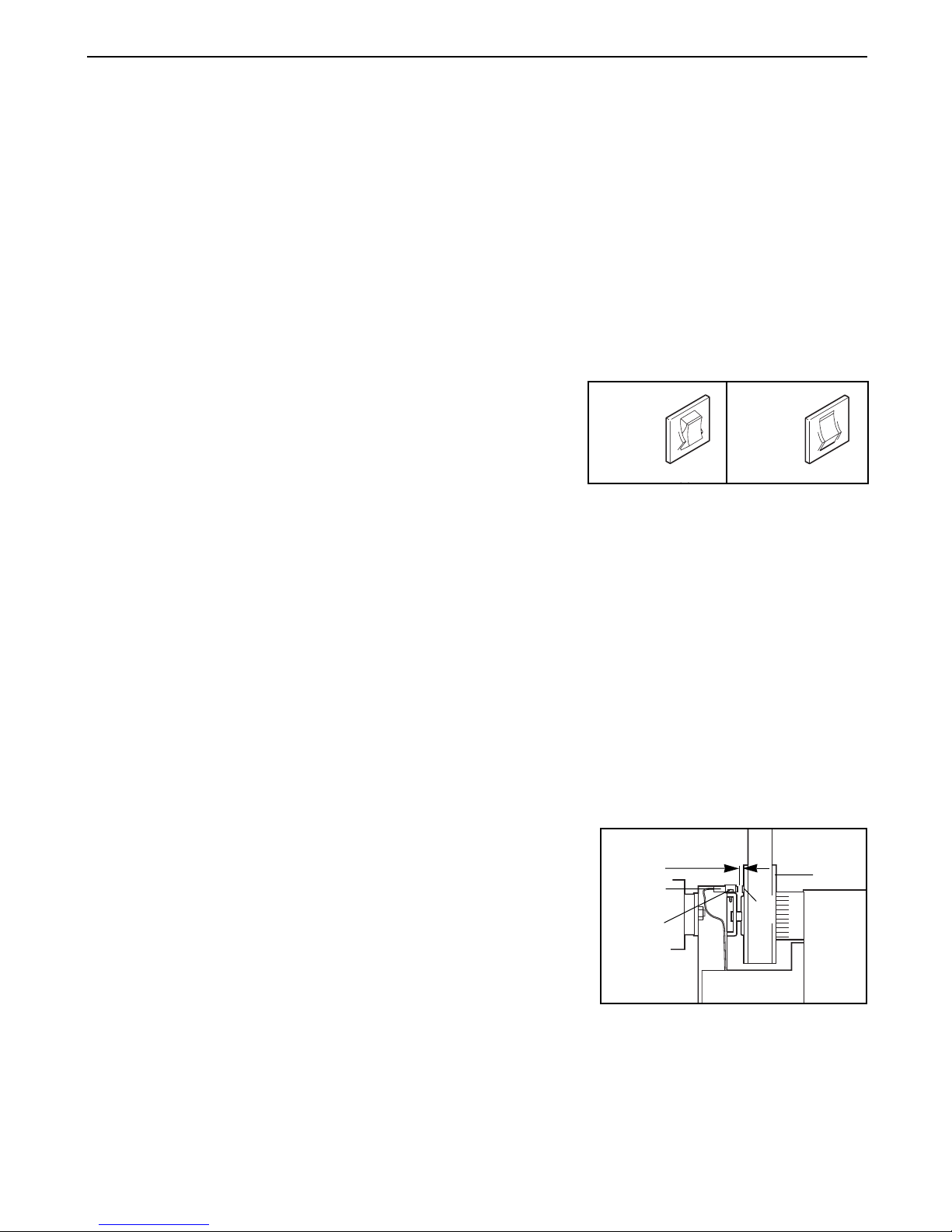

c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. (See step 1 on page 8.)
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are
the result of drained batteries.
b. Remove the six screws from the hood. Carefully re-
move the hood. Locate the Reed Switch (86) and the
Magnet (87) on the left side of the Pulley (85). Turn
the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8Ó. If nec-
essary, loosen the Screw (35) and move the Reed
Switch slightly. Retighten the Screw. Re-attach the
hood, and run the treadmill for a few minutes to check
for a correct speed reading.
Tripped
Reset
Tripped Reset
c
87
86
35
Top
View
1/8Ó 85

13

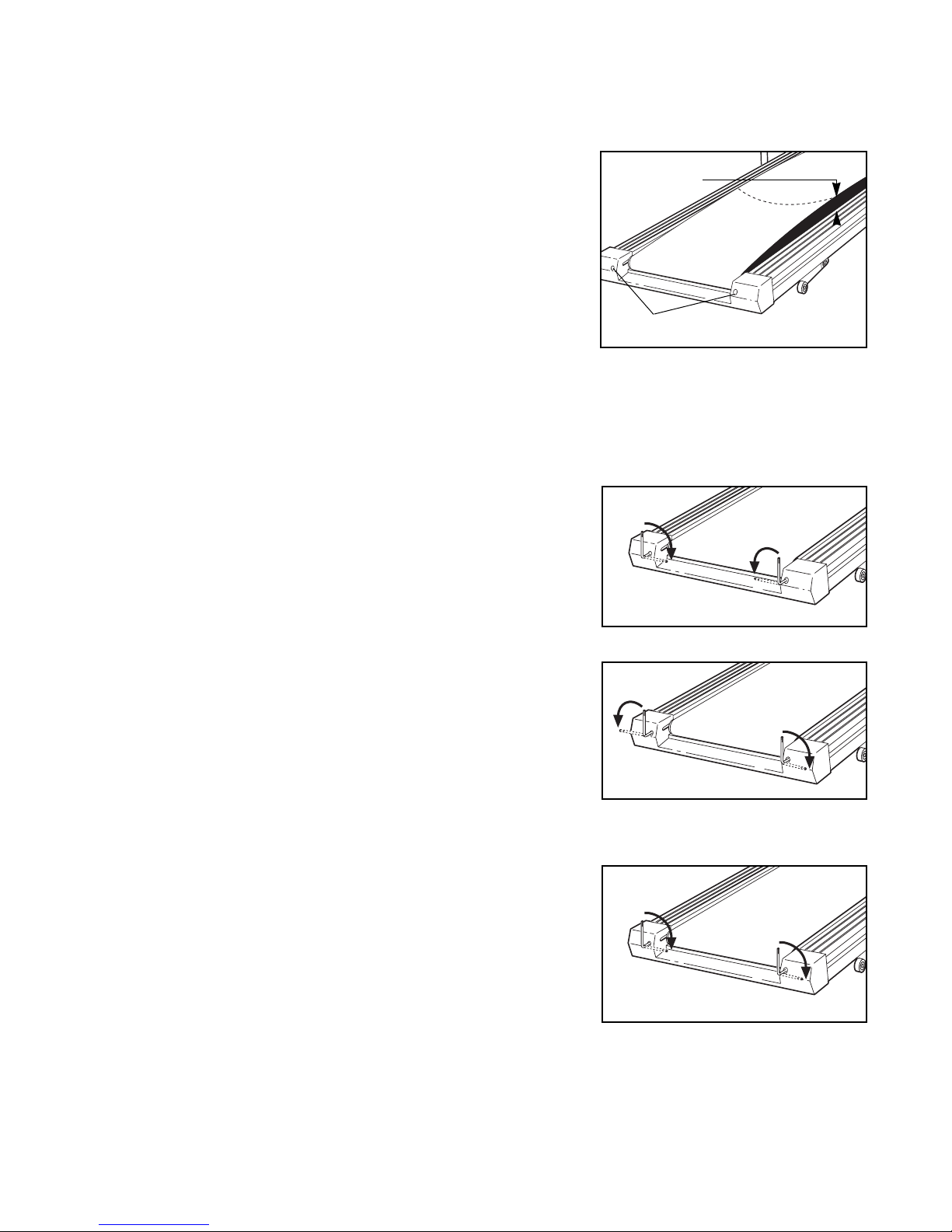

PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in
length.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be
permanently damaged. Remove the key and UN-
PLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each side of the
walking belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key and run the treadmill for a
few minutes. Repeat until the walking belt is properly
tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free.
PROBLEM: The walking belt is off-center when walked on
SOLUTION: a. If the walking belt has shifted to the left, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn the left rear roller adjustment
bolt clockwise, and the right bolt counterclockwise,
1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
b. If the walking belt has shifted to the right, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn the left rear roller adjustment
bolt counterclockwise, and the right bolt clockwise,
1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
PROBLEM: The walking belt slips when walked on
SOLUTION: a. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller adjustment
bolts clockwise, 1/4 of a turn. When the walking belt
is correctly tightened, you should be able to lift each
side of the walking belt 2 to 3 inches off the walking
platform. Be careful to keep the walking belt centered.
Plug in the power cord, insert the key and carefully
walk on the treadmill for a few minutes. Repeat until
the walking belt is properly tightened.
Rear Roller Adjustment Bolts
2ÓÐ3Ó
b
b
a
a

CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex-
ercise program. RememberÑthese are general guide-
lines only. For more detailed exercise information, ob-
tain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the de-
sired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exer-
cise. (This chart is also found on the console.)
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your Òtraining zone.Ó
The lower two numbers are recommended heart rates
for fat burning; the higher number is the recommended
heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you main-
tain the proper intensity level. (See page 9.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 9.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFOR-
MANCE to help you maintain the proper intensity level.
(See page 9.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop ex-
ercising and place
two fingers on
your wrist as
shown. Take a six-
second heartbeat
count, and multiply
the result by ten to
find your heart
rate. (A six-second count is used because your heart
rate drops quickly when you stop exercising.) If your
heart rate is too high or too low, adjust the speed or in-
cline of the treadmill accordingly.
WORKOUT GUIDELINES
A well-rounded workout includes the following three
important parts:
A Warm-up
Start each workout with 5 to 10 minutes of stretching
and light exercise (see SUGGESTED STRETCHES on
page 15). A proper warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for in-
dividuals over the age of 35 or individuals
with pre-existing health problems.
14

15
SUGGESTED STRETCHES
The correct form for several basic stretches is shown in the
drawings at the right. Move slowly as you stretchÑnever
bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for both legs. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for both legs. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for both legs. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.

PART LISTÑModel No. PFTL38580 R0399A
Key No. Qty. Description
1 1 Key/Clip
2 2 Handrail
3 2 Cage Nut
4 6 Hood Screw
5 2 Rear Isolator Screw
6 1 Console Base
7 1 Speed Control Knob
8 1 Speed Potentiometer
9 1 Battery Cover
10 8 Isolator Screw
11* 1 Console Assembly
12 1 Storage Latch
13 2 1/2Ó Screw
14 1 Upright/Base
15 2 Handrail Bolt
16 7 Washer
17 1 Motor Belt
18 1 Motor Swivel Nut
19* 1 Motor/Pulley/Flywheel/Fan
20 1 Pulley/Flywheel/Fan
21 1 Motor
22 3 Motor Tension Bolt/Incline Bolt
23 1 Motor Tension Washer
24 1 Motor Tension Star Washer
25 1 Motor Swivel Bolt
26 1 Wire Harness
27 2 Ground Wire Screw
28 1 Hood
29 1 Hood Shield
30 10 Screw/Handrail Screw
31 1 Latch Decal
32 2 Frame Pivot Washer
33 2 Frame Pivot Bolt
34 2 Extension Leg Screw
35 8 Electronics Screw
36 4 Base Pad
37 2 Wheel Bolt
38 2 Wheel
39 7 Wheel Nut/Base Pivot Nut
40 1 Controller
41 2 Extension Leg
42 1 Circuit Breaker
43 1 Power Cord Grommet
44 1 Power Cord
45 2 Upright Spacer
46 4 Isolator
47 12 Belly Pan Fastener
Key No. Qty. Description
48 1 Choke
49 1 Motor Locknut
50 2 Belt Guide
51 1 Belly Pan
52 1 Releasable Tie
53 1 Cable Tie Clamp
54 1 Motor Belly Pan
55 1 11 1/2Ó Cable Tie
56 4 8Ó Cable Tie
57 1 Ratchet Spring
58 1 Ratchet
59 11 3/4Ó Screw
60 1 Ratchet Spring Screw
61 2 Ratchet Screw
62 1 Incline Leg Plate
63 2 Roller Guard
64 2 Incline Wheel Bolt
65 2 Incline Wheel
66 4 Wheel Nut
67 2 Upright Plug
68 1 Ground Wire
69 1 Incline Leg
70 1 Frame
71 2 Rear Roller Adj. Bolt
72 1 Rear Roller Endcap
73 1 Allen Wrench
74 1 Adhesive Clip
75 2 Foot Rail
76 1 Rear Roller
77 4 Platform Screw
78 1 Latch Catch
79 1 Walking Platform
80 1 Walking Belt
81 1 Front Roller Adjustment Bolt
82 1 Shock
83 1 Ratchet Pivot Bolt
84 1 Sensor Clip
85 1 Front Roller/Pulley
86 1 Reed Switch
87 1 Magnet
88 2 Incline Leg Spacer (short)
89 1 Incline Leg Spacer (long)
# 1 8Ó Black Wire, Pig Tail
# 1 8Ó White Wire, Male/Female
# 1 UserÕs Manual
* Includes all parts shown in the box
# These parts are not illustrated

46
8
46
8
22
72
71 16
71
16
30
29
42 30
65
34
34
59
59
59
59
1
59
3
2
6
7
8
9
11*
41
12
13
15
16
17
18 19*
26 15
16
25
21
20
22
23 24
82
36
30
84
37
39
86
38
87
85
45
77
77
16 81
14
3
2
33
34
36
30
37
38
39
36
30
35
35
54
35
35
35
56
59
53
52
35
50 48
35
45 34
41
79
80
77
75
77
5
74
73
31
76
78
30
36
32
49
5
55
39
16
16
59-
27
68
70
67
67 40
35
4
28
4
4
4
43
44
63
63
39
75
35
30
47
46
51
47
83
61
47 60 58
57
89
64
66
88
66
69
65
47
39 62
22
64
39
47
88
8
46
8
EXPLODED DRAWINGÑModel No. PFTL38580 R0399A

Part No. 146110 H01751-C R0399A Printed in USA © 1998 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
¥ The MODEL NUMBER OF THE PRODUCT (PFTL38580).
¥ The NAME OF THE PRODUCT (PROFORM¨385EX treadmill).
¥ The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).
¥ The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
attached to the center of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-
chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, to products used for commercial or
rental purposes, or to products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
