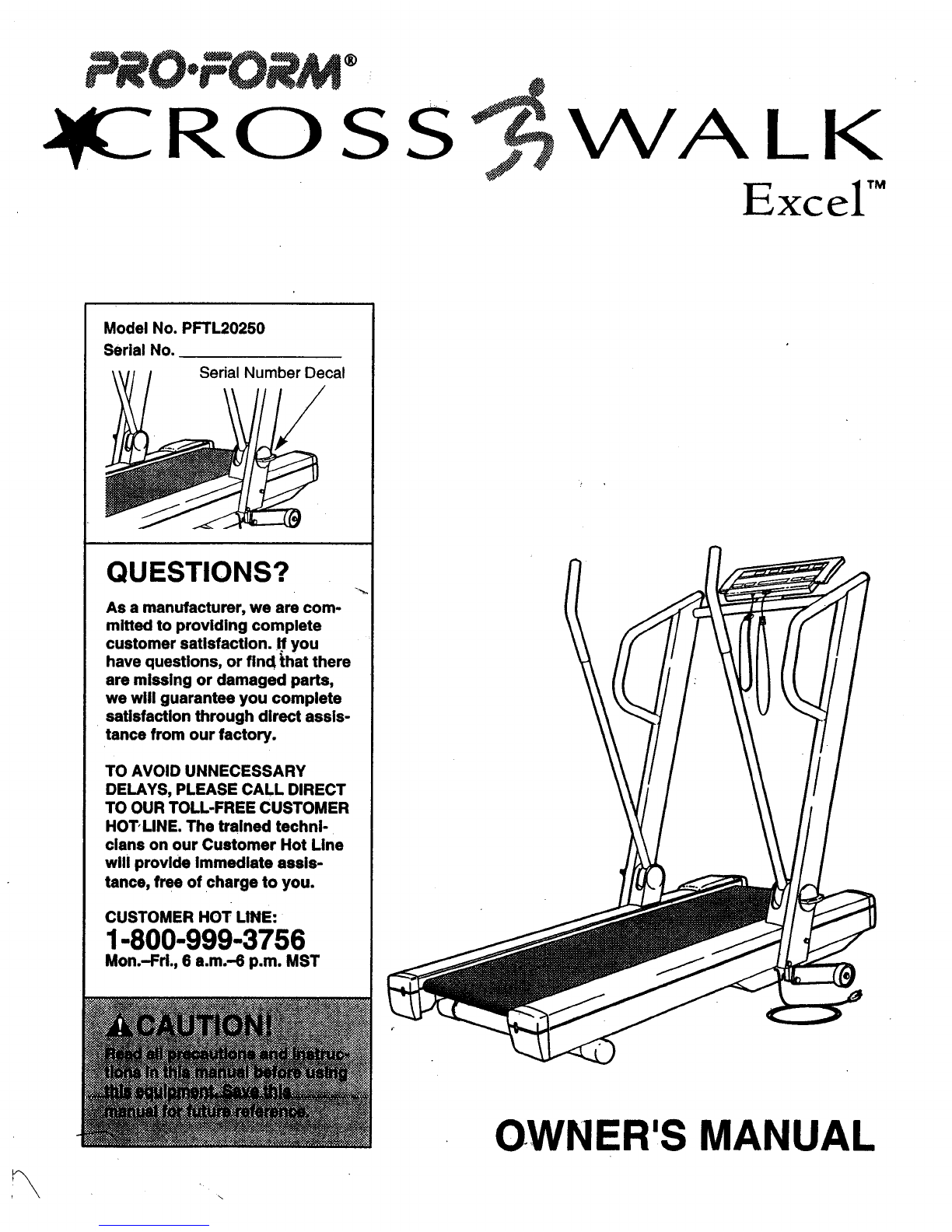

Pro-Form CROSSWALK Excel User manual

PRO.FORM o
CROSS ALK
Excel TM
Model No. PFTL20250
Serial No.
Serial Number Decal
QUESTIONS?
AS a manufacturer, we are com-
mitted to providing complete
customer satisfaction, ff you
have questions, or find that there
are missing or damaged parts,
we will guarantee you complete
satisfaction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT,LINE. The trained techni-
clans on our Customer Hot Line
wlli provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.--Fri., 6 a.m.-6 p.m. MST
OWNER'S MANUAL

2

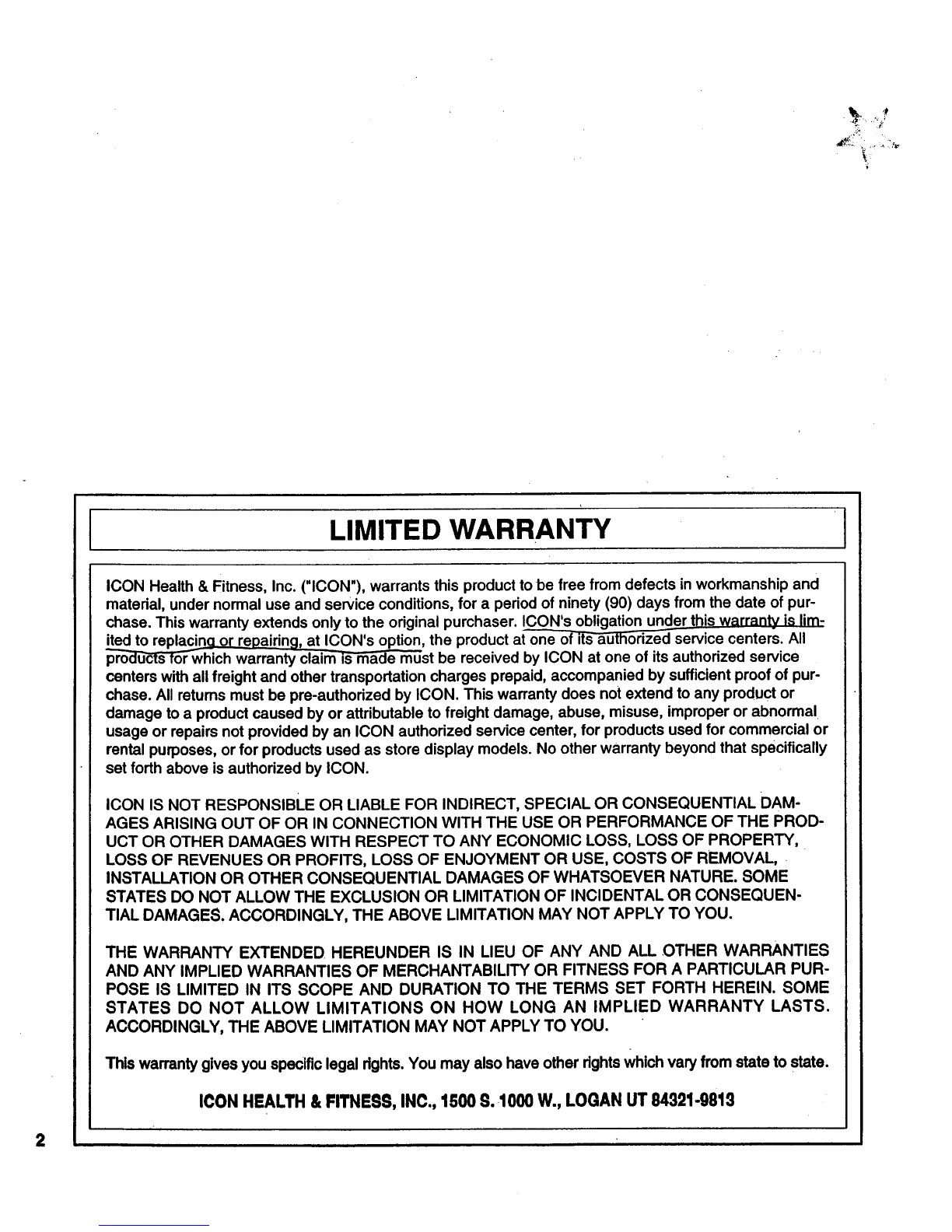

I LIMITED WARRANTY
ICON Health & Fitness, Inc. ("ICON"), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty, is lim-
_hid to replacina or repairing, at ICON's option, the product at one of its_uthorized service centers. All
ch warranty claim is made-must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-
chase. All retums must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, for products used for commercial or
rental purposes, or for products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAM-
AGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PROD-
UCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY,
LOSS OF REVENUES OR PROFITS, LOSS OF ENJOYMENT OR USE, COSTS OF REMOVAL,
INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES OF WHATSOEVER NATURE. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
THE WARRANTY EXTENDED HEREUNDER IS IN LIEU OF ANY AND ALL OTHER WARRANTIES
AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PUR-
POSE IS LIMITED IN ITS SCOPE AND DURATION TO THE TERMS SET FORTH HEREIN. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS.
ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
This warranty gives you specificlegal rights.You may also have other rightswhich vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S.1000 W., LOGAN UT 84321-9813

PRO,FORM*
CROSS LK
Excel TM

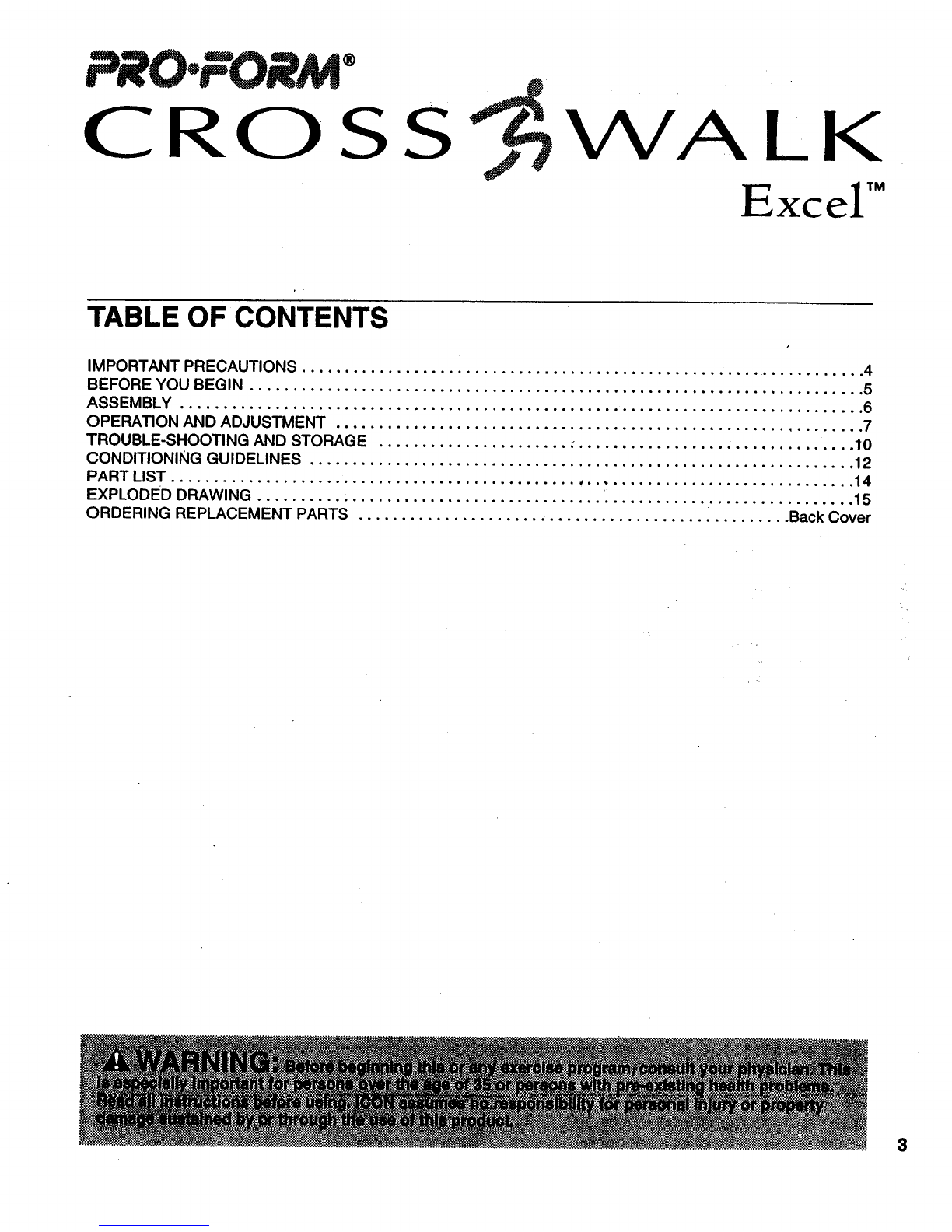

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS .................................................................. 4
BEFORE YOU BEGIN .................................................................. . .... 5
ASSEMBLY ............................................................................... 6
OPERATION AND ADJUSTMENT ............................................................. 7
TROUBLE-SHOOTING AND STORAGE ...................... : ................................ 10
CONDITIONING GUIDELINES ............................................................... 12
PART LIST ............................................... _............................... 14

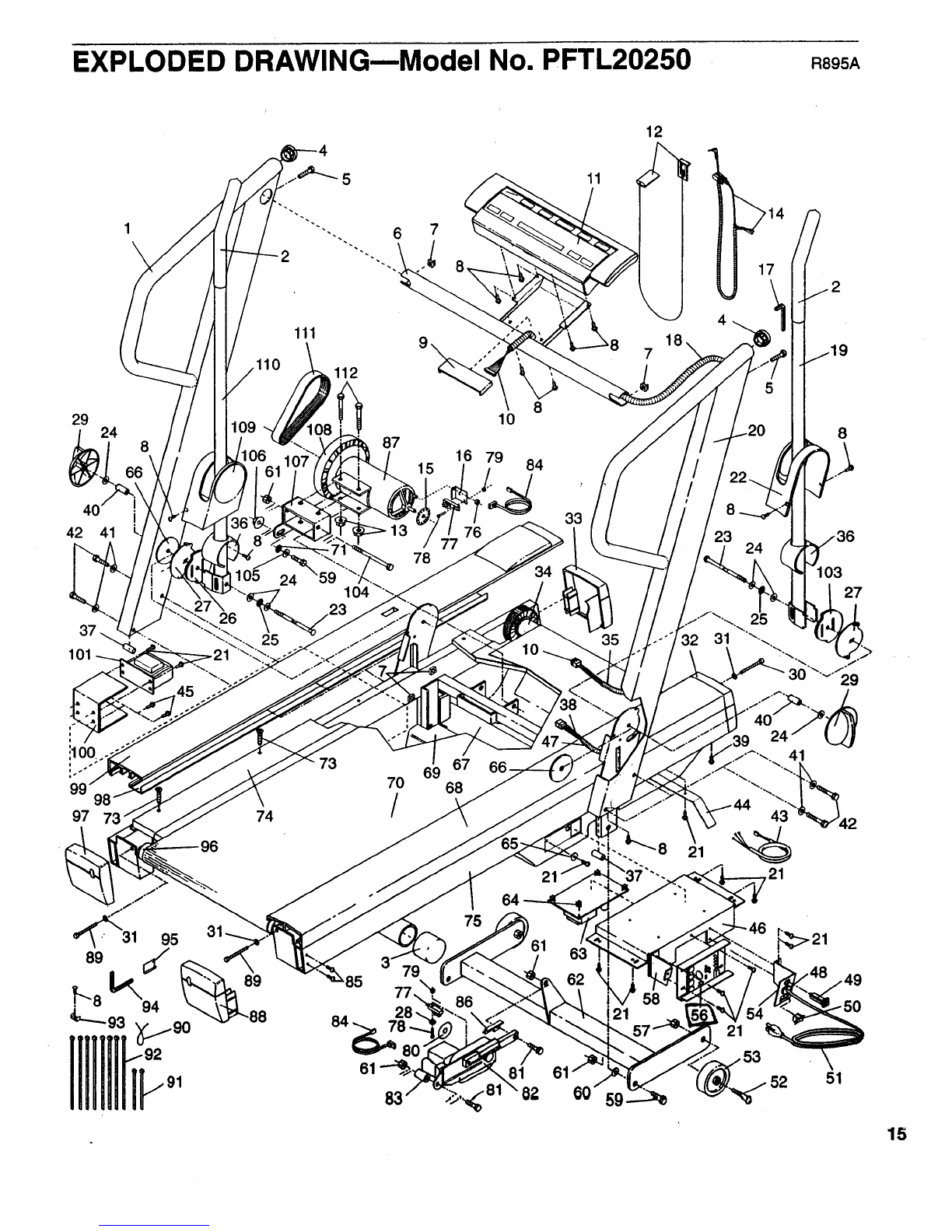

EXPLODED DRAWING ........................................ ". ............................ 15

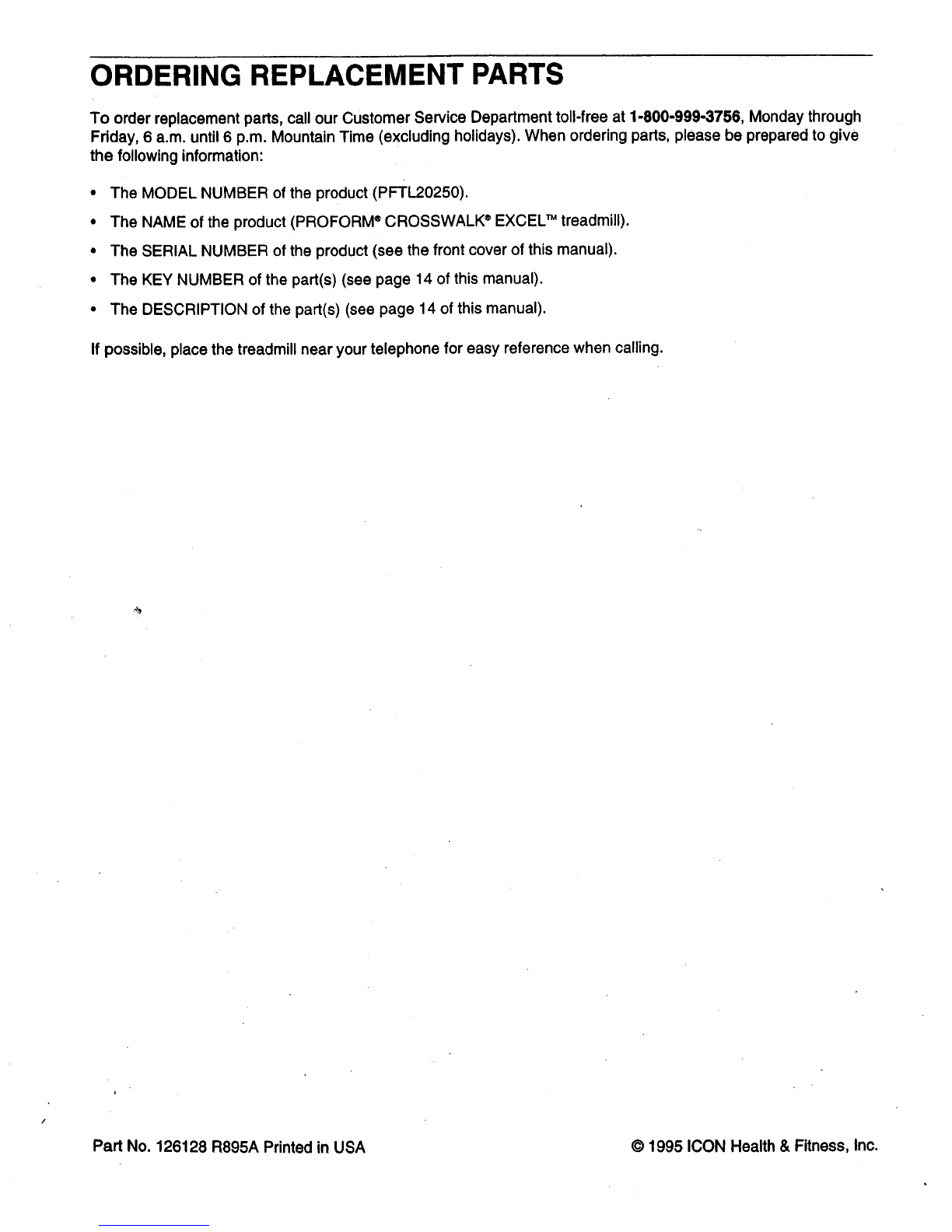

ORDERING REPLACEMENT PARTS ........................................ . ......... Back Cover
3

4
•'!

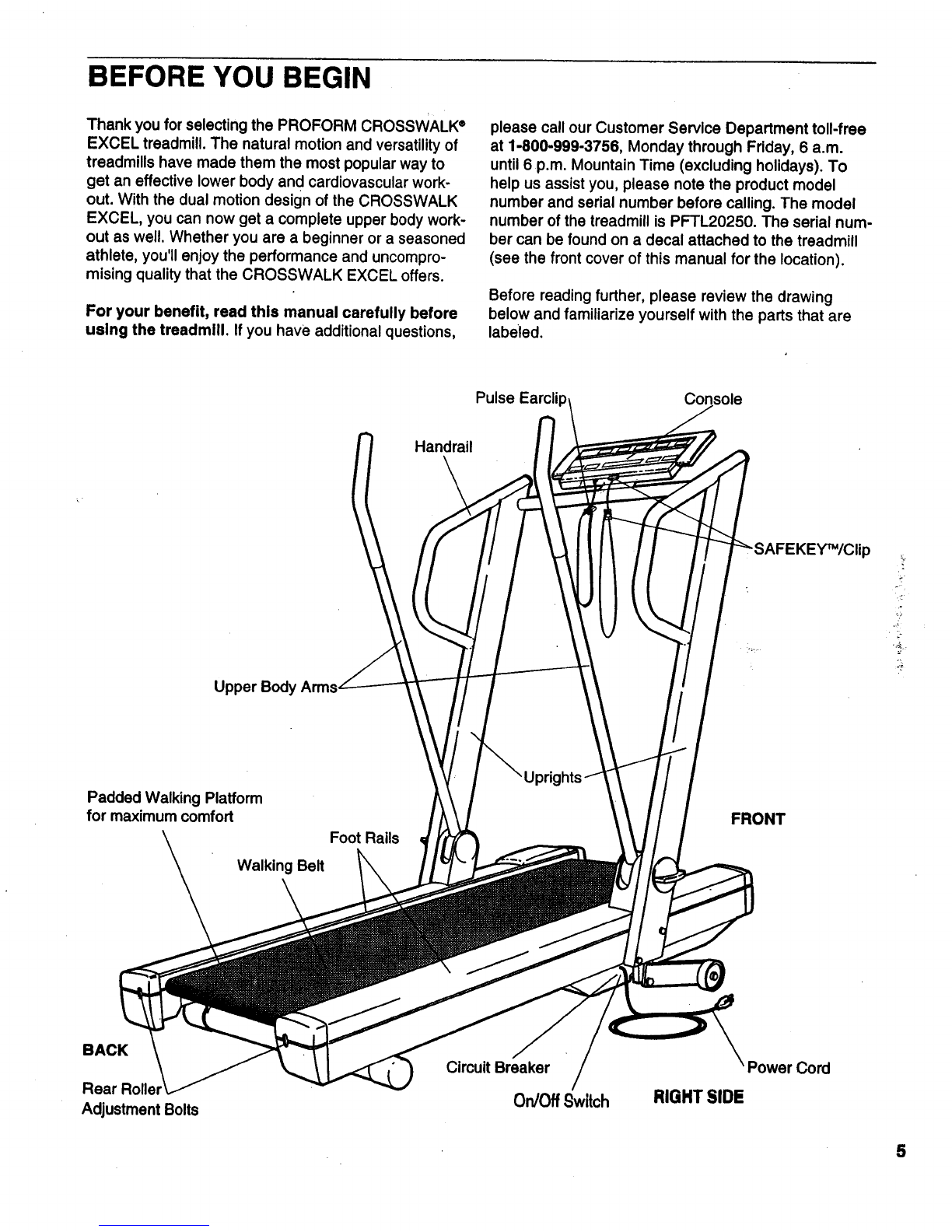

BEFORE YOU BEGIN
Thank you for selecting the PROFORM CROSSWALK ®
EXCEL treadmill. The natural motion and versatility of
treadmills have made them the most popular way to
get an effective lower body and cardiovascular work-
out. With the dual motion design of the CROSSWALK
EXCEL, you can now get a complete upper body work-
out as well. Whether you are a beginner or a seasoned
athlete, you'll enjoy the performance and uncompro-
mising quality that the CROSSWALK EXCEL offers.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL20250. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Pulse Earclip Console
Handrail
Upper Body Arms
P_.
Padded Walking Platform
for maximum comfort
Walking Belt
Foot Rails FRONT
BACK
Rear Rollel
Adjustment Bolts
CircuitBreaker
On/Off 9wltch RIGHT SIDE
Power Cord
5

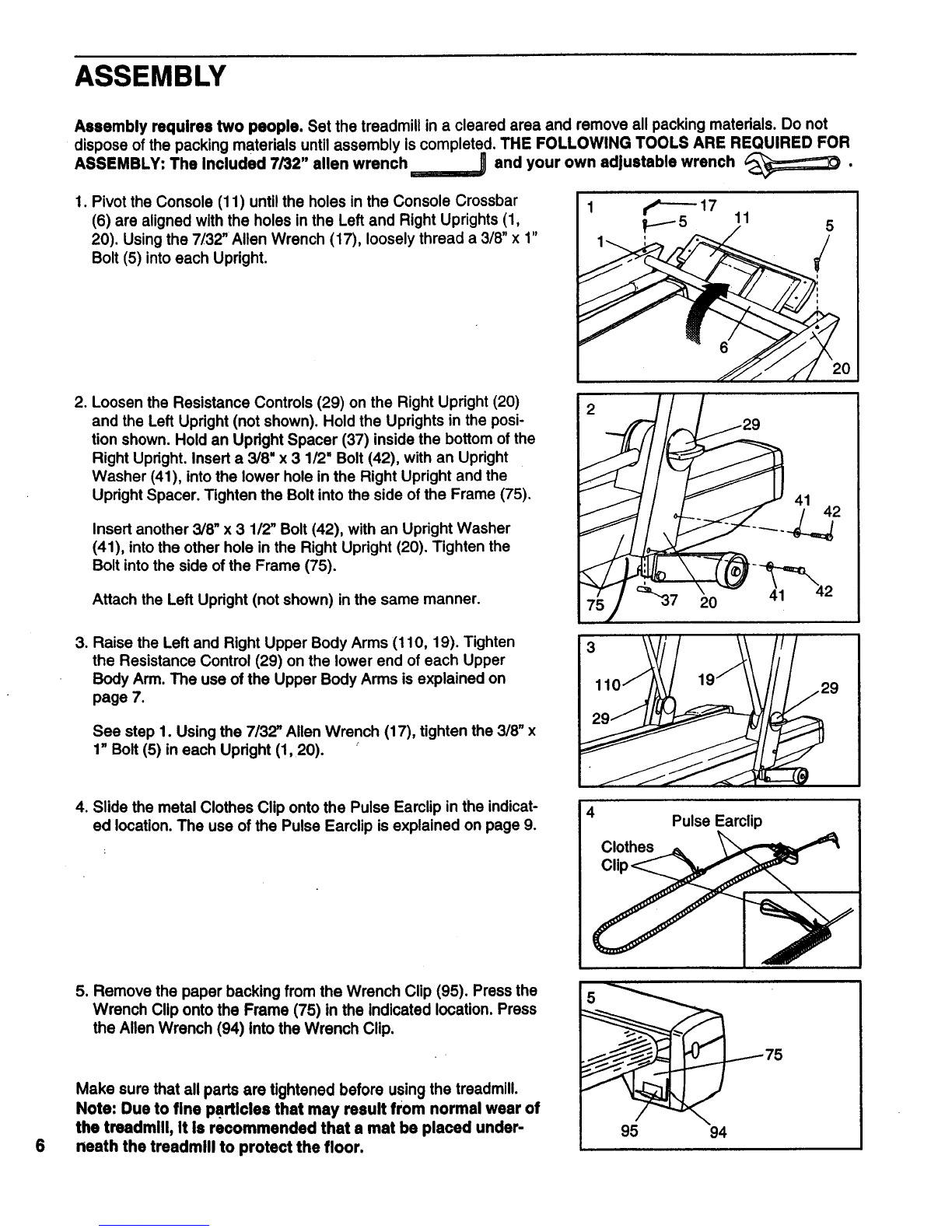

ASSEMBLY
Assembly requires two people. Set the treadmill in acleared area and remove all packing materials. Do not
dispose of the packing materials untll assembly Iscompleted. THE FOLLOWING TOOLS ARE REQUIRED FOR
ASSEMBLY: The Included 7/32" allen wrench _ and your own adjustable wrench _.
1. Pivot the Console (11) until the holes in the Console Crossbar
(6) are aligned with the holes in the Left and Right Uprights (1,
20). Using the 7/32" Allen Wrench (17), loosely thread a 3/8" x 1"
Bolt (5) intoeach Upright.
6
.Loosen the Resistance Controls (29) on the Right Upright (20)
and the Left Upright (not shown). Hold the Uprights in the posi-
tion shown. Hold an Upright Spacer (37) inside the bottom of the
Right Upright. Insert a 3/8" x 3 1/2" Bolt (42), with an Upright
Washer (41), intothe lower hole in the Right Upright and the
Upright Spacer. Tighten the Bolt into the side of the Frame (75).
Insert another 3/8" x3 1/2" Bolt (42), with an Upright Washer
(41), intothe other hole in the Right Upright (20). Tighten the
Bolt into the side of the Frame (75).
Attach the Left Upright (not shown) in the same manner.
3. Raise the Left and Right Upper Body Arms (110, 19). Tighten
the Resistance Control (29) on the lower end of each Upper
Body Arm. The use of the Upper Body Arms is explained on
page 7.
See step 1. Using the 7/32" Allen Wrench (17), tighten the 3/8" x
1" Bolt(5) in each Upright (1, 20).
4. Slide the metal Clothes Clip onto the Pulse Earclip in the indicat-
ed location. The use of the Pulse Earclip is explained on page 9.
41
_7 20 41 _42
Clothes
Clip
Pulse Earclip
6
5. Remove the paper backing from the Wrench Clip (95). Press the
Wrench Clip onto the Frame (75) in the indicated location. Press
the Allen Wrench (94) intothe Wrench Clip.
Make sure that all parts are tightened before using the treadmill.
Note: Due to fine particles that may result from normal wear of
the treadmill, it is recommended that a mat be placed under-
neath the treadmill to protect the floor.
5
_,.;÷
75
95 94

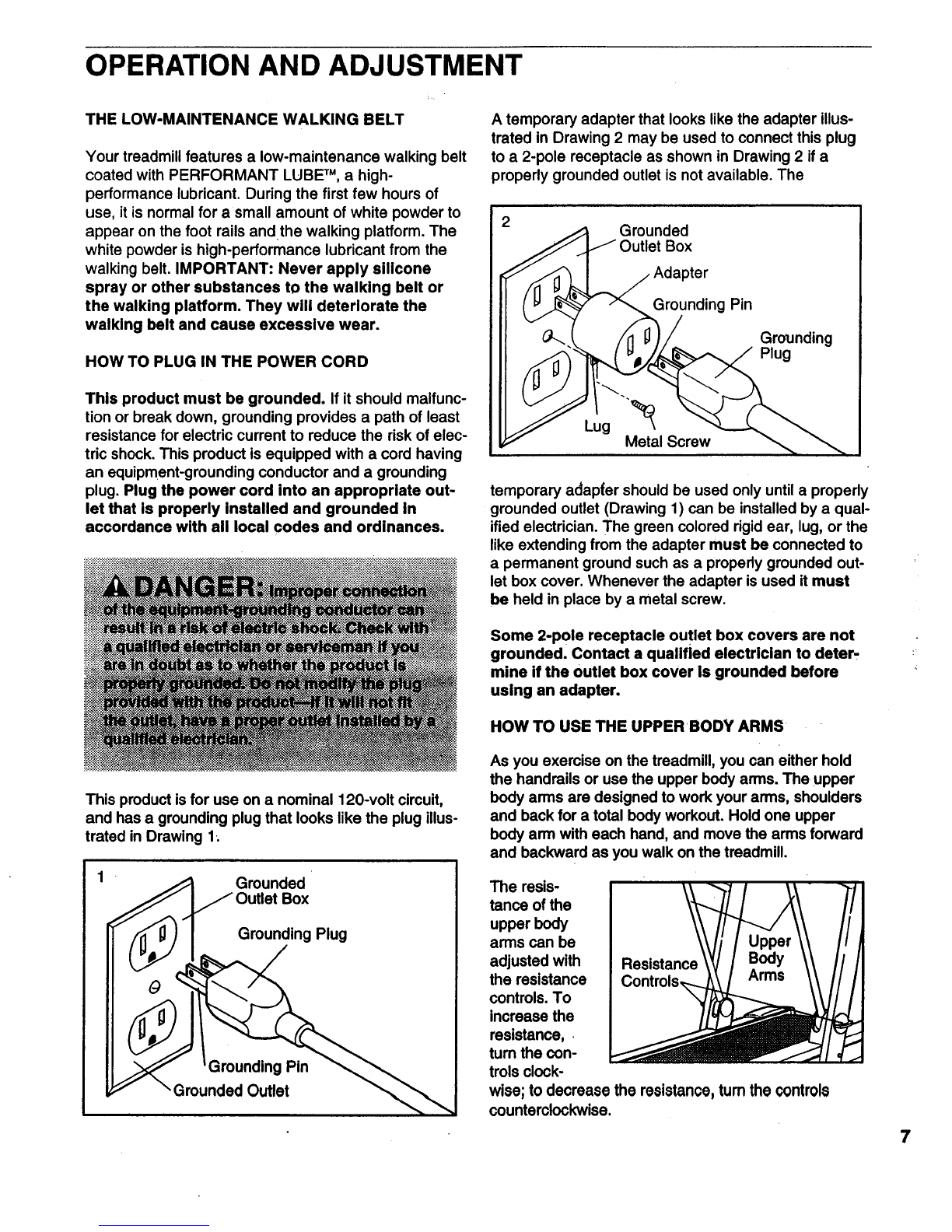

OPERATION AND ADJUSTMENT
THE LOW-MAINTENANCE WALKING BELT
Your treadmill features a low-maintenance walking belt
coated with PERFORMANT LUBE TM, a high-
performance lubricant. During the first few hours of
use, it is normal for a small amount of white powder to
appear on the foot rails and the walking platform. The
white powder is high-performance lubricant from the
walking belt. IMPORTANT: Never apply silicone
spray or other substances to the walking belt or
the walking platform. They will deteriorate the
walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into an appropriate out-
let that is properly installed and grounded in
accordance with all local codes and ordinances.
Atemporary adapter that looks like the adapter illus-
trated in Drawing 2 may be used to connect this plug
to a 2-pole receptacle as shown in Drawing 2 if a
properly grounded outlet is not available. The
2Grounded
Outlet Box
Grounding Pin
Lug -,z_
Metal Screw
Grounding
Plug
temporary adapfer should be used only until a properly
grounded outlet (Drawing 1) can be installed by a qual-
ified electrician. The green colored rigidear, lug, or the
like extending from the adapter must be connected to
a permanent ground such as a properly grounded out-
let box cover. Whenever the adapter is used itmust
be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to deter,
mine if the outlet box cover is grounded before
using an adapter.
HOW TO USE THE UPPER BODY ARMS
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in Drawing 1.
Grounded
Box
Grounding Plug
IGrounding Pin
Grounded Outlet
As you exercise on the treadmill, you can either hold
the handrails or use the upper body arms. The upper
body arms are designed to work your arms, shoulders
and back for a total body workout. Hold one upper
body arm with each hand, and move the arms forward
and backward as you walk on the treadmill.
The resis-
tance ofthe
upper body
arms can be
adjusted with Resistance
the resistance
controls. To
increase the
resistance,
turn the con-
trols clock-
wise; to decrease the resistance, rum the controls
counterclockwise.
7

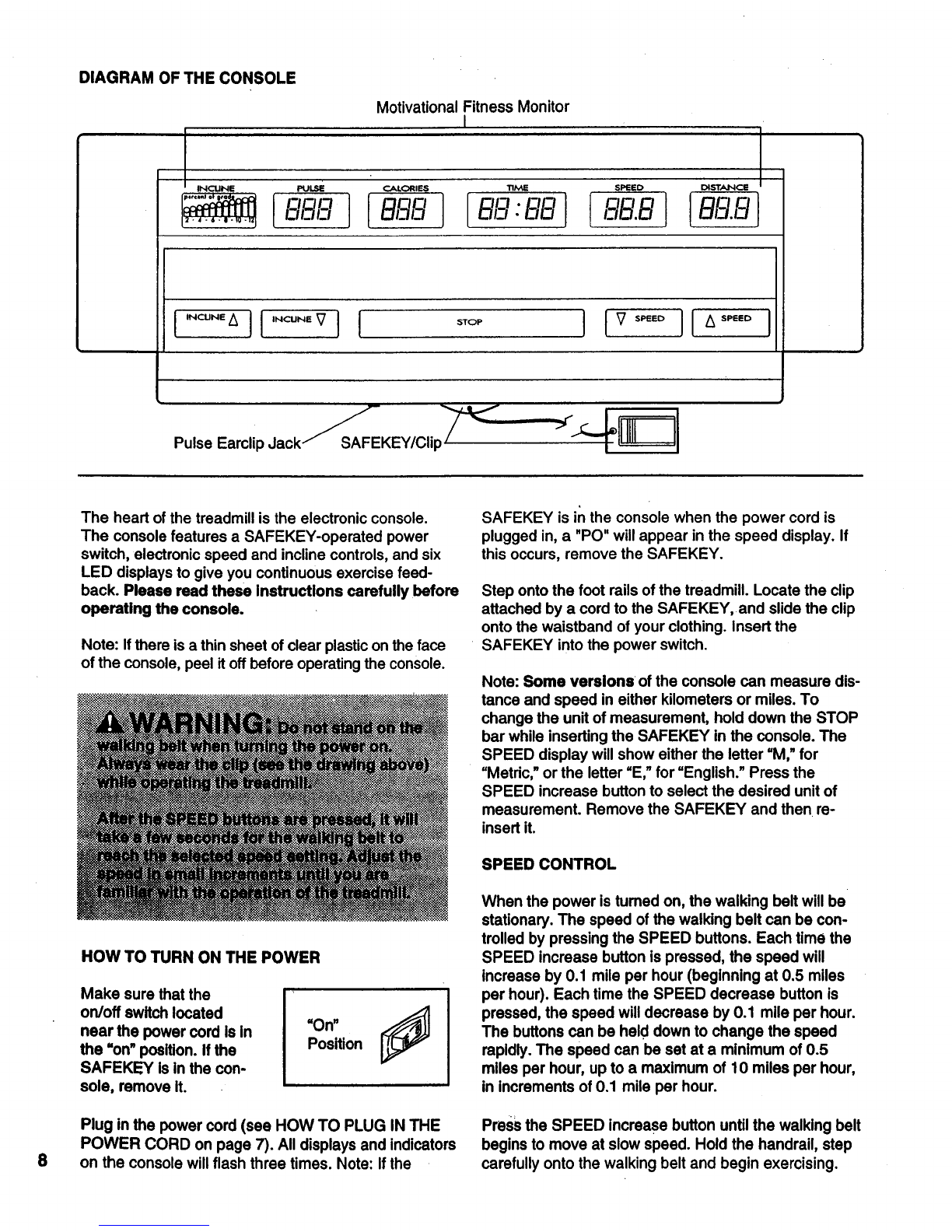

DIAGRAM OF THE CONSOLE
MotivationalFitnessMonitor
I
J INCUNE PULSE CALORIES TIME SPEED DISTANCE
Is,-q,-qI Iss,1[s 3.selss'.slIs .sl
I )I I I I Iv Jl I
..... j
8
The heart of the treadmill is the electronic console.
The console features a SAFEKEY-operated power
switch, electronic speed and incline controls, and six
LED displays to give you continuous exercise feed-
back. Please read these instructions carefully before
operating the console.
Note: Ifthere is a thin sheet ofclear plasticon theface
of the console, peel it offbefore operating the console.
HOW TO TURN ON THE POWER
Make sure that the
on/off switch located
near the power cord is in
the "on"position. Ifthe
SAFEKEY Is in the con-
sole, remove it.
=On" [_
Position
Plug in the power cord (see HOW TO PLUG IN THE
POWER CORD on page 7). All displays and indicators
on the console willflash three times. Note: Ifthe
SAFEKEY is in the console when the power cord is
plugged in,a "PO" will appear in the speed display. If
this occurs, remove the SAFEKEY.
Step onto the foot mils of the treadmill. Locate the clip
attached by a cord to the SAFEKEY, and slide the clip
onto the waistband of your clothing. Insert the
SAFEKEY into the power switch.
Note: Some versions ofthe console can measure dis-
tance and speed in either kilometers or miles. To
change the unit of measurement, hold down the STOP
bar while inserting the SAFEKEY in the console. The
SPEED display willshow either the letter "M," for
=Metric,"or the letter =E," for =English." Press the
SPEED increase button to select the desired unitof
measurement. Remove the SAFEKEY and then re-
insert it.
SPEED CONTROL
When the power is turned on, the walking belt will be
stationary. The speed of the walking belt can be con-
trolled by pressing the SPEED buttons. Each time the
SPEED increase button is pressed, the speed will
increase by 0.1 mile per hour (beginning at 0.5 miles
per hour). Each time the SPEED decrease button is
pressed, the speed will decrease by 0.1 mile per hour.
The buttons can be held down to change the speed
rapidly. The speed can be set at a minimum of 0.5
miles per hour, up to a maximum of 10 miles per hour,
in increments of 0.1 mile per hour.
Press the SPEED increase button until the walking belt
begins to move at slow speed. Hold the handrail, step
carefully onto the walking belt and begin exercising.

Change the speed as desired by pressing the SPEED
buttons.To stop the walking belt, hold down the
SPEED decrease button. The walking belt can be
stopped quickly, if desired, by pressing the STOP bar.

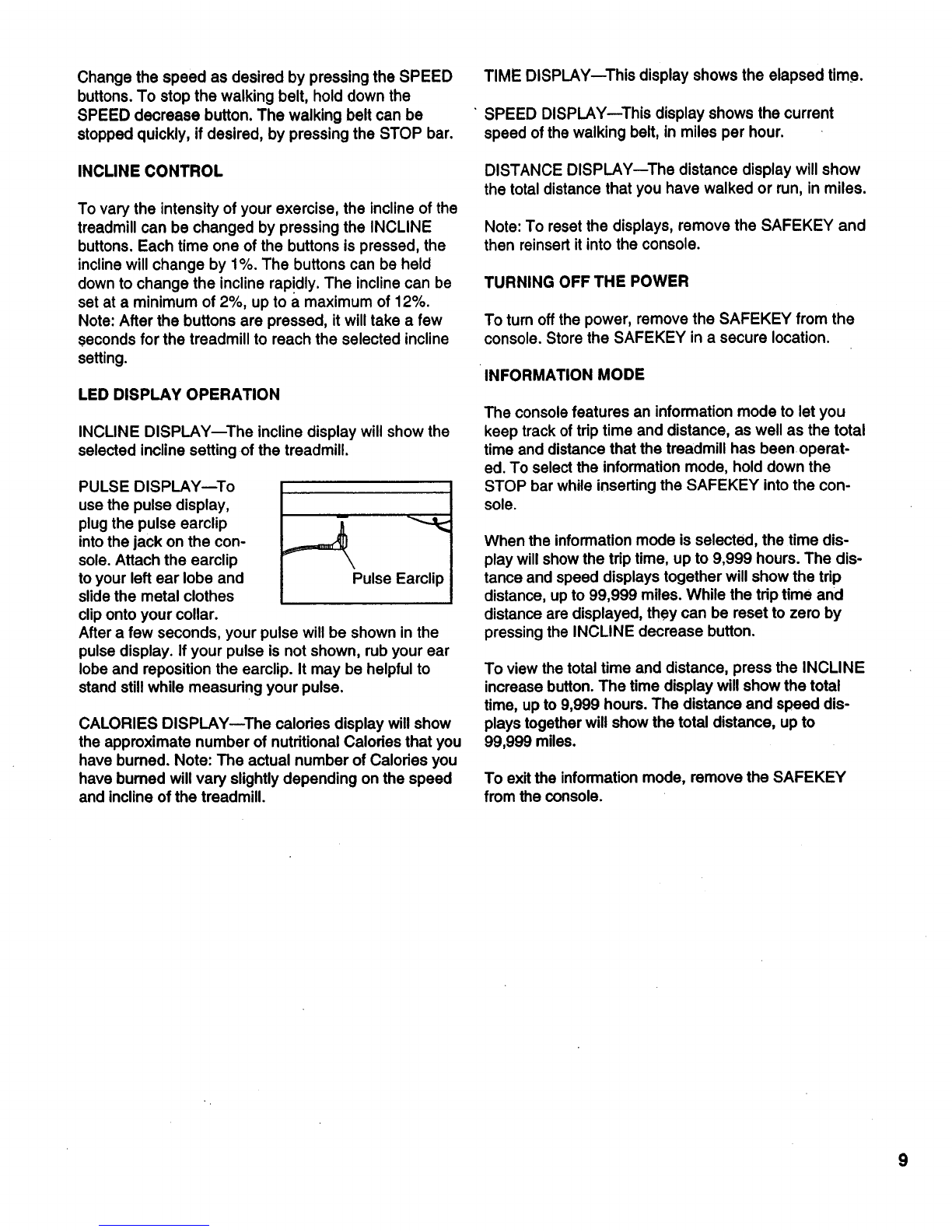

INCLINE CONTROL
To vary the intensity of your exercise, the incline of the
treadmill can be changed by pressing the INCLINE
buttons. Each time one of the buttons is pressed, the
inclinewill change by 1%. The buttons can be held
down to change the incline rap!dly. The inclinecan be
set at a minimum of 2%, up to a maximum of 12%.
Note: After the buttons are pressed, it will take a few
Seconds for the treadmill to reach the selected incline
setting.
LED DISPLAY OPERATION
INCLINE DISPLAY--The incline display will show the
selected incline setting of the treadmill.
PULSE DISPLAY--To
use the pulse display,
plug the pulse earclip
intothe jack on the con-
sole. Attach the earclip
to your left ear lobe and
slide the metal clothes
clip onto your collar.
Pulse Earclip
After a few seconds, your pulse will be shown in the
pulse display. If your pulse is not shown, rub your ear
lobe and reposition the earclip. It may be helpful to
stand stillwhile measuring your pulse.
CALORIES DISPLAY--The calodes display will show
the approximate number of nutritional Calodes that you
have burned. Note: The actual number of Calories you
have burned will vary slightlydepending on the speed
and incline of the treadmill.
TIME DISPLAY--This display shows the elapsed time.
•SPEED DISPLAY--This display shows the current
speed ofthe walking belt, in miles per hour.
DISTANCE DISPLAY--The distance display will show
the total distance that you have walked or run, in miles.
Note: To reset the displays, remove the SAFEKEY and
then reinsert itinto the console.
TURNING OFF THE POWER
To turn off the power, remove the SAFEKEY from the
console. Store the SAFEKEY in a secure location.
INFORMATION MODE
The console features an information mode to let you
keep track of tdp time and distance, as well as the total
time and distance that the treadmill has been operat-
ed. To select the information mode, hold down the
STOP bar while inserting the SAFEKEY into the con-
sole.
When the information mode is selected, the time dis-
play will show the triptime, up to 9,999 hours. The dis-
tance and speed displays together willshow the trip
distance, up to 99,999 miles. While the trip time and
distance are displayed, they can be reset to zero by
pressing the INCLINE decrease button.
To view the total time and distance, press the INCLINE
increase button. The time display will show the total
time, up to 9,999 hours. The distance and speed dis-
plays together will show the total distance, up to
99,999 miles.
To exit the information mode, remove the SAFEKEY
from the console.
9

TROUBLE-SHOOTING AND STORAGE
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
apples, and follow the steps listed. If further assistance is needed, call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time.
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a properly grounded outlet. (See HOW TO PLUG IN THE
POWER CORD on page 7.) If an extension cord is needed, use only a 14-gauge general-purpose cord of
five feet or less in length.
b. After the power cord has been plugged in, make sure that the SAFEKEY is fully inserted into the console.
Various indicators on the console should light. (See HOW TO TURN ON THE POWER on page 8.)
C. Check the circuit breaker located on the treadmill near the
power cord. If the switch protrudes as shown, the circuit break-
er has tripped. To reset the circuit breaker, wait for five min-
utes and then press the switch back in.
d. Check the on/off switch located on the treadmill near the
power cord. The switch must be in the "on" position.
2. SYMPTOM: THE POWER TURNS OFF DURING USE
Tripped
"On"
Position
Reset
a. Check the circuit breaker located on the treadmill near the power cord. Ifthe circuit breaker has tripped (see
the drawing above), wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the SAFEKEY from the console. Reinsert the SAFEKEY fully into the console. Various indicators on
the console should light.
d. Check to make sure the on/off switch is in the "on" position. (See 1. d. above.)
e. If the treadmill stillwill not run, please call our Customer Service Department.
3. SYMPTOM: THE PULSE EARCLIP DOES NOT FUNCTION PROPERLY
a. Make sure that the pulse earclip is plugged fully into the jack on the console. Rub your left ear lobe and
repositionthe earclip. Attach the clothes clip to your collar.
b. Stand stillwhile measuring your pulse.
•c. The pulse earclip may need to be cleaned. Press the earclip open, and find the two clear circles inside the
earclip. Wipe the two clear circles using a cotton swab moistened with water.
10
4. SYMPTOM: THE CONSOLE DOES NOT FUNCTION PROPERLY
a. If a console malfunction occurs, an error code ("El ,""E2," "E3," etc.) may appear in one of the displays. If an
error code appears, remove the SAFEKEY, wait for ten seconds and then reinsert the 9AFEKEY. If an error
code appears again, call our Customer Service Department. Do not operate the treadmill untilthe problem is
corrected.

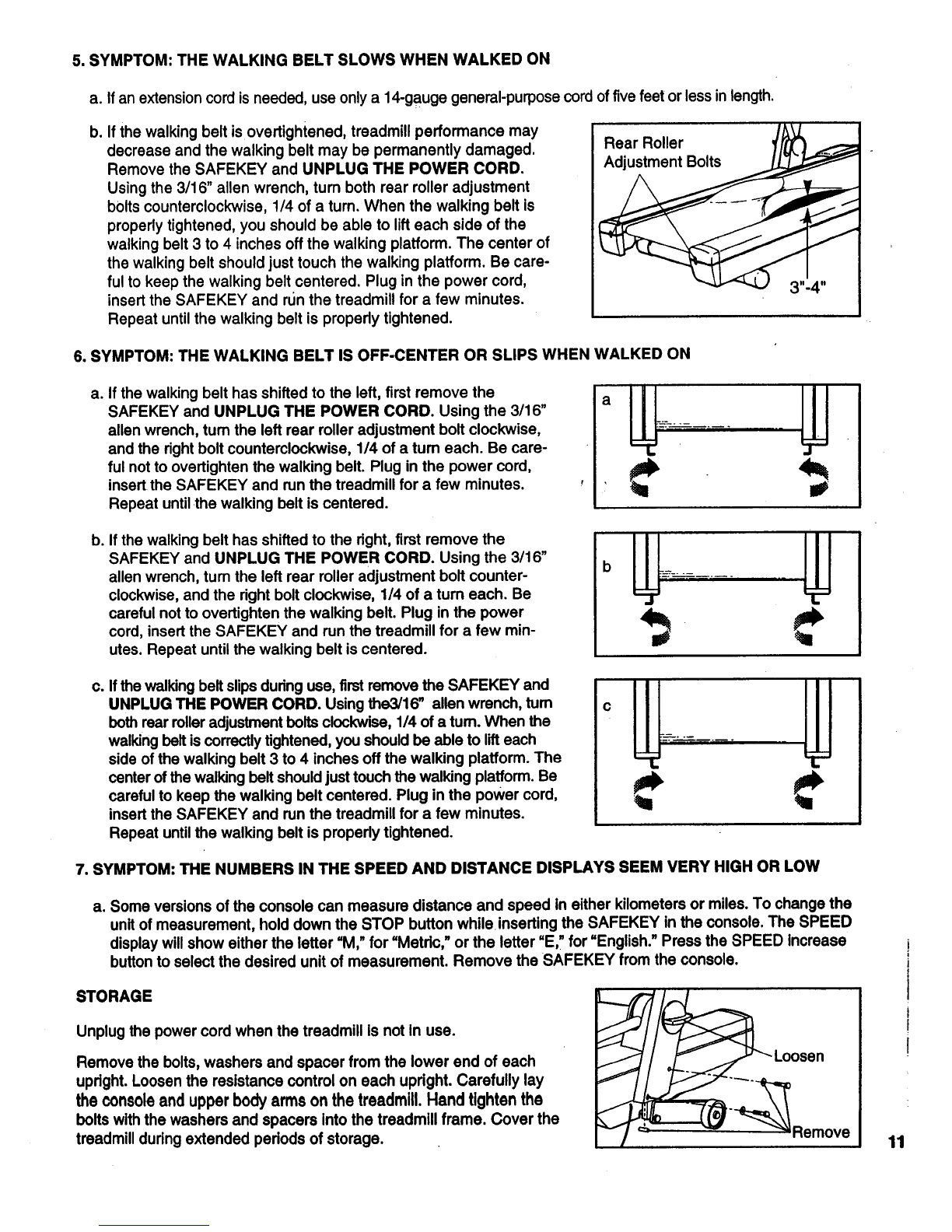

5. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a.
b.
Ifan extensioncord is needed, use onlya 14-gauge general-purpose cord of fivefeet or less in length.
If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged.
Remove the SAFEKEY and UNPLUG THE POWER CORD.
Using the 3/16" allen wrench, tum both rear roller adjustment
boltscounterclockwise, 1/4 of a turn. When the walking belt is
properly tightened, you should be able to lift each side of the
walking belt 3 to 4 inches off the walking platform. The center of
the walking belt should just touch the walking platform. Be care-
ful to keep the walking belt centered. Plug in the power cord,
insert the SAFEKEY and rtJn the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
Rear Roller
Adjustment Bolts
6. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON
a. If the walking belt has shifted to the left, first remove the
SAFEKEY and UNPLUG THE POWER CORD. Using the 3/16"
allen wrench, tum the left rear roller adjustment bolt clockwise,
and the right bolt counterclockwise, 114of a turn each. Be care-
ful not to overtighten the walking belt. Plug in the power cord,
insertthe SAFEKEY and run the treadmill for afew minutes.
Repeat untilthe walking belt is centered.
LU
b. If the walking belt has shifted to the right, first remove the
SAFEKEY and UNPLUG THE POWER CORD. Using the 3/16"
allen wrench, turn the left rear roller adjustment bolt counter-
clockwise, and the right bolt clockwise, 1/4 of a turn each. Be
careful not to overtighten the walking belt. Plug in the power
cord, insert the SAFEKEY and run the treadmill for a few min-
utes. Repeat until the walking belt is centered.
Co Ifthewalking belt slipsduring use, first remove the SAFEKEY and
UNPLUG THE POWER CORD. Using the3/16" allen wrench, tum
bothrear rolleradjustment bolts clockwise, 114of a tum. When the
walking belt iscorrectlytightened, you should be able to lifteach
side of the walking belt 3 to 4 inches off the walking platform. The
center of the walking belt shouldjust touch the walking platform. Be
careful to keep the walking belt centered. Plug in the power cord,
insertthe SAFEKEY and run the treadmill for afew minutes.
Repeat until the walking belt is properly tightened.
7. SYMPTOM: THE NUMBERS IN THE SPEED AND DISTANCE DISPLAYS SEEM VERY HIGH OR LOW
a. Some versions of the console can measure distance and speed in either kilometers or miles. To change the
unitof measurement, hold down the STOP button whileinserting the SAFEKEY in the console. The SPEED
display will show either the letter "M," for "Metric," or the letter "E,, for "English." Press the SPEED Increase
buttonto select the desired unit of measurement. Remove the SAFEKEY from the console.
STORAGE
Unplug the power cord when the treadmill is not in use.
Remove the bolts, washers and spacer from the lower end of each
upright.Loosen the resistance control on each upright. Carefully lay
the console and upper body arms on the treadmill. Hand tighten the
bolts with the washers and spacers into the treadmill frame. Cover the
treadmill during extended periods of storage. Remove 11

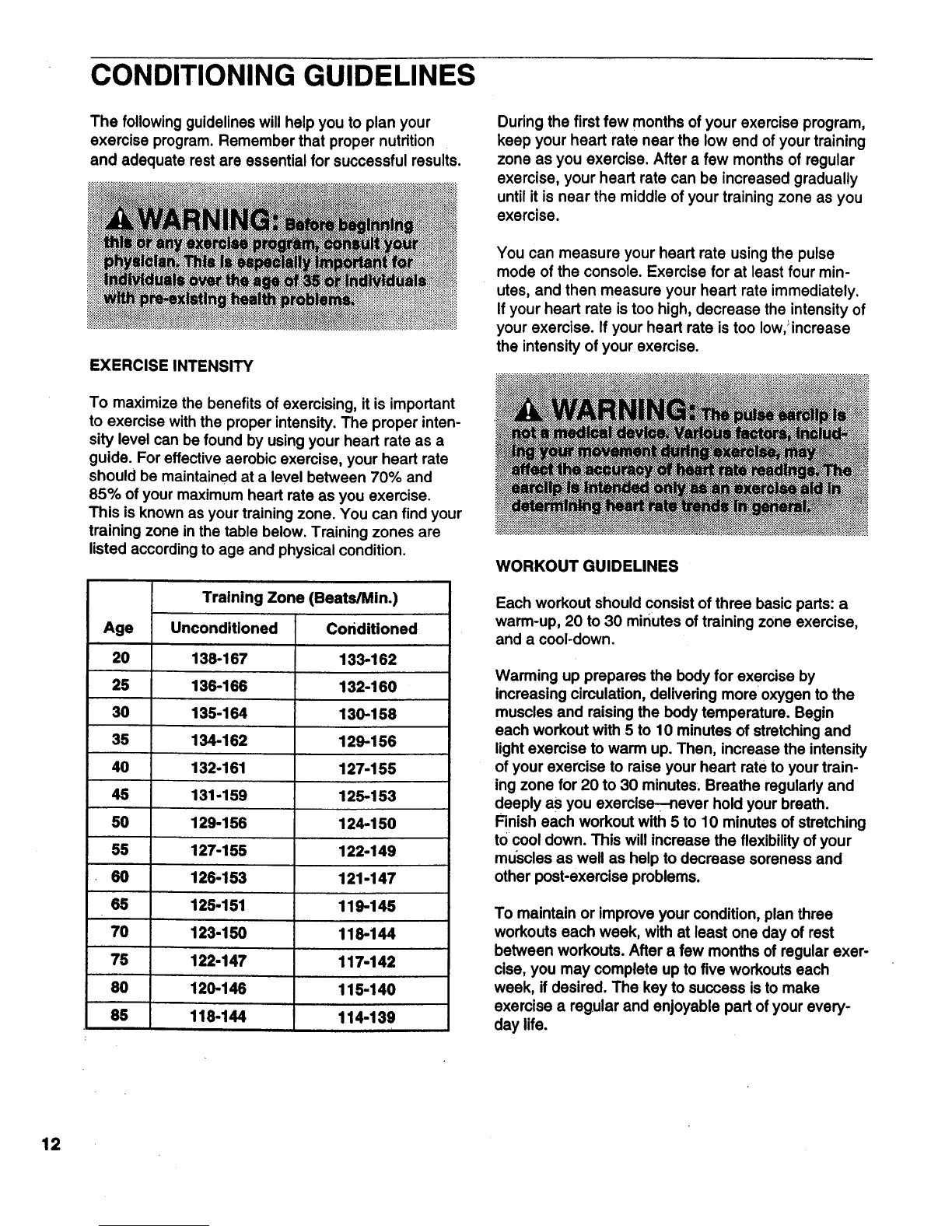

CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important
to exercise with the proper intensity.The proper inten-
sity level can be found by using your heart rate as a
guide. For effective aerobic exercise, your heart rate
should be maintained at a level between 70% and
85% of your maximum heart rate as you exercise.
This is known as your training zone. You can find your
training zone in the table below. Training zones are
listed according to age and physical condition.
Training Zone (Beats/Min.)
Age Unconditioned
20 138-167
25 136-166
30 135-164
35 134-162
40 132-161
45 131-159
50 129-156
55 127-155
60 126-153
65 125-151
70 123-150
75 122-147
80 120-146
85 118-144
Conditioned
133-162
132-160
130-158
129-156
127-155
125-153
124-150
122-149
121-147
119-145
118-144
117-142
115-140
114-139
During the first few months of your exercise program,
keep your heart rate near the low end of your training
zone as you exercise. After a few months of regular
exercise, your heart rate can be increased gradually
until it is near the middle of your training zone as you
exercise.
You can measure your heart rate using the pulse
mode of the console. Exercise for at least four min-
utes, and then measure your heart rate immediately.
If your heart rate istoo high, decrease the intensity of
your exercise. If your heart rate is too low;'increase
the intensity of your exercise.
WORKOUT GUIDELINES
Each workout should consist of three basic pads: a
warm-up, 20 to 30 minutes oftraining zone exercise,
and a cool-down.
Warming up prepares the body for exercise by
increasing circulation, delivering more oxygen to the
muscles and raising the body temperature. Begin
each workout with 5 to 10 minutes of stretchingand
light exercise to warm up. Then, increase the intensity
of your exercise to raise your heart rate to your train-
ing zone for 20 to 30 minutes. Breathe regularly and
deeply as you exercise--never hold your breath.
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility ofyour
muscles as well as help to decrease soreness and
other post-exercise problems.
To maintain or improve your condition, plan three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. The key to success is to make
exercise a regular and enjoyable part of your every-
day life.
12

SUGGESTED STRETCHES
The following stretches can provide a good warm-up or cool-down. Correct form for each stretch is shown in the
drawings below. Move slowly as you stretch---never bounce.
TOE TOUCH STRETCH
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for both legs.
Stretches: Hamstrings, lower back and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot fiat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for both legs. To cause further stretching ofthe
achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bdng your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for both legs.
Stretches: Quadriceps and hip muscles.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 Counts,then relax. Repeat 3 times.
Stretches: Quadricepsand hipmuscles.
13

PART LIST--Model No. PFTL20250
Key Key
No. Qty. Description No. Qty. Description
R895A
1 1 Left Upright/Handrail 61 5 Incline Leg Nut/Motor Tension Nut
2 2 Upper Body Arm Foam 62 1 Incline Leg
3 2 Rear Leg Endcap 63 1 Power Board
4 2 Handrail Endcap 64 4 Plastic Stand-Off
5 2 3/8" x 1" Bolt 65 2 Cover Washer
6 1 Console Crossbar 66 2 Large Tension Spacer
7 6 Cage Nut 67 1 Front Safety Cover
8 6 Console Screw 68 1 Right Foot Rail
9 1 Wire Cover 69 1 Rear Safety Cover
10 1 Upright Wire Hamess 70 1 Walking Belt
11 1 Console 71 1 Star Washer
12 1 SAFEKEY_/Clip 72 1 Motor Belt
13 2 Motor Nut 73 8 Platform Screw
14 1 Pulse Earclip/Clothes Clip 74 1 Walking Platform
15 1 Speed Disk 75 1 Frame
16 1 Optic Switch Bracket 76 1 Optic Switch Bracket Nut
• 17 1 7/32" Allen Wrench 77 2 Optic Switch
18 1 Crossbar Cable Loom 78 2 Small Bolt
19 1 Right Upper Body Arm 79 2 Small Nut
20 1 Right Upright/Handrail 80 1 InclineOptic Disk
21 3 Belt Guide Screw 81 2 Incline Motor Bolt
22 1 Right Resistance Cover 82 1 Incline Motor
23 1 Resistance Bolt 83 1 Incline Motor Spacer
24 4 Thrust Washer 84 2 Optic Switch Wire Hamess
25 2 Thrust Beating 85 4 Endcap Screw
26 1 Left Leather/Metal Resistance Plate 86 1 Incline Stop Bracket
27 2 Resistance Plate 87 1 Motor
28 1 Switch Star Washer 88 1 Right Rear Endcap
29 2 Resistance Control 89 2 Rear Roller Adjust Bolt
30 1 Front Roller Adjustment Bolt 90 1 Cable Tie Wrap
31 8 RollerAdjustment Washer 91 2 4" Cable Tie
32 1 Front Right Endcap 92 8 8" Cable Tie
33 1 Front Left Endcap 93 1 Tie Block
34 1 Front Roller/Pulley 94 1 3/16" Allen Wrench
35 1 Uptight Cable Loom 95 1 Wrench Clip
36 2 Upper Body Arm Cover 96 1 Rear Roller
•37 2 Uptight Spacer 97 1 Left Rear Endcap
38 1 20 =Wire Hamess 98 2 Foot Rail Bracket
39 15 Safety Cover Screw 99 1 Left Foot Rail
40 2 Plastic Spacer 100 1 Choke Bracket
41 4 Updght Washer 101 1 Choke
42 4 3/8" x 3 1/2" Bolt 102 2 Motor Bolt
43 1 14" Power Board/Controller Wire 103 1 Right Leather/Metal Resistance Plate
44 1 Belt Guide 104 1 Motor Swivel Bolt
45 6 Small Screw 105 1 Motor Tension Washer
•46 1 Electronics Bracket 106 1 Motor Tension Nut
47 1 6" Cable Loom 107 1 Motor Mount Bracket
45 1 Grommet 108 1 Pulley/Flywheel/Fan
49 1 Circuit Breaker 109 1 Left Resistance Cover
50 1 On/Off Switch #1 9" Black Wire, Male/Female
51 1 Power Cord # 1 8" Black Wire, 2 Female
52 2 Wheel Bolt # 1 4" Black Wire, 2Female
53 2 Front Wheel # 1 8"White Wire, Male/Female
54 1 Power Cord Bracket # 1 8"White Wire, 2 Female
1 Left Upper Body Arm # 1 14" Blue Wire, Male/Female
1 Controller #1 8" Blue Wire, 2 Female
57 2 Wheel Nut #1 8"Green Ground Wire
58 1 Safety Cover Bracket #1 8" Red Wire, Male/Female
59 . 3 Incline Leg Bolt/Motor Tension Bolt #1 Owner's Manual
60 2 Incline Leg Washer
14 Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. "

EXPLODED DRAWING--Model No. PFTL20250 R89SA
12
29 24
42 41
101
74
89
7
111 9
112
87
15
78
69
70
/
80'
61
83
10
16 79
76
77
67
68
64
75
81
8
61
61
11
21
7
23
32 31
21
25
41
21
8
27
29
51
15

ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
•The MODEL NUMBER of the product (PFTL20250).
•The NAME of the product (PROFORM ®CROSSWALK ®EXCEL TM treadmill).
•The SERIAL NUMBER of the product (see the front cover of this manual).
* The KEY NUMBER of the part(s) (see page 14 of this manual).
.The DESCRIPTION of the part(s) (see page 14 of this manual),
If possible, place the treadmill near your telephone for easy reference when calling.
Part No. 126128 R895A Printed in USA ©1995 ICON Health &Fitness, Inc.
