Proactive Protekt Take-A-Long 33400P User manual

PROTEKT® TAKE-A-LONG
FOLDING ELECTRIC PATIENT LIFT
MODEL: 33400P
270 Washington Street
Mount Vernon, NY 10553
855-237-7622
www.proactivemedical.com
OWNER’S MANUAL
1

Thank you for choosing the Protekt® Take-A-Long Lift!
To better serve you, please record the following information:
Supplier Name：__________________________________________
Telephone：______________________________________________
Serial #：________________________________________________
Date of Purchase：________________________________________
INSPECT YOUR MERCHANDISE
Upon receipt of your patient lift, verify that all merchandise is complete
and free from any shipping damage. Refuse delivery if the packaging
appears to be badly damaged. If the merchandise is received damaged
or is missing components, contact the shipping company immediately
and file a claim.
For further assistance, contact your local dealer or Proactive Medical
Products at the following:
Proactive Medical Products
270 Washington Street
Mount Vernon, NY 10553
Tel: [phone]
www.proactivemedical.com
2

a. Boom
b. Mast
c. Base
d. Spreader bar
e. Pendant
f. Actuator
g. Control box
h. Caster with brake
i. Front caster
j. Emergency Lowering Device
Features Chart:
Control box on/off and
emergency stop button
Control buttons
LCD screen
Battery pack
Charger connector
Battery release clip
Hand pendant connector
Lifting actuator connector
c
a
b
d
e
f
g
h
i
j
3

SAFETY INSTRUCTIONS
The Protekt® Take-A-Long 33400P patient lift reflects innovative state of
the art design to increase user mobility. Your Protekt® lift will provide years
of service if it is properly maintained as any piece of electrical/mechanical
equipment requires.
Please pay careful attention to the following important information
regarding the care, maintenance, and operation of the Protekt® Take-A-
Long 33400P patient lift. Carefully read these instructions before
assembling the lifter or attempting to lift any user with the device.
PLEASE NOTE THE FOLLOWING:
Special care must be taken with users/patients who cannot themselves
provide assistance while being lifted. (i.e. patients who are comatose,
spastic, agitated, or otherwise severely handicapped).
The Protekt® Lift 33400P should be used solely for transferring a user/
patient from one utility (beds, chairs, toilets, etc.) to another. The
patient lift should not be used for transporting or moving any patient
from one location to another location.
During lifting or lowering, whenever possible, always keep the base of
the lift in the widest position.
The base of the lift should be closed before moving the lift.
Do not roll casters over any object while the user/patient is in the sling.
Do not lock casters during lifting.
While being lifted in a sling, always keep the user/patient centered
over the base and facing the caregiver operating the lifter.
Maximum weight that can be safely lifted is 400 pounds.
Never leave the user/patient unattended during lifting.
The Protekt® Take-A-Long 33400P lift allows a person to be lifted
and transferred safely, with minimum physical effort provided by the
caregiver. Before attempting to lift anyone, please practice operating
the lift. Also prior to actual lifting, explain the lifting procedure to the
user/patient.
4

WARNING!
Do not attempt to transfer a patient without prior approval of the
patient’s primary caregiver. Also, do not transfer without having
studied the instructions and practiced operating the lift and sling
several times. Together with the patient’s doctor, nurse, or medical
attendant, select a sling that is both practical and comfortable.
The sling selected should be one that serves the needs of the
patient, while providing the patient with optimal safety. Never
interfere with the lift, unless instructed by the attendant. Have a
doctor, nurse, or medical attendant (experienced in the use of the
Protekt® Lift 33400P) present during the first few times the lift is
used to transfer a new user.
WARNING!
Proactive Medical slings are specially designed to be used in
conjunction with Proactive lifts. Do not use slings manufactured
by other companies with any of Proactive Medical’s equipment.
USING OTHER MANUFACTURER’S SLINGS ON THIS EQUIPMENT
IS UNSAFE AND MAY RESULT IN SERIOUS INJURY TO USERS
AND CAREGIVERS. PROACTIVE MEDICAL is not responsible for
any consequence resulting from the use of non-Proactive slings
on this equipment.
WARNING!
Do not put anything (e.g. cushion, pad, etc.) between the user and
the sling. This may cause the user/patient to slide out of the sling
and cause injury.
WARNING!
Avoid personal injury by making sure no children or pets are near
the Protekt® Lift 33400P while it is being used.
WARNING!
Avoid personal injury by making sure all extremities (such as
fingers, arms, legs, or feet) are clear of the lift mechanism while it is
in operation.
5

WARNING!
Avoid personal injury and possible damage to the Protekt® Lift
33400P by making sure the maximum weight limit of 400 lbs. is not
exceeded.
WARNING!
Replace any worn parts with only genuine Proactive Medical
parts. The patient lift parts are not interchangeable with parts
from other patient lift brands. Using other patient lift parts on
these products is unsafe and may result in serious injury to user
and caregiver. Proactive Medical is not responsible for any
consequence resulting from the use of non-Proactive parts and
components.
WARNING!
Avoid personal injury by making sure the battery charger is
disconnected before conducting any electrical inspection. Contact
your dealer if any electrical problem is detected.
WARNING!
Service and repair of this equipment should be performed only by
an authorized dealer. Proactive Medical is not responsible for any
consequence resulting from any unauthorized service or repair.
CAUTION
Avoid damage to the Protekt® Lift 33400P by keeping foreign
objects from coming into contact with the lift mechanism.
NOTE
Arrange all necessary items (lift, slings, commode chair or wheel-
chair) for a smooth procedure. The user/patient being transferred
should be positioned in the center of the bed before being
lifted, as well as when he/she is returned to the bed. Keep lifter base
widened and brakes unlocked during lifting.
6

ASSEMBLY INSTRUCTIONS
WARNING!
The lift is heavy! Therefore, avoid injury and DO NOT attempt to
remove the lift from the box without any assistance.
Assemble the patient lift in accordance with the following instructions:

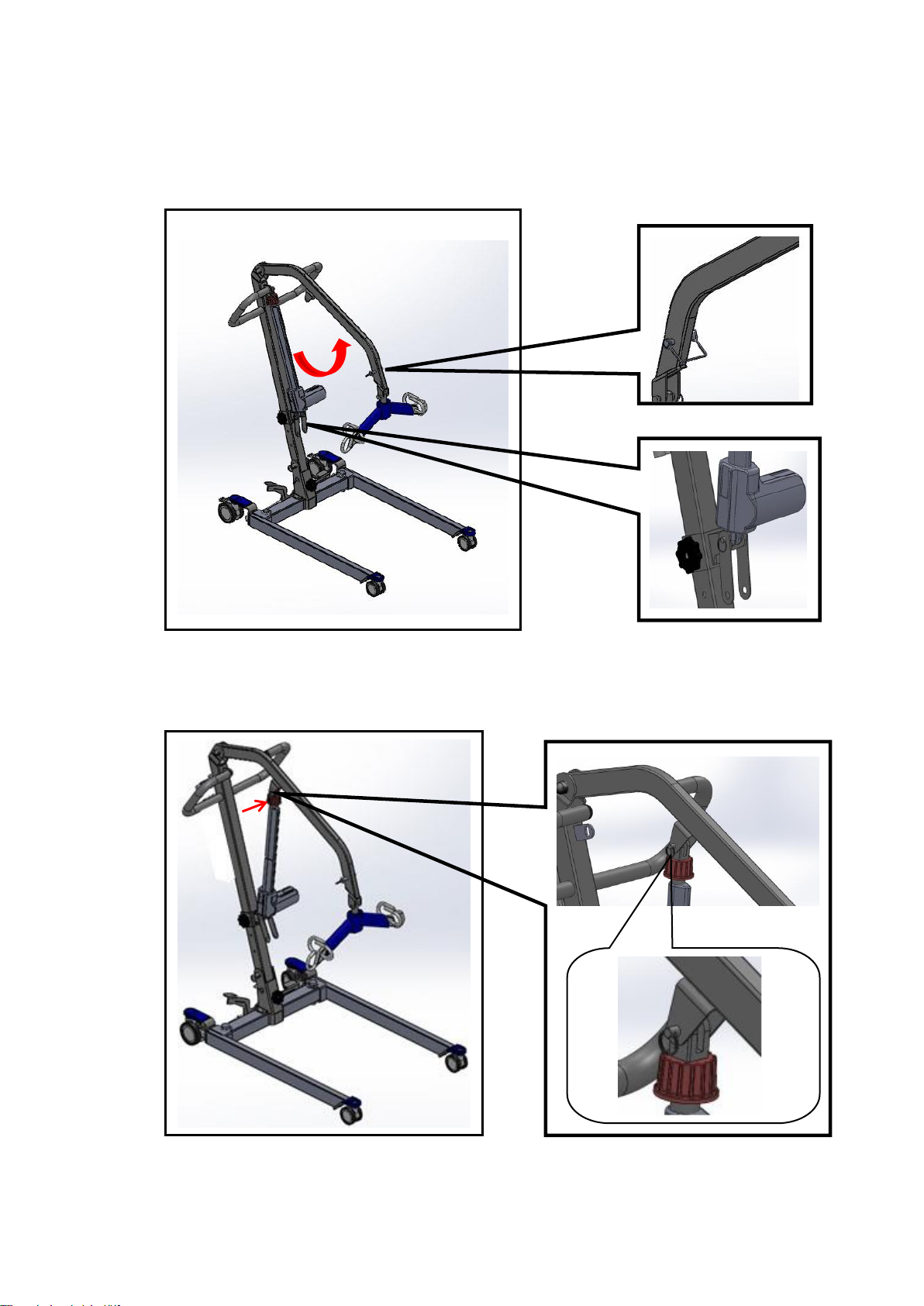

Engage the brakes. Remove the Black Hand nut from the bottom of the
mast and QR pin from the bottom of the Mast and Base.
Pull the Mast, Boom and Spreader Bar to an upright position. Re-insert the
QR pin into the holes at the bottom of the Mast and then use the Black (no
tool) Hand Nut to secure the Mast in place and make sure the Hand Nut is
holding the Mast securely.
Step 1.Step 1.
7

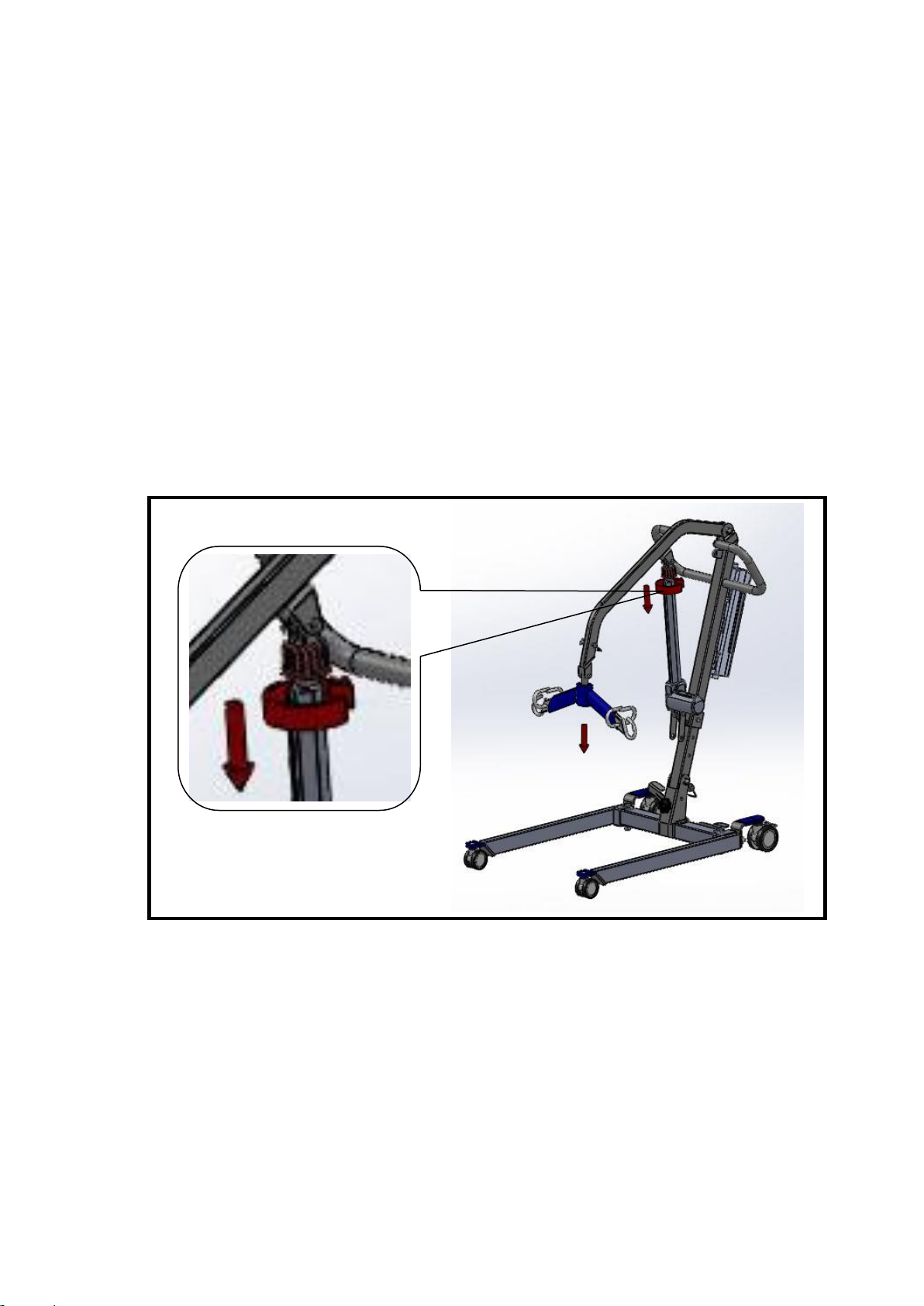

B. Attach the top of the Actuator to the bracket on the Boom and
insert pin. Insert keeper ring through hole in pin to secure actuator to
upper bracket.
A. Remove another QR pin which is connected to the bottom of Actuator
and Boom. Leave the QR pin on Boom as below left picture.
Step 2.
8

Attach the Control Box to the Mast and tighten two screws.
Insert the Actuator plug into the Control Box.
Insert the Pendant plug into the Control Box.
NOTE:
Prior to using the Protekt® Lift 33400P, charge the batteries for 10-12 hours.
Pendant plug
Actuator plug
Step 3.
Step 4.
Step 5.
9

MAINTENANCE & INSPECTION CHECK LIST
The operator is to inspect the Protekt® Take-A-Long Lift 33400P prior to
each use. Check all bolts for tightness. Make sure the base can be
easily widened, and that all lift parts are in place. Make sure all
casters turn freely, and that the caster brakes can be engaged. Make
certain all necessary items (i.e. slings, wheel chairs, etc.) are accessible
and ready for use.
At least once a month, the lift should be thoroughly inspected by a person
qualified to recognize any signs of wear, and looseness of bolts or parts.
Replace any worn parts immediately.
To lubricate, place a drop of oil on the following points when the Protekt®
Lift 33400P is serviced and every month thereafter - Top of Mast,
Spreader Hinge, and Caster Axles.
10

USER GUIDE
CHARGING THE BATTERY -
The lift can be charged by plugging the charger directly into the control
box while it is attached to the lift.
Or
The battery pack can be charged while seated in the (optional) wall/
desk charging caddy.

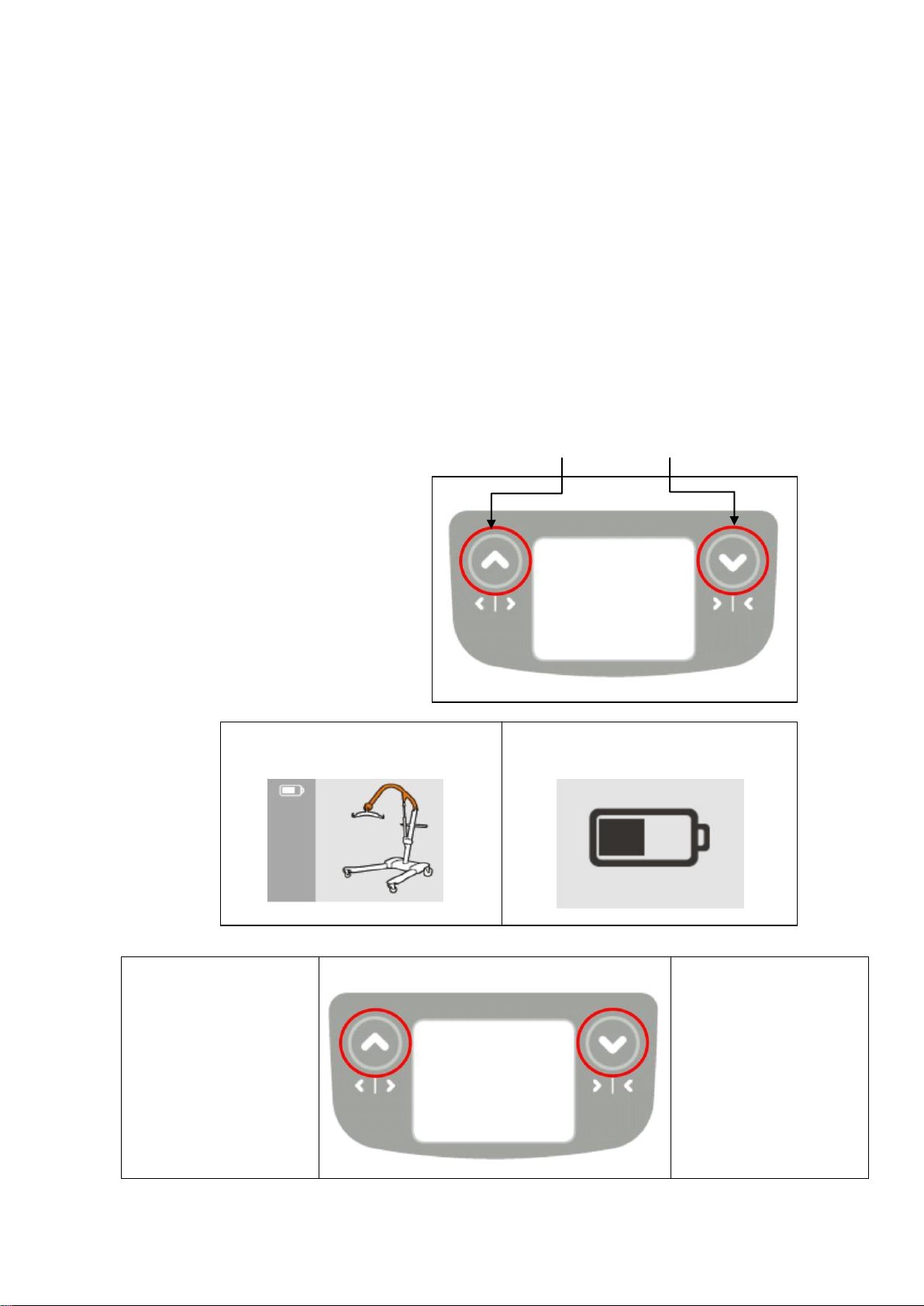

OPERATING INSTRUCTIONS —USING THE CONTROL BOX
1. If you press either control button
(shown at right) for less than 0.5
seconds, you can access the
screens shown below.
2.
R-Right button
Pressing the right button
for more than 0.5
seconds will begin
L-Left button
Pressing the left button
for more than 0.5
seconds will begin
actuator extension.
actuator retraction.
Control Buttons
11

Raise / Lower Lift
Long press
to raise lift
Long press
to lower lift
3. Press the bon to raise or the bn to lower the lift.
OPERATING INSTRUCTIONS —USING THE HAND PENDANT
Raise / Lower Lift
Long press
to raise lift
Long press
to lower lift
1. Press the bon to raise or the bon to lower the l .
12

MAINTENANCE SCHEDULE
Item
In the
Beginning
Monthly
Every 3
Months
Boom & Spreader Bar:
Check connections between 1) Boom and Spreader
Bar and 2) Boom and Mast for improper connection,
looseness, or wear.
Check the Boom for bending and deflection.
●
●
●
●
Mast:
Check the Mast for bending or deflection.
Check the steering bar for damage or loose screws.
●
●
●
●
Base & Foot Peddle:
Check bolts and nuts for looseness.
Check casters and axle bolts for tightness.
Check rubber parts on the casters for deflection.
Apply grease to caster ball bearings if needed.
●
●
●
●
●
●
●
Cleaning:
As needed.
●
Actuator & Control Box:
Make sure the control box is firmly affixed to the
mast.
Make sure the pins firmly affix the actuator to the
Boom and the Mast.
●
●
●
●
Make sure the connecting cable of the actuator and
the control box is not loose.
Make sure the Battery has capacity prior to use.
●
●
●
●
Slings & Sling Hardware:
Check sling for wear.
Check sling hardware every time before use.
●
●
●
●
13

OPERATING INSTRUCTIONS
NOTE: Turn the lift “ON” by turning the red “RESET” button
clockwise. Turn the lift “OFF” by pressing down the “RESET”
button.
Transfer From Bed
User/patient should be in the center of the bed.
Position user onto his/her side by rolling user towards you.
Roll the sling in half, approximately. The handle on the back section
should face outward when the sling is fitted.
Position the sling under the user/patient so the commode aperture
aligns with the base of the spine and top of the sling close to the neck.
Roll user onto the opposite side and position him/her on the flat section
of the sling. This will allow you to unroll the remainder of the sling
from the other side of the user.
Once the sling has been positioned centrally, feed the leg sections
under the thighs and draw them up between the thighs.
Raise the head of the bed if this function is available.
Move the lift slowly towards the user and position the spreader bar
over the user’s/patient's chest.
Attach Loop a of the sling to Hook A on Spreader Bar; attach Loop b to
Hook B; attach Loop c to Hook C; attach Loop d to Hook D.
Lift the user above the bed by using the hand control.
Pull lift away from bed. Position user over the wheelchair or chair
then lower the patient onto the surface.
Note: Reverse the above procedures when returning the user/patient to bed.
a
bd
c
B
A
D
C
A
D
C
B
14

Transfer From Wheelchair
•Grasp the sling at each corner of the "U" shape of the commode
aperture.
•The sling should be fitted with the grab handles on the back section
facing outward.
•Help the user lean forward slightly, then slide the sling down between
the chair and the user’s back.
•Position the commode aperture where the buttocks meets the seat.
•Position the sling equally around both sides of the body.
•Draw the leg sections to the front along the length of the user’s thigh.
•Check the sling’s central positioning by comparing the lengths of the
leg sections when they are drawn forward.
•Reposition the sling if the leg sections are not equal in length.
•Feed the leg sections under the thighs.
•
•Attach Loop a of sling to Hook A on Spreader Bar; attach Loop b to
Hook B; attach Loop c to Hook C; attach Loop d to Hook D.
•Lift patient above the wheelchair by using the hand control.
•Pull lift away from wheelchair. Position patient over bed and lower
patient onto it.
Note: Reverse the above procedures when returning the user/patient
to a wheelchair.
WARNING!
Use ONLY Proactive Medical slings/products with this equipment.
•
From between the legs, gently pull the leg section up the inner thigh.
Feed as much material as possible under and between the
thighs. Ensure the leg sections are positioned midway under the
thighs to provide good support and greater comfort.
Move the lift slowly towards the user and position the spreader bar over
the user’s chest.
15

NOTE:
THE EMERGENCY LOWERING DEVICE IS INTENDED FOR USE DURING LIFT
FAILURE. THIS DEVICE WILL ALLOW LOWERING OF PATIENTS ONLY. PLEASE
CONTACT YOUR DEALER IMMEDIATELY IN CASE OF FAILURE.
Turn clockwise to Lower
EMERGENCY LOWERING MECHANISM
In case of lift failure while using the Protekt® Lift 33400P, please follow the
procedures below to safely lower the user.
The Emergency Lowering Device is located at the top of the actuator shaft.
It is intended for use if the actuator fails to operate while a patient is
suspended. The device consists of a plastic collar ring that should be
turned clock-wise continually until the patient has been lowered.
Contact your dealer immediately if standard troubleshooting techniques do
not correct the failure. Do not attempt to lift until all failure issues have
been safely resolved.
16

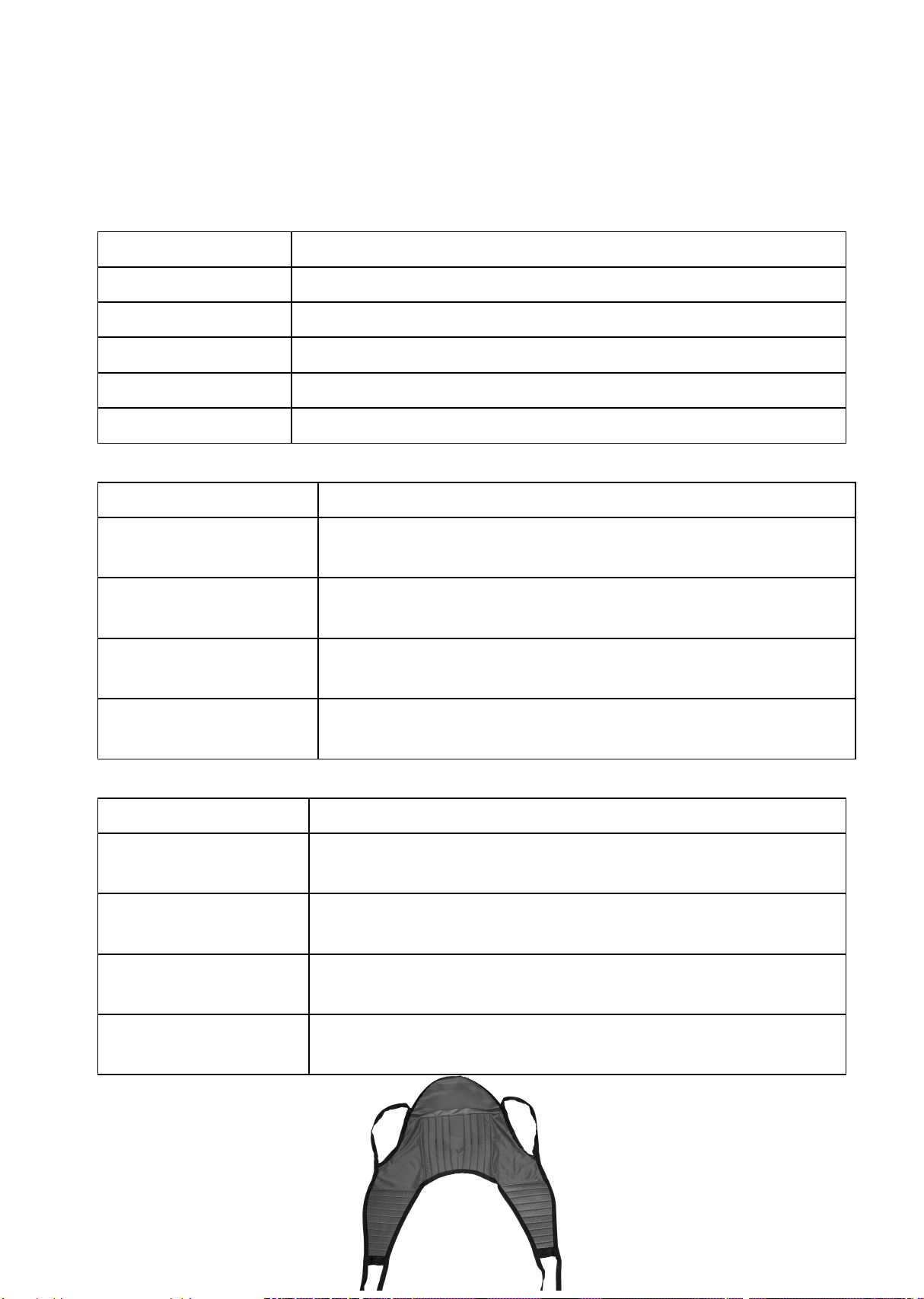

Full Body Mesh Slings
ITEM #
DESCRIPTION
30110 Medium
Mesh full body: medium 600 lb. weight capacity
30111 Large
Mesh full body: large 600 lb. weight capacity
30124 X-Large
Mesh full body: X-large 600 lb. weight capacity
30118 XX-Large
Mesh full body: XX-large 600 lb. weight capacity
Full Body Mesh Slings w/Commode
ITEM #
DESCRIPTION
30114 Medium
Mesh full body: medium w/commode opening
600 lb. weight capacity
30115 Large
Mesh full body: large w/commode opening
600 lb. weight capacity
30116 X-Large
Mesh full body: X-large w/commode opening
600 lb. weight capacity
30119 XX-Large
Mesh full body: XX-large w/commode opening
600 lb. weight capacity
Full Body Solid Slings
ITEM #
DESCRIPTION
30112 Medium
Solid fabric full body: medium
600 lb. weight capacity
30113 Large
Solid fabric full body: large
600 lb. weight capacity
30117 X-Large
Solid fabric full body: X-large
600 lb. weight capacity
30123 XX-Large
Solid fabric full body: XX-large
600 lb. weight capacity
17

Divided leg design is best suited for high level spinal cord injuries or patients where sling
removal is more difficult. Support ranges from the upper back to beneath the thighs. Can
bepositioned withpatientseated. Greatlysimplifiestheuseof bathroom facilities.
Divided Leg Slings
ITEM #
DESCRIPTION
30100P Small
Solid divided leg: small 450 lb. weight capacity
30100 Medium
Solid divided leg: medium 450 lb. weight capacity
30101 Large
Solid divided leg: large 450 lb. weight capacity
30102 X-Large
Solid divided leg: X-large 450 lb. weight capacity
30103 XX-Large
Solid divided leg: XX-large 600 lb. weight capacity
Padded Divided Leg Slings w/o Head Support
ITEM #
DESCRIPTION
30100P-NHS Small
Solid padded divided leg w/o head support: small
600 lb. weight capacity
30100-NHS Medium
Solid padded divided leg w/o head support: medium
600 lb. weight capacity
30101-NHS Large
Solid padded divided leg w/o head support: large
600 lb. weight capacity
30102-NHS X-Large
Solid padded divided leg w/o head support: X-large
600 lb. weight capacity
Padded Divided Leg Slings w/Head Support
ITEM #
DESCRIPTION
30100P-HS Small
Solid padded divided leg w/head support: small
600 lb. weight capacity
30100-HS Medium
Solid padded divided leg w/head support: medium
600 lb. weight capacity
30101-HS Large
Solid padded divided leg w/head support: large
600 lb. weight capacity
30102-HS X-Large
Solid padded divided leg w/head support: X-large
600 lb. weight capacity
18

TROUBLESHOOTING CHART
The following list of encountered problems and their solutions will assist you
in determining what may be causing your Proactive Medical lift not to
function as designed. If you have a problem occurring which is not listed
below, contact Proactive Medical or an authorized Proactive distributor
for further information. Do not attempt to repair components or parts on
your lift, as this may invalidate your warranty or cause further problems
that may result in patient injury. Stop using your lift immediately if it is
not functioning correctly or any warning beeps are heard.
If any of the following notification signs arise, follow the steps below to
troubleshoot:
Maintenance Notification:
Check the state of the lift and actuators.
Low Battery Capacity:
Recharge battery. If it does not hold an proper charge, the battery
will need to be replaced.
Overload Alarm:
Weight has exceeded the set maximum limit. Remove weight from the
lift and retry.
Force Interference:
If any force interferes when the lift is lowered, the lift will stop working
to avoid injury to the patient. Remove interference immediately.
This image will also appear if the actuator connectors are installed in
the wrong positions in the control box. See Assembly Instructions.
▲WARNING: If you experience a problem with your lift and are unable to service it yourself,
contact Proactive Medical or your Proactive authorized distributor.
19

LIMITED WARRANTY
purchaser. This warranty shall be voided upon transfer of ownership of this product.
The repaired or replacement unit shall be warranted for a period equal to the balance of the
A detailed description of the problem and its symptoms on a note.
This warranty shall not apply to any product which has been repaired or altered in any way so
as, in our judgment, to affect its functionality and durability, nor to any product subject to
abuse, misuse, negligence or accident, improper maintenance, improper installation, nor to
any product used with other parts, components and/or accessories with quality and/or
specifications not compatible with this product. This warranty does not cover products that
have been impaired by occurrences considered Acts of God over which authorized dealer has
no control. This warranty shall also be voided if any required periodic maintenance, if
applicable, has not been properly performed on this product.
This warranty and the aforementioned remedies presented are exclusive and in lieu of all
other express or implied warranties. No other representations or claims shall be binding or
obligate authorized dealer in any way. Any warranty applicable to this product is limited to the
aforementioned period indicated. In no event shall authorized dealer be liable for any special,
incidental, or consequential damages; loss of revenue; or cost of replacement goods; resulting
from the use or malfunction of this product to the associated equipment on which and with
which it is used. This warranty gives specific legal rights and you may be entitled to other
rights that vary from state to state.
20
