OPERATION MANUAL
Read the manual in its entirety before operating the tail lift.
Keep this manual in the vehicle cab, as reference for the driver and tail lift operator

1
DHOLLANDIA
TABLE OF CONTENTS
1 UNDERSTANDING SAFETY AND WARNING SIGNS 2
2 CONTACT INFORMATION AND DISCLAIMERS 3
3 GENERAL INTRODUCTION 4
4 INTENDED USE 4
5 IDENTIFICATION 5
6 DESCRIPTION AND TAIL LIFT TERMINOLOGY 5
6 1 General 5
6 2 Safety devices 10
7 SAFETY INSTRUCTIONS FOR USING THE TAIL LIFT 13
7 1 DO NOT use tail lift without adequate safety and operator training 13
7 2 General safety instructions 13
7 3 Danger zones, risk of crush and shear injury 18
7 4 Safe operator position 19
7 5 Instructions for working at loading docks 21
7 6 Recommended daily pre-trip inspection 22
7 7 Importance of preventative maintenance 24
8 LOAD CHARTS AND CORRECT LOADING PROCEDURES 25
9 OPERATING INSTRUCTIONS - PRINCIPLES AND PROCEDURES 29
9 1 Automatic tilt at ground level 29
9 2 Remarks on use of the tilt cylinders 30
9 3 Main external control boxes 31
9 4 Most popular auxiliary controls 33
9 5 Switching the main power on/off 35
9 6 Operation of the standard platform 36
9 7 Operation of the LSPZ platform 40
9.8 The use of cart-stops 44
10 DECALS 46
10 1 Regular decals 46
11 MEANING OF SAFETY AND WARNING SIGNS 49
12 END NOTE 51

2
DHOLLANDIA
1UNDERSTANDING SAFETY AND WARNING SIGNS
Many safety signs and symbols used in this manual are based on international standards, others refer to specific situations or
actions
Consult section 10 for an overview of signs and symbols used in DHOLLANDIA manuals, and their meaning
Please take special notice of the following signs used in the manual They indicate the likelihood and severity of a potential injury if a
person fails to follow the instructions presented on the safety sign
WARNING
•
Failure to understand and to follow the instructions in this manual can put the operator and any bystanders at great risk of
serious bodily injury and death
• Prior to operating the tail lift, make sure you understand the safety and warning signs used, and read them in conjunction with
the instructions in this manual
• If in doubt, DO NOT operate the tail lift Contact your national DHOLLANDIA distributor See page 3 for contact info
NOTICE
DANGER : indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury [white letters on red background]
WARNING
: indicates
a potentially
hazardous situation which, if not avoided,
could
result in
death or serious injury [black letters on orange background]
CAUTION : indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury [black letters on yellow background]
NOTICE : is used to address practices not related to physical injury [white letters on blue
background]
SAFETY INSTRUCTIONS : indicate general instructions relative to safe work practices,
reminders of proper safety procedures, or the location of safety equipment [white letters on
green background]
SAFETY
INSTRUCTIONS
SAFETY ALERT SYMBOL
(free
-
standing, or on back
-
ground colours red, orange, yellow or
black) : is used to alert the user to potential hazards All safety messages that accompany this
sign shall be obeyed to avoid possible harm

3
DHOLLANDIA
2CONTACT INFORMATION AND DISCLAIMERS
DHOLLANDIA tail lifts are regularly being adapted to new vehicle and chassis developments, and specialized customer requirements
Therefore DHOLLANDIA reserves the right to alter product specifications without prior notice; and potentially modifications or new
developments might not have been taken into account at the time of printing
NOTICE
Please confirm you have reviewed the most up-to-date version of this manual prior to operation of the associated DHOLLANDIA
tail lift See below for instructions to download the latest version of the manual
Contact your national DHOLLANDIA distributor if you have any questions regarding the installation, operation, repair and maintenance
of DHOLLANDIA tail lifts, to obtain replacement copies of manuals or decals, or to learn about available equipment options for
DHOLLANDIA tail lifts
• Take notice of following important disclaimers:
DISCLAIMERS
• DHOLLANDIA disclaims liability for any personal injury, death, or property damage that results from operating a tail lift that
has been modified from the original design, without explicit written approval from the manufacturer
• DHOLLANDIA disclaims liability for any personal injury, death, or property damage that results from use of aftermarket or
non-OEM replacement parts for service or repair of the tail lift
• DHOLLANDIA disclaims liability for any personal injury, death, or property damage that results from improper use of the tail
lift
• DHOLLANDIA disclaims liability for any personal injury, death, or property damage that results from overloading or improperly
loading the platform, disregard of the maximum rated lift capacity and the applicable load charts
• There are no warranties, express or implied, including the warranty of merchantability or a warranty of fitness for a particular
purpose extending beyond that set forth in this manual
If in doubt where to find your national DHOLLANDIA distributor, visit the official DHOLLANDIA website
www.dhollandia.com → Country selection / language selection → distributors & service
The latest version of all manuals
can also be downloaded from the DHOLLANDIA website
www.dhollandia.com → Downloads → User’s manuals → … select required manual

4
DHOLLANDIA
3GENERAL INTRODUCTION
• This OPERATION MANUAL explains how the DHOLLANDIA tail lift is manufactured; what safety devices are incorporated in its
design; and how to use the tail lift in a correct manner, that preserves the integrity of the machine over the intended lifetime and
helps maximize the safety of the operator and any bystanders
• The MAINTENANCE AND REPAIR MANUAL (separate) explains how to maintain and service the tail lift in the appropriate
manner, maximizing the safety of the operator and any bystanders, and ensuring the reliability of the tail lift over the intended
lifetime
• The CE IDENTIFICATION AND INSPECTION BOOK contains the serial number identification, the CE Declaration of Conformity,
the Fitting Declaration to be filled out by the installer of the tail lift, and an overview of the owner’s legal obligations in terms of
periodic testing and certification
• The manuals must be kept with the tail lift at all times, as a reference book for the operators and technical service
4INTENDED USE
DHOLLANDIA tail lifts are designed to be fitted to commercial vehicles (commercial trucks, trailers and semi-trailers), and shall be
used exclusively to load and unload the goods transported on the vehicle it is fitted to, within the limits of the load chart, in compliance
with the operator instructions and safety instructions described in this manual
WARNING
• Improper use of the tail lift will put the operator and other parties at great risk of serious bodily injury and death Therefore the
use of the tail lift is restricted to skilled operators only; who have been properly trained, and who know and understand the full
contents of this manual
• Unauthorized modifications to the tail lift can put the operator and other parties at great risk of serious bodily injury and death
Therefore, it is strictly forbidden to modify the tail lift and its safety devices in any way
• Use of aftermarket or non-OEM replacement parts to repair or maintain the tail lift is strictly prohibited and may result in serious
bodily injury or death to the operator or any bystanders
WARNING
•
Improper use of the tail lift will put the operator and bystanders at great risk of serious bodily injury and death Therefore it is
strictly forbidden to use the tail lift in a different way, or for different purposes, than described in the operation manual
• The tail lift must NEVER be used as an elevated work platform, to push loads, to carry people
• The tail lift must NEVER be used as a wheelchair lift
• DHOLLANDIA disclaims liability for any personal injury and / or property damage that results from improper use

5
DHOLLANDIA
5IDENTIFICATION
6DESCRIPTION AND TAIL LIFT TERMINOLOGY
6 1 GENERAL
• DHOLLANDIA tail lifts are developed and manufactured using state-of-the-art technology, high quality materials and components,
and highly skilled workmanship They comply with the European CE safety regulations mentioned in the Declaration of Conformity
issued with each lift (unless agreed otherwise for tail lifts exported outside of CE region)
• The DH-LSP… series comprises of a range of cantilever tail lifts, designed for a wide range of factory built panel vans 500 to
1000kg
• In its travel position, the platform of the van tail lift is stowed vertically behind the vehicle body Before use, the platform is tilted
open 90 degrees from the vertical travel position, to a horizontal work position
• Main details and terminology: see next page
On the lift frame
On the hydraulic cylinders
In the pump unit
On the platform
• Every DHOLLANDIA tail lift is identified by and labelled with a
unique 8-digit serial number (with or without a space
between the first and last 4 digits) Use this number for any
inquiry on a particular tail lift, or when ordering replacement
parts
• In addition to the tail lift type and serial number, the various
serial number labels provide additional information, such as:
the maximum rated lift capacity and load chart, the date of
manufacture, etc

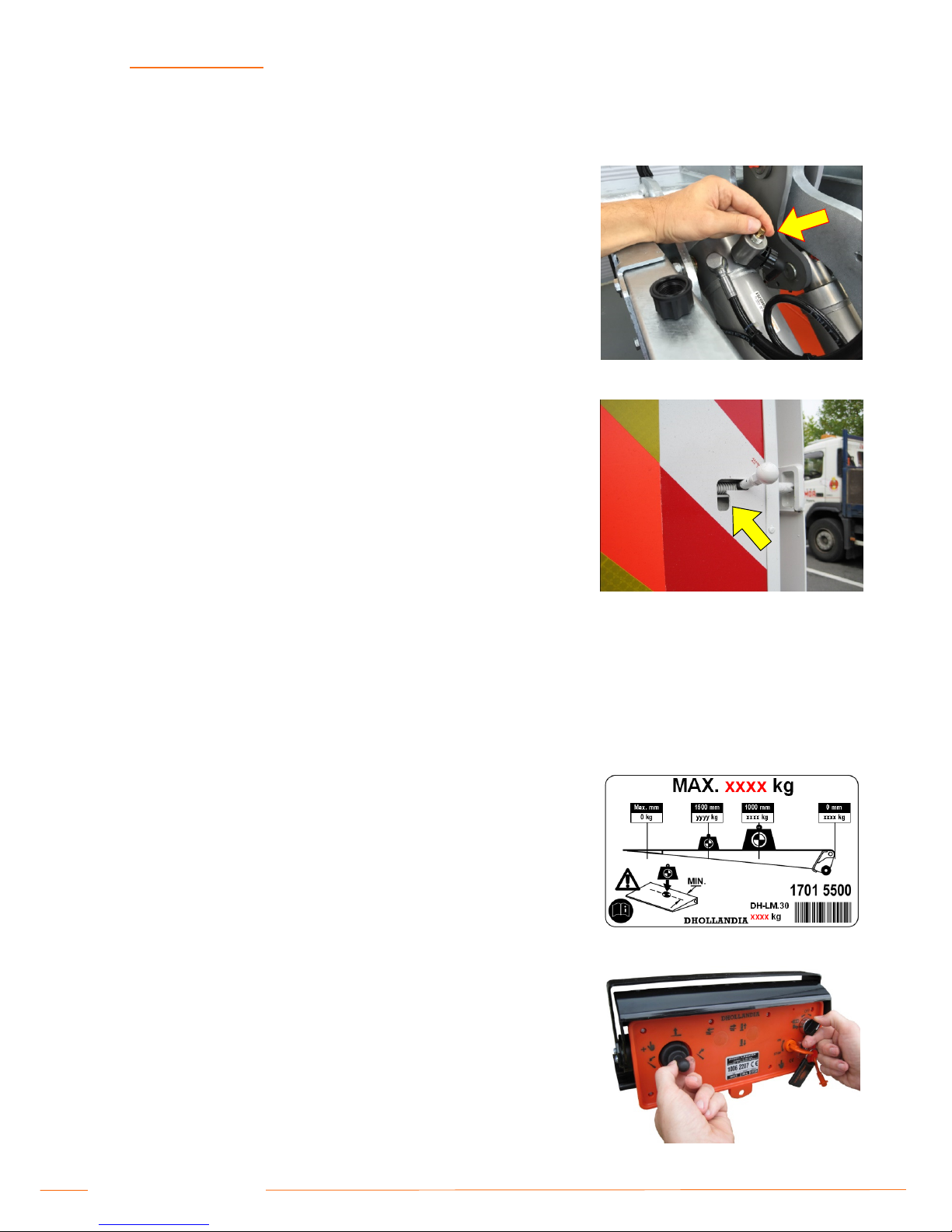

• These labels are usually affixed to various tail lift components,
and can be found in following locations (the yellow arrows
point to the serial numbers):
Affixed to the side of the vehicle body, or on the
platform

6
DHOLLANDIA
DH
-
LSP.05 / DH
-
LSP.07 with full width platform
●
TAIL LIFT
TERMINOLOGY
See figure below page
for parts corresponding to numbers in this table
#
Description
1
Lift frame : mounted in a fixed position under the vehicle chassis It bears the platform and its load via connection to the lift
arms and hydraulic cylinders
2
Mounting plates
: used to
mount the lift frame to the vehicle chassis
3
Platform
: carries the load during loading / unloading, lifting / lowering Manufactured from light
-
weight aluminium and with a
non-slip working surface
3a
Platform stow lock : mechanical lock to prevent the platform from falling open in case of accidental loss of hydraulic pressure
in the TILT circuit
3b
Cart stops : usually 2 load restraint flaps mounted just near the outboard platform edge Depending on options chosen, the
cart stops feature a manual or automatic operation (see also 9 8 page 44)
4
Lift arms L+R
: actuated by the hydraulic lift cylinders, used to LIFT / LOWER the
platform and its load
5
Lift cylinders L+R
: 2 hydraulic cylinders used to LIFT / LOWER the lift arms, the platform and its load
6
Tilt cylinder : hydraulic cylinder, mounted at the rear face of the platform, used to OPEN / CLOSE the platform, or to change
its angle when opened in work position
7
Hydraulic memory cylinder : hydraulic cylinder, mounted on the lift frame, used to actuate the automatic auto-tilt at ground
level (see also 9 1 page 29)
8
Hydraulic pump unit
: contains the electric motor driving the hydraulic pump, the oil
tank, and the control valves
9
Towing hitch construction
: optional mounting construction for a towing hitch
10
Main external control box : mounted in a fixed position at the side of the vehicle, integrated in the body panel, or executed
as a wireless portable control Contains the electrical switches allowing the operator to execute all tail lift functions OPEN -
LOWER - LIFT - CLOSE
11
Center point of maximum load : point up to which the maximum rated capacity of the tail lift is valid Beyond that point, the
maximum safe working load diminishes according to the applicable load charts found at Section 8 of this manual

7
DHOLLANDIA
1
2
2
3
11
3b
Bottom view
4
4
5
6
7
8
5
8
2
3
1
3a
3
9
10

8
DHOLLANDIA
DH
-
LSPZ.05 / DH
-
LSPZ.07 with half
-
width or foldable platform
●
TAIL LIFT
TERMINOLOGY
See figure below page for parts corresponding to numbers in this table
#
Description
1
Lift frame : mounted in a fixed position under the vehicle chassis It bears the platform and its load via connection to the lift
arms and hydraulic cylinders The arm width (narrow or wide) depends on the technical parameters of the vehicle (brand,
wheelbase, overhang dimension)
2
Mounting plates
: used to mount the lift frame to
the vehicle chassis
3
Half-width or foldable platform : carries the load during loading / unloading, lifting / lowering Manufactured from light-weight
aluminium and with a non-slip working surface
3a
Platform main section : platform section supported by the tilt cylinder This section stands on the opposite side of the door
panel (L or R) that opens up first
3b
Flip-over point : foldable section, not supported by the tilt cylinder This section stands on the same side as the door panel
(L or R) that opens up first
3c
Platform stow lock (on all platforms): mechanical lock to prevent the platform from falling open in case of accidental loss of
hydraulic pressure in the TILT circuit
3d
Platform fold lock (on foldable platforms): mechanical lock to hold the 2 folding sections together while the tail lift is stowed
in its travel position
3e
Cart stops
: usually 2 load restraint flaps mounted just near the outboard platform edge Depending on options chosen
, the
cart stops feature a manual or automatic operation (see also 9 8 page 44)
4
Lift arms L+R
: actuated by the hydraulic lift cylinders, used to LIFT / LOWER the platform and its load
5
Lift cylinders L+R
: 1 or 2 hydraulic cylinder(s) used to LIFT / LOWER the lift
arms, the platform and its load
6
Tilt cylinder : hydraulic cylinder, mounted at the rear face of the platform, used to OPEN / CLOSE the platform, or to change
its angle when opened in work position
7
Hydraulic memory cylinder : hydraulic cylinder, mounted on the lift frame, used to actuate the automatic auto-tilt at ground
level (see also 9 1 page 29)
8
Hydraulic pump unit
: contains the electric motor driving the hydraulic pump, the oil tank, and the control valves
9
Towing hitch construction
: optional mounting construction for a towing hitch
10
Main external control box : mounted in a fixed position at the side of the vehicle, integrated in the body panel, or executed
as a wireless portable control Contains the electrical switches allowing the operator to execute all tail lift functions OPEN -
LOWER - LIFT - CLOSE
11
Center point of maximum load : point up to which the maximum rated capacity of the tail lift is valid Beyond that point, the
maximum safe working load diminishes according to the applicable load charts found at Section 8 of this manual

9
DHOLLANDIA
9
1
2
2
11
3a
Bottom view
10
4
4
5
6
7
8
5
8
2
1
3
3a
3
3b
3c
3d
3b
3c
3d
3e
5
9

10
DHOLLANDIA
6 2 SAFETY DEVICES
DHOLLANDIA tail lifts are equipped with a multiple safety devices in order to ensure that goods can be loaded and unloaded with
maximum safety for the operator, any potential bystanders, and the load itself The following safety devices are incorporated or
recommended on most tail lifts:
•Electrical safety valves mounted on all cylinders [standard] The
safety valves lock the oil inside the hydraulic cylinders as long as they
are not energized via the electrical controls The purpose is to secure the
platform in its travel while driving, or in any other fixed position, in case
of accidental failure of a hydraulic pipe (as soon as the electrical controls
are released)
DHOLLANDIA safety valves are equipped with a manual emergency
control, allowing the operator or repair agent to open the valvue manually
in case of electrical failure (see MAINTENANCE AND REPAIR
MANUAL)
•Mechanical platform lock s) [optional] DHOLLANDIA offers (a)
mechanical platform lock(s) as an option, to further secure the platform
in its travel position in case of accidental loss of hydraulic pressure
The use of a platform lock is good and safe practice in general Also,
depending on the vehicle pay-load and the type of tail lift, extra locks
might be compulsory to comply with the CE load containment regulations
EN12195 and EN12642 Code XL Ask DHOLLANDIA for further advice
•Pressure relief valve [standard] Safety device integrated in the pump unit, enabling the manufacturer and the installer of the tail
lift to limit the real lift capacity to the maximum rated capacity of the tail lift sold, and to protect it against overload while LIFTING
•Pressure compensated flow valves [standard] Flow valves are integrated in the hydraulic circuits to ensure the platform lowers
at a safe speed, both when empty as when fully loaded
•Marking of the centre point of maximum load [standard] Tail lifts
are not designed to LIFT and LOWER weights corresponding to their
maximum rated capacity over the entire surface of the platform The
maximum rated capacity is only valid at a specified distance or “centre
point of maximum load” behind the vehicle body Behind that point
marked on the platform, the maximum safe working load diminishes
according to the load diagrams supplied with the tail lift See also
section 8 page Fout! Bladwijzer niet gedefinieerd. on load charts and
correct loading procedures
• 2-hand exterior control box [standard] On the exterior control box
mounted in fixed position at the side of the vehicle body, all functions
are actuated by means of a control switch and a safety switch The
compulsory use of the 2 hands to actuate the various lift functions,
protects the operator from crushing his head, limbs or upper body
between the LIFTING or CLOSING platform and the rear frame of the
vehicle body

11
DHOLLANDIA
•Tail lift on/off switch [min 1 compulsory] Depending on configuration, the
electrical power to the tail lift is switched on / off by means of:
1 A cabin switch (provided by the truck manufacturer or DHOLLANDIA
[option OAE503 2]) This switch enables the operator to switch the control
power to the exterior control box on / off If equipped with a position sensor
[option OAE502], it also provides a signal if the platform is stowed in its
travel position, or left open
2 A main battery disconnect switch integrated in the exterior control box
[optional] This switch enables the operator to switch the main battery
power to the tail lift on / off If available, the operator MUST switch off the
main battery disconnect switch after each use of the tail lift
3 A combination of both
•Fuses [standard] A 15A fuse for the electrical control circuit is premounted in the pump unit and in the exterior control box (for
most types) A 150 - 250A fuse for the electrical main battery circuit is supplied by the truck manufacturer or by DHOLLANDIA
Both fuses protect the electrical circuits against short-circuits and amperage peaks
•Protection of toes and feet against crushing and sheering [1 min
compulsory] The tail lift standard EN1756-1 and DHOLLANDIA’s fitting
manuals provide a number of solutions to prevent the operator from
crushing his toes or feet between in the inboard platform edge of the rising
platform and the rear sill of the vehicle floor At least 1 solution, ordered
from DHOLLANDIA, or realised during installation, must be foreseen
Consult the installation manual FIT-ELEC-OPTION in its latest version In
case of doubt, contact DHOLLANDIA See page 4 for contact information
•Foot controls [optional] See also previous point Platform mounted foot
controls (2 buttons or 4 buttons) immobilise the feet of the operator on a
safe position on the platform, and protect him from crushing his toes or feet
between in the inboard platform edge of the rising platform and the rear sill
of the vehicle floor
•Cart-stops [optional] If a platform is aimed at LIFTING and LOWERING
loads that cannot be braked or secured by their design or their method of
transportation, the platform MUST be equipped with cart-stops that prevent
the load from accidentally rolling off the platform, and hitting the operator or
any bystanders DHOLLANDIA offers a variety of cart-stops that can be
fitted near the outboard platform edge, or at intermediate distances

12
DHOLLANDIA
•Visibility of the deployed platform [min 1 compulsory] Any platform
protruding beyond the extremities of the vehicle, MUST be clearly visible from
all approachable sides in daylight and at night Check any applicable national
or local regulations, as these can be very strict on the application, size and
type of means used The visibility of the platform can be optimized by:
1 Reflective marking tape applied to the sides of the platform [standard]
applied during installation]
2 Platform flags [option OAT020—023], mounted to the underside of the
platform, near the outboard platform edge
3 Bi-directional flashing platform lights [option OAE200], mounted on the
platform surface, near the outboard platform edge
4 Warning cones (2 or 4) [widely available] placed around the work area
of the platform
5 A combination of 2 or more of the above The various means above have
variable efficiency depending on the direction of approach and the light
conditions (e g bright sunlight versus night darkness) DHOLLANDIA
strongly recommends a combination of 2 or 3 means to cover all
circumstances
•Safety rails [optional] Safety rails MUST be fitted in all applications where a
significant risk exists that the operator could fall off the platform and suffer
bodily injury They are compulsory above 2m lifting height
Safety rails may be purchased along with your tail lift at the initial order, or
may be purchased and retrofitted to your tail lift later They are available in a
wide range of different executions to suit the particular needs of many
applications Contact your national DHOLLANDIA dealer for further
information See page 4 for contact info
•Decals [standard] The tail lifts are supplied with a number of operation
decals, load diagrams and safety decals, most of them to be applied to the
vehicle body during installation These decals must be kept clean and legible
at all times, and replaced whenever required

13
DHOLLANDIA
7SAFETY INSTRUCTIONS FOR USING THE TAIL LIFT
7 1 DO NOT USE TAIL LIFT WITHOUT ADEQUATE SAFETY AND OPERATOR TRAINING
• DHOLLANDIA tail lifts shall be exclusively used to load and unload the goods transported on the carrying vehicle, within the limits
of the applicable load chart, in compliance with the operator instructions and safety instructions in this manual
• The operator should follow all other policies and procedures applicable to the job situation including health & safety regulations,
road and traffic regulations, as well as company procedures The operator should not use the tail lift if he/she cannot use it in
accordance with all applicable regulations and instructions
• The operator shall be at least 18 years of age
7 2 GENERAL SAFETY INSTRUCTIONS
WARNING
•
Improper use of the tail lift will put the operator and other parties at great risk of serious bodily injury and death
• To reduce the risk of serious bodily injury to the operator and any bystanders, the use of the tail lift is restricted to skilled
operators, who have been properly trained, and who know and understand the full contents of this manual
• To reduce the risk of serious bodily injury or death, THE OPERATOR MUST COMPLY WITH ALL SAFETY INSTRUCTIONS
AND WARNING LABELS IN THIS SECTION AND THE ENTIRE MANUAL before and while operating the tail lift
WARNING
• To avoid serious bodily injury or death, the operator must use appropriate work clothes NEVER wear loose-fitting clothes that
may be trapped in the moving parts of the tail lift ALWAYS wear professional safety-toe shoes, protective gloves, and eye
protection Use of hardhat is recommended
• Slipping (and falling) can result in serious bodily injury and death To prevent injury by slipping:
o ALWAYS wear professional safety-toe shoes with a good non-slip sole
o DO NOT use the tail lift if it is covered with snow, mud, dirt, debris, liquids or other substances
o DO NOT run on the platform
• Tripping (and falling) can result in serious bodily injury and death To prevent injury by tripping:
o DO NOT use tail lift platform as a step NEVER leave the tail lift unattended in partially deployed position
o Pay attention to protruding items on the platform surface at all times (ex platform lights, cart-stops and
their levers, foreign objects, etc…)
o DO NOT run on the platform
• Falling from the platform can result in serious bodily injury and death To prevent injury by falling:
o Make sure your footing is solid, and maintain 3 points of contact See 7 4 page 19
o Use safety rails where available
o NEVER move the vehicle while a person is standing on the platform, or inside the vehicle body
o NEVER use the platform as an elevated working platform

14
DHOLLANDIA
NOTICE
DHOLLANDIA offers optional platform mounted flashing lights and flags to make the platform more visible to other people Please
visit www dhollandia com or contact the national DHOLLANDIA distributor for more information See page 3 for contact info
WARNING
•
Prior to operating the tail lift, the vehicle must be safely parked on level and solid ground, the parking brake applied, and the
engine must be switched off Lock open the rear doors and secure all other moving parts of the vehicle body Failure to abide
by these instructions can result in serious bodily injury or death to the operator or bystanders
• Ensure that the vehicle cannot tip-over when putting heavy weight on the platform If the vehicle or the tail lift are equipped
with mechanical or hydraulic stabilizing legs, deploy these before opening the platform Ensure that the stabilizing legs are
positioned on solid even ground In case of soft terrain (sand, gravel,…), solid support blocks must be used under the stabilizing
legs Failure to abide by these instructions can result in serious bodily injury or death to the operator or bystanders
• To reduce the risk of serious bodily injury or death which
may result from other vehicles when parked, ALWAYS
make sure a safety distance of 16 ft or 5 m is kept between
the back of the truck and the following vehicle
• To reduce the risk of serious bodily injury or death,
ALWAYS make sure the platform is clearly visible to other
persons from all approach directions DHOLLANDIA
recommends the use of 4 warning cones, placed around
the work area of the platform [See notice below]
• To reduce the risk of serious bodily injury or death, make
sure the working zone is sufficiently lighted

15
DHOLLANDIA
WARNING
•
Prior to releasing the mechanical platform lock (if so equipped) and using the tail lift, check if the tail lift can be used safely
Take precautions to ensure your own safety, and the safety of bystanders or other parties in traffic Clear the working area of
any objects that could potentially impede movement of the tail lift Failure to abide by these instructions can result in serious
bodily injury or death to the operator or bystanders
• Inspect the tail lift prior to each use If any unsafe condition exists or unusual noises or movements are noticed, DO NOT use
the tail lift and contact an authorized DHOLLANDIA service agent for repair Please see ‘pre-trip inspection’ procedures under
7 6 page 22
• Read and comply with all warning decals, pictograms and instructions affixed to the tail lift Failure to abide by warnings and
instructions may result in serious bodily injury or death
• The tail lift must not be used if the operator is intoxicated, impaired or distracted in any way NEVER use a phone or mobile
device when operating the tail lift
• The tail lift shall be used by means of original control units only Operating the tail lift with unauthorized control units will
increase risk of serious bodily injury or death to the operator or any bystanders
• Limit the operation of the tail lift to one single operator Operation of the tail lift by more than one operator at a time may cause
confusion and increase the risk of serious bodily injury or death
• To prevent people from being hit by the platform, by objects falling off the platform or being caught in pinch points or being
pinched by the moving parts of the tail lift:
→ Keep visual control over the entire working area of the tail lift and its platform at all times, including
the area DIRECTLY BEHIND and UNDER the platform
→ DO NOT allow any other person, to stand in the proximity of the tail lift and its platform ENSURE
AT ALL TIMES THAT NOBODY STANDS UNDER OR WITHIN REACH OF THE MOVING
PLATFORM
• When unloading from the vehicle body to the platform,
ALWAYS push the load out, to prevent the load from
hitting you NEVER pull the load from the vehicle onto
the platform Pulling the load from the vehicle can
result in a fall from the platform causing serious injury
or death
• If pushed out too far, the load can fall off the platform, and cause serious bodily injury or death to other people Deploy the
cart-stops before pushing out the load If not available, push the load slowly while checking the outboard platform edges

16
DHOLLANDIA
•
The load must ALWAYS be secured when raising or
lowering on the tail lift, to prevent it from shifting position
and rolling off the platform edges Failure to properly
secure the load will increase the risk of serious bodily injury
or death to the operator or any bystanders
• When using a pallet jack, lower and rest the pallet or load
upon the platform surface before operating the tail lift
• For loads on wheels, engage wheel brakes of carts, trolleys
and machinery (if available) before operating the tail lift
• For loads that could slip, the use of original DHOLLANDIA
cart-stops or an appropriate alternative securement device (ex ratchet straps) is required The load must not be able to move
during movement of the platform See 9 8 page 44 for correct use of original DHOLLANDIA cart stops
• NEVER leave the tail lift unattended in open position Before leaving the vehicle unattended, close the doors of the vehicle,
stow the platform in its travel position and switch OFF the main battery disconnect switch in the external control box (if so
equipped), or the cab switch Leaving the tail lift in open position unattended can result in serious bodily injury or death to
unaware bystanders See 9 6 page 36 (or see 9 7 page 40) for instructions on properly stowing platform into its travel position
• NEVER move the vehicle with the tail lift in the open position ALWAYS close and secure the doors of the vehicle, stow the
tail lift in its travel position and switch OFF the main battery disconnect switch in the external control box (if so equipped), or
the cab switch, before moving the vehicle If so equipped, close the mechanical platform lock after stowing the platform in its
travel position Failure to properly stow the tail lift in its travel position prior to moving the vehicle may result in serious bodily
injury or death
• Use of the tail lift near vehicular traffic may result in serious bodily injury or death from being struck by another vehicle When
operating the tail lift on or near a street or parking lot, be sure to stay clear of vehicular traffic ALWAYS be sure to clearly
identify to other drivers that the tail lift is in use Dhollandia recommends use of warning cones to clearly identify to drivers that
the tail lift is being operated When the tail lift is operated near vehicular traffic, wear working clothes in high-visibility colors
and a retro-reflective safety vest
• DO NOT raise the tail lift with the rear doors partially open Doing so may damage the doors or the tail lift platform and may
also result in serious bodily injury or death to the operator or any bystanders
• Above all, USE GOOD COMMON SENSE when operating the tail lift DO NOT operate the tail lift until the contents of this
manual have been read and fully understood Improper use of the tail lift increases the risk of serious bodily injury or death to
the operator and any bystanders

17
DHOLLANDIA
NOTICE
•
The most important safety and operation instructions are summarized in a product video
that can be viewed online at
For LSP
http://www dhollandia com/uservideo/LSP-CE-2018-01
For LSPZ foldable
http://www dhollandia com/uservideo/LSPZ-CE-2018-01
Make sure you review these instructions prior to operation of the associated DHOLLANDIA tail lift

18
DHOLLANDIA
7 3 DANGER ZONES, RISK OF CRUSH AND SHEAR INJURY
There are 4 main danger zones on and around the platform, that can be hazardous to the operator and any other persons nearby:
WARNING
Impact by the platform or the moving parts of the tail lift will result in serious bodily injury or death
To prevent people from being hit by the platform, by objects falling off the platform or being caught
in pinch points or being pinched by the moving parts of the tail lift:
→ Keep visual control over the entire working area of the tail lift at all times, including the area
directly behind and under the platform;
→ DO NOT allow any other person to stand near the tail lift and its platform Ensure at all times that
nobody stands under, or within reach of the moving platform and its load
WARNING
The operator or other persons approaching too close to these danger zones risk serious bodily injury or
death by pinching, crushing or shearing of limbs, upper body or head To prevent these hazards:
o ALWAYS stand clear of the range of motion of the platform and moving parts of the tail lift;
o Keep hands, feet and upper body clear of pinch points and moving parts of the tail lift;
o DO NOT allow any other person to stand near the tail lift and its platform
Correct operator position
Danger zone
1 ALWAYS stay clear of the
range of motion of the platform
❶
❶
2 Beware of crushing
zone between lowering
platform and ground
❸
3 Beware of the crushing
zone between rising
platform and vehicle floor
4 Beware of the crushing
zone between closing
platform and rear frame of
vehicle body
❷
❸
❹
❹

19
DHOLLANDIA
7 4 SAFE OPERATOR POSITION
•The instructions on safe operator position aim to enforce that the operator stands
in a safe position before and while operating the tail lift, and protect him against
the risks of crushing and sheering as described in previous 7 3 page 18
•Main external control box: the zone just in front of the side-mounted, external
control box, equipped with mandatory 2-hand operation, is the only position from
where the operator can safely OPEN and CLOSE the platform It is also safe to
LOWER and LIFT the platform from this position
•Auxiliary controls: the operator may also LOWER and LIFT the platform through
use of the auxiliary controls The operator must use extreme caution when
lowering or lifting the platform with the auxiliary controls and must ensure it is done
from a safe position The use of auxiliary controls from an improper position greatly
increases the operator's risk of crushing or shearing of toes, limbs, head, and
upper body as well as death
•The operator may LOWER and LIFT lift the platform through the use of the platform
mounted foot controls (optional) which fix both operator's feet to a predetermined
position on the platform The operator must use extreme caution when using
platform mounted foot controls to avoid falling from the platform ALWAYS
maintain 3 points of contact (see next page)
•Handheld auxiliary controls with a spiral cable should only be used under the following conditions (1):
(1) Remark: The CE standard EN1756-1 suggests a number of other, less usual solutions providing sufficient protection against
crushing and sheering of the toes and feet, such as a hinged foot protector or cut-out switch Consult the latest edition of
DHOLLANDIA’s fitting instructions FIT-ELEC-OPTION or contact your national DHOLLANDIA dealer for more information See
page 4 for contact info
On the platform, from a safe operator
position of minimum 400x400mm
square, clearly and permanently marked
at minimum 250mm distance from the
hazard zone between the platform and
the rear of the vehicle floor Maintain 3
points of contact (see next page)
Inside the vehicle body, from a safe
operator position of minimum
400x400mm square, clearly and
permanently marked at minimum
250mm distance from the hazard zone
between the platform and the rear of the
vehicle floor
On the ground, from a safe operator
position minimum 500mm away from the
side edge of the platform
400mm
400mm
250mm
400mm
250mm
