Byron Originals ULTRALIFT Undermount Datasheet

Assembly, Installation Instructions & Parts List
ULTRALIFT COVER LIFTER
UNDERMOUNT Byron Originals
P.O. Box 279 Ida Grove, IA 51445
712-364-3165 800-594-9421
www.byronoriginalsinc.com
PARTS LIST
TOOLS LIST
Phillips screwdriver
Measuring tape
Drill
1/8 drill bit
Adjustable wrench
Corner Support Arm (”L “Shaped) (x2)
Mounting Bracket Assembly (x2)
Pivot Bracket (x4)
3 1/4” Hook Pin (x1)
18” Square Slider Arm (x2)
1 1/4” Square Caps (x2)
31” Round Pivot Arm (x2)
1 1/4” Round Caps (x2)
52” Center Pole (x1)
3/8” - 2” Bolt (x6)
3/8” Hex Nut (x6)
3/8” Bolt Caps (x12)
#10 - 5/8“ Self Tapping Screw (x21)
#10 - 1”Woodscrew (x20)
#10 Screw Caps (x40)
5/16” NY-Lock Nut (x4)
PARTS PROVIDED IN
STANDARD MOUNT KIT
(Refer to Standard Mount Parts Diagram)
MOUNTING BRACKET
ASSEMBLY x 2
UNDERMOUNT BRACKETS
x 2
PLATES PROVIDED IN THIS UNDERMOUNT KIT
REPLACE THE PLATES PROVIDED IN THE
STANDARD MOUNT KIT

POSSIBLE MOUNTING POSITIONSINSTALLATION INSTRUCTIONS
SPA COVER
SPA SKIRT
DECK OR FLOOR MOUNT ONLY - SIDE VIEW

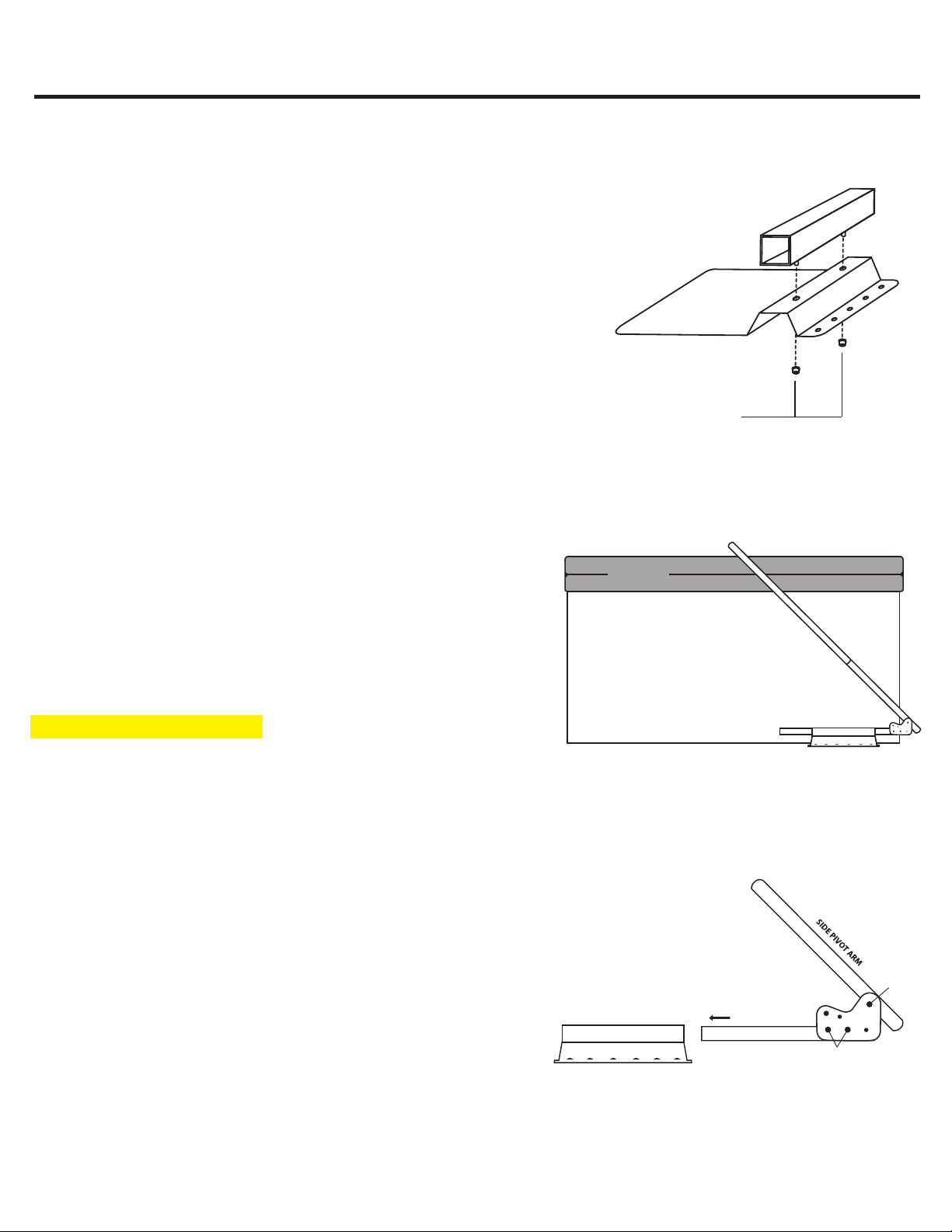

STEP 1
The spa cover must be in the closed position prior to mounting the
Ultralift. Position the spa cover properly, ensuring it is sitting
squarely on the spa. Assemble the undermount bracket using two
of the 5/16”ny-lock nuts, as shown in the Illustration.
STEP 2
Working with an empty tub or spa, slide assembled
undermount bracket under the spa skirt, close to the end of
the hot tub on both sides. A minimum of 16” between the rear
wall of the spa and any wall or fence is needed to accommodate the
undermount position. To prevent splitting of the wood skirt we
recommend pre-drilling the holes with a 1/16”drill bit.
STEP 3
Connect the square slider arm between two pivot brackets by
threading two 2”long bolts through the pivot bracket, square slider
arm and second pivot bracket at the two holes indicated by “A”.
Tighten with four 3/8” hex nuts from the side closest to the spa.
Attach the round side pivot arm between the same two pivot
brackets, using the holes identied as “B”, by feeding one 2” long
bolt threaded through the bracket, through the round pivot arm,
and through the other bracket, and secure using a 3/8” ny-lock nut.
DO NOT OVER TIGHTEN HERE, as the pivot arm must be able to
move freely. Repeat assembly of the square slider arm, the pivot
brackets and the round side pivot arm on the other side of the spa.
Slide the square slider arm into the mounting bracket on each side
of the spa.
ILLUSTRATION FOR STEP 3
ASSEMBLY OF SLIDER ARM TO PIVOT ARM - SIDE VIEW
PIVOT BRACKETSQUARE SLIDER ARM
MOUNTING BRACKET
(ROTATE DEPENDING ON CHOSEN MOUNT)
A
B
UNDERMOUNT BRACKET ASSEMBLY x 2
(DECK OR FLOOR MOUNT ONLY)
(5/16” NY-LOCK NUTS)

POSSIBLE MOUNTING POSITIONSINSTALLATION INSTRUCTIONS
STEP 4
Insert the corner support arms into the center pole. After
positioning the center pole so that an equal space is on each
side of the spa, slide the corner arms into the pivot arms.
STEP 5
Allow the Ultralift to rest on the spa cover. Make sure the
center pole is in the middle of the spa cover and adjust the
corner support arms so that the center pole is situated
parallel to the spa cover allowing between 1/2 inch and 1
inch of space from the center. Attach the center pole to
the corner support arms using six of the #10 - 5/8” self
tapping screws. Pre-drilling through the corner support
arms is advised. We recommend rotating the center pole
so that the screws are inserted horizontally.
STEP 6
Position the slider arm so that the lifter extends an equal
distance and sits squarely behind the spa. We recommend
you attach the slider arm to the mounting bracket by
inserting one #10 - 5/8” screw on each side and then
opening the cover and testing the position of the fully
open cover. Once the desired position is reached insert
three more of the #10 - 5/8” screws into each mounting
bracket. Similarly, once the lifter is adjusted to t, secure
the corner support arm in the round side pivot arm with 3
screws. insert the two round plastic caps into the open
end of the pivot arms, the square caps into the open end
of the slider arm, and cap all screws and bolts. that's it,
you're nished.
NOTE: The hook pin should be inserted into the pivot
bracket when the spa cover is opened, for added safety,
and removed to close the cover.

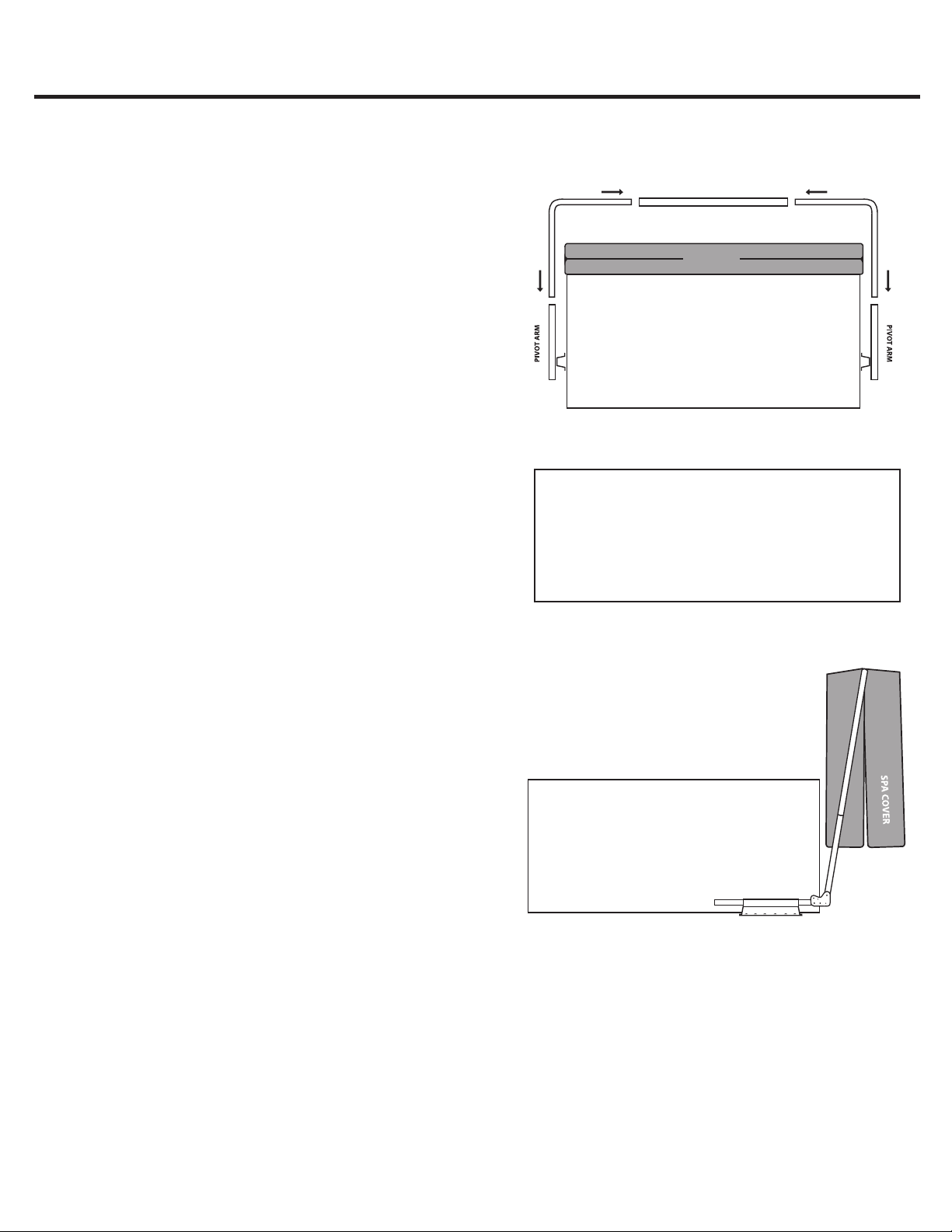

ILLUSTRATION FOR STEPS 4 & 5
ASSEMBLY OF CORNER ARMS TO PIVOT ARMS - FRONT VIEW
CORNER
SUPPORT
ARM
CORNER
SUPPORT
ARM
CENTER POLE
SPA COVER
SPA SKIRT
CAUTION: DO NOT USE
The Ultralift in extreme wind
conditions. The spa cover may blow
over and impact the spa user.
SPA SKIRT
UNDERMOUNT - SIDE VIEW

1 YEAR LIMITED WARRANTY
The Warranty:
Byron Originals warrants to you (the Original Retail
Purchaser) that, for the stated Warranty Term, Byron
Originals will repair or replace any part of UltraLift Spa
Cover Lifter which is defective in material or
workmanship. It is important that you report to the
Retailer from whom you purchased UltraLift, any
defects as soon as they are detected. If it is impractical
to report any defects to the Retailer, contact:
Byron Originals, Inc.
P. O. Box 279
Ida Grove, IA 51445 USA
Ph: 712-364-3165
info@byronoriginalsinc.com
After notication, you may be asked to return UltraLift
to the Retailer from whom it was purchased or ship it
back to Byron Originals for inspection. If you are
requested to return UltraLift to Byron Originals, you
will be responsible for the cost of such transportation.
Byron Originals, after repair or replacement, will pay
the cost of return shipping to you or to the Retailer
from whom you purchased UltrLift. NO RETURNS OF
MERCHANDISE WILL BE ACCEPTED UNTIL A RETURN
AUTHORIZATION NUMBER HAS BEEN ISSUED TO YOU
BY BYRON ORIGINALS.
Warranty Term:
This warranty lasts 1 year from the date of purchase of
UltraLift by the original retail purchaser. Warranty will
terminate at the end of the 1 year period or at the time
ownership of UltraLift transfers, whichever occurs rst.
Limitations and Exclusions:
The following reduce Byron Originals responsibility
under this warranty:
Implied Warranties:
Byron Originals makes no implied warranties
(warranties the law sometimes implies to have been
given by the seller even though they are not
described in writing) of merchantability or tness for a
particular purpose. Some states do not allow an
exclusion or limitation on how long an implied
warranty lasts, so this exclusion may not apply to you.
Proof of Purchase:
Proof of purchase by the Original Retail Purchaser is
required for Warranty Consideration.
Commercial Use:
This warranty is in eect only when UltraLift has been
purchased for private residential use. Commercial use
is not covered under this warranty.
Accidents, Abuse and Normal Wear:
This warranty does not cover damage resulting from
negligence, abuse, normal wear or accidents.
Examples of accidental and abusive damage include,
but are not limited to the following:
1. Use of abrasive or unapproved cleaners that could
cause surface damage.
2. Subjection to solvents or other chemicals which
could deteriorate painted surfaces.
3. Use for any purpose other than as a spa cover lifter.
Consequential Damages:
Byron Originals will not be liable for any loss, expense,
or damage other than to UltraLift, that may result from
a defect in materials or workmanship. (Some states do
not allow the exclusion or limitation of incidental or
consequential damages, so the above mentioned
limitation may not apply to you.)
Your Warranty Rights:
This warranty gives you specic legal rights and you
may also have other rights which vary from state to
state. Except for such other rights, the remedies
provided under this warranty state the limit of Byron
Originals’ responsibilities.
Byron Originals, Inc.
P. O. Box 279
Ida Grove, IA 51445 USA
Phone: 712-364-3165
Fax: 712-364-2028
www.ByronOriginalsInc.com
(October 1, 2012)
