Profort multiGuard DIN6 User manual

QUICK GUIDE for 6 modules
www.profort.com
Pg. 1
Installation
1. Prepare a SIM card so that the PIN code is 1234 or is deactivated. Mount the card in the unit. The
unit has now 1234 as password or runs without a password. The card must be placed as shown
below.
2. Connect inputs, outputs and power cable (230V/12-24V AC/DC) and if necessary a rechargeable 9V
battery.
3. Turn on the power. A red diode is lit. After approx. 20 sec. the diode flashes approx. every 2 sec.,
and the unit is ready.

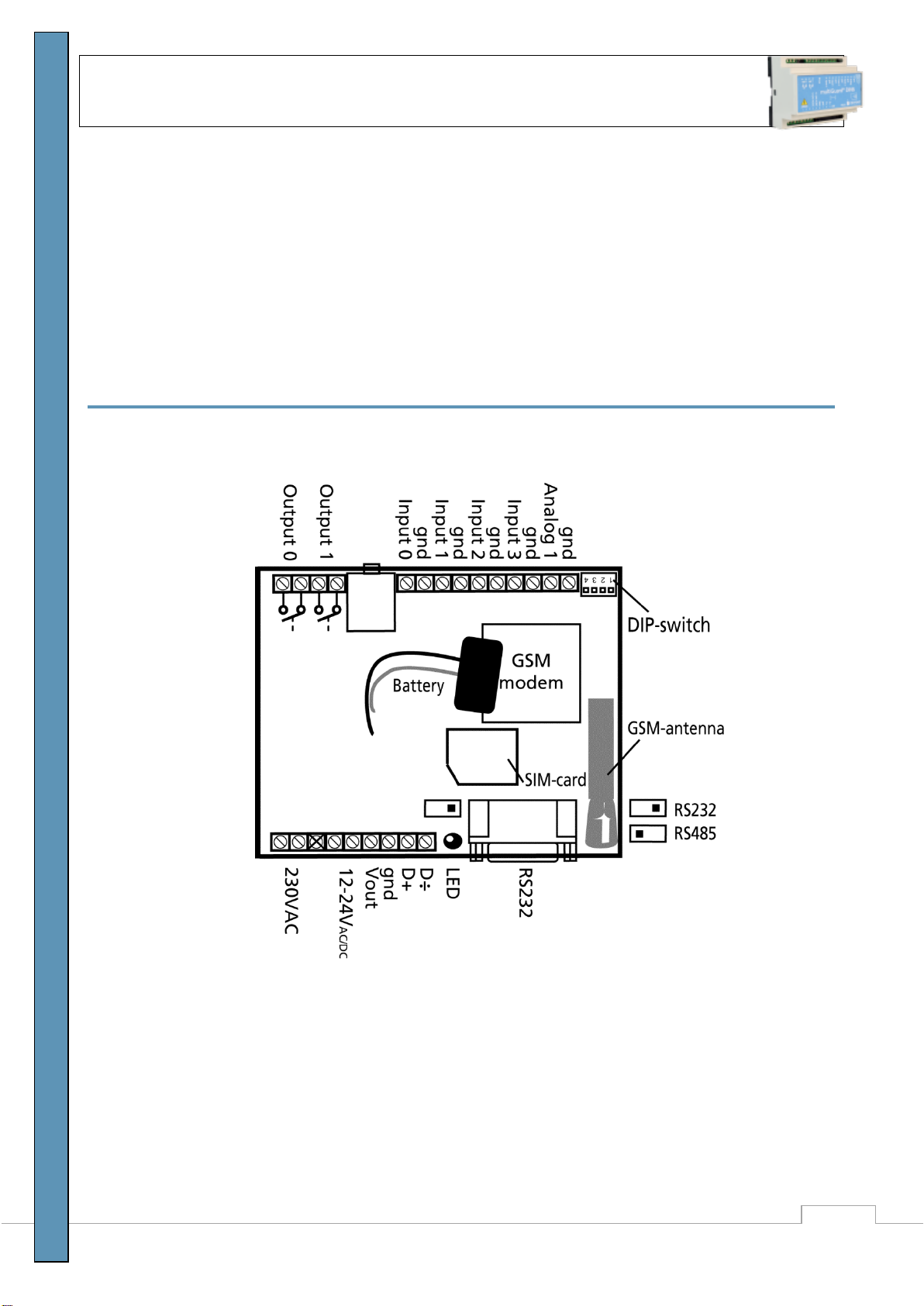

The GSM unit interior
DIP-switch for analog input
1 ON: 0-10 VDC
2 ON: 0/4-20 mA
3 ON: PT-100
4 ON: Profort probes
All OFF: digital input
Voltage
Output: AC max. 230 VAC, 6A
DC max. 30 VDC, 6A
Input, digital: max. 24 VDC
max. power 2 mA
Input, analog: max. 0-10 VDC
Only print voltage when
The DIP-switch 1 is on, and 2-4
are off

SET-UP - MANAGEMENT
.Version 1.2
Pg. 2
Set-up on PC via the PC COM-port
1. Connect the device to the PC COM port with an RS-232 cable or USB-RS232 converter (the
converter driver must be installed)
2. Install Profort PC software on a computer with Windows by downloading the program from
www.profort.dk. Start the program and enter the product key specified on the page.
3. Enter the number of the COM port the PC is using
4. Complete the rest of the setup program and end by transferring the information to the device
Additional help: press F1 in the program, see the manual on the CD or www.profort.com
Set-up via masterView
1. Open a browser on your PC, tablet or smartphone.
2. Type http://setup.masterview.dk in the address bar, and choose ’setup’ (or login via
www.profort.dk). Log on to the portal or create yourself as user. An unlimited number of units can
be connected to any user, and several users can be connected to the same units.
3. Create a new unit in the list and choose multiGuard DIN6 as unit. When you press SAVE the portal
sends a text message to the unit, which connects it to the Profort server via GPRS/Internet on the
SIM-card. The USERNAME of the unit will now be its telephone number (to be used, if controlling
the unit via the Profort app). All communication will then take place as data.
4. Type in the required information and press ‘send and save’.
5. The unit is now ready to use.

QUICK GUIDE for 6 modules
www.profort.com
Pg. 3
Set-up with text message
1234 = password, 0 = zero, space counts as a character and is therefore important. Do not fill in password if
PIN is disabled on SIM-card
Define the unit
phone number,
change password, if
necessary and add
ID text
1234 N0 88888888 yyyy
ID-TEXT
(N0 = N + zero)
1234 = current password, N0, 88888888=mobile
number of the unit.
Alternately yyyy=new four-digit password.
Alternately ID-text: First text in all messages from
the unit (max. 32 characters).
Receivers
Add
1234 N1 11111111
1234 N2 11111111 *
Adds receiver 11111111 in space no. 1 to receive
alarm as text message.
Adds receiver 11111111 in space no. 2 to receive
alarm as telephone call with tones.
Additional spaces (25 total):
N2..N9, NA (10), NB (11) .. NP (25),.
Delete
1234 N1
Deletes receiver in space no. 1
Text on input
Add
1234 A0 BREAK TEXT
TEXT on input 0 by open/break. (A0..A3)
1234 L0 END TEXT
TEXT on input 0 by close/make. (L0..L3)
Delete
1234 A0
Deletes TEXT for input 0 by open/break.
(A0..A3)
1234 L0
Deletes TEXT for input 0 by close/make. (L0..L3)
Only alarm if text
is added
1234 CT
The unit ignores input that has no text attached.
Add analog input 1
1234 V1 S yyyy zzzz
Set-up of the scale (yyyy = zzzz)
0-10 V (DIP-switch 1=ON) 0 10
0-20 mA. (DIP-switch 2=ON) 0 20
4-20 mA. (DIP-switch 2=ON) -5 20
PT100. (DIP-switch 3=ON) -309 115
Profort PTC. (DIP-switch 4=ON) -132 63
Add 2: Alarm
points
1234 V1 M 5 30
The unit sends alarm e.g. when temperature
passes 5 and 30 degrees C.
Add text in LOW
interval
1234 V1 A LOW TEMP
Alarm text in LOW interval (below 5 degrees
C.)
Add text in
MEDÌUM interval
1234 V1 L NORMAL TEMP
Alarm text in MEDIUM interval (between 5 and
30 degrees C.)

SET-UP - MANAGEMENT
.Version 1.2
Pg. 4
Add text in HIGH
interval
1234 V1 B HIGH TEMP
Alarm text in HIGH interval (higher than 30
degrees C.)
Activate output on
alarm
1234 G1
(G1 = 10 secs., G2 = 20 secs., G3 = 30 secs., G4 =
1 min, G5 = 2 mins, G6 = 4 mins, G7 = 8 mins, G8
= 16 mins og G9 = constant.)
Sets the relay output to activate in case of alarm on
an input. Output is determined by zone.
Output follows
state on input
1234 GA
Indicates that the output follows the corresponding
input if text is added.
Notice: input signal has higher priority than
command S0 (S + zero) and B0 (B + zero)
Deactivate output
in case of alarm
1234 G0
Output is not activated in case of alarm (G+null)
Add macro 0 for
return of
temperature
1234 M0 TEMP <V1 R>
The unit returns value on analogue 1 (e.g.
temperature) when a text message with the word
‘TEXT’ is sent (‘1234’ omitted in macros). If
using the Profort app, the macro names are shown
as buttons in the app.
Additional help: see the manual on www.profort.com
Control with call from telephone
Call the unit. Press 1234 (password) when the connection has been established and await two ’beeps’. Enter
the desired code and hang up.
Examples of codes:
*0x (asterisk + zero + zero) Pulses output x for 10 secs.
*1x(asterisk + 1 + zero) Breaks output x
*2x (asterisk + 2 + zero) Closes output x
x Performs macro x
If # is pressed while receiving voice message, the subsequent persons in the call list will not
receive an alarm.

CONTROL
www.profort.com
Pg. 5
Control with text message
Connect/disconnect
the unit
1234 ON
GSM unit is connected, diode flashes lazily every 2nd
sec.
1234 OF
GSM unit is disconnected, diode flashes briefly every
2nd sec.
Activation of
output x
1234 S0
Closes output 0. (S0..S1)
1234 B0
Breaks output 0. (B0..B1)
1234 P0
Pulses output 0 for 10 secs. (P0..P1)
Download
1234 OK
Downloads information about GSM transmission power
and battery level
Example: OK>>OK SQ: xx%
xx = transmission power in percentage. 25 % is least
acceptable value
1234 V1 R
Downloads measurements on analogue input 1
Connection to the
Internet
1234 EH USERNAME
GPRS traffic starts (USERNAME=the telephone
number of the unit, e.g. 20257023)
1234 EH
GPRS traffic stops
Additional control
The unit can also be controlled by use of the PC program and all functions can be controlled directly from
the internet.
See more in the manual or log on to internet management via www.profort.dk

MACRO
.Version 1.2
Pg. 6
Macro with command
Add a ”super command” by gathering together one or more commands. Name it and activate it under the
chosen name. This works with text message, call from telephone and DTMF-tones, and the internet. It is
possible to set up 20 macros.
Set up macro with
command
1234 M1 NAME
<COMMAND>
Sets up macro 1 (M0..M9 and R0..R9) under the name
NAME and adds command in < >. More commands in
the same macro can be separated by semicolon ’;’
without space.
Example: 1234 M1 SHORT PULSE <S0;B0>
Play macro
TEMP
Plays macro with the name TEMP (PIN code is omitted
when executing macros)
Delete macro
1234 M1
Deletes macro 1 (M0..M9 and R0..R9).
Additional help: see the manual on www.profort.dk

SPECIFICATIONS
www.profort.com
Pg. 7
Power supply
230V AC min. 0,1A
12-24V AC/DC min 0,5 A
NB! Supply must not come into contact with the ground.
Usage
Approx. 30 mA when resting (supplied with 12 V)
5 W supplied by 230 V
Output
Max. 6 A at 230V AC
Max. 6 A at 35V DC
10VDC supply. Max 100 mA.
MOD-bus / RS485 (D+, D-, gnd)
Inputs, digital
Max. 1V, 2 mA (GND)
Min. 18V max 30 V (24V DC)
Input, analog
0-10V DC
0/4-20mA
PT-100
Profort temperature sensor (Profort-no. 007995)
Pulse- and minute counter
Max. 10Hz. 6 numbers (Input 1=pulse/minutes, input 2+3=pulse)
Dimensions
6 DIN-modules
114x86x57 mm
Vægt: 290 g.
Temperature
–20 °C - +55 °C
Antenna
1 internal antenna for GSM-modem 2G+3G. Possible to add external antenna (Profort-no. 369003) with 2,5
m cable and 5 m extension (Profort no. 301110) or 10 m extension (Profort no. 301111)

MACRO
www.profort.dk

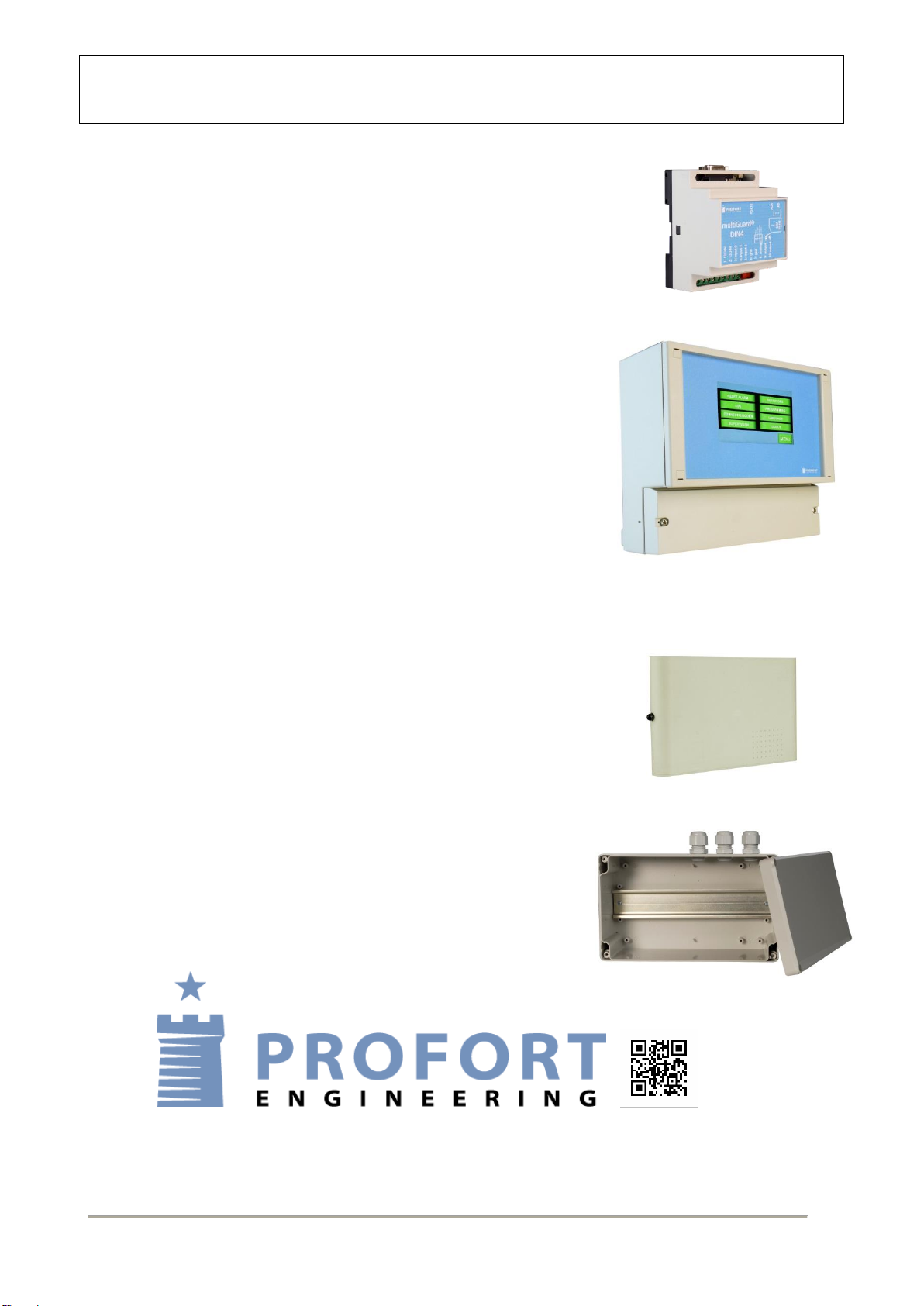

GSM unit –4 modules
1 relay output
3 digital inputs
1 analog inputs
12-24 V AC/DC power supply (acquisition)
3,6 V Li-ion back-up battery (acquisition)
DIN-rail, four modules
multiGuard Master RF
8 relay outputs
8 digital inputs
4 analog inputs
Wireless 868 MHz receiver
230V/12-24V power supply
9V rechargeable back-up battery (acquisition)
Modbus interface
IP-65 box
Touch display for set-up and programming
multiGuard Remote IO
1 relay output
2 senders of infrared codes for heat pump control
3 digital inputs
1 built-in temperature/humidity sensor
1 recorder for infrared codes
12V DC power supply (inclusive)
3,6V Li-ion back-up battery (inclusive)
Box for wall mount
Connector for external IR-sender
IP-65-box for GSM unit
Waterproof box
DIN-rail for 9 modules
3 PG-inputs
