Progress Lighting AirPro P250099 User manual

®
P250099
93165620_A

Limited Lifetime Warranty
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
111017
P250099
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical
defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and
metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from
the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/
or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for
ENERGY STAR® qualied products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal
conditions of use, are warranted to be free from defects in material and workmanship which cause the light
sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase
on the LED Light modules and electrical components for fans used in single family residences, and (ii) three
(3) years from the date of purchase on the LED Light modules and electrical components for fans used in
multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other
than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the
rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)
678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall
be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor
(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,
misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser
or a third party, including without limitation improper voltage supply or power surge, use of improper parts or
accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION
AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.
PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF
BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON INFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations
of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specic rights and you may have other rights which vary from state to state.
785247255474
785247255481

Safety Rules
Unpacking Your Fan
Installing Your Fan
Making the Electrical Connections
Operating Your Fan
Care of Your Fan
Troubleshooting
Specications
Table of Contents
1
2
3
5
8
9
9
10

1. To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. CAUTION: To reduce the risk of personal injury, use only the
screws provided with the electrical box.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting 35 lbs. (15.9 kg).
Use only cUL Listed outlet boxes marked “Acceptable for Fan
Support of 35 lbs. (15.9 kg) or less.”
5. CAUTION: The fan must be mounted with a minimum of 7
feet clearance from the trailing edge of the blades to the oor.
6. Do not wait for the fan to stop before pressing the reverse
button. The fan will not reverse direction if the fan is not
moving.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into electrical box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
electrical box and ungrounded conductor on the other side of
the electrical box.
11. Electrical diagrams are for reference only. Light kits that
are not packed with the fan must be UL Listed and marked
suitable for use with the model fan you are installing. Switches
must be UL General Use Switches. Refer to the instructions
packaged with the light kits and switches for proper assembly.
12. All set screws must be checked and retightened where
necessary before installation.
13. WARNING: To reduce the risk of re or electric shock, this
fan should only be used with speed controller UC7312RE,
manufactured by Rhine Electronic Co., Ltd.
1. Safety Rules
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN
SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-
VIDED WITH THE OUTLET BOX.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATION WALL CONTROL/SWITCH.

a. Blade arm attachment hardware
(19 screws)
b. Electrical hardware and balancing kit
(3 plastic wire connector, blade balancing kit)
c. Blade bracket attachment hardware
(1 extra screw for attaching blade arm to the
fan motor assembly)
6. Light Kit Pan
7. Light Kit Fitter Assembly
8. Light Shade
9. Remote Control
1. Mounting Plate
2. Fan Motor Assembly
3. Housing
4. Blade Arm
5. Blade
2. Unpacking Your Fan

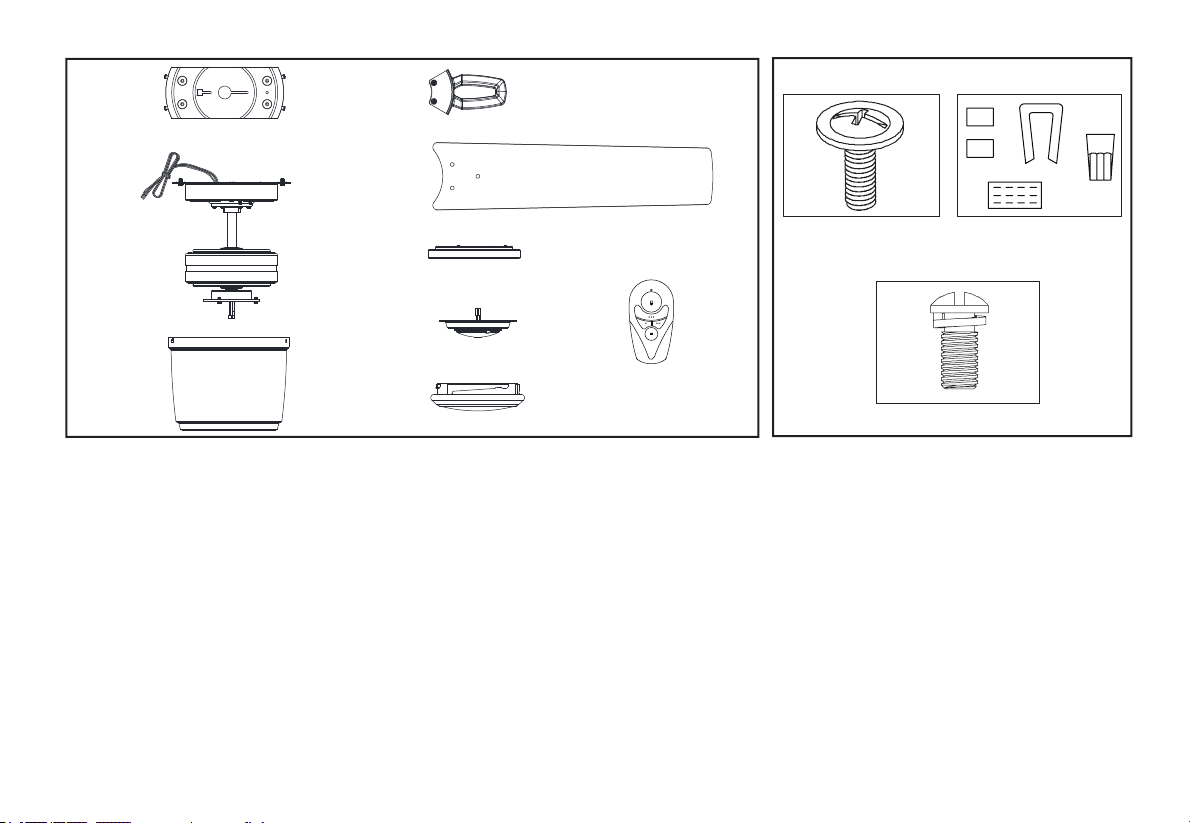

Unpack your fan and check the contents. You should have the following items:
ab
c
5
1
2
3
4
6
7
8
9

3. Installing Your Fan
Tools Required
Phillips screw driver or straight slotted screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing electrical box, then
read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the electrical box directly to the building
structure. Use appropriate fasteners and
building materials. The electrical box and
its support must be able to fully support the
moving weight of the fan (at least 35 lbs.).
Do not use plastic electrical boxes.
Figures 1, 2, and 3 are examples of different
ways to mount the electrical box.
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum
angle allowable is 20˚. If the canopy touches
downrod, turn the canopy 180˚ before
attaching the canopy to the mounting plate.
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR
LESS”, AND USE SCREWS PROVIDED WITH
THE OUTLET BOX. ELECTRICAL BOXES
COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES MAY NOT BE ACCEPT-
ABLE FOR FAN SUPPORT AND MAY NEED TO
BE REPLACED. CONSULT A QUALIFIED ELEC-
TRICIAN IF IN DOUBT.

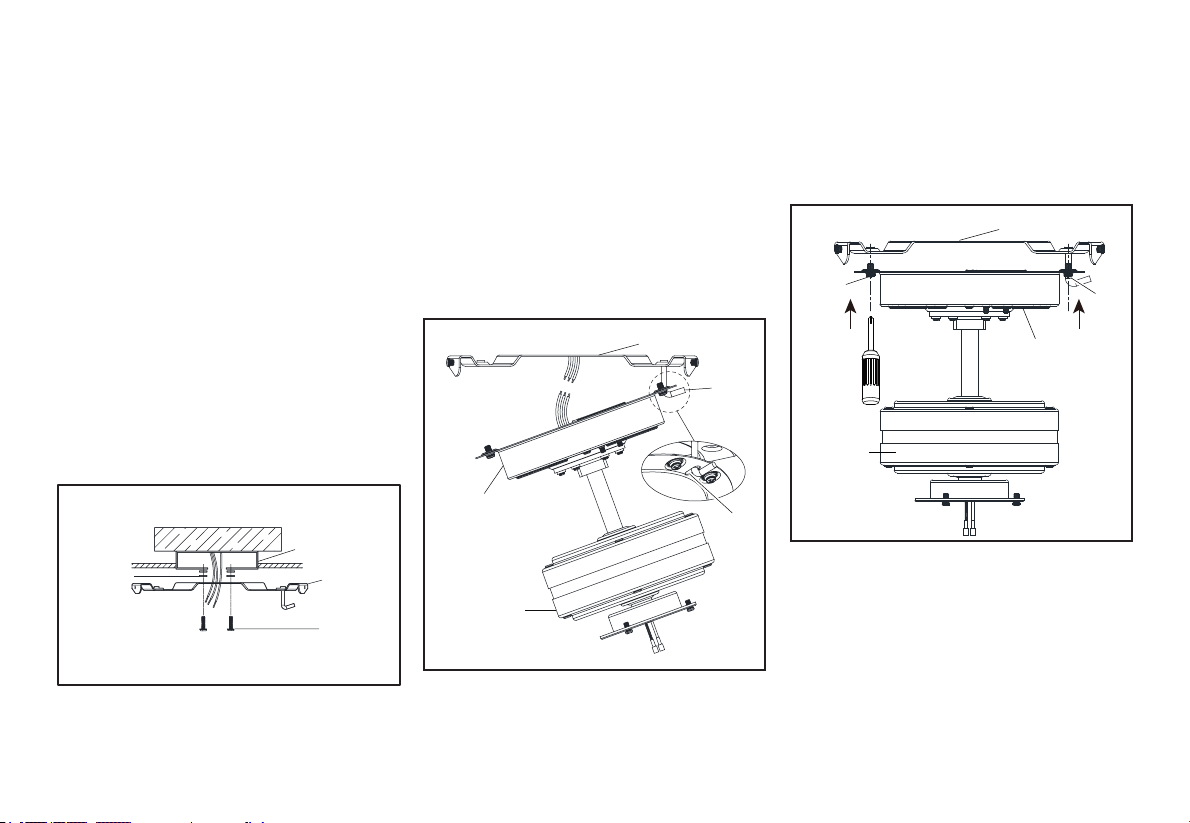

Figure 1
Figure 2
Figure 4
Figure 3

4. Hanging the Fan
Figure 5 Figure 6
Figure 7
Hanging the fan-motor
assembly
1. Carefully lift the fan-motor assembly and
engage the slot in the motor bracket on the
top of the fan-motor assembly with the
hook on the mounting plate so that it is
securely suspended. (Figure 6)
Then connect the wiring to your fan
according to step 5 “Making the Electrical
Connections” found on next page.
2. Once the wiring is completed, lift the fan-
motor assembly.
3. Align the holes in the mounting plate
with the pre attached screws on the motor
bracket.
4. Securely tighten the screws.
Washers
UL listed
electrical box
Mounting
screws
Mounting
plate
Hook
Fan-motor
assembly
Slot
Motor
bracket
Mounting plate
Mounting plate
Fan-motor
assembly
Motor
bracket
Screw
Screw
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: For better fan performance, make
sure the mounting plate is level. Additional
washers (not included) may be needed to
insert between the outlet box and mounting
plate.
Attaching the fan to the
electrical box
1. Turn the power off.
2. Securely attach the mounting plate to the
outlet box using the two screws supplied
with the outlet box. Pull the 120-volt
supply wires (black, white and ground
wires) out of the outlet box and through
the hole in the mounting plate and lay
them to the side. (Figure 5)

5. Electrical Connections
Making the electrical
connections
1. Connect the ground conductor of the 120-
Volt supply (this may be a bare wire or a
wire with green colored insulation) to the
green wire from the motor bracket using a
plastic wire connecting nut. (Figure 8)
2. Connect the fan motor white wire to the
household white wire using a plastic wire
connecting nut. (Figure 8)
3. Connect the fan motor black wire wire to
the household black wire using a plastic
wire connecting nut. (Figure 8)
4. Secure each wire connecting nut using
electrical tape. Turn the wire connecting
nut upward and push the wiring into the
outlet box.
EACH WIRE CONNECTING NUT SUPPLIED
WITH THIS FAN IS DESIGNED TO ACCEPT UP
TO ONE 12-GAUGE HOUSE WIRE AND TWO
WIRES FROM THE FAN. IF YOU HAVE LARGER
THAN 12-GAUGE HOUSE WIRING OR MORE
THAN ONE HOUSE WIRE TO CONNECT TO THE
FAN WIRING, CONSULT AN ELECTRICIAN FOR
THE PROPER SIZE WIRE NUTS TO USE.

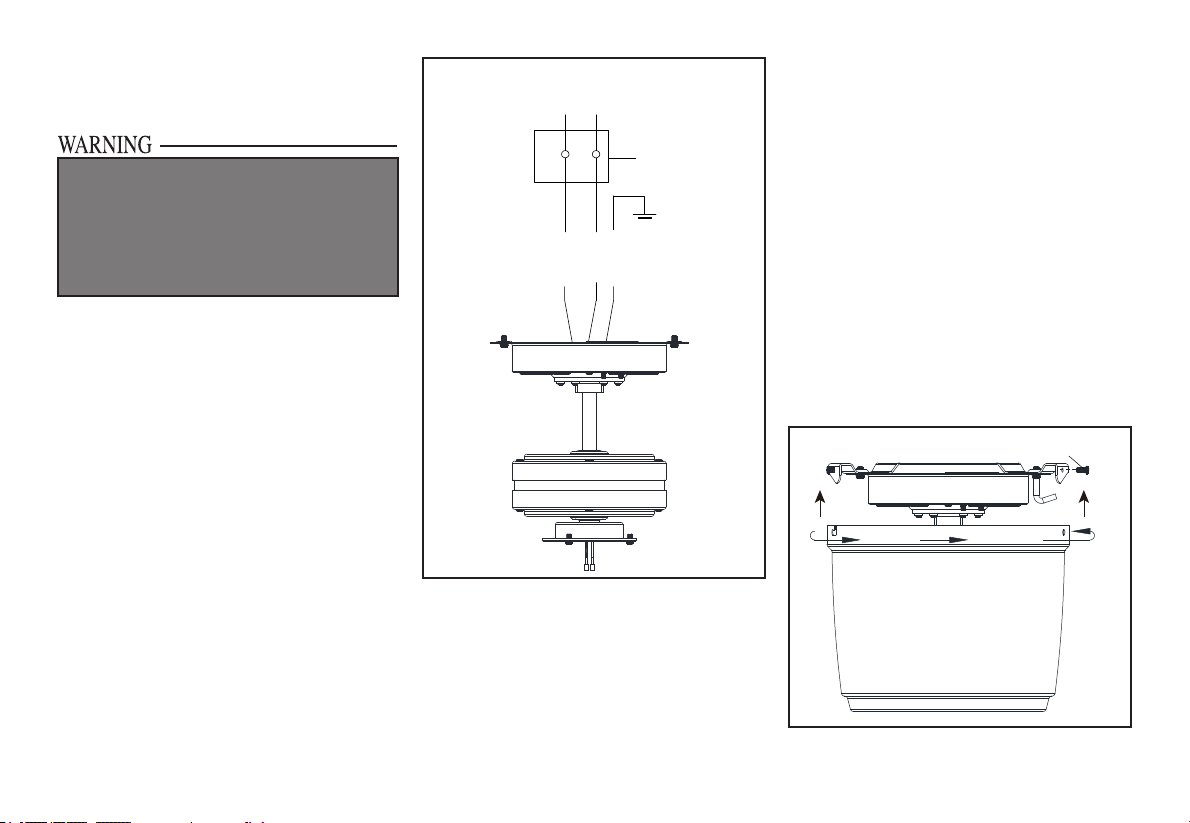

Figure 9
Figure 8
BLACK
WHITE
GREEN
Outlet
box
BLACK WHITE
Installing the motor housing
1. Remove two of the four screws (located
diagonally from each other) from the top
of the mounting plate and loosen the other
two screws.
2. Align the two key slots in the top of the
motor housing with the two loosened
screws on the mounting plate. Push the
motor housing up and turn it clockwise to
lock in the mounting plate. Tighten the two
screws.
3. Install the two screws that were removed
at the beginning of this step into the
remaining two holes and tighten the four
screws rmly. (Figure 9)
Screws

Screws
Motor Assembly
Blade arm
1/8”. Run the fan for 10 minutes.
3. Make sure that canopy is tightened
securely to ceiling mounting bracket
and that the ceiling mounting bracket is
tightened securely to the electrical box.
4. Interchanging two adjacent blades can
redistribute the weight and possibly result
in the smoother operation.
5. Use the enclosed blade balancing kit if the
blade wobble is still noticeable.
Figure 10
6. Attaching the Blades
Figure 11
Attaching the blade
brackets to the blades
1. Attach blade to blade bracket using the
screws as shown in gure 10. Start a
screw into the bracket. Repeat for the two
remaining screws.
2. Tighten each screw securely.
Attaching the blade
1. Fasten the blade assembly to the motor by
inserting the alignment post into the slot
on the bottom of the motor and tightening
the motor screws. Please note that the
motor screws are pre-attached into the
blade brackets (Figure 11).
2. Repeat step 1 for the remaining blades.
Blade balancing
All blades are grouped by weight. Because
materials vary in density, the fan may wobble
even though the blades are weight matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
from a point on the center of each blade
to the point on the ceiling. Measure this
distance as shown in Figure 12. Rotate
the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within
Figure 12
Screws
Blade
Blade arm
Touching
ceiling
NOTE: Your fan blades are reversible. Select
the blade side nish which best accentuates
your decor.

Glass Shade
Flat Area
Raised
Dimples
Light kit fitter
assembly
Screws
Black White
White
Blue
Light Kit
Pan
Screws
Light Kit Pan
7. Installing Light Kit
Installing the Light Kit Pan/
Light Kit Fitter Assembly/
Light Shade
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit
to the fan before installing the light kit.
1. Loosen but do not remove two of three
mounting screws from the fan motor
assembly; Remove one mounting screw.
(Figure 13)
2. Push the light kit pan up to the fan motor
assembly so that the two loosened screw
heads t into the keyhole slots. Turn the
light kit pan clockwise, then tighten the
screws. Re-install the screw that was
removed in step 1 and tighten rmly.
(Figure 13)
3. Remove one screw from the light kit pan
and loosen, but do not remove the other
two screws. Connect the wires from the
light kit tter assembly to the wires from
the fan motor assembly by connecting the
molded adaptor plugs together. Carefully
tuck all wires and splices into the switch
cap. (Figure 14)
4. Push the light kit tter assembly up so
that the two loosened screw heads t into
the keyhole slots. Turn the light kit tter
assembly clockwise, tighten the screws.
Re-install the screw that was removed in
step 3 and tighten rmly. (Figure 14)
5. Place the shade into the light kit pan,
aligning the three at areas on the top of
the shade with the three raised dimples in
the light kit pan. Turn the shade clockwise
until it stops. Make sure to twist the lens
in completely. Exert enough force to get
over the rst bump and twist completely in.
(Figure 15)
Figure 13
Figure 14
PERIODICALLY CHECK THE GLASS SHADE IS
SEATED FULLY CLOCKWISE IN THE LIGHT KIT
PAN ASSEMBLY.
Figure 15

Figure 17
Figure 18
8. Operating Your Fan
Speed settings for warm or cool weather depend
on factors such as room size, ceiling height,
number of fans, and so on.
Warm weather - (Forward) A downward air
ow creates a cooling effect as shown in Figure
17. This allows you to set your air conditioner
on a higher setting without affecting your
comfort.
Cool weather - (Reverse) An upward air ow
moves warm air off the ceiling are as shown in
Figure 18. This allows you to set your heating
unit on a lower setting without affecting your
comfort.
Remote Control - Your fan is equipped with a
remote control to operate the speed and lights
of your new ceiling fan (Figure 16).
Model:UC7085T
FCC ID:CHQ7085T
IC:2968A-7085T
Complies with Canada
RSS-210
MADE IN CHINA
Airpro
R
12V
Fan reverse
Figure 18
Key -
Key -
Key -
Key -
Key -
Key -
High speed
Medium speed
Low speed
Light on/off and dimmer (press
and hold to dim light)
Fan reverse (inside battery
compartment on the backside
of the remote control)
Fan off
1. Remove the battery cover and install 12V
battery.
2. Press the fan on/off button for 5 seconds
then release , If pairing is successful light
kit will ash two times and blades will
begin to spin.
NOTE: The remote control has already been
paired to the ceiling fan for your convenience.
If you have two of the same model fans in
your home, please follow the steps below to
control each fan independently.

9. Care of Your Fan and Troubleshooting
Care of Your Fan
Here are some suggestions to help you maintain your fan.
1. Because of the fan’s natural movement, some connections may become loose.
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan
from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, this could damage the motor,
or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Warning - Make sure the power is off before cleaning your fan.
3. You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated sealed ball bearings.
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check batteries in the transmitter. Does the red LED light come on? Are you standing close enough to the fan?
(Normal range is 10-20 feet.) Are the dip switch settings the same on the transmitter (hand unit) and receiver?
REMEMBER TO TURN OFF POWER SUPPLY BEFORE CHECKING THE DIP SWITCH SETTINGS IN
RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub are tight.
3. Make sure wire nut connections are not rattling against each other or the interior wall of the switch housing.
CAUTION: Make sure power is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
5. If using the ceiling fan light kit, make sure the screws securing the glassware are tight. Check that the light bulb is also
secure.
6. Make sure the canopy is a short distance from the ceiling. It should not touch the ceiling.
7. Make sure your electrical box is secure and rubber isolator pads were used between the mounting bracket and electrical box.
Troubleshooting
Problem Solution

10. Specications
FAN
SIZE SPEED VOLTS
FAN POWER
CONSUMPTION
(WITHOUT LIGHTS)
WATTS
AIRFLOW
CFM
AIRFLOW
EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
NET
WEIGHT
GROSS
WEIGHT
CUBE
FEET
54”
Low
120
15 1558 103 18
Lbs
21
Lbs 2
High 63 3576 56
©2023 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
15 1558 103
63 3576 56
Responsible Party - U.S. Contact Information: Progress Lighting , LLC 701 Mellennium Blvd Greenville , SC 29607, [phone].

®
Manual de instalación de ventilador de techo
P250099
93165620_A

Garantía limitada de por vida
Fecha de compra
Tienda donde se compró
Modelo UL #
# de serie
Proveedor #
UPC
111017
P250099
Los motores de ventilador Progress Lighting se garantizan al comprador original como libres de defectos eléctricos
y/o mecánicos por el tiempo en que estén en su posesión como dueño. Los interruptores activados por cadena, los
interruptores de reversa, los capacitores y los acabados de metal se garantizan como libres de defectos materiales
o de fabricación por el plazo de 1 año desde la fecha de compra. Las deformaciones de las aspas de madera o
plástico no están cubiertas por esta garantía así como no lo están tampoco la corrosión y/o deterioro del acabado
de ventiladores instalados a menos de diez millas de la costa del mar. Pudieran aplicarse garantías extendidas para
productos ENERGY STAR® que caliquen.
Los ventiladores de techo Progress Lighting con fuentes de luz LED incorporadas, si han sido bien instalados y
bajo condiciones normales de uso, se garantizan como libres de defectos materiales y de fabricación que puedan
causar un fallo en el funcionamiento según las especicaciones de dichas fuentes de luz durante un periodo de (i)
cinco (5) años a partir de la fecha de compra para los módulos de luz LED y componentes eléctricos de ventiladores
usados en residencias unifamiliares y durante (ii) tres (3) años para ventiladores usados residencias multifamiliares
o en instalaciones comerciales. Las bombillas LED suministradas por Progress Lighting sólo poseen la garantía
del fabricante. Las bombillas que no sean LED no tienen garantía.
Con prueba de la compra, el comprador original puede devolver el ventilador defectuoso, para su reemplazo, al
lugar donde lo compró, dentro de los 30 días siguientes a la compra. Pasados 30 días, el comprador original TIENE
que contactar a Progress Lighting llamando al [phone] para reparación o reemplazo, según determine
Progress Lighting a su entera discreción, y este será el único y exclusivo remedio del comprador.
Se excluyen cargos por mano de obra y envío. Esta garantía no cubre ningún costo ni cargo asociado a la mano de
obra (incluyendo, pero sin limitarse a, los cargos del electricista) que se requiera para instalar, retirar o reponer un
ventilador o cualquiera de sus partes.
Esta garantía no cubre ninguna pérdida o daño resultante de (i) desgaste normal o alteración, mal uso, abuso o
negligencia, o (ii) instalación, operación, reparación o mantenimiento incorrectos por el comprador original o un
tercero, incluso sin limitación del suministro de tensión o sobrecarga de alimentación, uso de piezas o accesorios
inadecuados, reparación no autorizada (realizada o intentada) o falta de mantenimiento al ventilador.
LAS GARANTÍAS ANTERIORES ESTABLECEN LA OBLIGACIÓN DE GARANTÍA TOTAL DE PROGRESS
LIGHTING Y EL ÚNICO Y EXCLUSIVO REMEDIO DEL COMPRADOR ORIGINAL RELACIONADO
CON DICHOS PRODUCTOS. PROGRESS LIGHTING NO ES RESPONSABLE POR NINGÚN DAÑO
(SEAN INDIRECTOS, ESPECIALES, INCIDENTALES O CONSECUENTES) DEBIDO A FALLAS DEL
PRODUCTO, YA SEAN DERIVADAS DE INCUMPLIMIENTO DE LA GARANTÍA O DEL CONTRATO, O
DE CUALQUIER OTRA CAUSA. ESTA GARANTÍA SE OTORGA EN LUGAR DE TODAS LAS DEMÁS,
YA SEAN EXPRESAS O IMPLÍCITAS, INCLUIDAS LAS GARANTÍAS DE COMERCIABILIDAD,
IDONEIDAD PARA UN PROPÓSITO EN PARTICULAR O NO INFRACCIÓN.
Algunos estados no permiten limitaciones en la duración de una garantía implícita ni exclusión o limitaciones de
daños incidentales o consecuentes, así que las exclusiones o limitaciones anteriores pudieran no aplicarse a su
caso. Esta garantía le otorga derechos especícos y es posible que usted tenga otros, que varían de estado a estado.
785247255474
785247255481

Normas de seguridad
Cómo desempacar el ventilador
Cómo instalar el ventilador
Cómo hacer las conexiones eléctricas
Cómo usar el ventilador
Cuidado del ventilador
Solución de problemas
Especicaciones
Tabla de contenido
1
2
3
5
8
9
9
10

1. Para disminuir el riesgo de descarga eléctrica, antes de comenzar
la instalación asegúrate de que la electricidad ha sido cortada en el
cortacircuitos o en la caja de fusibles.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y los códigos eléctricos locales.
La instalación eléctrica debe hacerse por un electricista calicado con
licencia.
3. CUIDADO: Para reducir el riesgo de lesiones físicas, usa sólo los
tornillos suministrados con la caja eléctrica.
4. La caja eléctrica y estructura de soporte tienen que montarse de forma
segura para poder sostener con conanza 15.9 kg (35 lb). Usa solo
cajas eléctricas aprobadas por cUL y marcadas como “Aceptable para
sostener ventiladores de 15.9 (35 lb). o menos.”
5. PRECAUCIÓN: El ventilador tiene que montarse con al menos 7 pies
(2.13 m) de separación entre el borde trasero de las aspas y el piso.
6. No esperes a que el ventilador se detenga antes de presionar el botón
de reversa. Si el ventilador no está en movimiento, no cambiará de
dirección.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones personales o daños al ventilador y otros artículos,
ten cuidado al limpiarlo o al trabajar cerca de él.
9. No usar agua ni detergentes para limpiar el ventilador o las aspas.
Para limpiar, casi siempre será adecuado un paño seco o ligeramente
humedecido con que quitar el polvo.
10. Después de concluir con las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y empujarlos con cuidado
hacia dentro de la caja eléctrica. Los cables deben estar separados,
con el cable y el conductor a tierra del equipo hacia uno de los lados
de la caja eléctrica y el conductor sin conexión a tierra hacia el lado
opuesto.
11. Los diagramas eléctricos son sólo para referencia. Los kits de luces
no empaquetados con el ventilador tienen que estar aprobados por UL
y marcados como apropiados para usar con el modelo de ventilador
que estás instalando. Los interruptores tienen que estar clasicados de
uso general por UL. Para ensamblar bien, consulta las instrucciones
adjuntas a los kits de luces e interruptores.
12. Antes de la instalación, todos los tornillos de jación tienen que
comprobarse y reajustarse donde sea necesario.
13. ADVERTENCIA: Para reducir el riesgo de incendio o descarga
eléctrica, este ventilador sólo debe ser utilizado con el controlador de
velocidad UC7312RE, fabricado por Rhine Electronic Co., Ltd.
1. Normas de seguridad
LEE Y GUARDA ESTAS INSTRUCCIONES
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA U OTRAS
LESIONES, INSTALA SÓLO EN UNA CAJA ELÉCTRICA CLASIFICADA COMO
“APROPIADA PARA SOSTENER VENTILADORES DE 35 LB O MENOS”, Y USA SÓLO
LOS TORNILLOS INCLUIDOS CON LA CAJA ELÉCTRICA.
PARA REDUCIR EL RIESGO DE LESIONES, NO DOBLES LOS BRAZOS
DE LAS ASPAS (TAMBIÉN LLAMADOS “REBORDES”) DURANTE
NI DESPUÉS DE LA INSTALACIÓN. NO COLOCAR OBJETOS EN LA
TRAYECTORIA DE LAS ASPAS.
PARA EVITAR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE
VENTILADOR DEBE SER INSTALADO CON UN CONTROL/
INTERRUPTOR DE AISLAMIENTO DE MONTAJE EN PARED.

a. Herrajes para montaje de brazos de aspas
(19 tornillos)
b. Accesorios eléctricos y kit de compensación
(3 conector plástico de cable, kit de
compensación de aspas)
c. Herrajes para montaje de soportes de aspas
(1 tornillo extra para conectar los brazos de aspas
al conjunto del motor del ventilador)
6. Carcasa del kit de luces
7. Conjunto de soporte del kit de luces
8. Pantalla de la lámpara
9. Control remoto
1. Placa de montaje
2. Conjunto del motor del ventilador
3. Carcasa
4. Brazo de aspa
5. Aspa (6)
2. Cómo desempacar el ventilador
Desempaca tu ventilador y revisa el contenido.
Debes tener los siguientes artículos:
ab
c
5
1
2
3
4
6
7
8
9

3. Cómo instalar el ventilador
Herramientas necesarias
Destornillador Phillips o de punta plana, llave
ajustable, escalera de tijera y cortacables.
Opciones de montaje
Si no hay una caja eléctrica presente, lee
las siguientes instrucciones. Desconecta la
energía retirando los fusibles o apagando
los cortacircuitos.
Asegura la caja eléctrica directamente a la
estructura de la edicación. Usa sujetadores
y materiales de construcción apropiados. La
caja eléctrica y su soporte tienen que poder
sostener todo el peso en movimiento del
ventilador (al menos 35 lb = 15.9 kg).
No uses cajas eléctricas de plástico.
Las guras 1, 2 y 3 ejemplican diferentes
maneras de montar la caja eléctrica.
Caja eléctrica
Caja eléctrica
Caja
eléctrica
empotrada
Placa de
montaje
en techo
Provee un
soporte fuerte
Nota: Tal vez necesites un tubo bajante más
largo para mantener la altura mínima adecuada
de las aspas al instalar el ventilador en un techo
inclinado. El ángulo máximo permitido es
20º. Si la cubierta toca el tubo bajante, gira
la cubierta 180º antes de jarla a la placa de
montaje.
Caja eléctrica
Para colgar el ventilador donde haya una
lámpara, pero ninguna viga de techo, tal vez
necesites una barra colgante como se muestra
en la Figura 4.
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA
ELÉCTRICA U OTRAS LESIONES, INSTALA SÓLO EN UNA
CAJA ELÉCTRICA CLASIFICADA COMO “APROPIADA
PARA SOSTENER VENTILADORES DE 35 LB (15.9 KG) O
MENOS”,YUSASÓLOLOSTORNILLOSINCLUIDOSCONLA
CAJA ELÉCTRICA. LAS CAJAS ELÉCTRICAS UTILIZADAS
COMÚNMENTE PARA EL SOPORTE DE ARTÍCULOS DE
ILUMINACIÓN PUEDEN NO SERVIR COMO UN SOPORTE
DE VENTILADOR, Y TAL VEZ DEBAN REEMPLAZARSE.
EN CASO DE DUDA, CONSULTA A UN ELECTRICISTA
CALIFICADO.
Figura 1
Figura 2
Figura 4
Figura 3

4. Cómo colgar el ventilador
Figura 5
Figura 6
Figura 7
Cómo colgar el conjunto
del motor del ventilador
1. Con cuidado alza el conjunto motor-
ventilador y engancha la ranura del soporte
del motor en la parte superior del conjunto
del motor del ventilador con el gancho
de la placa de montaje para que quede
suspendido de forma segura. (Figura 6)
Enseguida, conecta el cableado a tu
ventilador como indica el paso 5 "Cómo
hacer las conexiones eléctricas" que se
encuentra en la siguiente página.
2. Una vez terminado el cableado, levanta el
conjunto del motor del ventilador.
3. Alinea los oricios de la placa de montaje
con los tornillos preatornillados del
soporte del motor.
4. Aprieta bien los tornillos.
A
randelas
Caja eléctrica
aprobada por UL
Tornillos
de montaje
Placa
de montaje
Gancho
Conjunto
del motor
del ventilador
Ranura
Soporte
del motor
Placa de montaje
Placa de montaje
Conjunto
del motor
del
ventilador
Soporte
del motor
Tornillo
Tornillo
RECUERDA cortar el suministro de
electricidad. Sigue los pasos más abajo para
colgar correctamente tu ventilador.
NOTA: Asegúrate de que la placa de montaje
esté nivelada para garantizar un mejor
rendimiento del ventilador. Es posible que
necesites arandelas adicionales (no incluidas)
para insertarlas entre la caja eléctrica y la
placa de montaje.
Cómo jar el ventilador a
la caja eléctrica
1. Corta la electricidad.
2. Fija la placa de montaje rmemente en la
caja eléctrica usando los dos tornillos de
la misma. Saca los cables de suministro
de 120 V (cables negro, blanco y de
tierra) de la caja eléctrica, pásalos a través
del oricio en la placa de montaje y
colócalos a un costado. (Figura 5)
