Progress PCD41100X User manual

PCD41100X
User Manual
Steamer

CONTENTS
Safety information 2
Safety instructions 3
Product description 6
Control panel 6
Before first use 8
Daily use 9
Clock functions 10
Automatic programmes 11
Using the accessories 12
Additional functions 13
Hints and tips 14
Care and cleaning 19
Troubleshooting 21
Technical data 22
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
2 Progress

General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing
the lamp to avoid the possibility of electric shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power supply.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
Progress 3

• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially when
the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the mains
at all poles. The isolation device must
have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Use
WARNING! Risk of injury, burns
and electrical shock or
explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING! Risk of damage to
the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
4 Progress

• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
Steam Cooking
WARNING! Risk of burns and
damage to the appliance.
• Released Steam can cause burns:
– Do not open the appliance door
during the steam cooking operation.
– Open the appliance door with care
after the steam cooking operation.
Care and cleaning
WARNING! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING! Risk of electrical
shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the appliance.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Progress 5

PRODUCT DESCRIPTION
General overview
4
2
3
1
1
7
2 3
4
5
6
1Control panel
2Electronic programmer
3Water drawer
4Lamp
5Steam generator with cover
6Shelf support, removable
7Shelf positions
Accessories
Wire shelf
For cookware, cake tins, roasts.
Sponge
For absorbing the remaining water from the
steam generator.
CONTROL PANEL
Electronic programmer

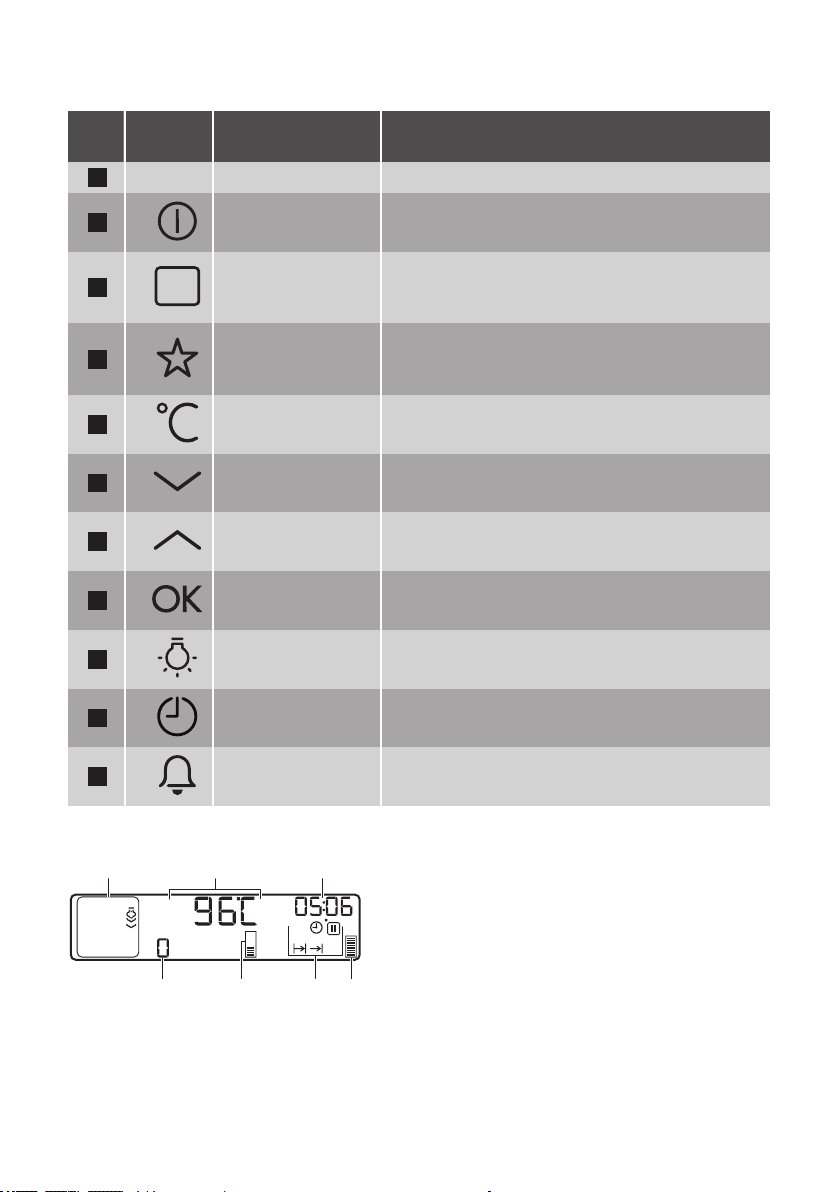

21 3 4 5 6 7 8 9 10 11
6 Progress

Use the sensor fields to operate the appliance.
Sensor
Field
Function Description
1- DISPLAY Shows the current settings of the appliance.
2ON / OFF To activate and deactivate the appliance.
3
OPTIONS To set an oven function, a cleaning function or an
automatic programme (only when the appliance is
activated).
4
MY FAVOURITE
PROGRAMME
To store your favourite programme. Use it to have
access to your favourite programme directly or
when the appliance is deactivated.
5TEMPERATURE To set and see the cavity temperature or the core
temperature sensor temperature (if present).
6DOWN To move down in the menu.
7UP To move up in the menu.
8OK To confirm a selection or setting.
9OVEN LIGHT To activate or deactivate the oven lamp.
10 CLOCK To set the clock functions.
11 MINUTE MINDER To set the Minute Minder.
Display
A B C
DEFG
A. Oven function symbol
B. Temperature / time of day display
C. Clock / Residual heat display / Minute Minder
D. Residual heat indicator
E. Indicators for the clock functions
F. Heat-up indicator
G. Number of an oven function / programme
Progress 7

Other indicators of the display:
Symbol Name Description
Automatic programme You can choose an automatic programme.
My favourite programme The favourite programme operates.
/ kg / g An automatic programme with a weight in-
put operates.
/ h / min A clock function operates.
Temperature The current temperature is indicated.
Temperature You can change the temperature.
Light You deactivated the light.
Minute minder The minute minder function operates.
Heat up indicator
If you activate an oven function, the bars
come on in the display. The bars show that
the temperature in the appliance increases
or decreases.
When the appliance is at the set
temperature, the bars go off the display.
BEFORE FIRST USE
WARNING! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
After the software version goes off, the
display shows h and 12:00.
1. Touch or to set the hours.
2. Touch .
3. Touch or to set the minutes.
4. Touch or .
The Temperature / Time display shows the
new time.
Changing the time
You can change the time of day only when
the appliance is off.
Touch .
flashes in the display.
To set the new time of day, refer to "Setting
the time".
8 Progress

DAILY USE
WARNING! Refer to Safety
chapters.
Operating the appliance
To operate the appliance you can use:
•the manual mode
•automatic programmes
Changing the temperature
Touch or to change the temperature
in steps of 5 °C.
When the appliance is at the set
temperature, an acoustic signal sounds
three times and the Heat up indicator goes
out.
Checking the temperature
You can see the temperature in the
appliance when the function or programme
operates.
1. Touch .
The Temperature / Time display shows the
temperature in the appliance.
If you want to change the temperature,
touch one more time and use or .
2. Touch to go back to the set
temperature or the display shows it
automatically after five seconds.
Steam cooking
The water drawer cover is in the control
panel.
WARNING! Do not put water
directly into the steam
generator!
Use only water as the liquid. Do
not use filtered (demineralised)
or distilled water.
1. Press the cover of the water drawer to
open it.
2. Fill the water drawer with 800 ml of
water.
The water supply is sufficient for
approximately 50 minutes.
3. Push the water drawer to its initial
position.
4. Activate the appliance.
The display shows the Full Steam function.
5. If necessary, touch to set the
DURATION or END function (refer
to "Setting the END" or "Setting the
DURATION").
The first steam shows after approximately 2
minutes. An acoustic signal sounds when
the appliance is at approximately the set
temperature. The signal sounds again at
the end of the cooking time.
6. Touch to deactivate the acoustic
signal and the appliance.
When the steam generator is
empty, an acoustic signal
sounds.
When the appliance cools down, soak up
all remaining water from the steam
generator with the sponge. If necessary,
clean the steam generator with some
vinegar. Let the appliance dry fully with the
door open.
Energy saving
The appliance contains features which help
you save energy during everyday cooking.
•General hints
– Make sure that the oven door is
closed properly when the appliance
operates and keep it closed as much
as possible during the cooking.
– Use metal dishes to improve the
energy saving.
– When possible, put the food inside
the oven without heating it up.
– When the cooking duration is longer
than 30 minutes, reduce the oven
temperature to minimum, 3 - 10
minutes before the end of the
cooking time, depending on the
duration of the cooking. The residual
Progress 9

heat inside the oven will continue to
cook.
– Use the residual heat to warm up
other foods.
•Residual heat
– In some oven functions if a
programme with time selection
(Duration, End, Time Delay) is
activated and the cooking time is
longer than 30 minutes, the heating
elements deactivate automatically
10% earlier. The lamp continues to
operate.
•Cooking with the lamp off -
deactivate the lamp during the cooking
and activate only when you need it.
•Keep food warm - if you want to use
the residual heat to keep the meal warm,
choose the lowest possible temperature
setting. The display shows the residual
heat temperature.
CLOCK FUNCTIONS
Clock functions table
Clock function Application
COUNT UP TIMER To set the count up, which shows how long the appliance
operates. This function has no effect on the operation of the
appliance.
TIME OF DAY To show the time of day. To change the time of day, refer to
"Setting the time".
DURATION To set how long the appliance operates.
END To set when the appliance deactivates. You can use Dura-
tion and End at the same time (Time delay) if you want the
appliance to activate and deactivate automatically later.
Count Up Timer
The Count Up Timer is not
activated if Duration and End are
set.
The Count Up Timer starts to count when
the appliance starts to heat.
1. To reset the Count Up Timer, touch .
2. Touch until the display shows
"00:00" and the Count Up Timer starts
to count up again.
Setting the DURATION
1. Activate the appliance and set an oven
function and temperature.
2. Touch again and again until the
display shows .
flashes in the display.
3. Use or to set the minutes for
DURATION.
4. Touch to confirm.
5. Use or to set the hours for
DURATION.
If you touch or while
you set the DURATION, the
appliance switches to the
setting of the END function.
6. When the set time ends, an acoustic
signal sounds for two minutes.
and time setting flash in the display. The
appliance deactivates.
7. Touch a sensor field or open the oven
door to stop the acoustic signal.
8. Deactivate the appliance.
10 Progress
