PROLED CCU 50 DALI DT8 CCT CA User manual

Bedienungsanleitung
Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technische Änderungen vorbehalten
CCU DALI DT8 CCT CA
L523M05DA1

,Vorwort
Vielen Dank, dass Sie sich für das PROLED CCU 50 DALI DT8 CCT CA Netzteil entschieden
haben. Bitte lesen Sie diese Anleitung vor der Installation und Inbetriebnahme sorgfältig durch.
Falls das Gerät beim Transport beschädigt wurde, benachrichtigen Sie bitte sofort ihren Händler.
Bitte unternehmen Sie nichts, bevor Sie ihren Händler kontaktiert haben.
Garantiebestimmungen
Vom Tag des Kaufes an gewähren wir für unsere Produkte bei sachgemäßer Verwendung im Falle
von Qualitätsmängeln kostenlose Reparatur oder Austausch, außer in folgenden Fällen:
1. Defekte durch unsachgemäßen Betrieb.
2. Schäden durch unautorisierte Reparatur, Modifikation, falschem Anschluss oder Austausch
von Chips.
3. Schäden durch Transport, Vibration usw. nach dem Kauf.
4. Schäden durch Erdbeben, Feuer, Blitzschlag, Verschmutzung oder Überspannung.
5. Schäden durch unsachgemäße Lagerung bei zu hohen Temperaturen, feuchter Umgebung
oder in der Nähe von Chemikalien.
6. Wenn das Produkt upgedatet wurde.
Sicherheitshinweise
1. Installieren Sie dieses Netzteil nicht während eines Gewitters, bei starken Magnetfeldern oder
Hochspannungsfeldern. Achten Sie auf korrekten Anschluß um das Risiko einer Beschädigung
von Komponenten oder eines Kurzschlusses zu minimieren.
2. Stellen Sie immer eine ausreichende Belüftung sicher, um die zulässige Betriebstemperatur
einzuhalten.
3. Überprüfen Sie, ob das Netzteil den Leistungsanforderungen der Leuchte entspricht und die
Polung korrekt ist.
4. Führen Sie alle Anschlüsse nur im stromlosen Zustand durch und stellen Sie vor der
Inbetriebnahme sicher, dass kein Kurzschluss vorhanden ist.
5. Versuchen Sie niemals, das Gerät selbst zu reparieren, anderenfalls erlischt die
Herstellergarantie.
6. Zu Informationen über Updates wenden Sie sich bitte an Ihren Händler.
1. Produktbeschreibung
Das PROLED CCU 50 DALI DT8 CCT CA Netzteil ermöglicht die Ansteuerung von Konstantstrom
Dynamic White Leuchten, Paneels, Flex Strips etc. durch DALI DT8 Signal.
Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technische Änderungen vorbehalten

2. Technische Daten
Modell PROLED CCU 50 DALI DT8 CCT CA
Eingangsspannung 200 – 240 VAC
Ausgang 250 – 1500 mA, 8 – 48 VDC
Leistungsaufnahme < 2 W
Umgebungstemperatur -10°C – 45°C
Abmessungen 210 mm x 50 mm x 32 mm (LxBxT)
Netto-Gewicht 269 g
3. Eigenschaften
1. Eingangssignal DALI DT8
2. Gemeinsame Anode (+) und 2 einzelne Kathoden-Ausgänge, dadurch Ansteuerung von
Dynamic White Leuchten möglich
3. Eingebautes DALI 2 Interface
4. Konstantstrom Ausgang per DIP-Schalter einstellbar
4. Bedienung
IP 20
Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technische Änderungen vorbehalten
DIP Schalter für Stromeinstellung
Bitte wählen Sie zuerst den korrekten Strom für die anzuschließende Leuchte aus.
Zu hohe Bestromung führt zu Beschädigung der LED.
DALI Adresse manuell vergeben
Die DALI Adresse kann manuell vergeben werden. Es können Adressen 00 - 63 eingestellt werden.
1. Drücken und halten Sie einen der Knöpfe bis das Display blinkt. Lassen Sie jetzt den Knopf los.
2. Drücken Sie den jeweiligen Knopf so oft, bis die gewünschte Adresse eingestellt ist.
„0-6" sind Zehnerstellen, „0 - 9" sind Einerstellen.
3. Drücken und halten Sie einen der Knöpfe solange, bis das Display aufhört zu blinken, was die
Speicherung bestätigt.
Nach erfolgter Einstellung, haben beide Kanäle z. B. die Adresse 22.

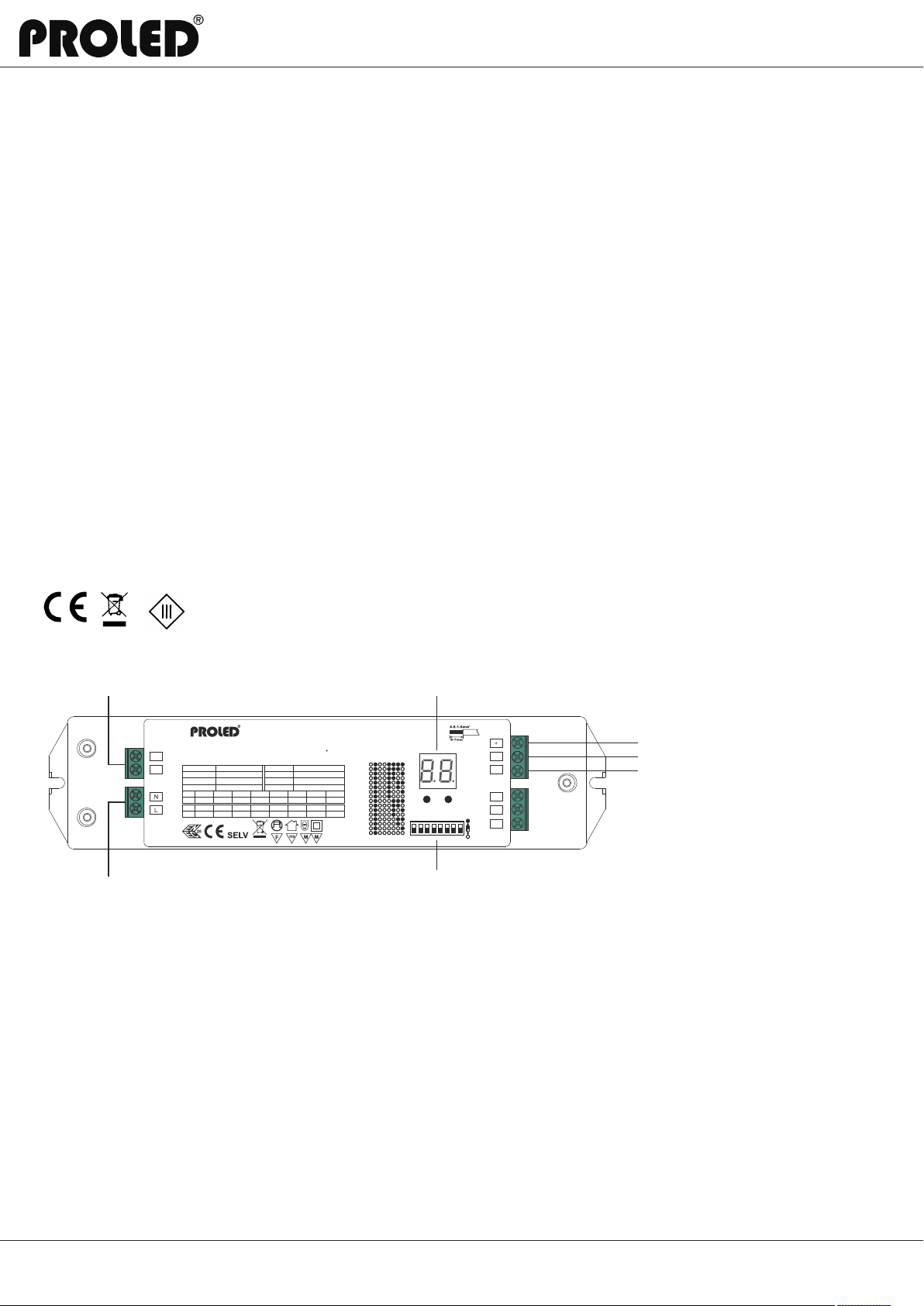

Digitalanzeige
AC 200-240V Eingang
Gemeinsame Anode Ausgang (+)
DALI Signaleingang
DIP-Schalter zur Stromeinstellung
CH 2:CW Ausgang (-)
CH 1:WW Ausgang (-)
1 2 3 4 5 6 7 8
LED CLASS 2 POWER SUPPLY
NC
NC
NC
0-6 0-9
NC=None connect
tc
CW-
WW-
LED
OUTPUT
250mA
300mA
350mA
400mA
450mA
500mA
600mA
700mA
800mA
900mA
1000mA
1100mA
1200mA
1300mA
1400mA
1500mA
1 2 3456 7 8
LED Current Selection
Iout
Uout
1500mA
8-33 V
1400mA
8-35 V
1300mA
8-38 V
1200mA
8-41 V
1100mA
8-46 V
1000mA
8-48 V
900mA
8-48 V
800mA
8-48 V
700mA
8-48 V
600mA
8-48 V
Iout 500mA
8-48 V
450mA
8-48 V
400mA
8-48 V
350mA
8-48 V
300mA
8-48 V
250mA
8-48 VUout
Iin(mA)
f(Hz)
270
50/60
Pout(W)
Uin(V)
50 W max.
200 - 240
ta℃
Uout(Max)
-20 - 45
48 VDC
λ
tc℃75
>0.93 @ 230 VAC
DALI
INPUT
DA
DA
AC
INPUT
DALI2
POWER SUPPLY
CCU 50 DALI DT8 CCT CA
L523M05DA1
MBN GmbH
Balthasar-Schaller-Str. 3
86316 Friedberg, Germany
www.proled.com

Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technische Änderungen vorbehalten
5. Anschlußdiagramme
1. DALI Bus
200-240 VAC
50/60Hz
CCT LED Leuchte
DALI bus DA
DA
DALI Adresse durch DALI Master vergeben
Die DALI Adresse kann durch einen DALI Master automatisch vergeben werden. Sehen Sie hierzu in
die entsprechende Anleitung des DALI-Masters.
Währen der Adressierung zeigt die Anzeige AU an.
Nach erfolgter Einstellung, haben beide Kanäle z. B. die Adresse 22.
1 2 3 4 5 6 7 8
LED C LASS 2 PO WER SUP PLY
NC
NC
NC
0-6 0-9
NC=No ne c onnect
tc
CW-
WW-
LED
OUTPUT
250mA
300mA
350mA
400mA
450mA
500mA
600mA
700mA
800mA
900mA
1000mA
1100mA
1200mA
1300mA
1400mA
1500mA
1 2 345678
LED Current Selection
Iout
Uout
1500mA
8-33 V
1400mA
8-35 V
1300mA
8-38 V
1200mA
8-41 V
1100mA
8-46 V
1000mA
8-48 V
900mA
8-48 V
800mA
8-48 V
700mA
8-48 V
600mA
8-48 V
Iout 500mA
8-48 V
450mA
8-48 V
400mA
8-48 V
350mA
8-48 V
300mA
8-48 V
250mA
8-48 VUout
Iin(mA)
f(Hz)
270
50/60
Pout(W)
Uin(V)
50 W max.
200 - 240
ta℃
Uout(Max)
-20 - 45
48 VDC
λ
tc℃75
>0.93 @ 230 VAC
DALI
INPUT
DA
DA
AC
INPUT
DALI2
POWE R SUPPLY
CCU 50 D ALI DT8 C CT CA
L523 M05DA 1
MBN GmbH
Balthasar-Schaller-Str. 3
86316 Friedberg, Germany
www.proled.com

CCU DALI DT8 CCT CA
L523M05DA1
User‘s manual
Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technical amendments reserved

,Preface
Thanks for choosing PROLED CCU 50 DALI DT8 CCT CA power supply. Before installation and
use, we strongly recommend you to read this manual carefully. If the device has been damaged
during transport, please report this to your supplier immediately. Please don’t take any action
without contacting your supplier first
ҟLimited Warrenty
In case of quality problems we provide free repair or replacement within two years from the day of
purchase, if this product has been used properly in accordance with the user’s manual, except in
following cases:
1. Any defects caused by wrong operation.
2. Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection
and replacement of chips.
3. Any damages due to transportation, vibration etc. after purchase.
4. Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
5. Any damages caused by negligence, inappropriate storing at high temperatures and humidity
or near harmful chemicals.
6. Product has been updated
Safety Warnings
1. Please don’t install this power supply during thunderstorms, intense magnetic or high-voltage
electrical fields. To reduce the risk of component damage and fire caused by a short circuit,
make sure, that all connections are correct.
2. Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
3. Check voltage and power requierements of the luminaire as well as the polarity of the power
supply.
4. Never connect any cables while power is switched on and always assure correct connections
to avoid short circuit before switching on.
5. Never attempt any repairs yourself; otherwise the manufacturer’s warranty will be void.
6. For update information please consult your supplier.
1. Product description
PROLED CCU DALI DT8 CCT CA power supply allows controlling of constant current Dynamic
White Luminaires, Panels, Flex Strip etc., by DALI DT8 signal.
Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technical amendments reserved

2. Technical Data
Modell PROLED CCU 50 DALI DT8 CCT CA
Input Voltage 200 – 240 VAC
Output 250 – 1500 mA, 8 – 48 VDC.
Power consumption < 2 W
Ambient temperature -10°C – 45°C
Dimensions 210 mm x 50 mm x 32 mm (LxWxH)
Net-weight 269 g
3. Specifications
1. Signal input DALI DT8
2. Common Anode (+) and 2 separate Cathode (-) outputs, what allows to control dynamic white
luminiares.
3. DALI 2 Interface installed.
4. Constant current output setted by DIP-switches
IP 20
4. Usage
Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technical amendments reserved
DIP switches for current setting
Please set first the correct current for the luminiare which will be connected.
Too high current will damage the LED.
DALI Address manual setting
DALI Address can be setted manually. Addresses between 00 - 63 can be set.
1. Press and hold one of the button untill display start blinking. Release the button.
2. Press the corresponding button untill the desired address is set.
„0-6" are the tens, „0 - 9" are the ones.
3. Press and hold one of the button untill the display stop blinking, which confirms saving.
After successful setting, both channels, for example, have address 22.
Digital display
AC 200-240V input
Common Anode output (+)
DALI signal input
DIP-Schalter for current setting
CH 2:CW output (-)
CH 1:WW output (-)
1 2 3 4 5 6 7 8
LED CLASS 2 POWER SUPPLY
NC
NC
NC
0-6 0-9
NC=None connect
tc
CW-
WW-
LED
OUTPUT
250mA
300mA
350mA
400mA
450mA
500mA
600mA
700mA
800mA
900mA
1000mA
1100mA
1200mA
1300mA
1400mA
1500mA
1 2 3456 7 8
LED Current Selection
Iout
Uout
1500mA
8-33 V
1400mA
8-35 V
1300mA
8-38 V
1200mA
8-41 V
1100mA
8-46 V
1000mA
8-48 V
900mA
8-48 V
800mA
8-48 V
700mA
8-48 V
600mA
8-48 V
Iout 500mA
8-48 V
450mA
8-48 V
400mA
8-48 V
350mA
8-48 V
300mA
8-48 V
250mA
8-48 VUout
Iin(mA)
f(Hz)
270
50/60
Pout(W)
Uin(V)
50 W max.
200 - 240
ta℃
Uout(Max)
-20 - 45
48 VDC
λ
tc℃75
>0.93 @ 230 VAC
DALI
INPUT
DA
DA
AC
INPUT
DALI2
POWER SUPPLY
CCU 50 DALI DT8 CCT CA
L523M05DA1
MBN GmbH
Balthasar-Schaller-Str. 3
86316 Friedberg, Germany
www.proled.com

Bedienungsanleitung / User‘s manual
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
www.proled.com
09.20. Technical amendments reserved
DALI addresse set by DALI Master
DALI address can be set automatically by a DALI Master. Please refer to the corresponding manual of
your DALI-Master.
During addressing the display shows AU.
after successfull setting, both channels have, for example, address 22.

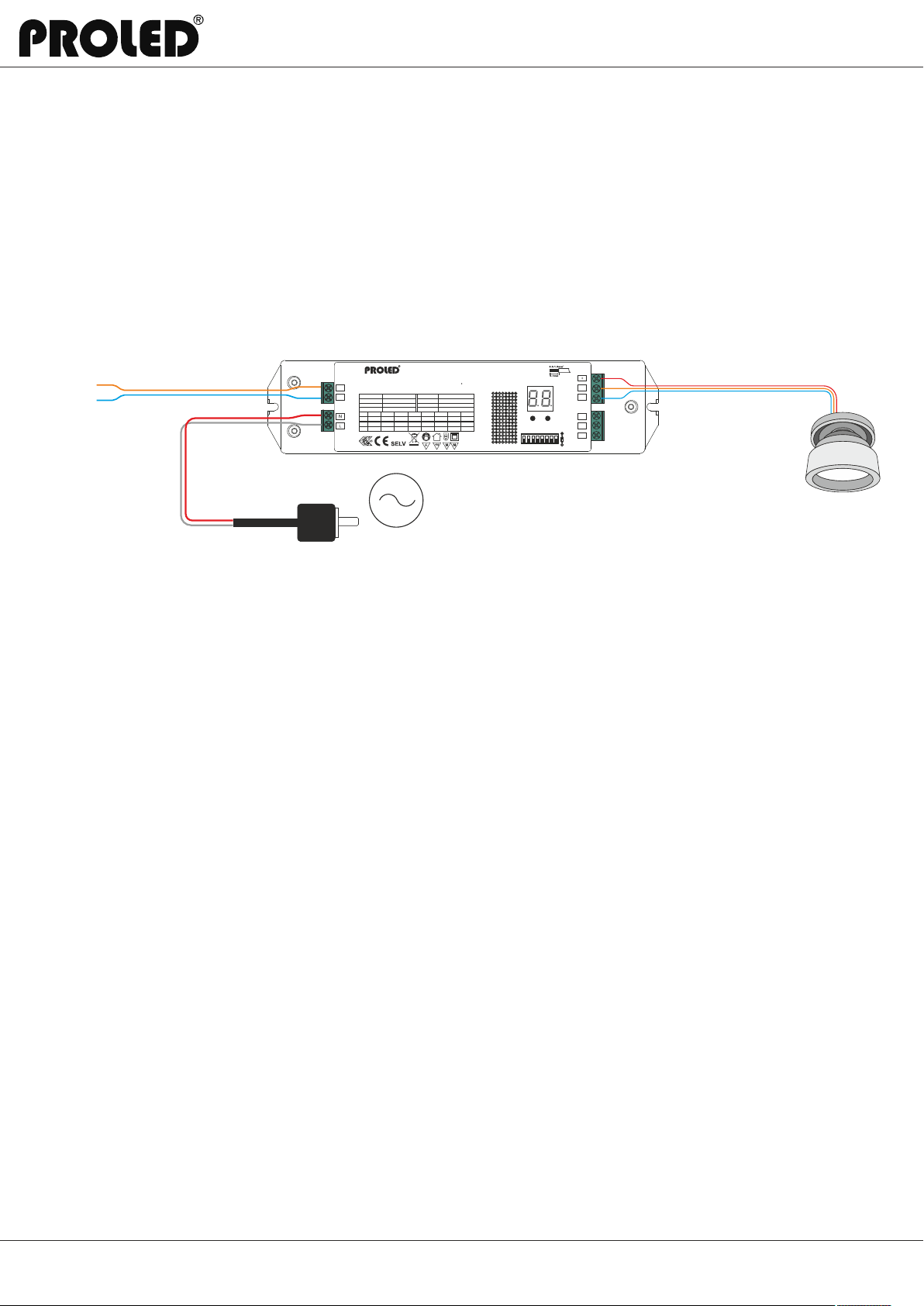

5. Connection diagram
1. DALI Bus
200-240 VAC
50/60Hz
CCT LED luminaire
DALI bus DA
DA
1 2 3 4 5 6 7 8
LED C LASS 2 PO WER SUP PLY
NC
NC
NC
0-6 0-9
NC=No ne c onnect
tc
CW-
WW-
LED
OUTPUT
250mA
300mA
350mA
400mA
450mA
500mA
600mA
700mA
800mA
900mA
1000mA
1100mA
1200mA
1300mA
1400mA
1500mA
1 2 345678
LED Current Selection
Iout
Uout
1500mA
8-33 V
1400mA
8-35 V
1300mA
8-38 V
1200mA
8-41 V
1100mA
8-46 V
1000mA
8-48 V
900mA
8-48 V
800mA
8-48 V
700mA
8-48 V
600mA
8-48 V
Iout 500mA
8-48 V
450mA
8-48 V
400mA
8-48 V
350mA
8-48 V
300mA
8-48 V
250mA
8-48 VUout
Iin(mA)
f(Hz)
270
50/60
Pout(W)
Uin(V)
50 W max.
200 - 240
ta℃
Uout(Max)
-20 - 45
48 VDC
λ
tc℃75
>0.93 @ 230 VAC
DALI
INPUT
DA
DA
AC
INPUT
DALI2
POWE R SUPPLY
CCU 50 D ALI DT8 C CT CA
L523 M05DA 1
MBN GmbH
Balthasar-Schaller-Str. 3
86316 Friedberg, Germany
www.proled.com
Table of contents
Languages:
Other PROLED Power Supply manuals
