Proline PF90WA GL User manual

INSTRUCTION MANUAL
48cm UNDER COUNTER FRIDGE
MODEL No.: PF90WA GL
Downloaded from www.vandenborre.be

GB
CONTENTS
CONTENTS
CONTENTS
CONTENTS
WARNINGS......................................................................................................................... 2
IMPORTANTSAFETYINSTRUCTIONS........................................................................... 4
NAMEOFPARTS.................................................................................................................5
INSTALLATION...................................................................................................................6
OPERATION.........................................................................................................................6
Settingthetemperaturecontrol..........................................................................................7
Makingicecubes................................................................................................................7
Reversingthedoor..............................................................................................................8
Noisefromyourappliance..................................................................................................8
Prolongedoffperiods..........................................................................................................8
Defrostingtheiceboxcompartment...................................................................................9
Notesforuse........................................................................................................................9
CLEANINGANDMAINTENACE.......................................................................................9
Changingthelightbulb.....................................................................................................10
TROUBLESHOOTING.......................................................................................................10
DISPOSAL...........................................................................................................................11
SPECIFICATIONS...............................................................................................................12
Downloaded from www.vandenborre.be

WARNINGS
This appliance is intended for domestic household use
only and should not be used for any other purpose or in
any other application, such as for non-domestic use or in
a commercial environment.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The appliance shall not be exposed to rain.
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
Downloaded from www.vandenborre.be

WARNING: For making ice (ice cubes), use potable
water only.
CAUTION: The cooling system is under high pressure.
Do not touch it. Contact qualified maintenance services
before disposal.
INSTALLATION: DO NOT INSTALL THIS APPLIANCE
IN AREAS THAT ARE TOO HUMID OR TOO COLD,
SUCH AS THE OUTBUILDINGS, GARAGES OR
WINE CELLARS.
Never freeze defrosted food except if they have been
cooked before, in order to eliminate harmful bacteria.
Never refreeze seafood that has been defrosted.
For disposal of the appliance:
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. And the disposal should only be done
through public collection points.
For installation, servicing:
Appliance should be placed on a horizontal floor and
keep the ventilation freely. Don’t try to replace or repair
any components by yourself, ask the service agency for
help if necessary.
For handling:
Always handle the appliance to avoid any damage.




Downloaded from www.vandenborre.be

IMPORTANTSAFETYINSTRUCTIONS
Ifyouarediscardinganold freezerorrefrigeratorwithalock/catchfittedtothedoor,
ensurethatitisleftinadisabledconditiontopreventtheentrapmentofyoungchildren
whenplaying.
Unplugfromoutletwhennotinuseandbeforecleaning.Removefoodbeforecleaningthe
appliance.
Donotinsertoversizedfoodasthiscouldcauseincorrectoperation.
Extremecautionmustbeusedwhenmovinganappliance.
To turntheapplianceoff,turnthethermostatknobfullyanticlockwisetosetting0,then
removetheplugfromwalloutlet.
Donotgivechildrenice-creamandwatericesdirectfromthefreezerasthelow
temperaturemaycause‘freezerburns ’ onthelips.
Downloaded from www.vandenborre.be

NAMEOFPARTS

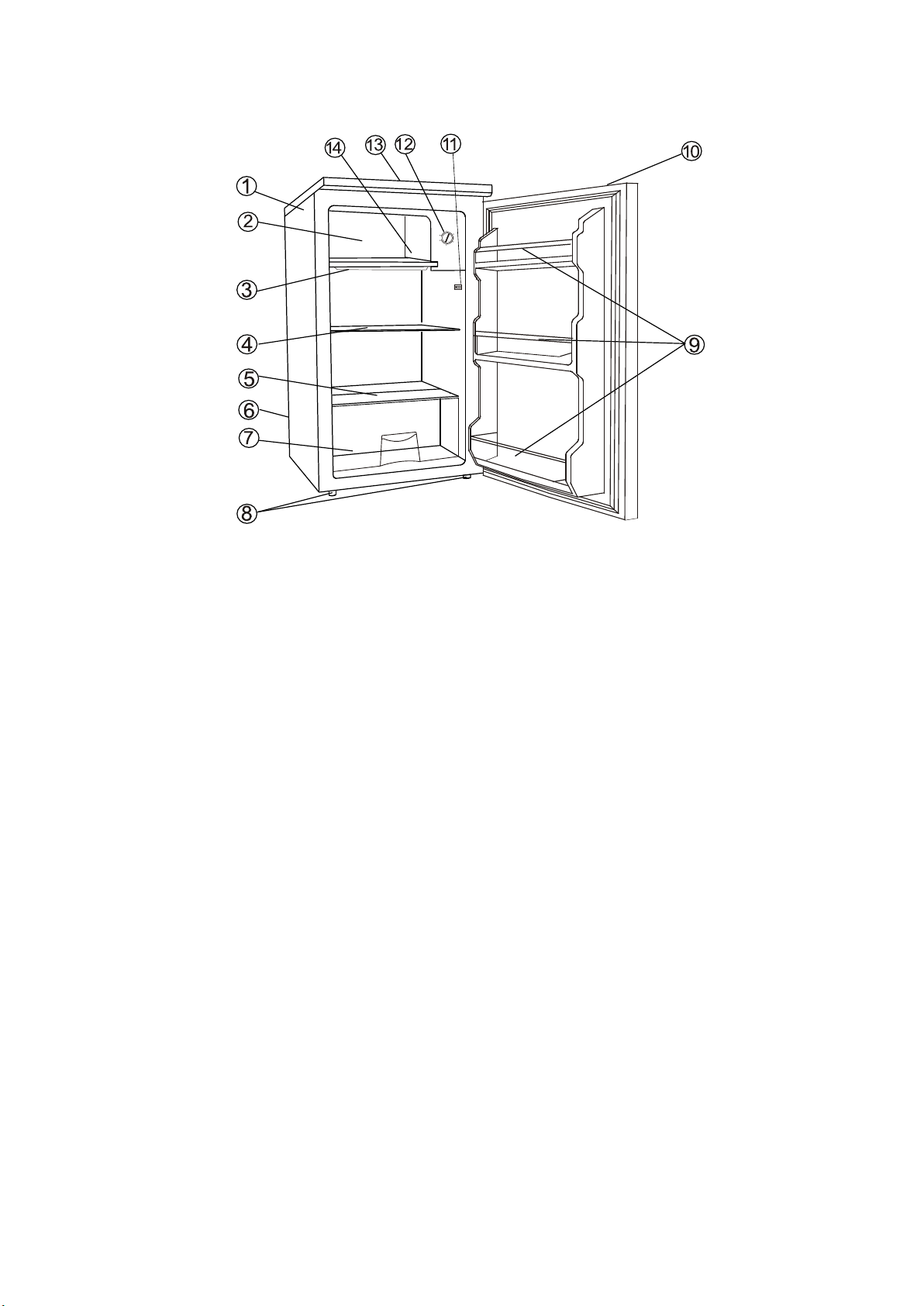

1.Cabinet
2.Iceboxcompartment
3.Driptray
4.Gl
assshelf
5.Crispercover
6.Compressor(back)
7.Crisperbox
8.Levellinglegs
9.Racks
10.Recessedhandle
11.Doorswitch
12.Temperaturecontrolknob
13.TopCover
14.Lamp
NOTE:
NOTE:
NOTE:
NOTE:Theappliancedesignissubjecttochangewithoutpriornotice.
Downloaded from www.vandenborre.be

INSTALLATION
Position the appliance and allow it to stand for two to three hours before it is turned on for
the first time to allow the system to settle. Do not position next to any heat source e.g.
cooker, boiler or in direct sunlight etc.
Allow at least 10cm of space at the top and 10 cm of space on both sides of the appliance
and between the back of the appliance and the wall for adequate air circulation. The
appliance is not designed for recessed installation (“building in”).

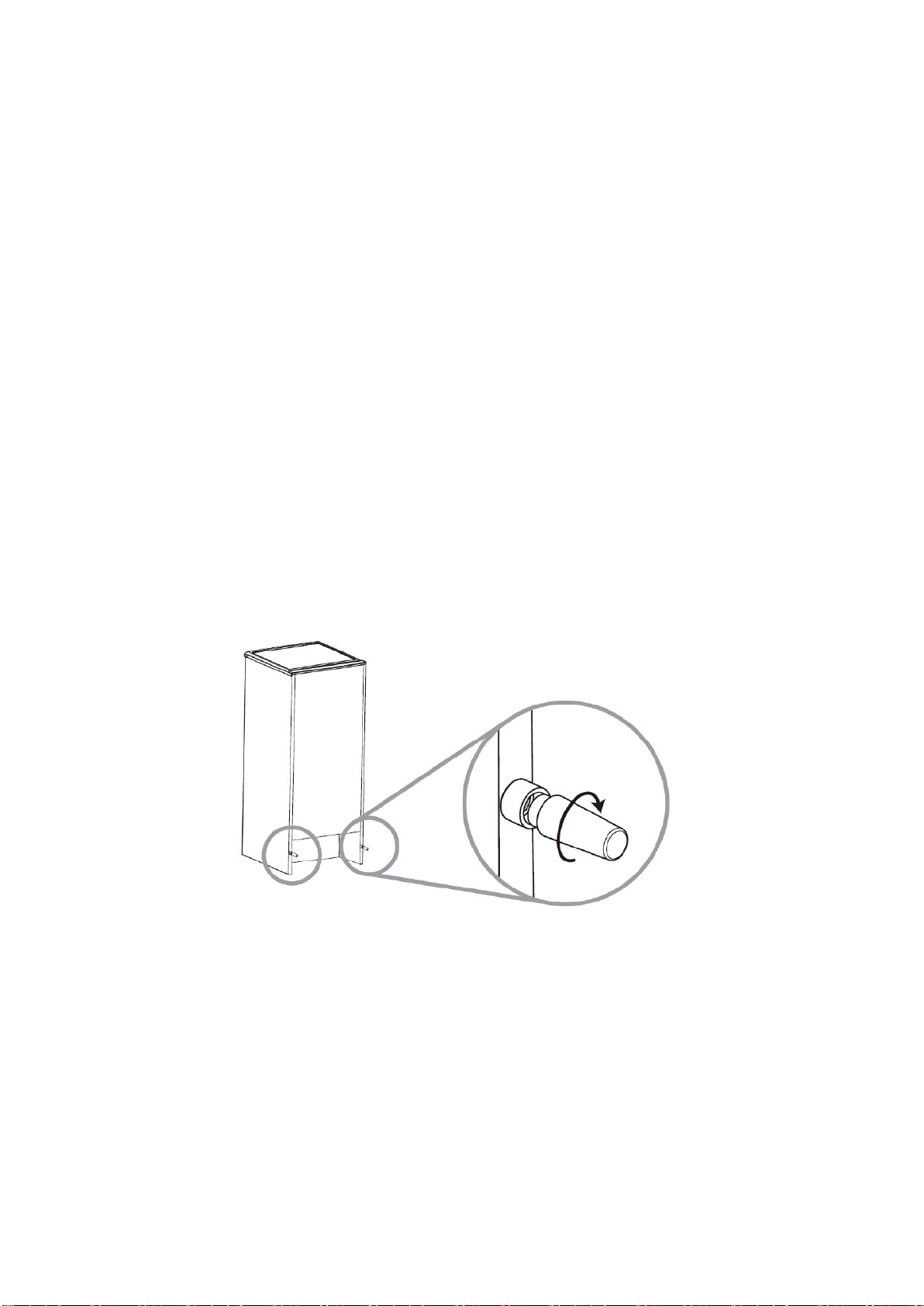

Install on a good firm level surface, and any unevenness of the floor should be corrected
prior to installation, slight unevenness can be overcome by adjusting the front feet.
NOTE
NOTE
NOTE
NOTE: If the appliance is positioned on a carpet, soft floor covering you should readjust
the front feet once the appliance has had time to settle.
OPERATION
This appliance is designed to operate in ambient temperature between 16℃and 38℃. If
these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate
correctly. If the ambient temperatures are exceeded for long periods, the temperature in the
fridge will rise above 4℃and food spoilage may occur.
Remove all packaging materials from the appliance. Wash the inside of the cabinet with
lukewarm water and bicarbonate of soda (5ml to 0.5 litre of water). Dry the appliance
thoroughly.
When you use the fridge for the first time or after defrosting, set the thermostat to the
maximum position for at least 2 hours, and then readjust to the normal position.
Additional spacers for better performance
There are 2 additional spacers in the bag of the instruction manual. We
suggest you install these 2 spacers to your refrigerator as per the diagram
below.
Note, the fitting of these spacers is not essential but will ensure that there is
sufficient space for air circulation and better cooling performance.
Downloaded from www.vandenborre.be

off), but power supply is not interrupted.
The storage temperature may be affected by:
•The room temperature
•How often the door is opened
•How much food is stored
•Position of the appliance
When you set the correct temperature, all these factors mentioned above shall be taken
into account.
Making
Making
Making
Making ice
ice
ice
ice cubes
cubes
cubes
cubes
1. Fill the ice tray with ¾ full of clean water.
2. Place the tray in the ice box compartment.
3. Close the door.
WARNING: fill with potable water supply only
To remove the ice cubes from the tray, put the tray under running water for a while and
then twist the tray slightly to loosen the ice cubes.
NOTE
NOTE
NOTE
NOTE:
This ice box compartment is a part of the fridge compartment, and not a true ice-making
compartment or a true freezer, and may not keep ice cream frozen, or freeze items.
The temperature in this compartment does not get cold enough to freeze food safely.
A colder setting can be used, but other items in the refrigerator may also be affected.
Setting
Setting
Setting
Setting the
the
the
the temperature
temperature
temperature
temperature control
control
control
control
The refrigerator is controlled with a temperature control knob located inside the appliance,
towards the upper right-hand corner. Turn the knob clockwise from the STOP (0) position
towards the higher numbers for colder temperatures.
Higher settings on the knob (higher numbers) mean lower temperatures (colder) in all
compartments of the appliance.
Changes of the ambient temperature affect temperature in the interior of the appliance so
choose a correct setting of the temperature control knob, depending on your ambient
conditions.
In the STOP (0) position the appliance does not operate (the cooling system is switched
Downloaded from www.vandenborre.be

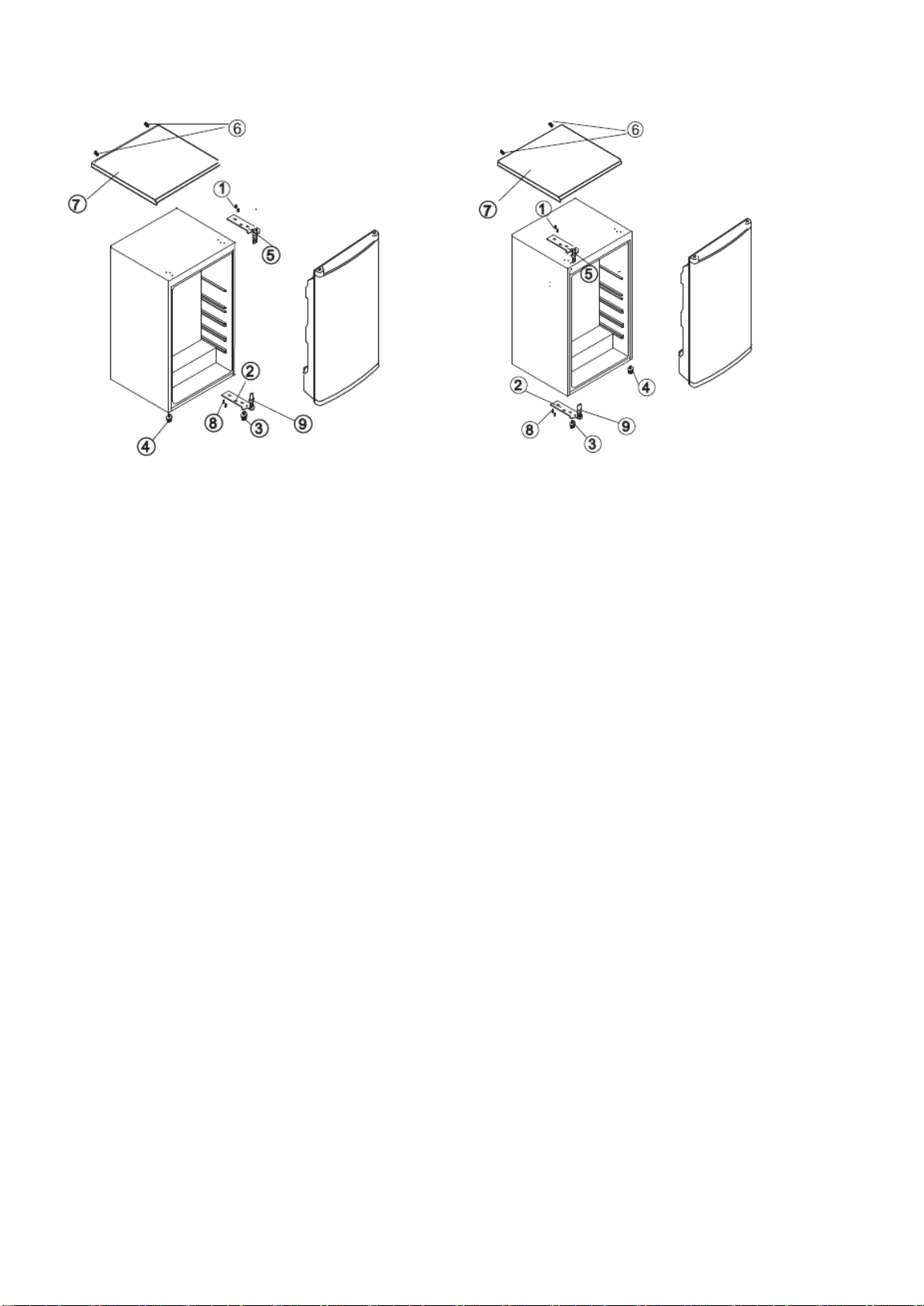

1. Unscrew the two screws (6) and remove the top cover (7).
2. Remove the two screws (1) that hold the upper hinge (5).
3. Remove the upper hinge.
4. Lift the door off the lower hinge pin.
Place it on a padded surface to prevent it from being scratched.
5. Remove the foot (3) and the two screws (8) that hold the lower hinge.
6. Remove the lower hinge (2) with hinge pin (9).
7. Unscrew the left front foot (4) and transfer it the right side.
8. Unscrew the hinge pin (9) and re-fit it to the other side of the lower hinge (reversed).
9. Screw the lower hingeonto the left side of the lower frame with two screws (8) and the
foot (3).
10. Position the door in place making sure the door seats onto the lower hinge.
11. Align the door in the closed position to secure the upper hinge in the top frame on the
left side with the screws (1).
Make sure all the screws are tightened.
12. Re-fit the top cover by tightening the screws (6).
Noise
Noise
Noise
Noise from
from
from
from your
your
your
your appliance
appliance
appliance
appliance
You may notice some rather unusual noises. The noises are caused by circulation of
refrigerant in the cooling system. It has become more pronounced since the introduction of
CFC free gases. This is not a fault and will not affect the performance of your fridge.
Prolonged
Prolonged
Prolonged
Prolonged off
off
off
off periods
periods
periods
periods
If the appliance is not in use for a long period of time, proceed as follows:
Disconnect from the mains supply.
Clean and dry the inside (see ‘Cleaning and maintenance’).
Leave the door open to prevent any unpleasant smells from building up while the
appliance is not in use.
Reversing
Reversing
Reversing
Reversing the
the
the
the door
door
door
door
Before
Before
Before
Before After
After
After
After
Downloaded from www.vandenborre.be

DO check contents of the compartments every so often.
DO check high quality fresh food and be sure it is thoroughly clean before refrigerating.
DO wrap all food in food quality polythene bags or air tight containers and make sure any
air is excluded.
Do Not store poisonous or dangerous substances in the appliance. It has been designed for
the storage of edible foodstuffs only.
Do Not leave the door open for long periods, as this will make the appliance more costly
to operate and cause excessive ice formation.
Do Not use sharp objects such as knives to remove the ice from the appliance. Only use a
plastic scrapper.
Do Not put hot food into the appliance. Let it cool down to room temperature.
Do Not put liquid-filled bottles or sealed cans containing carbonated liquids into the low
temperature compartment as they may burst.
CLEANING AND MAINTENACE
1. Unplug the appliance.
2. Remove all substances.
3. Wash the inside walls with a solution of mild detergent in warm water or 5ml
baking soda to 0.5 litre warm water.
4. Wash exteriors with a clean sponge or soft cloth and a mild detergent in warm water.
5. Rinse well and wipe dry with a clean soft cloth.
6. Replace all containers.
7. Plug the appliance in.
Defrosting
Defrosting
Defrosting
Defrosting the
the
the
the ice
ice
ice
ice box
box
box
box compartment
compartment
compartment
compartment
The ice box compartment will need defrosting periodically or when the frost is more than
3mm thick.
1. Unplug the appliance.
2. Remove the ice trays.
Ensure the drip tray is located correctly under the ice box.
3. When ice box compartment is fully defrosted, clean the inside (see ‘Cleaning and
maintenance’).
4. Close the door and plug the appliance in.
5. Set the thermostat temperature control to your normal setting.
Notes
Notes
Notes
Notes for
for
for
for use
use
use
use
DO clean and defrost your appliance regularly.
Downloaded from www.vandenborre.be

4. Unscrew the bulb and screw a new bulb.
5. Attach the light shield.
6. Assemble the drip tray.
Changing
Changing
Changing
Changing the
the
the
the light
light
light
light bulb
bulb
bulb
bulb
1. Set the thermostat to the off position (0) then unplug the appliance.
2. Remove the drip tray under the ice compartment.
3. Remove the light shield.
TROUBLESHOOTING
Before calling for service please check the following.
Maximum Lamp Power 10W,model:E14.
The
The
The
The appliance
appliance
appliance
appliance is
is
is
is not
not
not
not working.
working.
working.
working.
Check the plug is inserted correctly into the mains socket.
Check there is power to the mains socket by plugging another appliance in, if the
other appliance works check the fuse in the plug.
Downloaded from www.vandenborre.be

The
The
The
The appliance
appliance
appliance
appliance is
is
is
is noisy
noisy
noisy
noisy when
when
when
when operating.
operating.
operating.
operating.
Check the appliance is level and it is not in contact with another appliance or
kitchen furniture.
The
The
The
The appliance
appliance
appliance
appliance does
does
does
does not
not
not
not cool
cool
cool
cool sufficiently.
sufficiently.
sufficiently.
sufficiently.
If the door has been opened too often or it has been left open for a while it will take
time for the appliance to reach its set temperature.
Check the airflow over the rear of the appliance has not been reduced due to
insufficient clearance.
Check if a large quantity of fresh food has been introduced.
DISPOSAL
The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it
causes a low level of pollution but is inflammable. Please contact your local disposal
department for advice on the correct method of disposal.
Downloaded from www.vandenborre.be

SPECIFICATIONS
We apologiseforanyinconveniencecausedbyminorinconsistenciesintheseinstructions,
whichmayoccurasaresultofproductimprovementanddevelopment.
Brand
Brand
Brand
BrandProline
Appliance
Appliance
Appliance
Appliancetype
type
type
typeRefrigerator
Total
Total
Total
Totalgross
gross
gross
grossvolume
volume
volume
volume92L
Total
Total
Total
Totalstorage
storage
storage
storagevolume
volume
volume
volume90L
Ice
Ice
Ice
Icebox
box
box
boxcompartment
compartment
compartment
compartmentstorage
storage
storage
storage
volume
volume
volume
volume
10L
Maximum
Maximum
Maximum
Maximumlamp
lamp
lamp
lamppower
power
power
power10W
Climate
Climate
Climate
Climateclass
class
class
class+
+
+
+Ambient
Ambient
Ambient
Ambientrange
range
range
rangeST(+16℃to+38℃)
Energy
Energy
Energy
Energyclass
class
class
class(1)
(1)
(1)
(1)A+
Power
Power
Power
Powerconsumption
consumption
consumption
consumption(2)
(2)
(2)
(2)117kWh/year
Supply
Supply
Supply
Supplyvoltage
voltage
voltage
voltage220-240V~,50Hz
Rated
Rated
Rated
Ratedcurrent
current
current
current0.55A
Noise
Noise
Noise
Noise42dB(A)
Refrigerating
Refrigerating
Refrigerating
Refrigeratingagent
agent
agent
agentR600a/26g
Outside
Outside
Outside
Outsidedimension
dimension
dimension
dimension(W
(W
(W
(Wx
x
x
xD
D
D
Dx
x
x
xH)
H)
H)
H)480mmx520mmx850mm
Insulation
Insulation
Insulation
Insulationblowing
blowing
blowing
blowinggas
gas
gas
gasCyclopentane
(1)Energyclass:A+++……D(A+++=economicalD=lesseconomical)
(2)Therealpowerconsumptiondependsonusingconditionsandappliancelocation.
Kesa Electricals © UK: EC1N 6TE 15/ 05/ 2013
Downloaded from www.vandenborre.be

Réfrigérateur sous plan (48 cm)
MANUEL D’UTILISATION
PF90WA GL
Downloaded from www.vandenborre.be

CONTENU
CONTENU
CONTENU
CONTENU
MISES.EN.GARDE……………………………………………………………………...... 2
INSTRUCTIONSIMPORTANTESDESÉCURITÉ……………………………...... 4
IDENTIFICATIONDESPIÈCES……………………………………………………5
INSTALLATION……………………………………………………………………….6
FONCTIONNEMENT…………………………………………………………………6
Réglagedelatempérature…………………………………………………………..7
Fabricationdesglaçons………………………………………………………………7
Inversiondelaporte………………………………………………………………….8
Bruitsémispar L ’appareil…………………………………………………………...8
Périodesprolongéesdenonutilisation……………………………………………….....8
Degivrageducompartiment à glaçons…………………………………………..........9
Àfaireetànepasfaire………………………………………………………………..9
NETTOYAGEETENTRETIEN………………………………………………………9
Remplacementdel'ampoule………………………………………………………10
DÉPANNAGE…………………………………………………………………………11
MISEAUREBUT……………………………………………………………………..11
SPÉCIFICATIONS……………………………………………………………………..12
FR
Downloaded from www.vandenborre.be

MISES EN GARDE
Cet appareil est destiné à un usage domestique
uniquement. Toute utilisation autre que celle prévue pour
cet appareil, ou pour une autre application que celle
prévue, par exemple une application commerciale, est
interdite.
Cet appareil peut être utilisé par des enfants âgés d'au
moins 8 ans et par des personnes ayant des capacités
physiques, sensorielles ou mentales réduites ou
dénuées d’expérience ou de connaissance, s'ils (si elles)
sont correctement surveillé(e)s ou si des instructions
relatives à l'utilisation de l'appareil en toute sécurité leur
ont été données et si les risques encourus ont été
appréhendés. Les enfants ne doivent pas jouer avec
l’appareil. Le nettoyage et l'entretien par l'usager ne
doivent pas être effectués par des enfants sans
surveillance.
Si le câble d'alimentation est endommagé, il doit être
remplacé par le fabricant, son service après vente ou
des personnes de qualification similaire afin d'éviter un
danger.
Cet appareil ne doit pas être exposé à la pluie.
MISE EN GARDE: Maintenir dégagées les ouvertures
de ventilation dans l'enceinte de l'appareil ou dans la
structure d'encastrement.
MISE EN GARDE: Ne pas utiliser de dispositifs
mécaniques ou autres moyens pour accélérer le
processus de dégivrage autres que ceux recommandés
Downloaded from www.vandenborre.be

par le fabricant.
MISE EN GARDE: Ne pas endommager le circuit de
réfrigération.
MISE EN GARDE: Ne pas utiliser d'appareils électriques
à l'intérieur du compartiment de stockage des denrées, à
moins qu'ils ne soient du type recommandé par le
fabricant.
Ne pas stocker dans cet appareil des substances
explosives telles que des aérosols contenant des gaz
propulseurs inflammables.
MISE EN GARDE: Pour la fabrication de glaçons,
utilisez uniquement de l’eau potable.
MISE EN GARDE: Le système de réfrigération est sous
haute pression. Ne pas y toucher. Contacter des
services d’entretien qualifiés avant la mise au rebut.
INSTALLATION: N'INSTALLEZ PAS CET APPAREIL
DANS DES PIECES TROP HUMIDES OU TROP
FROIDES, TELLES QUE DES CONSTRUCTIONS
ANNEXES, GARAGES ou CAVES.
Ne congelez des aliments décongelés qu'après les avoir
cuits, afin d'éliminer les bactéries nocives. Ne recongelez
jamais des fruits de mer qui ont été décongelés.
Mise au rebut de l’appareil
Pour éviter toute nuisance enver
l’environnement ou la santé humaine causée par la mise
au rebut non contrôlée de déchets électriques, recyclez
l’appareil de façon responsable pour promouvoir la
réutilisation des ressources matérielles. La mise au rebut
Downloaded from www.vandenborre.be

doit être faite de façon sûre dans des points de collecte
publique prévus à cet effet.
Installation et mise en service:
L’appareil doit être installé sur le sol, sur une surface
plane et horizontale en s’assurant que les ouvertures
d’aération sont correctement dégagées.
Ne jamais essayer de remplacer ou de réparer vous
même une partie ou un composant de l’appareil,
demandez de l’aide à un personnel professionnel et
qualifié, si besoin.
Manipulation
Toujours manipuler l’appareil avec soin afin d’éviter
d’endommager celui-ci.















Downloaded from www.vandenborre.be

INSTRUCTIONS
INSTRUCTIONS
INSTRUCTIONS
INSTRUCTI ONSIMPORTANTES
IMPORTANTES
IMPORTANTES
IMPORTANTESDE
DE
DE
DES
S
S
SÉ
É
É
ÉCURIT
CURIT
CURIT
CURITÉ
É
É
É
Sivousjetezunappareiluséderéfrigérati onavecunloquetouunsystème
verroui llagem ontésurlaporteousurlecouvercle,assurez-vousqu'ilsoitdémonté
pourévitertoutrisqued’emprisonnementdesenfantsquandilsjouent.
Débranchezl'appareilaprèsusageetavantdelenettoyer.Enleveztouslesalimentsavant
denettoyerl'appareil.
Évitezdemettredesalimentstropvolumineux,lefonctionnementdel'appareilrisquerait
d'êtreaffecté.Soyezextrêmementprudentlorsquevousdéplacezcetappareil.
Pouréteindrel'appareil,tournezcomplètementleboutonduthermostatdanslesens
contrairedesaiguillesd’unemontreenposition0,puisdébranchezlecâbled’alimentation
delaprisemurale.
Nedonnezpasauxenfantsdelacrèmeglacéeoudel'eauglacéedirectementsortiedu
congélateurcarlabassetempératurepourraitprovoquer«desbrûluresdegel»surles
lèvres.
4
Downloaded from www.vandenborre.be

IDENTIFICATIONDESPIÈCES
1.Enceinteextérieure
2.Com partimentà glaçons
3.Bacdedégivrage
4.ClayetteVerre
5.Couvercledebacàlégumes
6.Compresseur(arrière)
7.Bacàlegumes
8.Piedsréglables
9. Balconnets
10.Poignée
11.Interrupteurdeporte
12.Boutondethermostat
13.Couverclesupérieur
14.Lampe
REMARQUE:
REMARQUE:
REMARQUE:
REMARQUE:Laconceptiondel'appareilestsujetàchangementsanspréavis.
5
Downloaded from www.vandenborre.be
