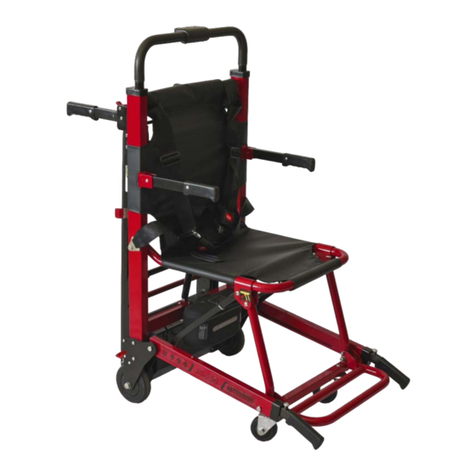

Promeba PS-190 User manual

USER GUIDE
ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
3
INDEX
01 INTRODUCTION
01.1 Using this manual 05
01.2 Characteristics 06
01.2 Technical data sheet 06
02 INSTALATION
02.1 Transporting and unpacking 07
03 OPERATING
03.1 General elements of evacuation chair PS-190 08
03.2 Chair’s use 09
03.3. Notes 09
04 MOUNTING AND COMPONENTS
04.1 General view CHAIR PS-190 10
04.2 Bill of materials of gerenal view PS-190 11
05 GENERAL MAINTENANCE 11
06 LEGAL NOTICES 12
07 PRODUCT WARRANTY 13

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
5
01.1 Using this manual
This manual provides using and maintenance instruc-
tions of the product, as well as the way of xing minor
faults that could appear.
It is recommended before the operation of the product
to read carefully this manual in order to avoid damages
caused by a misuse.
Do not lose this document, it should be accessible to
any doubt that could appear by medical personnel.
Remember that a good use and maintenance are ne-
cessary for the proper operation of the product.
Each product incorporates an identication sticker with
the serial number and the model. Keep these numbers
so that they can be indicated to the dealer if necessary.
01 INTRODUCTION

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
6
01.2 Characteristics
1. It is widely used in the home for the old people, school security, hospi-
tals, hotels etc for emergency evacuation.
2. Can be folded, easy storage.
3. It can climb up and down stairs smoothly and steadily by track.
4. With 4 wear-resistant rubber wheels, the chair can be used as a wheel-
chair on the ground.
5. There are short handles behind the backrest and exible handles at
the bottom, easy for carrying patients in narrow space.
01.3 Technical data sheet
MEASURES AND FEATURES //
LENGHT 80 ~ 110 cm
WIDTH 50 cm
HEIGHT 110 ~ 160 cm
WEIGHT 30 Kg
MAX. LOAD 160 Kg
FOLDED SIZE 115x50x27 cm
MEASURES AND FEATURES OF PACKAGE //
QUANTITY 1
SIZE 116 x 55 x 30,5 cm
WEIGHT 35 Kg
01 INTRODUCTION

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
7
02 INSTALATION
02.1 Transport and unpacking
First remove the packaging carefully so as not to dama-
ge the outside of the stretcher.
1. Transport
· Always x the load, if it is necessary stack. you should
follow the diagram shown.
· Transport the level load and following all the precepts
and regulations regarding the transport of loads.
2. Unpacking
· Put the box on a at and stable surface, open the seal
carefully not to damage inside.
· Remove the product from the inside of the case as
shown in the chart below.
Each product has been thoroughly inspected when
leaving the factory.To ensure that the transport has not
deteriorated it, please inspect the exterior and interior
carefully, and in the event of any damage, contact the
installer immediately.
PACKING UNIT
RESPECT THE PACKAGING TRANSPORT POSITION
UNPACKING THE PRODUCT
ALWAYS USE FLAT SURFACE

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
8
03.1 Chair’s use
1. Before transfer patients, open the chair, ensure the red cross-bar has
insert the lock slot. Warning: Be sure the cross-bar is locked before using.
2. After the patient sit down, fasten the vest belts.
3. Press the lock button to adjust the telescopic front handles, open fol-
ding handle to 90 degree, then autolock.
4. The headrest can be adjusted according to patient’s height by pull &re-
lease the black bar, total 3 positions,then fasten the head cushion.
5. Track operation: Push down the black tube along the slot to fold the
track and track frame will be locked automatically by the side lock, when open
the track , open the black size lock rst, then pull out the black tube.
Adjust track tightness: if you nd the track become too loose or tight, you can
use socket head wrench to adjust it.
6. After using, pull the black cross bar along the slot to fold the chair.
7. Go down the stair: (this product is suitable for any type of stairs)
Open battery switch: push the chair to the stair, make the chair fall backward,
press the “DOWN” , the chair will go down the stairs , you just need to hold the
chair, ensure that the chair go straight line.
Go up the stair:
Pull the chair to the stair, make the chair fall backward, press the “UP”, the chair
will go up the stairs, you just need to hold the chair, ensure that the chair go
straight line, and lightly press the backrest to ensure the chair steady climbing.
Stop on the stairs: if you want to stop the chair on the stairs, just move your
nger away from the button, the chair has its own balance will not move down
or fall down from the stairs, very safe.
8. The installation of the battery, charging and maintenance.
Insert the battery to the slot, can be locked by key.
Battery charging need 5 hours, the full charging can use about 1.5 hours, equal
to climbing and down 5 layers building 30 times.
When no use the chair, close the battery switch, if long time not use, make sure
to charge the battery every 3 month, the battery can repeat charge for 500
times, its lifetime is about 3-5 years.
03 OPERATING

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
9
03.2 Notes
1. The operator must read the manual rst, operate the product in right way and
examine before use, or the company will not responsible for the risk of accidents.
2. We suggest the man or the strong woman to operate the chair.
3. When transporting, be sure use the safety belts to avoid further damages.
4. If any damage on the chair, should be replaced immediately.
5. Check the safety belts frequently, replace the damaged parts at once.
03.3 Maintenance
1. Keep clean, including disinfection.
2. Always check whether each part is loose before using the chair. If there are some
parts loose, please fasten them at once. Usually every three month need to have a check
under normal use.
3. If the chair get wet in the rain, try it after using, so that the chair can be kept light.
03.4 Storage
1. Store this chair in the place of damp proof and non-corrosion environment.
03.5 Transport
1. Transport can be carried out by air, by sea, or land.
2. Manual handling is strictly prohibited throwing, smashing and other acts.
03.6 List of accessories
NO. Name Quality
1 Safety Belt 1
2 Head Restraint 1
3 Lithium battery and charger 1
4 e M4 Allen wrench 1
5 User Manual 1
03 OPERATING

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
10
04 MOUNTING AND COMPONENTS
04.1 General view PS-190
7
11
10
2
1
16
17
20
4 5
17
25
19
23
25
24
28 14
26 22
15
21
12
18

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
11
04 MOUNTING AND COMPONENTS
04.2 Bill of materials GENERAL VIEW PS-190
NUM. ELEMENT CODE - DESCRIPTION UNITS
1.01 PS1900-00010 - CORRETJA TRACCIÓ PS-190 2
1.02 PS1900-00020 - BATERIA PS-190 1
1.03 PS1900-00030 - PLACA ELECTRÒNICA DE CONTROL PS-190 1
1.04 PS1900-00040 - RODA GIRATÒRIA Ø80 PS-190 2
1.05 PS1900-00050 - RODA FIXE Ø120 PS-190 2
1.06 PS1900-00060 - CONJUNT CINTURONS PS-190 (SEIEN-
T+RESPATLLER)
1
1.07 PS1900-00070 - MANETA EXTENSIBLE SUPERIOR PS-190 1
1.08 PS1900-00080 - CARGADOR EXTERNO PARA SILLA PS-190 1
1.10 PS1900-00150 - SEIENT ABS CADIRA ORUGA PS-190 1
1.11 PS1900-00160 - RESPATLLER ABS CADIRA ORUGA PS-190 1
1.12 PS1900-00180 - MANETA GOMA EMPUNYADURES PS-190 2
1.13 PS1900-00190 - ESCOBILLES MOTOR PS-190 1
1.14 PS1900-00200 - CONJUNT LEDS BATERIA PS-190 1
1.15 PS1900-00220 - MOTOR-REDUCTOR CADIRA ORUGA PS-
190
1
1.16 PS1900-00230 - CONJUNT EMPUNYADURA RESPATLLER 2
1.17 PS1900-00250 - CONJUNT REPOSABRAÇOS PS-190 2
1.18 PS1900-00320 - CIERRE ORUGA PS-190 1
1.19 PS1900-00310 - MANETA PLIEGE PS-190 2
1.20 PS1900-00280 - REPOSAPIES PS-190 1
1.21 PS1900-00290 - TAPA PROTECCIÓN MOTOR DELANTERA 1
1.22 PS1900-00300 - TAPA PROTECCIÓN MOTOR TRASERA 1
1.23 PS1900-00330 - HORQUILLA CON FRENO PARA RUEDA
TRASERA PS-190
1
1.24 PS1900-00340 - PISTON PS-190 1
1.25 PS1900-00350 - CONJUNTO TIJERA PS-190 1
1.26 PS1900-00360 - ARANDELA FINA RUEDAS TRASERAS PS-
190
2
1.28 PS1900-00260 - SOPORTE BATERIA PS-190 1
1.29 PS1900-00270 - POLEA MOTOR PS-190 2

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
13
04 GENERAL MAINTENANCE
CLEANING
Keeping the equipment clean is essential to ensure
good use and durability of the assembly. It is necessary
to perform a thorough cleaning periodically, especially
in areas exposed to dirt that can suer damage such as
gears, connectors, buttons, etc. Do not use high pressu-
re washers, they may damage the electrical elements.
CONTROLS AND SELECTORS
Due to the intense and continuous use of the mova-
ble elements, as the controls and selectors, periodically
check the proper functioning of the same. There may
be faults in the micro-breakers and wiring, check the
xings and electrical or mechanical connections that
may exist.
OIL
In general, any moving part must be oiled. Our pro-
ducts come from the factory completely oiled and lu-
bricated, however, it is possible that with the time and
use of the product the elements are decreased, either
by loss of lubrication or by dirt. Clean and grease pe-
riodically aected areas, according to manufacturer’s
specications.
Check for loose, missing, or worn parts. Periodically
inspect all moving parts to make sure components are
tight.
Due to its dry slip system, do not grease the platform
guide.
ATTENTION: Do not lubricate the rail and / or stretcher
when connected to the mains.
MAKE SURE THESE ZONES ARE FREE OF WATER AND MOISTURE. PLEASE SPECIFY CAREFU-
LLY WITHOUT WETING THEM DURING THE WASHING OF THE ASSEMBLY.
WEARING AREAS
Inspecting regularly to see if there is wear on the sys-
tem components is a preventive measure that can re-
duce breakdowns. Check for possible lubricant leaks,
grooves or bearings in poor condition.
MECHANICAL FASTENING ELEMENTS
In general, we call mechanical fastening elements for
the components that are used to x the whole of the
product, mainly fasteners and derivatives.
In some conditions of use, due to vibrations and im-
pacts, certain elements can lose their tightening tor-
que or xing properties.
Check periodically that there are no loose elements,
especially in moving parts of the assembly. Always ob-
serve the recommended tightening torques.
REPLACEMENT OF COMPONENTS
This instruction manual does not include procedures
for all parts. Typically, qualied service personnel re-
place wires, switches and certain mechanical parts wi-
thout the need for step-by-step procedures.
Qualied service personnel should contact our sales
department for information on ordering parts and ins-
talling them.

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
14
05 LEGAL NOTICES
This document may contain technical inaccuracies or
typographical errors.
Periodic changes are made to the information contai-
ned herein; These changes will be incorporated in new
editions of the publication.
Promeba, S.L. Reserves the right to make any changes
or improvements to the products described in this pu-
blication, if deemed appropriate.
Promeba, S.L. May have patents or pending patent
applications addressing issues described in this docu-
ment. The possession of this document does not confer
any license on said patents.
The information contained in this document does not
aect or change the specications or warranties of the
product Promeba, S.L.
No part of this document shall be construed as an ex-
press or implied license or indemnication under the
intellectual property rights of Promeba, S.L. Or third
parties.
All information contained in this document has been
obtained in specic environments and is presented as
an illustration. Results obtained in other operating en-
vironments may vary.
Promeba, S.L. may use or distribute the information
provided by the customer in a way that creates timely,
without incurring any obligation with the client.

USER MANUAL // ELECTRIC STAIR CLIMBING CHAIR PS-190
Review 03/19
15
06 PRODUCT WARRANTY
Promeba, S.L. ensures that your products have passed
satisfactorily all the established quality controls, both
functional and material. The duration of the warranty is
2 years from the date of purchase of the product.
This warranty is valid only when it is presented with
the original invoice or proof of purchase (indicating the
date of purchase, model and dealer name) together
with the defective product during the period covered
by the warranty. Promeba, S.L. reserves the right not
to oer the free warranty service if the indicated do-
cuments are not presented or if the information they
contain is incomplete or illegible.
1. This warranty does not apply if the model name or se-
rial number of the product has been altered, deleted, disa-
ppeared or is unreadable.
2. This warranty does not cover transport costs or the ris-
ks associated with transporting your product to and from
Promeba, S.L.
3. This warranty does not cover any of the following:
a) Periodic maintenance and repair or replacement of
parts derived from normal wear and tear.
b) Periodic maintenance and repair or replacement of
consumables (components that are expected to require
periodic replacement during the life of the product, such
as non-rechargeable batteries, bulbs, etc.). Parts from nor-
mal wear and tear....
c) Damage or defects arising from improper use, opera-
tion or treatment of the product and not from normal use
of the product.
d) Damage arising from:
i. Misuse, including:
- Treatment resulting in damage or changes in the phy-
sical, surface or appearance of the product.
- Installation, use or storage of the product in a manner
that does not comply with the instructions described
by Promeba, S.L.
- Maintenance of the product in a manner that does not
comply with the instructions of Promeba, S.L. for pro-
per maintenance.
- Installation or use of the product in a manner that
does not respect the technical or safety standards of
the country where it is used or installed.
ii. Use of components not provided with the product or
improper installation of accessory parts not previously
tested.
iii. States or defects of the system in which the product
is used or incorporated with the exception of other pro-
ducts Promeba, S.L. designed for use with the product.
iv. Use of the product with accessories, peripheral units
and other products of a type, condition or standards
not established by Promeba, S.L.
v. The manufacturer or distributor will be solely respon-
sible for deciding the shipment of the parts for repair,
or replacement of the product in its entirety. In no case
will workers be sent for such repair or replacement of
the product.
Except in the cases mentioned above, Promeba, S.L.
shall not give any warranties with respect to the pro-
duct, performance, accuracy, reliability or adaptability
to a purpose of the logical or other equipment. If this
exception is not lawful or contemplated by the current
law, Promeba, S.L. limit or exclude its warranties only
to the extent permitted by law.
The only obligation on the part of Promeba, S.L. in
connection with this warranty is to repair or replace
the parts subject to the terms and conditions of this
warranty.
Promeba, S.L. is not responsible for the loss or damage
of products, this warranty or others, including econo-
mic loss or non-evaluable damages; The price paid for
the product; Loss of prots, income, information, usu-
fruct or use of the product or associated products or
indirect, accidental or critical loss or damage.
This clause refers to whether the loss or damage is due
to deterioration or inoperability of the associated pro-
duct due to defects or unavailability of Promeba, S.L.,
which has caused a downtime, loss of user time or a
business interruption.
In cases where the law prohibits or limits these exclu-
sions of liability, Promeba, S.L. exclude or limit its lia-
bility only to the extent permitted by applicable law.
For example, there are countries that prohibit the ex-
clusion or limitation of damages caused by negligen-
ce, reckless negligence, willful misconduct, fraud, and
similar acts. The responsibility of Promeba, S.L. in this
warranty will not exceed, in any case, the price paid for
the product, but if the current law allows only limita-
tions of greater responsibilities, these will apply.

ER-0687/1998
PROMEBA, S.L.
Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN
T. 93 837 12 00 · Fax [phone]
[email protected]om · www.promeba.com
All rights reserved. Variations can be done whitout notice.
Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness
of the information here mentioned.
