ProMediaGear BH1 User manual

Specications:
Height..............................................................................5.50 inches (139 mm)
Width................................................ 4.25 inches (108 mm) (Including Pan Knob)
Weight.......................................................................................2.03lbs.(920g)
270° (Tilt-Y-Axis)...................90° (Tilt-X-Axis)...................360°(Panning)
16555 108th Ave. • Orland Park, IL 60467 USA
1.888.413.3332 • 708.263.4443
#BH1, Ball Head

First Step: Mount the #BH1 onto your Tripod or Mounting Base with a 3/8-16
Mounting Thread Screw. Begin by spinning the entire Ball Head until the unit
becomes snug. Next, conrm the panning screw (F) is tight and give the unit a
few additional light twists to rmly lock it into place.
Mounting Your Gear: First, install an Arca Compatible Plate onto your camera
body. Next, make sure the Main Lock Knob (G) is tight and secure. Clockwise
to tighten / Counter-clockwise to loosen. The #BH1 is Arca compatible and
features the ProMediaGear #C60 Clamp. Loosen the Clamp Lock Knob (B).
The jaws are spring loaded and will open enough to drop in or slide in Arca
compatible gear. Once you have your gear in place lock down the Clamp Lock
Knob (B) until snug.
General Movements: While holding your camera, loosen the large ergonomic
Main Lock Knob (G) to loosen the entire Ball Head mechanism. The Clamp (B) will
be free to spin 360° as well as twist back and fort or fall into the 90° Drop Slot (C).
Lock down securely once your desired position is achieved.
Panning: Loosen the Pan Lock Knob (F) to rotate your camera 360°
Instructions

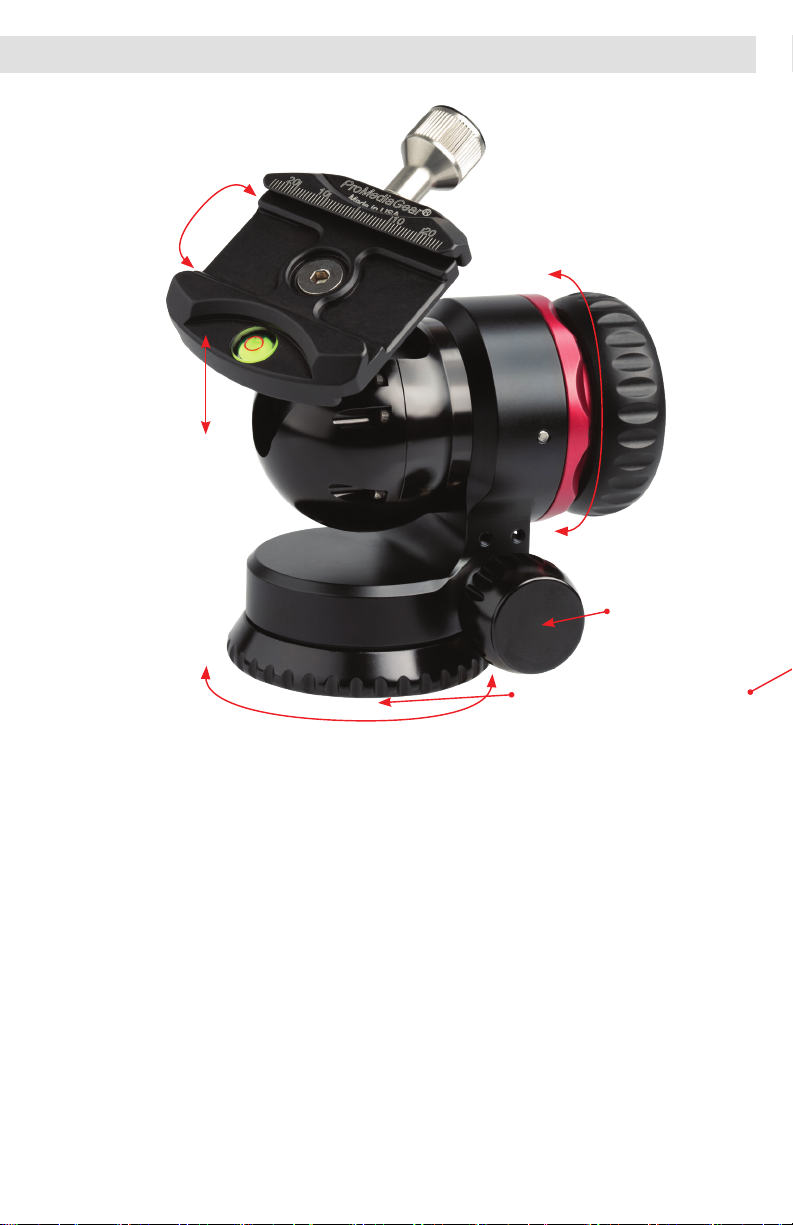

A. Arca Compatible #C60 Clamp with Spirit Level
1.
2.
3.
4.
B. Clamp Lock Knob
C. Drop Slot
D. Mounting / Panning Base
E. 3/8-16 Mounting Adapter
F. Pan Lock Knob
G. Main Lock Knob
360° Rotation
90° Rotation

Customer Service
ProMediaGear
708.263.4443 or Toll Free 1.888.413.3332
[e-mail] • www.ProMediaGear.com
Check periodically for loose screws and tighten with the included
hardware. Oil if necessary with WD40 or a silicone spray. The #BH1 is a
precision instrument that should be used only as directed.
Rev 05/19
Ball Head Maintenance
What's In The Box
#HB70
Handle for Bracket Plates
#BBGv2
Boomerang Flash Bracket
#C60
Arca Type Clamp
** L-Brackets **
Universal and Custom Available
#GKJr.
Katana Junior Gimbal
#PMG-DUO SLIDER(S)
VS24 / VS32 / VS36 / VS368 / VS48
34-Series Pro-Stix
Carbon Fiber Tripods
** Custom Bracket Plates **
Various Brands / Models Available
#SS2P3
Quick Release Strap System
Additional ProMediaGear Items
• (1) #BH1 Ball Head featuring #C60 Clamp
• (1) #PBX3 Universal Bracket Plate
• Allen Key Adjustment Set
• 5-Year Warranty
• Made in the USA
