PRONAR PRONAR N262 User manual

PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
phone: [phone] [phone]
[phone] [phone]
fax: [phone] [phone]
www.pronar.pl
OPERATOR'S MANUAL
MANURE SPREADER
PRONAR N262
PRONAR N262/1
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
ISSUE 6A-07-2018 PUBLICATION NO 70N-00000000-UM

INTRODUCTION
Information contained herein is current at date of publication. As a result of improvements,
some numerical values and illustrations contained in this publication may not correspond to the
factual specification of the machine supplied to the user. The manufacturer reserves the right to
introduce design changes in machines produced that facilitate operation and improve the quality
of their work, without making minor amendments to this Operator's Manual.
This Operator's Manual is an integral part of the machine's documentation. Before using the
machine, the user must carefully read this Operator's Manual and observe all
recommendations. This guarantees safe operation and ensures malfunction free work of the
machine. The machine is designed to meet obligatory standards, documents and legal
regulations currently in force.
The manual describes the basic safety rules and operation of Manure Spreader. If the
information stated in the Operator's Manual needs clarification then the user should refer for
assistance to the sale point where the machine was purchased or to the Manufacturer.
MANUFACTURER'S ADDRESS:
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew
CONTACT TELEPHONES
[phone] [phone]
[phone] [phone]

SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
Information, descriptions of danger and precautions and also recommendations and prohibitions
associated with user safety instructions are marked:
and also preceded by the word "DANGER”. Failure to observe the instructions may endanger
the machine operator's or other person's health or life.
Particularly important information and instructions, the observance of which is essential, are
distinguished in the text by the sign:
and also preceded by the word "ATTENTION". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform maintenance, the relevant section
of the Operator's Manual is marked with the pictogram:
Additional tips and advice for machine operation are marked:
and also preceded by the word "TIP".

DIRECTIONS USED IN THIS OPERATOR'S MANUAL
Left side – side to the left hand of the operator facing in the direction of machine's forward
travel.
Right side – side to the right hand of the operator facing in the direction of machine's forward
travel.
REQUIRED SERVICE ACTIONS
Service actions described in the manual are marked: 
Result of service/adjustment actions or comments concerning the performance of actions are
marked: 

CONTENTS
1 BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.1.1 AXLE IDENTIFICATION 1.4
1.1.2 LIST OF FACTORY NUMBERS 1.4
1.2 PROPER USE 1.5
1.3 EQUIPMENT 1.7
1.4 TERMS & CONDITIONS OF WARRANTY 1.9
1.5 TRANSPORT 1.10
1.5.1 TRANSPORT ON VEHICLE 1.10
1.5.2 INDEPENDENT TRANSPORT BY THE USER 1.12
1.6 ENVIRONMENTAL HAZARDS 1.13
1.7 WITHDRAWAL FROM USE 1.14
2 SAFETY ADVICE 2.1
2.1 BASIC SAFETY RULES 2.2
2.1.1 USE OF MACHINE 2.2
2.1.2 HITCHING AND DISCONNECTING FROM TRACTOR 2.3
2.1.3 HYDRAULIC AND PNEUMATIC SYSTEM 2.4
2.1.4 OPERATION WITH PTO 2.5
2.1.5 TRANSPORTING THE MACHINE 2.6
2.1.6 TYRES 2.7
2.1.7 MAINTENANCE 2.8
2.2 DESCRIPTION OF RESIDUAL RISK 2.9
2.3 INFORMATION AND WARNING DECALS 2.10
3 DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2

3.2 MANURE SPREADER DESIGN 3.4
3.2.1 MANURE SPREADER BODY 3.4
3.2.2 FEEDING MECHANISM 3.6
3.2.3 HYDRAULIC SYSTEM OF FEEDING MECHANISM (SYSTEM
CONTROLLED FROM THE TRACTOR) 3.7
3.2.4 HYDRAULIC SYSTEM OF STRAIGHT SUPPORT (SYSTEM
CONTROLLED FROM THE TRACTOR) 3.9
3.2.5 HYDRAULIC SYSTEM OF TAILGATE (SYSTEM CONTROLLED
FROM THE TRACTOR) 3.10
3.2.6 HYDRAULIC SYSTEM OF SLIDE GATE (SYSTEM
CONTROLLED FROM THE TRACTOR) 3.11
3.2.7 HYDRAULIC SYSTEM (CONTROLLED FROM THE MANURE
SPREADER) 3.13
3.2.8 SPREADER UNIT 3.15
3.2.9 DRIVE TRANSMISSION 3.16
3.2.10 MAIN BRAKE 3.18
3.2.11 PARKING BRAKE 3.22
3.2.12 LIGHTING SYSTEM, WARNING ELEMENTS 3.23
4 CORRECT USE 4.1
4.1 PREPARING FOR WORK BEFORE FIRST USE 4.2
4.1.1 CHECKING THE MANURE SPREADER AFTER DELIVERY 4.2
4.1.2 PREPARING THE MANURE SPREADER FOR THE FIRST HITCH 4.3
4.1.3 TEST START 4.6
4.2 TECHNICAL CONDITION INSPECTION 4.8
4.3 HITCHING TO TRACTOR 4.9
4.4 LOADING THE LOAD BOX 4.12
4.5 SPREADING AND ADJUSTING FERTILIZER DOSE 4.13
4.5.1 ADJUSTING FERTILIZER DOSE 4.13
4.5.2 ADJUSTMENT OF SPREADING WIDTH 4.16
4.5.3 SPREADING MANURE IN THE FIELD 4.18

4.6 SPREADING MECHANISM CLOGGING 4.19
4.7 UNHITCHING FROM TRACTOR 4.20
4.8 PROPER USE AND MAINTENANCE OF TYRES 4.21
5 MAINTENANCE 5.1
5.1 PRELIMINARY INFORMATION 5.2
5.2 SERVICING BRAKES AND AXLES 5.2
5.2.1 PRELIMINARY INFORMATION 5.2
5.2.2 INITIAL INSPECTION OF AXLE BRAKES 5.3
5.2.3 CHECK BRAKE SHOE LININGS FOR WEAR 5.4
5.2.4 CHECK WHEEL AXLE BEARINGS FOR LOOSENESS 5.5
5.2.5 ADJUSTMENT OF PLAY OF WHEEL AXLE BEARINGS 5.7
5.2.6 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF
WHEEL NUT TIGHTENING 5.8
5.2.7 CHECK AIR PRESSURE, EVALUATE TECHNICAL CONDITION
OF WHEELS AND TYRES 5.11
5.2.8 MECHANICAL BRAKES ADJUSTMENT 5.12
5.2.9 CHANGE OF PARKING BRAKE CABLE AND ADJUSTMENT OF
CABLE TENSION 5.13
5.3 PNEUMATIC SYSTEM MAINTENANCE 5.16
5.3.1 PRELIMINARY INFORMATION 5.16
5.3.2 INSPECTING AND CHECKING AIR TIGHTNESS OF
PNEUMATIC SYSTEM. 5.17
5.3.3 CLEANING THE AIR FILTERS 5.18
5.3.4 DRAINING WATER FROM AIR TANK 5.20
5.3.5 CLEAN DRAIN VALVE 5.21
5.3.6 CLEANING AND MAINTAINING PNEUMATIC LINE
CONNECTIONS AND PNEUMATIC SOCKETS 5.21
5.3.7 REPLACEMENT OF THE PNEUMATIC LINE 5.22
5.4 HYDRAULIC SYSTEM OPERATION 5.23
5.5 REDUCTION GEAR MAINTENANCE 5.25

5.6 MANURE SPREADER LUBRICATION 5.26
5.7 CLIMBING INTO THE LOAD BOX 5.31
5.8 CLEANING 5.32
5.9 PREPARATION FOR END OF SEASON 5.34
5.10 PREPARATION FOR THE BEGINNING OF A NEW
FIELDWORK SEASON 5.35
5.11 STORAGE 5.35
5.12 REPLACEMENT OF THE SPREADING MECHANISM
BLADES 5.36
5.13 CHECKING AND REPLACEMENT OF SPREADER UNIT
KNIVES 5.38
5.14 CHECKING AND ADJUSTMENT OF TENSION OF FLOOR
CONVEYOR CHAIN 5.39
5.15 OPERATION OF ELECTRICAL SYSTEM AND WARNING
ELEMENTS 5.41
5.15.1 PRELIMINARY INFORMATION 5.41
5.15.2 CHANGING BULBS 5.42
5.16 ADJUSTMENT OF THE UPPER DRAWBAR EYE POSITION 5.42
5.17 MAINTENANCE OF CHAIN TRANSMISSIONS 5.44
5.18 TIGHTENING TORQUE FOR NUT AND BOLT
CONNECTIONS 5.45
5.19 TROUBLESHOOTING 5.47

SECTION
1
BASIC
INFORMATION

Pronar N262 N262/1 SECTION 1
1.2
1.1 IDENTIFICATION

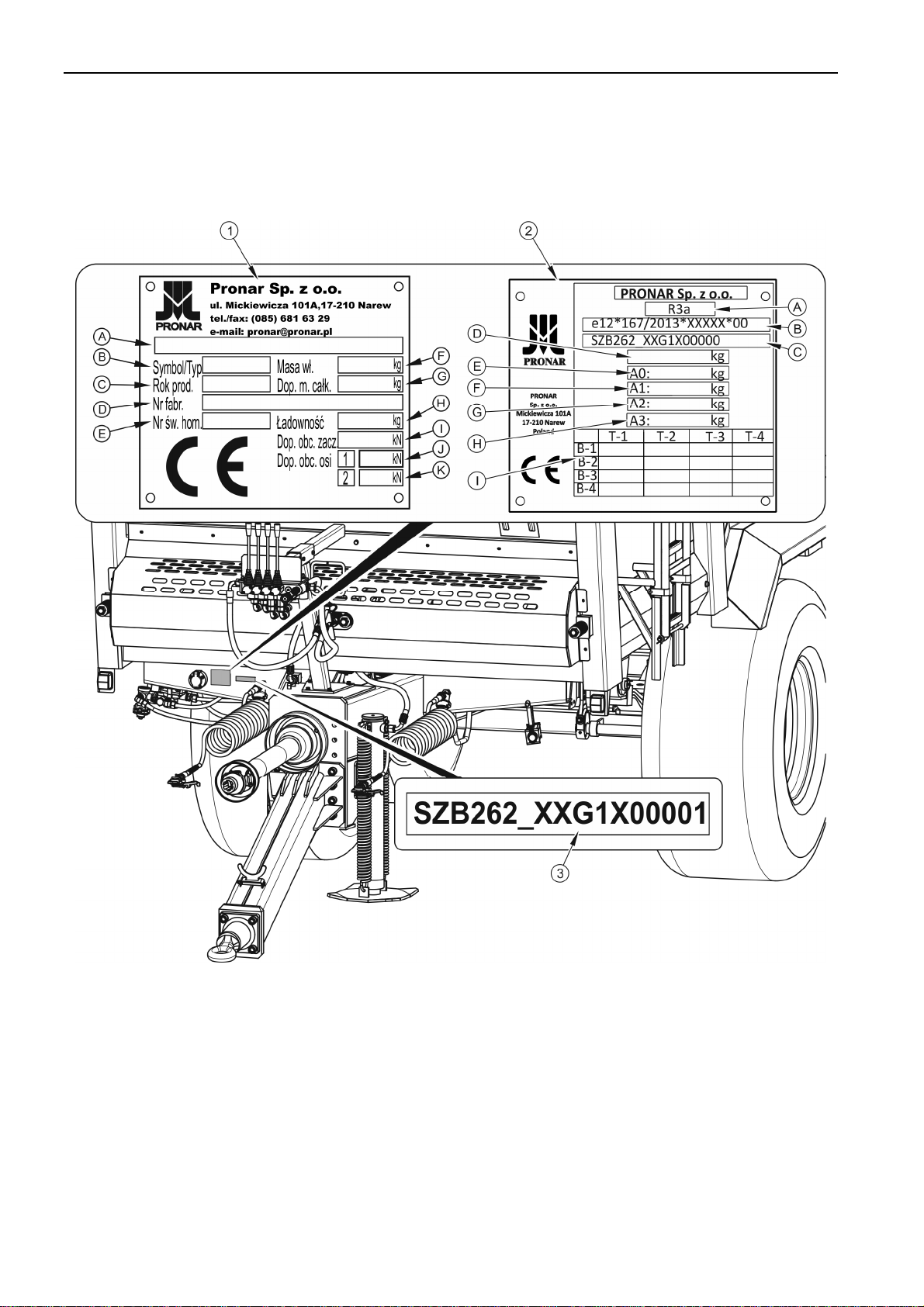

FIG. 1.1 Manure spreader identification
(1) data plate – version standard, (2) data plate – version EU, (3) serial number
The manure spreader is marked with the data plate (1), and the factory number (2) located
on a gold painted rectangle. The serial number and data plate are located on the right angle
brace of the lower frame, figure (1.1).

SECTION 1 Pronar N262 N262/1
1.3
When buying the manure spreader check that the factory numbers on the machine agree
with the number written in the WARRANTY BOOK, in the sales documents and in the
OPERATOR'S MANUAL.The meanings of the individual fields found on the data plate are
presented in the table (1.1).
TAB. 1.1 Markings on data plate - version standard
ITEM
MARKING
A General description and purpose
B Symbol /Type
C Year of manufacture
D Seventeen digit serial number (VIN)
E Official certificate number
F Machine tare weight
G Maximum gross weight
H Carrying capacity
I Permissible hitching system loading
J Permissible front axle load
K Permissible rear axle load
TAB. 1.2 Markings on data plate - version standard
ITEM MARKING
A Vehicle category according to R167/2013
B Official certificate number
C Seventeen digit serial number (VIN)
D Maximum gross weight
E Permissible hitching system loading
F Permissible load – axle 1
G Permissible load – axle 2
H Permissible load – axle 3
I Technically permissible towable mass for each chassis/braking configuration for R or
S category Vehicle

Pronar N262 N262/1 SECTION 1
1.4
1.1.1 AXLE IDENTIFICATION
The factory number of the axle shaft and its type are stamped onto the data plate (2) secured

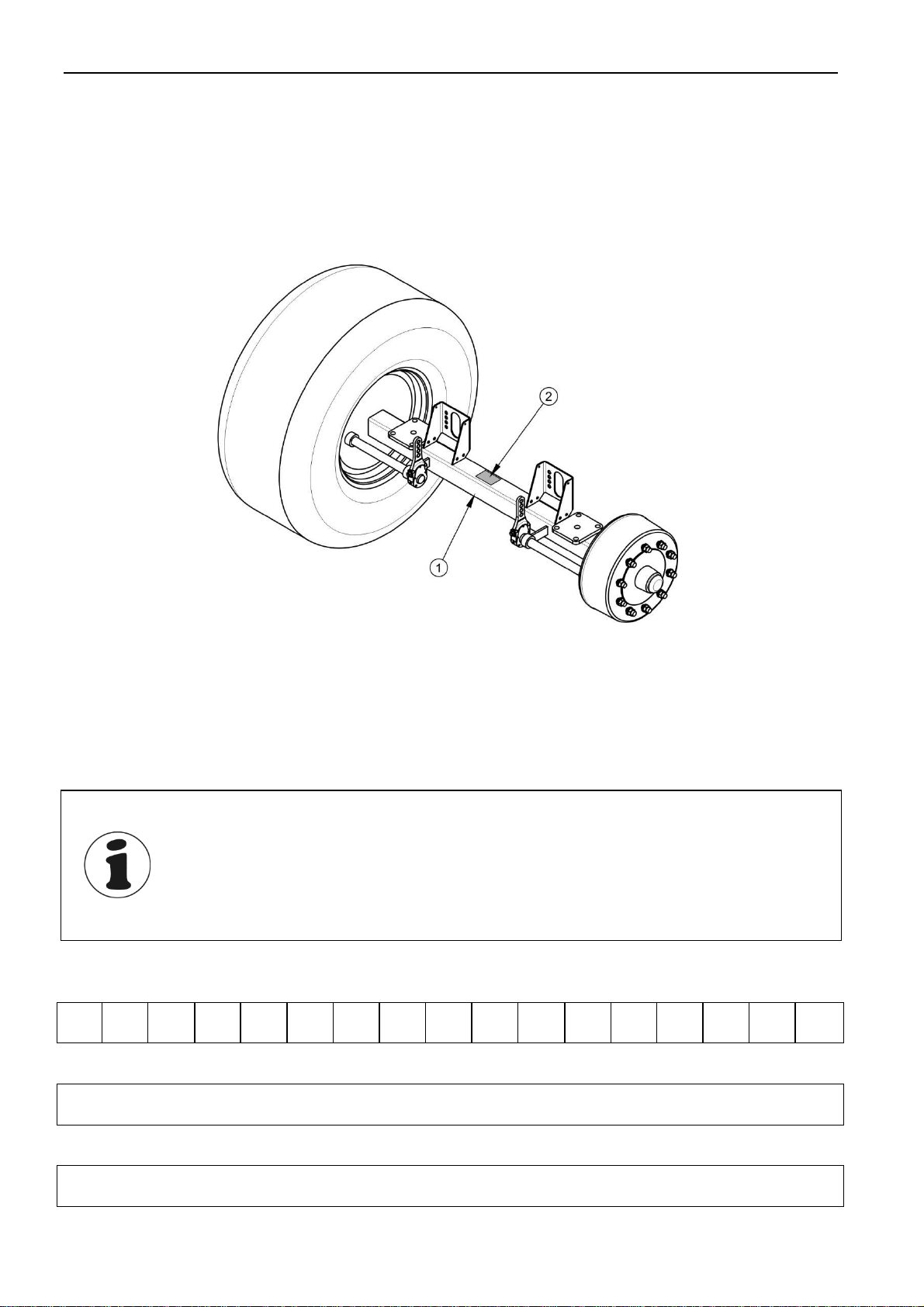

to the axle shaft beam (1) – figure (1.2).
FIG. 1.2 Location of the axle data plate
(1) wheel axle, (2) data plate
1.1.2 LIST OF FACTORY NUMBERS
TIP
In the event of ordering a replacement part or in the case of the appearance of problems
it is often essential to give the factory n mbers of parts or the VIN n mber of the man re
spreader, therefore it is recommended that these n mbers are inscribed in the spaces
below.
VIN
S Z B 2 6 2 0 X X X
FRONT AXLE FACTORY NUMBER AND TYPE
REAR AXLE FACTORY NUMBER AND TYPE

SECTION 1 Pronar N262 N262/1
1.5
1.2 PROPER USE
Pronar manure spreader is designed for uniform spreading of all kinds of manure, lime, peat
and compost. The special municipal version of the manure spreader with the sealed load box
is designed for spreading dehydrated sludge. The manure spreader must not be used in any
way other than that described above. Using it as intended also involves all actions connected
with the safe and proper operation and maintenance. The manure spreader is not intended or
designed for transporting people or animals.
The manure spreader is constructed according to current safety requirements and
engineering standards. The brake system and the light and indicator system meet the
requirements of road traffic regulations. The maximum speed of the manure spreader on
public roads is 30 km/h in Poland (pursuant to Traffic Law Act of June 20th 1997, article 20).
In the countries where the manure spreader is used, the limits stipulated by the road traffic
legislation in force in a given country must be observed. The manure spreader speed must
not, however, be greater than the maximum design speed.
ATTENTION
The man re spreader m st not be sed for p rposes other than those for which it is
intended, in partic lar:
•
transport people, animals, hazardous materials, chemically
aggressive loads that will corrode the construction elements of the
spreader
•for spreading and transporting toxic and flammable materials,
•for spreading fluids, sand or fibrous substances,
•for tran
sporting construction materials, single objects or any
materials and substances outside the scope of intended use of the
manure spreader,
•overload the spreader in excess of its load carrying capacity.
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. In connection with this the user is obliged to:

Pronar N262 N262/1 SECTION 1
1.6
•carefully read the OPERATOR'S MANUAL of the manure spreader and the
WARRANTY BOOK and conform with the recommendations contained in these
documents,
•understand the manure spreader's operating principle and how to operate it safely
and correctly,
•adhere to the established maintenance and adjustment plans,
•comply with general safety regulations while working,
•prevent accidents,
•comply with the road traffic regulations and transport regulations in force in a
given country, in which the manure spreader is used,
•carefully read the Operator's Manual and comply with its recommendations,
•only hitch the manure spreader to an agricultural tractor, which fulfils all the
requirements made by the rotary rake's Manufacturer.
The manure spreader may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the
agricultural tractor Operator's Manual,
•have been trained in manure spreader operation and safe operation,
•have the required authorisation to drive and are familiar with the road traffic
regulations and transport regulations.
TAB. 1.3 Agricultural tractor's requirements
CONTENTS UNIT REQUIREMENTS
Brake system - sockets
Single line pneumatic system
or
Double line pneumatic system
Nominal pressure of the pneumatic
system
-
-
bar / kPa
according to PN-ISO 1728
according to PN-ISO 1728
6.5 / 650
Hydraulic system
Number of connections (controlled from

SECTION 1 Pronar N262 N262/1
1.7
CONTENTS UNIT REQUIREMENTS
the tractor)
Number of connections (controlled from
the manure spreader)
Hydraulic oil:
Nominal pressure in the system
Oil demand:
-
-
-
bar / MPa
l
4 pairs
2 pairs
L-HL32 Lotos
(1)
160 / 16
6.5
Electrical system
Electrical system voltage
Connection socket
V
-
12
7 polar compliant with ISO 1724
Other requirements
PTO speed
PTO rotation direction
Minimum power demand N262
Minimum power demand N262/1
Minimum vertical load capacity of hitch
RPM
-
kW /
Horsepower
kW /
Horsepower
kg
1 000
Clockwise (looking at the shaft front)
93.6 / 127.3
109 / 148
2 200
(1)
– use of other oil is permitted, on condition that it may be mixed with the oil in the manure spreader.
Detailed information may be found on the product information card.
1.3 EQUIPMENT
TAB. 1.4 Manure spreader equipment
EQUIPMENT
STANDARD
ADDITIONAL
OPTIONS
Operator's Manual •
Warranty book •
Connection lead for the electrical system •
Wheel chocks •

Pronar N262 N262/1 SECTION 1
1.8
EQUIPMENT
STANDARD
ADDITIONAL
OPTIONS
PTO shaft for connecting the manure spreader with the tractor (selected
according to the profile of the tractor's PTO shaft) •
Slide gate •
Mechanism indicating that the slide gate is raised •
Tailgate with rubber shield •
Rear beam •
Rotating drawbar eye Ø50 •
Ball drawbar eye K80. •
Fixed drawbar eye Ø40 •
Slow-moving vehicle warning sign •
Warning reflective triangle •
Upper drawbar •
Hydraulic brake system •
Double line pneumatic system with ALB. •
Hydraulic system controlled by the tractor's hydraulic manifold •
Hydraulic system controlled by the manure spreader's hydraulic
manifold •
Information concerning tires is provided at the end of this publication in ANNEX A.
Recommended PTO shafts for connecting spreader with tractor:
•- manufacturer: Bondioli & Pavesi, type 7 106 101 CE 007 007, (6/6)
(1)
,
•- manufacturer: Bondioli & Pavesi, type 7 1R6 091 CE WR7 007, (6/6) (wide-angle
shaft)
(1)
,
•- manufacturer: Bondioli & Pavesi, type 7 106 101 CE 008 007, (21/6)
(2)
,
•- manufacturer: Bondioli & Pavesi, type 7 1R6 091 CE WR8 007, (21/6) (wide-angle
shaft)
(2)
,

SECTION 1 Pronar N262 N262/1
1.9
•manufacturer: Bondioli & Pavesi, type 7 106 101 CE R10 007, (20/6)
(3)
,
•manufacturer: Bondioli & Pavesi, type 7 1R6 091 CE WR0 007, (20/6) (wide-angle
shaft)
(3)
.
(1)
6-spline end of PTO shaft on the tractor side.
(2)
21-spline end of PTO shaft on the tractor side.
(3)
20-spline end of PTO shaft on the tractor side.
1.4 TERMS & CONDITIONS OF WARRANTY
PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used
according to its intended purpose as described in the OPERATOR'S MANUAL. The repair
period is specified in the WARRANTY BOOK.
The warranty does not apply to those parts and sub-assemblies of the machine, which are
subject to wear in normal usage conditions, regardless of the warranty period. Consumables
include the following parts/sub-assemblies:
•drawbar hitching eye,
•pneumatic system connector filters,
•tyres,
•brake shoes,
•bulbs,
•seals,
•chains,
•disintegrating knives,
•blades of wide spread mechanism,
•gear wheels,
•bearings.
The warranty service only applies to factory defects and mechanical damage that is not due
to the user's fault.
In the event of damage arising from:
•mechanical damage which is the user's fault, caused by road accidents,

Pronar N262 N262/1 SECTION 1
1.10
•by inappropriate use, adjustment or maintenance, use of the slurry tanker for
purposes other than those for which it is intended,
•use of damaged machine,
•repairs carried out by unauthorised persons, improperly carried out repairs,
•making unauthorised alterations to machine design,
the user will lose the right to warranty service.
TIP
Demand that the seller caref lly and precisely fills o t the Warranty Book and warranty
repair co pons. A missing date of p rchase or sale point stamp, may make the ser
ineligible for any warranty repair or ref nd.
The user is obliged to report immediately on noticing any wear in the paint coating or traces
of corrosion, and to have the faults rectified whether they are covered by the warranty or not.
For detailed Terms & Conditions of Warranty, please refer to the WARRANTY BOOK
attached to each machine.
Modification of the manure spreader without the written consent of the Manufacturer is
forbidden. In particular, do NOT weld, drill holes in, cut or heat the main structural elements
of the machine, which have a direct impact on the machine operation safety.
1.5 TRANSPORT
The manure spreader is ready for sale completely assembled and does not require packing.
Packing is only required for the machine's technical documentation and any extra fittings. The
manure spreader is delivered to the user either transported on a vehicle or, independently
(towed), after being attached to a tractor.
1.5.1 TRANSPORT ON VEHICLE
Loading and unloading of the manure spreader from vehicle shall be conducted using loading
ramp with the aid of an agricultural tractor. During work adhere to the general principles of
Health and Safety at Work applicable to reloading work. Persons operating reloading
equipment must have the qualifications required to operate these machines. The manure
spreader must be properly connected with the tractor according to the requirements closed in
