PRONAR ZEFIR 85 User guide

MANUFACTURER:
PRONAR Sp. z o.o.
17-210 NAREW, woj. Podlaskie, ul. Mickiewicza 101 A
tel/fa 0 85 6816329; 0 85 6816429; 0 85 6816381;
0 85 6816382; 0 85 6816384;
fa 0 85 6816383;
www.pronar.pl
WHEELED FARM TRACTORS
PRONAR of the type P8
ZEFIR 85
ZEFIR 85
SERVICING INSTRUCTION
3rd Edition
Narew 07/2007

WHEELED FARM TRACTORS
PRONAR of the type P8
ZEFIR 85
ZEFIR 85
SERVICING INSTRUCTION
3rd Edition
Narew 07/2007

TO BE FILLED IN BY THE SELLER:
Name and address of the selling
point:..................................................................................................................
...........................................................................................................................
...........................................................................................................................
...........................................................................................................................
User’s name and
address:..............................................................................................................
...........................................................................................................................
...........................................................................................................................
Type of the
tractor:................................................................................................................
Factory number of
chassiss:............................................................................................................
Factory number of
engine:...............................................................................................................
Factory number of
cab:....................................................................................................................
The nearest authorized point of service (APS):
...........................................................................................................................
...........................................................................................................................
...........................................................................................................................
...........................................................................................................................
Date of purchase:……………….........................................................................
Date of e piration of guarantee validity:…………………...................................

The servicing instruction constitutes the basic equipment
of the farm tractor.
You must read this servicing instruction before setting
about using the machine and you must observe safety
rules.
In the event of loss or damage, you must acquire
a new copy of servicing instruction by ordering it
at the manufacturer.
In the event of selling or making available the machine to
other user you must attach the servicing instruction.
On the first page of the instruction, the seller should write
down the factory number of the machine according to the
number placed on the data plate and also he should give
his own data.

TABLE OF CONTENTS
A. INTRODUCTION............................................................................................................................................1
B. SAFETY CONDITIONS..................................................................................................................................2
General requirements....................................................................................................................................2
Rules of safe operation of the tractor ............................................................................................................2
Rules of safe work with the tractor ................................................................................................................2
Driving the tractor ..........................................................................................................................................3
Safety rules during performance of transport works .....................................................................................3
Work of the tractor with the switched on power take off shaft (PTO)............................................................4
Rules of fire safety.........................................................................................................................................4
Rules of safe work on a slope .......................................................................................................................4
Factory guarantee .........................................................................................................................................5
Handover of the tractor to the purchaser.......................................................................................................5
Safety signs ...................................................................................................................................................6
C. IDENTIFICATION DATA ...............................................................................................................................8
D. CONTROL AND CHECK ELEMENTS.........................................................................................................10
Cab ..............................................................................................................................................................10
Arrangement of control elements ................................................................................................................12
Panel of indicators of the tractors ZEFIR ....................................................................................................14
Multi-function switches ................................................................................................................................17
Ignition switch ..............................................................................................................................................17
Driver’s seat.................................................................................................................................................18
System of ventillation and heating of the cab..............................................................................................20
Steering system...........................................................................................................................................21
Brakes..........................................................................................................................................................21
Interlocking of differential gear ....................................................................................................................22
Drive of front a le ........................................................................................................................................23
Rear power take off shaft (PTO) .................................................................................................................24
E. WORKING WITH THE TRACTOR...............................................................................................................28
Starting the tractor .......................................................................................................................................28
Start moving ................................................................................................................................................30
Stopping the engine and the tractor ............................................................................................................31
Rear three-point hang-up system................................................................................................................32
Coupling units..............................................................................................................................................35
Steering with lifting appliance......................................................................................................................37
E ternal hydraulic system............................................................................................................................40
Pneumatic system for braking trailers .........................................................................................................42
Changing the wheel track of the front and rear driving a le........................................................................44
Rules of selection of wheel size ..................................................................................................................45
Improving operational properties of ZEFIR tractors ....................................................................................46
Wiring system ..............................................................................................................................................48
Bonnet and side covers of the engine .........................................................................................................51
Washing the tractor .....................................................................................................................................51
Grinding the tractor in..................................................................................................................................51
F. TECHNICAL MAINTENANCE OF THE TRACTOR .....................................................................................52
Servicing after grinding in period P-1 (50 mth)............................................................................................52
Technical reviews table ...............................................................................................................................53
Technical review PC after 10 mth of operation of every day.......................................................................55
Technical review P-2 after 200 mth of operation.........................................................................................62
Technical review P-3 after 400 mth of operation.........................................................................................67
Technical review P-4 after 800 mth of operation.........................................................................................70
General service ...........................................................................................................................................72
Recommended fuel, oils, lubricants and operating liquids applied in tractors ZEFIR.................................73
Preparing the tractor for long-lasting storage..............................................................................................74
Preparing the tractor for operation after long-lasting storage......................................................................74
G. TECHNICAL DATA......................................................................................................................................75

PRONAR A. INTRODUCTION PRONAR
1
Farm tractors ZEFIR, thanks to their parameters and possessed connection and hitch devices can
be aggregated with many suspended, semi-suspended and attached tools and agricultural machines. The
aggregate of the tractor ZEFIR – machine (tool) will fully perform all works in your farm. Thanks to standing
improvement and development of the design by the manufacturer, the tractors ZEFIR are reliable working
tools. They can also perform earth, transportation and other works in dependance on the machine or tool
with which they cooperate.
ATTENTION: Continual improvement of the tractor and alterations in the design connected
with this may cause that the Servicing Instruction may not comply with realities of the tractor only to
a small degree. In case of any doubts you must contact us by letter or phone.
PRONAR Sp. z o. o.
ul. Mickiewicza 101 A
17-210 Narew
woj. podlaskie, Poland
Phone/fax: [phone]
Fax: [phone]
www. pronar.pl
The user of the tractor ZEFIR – we thank you for your right choice !

PRONAR B. SAFETY CONDITIONS PRONAR
2
Observance of safety provisions and also provisions of road traffic ensures safety to the driver, other
users and the tractor.
The text marked with the sign and embraced by the frame takes note of:
- possibility of occurrence of dangerous situation for the operator ( performing the
action) in case of non-comlying with the condition and recommendation;
- important information concerning proper exploitation of the tractor.
GENERAL REQUIREMENTS
• Familiarize yourself thoroughly with the servicing instruction before starting up the tractor because
unsufficient knowledge of this servicing instruction may lead to occurence of situation being danger for
the operator and aggregate.
• The tractor should be operated by the driver possessing appropriate driving licence and familiar with the
rules of proper operation and e ploitation of tractors and farm machines (tools).
• The tractors ZEFIR have the safe cab of the type S-11 not adapted for transportation of a passenger
on public roads. It is forbidden to transport a passenger on public roads.
RULES OF SAFE OPERATION OF THE TRACTOR
• Carry out visual inspection of the tractor, its connection and hitch devices, the aggregated machine (tool)
before starting work and do not start work without having made sure of their completeness and
proper connection.
• Apply always reliable joints (original pins and their protection) to attached machines.
• Regulate the three points suspension system /TPSS/, so that the machines (tools) suspended on it in
transportation position, will be rigidly connected with the tractor.
• Perform carefully all actions of servicing of the tractor and its equipping and especially braking and
steering systems so that they will always be in a perfect technical state because it is decisive of your
security.
• Perform all actions connected with cleaning and washing, preparing for work and technical servicing
when the engine is not running and the tractor is braked with the parking (manual) brake.
• There is pressure in the cooling system during running of the engine ( there is the pressure valve in the
cork of the radiator).Therefore do not unscrew the cork during running of the engine, and when
unscrewing do it very slowly and carefully in order to reduce pressure gradually in the system.
• Keep paricular care during removal of hot fluid from the cooling system, of oil from units of the driving
system and steering system in order not to be e posed to scalding.
• Do not approach the tractor with open fire (even with lighted cigarette) during filling the tanks with fuel,
servicing of fuel system and checking of batteries.
• Do not conduct any modifications and do not install parts or assemblies which introduce changes in the
structure of the tractor without consultation with the manufacturer of the tractor.
RULES OF SAFE WOR WITH THE TRACTOR
• You must instal all shields before starting the engine or work with the tractor.
• Set the gear-change lever in the position N before starting the engine.The lever for drive switching-on
/ PTO (power take off)/ should be in the position “PTO SWITCHED OFF”.
• Do not start the engine and do not operate levers (pedals) of the steering when you are not taking the
operator’s place.
• Release the parking brake before bestiring and make certain whether the people helping with servicing
or aggregating are not in dangerous situation especially whether they are not between the tractor and
the aggregated machine (tool). Warn these people about the intention of moving by means of sound
signal.
• Children must be kept away from the tractor and farm machines.
• Do not leave the tractor when it is on the move.
• Stop the engine and switch on the parking brake before leaving the cab.
• Do not work with the tractor in closed spaces without intensive and efficiently acting ventilation because
e haust gases may be a lethal danger.
• If the engine or the steering system turn out to be non-operational during driving, interrupt driving,
because the tractor, in such situation, requires substantial forces applied to the steering wheel in order to
steer it.

PRONAR B. SAFETY CONDITIONS PRONAR
3
• Do not work and do not allow your helpers to work under the machines (tools) lifted on the lift of the
tractor.
• Do not leave, in top position, machines (tools) suspended on the lift during longer stoppages of the
tractor.
• Install weights of the front a le in case the wheels of front a le of the tractor lose contact with the ground
after lifting the machine (tool) aggregated on the TPSS / three points suspension system /. If, despite
this, the front wheels of the tractor do not obtain sufficient contact with the ground (allowing free
manoeuvring with the aggregate), do not work with such machine or tool.
• Make certain before lifting or lowering the machine (tool) suspended on the TPSS and also during
making of turns, if it does not come to collission with cooperating people or subjects threatening with
occurrence of dangerous situation.
• Do not work using jointed and telescopic shafts without shields for drive of machines and tools from
PTO of the tractor.
• Switch off the PTO drive during checking (during stoppage) of the aggregated machines (tools) driven
from PTO /power take off shaft/ of the tractor.
• In case of utilization of supplementing and assisting assemblies (devices) make certaing if they can
cooperate with the tractor, familiarize yourself with rules of their proper installing and cooperation with
the tractor.
In case of use of front leader you must observe admissible loads onto the front axle and
recommended (admissible) velocities. You must also use counterweight on the rear
suspension system.
It is inadmissible to utilize the front leader without counterweight suspended on the rear
TPSS / three points suspension system /.
REMEMBER! – it is your tractor.
If you use it incorrectly, it may be dangerous for you, strangers and environment. Don not work
with fittings non-designated for cooperation with the tractor !
DRIVING THE TRACTOR
In order to avoid dangerous situations (especially threatening with overturning the tractor) keep care and
prudence during driving the tractor. Adapt speed to conditions prevailing on the road, especially during
moving on uneven (hilly) land,while crossing ditches,on slopes and bends (turning back points). Do not take
sharp turns under full load and with high velocities of the transport.
SAFETY RULES DURING PERFORMANCE OF TRANSPORT WOR S
During moving on roads - also non-public roads you must absolutely observe road traffic provisions
binding in the country on the area of which the tractor is moving.
• During moving on public roads the tractor should be equipped with the warning reflective triangle and
on the tractor there should be installed the triangular board distinguishing slow-moving vehicle. In
case the tractor is moving in aggregate with a trailer or machine, the triangular distinguishing board
should be installed on the trailer or machine (according to the provisions).
• Do not drive the tractor (with a trailer, machine or tool) without operational braking installation as well as
lighting and signalling installation in vehicles of the unit or with non-connected installation of the trailer
(machine) with the tractor. It threatens with an accident.
• Do not leave the trailer (machine, tool) disconnected from the tractor on the public road. In case of failure
turn aside onto the shoulder, set up the warning reflective triangle (equipment of the tractor and trailers)
in the way consistent with the provisions and switch on the standing (parking) lights.
• Do not leave the tractor (aggregate) on slopes. In case of necessity lower the tool, switch on the first
gear , switch on the drive of the front a le (position „switched on”) and the parking brake.
• Do not e ceed the speed of the tractor aggregate over 30 km/h, do not drive down the slope when the
engine is switched off, “in neutral” or when the clutch pedal is pressed. It threatens with danger.
• Do not transport people on trailers and machines (tools). It is forbidden !
• Take care so that the pedals of independent brakes will be connected and their action will be
simultaneous.
• Do not drive the unit of the tractor and trailer when it is lighting the red lamp signalling unsufficient
pressure in the braking system of the trailer (trailers). This can prevent effective braking.
• In case of aggregating the machine on the rear TPSS we cause obturation of the rear combined
lights.Additional combined lights must be applied on the machine.

PRONAR B. SAFETY CONDITIONS PRONAR
4
• Attach trailers and machines (tools) to the tractor only in the manner provided by the manufacturer of the
tractor that is with original pins with protective elements (cotters). Other way of connecting may cause
danger.
• Do not work with trailers with total weight greater than 3000 kg which do not possess brakes.
• Observe absolutely road traffic provisions during towing the tractor. It is admissible to tow the tractor with
non-running engine and with operational steering system, with speed not e ceeding 10 km/h.
WOR OF THE TRACTOR WITH THE SWITCHED ON POWER TA E OFF SHAFT (PTO)
• During work with machines (tools) driven by the PTO shaft, in case of necessity of inspection of the
machine (its disconnecting), before leaving the cab make sure if the PTO shaft is not rotating.
• During work with machines (tools) driven by the PTO shaft persons staying in the vicinity of rotating
units or elements of the machine shoud not be dressed with loose-fitting clothes because it may be the
cause of occurrence of hazard.
• During work with stationary machines driven by the PTO shaft, always switch on the parking brake, block
the rear wheels in front and in the rear and set up front wheels as for driving straight on.
• Do not perform actions connected with washing, regulation or servicing of machines (tools) driven from
the PTO shaft when the engine is running.
• Always apply roof shield and when the PTO shaft is not used, place the protective cap onto the ending of
the PTO shaft.
• Do not use shafts for driving of machines without complete structurally designed shields.
• Always use properly selected (in dependence on the magnitude of torque of the driven machine which
must be transmitted)jointed and telescopis shafts. Value of moment in w Nm is usually given on the
shield of the PTO shaft.
RULES OF FIRE SAFETY
• Do not add, on no account, gasoline or mi tures to diesel fuel oil because it may considerably increase
hazard of ignition or e plosion.
• Always turn off tightly the plug of fuel filler to the tank.
• Do not fill fuel when the engine is running.
• Do not smoke cigarettes during filling fuel neither during servicing of fuel system.
• Do not fill the whole volume of the tank with fuel. Always leave small space for e pansion of fuel.
• Always refill fuel after finished work in order to reduce formation of steam condensate in the tank.
• Do not store engine fuels and lubricants in distance smaller than 3 m from the place of permanent
parking of the tractor. Equip this place with operational fire-fighting equipment.
• Keep care during repairs connected with welding.Clean the place of repair so that the focus of fire will
not be formed during work.
• Take care of tightness of the e haust system and so that the e haust system will not be contaminated,
especially from the outside, with inflammable substances.
• Do not allow formation of leaks from fuel and hydraulic installation.
• Equip the tractor with fire e tinguisher GP-1X, BC-DB, or e tinguisher of similar type and fasten it in the
grip.
RULES OF SAFE WOR ON A SLOPE
During work on a slope or sloping fields quantity of fuel in the tank should occupy minimum of 1/4 of
its capacity so that the possibility of formation of air pockets in the fuel systems will not take place.
If it is possible, avoid driving the tractor across the slope (- the desired direction – uphill and downhill the
field). If the work is to take place across the field you must additionally:
• use the widest wheel track,
• conduct returns in the direction of the hill,
• lift the tool not higher than it is necessary to conduct the manoeuvre (e.g. return),
• check if the pressure in wheels is identical,
• reduce velocity to minimum during returns,
• during use of reversible plough start ploughing from the top of the hill; in this way the wheels from the side
of the hill top will go in the furrow – reducing the angle of inclination of the tractor.

PRONAR B. SAFETY CONDITIONS PRONAR
5
FACTORY GUARANTEE
The manufacturer, handing over the new tractor, grants guarantee that means the
manufacturer assures that the product does not have manufacturing defects and material defects detection
of which is possible during manufacturing process.
The guarantee consists in conducting, at the guarantor’s cost, (specified in the guarantee book) of
repair (including replacement of parts). The detailed guarantee provisions are included in the guarantee book
attached to each tractor. The guarantee book is the only document enabling the purchaser of the tractor to
benefit from guarantee servicing in authorized servicing points and it is not subject to replacement.
ATTENTION! The devices secured with leaden seals may be repaired only by the
authorized personnel of repair points. Wilful rupture of leader seal causes loss
entitlements resulting from the guarantee.
ATTENTION! Non-observance of recommendations included in the Servicing
Instruction of the Tractor causes loss entitlements resulting from the guarantee.
The cost of repair of damages occurred as a result of exploitation inconsistent with the
Servicing Instruction are covered by the purchaser of the tractor.
HANDOVER OF THE TRACTOR TO THE PURCHASER
The new tractor should be started for the first time by the guarantee mechanician or authorized
employee from the commercial service.
The first starting embraces detailed visual inspection and checking of action of the tractor and
instruction of the buyer on basic rules of utilization of the tractor. It is advisable that persons directly servicing
and using the tractor should be present during the first starting. The owner or user should obtain vocational
guidance embracing the following issues:
• guidelines concerning safe servicing of the tractor,
• location and meanings of numbers of the engine and the tractor,
• indicators and controllers,
• running-in,
• manner of starting and stopping,
• selection of gears in dependence on operational conditions warunków pracy,
• use and regulation of the brakes and clutch,
• use and regulation of the interlocking of the differential gear unit,
• application of PTO,
• functioning and steering of the hydraulic system,
• connecting and disconnecting of to ols on the rear and front TPSS (option),
• points of lubrication with oil and grease,
• replacement of oils,
• replacement and clearing of filters,
• functioning and venting of the fuel system,
• engine cooling system, pull of wedge belts,
• servicing of the electric installation,
• steering system and change of Wheel track,
• pressure in tyres,
• connecting, use and steering of e ternal hydraulics,
• securing of nuts and bolts,
• transportation and storage of fuel.

PRONAR B. SAFETY CONDITIONS PRONAR
6
SAFETY SIGNS
Safety signs presented on the subsequent pages have been placed on the tractor in places show on
the following drawings. Their task is to ensure safety for you and accompanying persons. Please look
through labels and instructions of procedure presented in this Instruction together with operators of the
machine.
ATTENTION! eep labels clean so that they will always be legible.
If the labels have been destroyed or become illegible you should obtain new ones from the authorized
dealer.
1
2
4
5
3
6
7
Fig. B-1 Position of safety signs on tractors ZEFIR.
Pos. 1. Position: on the left
middle column inside the cab
Switch off the engine and Take
out the key from the ignitron
switch before starting servicing
action or repairs.
Pos. 2. Position: on the left
middle column inside the cab
Pos. 3. Position: on the left
middle column inside the cab

PRONAR B. SAFETY CONDITIONS PRONAR
7
Pos. 4. Position: at the rear of the tractor, on the
housing of PTO shaft
Pos. 5. Position: on the housing of the
alternator
ATTENTION! Do not bring hands and clothing
closer to rotating fan and driving belt in order to
avoid serious injury.
ATTENTION! SWITCH OUT THE PTO AND
STOP THE ENGINE BEFORE CONNECTING,
REGULATION AND WORK WITH TOOLS
DRIVEN BY THE PTO.
Pos. 6. Position: the housing of the starter
Do not short-circuit terminals of the starter in order to
start the engine. Never start the engine standing on
the ground. Start engine only with key from the
driver’s seat making sure that the levers of the
gearbo and the PTO are in neutral position and that
the parking brakes switched on.
Pos. 7. Position: the housing of the radiator
ATTENTION! The cooling system is under
pressure. Wait until the cooling fluid is Cooley and
carefully unscrew the plug of the radiator.

PRONAR C. IDENTIFICATION DATA PRONAR
8
a) b)

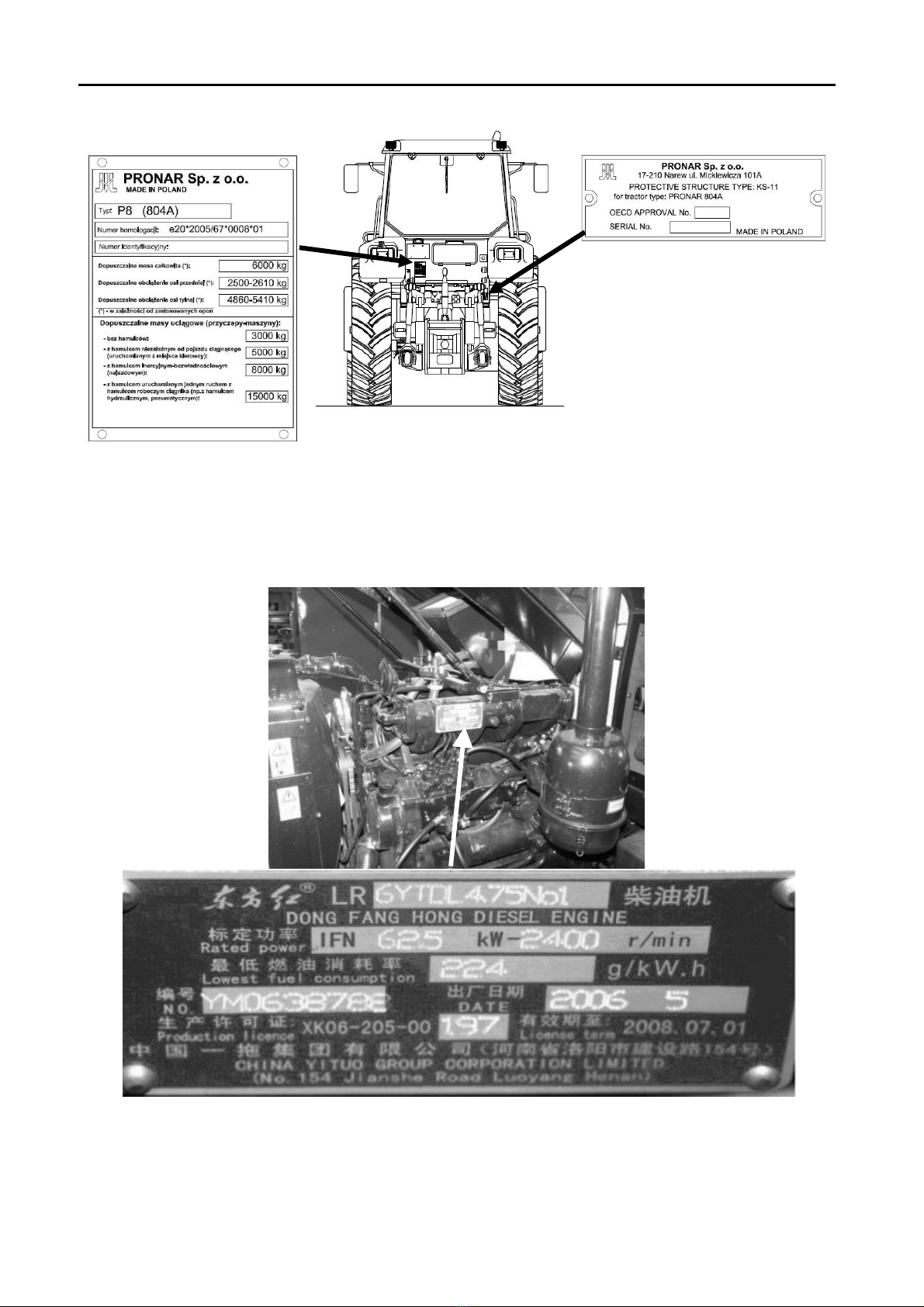

Fig. C-1 Position of the manufacturer’s tables
a – data plata of the tractor; b – data plate of the cab;
The number of the tractor (chassis) is placed on the plate located on the rear wall of the cab on the
left side of the tractor (see fig. C-1 pos. a).
Type and number of the cab is given on the plate located on the left wall of the cab on the right side
(fig. C-1 pos. b)
Fig. C-2 Position of the tractor plate (on the left side of the tractor)

PRONAR C. IDENTIFICATION DATA PRONAR
9
Upper transport hitch
Mounting frame
Lower hook-type coupling
Automatic upper transport hitch (option)
Fig. C-3 Position of plates of hitch devices

PRONAR D. CONTROL AND CHEC ELEMENTS PRONAR
10
CAB
Before starting work with the tractor you must get acquianted with appropriation of
control organs, indicators and their indications. Information contained in the
Instruction will help you to drive the tractor correctly and safely to perform, by means
of this tractor, planned works with possibly the least effort.
The cab has been designer so as to ensure
appropriate comfort and convenience to the operator.
The standard equipping of the cab is composed of the
heating and ventillation system of the cab, sun visor,
windscreen wiper with washer, rear window wiper, half-
open side and rear windows, half-open flap of the roof
and e ternally regulated rear-view mirrors.
You can go into the cab from the left side and the
right side. However it is recommended to enter from the
left side with regard to levers of the driving system
located on the right side of the seat. They may hinder
entering from the right side of the cab.
Fig. D-1a The cab of tractors ZEFIR type P8
In order to get into the cab you must stand in front of the doors and open it by means of e ternal
handle equipped with the lock closed by means of key. Ne t catching hold of the hand-rail situated outside
the cab on the left side and the hand-rail on internal part of the door on the right side you must climb the anti-
slip foot-plates and go into the cab. Close the door after entering and sit down on the operator’s sit.
ATTENTION: In order to prevent falls when entering and going out from the tractor you must use
hand-rails and foot-plates. Remove mud, snow, ice and pollutions.
Going out from the cab you must open the door, catch the hand-rails and being with own back turned
outside of the cab, go down the foot-plates holding the hand-rails.
1
The right and left of the cab are equipped with handles with lock which allow
to close the cab from outside by means of key. I order to open the closed
door you must turn the key and ne t push inwards the lock 1 being in the
handle.
Fig. D-1b E ternal handle of the door
1
2
3
In order to open the door from inside you must pull the lever 1 releasing the
mechanism of the door lock. The lever 2 serves for interlocking of the door
lock and protecting against accidental opening the door.
After opening we may leave the door in fully opened position kept thanks to
gas spring or kept in slightly half-open position thanks to special lever
located at the cab frame which must be deviated so that it will possible to
snap the door lock on the cab frame.
Fig. D-1c Internal handle of the door
