Prorack K525 Operation and installation manual

K525
Fitting Kit

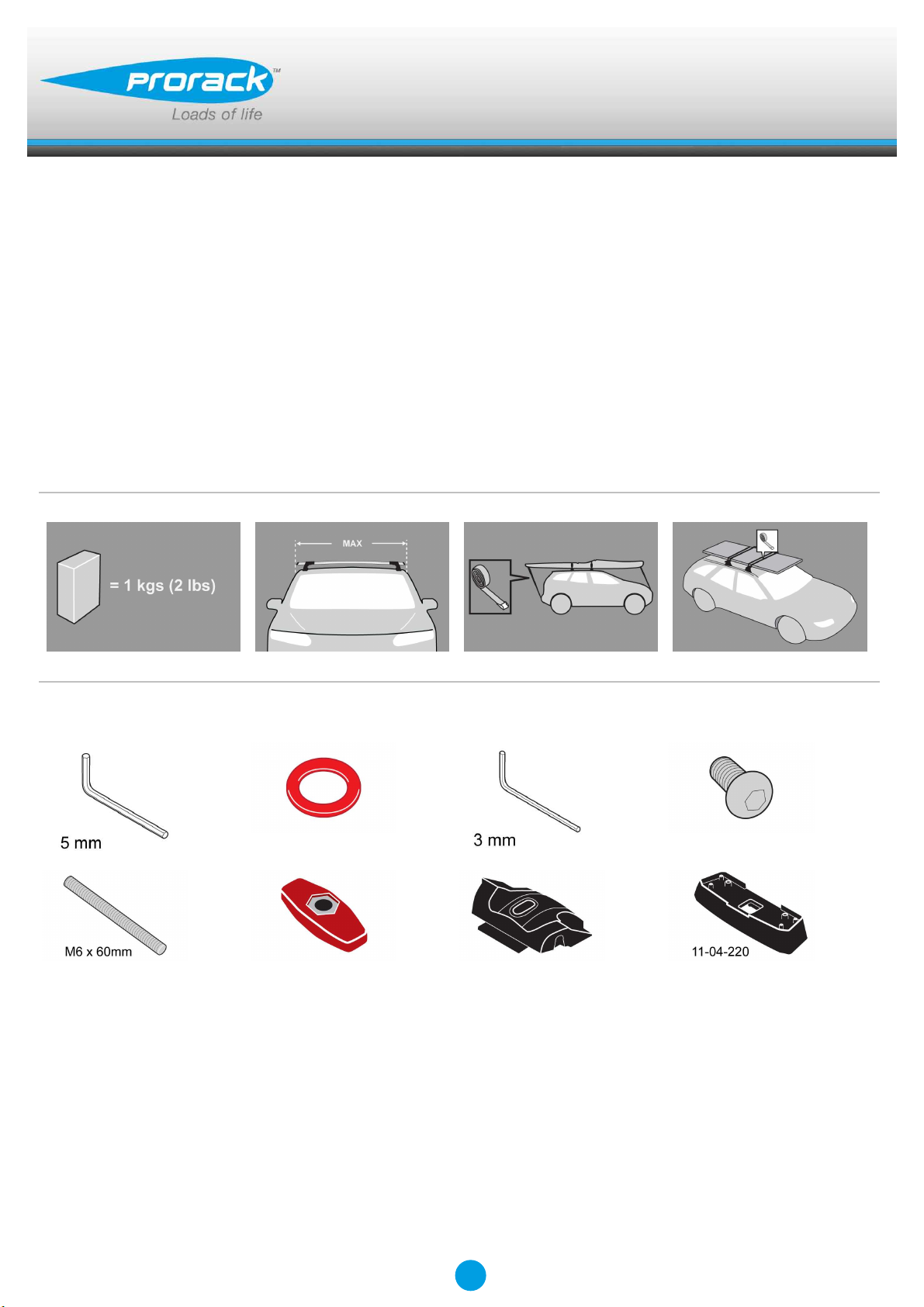

EN Fitting Instructions for Basic Carrier
x 1 x 2 x 1 x 2
x 2 x 2 x 2 x 2
Revision No: 4D 1

Fitting Kit K525

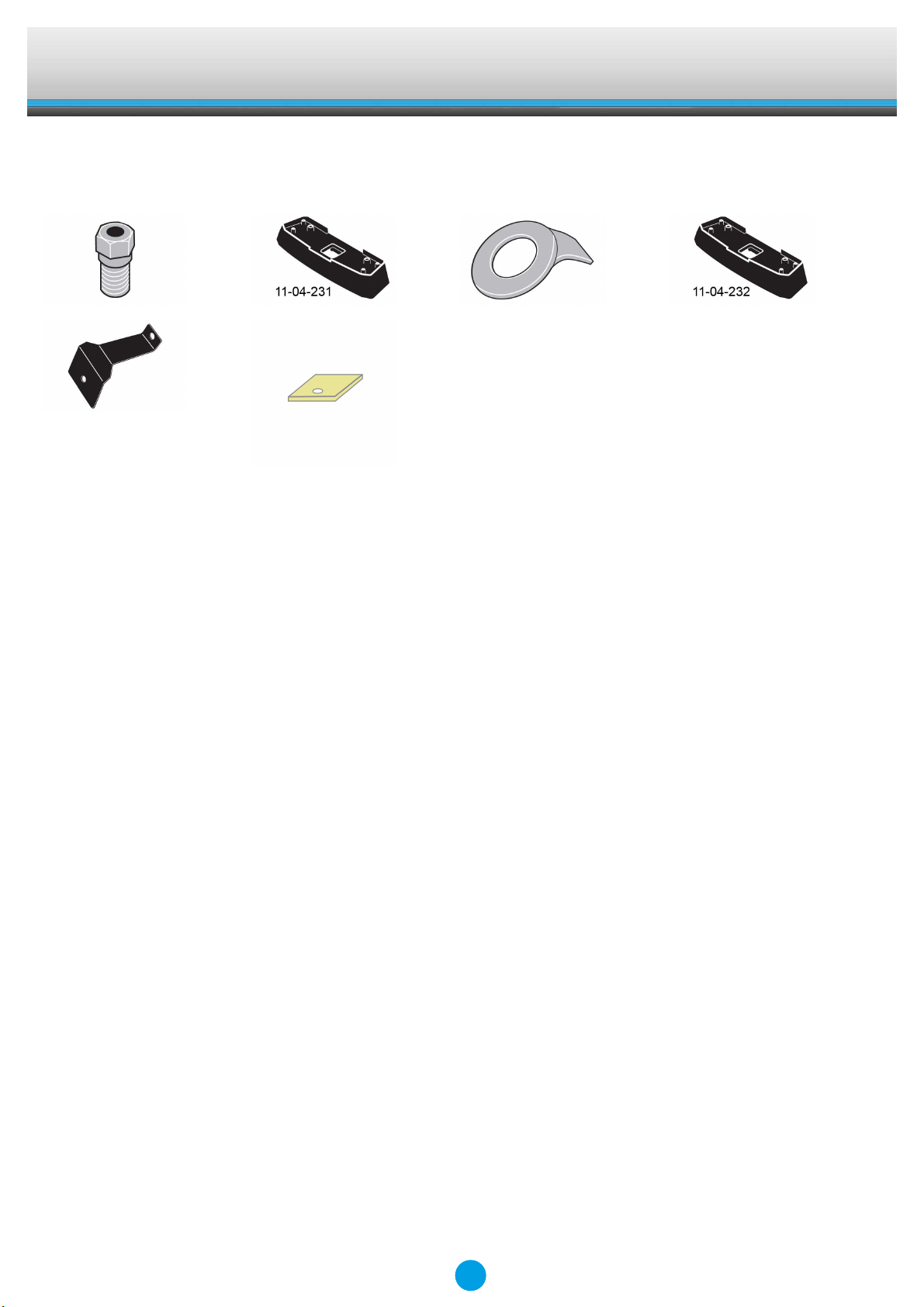

x 2 x 1 x 2 x 1
x 2 x 2
2

Fitting Kit K525
MAX kgs (lbs)
W/P WHD
Renault
Clio Mk3, 3dr Hatch 05-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Clio Mk3, 3dr Hatch 05-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Clio Mk3, 3dr Hatch 05-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Clio Mk3, 3dr Hatch 05-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
3

Fitting Kit EN
K525
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4

Fitting Kit EN
K525
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5

Fitting Kit EN
K525
●Apply protective strip as shown.
Trim if required.
●NOTE: FRONT CROSSBAR ONLY
●Remove locking screw.
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
6

Fitting Kit EN
K525
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-220
B = 11-04-231
C = 11-04-232
7

Fitting Kit EN
K525
●NOTE: FRONT CROSSBAR ONLY
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle.
8

Fitting Kit EN
K525
●NOTE: FRONT CROSSBAR ONLY
●Clamps onto anchor points under rubber
door frame mouldings
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Pull back rubber seal to expose fixed points
on vehicle body.
●Tighten adjusting screw to 5 Nm (3.7 ft lb).
9

Fitting Kit EN
K525
●Place clamp over the mounting hole
●Fit a fibre washer on each capscrew and
attach clamps to the vehicle body using the
capscrews.
●Tighten locking screw on both legs evenly.
●NOTE: REAR CROSSBAR ONLY

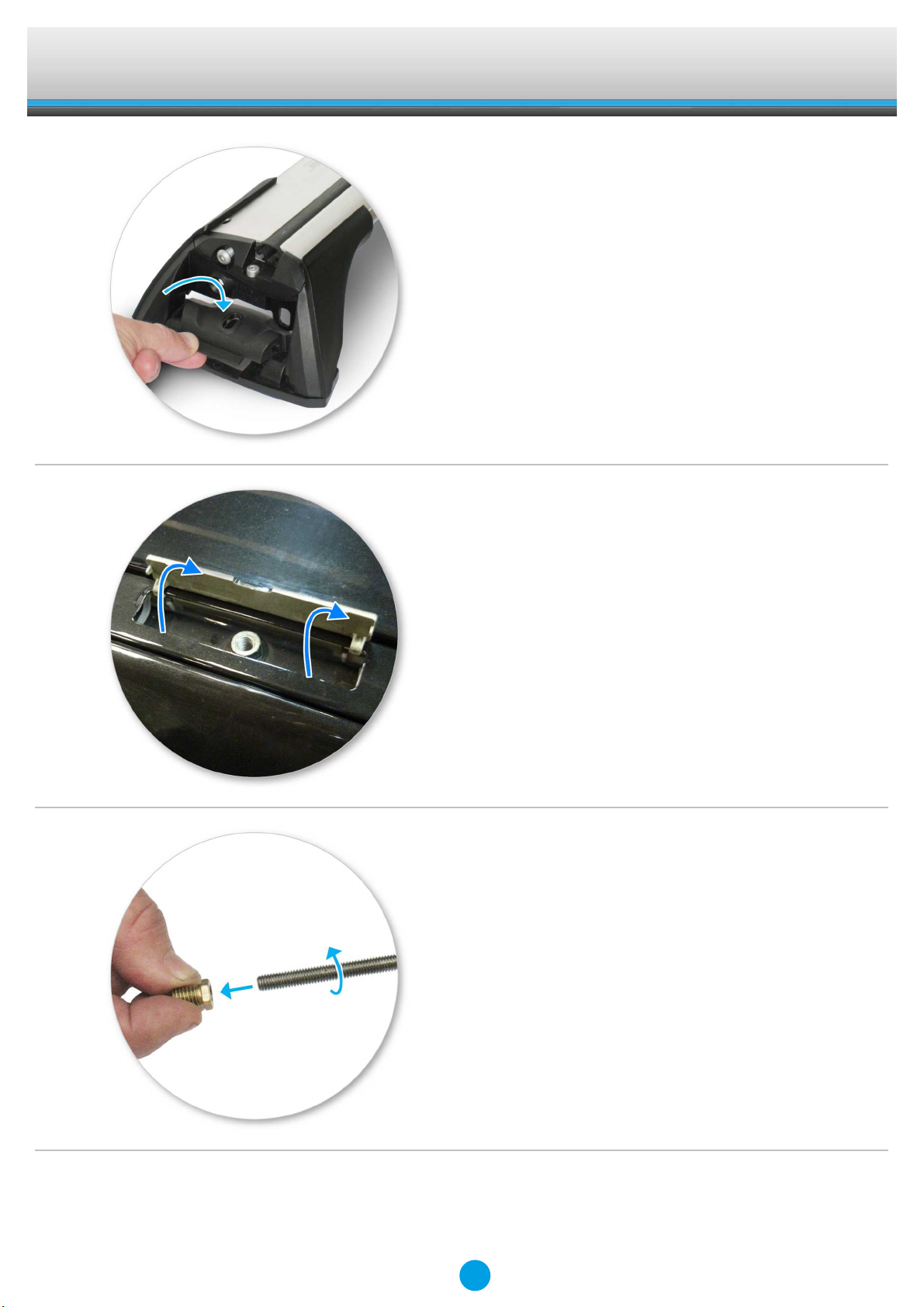

●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Store items away in a safe place.
