Pro-Tech® Fusion Edge™ Sno Pusher
Owner’s Guide
SGL (Loader) and SGM (Compact Wheel Loader) Models

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
ABOUT PRO-TECH
Pro-Tech offers a robust product line of containment and multi-use plows to help its customers
address multiple surface conditions and applications with confidence. Through quality, price and
availability, Pro-Tech delivers proven value with durable, competitively priced products that are there
when customers need them.
Quality, Price and Availability
Quality: Pro-Tech’s values are trust, respect and quality based on integrity. We define
integrity as consistency and credibility – and this applies not only to our products,
but to our people as well. Our focus on integrity ensures that everything we do goes
beyond the economics of business and stays consistent with our core values.
Quality is a measurement of our values translated through our word and our
product. Our quality systems measure our performance with inspection processes
and is maintained by a series of checks and balances and is reinforced with training.
With over 25 years of manufacturing and design experience and over 60,000 units
sold - we confidently stand behind our product warranties.
Price: Quality and availability don’t mean a whole lot if your product is priced out of reach
for the majority of customers. At Pro-Tech, we feel we have the very best
combination of Quality, Price and Availability. Our top quality products - with the
Pro-Tech name, experience, warranty and integrity behind them – are priced fairly.
Combined with our Freight policy, our legendary durability, our turnkey mindset and
our commitment to building relationships, our pricing guideline is just one of the
many areas where we deliver more than is expected.
Availability: We believe customer satisfaction comes when the customer knows exactly what
they are getting, when they are getting it and what it will cost. Our commitment to
availability means that we build our inventory levels up during the winter season so
we’ll have product to ship when an order is placed.
We’ll call you when your order is leaving the lot and our trucking partners will call
you to confirm delivery times.
Our large distributor and dealer network ensures that large volumes of Pro-Tech
products are available in multiple varieties across the United States and Canada.

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
SAFETY PRECAUTIONS
1. NEVER get under the unit during
maintenance procedures without
properly securing the unit
2. ALWAYS take a few minutes to
properly secure the unit using
dunnage or jack stands to ensure
safety during maintenance.
3. DO NOT rely solely upon the
hydraulics of your machine to secure
the unit during maintenance.
4. NEVER get between the prime
mover and the unit while attaching.
5. ALWAYS be sure to keep hands and
feet away from designated pinch
points.
6. DO NOT place hands or feet under
the unit or the prime mover.
7. NEVER stand in front of a unit while
prime mover is in operation.
OPERATING THE UNIT
The Pro-Tech Sno Pusher® is designed with
several exclusive features to ensure safe and
efficient snow removal. The Fusion Edge™ is an
industry first combining the industry leading
rubber edge with a hardened steel core. This
gives superior surface results. The Pro-Float™
Coupler helps to reduce potential damage to your
machine by enabling the Sno Pusher® to move
over raised manhole covers, low curbs and other
obstructions.
To ensure your unit will provide you with years of
service with minimal maintenance follow these
simple instructions:
1. Once the Sno Pusher is properly
attached to your machine the cutting
edge may be “broken-in” BEFORE
plowing to achieve the best surface
results. This process could take several
hours before the steel edge is exposed.
2. To level the unit set it down and adjust
the curl of your bucket, making sure that
BOTH wear shoes are resting squarely
on your plowing surface. In addition, Pro-
Tech also sells a level gauge that can
assist in keeping the unit level.
3. To ensure proper contact drive your
machine forward approximately 20’,
check surface area under your machine
to ensure that plowing area is clean. If
using the post mount option and your
plowing area is not completely clear, feel
free to loosen the tension of binder(s) to
allow your Sno Pusher to vertically adjust
for maximum surface contact. Your Sno
Pusher may not remove hard-pack in
some instances.
IMPORTANT: Binders must not be
tightened to a tension level that inhibits
the movement of the Pro-Float™
Coupler.
4. Down force is NOT necessary for proper
plowing. It can be added as required to
assist in scraping hard packed snow.
However, extended operation of down
force will considerably shorten the life of
your wear shoes and cutting edge.

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
FUSION EDGE™ BREAK-IN PROCEDURE

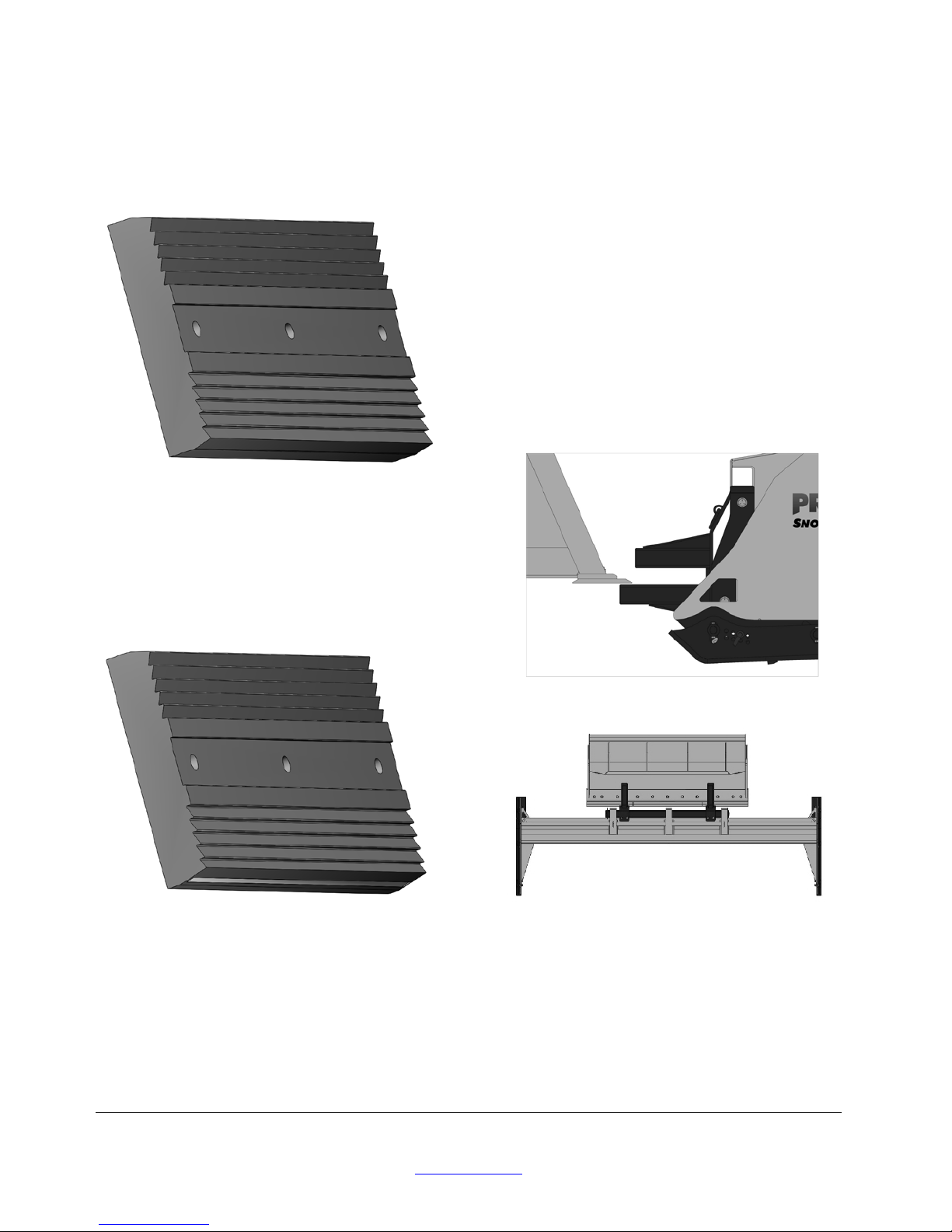

The Fusion Edge™ is a reversible cutting edge
and comes in sectional pieces that have steel
fully encapsulated in the rubber. (Figure 1a)
Figure 1a
Pro-Tech has designed the cutting edge by fully
encapsulating the steel in the rubber to protect it
from environmental elements before use. Prior to
plowing, the cutting edge can be broken in to
expose the steel component. (Figure 1b) This will
optimize the surface outcome
Figure 1b
If you choose to break-in prior to first use, this
can be accomplished by hooking up the pusher to
your prime mover and running it forward with
moderate down pressure on a hard, dry concrete
or asphalt surface for a minimum of 100 feet.
Check the edges to see if the steel edges have
been exposed and continue the break in process
as necessary. This procedure will need to be
repeated when replacing or reversing the cutting
edge.
ATTACHING THE UNIT: SGL and SGM
models equipped with post
configuration design
Attaching the Sno Pusherto your machine is
made easy with Pro-Tech’s Quick Change™
Design.
1. Drive the cutting edge of machine’s
bucket into the post receptacle on the
back of the Sno Pusher. (Figure 2a and
2b)
Figure 2a
Figure 2b
The bucket will come to rest against the
steel bucket stops. The upper posts will
fit inside the bucket and should be
centered. The lower posts will be
positioned under the bucket.
2. Attach the chains and binders to secure
the Sno Pusher to your machine.

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com

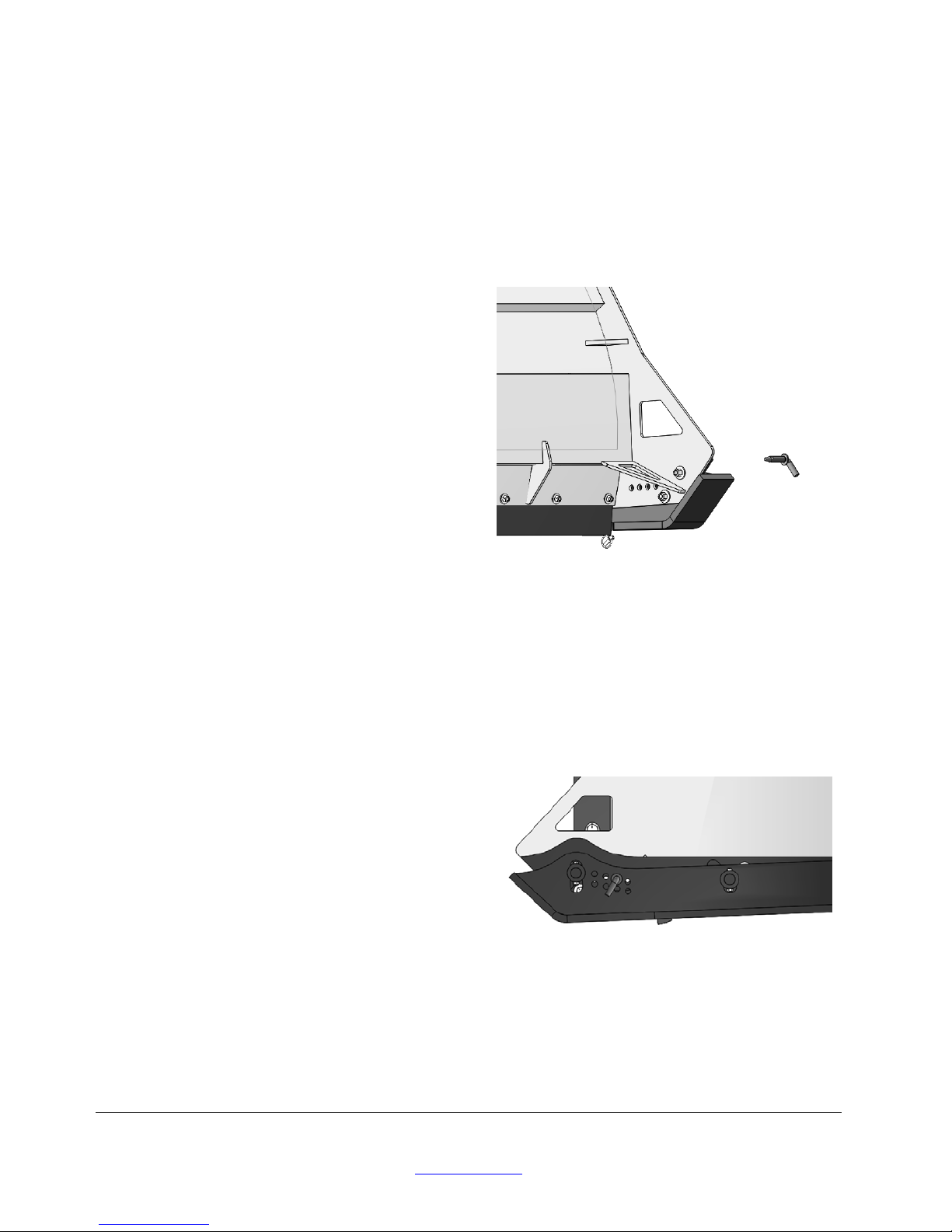

INSTALLING THE BINDER KIT
1. Grab hooks are to be welded to the side
or back corners of your machine’s
bucket.
The location you choose MUST allow
chains to be positioned parallel to the
ground when attached. This will ensure
level operation of the Sno Pusher to your
machine.

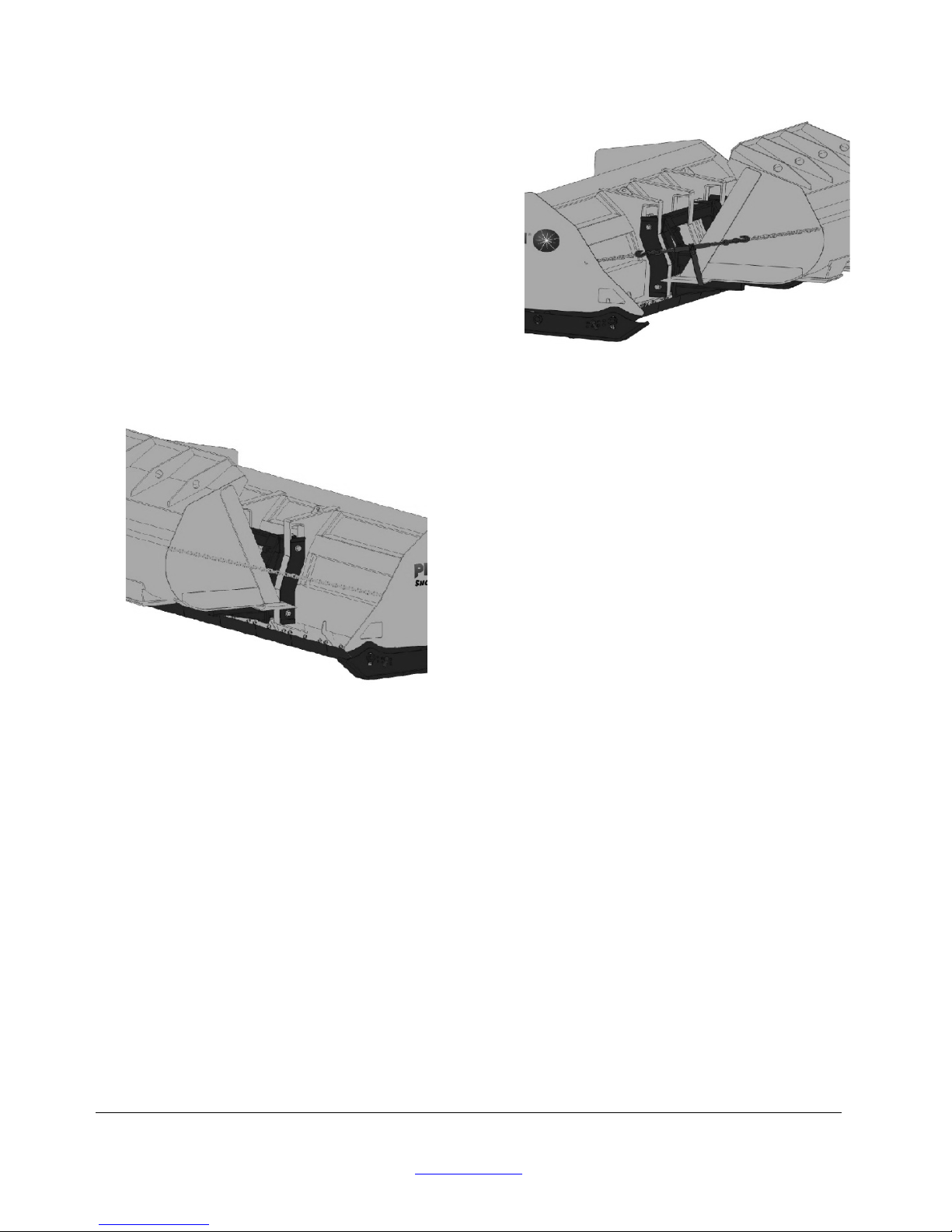

2. Attach one section of transport chain to
the right side of the Sno Pusher using a
3/8” clevis. (Figure 3a)
Figure 3a
Drop opposite end of this chain into grab
hook on the right side of the bucket. Leave
enough slack in the chain to allow centering
of the unit and coupler.
Figure 3b
3. Attach additional section of transport
chain to the left side of the Sno Pusher
using a 3/8” clevis.
Drop opposite end of this chain into grab
hook on the left side of the bucket. Leave
enough slack in the chain to attach the
ratchet binder and allow centering of the
unit. (Figure 3b)
4. Now that both chains are in place, you
need to ensure full range of motion of the
floating coupler while maintaining contact
between your bucket and the inside of
the post receptacles.
CAUTION: Do not use the lift hooks
located at the top and rear of the Sno
Pusher for chain attachment. These
hooks are designed for lifting the unit
only and not for plowing.
For SGL, Binder Kit Includes:
2 – 10’ sections of 3/8” P-43 Transport Chain
2 – 5/16” Grab Hooks
1 – 3/8” Heavy Duty Ratchet Binder
2 – 3/8” Shackles
For SGM, Binder Kit Includes:
2 – 5’ sections of 3/8” P-43 Transport Chain
2 – 5/16” Grab Hooks
1 – 3/8” Heavy Duty Ratchet Binder
2 – 3/8” Shackles

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
ATTACHING THE UNIT: SGL models
equipped with a direct coupling
system
Your Pro-Tech Sno Pusher® Loader Model
(SGL) is equipped with the manufacturer’s OEM
Quick Coupler
1. Remove the bucket from your loader.
2. Drive machine into the coupler located on
the back of the Sno Pusher®.
3. Engage the locking pins.
NOTE: The coupler assembly may need
to be re-positioned to remain centered
and aligned with prime mover.
ATTACHING THE UNIT: SGM model
Your Pro-Tech Sno Pusher® Compact Wheel
Loader Model (SGM) is equipped with the
manufacturer’s OEM Quick Coupler
1. Remove the bucket from your compact
wheel loader.
2. Drive machine into the adapter located
on the back of the Sno Pusher.
3. Engage the locking pins.
MAINTENANCE
Your Pro-Tech Sno Pusher® requires only
minimal service to remain in top condition. Follow
these simple guidelines to ensure proper plowing
and long life:
FUSION EDGE (Height Adjustment)
The height of Fusion Cutting Edge™ can be
adjusted without any tools.
Raise unit off the ground to access the rear of the
wear shoe. From the inside of the side plate
locate and remove the lynch pin. (Figure 4a)
Figure 4a
Slightly raise the shoe upward to remove bearing
weight on the shoe pin. Remove shoe pin and
select desired adjustment position. Replace shoe
pin and lynch pin. Repeat on opposite side
maintaining the same hole height locations for
each. Optimum position should not expose more
than ½” of rubber edge.

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com

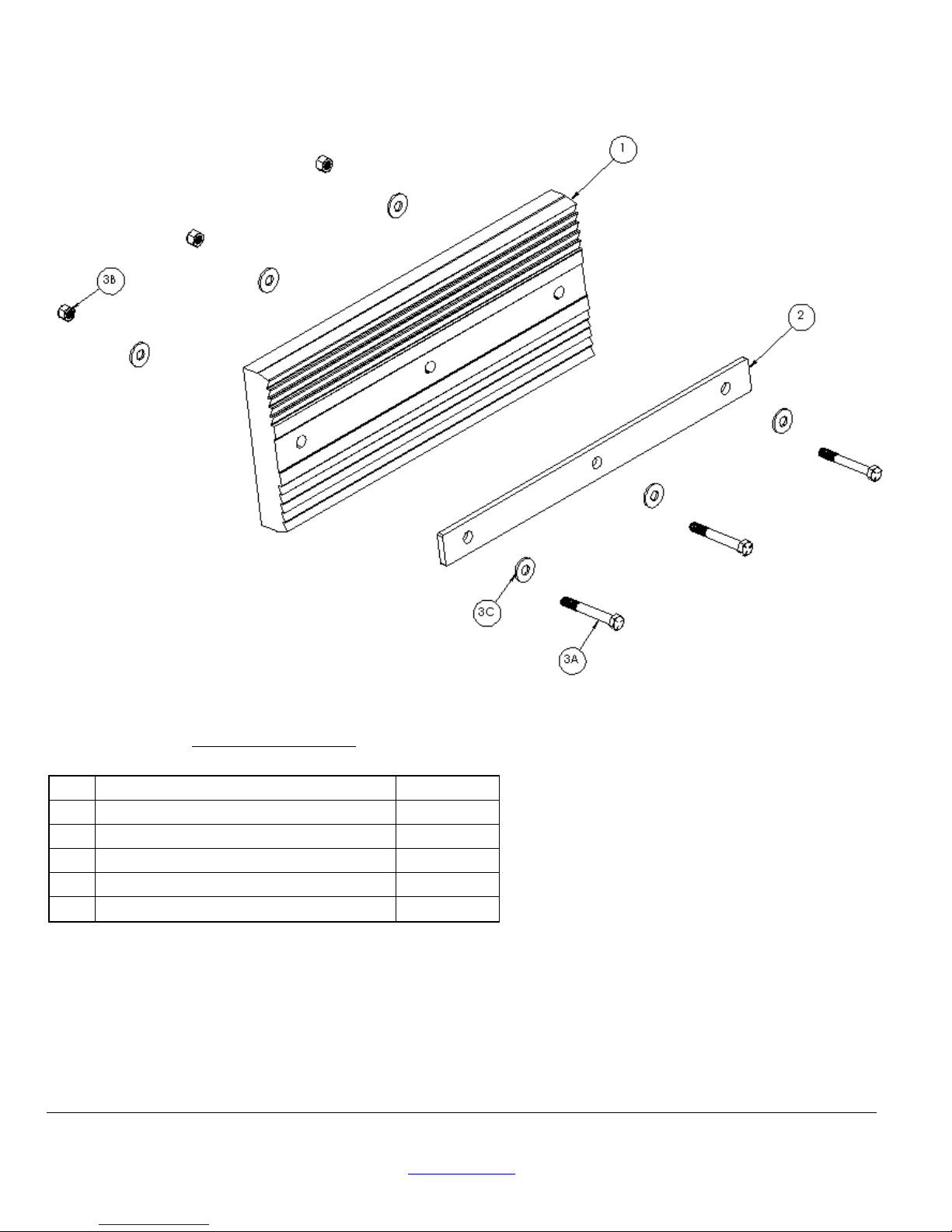

FUSION EDGE (Replacement)
The cutting edge on every Pro-Tech Fusion
Edge™ Sno Pusher has a symmetric design that
can be reversed. This provides (2) unique cutting
edges ensuring long lasting performance. The
special designed Fusion Edge™ is 2” x 10” thick.
To ensure several years of service perform
periodic inspections and adjustments following
these simple guidelines:
When a Fusion Cutting Edge™ section does
need to be replaced due to wear or damage it
can easily be changed out.
Figure 5a
1. Always begin by placing the Sno Pusher on a
smooth, flat surface when making any
adjustments.
2. Remove all bolts fastening the rubber to
the Sno Pusher.
3. Reverse or replace the Fusion Edge™
Reinstall the hardware.
4. Once rubber is properly positioned begin
tightening the bolts.
IMPORTANT: We recommend using a
1/2” impact gun to ensure proper bolt
torque (55-65 ft-lb).
WEAR SHOES
Every Pro-Tech Sno Pusher® is equipped with
two hardened, abrasion resistant, bolt-on wear
shoes that are replaceable to provide seasons of
use by offering superior protection against wear
and tear. When replacement is required, follow
these guidelines:
WARNING:
Wear shoes are extremely heavy, please use
caution during the removal and installation
process.
1. Lift Sno Pusher slightly off ground (2”-3”)
and secure before attempting any
modifications.
2. Remove existing wear shoes by
removing the shoe retaining bolts, lock
nuts and collars. Then pull the wear shoe
off the mounting pins.
3. Lubricate all sliding surfaces of the wear
shoes, mounting pins, and retaining
collars with grease or never-seize.
4. Re-install wear shoes by sliding them
over the mounting pins and securing with
the shoe retaining bolts, lock nuts and
collars.
PRO-FLOAT COUPLER
The Pro-Float™ coupler should be lubricated
periodically at all contact points to maintain full
range of motion.
STORAGE
Store the pusher in a location out of direct
sunlight and exposure to the weather to prevent
premature degradation of the cutting edge.
Properly clean the unit before storage and
remove dirt, debris, salt, etc. to extend paint life.

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
LIMITED 10 YEAR WARRANTY
We will repair or replace any Pro-Tech Sno
Pusher® proven to be defective in materials or
workmanship for ten years after the purchase
date, in accordance with the following terms and
conditions:
1. Pro-Tech reserves the right to determine
whether a unit will be repaired or
replaced.
2. Transfer of ownership to any party other
than those mentioned on the original,
returned warranty card or online
registration will completely void this
warranty.
3. All shipping and handling charges for
returned units must be prepaid by the
owner and received at the Pro-Tech
facility FOB.
4. If the warranty claim can be diagnosed
from photographs clearly showing the
problem area and/or details of
mechanical failure, the physical return
along with additional shipping and
handling charges may be avoided. (Note:
We reserve the right to have a factory
representative evaluate any problem(s) in
the field.)
Pro-Tech makes no other warranty of any kind,
either expressed or implied, including warranties
pertaining to merchantability and fitness for a
particular purpose.
This warranty is intended to provide you with
specific rights, you may also have other rights
which vary both internationally and domestically,
as well as from state to state.
Warranty Coverage Procedure
1. Call Pro-Tech directly to discuss product
information:
•Serial #, Purchase Date, Proof of
Purchase, Product Registration;
product registered with Pro-Tech
2. Describe the nature of the warranty
claim.
3. Provide photographs illustrating the
failure.
4. Pro-Tech will determine if failure falls
within the 10 year warranty. If it does,
Pro-Tech will offer corrective options. If it
does not, Pro-Tech will offer repair and
cost options.
Exceptions to Warranty
1. Any wear associated with sacrificial parts
such as but not limited to:
•Wear Shoes, Hardware, Cutting
Edge, Coupler Mounting Tubes, and
connection points
2. Any damage occurring as a result of:
•Misuse, Negligence, Accidental
Impact
3. Any non-factory repair or alteration
deemed detrimental to the functionality of
the Sno Pusher upon inspection by a
Pro-Tech engineer will void all warranties
specific or implied.
THE USE OF NON-PRO-TECH
REPLACEMENT PARTS, SUCH AS
RUBBER CUTTING EDGES OR WEAR
SHOES, WILL VOID ALL WARRANTIES.
4. Pro-Tech will not be held liable for any
personal damage that occurs as a result
of use. This includes, but is not limited to:
•Injury, Death, Loss of Use, Income or
Profit Loss, Property Loss/Damage
PRODUCT REGISTRATION
In order for your new Sno Pusher to be covered
under warranty you must register it with Pro-
Tech. To register:
1. Please visit www.protechcorp.com to
register your unit online.

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
REPLACEMENT SHOES
ITEM DESCRIPTION QTY./UNIT
1
Mounting Web Assembly
2
2
Wear Shoe Assembly
2
3
Wear Shoe Retainer Assy
6
3A
Retaining Collar
6
3B
Bolt
6
3C
Nut
6
4
Shoe Pin Assy
2
4A
Shoe Pin
2
4B
Lynch Pin
2
5
Mounting Web Hardware
12
5A
Bolt
12
5B
Nut
12
5C
Washer
24

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
REPLACEMENT RUBBER
ITEM
DESCRIPTION QTY./SECTION
1
Fusion Cutting Edge
1
2
Hold Down
1
3
Fusion Cutting Edge Mtg Hardware
3
3A
Bolt
3
3B
Nut
3
3C
Washer 6

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
FLOATING COUPLER
ITEM
DESCRIPTION QTY./UNIT
1
Coupler Mounting Tube
2
2A
Tube Side Bracket (Right)
1
2B
Tube Side Bracket (Left)
1
3
Coupler Mounting Tube Hardware
1
3A
Bolt
4
3B
Washer
4

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
CONNECTION
ITEM
DESCRIPTION QTY./SET
1
Post Mount Hub Assembly
2
2
Connection Hub Hardware Kit
1
2A
Spacer
8
2B
Bolt
8
2C
Nut
8
2D
Washer
16

Pro-Tech Manufacturing and Distribution, Inc.
711 West Ave ▪Rochester, New York 14611
888-787-4766
www.snopusher.com
SGL and SGM
Owner’s Guide
