Protherm 20/26 KKV-CS/1 User manual

en Operating instructions
Panther Condens
20/26 KKV-CS/1 (N-INT)
25/31 KKV-CS/1 (N-INT)
30/35 KKV-CS/1 (N-INT)
25 KKO-CS/1 (N-INT)
30 KKO-CS/1 (N-INT)
0020292750_02 - 27.10.2022
TRANSLATION

2Operating instructions 0020292750_02
Operating instructions
Contents
1 Safety ............................................ 3
1.1 Intended use .................................. 3
1.2 Qualification ................................... 3
1.3 General safety information............. 3
2 Notes on the documentation ...... 6
3 Product description..................... 6
3.1 Display and control elements......... 6
3.2 Displayed symbols......................... 6
3.3 Serial number ................................ 7
3.4 CE marking .................................... 7
4 Function........................................ 7
4.1 Operating concept ......................... 7
4.2 Setting the time.............................. 8
4.3 Locking and unlocking control
elements ........................................ 8
4.4 Heating mode ................................ 8
4.5 DHW mode .................................... 9
4.6 Displaying the product's energy
consumption ................................ 10
5 Care and maintenance .............. 12
5.1 Caring for the product .................. 12
5.2 Maintenance ................................ 12
5.3 Reading maintenance
messages .................................... 12
5.4 Guaranteeing the filling
pressure of the heating
installation.................................... 12
5.5 Checking the condensate
discharge pipe and tundish.......... 13
6 Troubleshooting ........................ 13
7 Decommissioning...................... 13
7.1 Temporarily decommissioning
the product................................... 13
7.2 Permanently decommissioning
the product................................... 14
8 Restarting ................................... 14
9 Recycling and disposal............. 14
10 Guarantee and customer
service ........................................ 14
10.1 Guarantee.................................... 14
10.2 Customer service......................... 14
Appendix ............................................... 15
A Fault codes................................. 15
B Troubleshooting ........................ 15

0020292750_02 Operating instructions 3
1 Safety
1.1 Intended use
The product is intended as a
heat generator for sealed heat-
ing installations and for do-
mestic hot water generation.
Intended use also includes the
following:
–Using the product while ob-
serving the operating instruc-
tions included for the product
and any other installation
components
–Observing all inspection and
maintenance intervals listed in
the instructions
Any other use that is not spe-
cified in these instructions, or
use beyond that specified in this
document, shall be considered
improper use.
Improper use of any kind is
prohibited.
1.2 Qualification
▶Employ only a qualified com-
petent person to install, con-
vert and set the product.
As the end user, you may carry
out all of the work that is de-
scribed in these instructions.
Exception: This product can be
used by children aged from 8
years and above and persons
with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if
they have been given supervi-
sion or instruction concerning
use of the product in a safe way
and understand the hazards in-
volved. Children must not play
with the product. Cleaning and
user maintenance work must
not be carried out by children
unless they are supervised.
Work that is described in other
instructions must only be car-
ried out by persons who meet
the requirements described
therein.
1.3 General safety
information
The following sections convey
important safety information. It
is essential to read and observe
this information in order to pre-
vent risk of death, risk of injury,
material damage or environ-
mental damage.
1.3.1 Gas
If you smell gas:
▶Avoid rooms that smell of
gas.
▶If possible, open doors and
windows fully and ensure
adequate ventilation.
▶Do not use naked flames (e.g.
lighters, matches).
▶Do not smoke.
▶Do not use any electrical
switches, mains plugs, door-

4Operating instructions 0020292750_02
bells, telephones or other
communication systems in
the building.
▶Close the emergency control
valve or the main isolator.
▶If possible, close the gas
stopcock on the product.
▶Warn other occupants in the
building by yelling or banging
on doors or walls.
▶Leave the building immedi-
ately and ensure that others
do not enter the building.
▶Alert the police and fire bri-
gade as soon as you are out-
side the building.
▶Use a telephone outside the
building to inform the emer-
gency service department of
the gas supply company.
1.3.2 Flue gas
If you smell flue gas:
▶Open all accessible doors
and windows fully to provide
ventilation.
▶Switch off the product.
▶Contact a competent person.
1.3.3 Retroactive changes
▶Never remove, bridge or
block the safety devices.
▶Do not tamper with any of the
safety devices.
▶Do not damage or remove
any tamper-proof seals on
components.
▶Do not make any changes:
–The product itself
–to the gas, supply air, water
and electricity supply lines
–to the entire flue system
–to the entire condensate dis-
charge system
–to the expansion relief valve
–to the drain pipework
–to constructional conditions
that may affect the operational
reliability of the product
▶Ensure that there is an evenly
sufficient combustion air sup-
ply.
1.3.4 Material damage
▶Ensure that the combustion
air supply is always free of
fluorine, chlorine, sulphur,
dust, etc.
▶Ensure that no chemical sub-
stances are stored at the in-
stallation site.
▶During a period of frost, en-
sure that the heating install-
ation remains in operation
and that all rooms are heated,
even when you are away.
–If a control is installed,
switch the product on and
off using the control to keep
the frost protection devices
active.
▶If you cannot ensure the oper-
ation, have a competent per-
son drain the heating installa-
tion.

0020292750_02 Operating instructions 5
▶Only fill the heating installa-
tion with suitable heating wa-
ter and, in cases of doubt, ask
a competent person about
this.
1.3.5 Legionella
▶Have a competent person in-
form you about the measures
that should be taken to pro-
tect against Legionella in your
installation.
▶Do not set any water temper-
atures below 60 °C without
consulting the competent per-
son first.

6Operating instructions 0020292750_02
2 Notes on the
documentation
▶Always observe all operating instruc-
tions enclosed with the installation com-
ponents.
▶Store these instructions and all other
applicable documents for further use.
These instructions apply for the following
products only:
Product article number
20/26 KKV-CS/1 0010025162
25/31 KKV-CS/1 0010025163
30/35 KKV-CS/1 0010025164
25 KKO-CS/1 0010025160
30 KKO-CS/1 0010025161
3 Product description

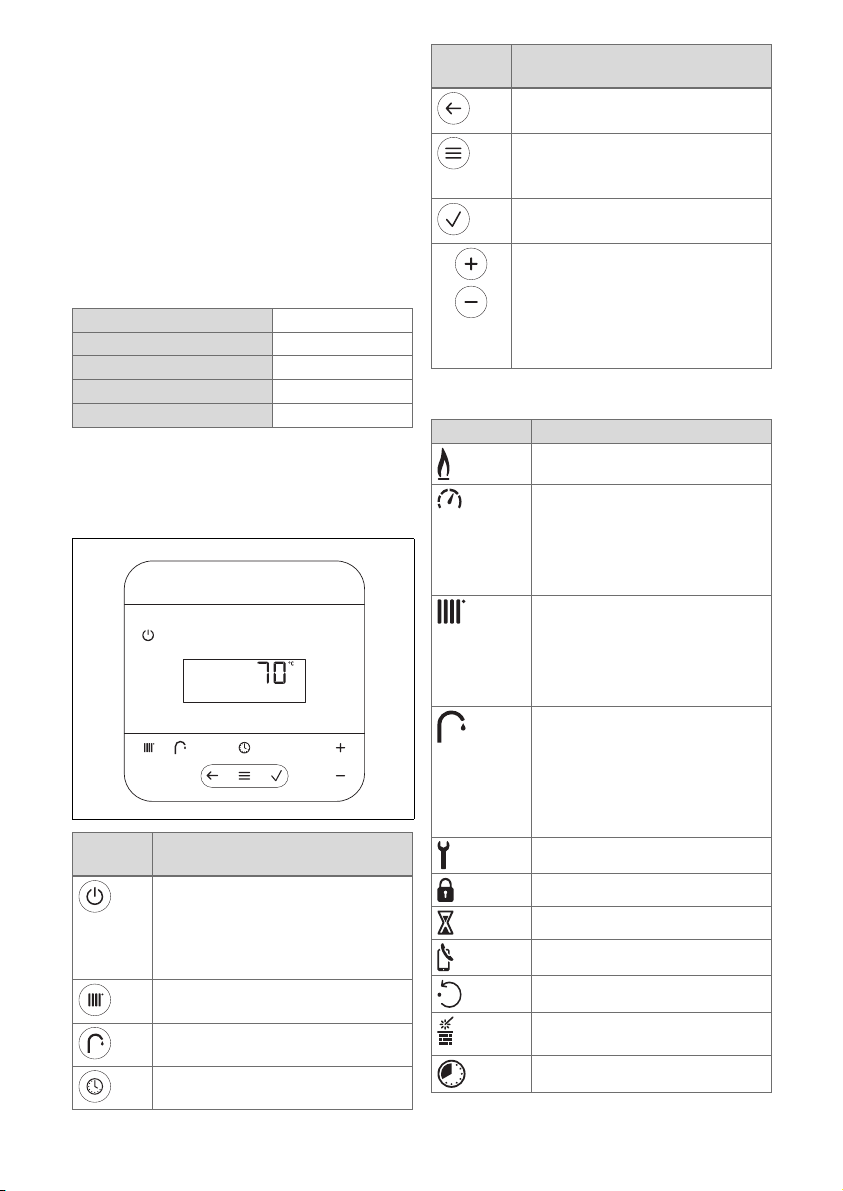

3.1 Display and control elements
Control
element
Function
–Activate/deactivate standby
mode
–Reset button: Press and hold
for more than three seconds to
restart
Setting the flow temperature
and/or desired temperature
Setting the domestic hot water
temperature
–Setting the operating time win-
dows
Control
element
Function
–Go one level back
–Cancelling input
–Calling up the menu
–Back to the main menu
–Calling up the basic display
–Confirming a selection/change
–Saving the set value
–Navigating through the menu
structure
–Reducing or increasing the set
value
–Navigating to individual num-
bers and letters
3.2 Displayed symbols
Symbol Meaning
Burner ignited
Current system pressure:
–Permanently on: Filling pres-
sure in the permitted range
–Flashing: Filling pressure
outside the permitted range
Heating mode activated:
–Permanently on: Burner off,
heat demand present
–Flashing: Burner on, heat
demand present
Domestic hot water generation
activated:
–Permanently on: Burner off,
no heat demand
–Flashing: Burner on, heat
demand present
Installer level active
Display locked
Product is busy with a task.
Contact a competent person
Reset function
Chimney sweep mode (carrying
out the combustion analysis)
Time-controlled heating active

0020292750_02 Operating instructions 7

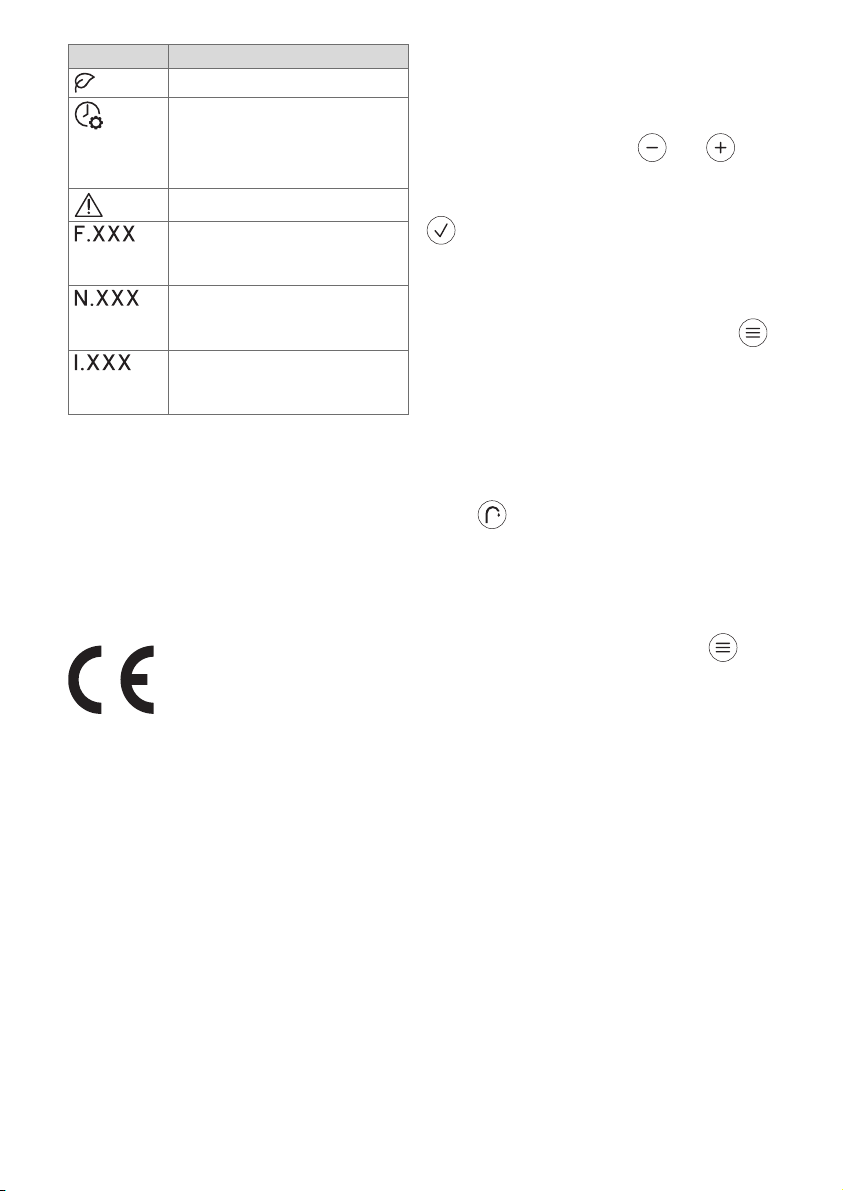

Symbol Meaning
eco function activated
Setting the time:
–Permanently on: Time is set
–Flashing: The time must be
reset
Warning
Fault in the product:
Appears instead of the basic
display
Limp home mode:
Appears instead of the basic
display
Maintenance required:
Appears instead of the basic
display
3.3 Serial number
The serial numbers are located on the
underside of the front panel and on the
data plate.
The 3rd to 6th digits provide the produc-
tion date (year/week), the 7th to 16th digit
provide the article number for the product.
3.4 CE marking
The CE marking shows that the products
comply with the basic requirements of the
applicable directives as stated on the de-
claration of conformity.
The declaration of conformity can be
viewed at the manufacturer's site.
4 Function
4.1 Operating concept
The adjustable values and menu items
can be changed using the and
buttons.
Each value change must confirmed using
. The new setting is only implemented
once it has been confirmed.
4.1.1 Basic display
If the status display is displayed, press
to call up the basic display.
In the basic display, the required domestic
hot water temperature can be set.
The flow temperature is the temperature
at which the heating water leaves the heat
generator (e.g. 65° C).
Press to set the temperature for do-
mestic hot water mode.
Further settings for domestic hot water
mode are described in the relevant sec-
tions.
If the basic display is shown, press to
call up the menu.
If there is an error message present, the
basic displays switches to the error mes-
sage.
4.1.2 Operating levels
If the basic display is shown, call up the
menu in order to display the end user
level.
In the end user level, you can change
and individually adapt the settings for the
product.
Specialised knowledge is required in order
to use the installer level (access for com-
petent persons). This is therefore protec-
ted by an access code.

8Operating instructions 0020292750_02

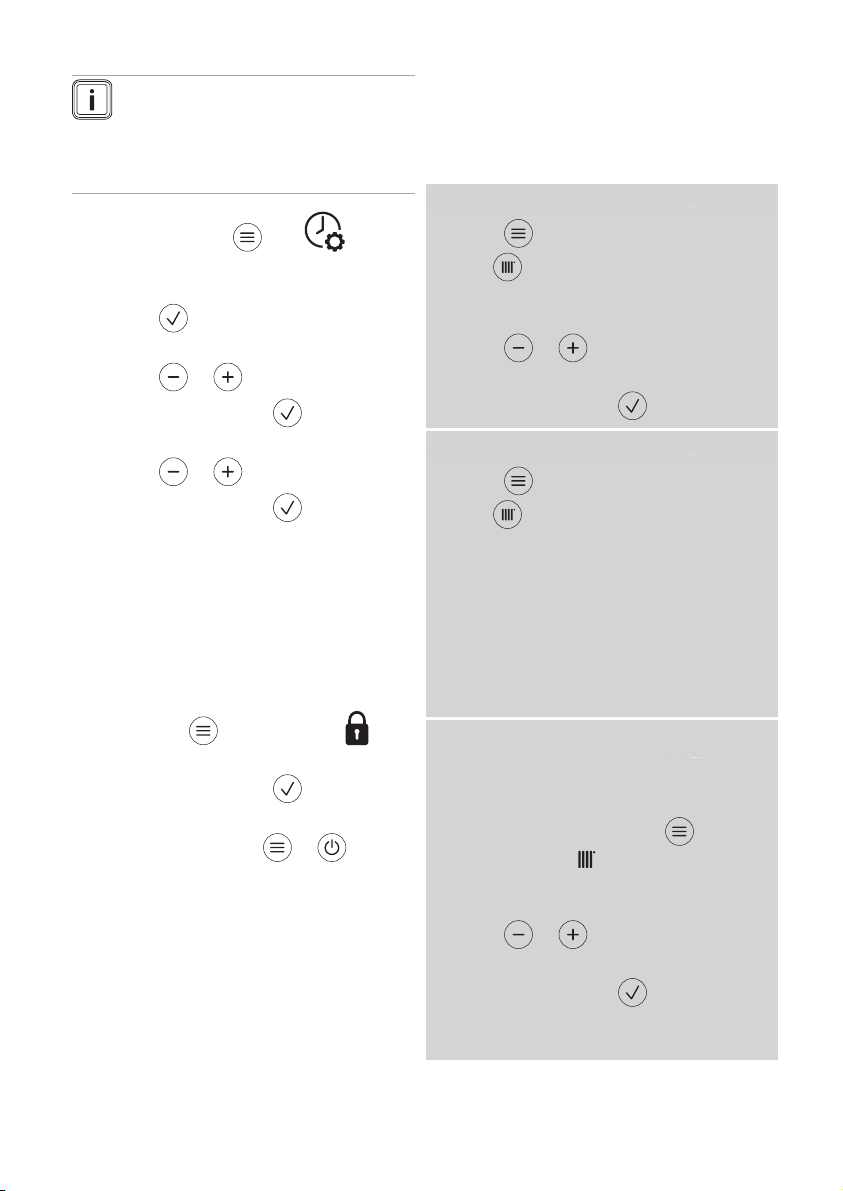

4.2 Setting the time
Note
When restarting following a power
cut or an interruption to the power
supply, the time, date and year are
not stored.
1. Press and hold until flashes.
◁The time that is currently set ap-
pears on the display.
2. Press to set the date and time.
◁The hours flash.
3. Press or to set the hours.
4. Confirm by pressing .
◁The minutes flash.
5. Press or to set the minutes.
6. Confirm by pressing .
◁The days flash.
7. Repeat these steps for the date (day,
month and year).
8. One the year has been confirmed, the
main menu appears.
4.3 Locking and unlocking control
elements
1. Press the button until the sym-
bol is displayed.
2. Confirm by pressing .
◁Display is locked
3. Press and hold the or button
for three seconds to unlock the control
elements.
4.4 Heating mode
In heating mode, the rooms are heated up
in accordance with your settings.
4.4.1 Setting the heating flow
temperature
Condition: No control connected
▶Press in the basic display once and
then .
◁The set heating flow temperature
appears in the display.
▶Press or to set the required
heating flow temperature.
▶Confirm by pressing .
Condition: Control connected
▶Press in the basic display once and
then .
◁on or oFF appears in the display.
–on shows that a heat demand
from the control is present.
–oFF shows that no heat demand
from the control is present.
▶Set the required heating flow temperat-
ure on the control (→Control operating
instructions).
Condition: No control connected and programmed
heating mode switched on
▶Switch off the programmed
(→Section 4.4.4) heating mode.
▶In the basic display, press once to
ensure that the symbol flashes.
◁The set heating flow temperature
appears in the display.
▶Press or to set the required
heating flow temperature.
▶Confirm by pressing .
▶Switch on the programmed
(→Section 4.4.4) heating mode.

0020292750_02 Operating instructions 9
4.4.2 Setting the parametrisation for
the heating times
1. Press .
◁The following display view appears
2. Press and to configure the
operating times for the heating.
Note
You have the option to config-
ure four different heating times
3. Press to confirm the time setting.
4. Exit the menu using .
◁appears in the display
4.4.3 Deleting the parametrisation
for the heating times
1. Press .
2. Press and hold for more than
three seconds to clear the settings.
◁The time axis flashes; the set heat-
ing times have been deleted
3. Confirm by pressing once.
4.4.4 Switching programmed
heating mode on/off
1. In the basic display, press and hold
.
◁In the display, On is displayed for
a few seconds and appears in
the basic display. The programmed
heating mode is switched on.
2. Switch the programmed heating mode
off by pressing and holding .
◁oFF is shown on the display for
a few seconds. The programmed
heating mode is switched off.
4.4.5 Permanently switching off
heating mode (summer mode)
▶From the basic display, press for at
least three seconds.
◁Heating mode is switched off
–oFF is shown on the display.
4.5 DHW mode
In domestic hot water mode, the potable
water is heated to the required domestic
hot water temperature.
4.5.1 Setting the domestic hot water
temperature
1. In the basic display, press once to
ensure that the is displayed.
2. Press .
◁The domestic hot water temperat-
ure is shown on the display.
Condition: No control connected
▶Press or to set the required
domestic hot water temperature.
▶Confirm by pressing .

10 Operating instructions 0020292750_02
Condition: Control connected
▶Set the required domestic hot water
temperature on the control (→Control
operating instructions).
4.5.2 Switching off the domestic hot
water mode
▶From the basic display, press for at
least three seconds.
◁The domestic hot water mode is
switched off.
4.5.3 Switching eco mode on/off
Validity: Product with integrated hot water genera-
tion
Note
eco mode prioritises energy sav-
ings and deactivates the domestic
hot water warm start.
1. In the basic display, press seven
times to ensure that the symbol
flashes.
2. Press or to switch eco mode
on or off.
3. Confirm by pressing .
◁is shown on the display when
the eco mode is activated.
4.5.4 Switching eco mode on/off
Validity: Product for heating only
Note
Eco mode prioritises energy sav-
ings and reduces the product's
maximum output when post-heat-
ing the domestic hot water cylin-
der, provided that a high draw-off
rate is not detected at the same
time.
1. In the basic display, press seven
times to ensure that the symbol
flashes.
2. Press or to switch eco mode
on or off.
3. Confirm by pressing .
◁is shown on the display when
the eco mode is activated.
4.6 Displaying the product's
energy consumption
You have the option to call up the differ-
ent energy consumption values for your
product.
If the basic display is shown, call up the
menu in order to display the end user
level.
The product, the control and the app show
approximate values for energy consump-
tion, energy yield and efficiency, which
are extrapolated based on calculation al-
gorithms.
The values that are displayed in the app
may differ from the other display options
due to staggered transfer intervals.
The determined values depend on:
–Installation and system of the heating
installation
–User behaviour
–Seasonal weather effects
–Various tolerances of unit-internal com-
ponents
The recording of the values is only valid for
the product in the factory-delivered condi-
tion. Supplementary accessories, even if
they are installed on the product, as well
as any other components in the heating
system and other external consumers, are
not part of the data recording.
Deviations between the determined values
and the actual values may be significant.
The determined values are therefore not
suitable for creating or comparing energy
billing, for example.
Note
If the PCB is replaced, the saved
values are reset.

0020292750_02 Operating instructions 11
4.6.1 Calling up the end user level
1. Press the button until the sym-
bol is displayed.
2. Set the code for the end user level
and confirm by pressing .
–Code for end user level: 00
4.6.2 Calling up the product's energy
consumption
12
3
4
01 Energy con-
sumption for
heating
02 Energy con-
sumption for
domestic hot
water
03 Power consump-
tion
04 Gas consump-
tion
1. Call up the end user level .
2. Confirm by pressing .
◁and GAS is shown in the
display, along with your product's
daily gas consumption for heating.
1
2
3
4
5
01 Daily energy
consumption
02 Previous day's
consumption
03 Previous month's
consumption
04 Previous year's
consumption
05 Total consump-
tion for the
product
3. Press and to call up the cur-
rent daily consumption, the previous
day's consumption, the consumption
of the entire previous month and the
annual consumption.
4. Press to display the different
consumption types EL/GAS for your
product.
5. Use to return to the previous
menu.

12 Operating instructions 0020292750_02
5 Care and maintenance
5.1 Caring for the product
▶Clean the casing with a damp cloth and
a little solvent-free soap.
▶Do not use sprays, scouring agents,
detergents, solvents or cleaning agents
that contain chlorine.
5.2 Maintenance
An annual inspection and biennial main-
tenance of the product carried out by a
competent person is a prerequisite for
ensuring that the product is permanently
ready and safe for operation, reliable,
and has a long service life. The inspec-
tion may require maintenance to be carried
out earlier, depending on the results.
5.3 Reading maintenance
messages
If the symbol is shown in the display, the
product requires maintenance work.
The product is not in fault mode but contin-
ues to operate.
▶Consult a competent person about this.
▶If the water pressure is flashing at the
same time, simply add more heating
water.
5.4 Guaranteeing
the filling pressure of the
heating installation
5.4.1 Checking the filling pressure of
the heating installation
1. In the basic display, press three
times.
◁The display shows the current
filling pressure value.
◁The symbol flashes in the
display.
2. Check the filling pressure in the
display.
3. If the filling pressure is lower than
0.8 bar (0.08 MPa), top up the heating
installation (→Section 5.4.2).
Note
If the heating installation ex-
tends over several storeys, a
higher filling pressure may be
required for the heating install-
ation. Ask a competent person
for details.
5.4.2 Topping up the heating
installation
Caution.
Risk of material damage due
to heating water that is ex-
tremely calciferous or corros-
ive or contaminated by chem-
icals.
Unsuitable tap water damages
the seals and diaphragms,
blocks components in the
product and heating installation
through which the water flows
and causes noise.
▶Only fill the heating installa-
tion with suitable heating wa-
ter.
Validity: Product with filling device
▶Ask your competent person where the
filling tap is located.
▶Open all radiator valves (thermostatic
valves) of the heating installation.
▶Turn the filling tap on slowly and allow
water to flow in until the required filling
pressure has been reached.
▶Purge all radiators.
▶Check the filling pressure in the display.
▶Top up with more water if necessary.
▶Close the filling tap.
▶Return to the basic display.

0020292750_02 Operating instructions 13
Validity: Product without filling device
▶Ask your competent person where the
filling tap is located.
▶Connect the filling tap to a heating wa-
ter supply in the way you were told by
the competent person.
▶Open all radiator valves (thermostatic
valves) of the heating installation.
▶Open the heating water supply.
▶Turn the filling tap on slowly and allow
water to flow in until the required filling
pressure has been reached.
▶Close the heating water supply.
▶Purge all radiators.
▶Check the filling pressure in the display.
▶Top up with more water if necessary.
▶Close the filling tap.
▶Return to the basic display.
5.5 Checking the condensate
discharge pipe and tundish
The condensate discharge pipe and tun-
dish must always be penetrable.
▶Regularly check the condensate dis-
charge pipe and tundish for faults and,
particularly, for blockages.
You must not be able to see or feel any
obstructions in the condensate discharge
pipe and tundish.
▶If you notice a fault, have it eliminated
by a competent person.
6 Troubleshooting
Danger!
Risk of death caused by im-
proper repair work
▶If the power supply cable is
damaged, never replace this
yourself.
▶Contact the manufacturer,
customer service or a simil-
arly qualified person.
▶If fault codes (F.XXX), LHM codes
(N.XXX) are shown in the display or
faults occur, proceed in accordance
with the tables in the appendix.
Fault codes (→Appendix A)
Troubleshooting (→Appendix B)
▶If you are unable to eliminate the fault
or malfunction using the specified
measures in the tables, contact a
competent person.
▶If limp home mode messages are dis-
played in the display, contact a compet-
ent person.
7 Decommissioning
7.1 Temporarily decommissioning
the product
Condition: Risk of frost
▶Press .
◁The display goes out. The standby
button continues to light up.
◁However, the frost protection for the
heating installation is active.
Condition: No risk of frost
▶Disconnect the product from the power
supply by either removing the plug for
the power supply cable from the plug
socket or, in the case of a fixed connec-
tion, by switching off the circuit breaker.
◁The display goes out. The product is
not working.
◁The frost protection function is deac-
tivated.
▶Close the gas stopcock on the product.
Validity: Product with integrated hot water generation
▶Close the cold-water isolation valve.

14 Operating instructions 0020292750_02
7.2 Permanently decommissioning
the product
▶Have a competent person permanently
decommission the product.
8 Restarting
1. Press .
2. Open the gas stopcock on the product
if the gas stopcock is closed.
Validity: Product with integrated hot water generation
▶Open the cold-water isolation valve.
9 Recycling and disposal
▶The competent person who installed
your product is responsible for the dis-
posal of the packaging.
Disposing of the product
If the product is labelled with this
mark:
▶In this case, do not dispose of the
product with the household waste.
▶Instead, hand in the product to a collec-
tion centre for waste electrical or elec-
tronic equipment.
Disposing of batteries
If the product contains batteries that
are labelled with this mark:
▶In this case, dispose of the batteries at
a collection point for batteries.
◁Prerequisite: The batteries can be
removed from the product without
causing any destruction. Otherwise,
the batteries are disposed of to-
gether with the product.
▶In accordance with the legal regula-
tions, used batteries must be returned
since batteries may contain substances
that are harmful to health and the envir-
onment.
10 Guarantee and customer
service
10.1 Guarantee
Informacijos apie gamintojo garantiją gau-
site galiniame puslapyje nurodytu kontakti-
niu adresu.
10.2 Customer service
Mūsų klientų aptarnavimo tarnybos kon-
taktinius duomenis rasite galiniame pus-
lapyje nurodytu adresu arba puslapyje
www.protherm.eu.

0020292750_02 Operating instructions 15
Appendix
A Fault codes
Note
The code table only shows an extract of the entire code.
Code/meaning Possible cause Measure
F.022
No/insufficient water
in the product or the
water pressure is too
low.
Water deficiency in
the heating installation
1. Check the filling pressure of the heating
installation. (→Section 5.4.1)
2. Top up the water in the heating installa-
tion (→Section 5.4.2).
F.028
The flame signal was
not detected during
the ignition phase.
After five unsuccessful
ignition attempts, the
product has switched
to fault mode.
1. Check whether the gas stopcock is open.
2. Press the reset button for longer than
three seconds.
–Maximum number of repetitions: 3
3. If you are unable to eliminate the ignition
fault, contact a competent person.
B Troubleshooting
Symptom Possible cause Measure
Product does not start
up (no hot water,
heating remains cold)
The gas isolator cock
installed on-site and/or
the gas isolator cock
on the product is
closed.
▶Open both gas isolator cocks.
The power supply in
the building is discon-
nected.
▶Check the fuse in the building. The product
automatically switches back on when the
power supply is restored.
The cold water stop
valve is closed.
▶Open the cold water stop valve.
The product is
switched off.
▶Restart the product. (→Section 8)
The room temper-
ature/domestic hot
water temperature
has been set too
low and/or heating
mode/domestic hot
water mode has been
switched off.
1. Set the heating flow temperature.
(→Section 4.4.1)
2. Set the domestic hot water temperature.
(→Section 4.5.1)
There is air in the
heating installation.
1. Purge the heating installation (→"Topping
up the heating installation" section).
2. If you are unable to purge the heating
installation yourself, contact a competent
person.
Heating will not start
(hot water generation
OK)
The external control is
not set correctly.
▶Set the external control correctly (→Control
operating instructions).

Supplier
Vaillant Group International GmbH
Berghauser Strasse 40 D-42859 Remscheid
Tel. [phone]
www.protherm.eu
Publisher/manufacturer
Protherm Production s.r.o.
Jurkovičova 45 Skalica 90901
Tel. [phone] Fax [phone]
Zákaznícka linka 034 6966166
www.protherm.sk
© These instructions, or parts thereof, are protected by copyright and may be
reproduced or distributed only with the manufacturer's written consent.
Subject to technical modifications.
0020292750_02
X
