PROWLER WSPROBD4191-1 User manual

TILE CUTTER
WSPROBD4191-1
4.2A / 4.5inch
Made in China 2019

CONTENTS

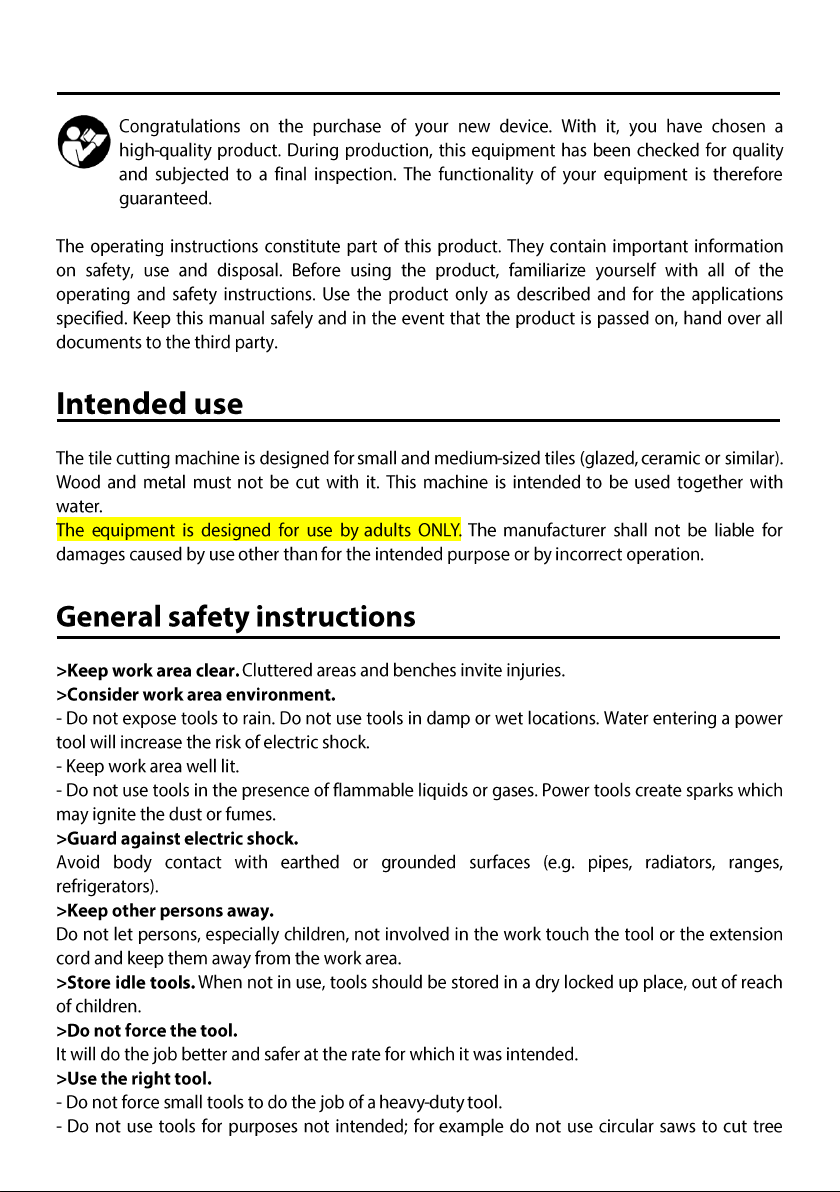

Introduction

Technical specifications
Nominal input voltage................................120 V~, 60 Hz
Power consumption.................................. 4.2A
Speed....................................................... 5400RPM
Weight ..................................................... approx. 3.6 kg
Depth of cut 90°.........................................max. 25 mm
Depth of cut 45°.........................................max. 16 mm
Sound pressure level (LpA)........................94 dB(A); KpA=3 dB
Sound power level (LwA) measured..........104 dB(A); KwA=3 dB
guaranteed.................................................107 dB(A)
Cutting Wheels Outer diameter.................Ø 115 mm
Bore hole....................................................Ø 22,2 mm
Noise and vibration values have been determined according to the standards and
regulations mentioned in the declaration of conformity.
Technical and optical changes may be undertaken in the course of further development
without notice. All dimensions, references and information in this instruction manual are
therefore not guaranteed. Legal claims made on the basis of the instruction manual can
therefore not be considered as valid.

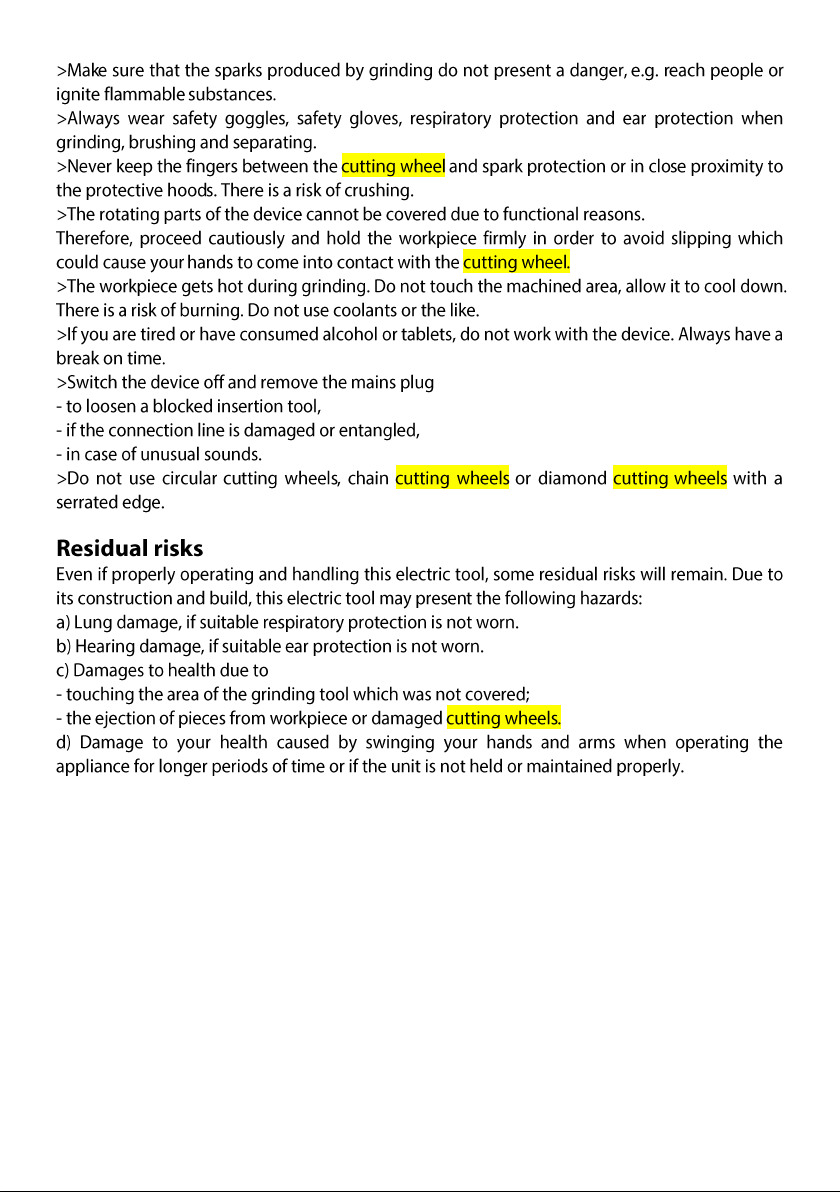

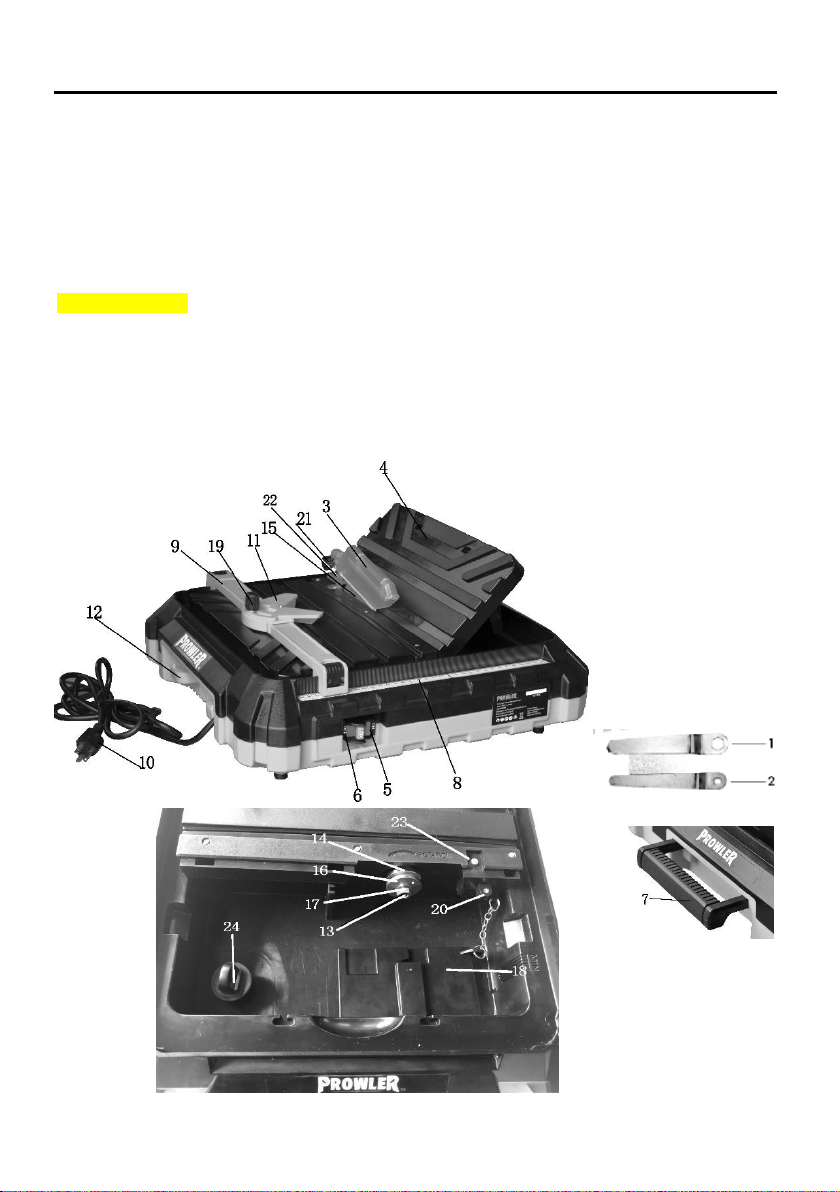

Summary
Assembly
•
•

•
•
Operation
•Switching on and off
Connect the equipment to the mains.

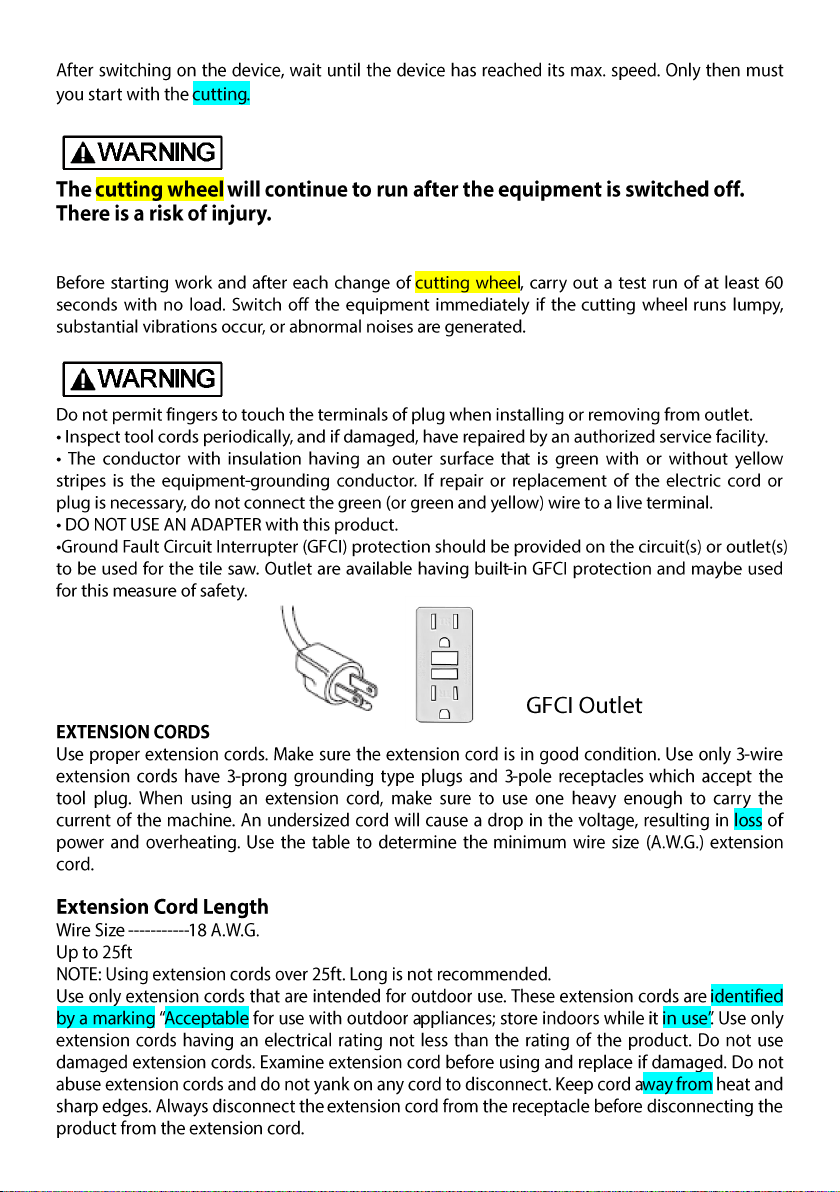

Test run:

•Performing a parallel cut

•Performing an angle cut
•
A jolly cut may only be carried out near the edge of the workpiece.
Have any work not described in these instructions carried out by a specialist
workshop. Use only original components. Allow the equipment to cool before
carrying out any maintenance and cleaning work. There is a risk of burns.

Before each use, check the equipment for obvious defects such as loose, worn or damaged
components and check that screws or other parts are sitting correctly. In particular, check
the cutting wheel Replace damaged parts.
•
Do not use cleaning agents or solvents. Chemical substances may attack plastic parts of
the equipment. Never clean the equipment under running water.
>Clean the equipment thoroughly after each use.
>Clean the surface of the equipment with a brush or cloth.
>Store the appliance in a dry place well out of reach of children.
>Cutting wheel must be stored dry and upright and are not to be stacked.

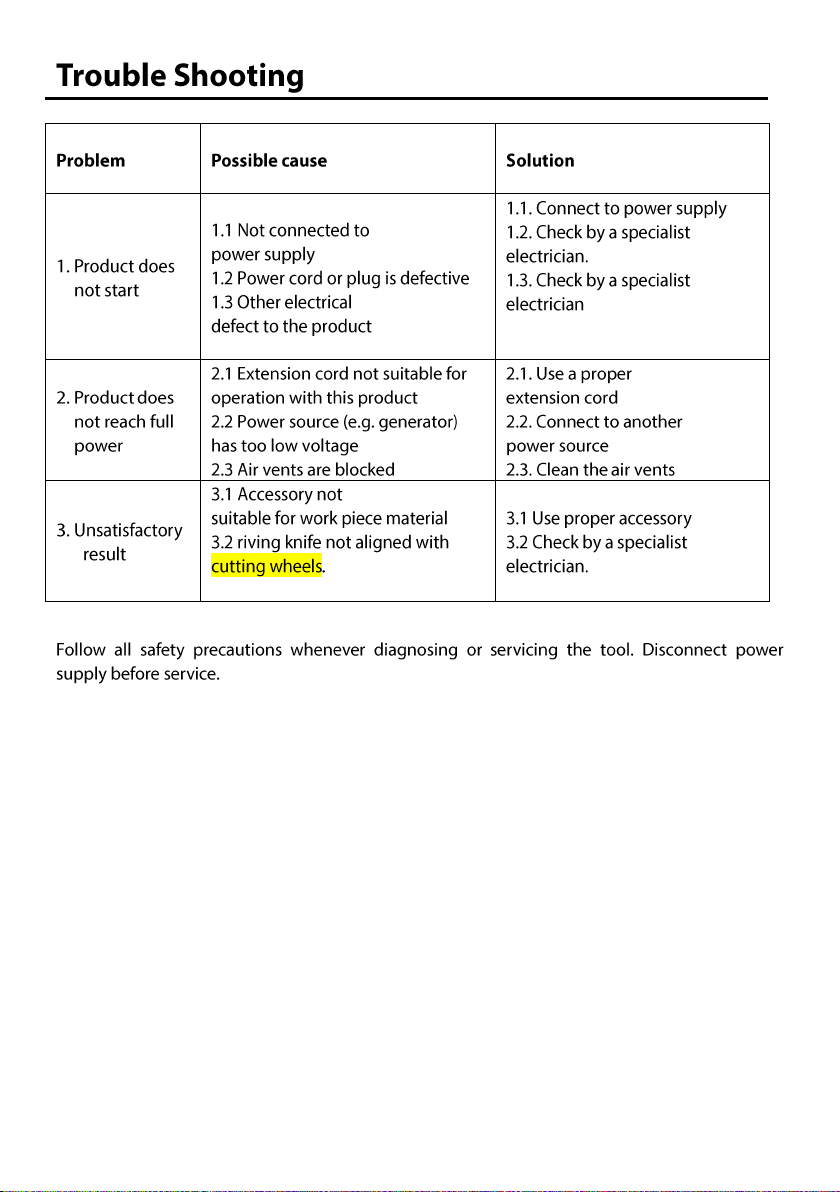

Be environmentally friendly. Return the tool, accessories and packaging to a recycling
center when you have finished with them.
Machines are not to be place with domestic waste.
Hand over the device at a utilization location. The plastic and metal parts employed
can be separated out into pure materials and recycling can be implemented. Ask
your Service Center about this. Defective units returned to us will be disposed of for
free.

No
Name
Qty
N
o
Name
Qty
.

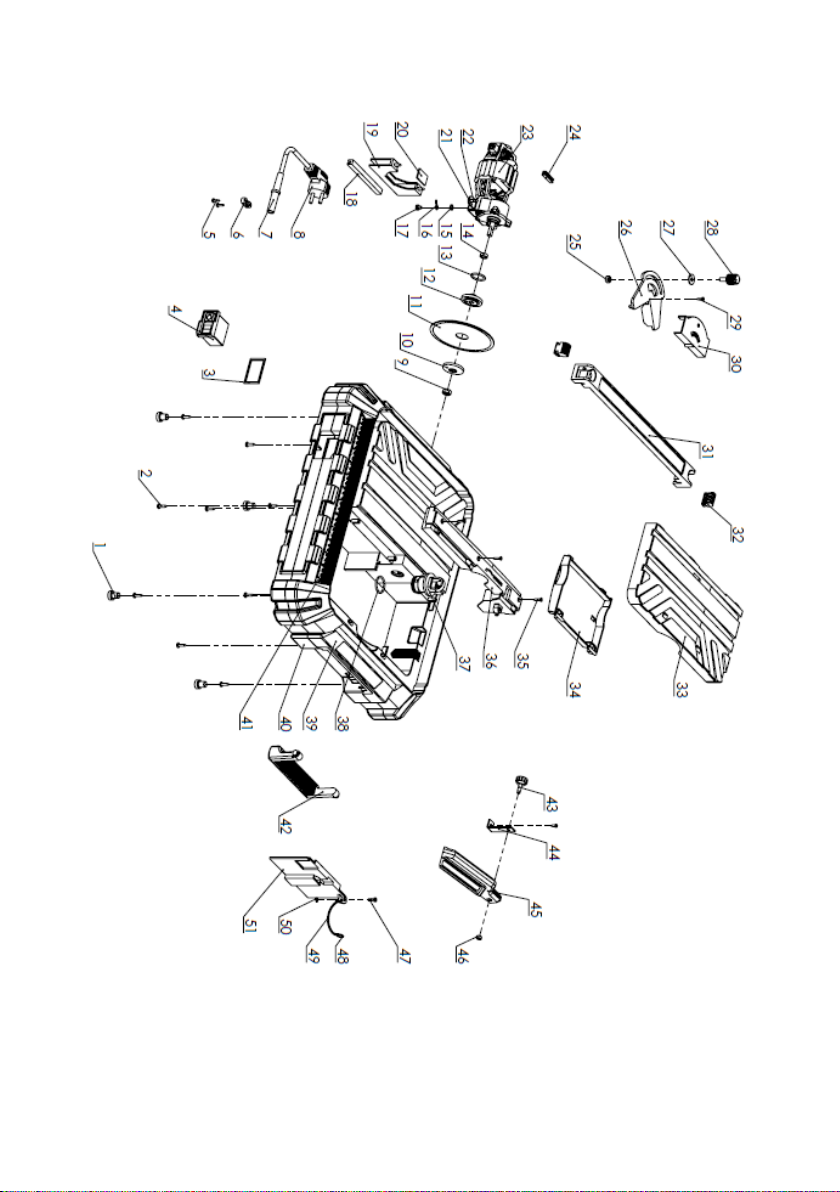

1
Rubber Feet
4
27
Flat washer Φ6*18
1
2
Self-tapping screws
ST3.5*16
9
28
knob M6*17
1
3
Rubber mat of switch
1
29
Self-tapping screw ST2.9*13
1
4
Switch
1
30
Ruler seat
1
5
Self-tapping screws
ST2.9*12
4
31
Fence
1
6
Small bridge support
1
32
Guide clamp of parallel stop
2
7
Outlet hose
1
33
Work table
1
8
Power cord and plug
1
34
Supporter for work table
1
9
Nut M8
1
35
Countersunk head screw
ST2.9*16
3
10
Outer Flange
1
36
Movable table
1
11
Cutting wheel
1
37
Drainplug
1
12
Inner flange
1
38
O style ring 25*2.65
1
13
O style ring 21.2*2.65
1
39
Upper frame body
1
14
Cushion cover of inner
flange
1
40
Bottom frame body
1
15
Out-teeth washer Φ5
1
41
Measuring scale
1
16
Grounding piece Φ5
1
42
Handle
1
17
Cross two combined screw
spring washer
1
43
Screw of upper cutting wheel
protect cover
1
18
Longer block
1
44
Riving Knife
1
19
Plate of stator
1
45
Protect upper cover of cutting
wheel cover
1
20
Cushion sheet
1
46
Nut M5
1
21
Fixed plate of motor
1
47
Screw M4*12
1
22
Two combined self-tapping
screw ST4.2*16
4
48
Ring Φ10
1
23
Motor
1
49
Chain
1
24
Drainplug
1
50
Stop piece
1
25
Nut M6
1
51
Protect bottom cover of cutting
wheel cover
1
26
Ruler
1
