Chauvet DJ LED Followspot 75ST User manual

LED Followspot
75ST

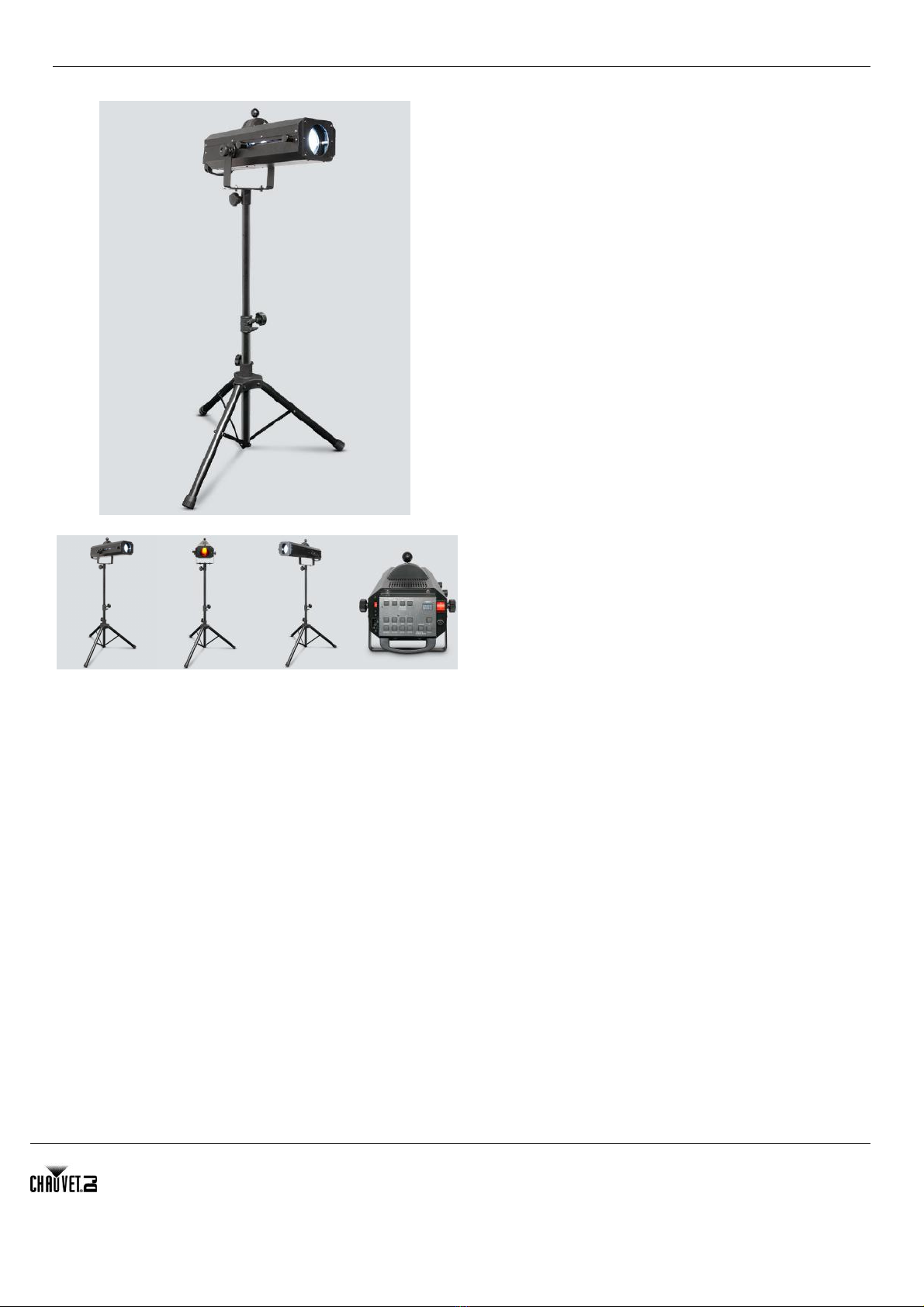

This portable, LED-powered followspot is equipped with a
75-watt white LED for a hardedge, focused beam. Easy to set
up and tear down, LED Followspot 75ST comes with an
included tripod. Extremely fast electronic strobe delivers
silent operation with no moving parts. Super smooth LED
dimming makes professional fading a breeze, while a single
gobo slot projects crisp patterns onto any surface.
© 2018 CHAUVET DJ. All rights reserved.
https://www.chauvetdj.com
https://www.chauvetdj.eu
https://www.chauvetdj.mx

Highlights
Portable, LED followspot emits a focused beam with a sharp edge
Set up and tear down in seconds with the included tripod
Increase flexibility with DMX and manual control options
A great option for small clubs and auditoriums
Simplify professional fading with smooth LED dimming
Deliver silent operation with fast electronic strobe and no moving parts
Project crisp patterns onto any surface using the single gobo slot
Focus the light where it is needed using the mechanical iris to reduce the beam’s
diameter
© 2018 CHAUVET DJ. All rights reserved.
https://www.chauvetdj.com
https://www.chauvetdj.eu
https://www.chauvetdj.mx

LED Followspot 75ST User Manual Rev. 6 Page 13 of 14
Technical Specifications
Dimensions and
Weight
Length
Width
Height
Weight
22 in (560 mm)
10.8 in (276 mm)
11.5 in (292 mm)
13.3 lb (6 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type
Range
Voltage Selection
Switching (external)
120/230 VAC, 50/60 Hz
Switchable
Parameter
120V, 60Hz
230V, 50Hz
Consumption
215 W
220 W
Operating
1.8 A
1 A
Fuse
F 2 A, 250 V
F 2 A, 250 V
Power I/O
US/Canada
UK/Worldwide
Power input connector
IEC
IEC
Power Cord plug
Edison (US)
Local plug
Light Source
Type
Power
Lifespan
LED
75 W
50,000 hours
Color
Quantity
Current
White
1
18 A
Photo Optic
Parameter
Narrow Lenses
Illuminance @ 2 m (14°)
8,140 lux
Illuminance @ 2 m (20°)
4,650 lux
Strobe rate
0–16 Hz
Iris (min)
5° (at tightest zoom)
Zoom angle
14° to 20º
Gobo size 23.7 mm outside 21.3 mm image
1 mm max thickness
Thermal
Maximum External Temp.
Cooling System
104 °F (40 °C)
Fan-assisted
DMX
I/O Connectors
Connector Type
Channel Range
3-pin XLR
Sockets
3
Ordering
Product Name
Item Code
UPC Number
LED Followspot 75ST
08040503
781462208554

LED Followspot 75ST QRG EN
3
Description
The LED Followspot 75ST is a portable, LED-powered fixture that offers DMX
or manual controls to suit a variety of needs. Super smooth LED dimming and an
extremely fast electronic strobe makes it a fantastic beam for any performance.
Project crisp patterns onto any surface using the single gobo slot.
Overview
AC Power
This product has a switchable power supply that can work with an input
voltage of 120 VAC or 230 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use
completely disconnect from power via breaker or by unplugging it.
Fuse
Replacement
1. Disconnect the product from power.
2. Using a flat-head screwdriver, loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the
exact same type and rating.
4. Re-insert the fuse holder and reconnect power.
Focus Lens
Adjustment
Knobs
Button Menu
Control Panel
Iris Adjustment
Bracket Adjustment Knob
DMX In/Out
Power In
Mounting Bracket
On/Off Switch
Gobo Holder
(internal)
Gel Frame Holder

LED Followspot 75ST QRG EN
4

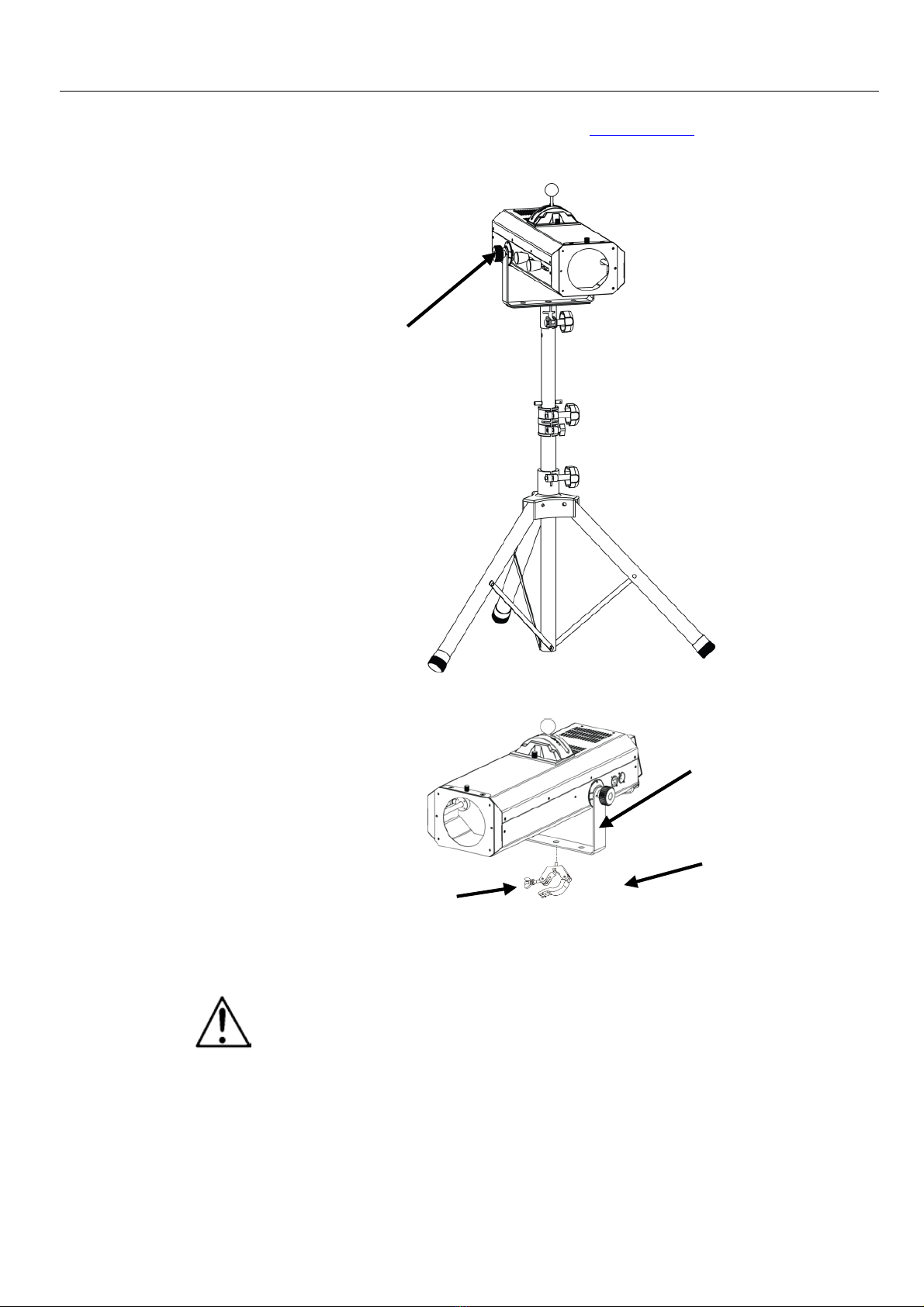

Mounting
Before mounting this product, read the Safety Notes
and refer to the user
manual.
Mounting
Diagram
The alternative
truss mounting is recommended for static installation
only. While using the truss mounting, be sure to continuously check and
secure the rigging points, expecially if repositioning the
LED Followspot 75ST.
Mounting Clamp
(such as CLP-15 or CLP-15N
clamp from Chauvet)
Safety Cable
(such as CH-05
from
Chauvet)
Alternative Truss
Mounting
Surface
Mounting
Mounting Bracket
Bracket Adjustment Knob

LED Followspot 75ST QRG EN
5
Programming
For details on how to program this product, please refer to the product’s Us
er
Manual.
Control Panel
Description
Button Function
<POWER SWITCH>
Turns power on and off
<DIMMER MAX>
Opens dimmer to a maximum of 100%
(hold to raise percentage)
<DIMMER MIN>
Closes dimmer to a minimum of 0
(hold to lower percentage)
<SHUTTER ON>
Turns LED on (default setting)
<BLACK OUT>
Turns LED off
<ORANGE>
Projects orange color
<CYAN>
Projects cyan color
<RED>
Projects red color
<GREEN>
Projects green color
<MAGENTA>
Projects magenta color
<YELLOW>
Projects yellow color
<BLUE>
Projects blue color
<WHITE>
Projects white light
<FUNCTION SELECT>
Selects manual or DMX mode
<UP>
In DMX mode, moves channel number up
<DOWN>
In DMX mode, moves channel number down

LED Followspot 75ST QRG EN
6
Menu Options
Main Level Programming Levels Description
Manual Mode
NAn
Selects Manual mode
DMX Address
001
001–512
Sets the DMX starting address
DMX Linking
The LED Followspot 75ST can work with a DMX controller when linked by
DMX serial connections.
Instructions for connecting and configuring this
product for DMX operation are in the User Manual.
If you are not familiar
with DMX, download the DMX Primer from www.chauvetlighting.com.
Starting
Address
To ensure full access to all channels in each DMX mode, the highest
recommended DMX address is 510.
Master/Slave
Connection
The LED Followspot 75ST uses the DMX data connec
tion for its
Master/Slave mode. Instructions for connecting and configuring this product
for Master/Slave operation are in the User Manual.
DMX Values
3-CH
Channel Function Value Percent/Setting
1
Dimmer
000 ó255
0–100%
2 Color
000 ó031
White
032 ó063
Dark blue
064 ó095
Yellow
096 ó127
Purple
128 ó159
Green
160 ó191
Red
192 ó223
Light blue
224 ó255
Orange
3 Strobe
000 ó003
No function
004 ó007
Open
008 ó215
Strobe, slow to fast
216 ó255
Open

Page 14 of 14 LED Followspot 75ST User Manual Rev. 6
