Contents
Operating Manual
Technical Manual
Service Manual

CONNY II T11007
General Information
2 D594.131.00/03 en
General Information
– The product bears the CE-mark "CE 0124"
in accordance with the Council Directive
93/42/EEC about Medical Devices and fulfills
the essential requirements of Annex I of this
directive. The product is a class IIb device
(MDD).
– The product was granted the type approval for
legal calibration in accordance with § 40 of
the Austrian Measurement and Verification Act
(Maß- und Eichgesetz, MEG) by the Austrian
Federal Office of Metrology and Surveying
(Bundesamt für Eich- und Vermessungswe-
sen, BEV) in Vienna. For detailed information,
refer to section "Technical Specifications".
–Product standards
The product fully complies with the require-
ments of the following standards:
– IEC 61674
–Electrical Safety
The product fully complies with the require-
ments of the following standards:
– IEC 61010-1
–Electromagnetic compatibility
The product fully complies with the require-
ments of the following standards:
– IEC 61326-1
– The user manual is an integral part of the prod-
uct. It should always be kept near the product.
Observance of the manual is a prerequisite for
proper product performance and correct oper-
ation.
– Operator safety, specified measuring accu-
racy, and interference-free operation can
only be guaranteed if original products and
parts are used. Furthermore, only the acces-
sories listed in this manual are approved by
PTW-Freiburg and only they or other acces-
sories whose use has been expressly permit-
ted by PTW-Freiburg may be used in con-
junction with the product. Safe operation and
proper product performance are not guaran-
teed if accessories or consumables from other
manufacturers are used.
– PTW-Freiburg cannot be held liable for dam-
age resulting from the use of accessories
or consumables from other manufacturers or
when the user ignores the instructions and
information given in this manual.
– The warranty period is 1 (one) year and begins
on the day of delivery. It is unaffected by
repairs covered by the warranty regulations.
– PTW-Freiburg only considers itself responsi-
ble for the safety, reliability, and performance
of the product if the assembly, extension, read-
justment, modification, or repair is carried out
by PTW-Freiburg or by persons authorized by
PTW-Freiburg, and if the product is used in
compliance with the technical documentation.
– In case of any questions concerning the ser-
vice, support, or warranty, please contact your
supplier.
– This manual is in conformity with the product
specifications and all applicable safety stan-
dards that are valid as at the printing date. All
rights are reserved for devices, circuits, tech-
niques, software, and names as referred to in
the manual.

CONNY II T11007
General Information
D594.131.00/03 en 3
– PTW-Freiburg reserves the right to make mod-
ifications.
Please contact PTW or your local representa-
tive for the most current information concern-
ing the products of interest.
– No part of the technical documentation may
be reproduced without written permission from
PTW-Freiburg.
– PTW-Freiburg is a registered manufacturer
according to the ElektroG (Elektro- und Elek-
tronikgeräte-Gesetz).
Elektro-Altgeräte-Register (EAR). Registration
number DE15599992
– PTW-Freiburg works in strict accordance with
a quality management system that is contin-
uously updated according to the national and
international standards.
PTW-Freiburg
Physikalisch-Technische Werkstätten
Dr. Pychlau GmbH
Lörracher Str. 7
79115 FREIBURG
Germany
Tel.: [phone]
Fax: [phone]
[e-mail]
www.ptw.de

CONNY II T11007
Table of Contents
4 D594.131.00/03 en
Table of Contents
General Information........................................................................................................2
Table of Contents........................................................................................................... 4
List of Figures.................................................................................................................5
Intended Use................................................................................................................... 6
Safety Information.......................................................................................................... 7
Operating Manual...........................................................13
1 Device Description.................................................................................................... 13
2 Putting into Operation.............................................................................................. 16
3 Measuring...................................................................................................................17
4 Error Messages......................................................................................................... 20
Technical Manual........................................................... 21
5 Technical Specifications.......................................................................................... 21
Service Manual...............................................................25
6 Cleaning......................................................................................................................25
7 Preventive Maintenance........................................................................................... 26
8 Inserting Batteries.....................................................................................................28
9 Disposal of the Product........................................................................................... 29
Literature........................................................................................................................30
Index...............................................................................................................................31

CONNY II T11007
List of Figures
D594.131.00/03 en 5
List of Figures
Figure 1: Definition of the patient environment...............................................................................................12
Figure 2: CONNY II, front panel..................................................................................................................... 15
Figure 3: Detector of the CONNY II............................................................................................................... 16
Figure 4: Preferred direction of radiation........................................................................................................ 17
Figure 5: Attaching the detector to the NORMI MAM analog test object....................................................... 18
Figure 6: Battery compartment on the back of the device............................................................................. 28

CONNY II T11007
Intended Use
6 D594.131.00/03 en
Intended Use
The CONNY II diagnostic dosemeter is a dose
and dose rate meter for constancy tests of X-ray
installations in diagnostic radiology.
CONNY II is suitable for constancy test of medical
X-ray installations for radigraphy, fluoroscopy and
mammogrphy.
Note: In the United States, federal law restricts
this device to sale by or on the order of
a physician.

CONNY II T11007
Safety Information
D594.131.00/03 en 7
Safety Information
This is the safety alert symbol. It is used
to alert the user to potential hazards.
Obey all safety messages that follow this
symbol to avoid any possible bodily injury
or equipment damage.
All safety messages consist of the following com-
ponents:
– Safety alert symbol and signal word
– Type of danger
– Source of danger
– Consequence
– Measures to prevent hazards.
Signal Words
DANGER
Indicates an imminent hazard. If not avoided,
the hazard will result in death or serious injury.
WARNING
Indicates a hazard. If not avoided, the hazard
can result in death or serious injury.
CAUTION
Indicates a potential hazard. If not avoided, the
hazard can result in minor or moderate injury.
NOTICE
Indicates a potential hazard. If not avoided, the
hazard can result in product damage.
HINT
Provides application tips or other useful infor-
mation to ensure that you get the most from
your equipment.

CONNY II T11007
Safety Information
8 D594.131.00/03 en
Safety Information
Strictly observe the following safety informa-
tion concerning the signal words DANGER and
WARNING. Failure to do so endangers the lives
of the patient, user, and other persons involved.
DANGER
Operation in areas where an explosion may
occur or in oxygen-enriched atmospheres.
Explosion Hazard!
Do not operate the product in areas of risk
where an explosion may occur. Explosion
hazards may be caused, for example, by the
use of combustible anesthetics, skin-cleansing
agents, and disinfectants.
Do not operate the product in oxygen-
enriched atmospheres. The atmosphere is
considered to be oxygen-enriched when more
than 25 % of oxygen or nitrous oxide is added
to the ambient air.
DANGER
Electricity is a source of risk, particularly when
the product is not in perfect operating condition
or when it is operated inappropriately.
Shock Hazard!
– Before using the product, verify that it is in
correct working order and operating condi-
tion.
– Before putting the product into operation,
inspect all connection cables, connectors,
housing, and covers for signs of damage.
Replace damaged cables and connectors
immediately.
DANGER
Electricity is a source of risk, particularly when
the product is not in perfect operating condition
or when it is operated inappropriately.
Shock Hazard!
– Switch on products on which moisture con-
densation has developed as a result of tem-
perature changes only after they are com-
pletely dry.
– Liquids must not enter the product. If liquids
have entered the product, dry the product
or wait for it to dry completely. The prod-
uct must be thoroughly inspected by service
personnel before being used again.
– Do not use extension cords.

CONNY II T11007
Safety Information
D594.131.00/03 en 9
DANGER
Electricity is a source of risk, particularly when
the product is operated inappropriately.
Shock Hazard!
Exclusion of operation in the patient envi-
ronment:
Do not operate the product nor any periph-
eral devices in the patient environment (see

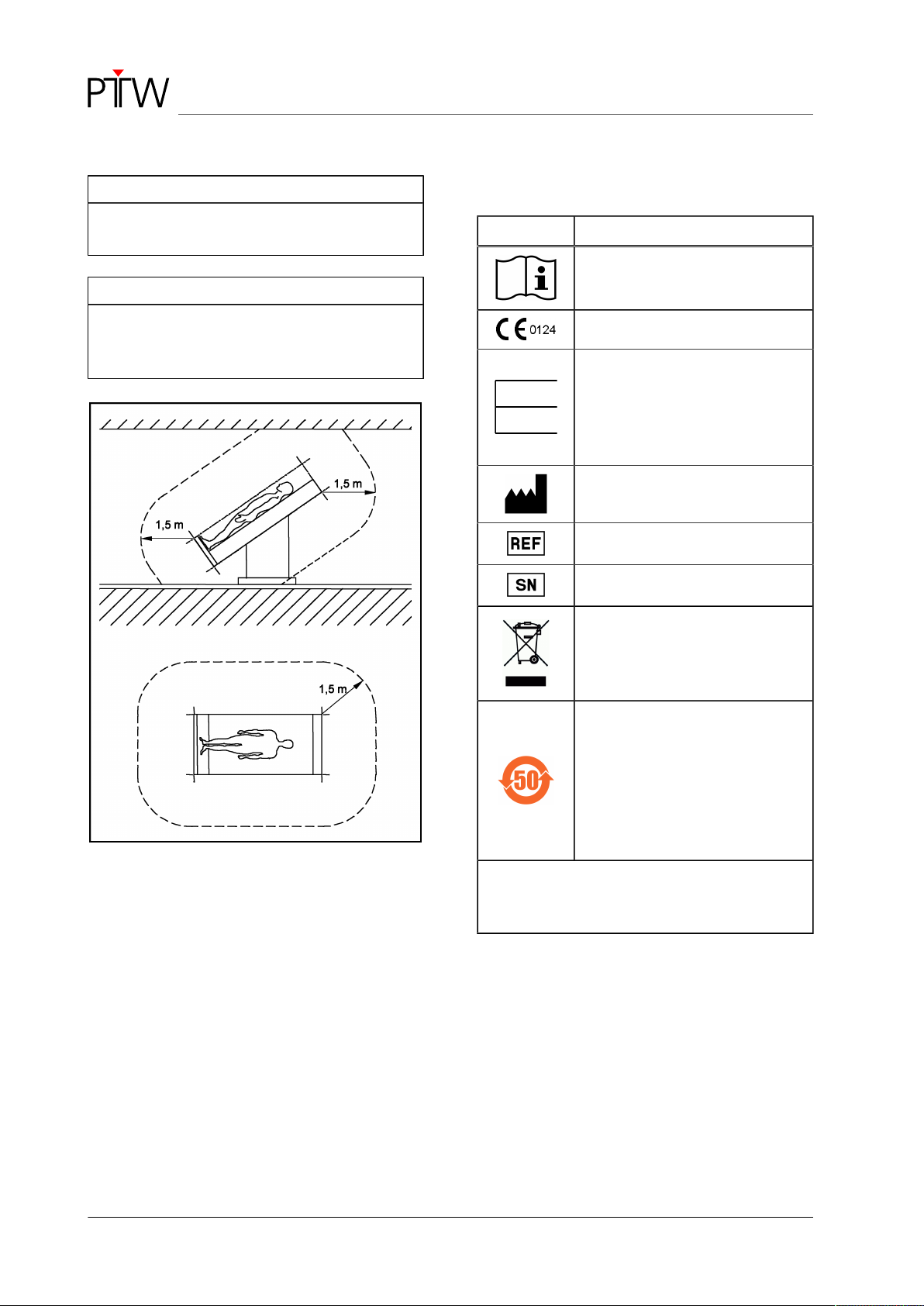

Figure 1).
Exclusion of operation with patient contact:
The product is not intended for use in direct
contact with the patient. Ensure that neither the
product nor any peripheral devices come into
contact with the patient.
DANGER
Electricity is a source of risk, particularly when
the product is operated inappropriately.
Shock Hazard!
Use of peripheral devices:
Connect only peripheral devices (PC, printer)
that meet the requirements of the standard
IEC 60950-1 (UL 60950-1) or the standard
IEC 61010-1.
Connect devices to other devices or to parts
of systems only if it has been ascertained that
this connection does not impair the safety of the
patient, the operator, or the environment.
If the device specifications do not contain infor-
mation regarding the connection of the device
to other equipment, consult, for example, the
manufacturers of the other equipment or other
informed experts to verify that the connection
does not impair the safety of the patient, oper-
ator, or environment. Always observe the stan-
dard IEC 61010-1.

CONNY II T11007
Safety Information
10 D594.131.00/03 en
WARNING
Improper handling.
Hazards to Persons!
The product is a medical device and must
only be handled by persons who are trained
in the use of such equipment and are capable
of applying it properly. The operator must be
trained in the use and operation of the product.
WARNING
Magnetic and electrical fields are capable of
interfering with the proper performance of the
product.
Product Failure!
– When operating the product, make sure that
all external devices operated in its vicin-
ity comply with the relevant EMC require-
ments. X-ray equipment, MRI devices, radio
systems, cell phones, etc. are possible
sources of disturbance as they may emit
higher levels of electromagnetic radiation.
Keep the product away from these devices
and verify its performance before use.
– Do not use cables longer than specified.
This might impair the electromagnetic com-
patibility characteristics of the product.
– Do not use the product in the immedi-
ate vicinity or placed on top of or below
other equipment. However, if the applica-
tion requires an arrangement of devices
as described above, the product should be
monitored in order to ensure its proper func-
tioning in the specific arrangement.
– Make sure that the product is used in an
electromagnetic environment as described
in IEC 61326-1.
WARNING
Radiation is a source of risk, particularly when
the product is operated inappropriately.
Risks to Persons!
Exclusion of operation as a controlling
instrument:
Use the product as a measuring device only. Do
not use measuring results to control an equip-
ment that produces radiation, e.g., a radiodiag-
nostic equipment or a radiotherapy unit.
WARNING
Application for uses other than those stated in
the user manual.
Bodily Injury! Equipment Damage!
Always apply the product in compliance with its
intended use.
Failure to do so may lead to severe or even fatal
injuries and/or equipment damage and may
void the warranty.
WARNING
Hazards originating from other system compo-
nents.
Hazards to Persons! Equipment Damage!
Observe the safety information provided in the
user manuals of the system components.

CONNY II T11007
Safety Information
D594.131.00/03 en 11
CAUTION
Use of the product without observing the user
manual.
Bodily Injury! Equipment Damage!
Always use the product in compliance with the
user manual. Otherwise, the provided protec-
tion may be impaired.
Use the product only in conjunction with
the products approved by PTW for this pur-
pose and/or the products listed in the section
"Intended Use".
Use the product within the rated range of use
as indicted in the section "Technical Specifica-
tions".
Handle the product with care.
NOTICE
To avoid damage to the cables and connectors,
observe the following points:
– Do not kink the cables. Observe the stated
minimum bend radius of the cables. Never
exert pressure on the cables. Do not step
on the cables. Do not roll trolleys over the
cables. Do not pull or twist the cables.
– Disconnect the cables from the devices dur-
ing transport and when the devices are not
in use. Do not let the cables hang down
unrestrained.
– The connectors must always be clean. Do
not allow connectors to lie on the floor.
Always protect connectors when pulling
them through cable conduits.

CONNY II T11007
Safety Information
12 D594.131.00/03 en
HINT
Observe the user manuals of all connected
devices!
HINT
Set up the device so that the operator has a
clear, unobstructed view of the indicators and
controls and can operate the controls easily.
Figure 1: Definition of the patient environment
Symbols on the Nameplate
Symbol Description
Refer to the user manual!
The product bears the CE-mark.
OE YY
i XXX
The product was granted the
type approval for legal calibra-
tion under Austrian law. For
detailed information, refer to sec-
tion "Technical Specifications".
Manufacturer and date of manu-
facture
Reference number
Serial number
Separate collection for electrical
and electronic equipment!
(refer also to the section "Dis-
posal of the Product")
Labeling according to
"Administration on the Con-
trol of the Pollution caused by
Electronic Information Products
(ACPEIP)"
(China RoHS)
(refer also to the "Appendix")
For a description of additional symbols, if
applicable, please refer to the equipment
description.

CONNY II T11007
Operating Manual - Device Description
D594.131.00/03 en 13
Operating Manual
1 Device Description
1.1 Application
The diagnostic dosemeter CONNY II is suitable
for measurements free in air or at the radiation
entrance side of the test object.
The CONNY II can be used with medical
X-ray equipment for radiography, fluoroscopy,
and mammography (anode-filter combinations:
W/2.5 mm Al at 70 kV and 100 kV as well as with
Mo/30 µm Mo at 30 kV).
The CONNY II can be used for image quality
assurance in diagnostic X-ray departments for
constancy tests according to DIN 6868-3, -4, -7,
and -13. For this purpose, a test object comply-
ing with the requirements of the standards shall
be placed in the path of the X-rays, and the dose
occurring at the radiation entrance side of the test
object during radiography shall be measured. At
X-ray systems used for fluoroscopy, the dose rate
at the radiation entrance side of the test object
shall be determined by measuring the dose for a
defined period of time.
When operated within the rated range of use, the
CONNY II fulfills the requirements for diagnostic
dosemeters set forth in IEC 61674.
The CONNY II consists of a battery operated
electrometer and an undetachable semiconductor
detector.
It can be used in combination with test objects of
the NORMI series.

CONNY II T11007
Operating Manual - Device Description
14 D594.131.00/03 en
1.2 Features
The CONNY II consists of a battery operated elec-
trometer with a connected semiconductor detec-
tor.
During a measurement, the measuring quantity
chosen before starting the measurement is dis-
played. After termination of the measurement the
measured dose, the mean dose rate or irradiation
time can be displayed.
Features:
– Battery operated measuring instrument with
voltage monitoring (LOW BAT message)
– Display of the firmware version for approx. 2 s
after switching on the device
– Automatic zeroing after switching on the
device
– Auto start and Auto reset functions
– Toggling between the 30 kV and 70/100 kV
voltage range possible
– Two measuring ranges (LOW and HIGH);
manual selection of a measuring range
– Display of the measuring quantity selected
with MODE during the measurement
– After termination of the measurement: display
of the measured dose, mean dose rate or irra-
diation time by toggling with the MODE key
– Display of a mean dose rate value for irradia-
tion times of more than 8 s
– Measures Gy, Gy/s and s
– Over range message (OL)
– Auto-Shutoff after 5 min without irradiation or
key operation

CONNY II T11007
Operating Manual - Device Description
D594.131.00/03 en 15
1.3 Operating Controls and Indicators

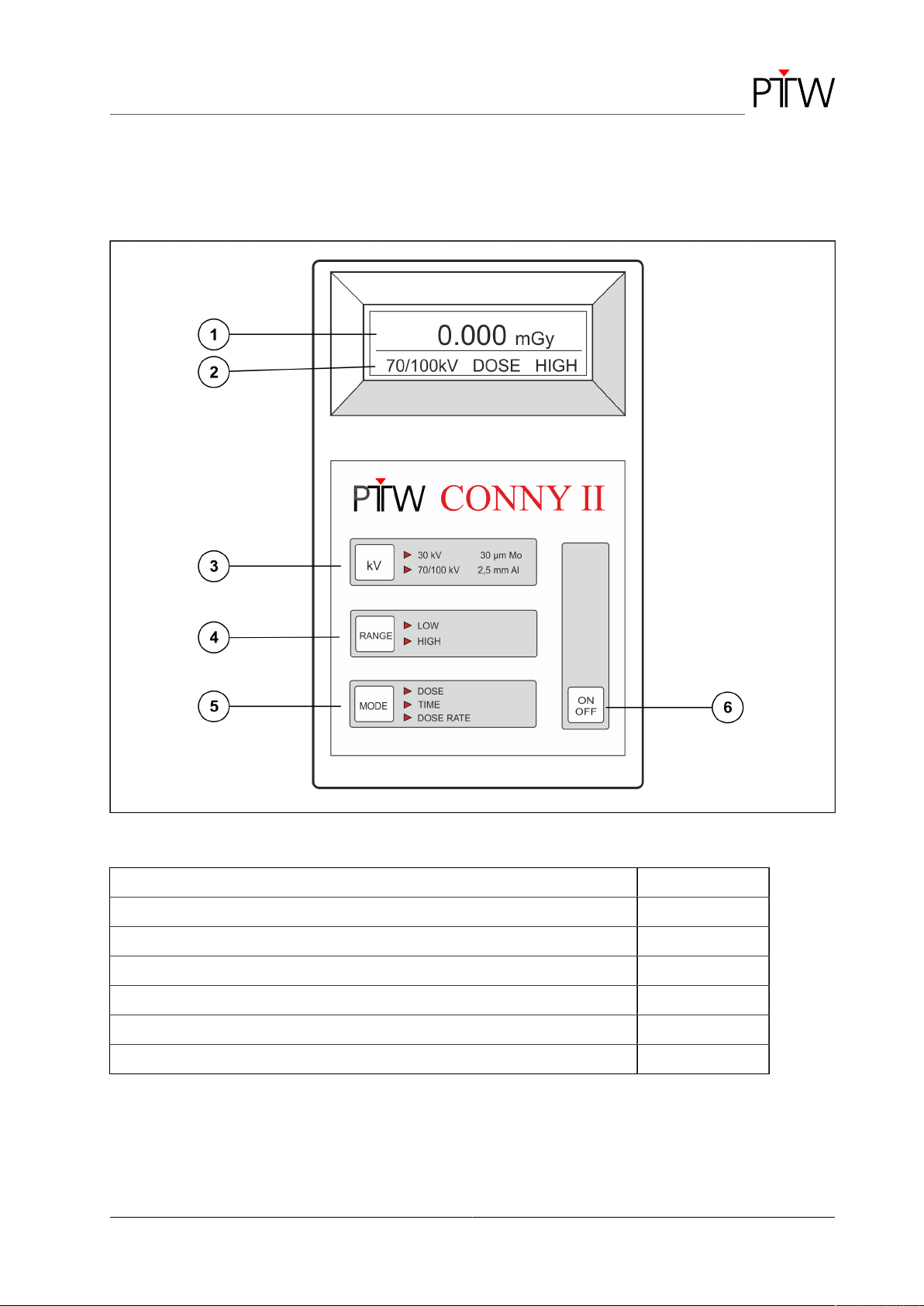

Figure 2: CONNY II, front panel
Operating controls and indicators Symbol
1Display of the measuring value and unit ---
2Display of selected kV range, measuring mode and measuring range ---
3Key for selection of the kV range kV
4Key for selection of the measuring range RANGE
5Key for selection of the measuring mode MODE
6Key to turn on or to switch off the device ON / OFF

CONNY II T11007
Operating Manual - Putting into Operation
16 D594.131.00/03 en

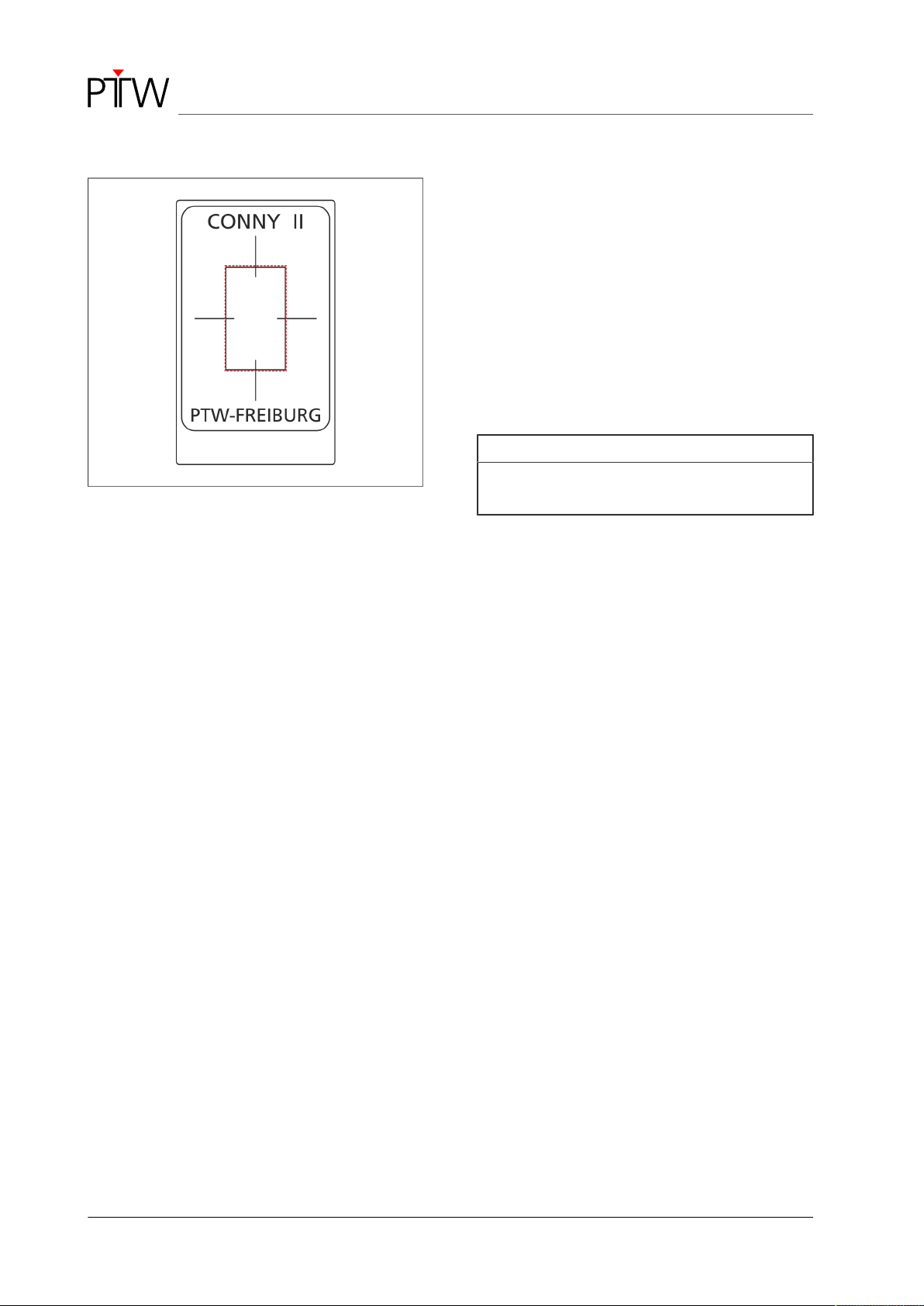

Figure 3: Detector of the CONNY II
2 Putting into Operation
The CONNY II is battery operated and features a
voltage monitoring function. If the battery voltage
decreases below a lower limiting value the device
switches off automatically. The battery lifetime for
continuous operation is approximately 18 hours.
A battery symbol appears behind the measuring
value approximately 3 hours before the auto shut-
off.
HINT
When rechargeable batteries are used the
LOW BAT message is displayed earlier.
Switching on
•Turn the CONNY II on with the ON/OFF switch.
➔During the display of the firmware version,
all measuring ranges are zeroed automati-
cally.
➔After zeroing, the CONNY II is ready for
operation.
➔Default values:
Radiation quality: 70/100 kV
Measuring range: HIGH
Measuring mode: DOSE
Start a measurement by irradiating the detector
(refer to 3 "Measuring ").
The CONNY II features an auto shutoff function
which switches off the device after 5 min without
irradiation or key operation.

CONNY II T11007
Operating Manual - Measuring
D594.131.00/03 en 17
3 Measuring
3.1 General Information
Default settings
After power-up, the following default values are
preset in the CONNY II:
– Radiation quality: 70/100 kV
– Measuring range: HIGH
– Measuring mode: DOSE
Before starting a measurement, the defaults can
be adapted to the measuring conditions with the
kV, RANGE, and MODE keys.
– Fluoroscopy:
measuring range LOW (5 µGy/s ... 3 mGy/s)
– Radiograpy:
measuring range HIGH (0.5 ... 300) mGy/s
Measuring quantities
The CONNY II can be used to measure the fol-
lowing measuring quantities:
– air kerma rate (dose rate mode)
– air kerma (dose mode)
– time (irradiation or exposure time)
Measuring ranges, refer to 5 "Technical Specifi-
cations"
Detector
The detector of the CONNY II can be attached to
the test object by means of the supplied reclos-
able fastener. The detector surface must be irra-
diated perpendicularly (Figure 4), and the entire
detector must be located in the radiation beam.

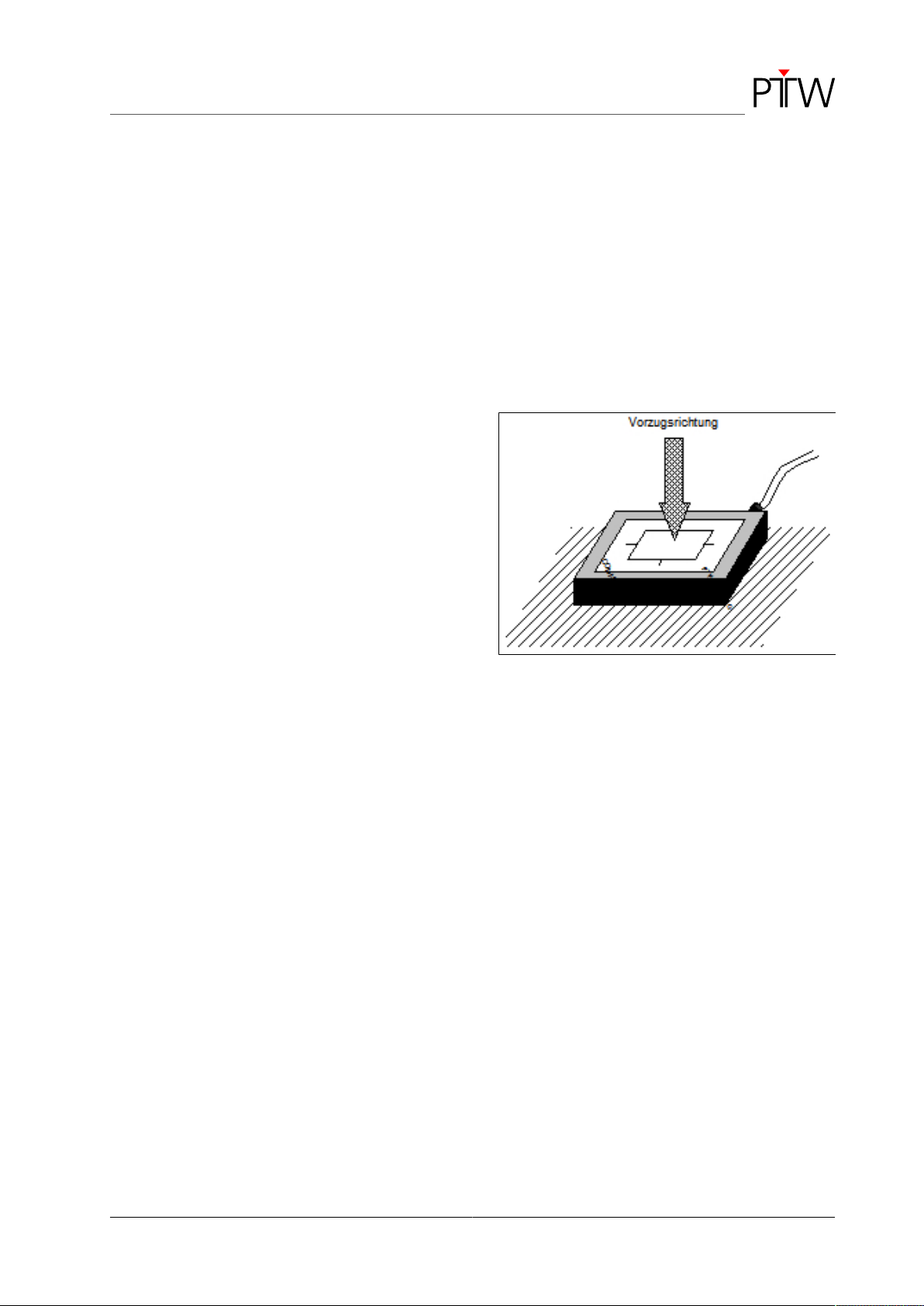

Figure 4: Preferred direction of radiation
When fastening the detector to the test object,
take care not to cover measuring areas or test
structures with the detector cable.

CONNY II T11007
Operating Manual - Measuring
18 D594.131.00/03 en

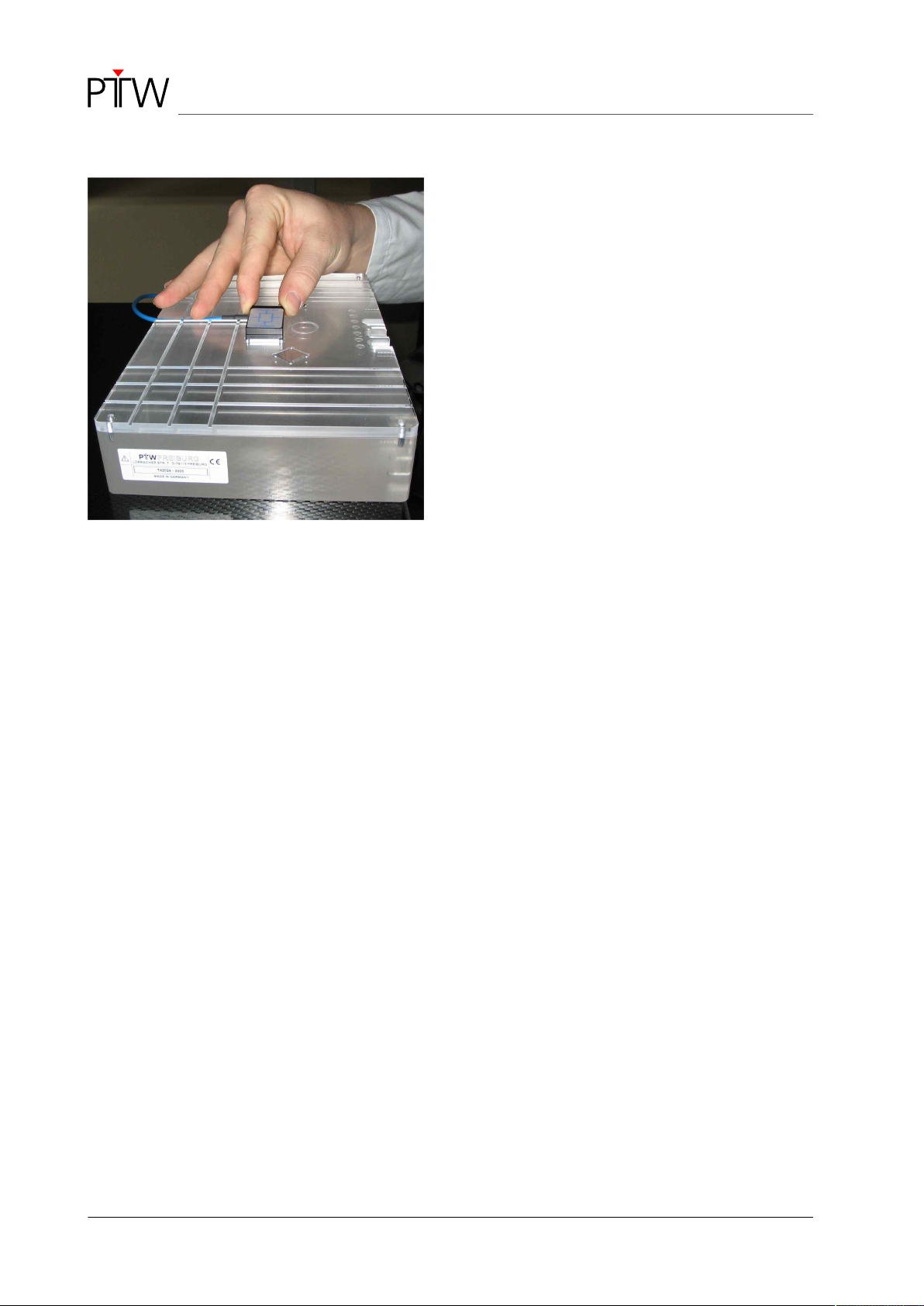

Figure 5: Attaching the detector to the NORMI
MAM analog test object
3.2 Performing a
Measurement
•Place the CONNY II on the patient couch
outside the radiation beam and fold out the
bracket at the back of the device if necessary.
•Before the measurement, attach the detector
of the CONNY II to the test object. The detec-
tor must be irradiated perpendicularly, and it
must be completely located in the radiation
beam; the reference point is at the center of
the entrance window.
•Use the ON/OFF switch to turn the CONNY II
on; at the same time, all measuring ranges will
be zeroed automatically.
•Adapt the preset parameters to the measur-
ing conditions with the kV, RANGE, and MODE
keys.
– Measuring range for fluoroscopy:
LOW (dose rates in the range from
5 µGy/s to 3 mGy/s)
– Measuring range for radiography:
HIGH (dose rates in the range from
0.5 to 300 mGy/s)
•Start a measurement by exposing the detector
to radiation. The CONNY II features an auto-
start function, which means that a measure-
ment will start automatically when the detector
detects radiation. The zero adjustment of the
last switch-on will be taken into account.

CONNY II T11007
Operating Manual - Measuring
D594.131.00/03 en 19
Measurement readout
While a measurement is in progress, the keyboard
of the device is locked and the parameter set with
the MODE key is displayed. For the duration of the
measurement, the letter M is visible in the upper
left of the display.
HINT
About dose rate measurements:
If the selected measuring quantity is dose rate,
the mean dose rate will be displayed first after
the radiation is switched off. The first and the
last 3 seconds of the measuring interval are not
included in the calculation.
The minimum measuring time is 8 seconds
(effective measuring time of 2 s + waiting period
of 2 x 3 s that is not taken into account).
The value is averaged over a maximum of
20 seconds (tend –23 s to tend – 3 s). Before
the minimum measuring time is reached, the
flashing label "Time" will be displayed in addi-
tion to the dose rate. If a measurement is termi-
nated during this period, the readout is reset to
0.00 mGy/s. If the measurement takes longer,
the message "Time" will be displayed perma-
nently. After the end of the measurement, the
mean dose rate will be displayed with the label
"mean".
The measured value should always be displayed
with a minimum resolution of 1 % (100 digit). If
this resolution is not available in the HIGH mea-
suring range, switch to the LOW measuring range.
If measurements in the LOW measuring range
exceed the maximum dose rate, a condition indi-
cated by the message OL, switch to the HIGH
measuring range.
Interrupting a measurement
If a measurement is interrupted for less than
3 seconds, it will continue after the interruption. If
the interruption lasts longer than 3 seconds, the
measurement will be canceled and the current
measured value will be displayed. If a measuring
signal becomes available again afterwards, the
readout will be reset to zero and a new measure-
ment will be started (auto-reset). The values of the
previous measurement are no longer available in
this case!
Terminating a measurement and reading the
measured values
After the measurement, the measured parame-
ters dose, dose rate, and time can be displayed by
pressing the MODE key. The last parameter set
with the MODE key will be displayed during the
next measurement if the device remains switched
on.
The CONNY II features an auto-shutoff function,
which means that the device switches off if no
radiation is detected and no key is pressed for a
period of 5 minutes.
HINT
All measured values will be lost when the
CONNY II is switched off. Therefore, be sure to
read off the measured values within 5 minutes
after the measurement!

CONNY II T11007
Operating Manual - Error Messages
20 D594.131.00/03 en
4 Error Messages
Mes-
sage
Position on the display Remarks
OL instead of the measuring value dose measurement:
over range of the (dose) range (9.999 Gy),
max. dose rate in the measuring range exceeded
dose rate measurement:
during over range of the dose rate range
time measurement:
over range of the (time) range (999.9 s); measurement of
dose and dose rate still possible
L-Err instead of the measuring value
(only irradiation time measure-
ment)
irradiation time measurement not possible because signal
is too low, an estimated value for the irradiation time is dis-
played
T-Err instead of the measuring value
(only irradiation time measure-
ment)
irradiation time measurement not possible (no rectangular
pulse)
E1 upper left part zeroing not possible (e.g. irradiation during switching on)
E2 upper left part calibration factor exceeds the limit
E3 upper left part check sum error;
send the CONNY II back to PTW-Freiburg for repair
